ROL::TrustRegionModel< Real > Class Template Reference

Provides the interface to evaluate trust-region model functions. More...

#include <ROL_TrustRegionModel.hpp>

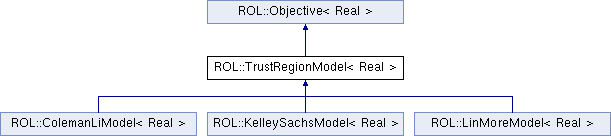

+ Inheritance diagram for ROL::TrustRegionModel< Real >:

Public Member Functions

virtual ~TrustRegionModel ()

 TrustRegionModel (Objective< Real > &obj, BoundConstraint< Real > &bnd, const Vector< Real > &x, const Vector< Real > &g, const Ptr< Secant< Real >> &secant=nullPtr, const bool useSecantPrecond=false, const bool useSecantHessVec=false)

virtual void update (Objective< Real > &obj, BoundConstraint< Real > &bnd, const Vector< Real > &x, const Vector< Real > &g, const Ptr< Secant< Real >> &secant=nullPtr)

virtual Real value (const Vector< Real > &s, Real &tol)
 Compute value. More...

virtual void gradient (Vector< Real > &g, const Vector< Real > &s, Real &tol)
 Compute gradient. More...

virtual void hessVec (Vector< Real > &hv, const Vector< Real > &v, const Vector< Real > &s, Real &tol)
 Apply Hessian approximation to vector. More...

virtual void invHessVec (Vector< Real > &hv, const Vector< Real > &v, const Vector< Real > &s, Real &tol)
 Apply inverse Hessian approximation to vector. More...

virtual void precond (Vector< Real > &Pv, const Vector< Real > &v, const Vector< Real > &s, Real &tol)
 Apply preconditioner to vector. More...

virtual const Ptr< const
Vector< Real > >
getGradient (void) const

virtual const Ptr< const
Vector< Real > >
getIterate (void) const

virtual const Ptr< Objective
< Real > >
getObjective (void) const

virtual const Ptr
< BoundConstraint< Real > >
getBoundConstraint (void) const

virtual void dualTransform (Vector< Real > &tv, const Vector< Real > &v)

virtual void primalTransform (Vector< Real > &tv, const Vector< Real > &v)

virtual void updatePredictedReduction (Real &pred, const Vector< Real > &s)

virtual void updateActualReduction (Real &ared, const Vector< Real > &s)

- Public Member Functions inherited from ROL::Objective< Real >
virtual ~Objective ()

 Objective ()

virtual void update (const Vector< Real > &x, UpdateType type, int iter=-1)
 Update objective function. More...

virtual void update (const Vector< Real > &x, bool flag=true, int iter=-1)
 Update objective function. More...

virtual Real dirDeriv (const Vector< Real > &x, const Vector< Real > &d, Real &tol)
 Compute directional derivative. More...

virtual void prox (Vector< Real > &Pv, const Vector< Real > &v, Real t, Real &tol)

virtual std::vector
< std::vector< Real > >
checkGradient (const Vector< Real > &x, const Vector< Real > &d, const bool printToStream=true, std::ostream &outStream=std::cout, const int numSteps=ROL_NUM_CHECKDERIV_STEPS, const int order=1)
 Finite-difference gradient check. More...

virtual std::vector
< std::vector< Real > >
checkGradient (const Vector< Real > &x, const Vector< Real > &g, const Vector< Real > &d, const bool printToStream=true, std::ostream &outStream=std::cout, const int numSteps=ROL_NUM_CHECKDERIV_STEPS, const int order=1)
 Finite-difference gradient check. More...

virtual std::vector
< std::vector< Real > >
checkGradient (const Vector< Real > &x, const Vector< Real > &d, const std::vector< Real > &steps, const bool printToStream=true, std::ostream &outStream=std::cout, const int order=1)
 Finite-difference gradient check with specified step sizes. More...

virtual std::vector
< std::vector< Real > >
checkGradient (const Vector< Real > &x, const Vector< Real > &g, const Vector< Real > &d, const std::vector< Real > &steps, const bool printToStream=true, std::ostream &outStream=std::cout, const int order=1)
 Finite-difference gradient check with specified step sizes. More...

virtual std::vector
< std::vector< Real > >
checkHessVec (const Vector< Real > &x, const Vector< Real > &v, const bool printToStream=true, std::ostream &outStream=std::cout, const int numSteps=ROL_NUM_CHECKDERIV_STEPS, const int order=1)
 Finite-difference Hessian-applied-to-vector check. More...

virtual std::vector
< std::vector< Real > >
checkHessVec (const Vector< Real > &x, const Vector< Real > &hv, const Vector< Real > &v, const bool printToStream=true, std::ostream &outStream=std::cout, const int numSteps=ROL_NUM_CHECKDERIV_STEPS, const int order=1)
 Finite-difference Hessian-applied-to-vector check. More...

virtual std::vector
< std::vector< Real > >
checkHessVec (const Vector< Real > &x, const Vector< Real > &v, const std::vector< Real > &steps, const bool printToStream=true, std::ostream &outStream=std::cout, const int order=1)
 Finite-difference Hessian-applied-to-vector check with specified step sizes. More...

virtual std::vector
< std::vector< Real > >
checkHessVec (const Vector< Real > &x, const Vector< Real > &hv, const Vector< Real > &v, const std::vector< Real > &steps, const bool printToStream=true, std::ostream &outStream=std::cout, const int order=1)
 Finite-difference Hessian-applied-to-vector check with specified step sizes. More...

virtual std::vector< Real > checkHessSym (const Vector< Real > &x, const Vector< Real > &v, const Vector< Real > &w, const bool printToStream=true, std::ostream &outStream=std::cout)
 Hessian symmetry check. More...

virtual std::vector< Real > checkHessSym (const Vector< Real > &x, const Vector< Real > &hv, const Vector< Real > &v, const Vector< Real > &w, const bool printToStream=true, std::ostream &outStream=std::cout)
 Hessian symmetry check. More...

virtual void setParameter (const std::vector< Real > &param)


Protected Member Functions

void applyHessian (Vector< Real > &hv, const Vector< Real > &v, Real &tol)

void applyInvHessian (Vector< Real > &hv, const Vector< Real > &v, Real &tol)

void applyPrecond (Vector< Real > &Pv, const Vector< Real > &v, Real &tol)

- Protected Member Functions inherited from ROL::Objective< Real >
const std::vector< Real > getParameter (void) const


Private Member Functions

void initialize (const Vector< Real > &s)


Private Attributes

Ptr< Objective< Real > > obj_

Ptr< BoundConstraint< Real > > bnd_

Ptr< const Vector< Real > > x_

Ptr< const Vector< Real > > g_

Ptr< Vector< Real > > dual_

Ptr< Secant< Real > > secant_

const bool useSecantPrecond_

const bool useSecantHessVec_

bool init_


Detailed Description

template<class Real>
class ROL::TrustRegionModel< Real >

Provides the interface to evaluate trust-region model functions.

ROL::TrustRegionModel provides the interface to implement a number of trust-region models for unconstrained and constrained optimization. The default implementation is the standard quadratic trust region model for unconstrained optimization.


Definition at line 33 of file ROL_TrustRegionModel.hpp.

Constructor & Destructor Documentation

template<class Real>
virtual ROL::TrustRegionModel< Real >::~TrustRegionModel ( )
inlinevirtual

Definition at line 89 of file ROL_TrustRegionModel.hpp.

template<class Real>
ROL::TrustRegionModel< Real >::TrustRegionModel ( Objective< Real > &  obj,
BoundConstraint< Real > &  bnd,
const Vector< Real > &  x,
const Vector< Real > &  g,
const Ptr< Secant< Real >> &  secant = nullPtr,
const bool  useSecantPrecond = false,
const bool  useSecantHessVec = false
)
inline

Definition at line 91 of file ROL_TrustRegionModel.hpp.

Member Function Documentation

template<class Real>
void ROL::TrustRegionModel< Real >::initialize ( const Vector< Real > &  s)
inlineprivate
template<class Real>
void ROL::TrustRegionModel< Real >::applyHessian ( Vector< Real > &  hv,
const Vector< Real > &  v,
Real &  tol
)
inlineprotected
template<class Real>
void ROL::TrustRegionModel< Real >::applyInvHessian ( Vector< Real > &  hv,
const Vector< Real > &  v,
Real &  tol
)
inlineprotected
template<class Real>
void ROL::TrustRegionModel< Real >::applyPrecond ( Vector< Real > &  Pv,
const Vector< Real > &  v,
Real &  tol
)
inlineprotected
template<class Real>
virtual void ROL::TrustRegionModel< Real >::update ( Objective< Real > &  obj,
BoundConstraint< Real > &  bnd,
const Vector< Real > &  x,
const Vector< Real > &  g,
const Ptr< Secant< Real >> &  secant = nullPtr
)
inlinevirtual
template<class Real>
virtual Real ROL::TrustRegionModel< Real >::value ( const Vector< Real > &  x,
Real &  tol
)
inlinevirtual

Compute value.

This function returns the objective function value.

Parameters
[in]xis the current iterate.
[in]tolis a tolerance for inexact objective function computation.

Implements ROL::Objective< Real >.

Reimplemented in ROL::ColemanLiModel< Real >, and ROL::KelleySachsModel< Real >.

Definition at line 117 of file ROL_TrustRegionModel.hpp.

References ROL::TrustRegionModel< Real >::applyHessian(), ROL::Vector< Real >::dual(), ROL::TrustRegionModel< Real >::dual_, ROL::TrustRegionModel< Real >::g_, and ROL::TrustRegionModel< Real >::initialize().

Referenced by ROL::TrustRegion< Real >::update().

template<class Real>
virtual void ROL::TrustRegionModel< Real >::gradient ( Vector< Real > &  g,
const Vector< Real > &  x,
Real &  tol
)
inlinevirtual

Compute gradient.

This function returns the objective function gradient.

Parameters
[out]gis the gradient.
[in]xis the current iterate.
[in]tolis a tolerance for inexact objective function computation.

The default implementation is a finite-difference approximation based on the function value. This requires the definition of a basis \(\{\phi_i\}\) for the optimization vectors x and the definition of a basis \(\{\psi_j\}\) for the dual optimization vectors (gradient vectors g). The bases must be related through the Riesz map, i.e., \( R \{\phi_i\} = \{\psi_j\}\), and this must be reflected in the implementation of the ROL::Vector::dual() method.

Reimplemented from ROL::Objective< Real >.

Reimplemented in ROL::ColemanLiModel< Real >, and ROL::KelleySachsModel< Real >.

Definition at line 125 of file ROL_TrustRegionModel.hpp.

References ROL::TrustRegionModel< Real >::applyHessian(), ROL::TrustRegionModel< Real >::g_, and ROL::Vector< Real >::plus().

template<class Real>
virtual void ROL::TrustRegionModel< Real >::hessVec ( Vector< Real > &  hv,
const Vector< Real > &  v,
const Vector< Real > &  x,
Real &  tol
)
inlinevirtual

Apply Hessian approximation to vector.

This function applies the Hessian of the objective function to the vector \(v\).

Parameters
[out]hvis the the action of the Hessian on \(v\).
[in]vis the direction vector.
[in]xis the current iterate.
[in]tolis a tolerance for inexact objective function computation.

Reimplemented from ROL::Objective< Real >.

Reimplemented in ROL::ColemanLiModel< Real >, and ROL::KelleySachsModel< Real >.

Definition at line 130 of file ROL_TrustRegionModel.hpp.

References ROL::TrustRegionModel< Real >::applyHessian().

Referenced by ROL::DogLeg< Real >::run(), ROL::DoubleDogLeg< Real >::run(), and ROL::TruncatedCG< Real >::run().

template<class Real>
virtual void ROL::TrustRegionModel< Real >::invHessVec ( Vector< Real > &  hv,
const Vector< Real > &  v,
const Vector< Real > &  x,
Real &  tol
)
inlinevirtual

Apply inverse Hessian approximation to vector.

This function applies the inverse Hessian of the objective function to the vector \(v\).

Parameters
[out]hvis the action of the inverse Hessian on \(v\).
[in]vis the direction vector.
[in]xis the current iterate.
[in]tolis a tolerance for inexact objective function computation.

Reimplemented from ROL::Objective< Real >.

Reimplemented in ROL::KelleySachsModel< Real >.

Definition at line 134 of file ROL_TrustRegionModel.hpp.

References ROL::TrustRegionModel< Real >::applyInvHessian().

Referenced by ROL::DogLeg< Real >::run(), and ROL::DoubleDogLeg< Real >::run().

template<class Real>
virtual void ROL::TrustRegionModel< Real >::precond ( Vector< Real > &  Pv,
const Vector< Real > &  v,
const Vector< Real > &  x,
Real &  tol
)
inlinevirtual

Apply preconditioner to vector.

This function applies a preconditioner for the Hessian of the objective function to the vector \(v\).

Parameters
[out]Pvis the action of the Hessian preconditioner on \(v\).
[in]vis the direction vector.
[in]xis the current iterate.
[in]tolis a tolerance for inexact objective function computation.

Reimplemented from ROL::Objective< Real >.

Reimplemented in ROL::KelleySachsModel< Real >.

Definition at line 138 of file ROL_TrustRegionModel.hpp.

References ROL::TrustRegionModel< Real >::applyPrecond().

Referenced by ROL::TruncatedCG< Real >::run().

template<class Real>
virtual const Ptr<const Vector<Real> > ROL::TrustRegionModel< Real >::getGradient ( void  ) const
inlinevirtual
template<class Real>
virtual const Ptr<const Vector<Real> > ROL::TrustRegionModel< Real >::getIterate ( void  ) const
inlinevirtual
template<class Real>
virtual const Ptr<Objective<Real> > ROL::TrustRegionModel< Real >::getObjective ( void  ) const
inlinevirtual

Definition at line 156 of file ROL_TrustRegionModel.hpp.

References ROL::TrustRegionModel< Real >::obj_.

template<class Real>
virtual const Ptr<BoundConstraint<Real> > ROL::TrustRegionModel< Real >::getBoundConstraint ( void  ) const
inlinevirtual
template<class Real>
virtual void ROL::TrustRegionModel< Real >::dualTransform ( Vector< Real > &  tv,
const Vector< Real > &  v
)
inlinevirtual
template<class Real>
virtual void ROL::TrustRegionModel< Real >::primalTransform ( Vector< Real > &  tv,
const Vector< Real > &  v
)
inlinevirtual
template<class Real>
virtual void ROL::TrustRegionModel< Real >::updatePredictedReduction ( Real &  pred,
const Vector< Real > &  s
)
inlinevirtual

Reimplemented in ROL::ColemanLiModel< Real >.

Definition at line 178 of file ROL_TrustRegionModel.hpp.

Referenced by ROL::TrustRegion< Real >::update().

template<class Real>
virtual void ROL::TrustRegionModel< Real >::updateActualReduction ( Real &  ared,
const Vector< Real > &  s
)
inlinevirtual

Reimplemented in ROL::ColemanLiModel< Real >.

Definition at line 180 of file ROL_TrustRegionModel.hpp.

Referenced by ROL::TrustRegion< Real >::update().

Member Data Documentation

template<class Real>
Ptr<Objective<Real> > ROL::TrustRegionModel< Real >::obj_
private
template<class Real>
Ptr<BoundConstraint<Real> > ROL::TrustRegionModel< Real >::bnd_
private
template<class Real>
Ptr<const Vector<Real> > ROL::TrustRegionModel< Real >::x_
private
template<class Real>
Ptr<const Vector<Real> > ROL::TrustRegionModel< Real >::g_
private
template<class Real>
Ptr<Vector<Real> > ROL::TrustRegionModel< Real >::dual_
private
template<class Real>
Ptr<Secant<Real> > ROL::TrustRegionModel< Real >::secant_
private
template<class Real>
const bool ROL::TrustRegionModel< Real >::useSecantPrecond_
private
template<class Real>
const bool ROL::TrustRegionModel< Real >::useSecantHessVec_
private
template<class Real>
bool ROL::TrustRegionModel< Real >::init_
private

Definition at line 44 of file ROL_TrustRegionModel.hpp.

Referenced by ROL::TrustRegionModel< Real >::initialize().


The documentation for this class was generated from the following file:
