MatrixOpNonsing adapter subclass for Thyra::Nonlin::LinearOpWithSolve. More...

#include <AbstractLinAlgPack_MatrixOpNonsingThyra.hpp>

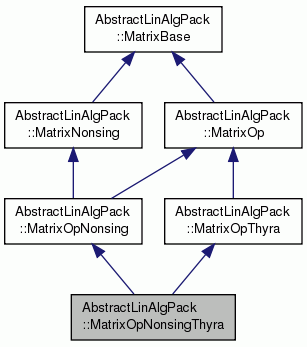

Inheritance diagram for AbstractLinAlgPack::MatrixOpNonsingThyra:

Constructors / Initializers
	MatrixOpNonsingThyra ()
	Construct to uninitialized. More...

	MatrixOpNonsingThyra (const Teuchos::RCP< const Thyra::LinearOpWithSolveBase< value_type > > &thyra_linear_op_ns, BLAS_Cpp::Transp thyra_linear_op_trans=BLAS_Cpp::no_trans)
	Calls `this->initialize()`. More...

void	initialize (const Teuchos::RCP< const Thyra::LinearOpWithSolveBase< value_type > > &thyra_linear_op_ns, BLAS_Cpp::Transp thyra_linear_op_trans=BLAS_Cpp::no_trans)
	Initalize given a smart pointer to a `Thyra::LinearOpWithSolveBase` object. More...

Teuchos::RCP< const Thyra::LinearOpWithSolveBase < value_type > >	set_uninitialized ()
	Set to uninitialized and return smart pointer to the internal `Thyra::LinearOpWithSolveBase` object. More...

Teuchos::RCP< const Thyra::LinearOpWithSolveBase < value_type > >	thyra_linear_op_ns () const
	Return a smart pointer to the `Thyra::LinearOpWithSolveBase` object. More...

Overridden from MatrixOp (needed to remove ambiguities)
mat_mut_ptr_t	clone ()
	Overridden to call `MatrixOpThyra::clone()` More...

Overridden from MatrixNonsing
void	V_InvMtV (VectorMutable *v_lhs, BLAS_Cpp::Transp trans_rhs1, const Vector &v_rhs2) const

void	M_StInvMtM (MatrixOp *m_lhs, value_type alpha, BLAS_Cpp::Transp trans_rhs1, const MatrixOp &mwo_rhs2, BLAS_Cpp::Transp trans_rhs2) const

Overridden from MatrixOpNonsing
mat_mwons_ptr_t	clone_mwons () const

Additional Inherited Members
Public Types inherited from AbstractLinAlgPack::MatrixOp
enum	EMatNormType { MAT_NORM_INF, MAT_NORM_2, MAT_NORM_1, MAT_NORM_FORB }
	Type of matrix norm. More...

Public Member Functions inherited from AbstractLinAlgPack::MatrixOpNonsing
MatrixOpNonsing &	operator= (const MatrixOpNonsing &M)
	Calls operator=(MatrixOp&) More...

virtual mat_mwons_mut_ptr_t	clone_mwons ()
	Clone the non-const matrix object (if supported). More...

const MatNorm	calc_cond_num (EMatNormType requested_norm_type=MAT_NORM_1, bool allow_replacement=false) const
	Compute an estimate of the condition number of this matrix. More...

mat_ptr_t	clone () const
	Returns `this->clone_mwons()`. More...

mat_mns_mut_ptr_t	clone_mns ()
	Returns `this->clone_mwons()`. More...

mat_mns_ptr_t	clone_mns () const
	Returns `this->clone_mwons()`. More...

Public Member Functions inherited from AbstractLinAlgPack::MatrixOp
virtual void	zero_out ()
	M_lhs = 0 : Zero out the matrix. More...

virtual void	Mt_S (value_type alpha)
	M_lhs *= alpha : Multiply a matrix by a scalar. More...

virtual std::ostream &	output (std::ostream &out) const
	Virtual output function. More...

const MatNorm	calc_norm (EMatNormType requested_norm_type=MAT_NORM_1, bool allow_replacement=false) const
	Compute a norm of this matrix. More...

virtual mat_ptr_t	sub_view (const Range1D &row_rng, const Range1D &col_rng) const
	Create a transient constant sub-matrix view of this matrix (if supported). More...

mat_ptr_t	sub_view (const index_type &rl, const index_type &ru, const index_type &cl, const index_type &cu) const
	Inlined implementation calls `this->sub_view(Range1D(rl,ru),Range1D(cl,cu))`. More...

virtual mat_ptr_t	perm_view (const Permutation P_row, const index_type row_part[], int num_row_part, const Permutation P_col, const index_type col_part[], int num_col_part) const
	Create a permuted view: `M_perm = P_row' * M * P_col`. More...

virtual mat_ptr_t	perm_view_update (const Permutation P_row, const index_type row_part[], int num_row_part, const Permutation P_col, const index_type col_part[], int num_col_part, const mat_ptr_t &perm_view) const
	Reinitialize a permuted view: `M_perm = P_row' * M * P_col`. More...

Public Member Functions inherited from AbstractLinAlgPack::MatrixBase
virtual	~MatrixBase ()
	Virtual destructor. More...

virtual size_type	rows () const
	Return the number of rows in the matrix. More...

virtual size_type	cols () const
	Return the number of columns in the matrix. More...

virtual size_type	nz () const
	Return the number of nonzero elements in the matrix. More...

Public Member Functions inherited from AbstractLinAlgPack::MatrixNonsing
virtual void	V_InvMtV (VectorMutable *v_lhs, BLAS_Cpp::Transp trans_rhs1, const SpVectorSlice &sv_rhs2) const
	v_lhs = inv(op(M_rhs1)) * sv_rhs2 More...

virtual value_type	transVtInvMtV (const Vector &v_rhs1, BLAS_Cpp::Transp trans_rhs2, const Vector &v_rhs3) const
	result = vs_rhs1' * inv(op(M_rhs2)) * vs_rhs3 More...

virtual value_type	transVtInvMtV (const SpVectorSlice &sv_rhs1, BLAS_Cpp::Transp trans_rhs2, const SpVectorSlice &sv_rhs3) const
	result = sv_rhs1' * inv(op(M_rhs2)) * sv_rhs3 More...

virtual void	M_StMtInvM (MatrixOp *m_lhs, value_type alpha, const MatrixOp &mwo_rhs1, BLAS_Cpp::Transp trans_rhs1, BLAS_Cpp::Transp trans_rhs2) const
	m_lhs = alpha * op(mwo_rhs1) * inv(op(M_rhs2)) (left). More...

Public Member Functions inherited from AbstractLinAlgPack::MatrixOpThyra
	MatrixOpThyra ()
	Construct to uninitialized. More...

	MatrixOpThyra (const Teuchos::RCP< const Thyra::LinearOpBase< value_type > > &thyra_linear_op, BLAS_Cpp::Transp thyra_linear_op_trans=BLAS_Cpp::no_trans)
	Calls `this->initialize()`. More...

virtual void	initialize (const Teuchos::RCP< const Thyra::LinearOpBase< value_type > > &thyra_linear_op, BLAS_Cpp::Transp thyra_linear_op_trans=BLAS_Cpp::no_trans)
	Initalize given a smart pointer to a `Thyra::LinearOpBase` object. More...

Teuchos::RCP< const Thyra::LinearOpBase < value_type > >	set_uninitialized ()
	Set to uninitialized and return smart pointer to the internal `Thyra::VectorBase` object. More...

const Teuchos::RCP< const Thyra::LinearOpBase < value_type > > &	thyra_linear_op () const
	Return a (converted) smart pointer to the internal smart pointer to the `Thyra::VectorBase` object. More...

BLAS_Cpp::Transp	thyra_linear_op_trans () const

const VectorSpace &	space_cols () const

const VectorSpace &	space_rows () const

mat_mut_ptr_t	clone ()

MatrixOp &	operator= (const MatrixOp &mwo_rhs)

void	Vp_StMtV (VectorMutable *v_lhs, value_type alpha, BLAS_Cpp::Transp trans_rhs1, const Vector &v_rhs2, value_type beta) const

bool	Mp_StMtM (MatrixOp *mwo_lhs, value_type alpha, BLAS_Cpp::Transp trans_rhs1, const MatrixOp &mwo_rhs2, BLAS_Cpp::Transp trans_rhs2, value_type beta) const
	Works for `MultiVectorMutableThyra` arguments. More...

Protected Member Functions inherited from AbstractLinAlgPack::MatrixOp
virtual bool	Mp_StM (MatrixOp *mwo_lhs, value_type alpha, BLAS_Cpp::Transp trans_rhs) const
	mwo_lhs += alpha * op(M_rhs) (BLAS xAXPY). More...

virtual bool	Mp_StM (value_type alpha, const MatrixOp &M_rhs, BLAS_Cpp::Transp trans_rhs)
	M_lhs += alpha * op(mwo_rhs) (BLAS xAXPY). More...

virtual bool	Mp_StMtP (MatrixOp *mwo_lhs, value_type alpha, BLAS_Cpp::Transp M_trans, const GenPermMatrixSlice &P_rhs, BLAS_Cpp::Transp P_rhs_trans) const
	mwo_lhs += alpha * op(M_rhs) * op(P_rhs). More...

virtual bool	Mp_StMtP (value_type alpha, const MatrixOp &mwo_rhs, BLAS_Cpp::Transp M_trans, const GenPermMatrixSlice &P_rhs, BLAS_Cpp::Transp P_rhs_trans)
	M_lhs += alpha * op(mwo_rhs) * op(P_rhs). More...

virtual bool	Mp_StPtM (MatrixOp *mwo_lhs, value_type alpha, const GenPermMatrixSlice &P_rhs, BLAS_Cpp::Transp P_rhs_trans, BLAS_Cpp::Transp M_trans) const
	mwo_lhs += alpha * op(P_rhs) * op(M_rhs). More...

virtual bool	Mp_StPtM (value_type alpha, const GenPermMatrixSlice &P_rhs, BLAS_Cpp::Transp P_rhs_trans, const MatrixOp &mwo_rhs, BLAS_Cpp::Transp M_trans)
	M_lhs += alpha * op(P_rhs) * op(mwo_rhs). More...

virtual bool	Mp_StPtMtP (MatrixOp *mwo_lhs, value_type alpha, const GenPermMatrixSlice &P_rhs1, BLAS_Cpp::Transp P_rhs1_trans, BLAS_Cpp::Transp M_trans, const GenPermMatrixSlice &P_rhs2, BLAS_Cpp::Transp P_rhs2_trans) const
	mwo_lhs += alpha * op(P_rhs1) * op(M_rhs) * op(P_rhs2). More...

virtual bool	Mp_StPtMtP (value_type alpha, const GenPermMatrixSlice &P_rhs1, BLAS_Cpp::Transp P_rhs1_trans, const MatrixOp &mwo_rhs, BLAS_Cpp::Transp M_trans, const GenPermMatrixSlice &P_rhs2, BLAS_Cpp::Transp P_rhs2_trans)
	M_lhs += alpha * op(P_rhs1) * op(mwo_rhs) * op(P_rhs2). More...

virtual void	Vp_StMtV (VectorMutable *v_lhs, value_type alpha, BLAS_Cpp::Transp trans_rhs1, const SpVectorSlice &sv_rhs2, value_type beta) const
	v_lhs = alpha * op(M_rhs1) * sv_rhs2 + beta * v_lhs (BLAS xGEMV) More...

virtual void	Vp_StPtMtV (VectorMutable *v_lhs, value_type alpha, const GenPermMatrixSlice &P_rhs1, BLAS_Cpp::Transp P_rhs1_trans, BLAS_Cpp::Transp M_rhs2_trans, const Vector &v_rhs3, value_type beta) const
	v_lhs = alpha * op(P_rhs1) * op(M_rhs2) * v_rhs3 + beta * v_rhs More...

virtual void	Vp_StPtMtV (VectorMutable *v_lhs, value_type alpha, const GenPermMatrixSlice &P_rhs1, BLAS_Cpp::Transp P_rhs1_trans, BLAS_Cpp::Transp M_rhs2_trans, const SpVectorSlice &sv_rhs3, value_type beta) const
	v_lhs = alpha * op(P_rhs1) * op(M_rhs2) * sv_rhs3 + beta * v_rhs More...

virtual value_type	transVtMtV (const Vector &v_rhs1, BLAS_Cpp::Transp trans_rhs2, const Vector &v_rhs3) const
	result = v_rhs1' * op(M_rhs2) * v_rhs3 More...

virtual value_type	transVtMtV (const SpVectorSlice &sv_rhs1, BLAS_Cpp::Transp trans_rhs2, const SpVectorSlice &sv_rhs3) const
	result = sv_rhs1' * op(M_rhs2) * sv_rhs3 More...

virtual void	syr2k (BLAS_Cpp::Transp M_trans, value_type alpha, const GenPermMatrixSlice &P1, BLAS_Cpp::Transp P1_trans, const GenPermMatrixSlice &P2, BLAS_Cpp::Transp P2_trans, value_type beta, MatrixSymOp *symwo_lhs) const
	Perform a specialized rank-2k update of a dense symmetric matrix of the form: More...

virtual bool	Mp_StMtM (MatrixOp *mwo_lhs, value_type alpha, const MatrixOp &mwo_rhs1, BLAS_Cpp::Transp trans_rhs1, BLAS_Cpp::Transp trans_rhs2, value_type beta) const
	mwo_lhs = alpha * op(mwo_rhs1) * op(M_rhs2) + beta * mwo_lhs (right) (xGEMM) More...

virtual bool	Mp_StMtM (value_type alpha, const MatrixOp &mwo_rhs1, BLAS_Cpp::Transp trans_rhs1, const MatrixOp &mwo_rhs2, BLAS_Cpp::Transp trans_rhs2, value_type beta)
	M_lhs = alpha * op(mwo_rhs1) * op(mwo_rhs2) + beta * mwo_lhs (left) (xGEMM) More...

virtual bool	syrk (BLAS_Cpp::Transp M_trans, value_type alpha, value_type beta, MatrixSymOp *sym_lhs) const
	Perform a rank-k update of a symmetric matrix of the form: More...

virtual bool	syrk (const MatrixOp &mwo_rhs, BLAS_Cpp::Transp M_trans, value_type alpha, value_type beta)
	Perform a rank-k update of a symmetric matrix of the form: More...

Detailed Description

MatrixOpNonsing adapter subclass for Thyra::Nonlin::LinearOpWithSolve.

Definition at line 54 of file AbstractLinAlgPack_MatrixOpNonsingThyra.hpp.

Constructor & Destructor Documentation

AbstractLinAlgPack::MatrixOpNonsingThyra::MatrixOpNonsingThyra ( )

Construct to uninitialized.

Postconditioins:

this->thyra_vec().get() == NULL
See the post conditions for MatrixOpThyra::MatrixOpThyra()

Definition at line 54 of file AbstractLinAlgPack_MatrixOpNonsingThyra.cpp.

AbstractLinAlgPack::MatrixOpNonsingThyra::MatrixOpNonsingThyra	(	const Teuchos::RCP< const Thyra::LinearOpWithSolveBase< value_type > > &	thyra_linear_op_ns,
		BLAS_Cpp::Transp	thyra_linear_op_trans = `BLAS_Cpp::no_trans`
	)

Calls this->initialize().

Definition at line 57 of file AbstractLinAlgPack_MatrixOpNonsingThyra.cpp.

Member Function Documentation

void AbstractLinAlgPack::MatrixOpNonsingThyra::initialize	(	const Teuchos::RCP< const Thyra::LinearOpWithSolveBase< value_type > > &	thyra_linear_op_ns,
		BLAS_Cpp::Transp	thyra_linear_op_trans = `BLAS_Cpp::no_trans`
	)

Initalize given a smart pointer to a Thyra::LinearOpWithSolveBase object.

Parameters

thyra_linear_op_ns [in] Smart pointer to Thyra vector this will adapt.

Preconditioins:

thyra_linear_op_ns.get() != NULL (throw std::invalid_argument)
thyra_linear_op_ns->opSupported(Thyra::NOTRANS) && thyra_linear_op_ns->opSupported(Thyra::TRANS) (throw std::invalid_argument)

Postconditioins:




this->thyra_linear_op_ns().get() == thyra_linear_op_ns.get()

See the post conditions for MatrixOpThyra::initialize()

Definition at line 65 of file AbstractLinAlgPack_MatrixOpNonsingThyra.cpp.

Teuchos::RCP< const Thyra::LinearOpWithSolveBase< value_type > > AbstractLinAlgPack::MatrixOpNonsingThyra::set_uninitialized ( )

Set to uninitialized and return smart pointer to the internal Thyra::LinearOpWithSolveBase object.

Postconditioins:

this->thyra_linear_op_ns().get() == NULL

Note that his nonvirtual function hides the nonvirtual function MatrixOpThyra::set_uninitialized().

Definition at line 79 of file AbstractLinAlgPack_MatrixOpNonsingThyra.cpp.

Teuchos::RCP< const Thyra::LinearOpWithSolveBase< value_type > > AbstractLinAlgPack::MatrixOpNonsingThyra::thyra_linear_op_ns ( ) const

Return a smart pointer to the Thyra::LinearOpWithSolveBase object.

Definition at line 88 of file AbstractLinAlgPack_MatrixOpNonsingThyra.cpp.

MatrixOp::mat_mut_ptr_t AbstractLinAlgPack::MatrixOpNonsingThyra::clone ( )

virtual

Overridden to call MatrixOpThyra::clone()

Reimplemented from AbstractLinAlgPack::MatrixOpNonsing.

Definition at line 96 of file AbstractLinAlgPack_MatrixOpNonsingThyra.cpp.

void AbstractLinAlgPack::MatrixOpNonsingThyra::V_InvMtV	(	VectorMutable *	v_lhs,
		BLAS_Cpp::Transp	trans_rhs1,
		const Vector &	v_rhs2
	)		const

virtual

Implements AbstractLinAlgPack::MatrixNonsing.

Definition at line 103 of file AbstractLinAlgPack_MatrixOpNonsingThyra.cpp.

void AbstractLinAlgPack::MatrixOpNonsingThyra::M_StInvMtM	(	MatrixOp *	m_lhs,
		value_type	alpha,
		BLAS_Cpp::Transp	trans_rhs1,
		const MatrixOp &	mwo_rhs2,
		BLAS_Cpp::Transp	trans_rhs2
	)		const

virtual

Reimplemented from AbstractLinAlgPack::MatrixNonsing.

Definition at line 128 of file AbstractLinAlgPack_MatrixOpNonsingThyra.cpp.

MatrixOpNonsing::mat_mwons_ptr_t AbstractLinAlgPack::MatrixOpNonsingThyra::clone_mwons ( ) const

virtual

Reimplemented from AbstractLinAlgPack::MatrixOpNonsing.

Definition at line 140 of file AbstractLinAlgPack_MatrixOpNonsingThyra.cpp.

The documentation for this class was generated from the following files:
