AbstractLinAlgPack::MatrixNonsing Class Referenceabstract

Abstract base class for all nonsingular polymorphic matrices that can solve for linear system with but it may not be convienent to compute matrix vector products {abstract}. More...

#include <AbstractLinAlgPack_MatrixNonsing.hpp>

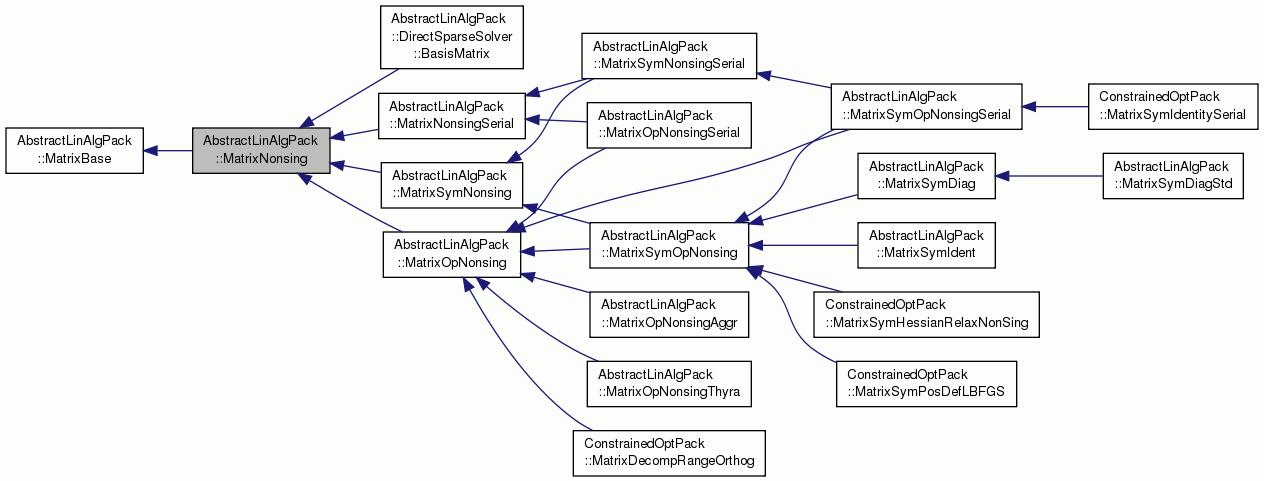

Inheritance diagram for AbstractLinAlgPack::MatrixNonsing:
Inheritance graph
[legend]

Classes

class  SingularMatrix
 This exception will be thrown if it turns out at runtime that the matrix is numerically singular. More...


Friends

void V_InvMtV (VectorMutable *v_lhs, const MatrixNonsing &M_rhs1, BLAS_Cpp::Transp trans_rhs1, const Vector &v_rhs2)

void V_InvMtV (VectorMutable *v_lhs, const MatrixNonsing &M_rhs1, BLAS_Cpp::Transp trans_rhs1, const SpVectorSlice &sv_rhs2)

value_type transVtInvMtV (const Vector &v_rhs1, const MatrixNonsing &M_rhs2, BLAS_Cpp::Transp trans_rhs2, const Vector &v_rhs3)

value_type transVtInvMtV (const SpVectorSlice &sv_rhs1, const MatrixNonsing &M_rhs2, BLAS_Cpp::Transp trans_rhs2, const SpVectorSlice &sv_rhs3)

void M_StInvMtM (MatrixOp *m_lhs, value_type alpha, const MatrixNonsing &M_rhs1, BLAS_Cpp::Transp trans_rhs1, const MatrixOp &mwo_rhs2, BLAS_Cpp::Transp trans_rhs2)

void M_StMtInvM (MatrixOp *m_lhs, value_type alpha, const MatrixOp &mwo_rhs1, BLAS_Cpp::Transp trans_rhs1, const MatrixNonsing &M_rhs2, BLAS_Cpp::Transp trans_rhs2)


Clone

virtual mat_mns_mut_ptr_t clone_mns ()
 Clone the non-const matrix object (if supported). More...

virtual mat_mns_ptr_t clone_mns () const
 Clone the const matrix object (if supported). More...


Level-2 BLAS

virtual void V_InvMtV (VectorMutable *v_lhs, BLAS_Cpp::Transp trans_rhs1, const Vector &v_rhs2) const =0
 v_lhs = inv(op(M_rhs1)) * vs_rhs2 More...

virtual void V_InvMtV (VectorMutable *v_lhs, BLAS_Cpp::Transp trans_rhs1, const SpVectorSlice &sv_rhs2) const
 v_lhs = inv(op(M_rhs1)) * sv_rhs2 More...

virtual value_type transVtInvMtV (const Vector &v_rhs1, BLAS_Cpp::Transp trans_rhs2, const Vector &v_rhs3) const
 result = vs_rhs1' * inv(op(M_rhs2)) * vs_rhs3 More...

virtual value_type transVtInvMtV (const SpVectorSlice &sv_rhs1, BLAS_Cpp::Transp trans_rhs2, const SpVectorSlice &sv_rhs3) const
 result = sv_rhs1' * inv(op(M_rhs2)) * sv_rhs3 More...


Level-3 BLAS

virtual void M_StInvMtM (MatrixOp *m_lhs, value_type alpha, BLAS_Cpp::Transp trans_rhs1, const MatrixOp &mwo_rhs2, BLAS_Cpp::Transp trans_rhs2) const
 m_lhs = alpha * inv(op(M_rhs1)) * op(mwo_rhs2) (right). More...

virtual void M_StMtInvM (MatrixOp *m_lhs, value_type alpha, const MatrixOp &mwo_rhs1, BLAS_Cpp::Transp trans_rhs1, BLAS_Cpp::Transp trans_rhs2) const
 m_lhs = alpha * op(mwo_rhs1) * inv(op(M_rhs2)) (left). More...


Additional Inherited Members

- Public Member Functions inherited from AbstractLinAlgPack::MatrixBase
virtual ~MatrixBase ()
 Virtual destructor. More...

virtual const VectorSpacespace_cols () const =0
 Vector space for vectors that are compatible with the columns of the matrix. More...

virtual const VectorSpacespace_rows () const =0
 Vector space for vectors that are compatible with the rows of the matrix. More...

virtual size_type rows () const
 Return the number of rows in the matrix. More...

virtual size_type cols () const
 Return the number of columns in the matrix. More...

virtual size_type nz () const
 Return the number of nonzero elements in the matrix. More...


Detailed Description

Abstract base class for all nonsingular polymorphic matrices that can solve for linear system with but it may not be convienent to compute matrix vector products {abstract}.

The operations supported are:

Level-2 BLAS

v_lhs = inv(op(M_rhs1)) * vs_rhs2
v_lhs = inv(op(M_rhs1)) * sv_rhs2
result = v_rhs1' * inv(op(M_rhs2)) * v_rhs3
result = sv_rhs1' * inv(op(M_rhs2)) * sv_rhs3

Level-3 BLAS

m_lhs = alpha * inv(op(M_rhs1)) * op(mwo_rhs2) (right)
m_lhs = alpha * op(mwo_rhs1) * inv(op(M_rhs2)) (left)

For the solve operations, the lhs and rhs arguments may not be the same in general so don't assume that you can alias the lhs with the rhs and get correct results.

Any nonsingular matrix abstraction that can be used to solve for nonlinear systems should also be able to support the MatrixOp interface. Therefore, this interface is more of an implementation artifact than an a legitimate domain abstraction. However, some linear solvers that can implement this interface, can not easily implement the MatrixOp interface and therefore this interface is justified. A general client should never use this interface directly. Instead, the combined interface MatrixOpNonsing should be used with fully formed matrix abstractions.

All these Level-2 and Level-3 BLAS operations have default implementations based on the Level-2 BLAS operations:

v_lhs = inv(op(M_rhs1)) * vs_rhs2

which allows for fast prototyping of new matrix subclasses.

The member functions should not be called directly but instead through the provided non-member functions.

The multiple dispatch approach taken in MatrixOp is not taken in this interface. This is because it is considered here that the nonsingular matrix takes procedence of a general matrix arguemnt and we can not expect a general matrix to know how to solve for a linear system with some other nonsigular matrix.

Definition at line 97 of file AbstractLinAlgPack_MatrixNonsing.hpp.
