Interface adding operations specific for a symmetric matrix {abstract}. More...

#include <AbstractLinAlgPack_MatrixSymOp.hpp>

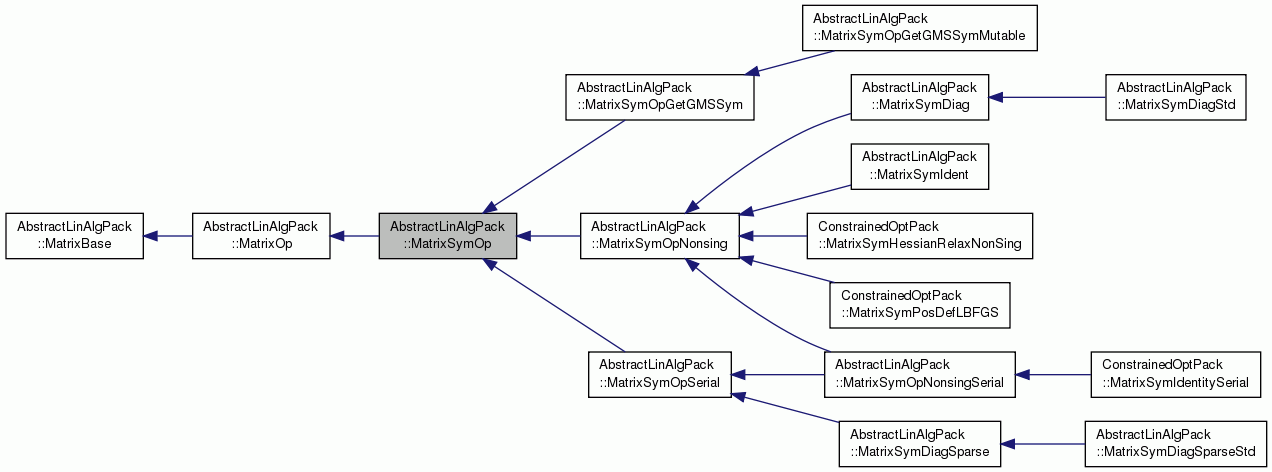

Inheritance diagram for AbstractLinAlgPack::MatrixSymOp:

Public Member Functions
virtual MatrixSymOp &	operator= (const MatrixSymOp &M)
	Calls operator=(MatrixOp&) More...

Public Member Functions inherited from AbstractLinAlgPack::MatrixOp
virtual void	zero_out ()
	M_lhs = 0 : Zero out the matrix. More...

virtual void	Mt_S (value_type alpha)
	M_lhs *= alpha : Multiply a matrix by a scalar. More...

virtual MatrixOp &	operator= (const MatrixOp &mwo_rhs)
	M_lhs = mwo_rhs : Virtual assignment operator. More...

virtual std::ostream &	output (std::ostream &out) const
	Virtual output function. More...

const MatNorm	calc_norm (EMatNormType requested_norm_type=MAT_NORM_1, bool allow_replacement=false) const
	Compute a norm of this matrix. More...

virtual mat_ptr_t	sub_view (const Range1D &row_rng, const Range1D &col_rng) const
	Create a transient constant sub-matrix view of this matrix (if supported). More...

mat_ptr_t	sub_view (const index_type &rl, const index_type &ru, const index_type &cl, const index_type &cu) const
	Inlined implementation calls `this->sub_view(Range1D(rl,ru),Range1D(cl,cu))`. More...

virtual mat_ptr_t	perm_view (const Permutation P_row, const index_type row_part[], int num_row_part, const Permutation P_col, const index_type col_part[], int num_col_part) const
	Create a permuted view: `M_perm = P_row' * M * P_col`. More...

virtual mat_ptr_t	perm_view_update (const Permutation P_row, const index_type row_part[], int num_row_part, const Permutation P_col, const index_type col_part[], int num_col_part, const mat_ptr_t &perm_view) const
	Reinitialize a permuted view: `M_perm = P_row' * M * P_col`. More...

Public Member Functions inherited from AbstractLinAlgPack::MatrixBase
virtual	~MatrixBase ()
	Virtual destructor. More...

virtual const VectorSpace &	space_cols () const =0
	Vector space for vectors that are compatible with the columns of the matrix. More...

virtual size_type	rows () const
	Return the number of rows in the matrix. More...

virtual size_type	nz () const
	Return the number of nonzero elements in the matrix. More...

Public types
enum	EMatRhsPlaceHolder { DUMMY_ARG }

void	Mp_StPtMtP (MatrixSymOp *sym_lhs, value_type alpha, EMatRhsPlaceHolder dummy_place_holder, const MatrixSymOp &M, const GenPermMatrixSlice &gpms_rhs, BLAS_Cpp::Transp gpms_rhs_trans, value_type beta)

void	Mp_StMtMtM (MatrixSymOp *sym_lhs, value_type alpha, EMatRhsPlaceHolder dummy_place_holder, const MatrixSymOp &M, const MatrixOp &mwo_rhs, BLAS_Cpp::Transp mwo_rhs_trans, value_type beta)

Clone
virtual mat_mswo_mut_ptr_t	clone_mswo ()
	Clone the non-const matrix object (if supported). More...

virtual mat_mswo_ptr_t	clone_mswo () const
	Clone the const matrix object (if supported). More...

Level-1 BLAS
virtual void	Mp_StPtMtP (MatrixSymOp *sym_lhs, value_type alpha, EMatRhsPlaceHolder dummy_place_holder, const GenPermMatrixSlice &gpms_rhs, BLAS_Cpp::Transp gpms_rhs_trans, value_type beta) const
	sym_lhs = alpha * op(gpms_rhs') * M * op(gpms_rhs) + beta * sym_lhs. More...

Level-3 BLAS
virtual void	Mp_StMtMtM (MatrixSymOp *sym_lhs, value_type alpha, EMatRhsPlaceHolder dummy_place_holder, const MatrixOp &mwo_rhs, BLAS_Cpp::Transp mwo_rhs_trans, value_type beta) const
	sym_lhs = alpha * op(mwo_rhs') * M * op(mwo_rhs) + beta * sym_lhs. More...

size_type	cols () const
	Returns `this->rows()` More...

const VectorSpace &	space_rows () const
	Vector space for vectors that are compatible with the rows of the matrix. More...

mat_mut_ptr_t	clone ()
	Returns `this->clone_mswo()`. More...

mat_ptr_t	clone () const
	Returns `this->clone_mswo()`. More...

Detailed Description

Interface adding operations specific for a symmetric matrix {abstract}.

This interface defines two addition methods to those found in MatrixOp:

sym_lhs = alpha * op(gpms_rhs') * M * op(gpms_rhs) + beta * sym_lhs
sym_lhs = alpha * op(mwo_rhs') * M * op(mwo_rhs) + beta * sym_lhs

The reason that these methods could not be defined in the MatrixOp interface is that the lhs matrix matrix argument sym_lhs is only guaranteed to be symmetric if the rhs matrix argument M (which is this matrix) is guaranteed to be symmetric. Since a MatrixOp matrix object may be unsymmetric (as well as rectangular), it can not implement this operation, only a symmetric matrix can.

Clients should use the provided non-member functions to call the methods and not the methods themselves.

Definition at line 66 of file AbstractLinAlgPack_MatrixSymOp.hpp.

Member Enumeration Documentation

enum AbstractLinAlgPack::MatrixSymOp::EMatRhsPlaceHolder

Enumerator
DUMMY_ARG

Definition at line 82 of file AbstractLinAlgPack_MatrixSymOp.hpp.

Member Function Documentation

MatrixSymOp::mat_mswo_mut_ptr_t MatrixSymOp::clone_mswo ( )

virtual

Clone the non-const matrix object (if supported).

The default implementation returns NULL which is perfectly acceptable. A matrix object is not required to return a non-NULL value but almost every good matrix implementation will.

Reimplemented in AbstractLinAlgPack::MatrixSymOpNonsing.

Definition at line 50 of file AbstractLinAlgPack_MatrixSymOp.cpp.

MatrixSymOp::mat_mswo_ptr_t MatrixSymOp::clone_mswo ( ) const

virtual

Clone the const matrix object (if supported).

The behavior of this method is the same as for the non-const version above except it returns a smart pointer to a const matrix object.

Reimplemented in AbstractLinAlgPack::MatrixSymOpNonsing.

Definition at line 56 of file AbstractLinAlgPack_MatrixSymOp.cpp.

void MatrixSymOp::Mp_StPtMtP	(	MatrixSymOp *	sym_lhs,
		value_type	alpha,
		EMatRhsPlaceHolder	dummy_place_holder,
		const GenPermMatrixSlice &	gpms_rhs,
		BLAS_Cpp::Transp	gpms_rhs_trans,
		value_type	beta
	)		const

protectedvirtual

sym_lhs = alpha * op(gpms_rhs') * M * op(gpms_rhs) + beta * sym_lhs.

The default operation is based on Vp_StMtV(...) and assumes that the matrix is symmetric. Of course, a more efficient implementation is often needed and the sublcass would like to override this.

Reimplemented in AbstractLinAlgPack::MatrixSymOpSerial.

Definition at line 61 of file AbstractLinAlgPack_MatrixSymOp.cpp.

void MatrixSymOp::Mp_StMtMtM	(	MatrixSymOp *	sym_lhs,
		value_type	alpha,
		EMatRhsPlaceHolder	dummy_place_holder,
		const MatrixOp &	mwo_rhs,
		BLAS_Cpp::Transp	mwo_rhs_trans,
		value_type	beta
	)		const

protectedvirtual

sym_lhs = alpha * op(mwo_rhs') * M * op(mwo_rhs) + beta * sym_lhs.

The default operation is based on Vp_StMtV() and assumes that the matrix is symmetric. Of course, a more efficient implementation is often needed and the sublcass would like to override this.

Reimplemented in AbstractLinAlgPack::MatrixSymOpSerial.

Definition at line 70 of file AbstractLinAlgPack_MatrixSymOp.cpp.

size_type MatrixSymOp::cols ( ) const

virtual

Returns this->rows()

Overridden from MatrixOp

Reimplemented from AbstractLinAlgPack::MatrixBase.

Definition at line 82 of file AbstractLinAlgPack_MatrixSymOp.cpp.

const VectorSpace & MatrixSymOp::space_rows ( ) const

virtual

Vector space for vectors that are compatible with the rows of the matrix.

Implements AbstractLinAlgPack::MatrixBase.

Reimplemented in AbstractLinAlgPack::MatrixSymDiagStd, and AbstractLinAlgPack::MatrixSymOpSerial.

Definition at line 87 of file AbstractLinAlgPack_MatrixSymOp.cpp.

MatrixSymOp::mat_mut_ptr_t MatrixSymOp::clone ( )

virtual

Returns this->clone_mswo().

Reimplemented from AbstractLinAlgPack::MatrixOp.

Reimplemented in AbstractLinAlgPack::MatrixSymOpNonsing, and AbstractLinAlgPack::MatrixSymOpNonsingSerial.

Definition at line 93 of file AbstractLinAlgPack_MatrixSymOp.cpp.

MatrixSymOp::mat_ptr_t MatrixSymOp::clone ( ) const

virtual

Returns this->clone_mswo().

Reimplemented from AbstractLinAlgPack::MatrixOp.

Reimplemented in AbstractLinAlgPack::MatrixSymOpNonsing, and AbstractLinAlgPack::MatrixSymOpNonsingSerial.

Definition at line 99 of file AbstractLinAlgPack_MatrixSymOp.cpp.

virtual MatrixSymOp& AbstractLinAlgPack::MatrixSymOp::operator= ( const MatrixSymOp & M )

inlinevirtual

Calls operator=(MatrixOp&)

Definition at line 183 of file AbstractLinAlgPack_MatrixSymOp.hpp.

Friends And Related Function Documentation

void Mp_StPtMtP	(	MatrixSymOp *	sym_lhs,
		value_type	alpha,
		MatrixSymOp::EMatRhsPlaceHolder	dummy_place_holder,
		const MatrixSymOp &	M,
		const GenPermMatrixSlice &	gpms_rhs,
		BLAS_Cpp::Transp	gpms_rhs_trans,
		value_type	beta = `1.0`
	)

friend

Definition at line 196 of file AbstractLinAlgPack_MatrixSymOp.hpp.

void Mp_StMtMtM	(	MatrixSymOp *	sym_lhs,
		value_type	alpha,
		MatrixSymOp::EMatRhsPlaceHolder	dummy_place_holder,
		const MatrixSymOp &	M,
		const MatrixOp &	mwo_rhs,
		BLAS_Cpp::Transp	mwo_rhs_trans,
		value_type	beta = `1.0`
	)

friend

Definition at line 209 of file AbstractLinAlgPack_MatrixSymOp.hpp.

The documentation for this class was generated from the following files:
