AbstractLinAlgPack::MatrixOpNonsing Class Reference

Abstract base class for all nonsingular polymorphic matrices that can be used to compute matrix-vector products and solve for linear systems efficiently. More...

#include <AbstractLinAlgPack_MatrixOpNonsing.hpp>

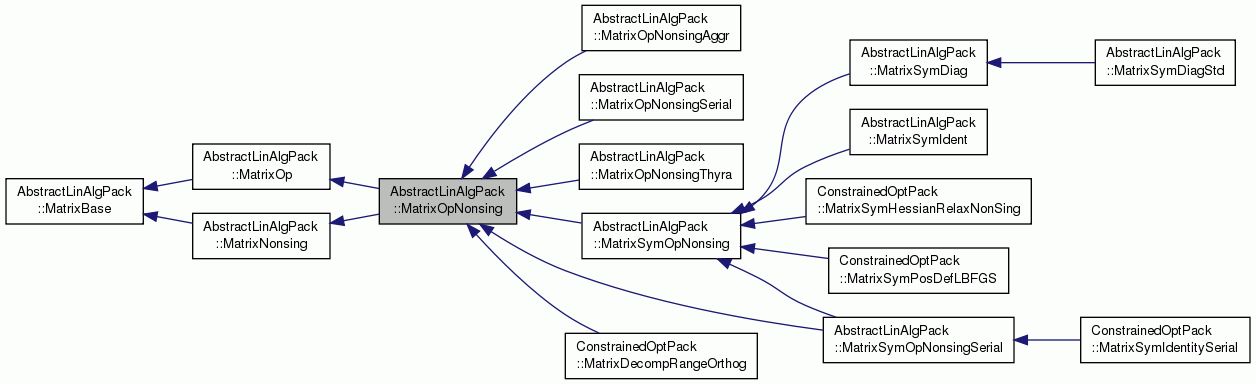

Inheritance diagram for AbstractLinAlgPack::MatrixOpNonsing:
Inheritance graph
[legend]

Public Member Functions

MatrixOpNonsingoperator= (const MatrixOpNonsing &M)
 Calls operator=(MatrixOp&) More...

- Public Member Functions inherited from AbstractLinAlgPack::MatrixOp
virtual void zero_out ()
 M_lhs = 0 : Zero out the matrix. More...

virtual void Mt_S (value_type alpha)
 M_lhs *= alpha : Multiply a matrix by a scalar. More...

virtual MatrixOpoperator= (const MatrixOp &mwo_rhs)
 M_lhs = mwo_rhs : Virtual assignment operator. More...

virtual std::ostream & output (std::ostream &out) const
 Virtual output function. More...

const MatNorm calc_norm (EMatNormType requested_norm_type=MAT_NORM_1, bool allow_replacement=false) const
 Compute a norm of this matrix. More...

virtual mat_ptr_t sub_view (const Range1D &row_rng, const Range1D &col_rng) const
 Create a transient constant sub-matrix view of this matrix (if supported). More...

mat_ptr_t sub_view (const index_type &rl, const index_type &ru, const index_type &cl, const index_type &cu) const
 Inlined implementation calls this->sub_view(Range1D(rl,ru),Range1D(cl,cu)). More...

virtual mat_ptr_t perm_view (const Permutation *P_row, const index_type row_part[], int num_row_part, const Permutation *P_col, const index_type col_part[], int num_col_part) const
 Create a permuted view: M_perm = P_row' * M * P_col. More...

virtual mat_ptr_t perm_view_update (const Permutation *P_row, const index_type row_part[], int num_row_part, const Permutation *P_col, const index_type col_part[], int num_col_part, const mat_ptr_t &perm_view) const
 Reinitialize a permuted view: M_perm = P_row' * M * P_col. More...

- Public Member Functions inherited from AbstractLinAlgPack::MatrixBase
virtual ~MatrixBase ()
 Virtual destructor. More...

virtual const VectorSpacespace_cols () const =0
 Vector space for vectors that are compatible with the columns of the matrix. More...

virtual const VectorSpacespace_rows () const =0
 Vector space for vectors that are compatible with the rows of the matrix. More...

virtual size_type rows () const
 Return the number of rows in the matrix. More...

virtual size_type cols () const
 Return the number of columns in the matrix. More...

virtual size_type nz () const
 Return the number of nonzero elements in the matrix. More...

- Public Member Functions inherited from AbstractLinAlgPack::MatrixNonsing
virtual void V_InvMtV (VectorMutable *v_lhs, BLAS_Cpp::Transp trans_rhs1, const Vector &v_rhs2) const =0
 v_lhs = inv(op(M_rhs1)) * vs_rhs2 More...

virtual void V_InvMtV (VectorMutable *v_lhs, BLAS_Cpp::Transp trans_rhs1, const SpVectorSlice &sv_rhs2) const
 v_lhs = inv(op(M_rhs1)) * sv_rhs2 More...

virtual value_type transVtInvMtV (const Vector &v_rhs1, BLAS_Cpp::Transp trans_rhs2, const Vector &v_rhs3) const
 result = vs_rhs1' * inv(op(M_rhs2)) * vs_rhs3 More...

virtual value_type transVtInvMtV (const SpVectorSlice &sv_rhs1, BLAS_Cpp::Transp trans_rhs2, const SpVectorSlice &sv_rhs3) const
 result = sv_rhs1' * inv(op(M_rhs2)) * sv_rhs3 More...

virtual void M_StInvMtM (MatrixOp *m_lhs, value_type alpha, BLAS_Cpp::Transp trans_rhs1, const MatrixOp &mwo_rhs2, BLAS_Cpp::Transp trans_rhs2) const
 m_lhs = alpha * inv(op(M_rhs1)) * op(mwo_rhs2) (right). More...

virtual void M_StMtInvM (MatrixOp *m_lhs, value_type alpha, const MatrixOp &mwo_rhs1, BLAS_Cpp::Transp trans_rhs1, BLAS_Cpp::Transp trans_rhs2) const
 m_lhs = alpha * op(mwo_rhs1) * inv(op(M_rhs2)) (left). More...


Clone

virtual mat_mwons_mut_ptr_t clone_mwons ()
 Clone the non-const matrix object (if supported). More...

virtual mat_mwons_ptr_t clone_mwons () const
 Clone the const matrix object (if supported). More...


Condition number estimation

const MatNorm calc_cond_num (EMatNormType requested_norm_type=MAT_NORM_1, bool allow_replacement=false) const
 Compute an estimate of the condition number of this matrix. More...


Overridden from MatrixOp

mat_mut_ptr_t clone ()
 Returns this->clone_mwons(). More...

mat_ptr_t clone () const
 Returns this->clone_mwons(). More...


Overridden from MatrixNonsing

mat_mns_mut_ptr_t clone_mns ()
 Returns this->clone_mwons(). More...

mat_mns_ptr_t clone_mns () const
 Returns this->clone_mwons(). More...


Detailed Description

Abstract base class for all nonsingular polymorphic matrices that can be used to compute matrix-vector products and solve for linear systems efficiently.

Definition at line 54 of file AbstractLinAlgPack_MatrixOpNonsing.hpp.

Member Function Documentation

MatrixOpNonsing::mat_mwons_mut_ptr_t AbstractLinAlgPack::MatrixOpNonsing::clone_mwons ( )
virtual

Clone the non-const matrix object (if supported).

The default implementation returns NULL which is perfectly acceptable. A matrix object is not required to return a non-NULL value but almost every good matrix implementation will.

Reimplemented in AbstractLinAlgPack::MatrixSymOpNonsing.

Definition at line 52 of file AbstractLinAlgPack_MatrixOpNonsing.cpp.

MatrixOpNonsing::mat_mwons_ptr_t AbstractLinAlgPack::MatrixOpNonsing::clone_mwons ( ) const
virtual

Clone the const matrix object (if supported).

The behavior of this method is the same as for the non-const version above except it returns a smart pointer to a const matrix object.

Reimplemented in AbstractLinAlgPack::MatrixOpNonsingThyra, and AbstractLinAlgPack::MatrixSymOpNonsing.

Definition at line 58 of file AbstractLinAlgPack_MatrixOpNonsing.cpp.

const MatrixOp::MatNorm AbstractLinAlgPack::MatrixOpNonsing::calc_cond_num ( EMatNormType  requested_norm_type = MAT_NORM_1,
bool  allow_replacement = false
) const

Compute an estimate of the condition number of this matrix.

Parameters
requested_norm_type[in] Determines the requested type of norm for the condition number.
allow_replacement[in] Determines if the requested norm in specified in norm_type can be replaced with another norm that can be computde by the matrix.
Returns
If a condition number is computed, then return.value gives the value of the condition number in the norm of type return.type.

Postconditions:

  • If allow_replacement==true, the matrix object must return a computed condition number who's type is given in return.type.
  • If allow_replacement==false and the underlying matrix object can not compute condition number for the norm requested in norm_type, then a MethodNotImplemented exception will be thrown. If the matrix object can an estimate of the condition number for this norm, then return.type will be equal to requested_norm_type.

The default implementation of this method uses Algorithm 2.5 in "Applied Numerical Linear Algebra" by James Demmel (1997) to estimate ||inv(M)||1 or ||inv(M)||inf. The algorithm uses some of the refinements in the referenced algorithm by Highman. This algorithm only requires solves and transposed solves so every nonsingular matrix object can implement this method. The default arguments for this function will compute an estimate of the condition number and will not thrown an exception. The default implementation will throw an exception for any other norm type than requested_norm_type = MAT_NORM_1 or requested_norm_type = MAT_NORM_INF.

Definition at line 64 of file AbstractLinAlgPack_MatrixOpNonsing.cpp.

MatrixOpNonsing::mat_mut_ptr_t AbstractLinAlgPack::MatrixOpNonsing::clone ( )
virtual
MatrixOpNonsing::mat_ptr_t AbstractLinAlgPack::MatrixOpNonsing::clone ( ) const
virtual
MatrixOpNonsing::mat_mns_mut_ptr_t AbstractLinAlgPack::MatrixOpNonsing::clone_mns ( )
virtual
MatrixOpNonsing::mat_mns_ptr_t AbstractLinAlgPack::MatrixOpNonsing::clone_mns ( ) const
virtual
MatrixOpNonsing& AbstractLinAlgPack::MatrixOpNonsing::operator= ( const MatrixOpNonsing M)
inline

Calls operator=(MatrixOp&)

Definition at line 152 of file AbstractLinAlgPack_MatrixOpNonsing.hpp.


The documentation for this class was generated from the following files:
