MatrixOp adapter subclass for Thyra::LinearOpBase. More...

#include <AbstractLinAlgPack_MatrixOpThyra.hpp>

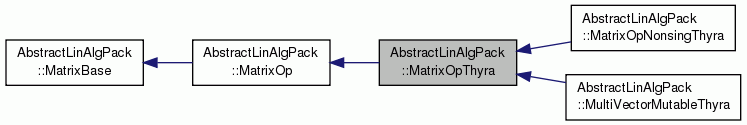

Inheritance diagram for AbstractLinAlgPack::MatrixOpThyra:

Private Attributes
Thyra::LinearOpBase< value_type > *	thyra_linear_op

BLAS_Cpp::Transp	thyra_linear_op_trans_

VectorSpaceThyra	space_cols_

VectorSpaceThyra	space_rows_

Constructors / Initializers
	MatrixOpThyra ()
	Construct to uninitialized. More...

	MatrixOpThyra (const Teuchos::RCP< const Thyra::LinearOpBase< value_type > > &thyra_linear_op, BLAS_Cpp::Transp thyra_linear_op_trans=BLAS_Cpp::no_trans)
	Calls `this->initialize()`. More...

virtual void	initialize (const Teuchos::RCP< const Thyra::LinearOpBase< value_type > > &thyra_linear_op, BLAS_Cpp::Transp thyra_linear_op_trans=BLAS_Cpp::no_trans)
	Initalize given a smart pointer to a `Thyra::LinearOpBase` object. More...

Teuchos::RCP< const Thyra::LinearOpBase < value_type > >	set_uninitialized ()
	Set to uninitialized and return smart pointer to the internal `Thyra::VectorBase` object. More...

const Teuchos::RCP< const Thyra::LinearOpBase < value_type > > &	thyra_linear_op () const
	Return a (converted) smart pointer to the internal smart pointer to the `Thyra::VectorBase` object. More...

BLAS_Cpp::Transp	thyra_linear_op_trans () const

Overridden from MatrixBase
const VectorSpace &	space_cols () const

const VectorSpace &	space_rows () const

Overridden from MatrixOp
mat_mut_ptr_t	clone ()

MatrixOp &	operator= (const MatrixOp &mwo_rhs)

void	Vp_StMtV (VectorMutable *v_lhs, value_type alpha, BLAS_Cpp::Transp trans_rhs1, const Vector &v_rhs2, value_type beta) const

bool	Mp_StMtM (MatrixOp *mwo_lhs, value_type alpha, BLAS_Cpp::Transp trans_rhs1, const MatrixOp &mwo_rhs2, BLAS_Cpp::Transp trans_rhs2, value_type beta) const
	Works for `MultiVectorMutableThyra` arguments. More...

Additional Inherited Members
Public Types inherited from AbstractLinAlgPack::MatrixOp
enum	EMatNormType { MAT_NORM_INF, MAT_NORM_2, MAT_NORM_1, MAT_NORM_FORB }
	Type of matrix norm. More...

Public Member Functions inherited from AbstractLinAlgPack::MatrixOp
virtual void	zero_out ()
	M_lhs = 0 : Zero out the matrix. More...

virtual void	Mt_S (value_type alpha)
	M_lhs *= alpha : Multiply a matrix by a scalar. More...

virtual mat_ptr_t	clone () const
	Clone the const matrix object (if supported). More...

virtual std::ostream &	output (std::ostream &out) const
	Virtual output function. More...

const MatNorm	calc_norm (EMatNormType requested_norm_type=MAT_NORM_1, bool allow_replacement=false) const
	Compute a norm of this matrix. More...

virtual mat_ptr_t	sub_view (const Range1D &row_rng, const Range1D &col_rng) const
	Create a transient constant sub-matrix view of this matrix (if supported). More...

mat_ptr_t	sub_view (const index_type &rl, const index_type &ru, const index_type &cl, const index_type &cu) const
	Inlined implementation calls `this->sub_view(Range1D(rl,ru),Range1D(cl,cu))`. More...

virtual mat_ptr_t	perm_view (const Permutation P_row, const index_type row_part[], int num_row_part, const Permutation P_col, const index_type col_part[], int num_col_part) const
	Create a permuted view: `M_perm = P_row' * M * P_col`. More...

virtual mat_ptr_t	perm_view_update (const Permutation P_row, const index_type row_part[], int num_row_part, const Permutation P_col, const index_type col_part[], int num_col_part, const mat_ptr_t &perm_view) const
	Reinitialize a permuted view: `M_perm = P_row' * M * P_col`. More...

Public Member Functions inherited from AbstractLinAlgPack::MatrixBase
virtual	~MatrixBase ()
	Virtual destructor. More...

virtual size_type	rows () const
	Return the number of rows in the matrix. More...

virtual size_type	cols () const
	Return the number of columns in the matrix. More...

virtual size_type	nz () const
	Return the number of nonzero elements in the matrix. More...

Protected Member Functions inherited from AbstractLinAlgPack::MatrixOp
virtual bool	Mp_StM (MatrixOp *mwo_lhs, value_type alpha, BLAS_Cpp::Transp trans_rhs) const
	mwo_lhs += alpha * op(M_rhs) (BLAS xAXPY). More...

virtual bool	Mp_StM (value_type alpha, const MatrixOp &M_rhs, BLAS_Cpp::Transp trans_rhs)
	M_lhs += alpha * op(mwo_rhs) (BLAS xAXPY). More...

virtual bool	Mp_StMtP (MatrixOp *mwo_lhs, value_type alpha, BLAS_Cpp::Transp M_trans, const GenPermMatrixSlice &P_rhs, BLAS_Cpp::Transp P_rhs_trans) const
	mwo_lhs += alpha * op(M_rhs) * op(P_rhs). More...

virtual bool	Mp_StMtP (value_type alpha, const MatrixOp &mwo_rhs, BLAS_Cpp::Transp M_trans, const GenPermMatrixSlice &P_rhs, BLAS_Cpp::Transp P_rhs_trans)
	M_lhs += alpha * op(mwo_rhs) * op(P_rhs). More...

virtual bool	Mp_StPtM (MatrixOp *mwo_lhs, value_type alpha, const GenPermMatrixSlice &P_rhs, BLAS_Cpp::Transp P_rhs_trans, BLAS_Cpp::Transp M_trans) const
	mwo_lhs += alpha * op(P_rhs) * op(M_rhs). More...

virtual bool	Mp_StPtM (value_type alpha, const GenPermMatrixSlice &P_rhs, BLAS_Cpp::Transp P_rhs_trans, const MatrixOp &mwo_rhs, BLAS_Cpp::Transp M_trans)
	M_lhs += alpha * op(P_rhs) * op(mwo_rhs). More...

virtual bool	Mp_StPtMtP (MatrixOp *mwo_lhs, value_type alpha, const GenPermMatrixSlice &P_rhs1, BLAS_Cpp::Transp P_rhs1_trans, BLAS_Cpp::Transp M_trans, const GenPermMatrixSlice &P_rhs2, BLAS_Cpp::Transp P_rhs2_trans) const
	mwo_lhs += alpha * op(P_rhs1) * op(M_rhs) * op(P_rhs2). More...

virtual bool	Mp_StPtMtP (value_type alpha, const GenPermMatrixSlice &P_rhs1, BLAS_Cpp::Transp P_rhs1_trans, const MatrixOp &mwo_rhs, BLAS_Cpp::Transp M_trans, const GenPermMatrixSlice &P_rhs2, BLAS_Cpp::Transp P_rhs2_trans)
	M_lhs += alpha * op(P_rhs1) * op(mwo_rhs) * op(P_rhs2). More...

virtual void	Vp_StMtV (VectorMutable *v_lhs, value_type alpha, BLAS_Cpp::Transp trans_rhs1, const SpVectorSlice &sv_rhs2, value_type beta) const
	v_lhs = alpha * op(M_rhs1) * sv_rhs2 + beta * v_lhs (BLAS xGEMV) More...

virtual void	Vp_StPtMtV (VectorMutable *v_lhs, value_type alpha, const GenPermMatrixSlice &P_rhs1, BLAS_Cpp::Transp P_rhs1_trans, BLAS_Cpp::Transp M_rhs2_trans, const Vector &v_rhs3, value_type beta) const
	v_lhs = alpha * op(P_rhs1) * op(M_rhs2) * v_rhs3 + beta * v_rhs More...

virtual void	Vp_StPtMtV (VectorMutable *v_lhs, value_type alpha, const GenPermMatrixSlice &P_rhs1, BLAS_Cpp::Transp P_rhs1_trans, BLAS_Cpp::Transp M_rhs2_trans, const SpVectorSlice &sv_rhs3, value_type beta) const
	v_lhs = alpha * op(P_rhs1) * op(M_rhs2) * sv_rhs3 + beta * v_rhs More...

virtual value_type	transVtMtV (const Vector &v_rhs1, BLAS_Cpp::Transp trans_rhs2, const Vector &v_rhs3) const
	result = v_rhs1' * op(M_rhs2) * v_rhs3 More...

virtual value_type	transVtMtV (const SpVectorSlice &sv_rhs1, BLAS_Cpp::Transp trans_rhs2, const SpVectorSlice &sv_rhs3) const
	result = sv_rhs1' * op(M_rhs2) * sv_rhs3 More...

virtual void	syr2k (BLAS_Cpp::Transp M_trans, value_type alpha, const GenPermMatrixSlice &P1, BLAS_Cpp::Transp P1_trans, const GenPermMatrixSlice &P2, BLAS_Cpp::Transp P2_trans, value_type beta, MatrixSymOp *symwo_lhs) const
	Perform a specialized rank-2k update of a dense symmetric matrix of the form: More...

virtual bool	Mp_StMtM (MatrixOp *mwo_lhs, value_type alpha, const MatrixOp &mwo_rhs1, BLAS_Cpp::Transp trans_rhs1, BLAS_Cpp::Transp trans_rhs2, value_type beta) const
	mwo_lhs = alpha * op(mwo_rhs1) * op(M_rhs2) + beta * mwo_lhs (right) (xGEMM) More...

virtual bool	Mp_StMtM (value_type alpha, const MatrixOp &mwo_rhs1, BLAS_Cpp::Transp trans_rhs1, const MatrixOp &mwo_rhs2, BLAS_Cpp::Transp trans_rhs2, value_type beta)
	M_lhs = alpha * op(mwo_rhs1) * op(mwo_rhs2) + beta * mwo_lhs (left) (xGEMM) More...

virtual bool	syrk (BLAS_Cpp::Transp M_trans, value_type alpha, value_type beta, MatrixSymOp *sym_lhs) const
	Perform a rank-k update of a symmetric matrix of the form: More...

virtual bool	syrk (const MatrixOp &mwo_rhs, BLAS_Cpp::Transp M_trans, value_type alpha, value_type beta)
	Perform a rank-k update of a symmetric matrix of the form: More...

Detailed Description

MatrixOp adapter subclass for Thyra::LinearOpBase.

Definition at line 53 of file AbstractLinAlgPack_MatrixOpThyra.hpp.

Constructor & Destructor Documentation

AbstractLinAlgPack::MatrixOpThyra::MatrixOpThyra ( )

Construct to uninitialized.

Postconditioins:

this->thyra_linear_op().get() == NULL
this->rows() == 0
this->cols() == 0

Definition at line 54 of file AbstractLinAlgPack_MatrixOpThyra.cpp.

AbstractLinAlgPack::MatrixOpThyra::MatrixOpThyra	(	const Teuchos::RCP< const Thyra::LinearOpBase< value_type > > &	thyra_linear_op,
		BLAS_Cpp::Transp	thyra_linear_op_trans = `BLAS_Cpp::no_trans`
	)

Calls this->initialize().

Definition at line 57 of file AbstractLinAlgPack_MatrixOpThyra.cpp.

Member Function Documentation

void AbstractLinAlgPack::MatrixOpThyra::initialize	(	const Teuchos::RCP< const Thyra::LinearOpBase< value_type > > &	thyra_linear_op,
		BLAS_Cpp::Transp	thyra_linear_op_trans = `BLAS_Cpp::no_trans`
	)

virtual

Initalize given a smart pointer to a Thyra::LinearOpBase object.

Parameters

thyra_linear_op [in] Smart pointer to Thyra vector this will adapt.

Preconditioins:

thyra_linear_op.get() != NULL (throw std::invalid_argument)
thyra_linear_op->opSupported(Thyra::NOTRANS) && thyra_linear_op->opSupported(Thyra::TRANS) (throw std::invalid_argument)

Postconditioins:




this->thyra_linear_op().get() == thyra_linear_op.get()

this->thyra_linear_op_trans() == thyra_linear_op_trans

this->rows() == thyra_linear_op->range()->dim()

this->cols() == thyra_linear_op->domain()->dim()

Definition at line 65 of file AbstractLinAlgPack_MatrixOpThyra.cpp.

Teuchos::RCP< const Thyra::LinearOpBase< value_type > > AbstractLinAlgPack::MatrixOpThyra::set_uninitialized ( )

Set to uninitialized and return smart pointer to the internal Thyra::VectorBase object.

Postconditioins:

this->thyra_linear_op().get() == NULL

Definition at line 88 of file AbstractLinAlgPack_MatrixOpThyra.cpp.

const Teuchos::RCP<const Thyra::LinearOpBase<value_type> >& AbstractLinAlgPack::MatrixOpThyra::thyra_linear_op ( ) const

Return a (converted) smart pointer to the internal smart pointer to the Thyra::VectorBase object.

If this->thyra_linear_op().count() == 1, then this has sole ownership of the *this->thyra_linear_op() object.

BLAS_Cpp::Transp AbstractLinAlgPack::MatrixOpThyra::thyra_linear_op_trans ( ) const

inline

Definition at line 169 of file AbstractLinAlgPack_MatrixOpThyra.hpp.

const VectorSpace & AbstractLinAlgPack::MatrixOpThyra::space_cols ( ) const

virtual

Implements AbstractLinAlgPack::MatrixBase.

Definition at line 101 of file AbstractLinAlgPack_MatrixOpThyra.cpp.

const VectorSpace & AbstractLinAlgPack::MatrixOpThyra::space_rows ( ) const

virtual

Implements AbstractLinAlgPack::MatrixBase.

Definition at line 107 of file AbstractLinAlgPack_MatrixOpThyra.cpp.

MatrixOp::mat_mut_ptr_t AbstractLinAlgPack::MatrixOpThyra::clone ( )

virtual

Reimplemented from AbstractLinAlgPack::MatrixOp.

Reimplemented in AbstractLinAlgPack::MultiVectorMutableThyra.

Definition at line 115 of file AbstractLinAlgPack_MatrixOpThyra.cpp.

MatrixOp & AbstractLinAlgPack::MatrixOpThyra::operator= ( const MatrixOp & mwo_rhs )

virtual

Reimplemented from AbstractLinAlgPack::MatrixOp.

Reimplemented in AbstractLinAlgPack::MultiVectorMutableThyra.

Definition at line 120 of file AbstractLinAlgPack_MatrixOpThyra.cpp.

void AbstractLinAlgPack::MatrixOpThyra::Vp_StMtV	(	VectorMutable *	v_lhs,
		value_type	alpha,
		BLAS_Cpp::Transp	trans_rhs1,
		const Vector &	v_rhs2,
		value_type	beta
	)		const

virtual

Implements AbstractLinAlgPack::MatrixOp.

Reimplemented in AbstractLinAlgPack::MultiVectorMutableThyra.

Definition at line 131 of file AbstractLinAlgPack_MatrixOpThyra.cpp.

bool AbstractLinAlgPack::MatrixOpThyra::Mp_StMtM	(	MatrixOp *	mwo_lhs,
		value_type	alpha,
		BLAS_Cpp::Transp	trans_rhs1,
		const MatrixOp &	mwo_rhs2,
		BLAS_Cpp::Transp	trans_rhs2,
		value_type	beta
	)		const
