Interface for the creation and maintainance of a basis matrix for a decomposition of linearlized constriants. More...

#include <AbstractLinAlgPack_BasisSystem.hpp>

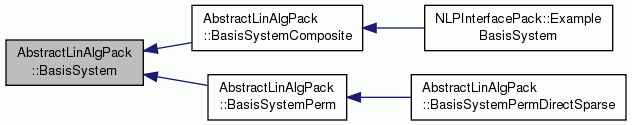

Inheritance diagram for AbstractLinAlgPack::BasisSystem:

Classes
class	SingularBasis

Public Member Functions
	BasisSystem (const mat_sym_fcty_ptr_t &factory_transDtD, const mat_sym_nonsing_fcty_ptr_t &factory_S)
	Required constructor (calls `initialize()`). More...

virtual void	initialize (const mat_sym_fcty_ptr_t &factory_transDtD, const mat_sym_nonsing_fcty_ptr_t &factory_S)
	Initialize the factory objects for the special matrices for `D'D` and `S = I + D'D`. More...

virtual	~BasisSystem ()

Private Member Functions
	BasisSystem ()

Private Attributes
mat_sym_fcty_ptr_t	factory_transDtD_

mat_sym_nonsing_fcty_ptr_t	factory_S_

Public types
enum	EMatRelations { MATRICES_INDEP_IMPS, MATRICES_ALLOW_DEP_IMPS }

typedef Teuchos::RCP< const Teuchos::AbstractFactory < MatrixOpNonsing > >	mat_nonsing_fcty_ptr_t

typedef Teuchos::RCP< const Teuchos::AbstractFactory < MatrixOp > >	mat_fcty_ptr_t

typedef Teuchos::RCP< const Teuchos::AbstractFactory < MatrixSymOp > >	mat_sym_fcty_ptr_t

typedef Teuchos::RCP< const Teuchos::AbstractFactory < MatrixSymOpNonsing > >	mat_sym_nonsing_fcty_ptr_t

Matrix factories
virtual const mat_nonsing_fcty_ptr_t	factory_C () const =0
	Return a matrix factory object for basis `C = [ Gc(var_dep,equ_decomp)'; Gh(var_dep,inequ_decomp)' ]`. More...

virtual const mat_fcty_ptr_t	factory_D () const =0
	Return a matrix factory object for sensitivity matrix `D = -inv(C)*N`. More...

virtual const mat_fcty_ptr_t	factory_GcUP () const
	Return a matrix factory object for auxiliary sensitivity matrix `GcUP = Gc(var_indep,equ_undecomp)' + Gc(var_dep,equ_undecomp)'*D`. More...

virtual const mat_sym_fcty_ptr_t	factory_transDtD () const
	Returns a matrix factory for the result of `J = D'*D` More...

virtual const mat_sym_nonsing_fcty_ptr_t	factory_S () const
	Returns a matrix factory for the result of `S = I + D'*D` More...

Return the ranges for variable and constraint partitioning
virtual Range1D	var_dep () const =0
	Range of dependent (basic) variables. More...

virtual Range1D	var_indep () const =0
	Range of independnet (nonbasic) variables. More...

virtual Range1D	equ_decomp () const
	Range of decomposed general equality constraints. More...

virtual Range1D	equ_undecomp () const
	Range of undecomposed general equality constriants. More...

Update matrices
virtual void	update_basis (const MatrixOp &Gc, MatrixOpNonsing C, MatrixOp D, MatrixOp GcUP, EMatRelations mat_rel=MATRICES_INDEP_IMPS, std::ostream out=NULL) const =0
	Update a basis and posssibly the direct sensitivity matrix for a set of Jacobian matrices. More...

Detailed Description

Interface for the creation and maintainance of a basis matrix for a decomposition of linearlized constriants.

Overview:

This interface is designed to take the Jacobian for a sub-set of equality constraints $\nabla c$ and to create a basis matrix. Assume we have the folloing linealrized equality constraints:

$\nabla c^T d + c = 0$

The C++ identifier given to $\nabla c$ is Gc.

In this basis interface we will assume that d, c and h are sorted such that we define the following sets (given the partitioning matrices $Q_{x} = \left[\begin{array}{c} Q_{xD} \\ Q_{xI} \end{array}\right]$ , $Q_{c} = \left[\begin{array}{c} Q_{cD} \\ Q_{cU} \end{array}\right]$ , ):

d(var_dep) ( $d_D = Q_{xD} d$ ) : Dependent (i.e. basis) variables.
d(var_indep) ( $d_I = Q_{xI} d$ ) : Independent (i.e. nonbasic) variables.
c(equ_decomp) ( $c_D = Q_{cD} c$ ) : Decomposed equality constriants.
c(equ_undecomp) ( $c_U = Q_{cU} c$ ): Undecomposed equality constriants.

Given these partitionings we can define a basis matrix C for the following Jacobian sub-matrices (in mathematical and Matlab-like notation):

$C = Q_{cD} \nabla c_T (Q_{xD})^T$

 C = Gc(var_dep,equ_decomp)'

We can also define a nonbasis matrix N for the decomposed constraints as:

$N = Q_{cD} \nabla c^T (Q_{xI})^T$

 N = Gc(var_indep,equ_decomp)'

Given the definitions of C and N above, we can define the following direct-sensitivity matrix D:

$D = - C^{-1} N$

  D = -inv(C)*N

Given this matrix D, we can define another projected sensistivity matrix:

GcUP = Gc(var_indep,equ_undecomp)' + Gc(var_dep,equ_undecomp)' * D

This interface allows a client to create the basis matrix C and optionally the direct sensitivity matrix D = -inv(C)*N and the auxiliary projected sensistivity matrix GcUP (shown above). These matrix objects are independent from this BasisSystem object or from other C, D, or GcUP objects. Therefore, a BasisSystem object can be thought of as an "Abstract Factory" for basis matrices and auxillary matrices. Note that a BasisSystem object will not compute the matrices D, GcUP unless specifically asked.

Note that the purpose of this interface is to abstract client code away from the details of how the matrix Gc is represented and implemented and how the basis matrix C is formed and implemented. The complexity of these matrices could vary from simple dense serial matrices all the way up massively parallel matrices using iterative solvers for C running on computers with thousands of nodes.

This interface also allows clients to compute the matrices J = D'*D and S = I + D'*D.

Client usage:

The matrix objects for C, D, GcUP, D'*D and S=I+D'*D are created by the client using the AbstractFactory<> objects returned from factory_C(), factory_D(), factory_GcUP(), factory_transDtD() and factory_S() respectively. These methods return smart pointers to these matrix factory objects and these objects are ment to have a lifetime that extends up to and beyond the lifetime of the BasisSystem object that created them. Note that the matrix objects returned by these matrix factory objects are not to be considered usable until they have passed through update_basis() or receive some other appropriate initialization.

The ranges of the dependent and independent variables, and decomposed and undecomposed equality constriants are returned by the methods var_dep(), var_indep(), equ_decomp() andequ_undecomp() respectively. There are a few obvious assertions for the values that these ranges can take on. Assuming that Gc is non-null when passed to update_basis(), the following assertions apply:

Assertions:

var_dep().size() == equ_decomp().size() + inequ_decomp().size()
var_dep().size() + var_indep().size() == Gc.rows()
equ_decomp().size() + equ_undecomp().size() == Gc.cols()

Note that the client should not rely on var_dep(), var_indep(), equ_decomp(), or equ_undecomp() until after the first call to update_basis(). This allows a BasisSystem object to adjust itself to accommodate the input matrix Gc.

A fully initialized BasisSystem object will be setup to work with specific types and sizes of input matrices Gc and Gh. Therefore, the client should be able to get accrate values from var_dep(), var_indep(), equ_decomp(), or equ_undecomp() even before the first call to update_basis(). The BasisSystem object must therefore be initialized in some way to accommodate input matrices Gc and Gh of a specific dimension.

Note that This interface is completely worthless unless var_dep() returns some valid range (i.e. a basis matrix exists). If var_dep().size() == 0 then this is an indication that this is uninitialzed and therefore only the factory methods can be called!

The method update_basis() is used by the client to update the basis matrix C and perhaps the direct sensitivity matrix D and it's auxillary projected sensistivity matrix GcUP Strictly speaking, it would be possible to form the matrix D externally through the MatrixNonsing interface using the returned C and an N matrix object, but this may not take advantage of any special application specific tricks that can be used to form D. Note that this interface does not return a nonbasis matrix object for N. However, this matrix object will be needed for an implicit D matrix object that the client will undoubtably want to create. Creating such a matrix object is simple given the method MatrixOp::sub_view(). The following code example shows how to create a matrix object for N (given the matrix Gc input to bs.update_basis(Gc,...) and bs):

Teuchos::RCP<const MatrixOp>
create_N(
    const AbstractLinAlgPack::MatrixOp       &Gc
    ,const AbstractLinAlgPack::BasisSystem   &bs
    )
{
    namespace mmp = MemMngPack;
  return Teuchos::rcp(
        new MatrixOpSubView(
            Gc.sub_view(bs.var_indep(),bs.equ_decomp()), BLAS_Cpp::trans
            )
        );
}

Given the nonbasis matrix object for N returned by the above function, this matrix object could be used to form an explicit D matrix object (but perhaps not very efficiently) or be used to implicitly implement matrix vector products with D as:

 op(D)*v = op(-inv(C)*N)*v = -inv(C)*(N*v) or -N'*(inv(C')*v)

The client can also form matrices of the form S = I + D'*D as follows:

Teuchos::RCP<MatrixSymOpNonsing>
    S = basis_sys.factory_S()->create();
Teuchos::dyn_cast<MatrixSymInitDiag>(*S).init_identity(D.space_rows());
syrk(D,BLAS_Cpp::trans,1.0,1.0,S.get();

The matrix S must then be fully initialized and ready to go.

Subclass developer's notes:

The default implementation (of the methods that have default implementations) assume that there are no undecomposed equality constriants.

ToDo: Finish documentation!

Definition at line 228 of file AbstractLinAlgPack_BasisSystem.hpp.

Member Typedef Documentation

typedef Teuchos::RCP< const Teuchos::AbstractFactory<MatrixOpNonsing> > AbstractLinAlgPack::BasisSystem::mat_nonsing_fcty_ptr_t

Definition at line 236 of file AbstractLinAlgPack_BasisSystem.hpp.

typedef Teuchos::RCP< const Teuchos::AbstractFactory<MatrixOp> > AbstractLinAlgPack::BasisSystem::mat_fcty_ptr_t

Definition at line 239 of file AbstractLinAlgPack_BasisSystem.hpp.

typedef Teuchos::RCP< const Teuchos::AbstractFactory<MatrixSymOp> > AbstractLinAlgPack::BasisSystem::mat_sym_fcty_ptr_t

Definition at line 242 of file AbstractLinAlgPack_BasisSystem.hpp.

typedef Teuchos::RCP< const Teuchos::AbstractFactory<MatrixSymOpNonsing> > AbstractLinAlgPack::BasisSystem::mat_sym_nonsing_fcty_ptr_t

Definition at line 245 of file AbstractLinAlgPack_BasisSystem.hpp.

Member Enumeration Documentation

enum AbstractLinAlgPack::BasisSystem::EMatRelations

Enumerator
MATRICES_INDEP_IMPS
MATRICES_ALLOW_DEP_IMPS

Definition at line 250 of file AbstractLinAlgPack_BasisSystem.hpp.

Constructor & Destructor Documentation

AbstractLinAlgPack::BasisSystem::BasisSystem	(	const mat_sym_fcty_ptr_t &	factory_transDtD,
		const mat_sym_nonsing_fcty_ptr_t &	factory_S
	)

Required constructor (calls initialize()).

Definition at line 47 of file AbstractLinAlgPack_BasisSystem.cpp.

virtual AbstractLinAlgPack::BasisSystem::~BasisSystem ( )

inlinevirtual

Definition at line 274 of file AbstractLinAlgPack_BasisSystem.hpp.

AbstractLinAlgPack::BasisSystem::BasisSystem ( )

private

Member Function Documentation

void AbstractLinAlgPack::BasisSystem::initialize	(	const mat_sym_fcty_ptr_t &	factory_transDtD,
		const mat_sym_nonsing_fcty_ptr_t &	factory_S
	)

virtual

Initialize the factory objects for the special matrices for D'*D and S = I + D'*D.

Postconditions:

this->factory_transDtD().get() == factory_transDtD.get()
this->factory_S().get() == factory_S.get()

Definition at line 55 of file AbstractLinAlgPack_BasisSystem.cpp.

virtual const mat_nonsing_fcty_ptr_t AbstractLinAlgPack::BasisSystem::factory_C ( ) const

pure virtual

Return a matrix factory object for basis C = [ Gc(var_dep,equ_decomp)'; Gh(var_dep,inequ_decomp)' ].

Implemented in AbstractLinAlgPack::BasisSystemComposite, and AbstractLinAlgPack::BasisSystemPermDirectSparse.

virtual const mat_fcty_ptr_t AbstractLinAlgPack::BasisSystem::factory_D ( ) const

pure virtual

Return a matrix factory object for sensitivity matrix D = -inv(C)*N.

It is allowed for this to return NULL in which case update_basis() will not accept a D matrix to be computed.

Implemented in AbstractLinAlgPack::BasisSystemComposite, and AbstractLinAlgPack::BasisSystemPermDirectSparse.

const BasisSystem::mat_fcty_ptr_t AbstractLinAlgPack::BasisSystem::factory_GcUP ( ) const

virtual

Return a matrix factory object for auxiliary sensitivity matrix GcUP = Gc(var_indep,equ_undecomp)' + Gc(var_dep,equ_undecomp)'*D.

It is allowed for this to return NULL in which case update_basis() will not accept a GcUP matrix to be computed.

Reimplemented in AbstractLinAlgPack::BasisSystemPermDirectSparse.

Definition at line 75 of file AbstractLinAlgPack_BasisSystem.cpp.

const BasisSystem::mat_sym_fcty_ptr_t AbstractLinAlgPack::BasisSystem::factory_transDtD ( ) const

virtual

Returns a matrix factory for the result of J = D'*D

The resulting matrix is symmetric but is assumed to be singular.

Postconditions:

The function AbstractLinAlgPack::syrk(D,trans,alpha,beta,return->create().get()) must not throw an exception once D has been initialized by this.

Definition at line 81 of file AbstractLinAlgPack_BasisSystem.cpp.

const BasisSystem::mat_sym_nonsing_fcty_ptr_t AbstractLinAlgPack::BasisSystem::factory_S ( ) const

virtual

Returns a matrix factory for the result of S = I + D'*D

The resulting matrix is symmetric and is guarrenteed to be nonsingular.

Postconditions:

dynamic_cast<MatrixSymInitDiag*>(return->create().get()) != NULL

Definition at line 87 of file AbstractLinAlgPack_BasisSystem.cpp.

virtual Range1D AbstractLinAlgPack::BasisSystem::var_dep ( ) const

pure virtual

Range of dependent (basic) variables.

If there are no dependent variables then return.size() == 0. This would be a strange case where there was no basis matrix in which case this whole interface would be worthless. Therefore, to be useful return.size() > 0 must be true.

If var_dep().size() returns 0, then this is an indication that *this is uninitialized and only the factory methods can be called.

Implemented in AbstractLinAlgPack::BasisSystemComposite, and AbstractLinAlgPack::BasisSystemPermDirectSparse.

virtual Range1D AbstractLinAlgPack::BasisSystem::var_indep ( ) const

pure virtual

Range of independnet (nonbasic) variables.

It is possible that the basis matrix may take up all of the degrees of freedom with var_dep().size() == Gc->rows(). In this case, there is no nonbasis matrix N and no direct sensitivity matrix D. In this case return.size() == 0. In the more general case however, return.size() > 0.

Implemented in AbstractLinAlgPack::BasisSystemComposite, and AbstractLinAlgPack::BasisSystemPermDirectSparse.

Range1D AbstractLinAlgPack::BasisSystem::equ_decomp ( ) const

virtual

Range of decomposed general equality constraints.

If there are no decomposed general equality constriants then return.size() == 0. Otherwise, return.size() > 0.

The default implementation return Range1D(1,this->var_dep().size())

Reimplemented in AbstractLinAlgPack::BasisSystemPermDirectSparse.

Definition at line 64 of file AbstractLinAlgPack_BasisSystem.cpp.

Range1D AbstractLinAlgPack::BasisSystem::equ_undecomp ( ) const

virtual

Range of undecomposed general equality constriants.

If there are no undecomposed equality constriants then return.size() == 0. Otherwise, return.size() > 0.

The default implementation return Range1D::Invalid

Reimplemented in AbstractLinAlgPack::BasisSystemPermDirectSparse.

Definition at line 70 of file AbstractLinAlgPack_BasisSystem.cpp.

virtual void AbstractLinAlgPack::BasisSystem::update_basis	(	const MatrixOp &	Gc,
		MatrixOpNonsing *	C,
		MatrixOp *	D,
		MatrixOp *	GcUP,
		EMatRelations	mat_rel = `MATRICES_INDEP_IMPS`,
		std::ostream *	out = `NULL`
	)		const

pure virtual

Update a basis and posssibly the direct sensitivity matrix for a set of Jacobian matrices.

Parameters

Gc	[in] Jacobian of the equality constriants.
C	[out] Basis matrix. If `C == NULL` on input, then this quantity is not updated. If `C != NULL` then this must have been created by `this->factory_C()->create()`. This basis matrix object must be independent of the input matrices `Gc` and/or `Gh`. Therefore, it must be legal to destroy `Gc` and/or `Gh` without affecting the behavior of the basis matrix object `C`.
D	[out] Direct sensitivity matrix `D = -inv(C)*N`. If `D == NULL` on input then this quantity is not updated. If `D != NULL` then this must have been created by `this->factory_D()->create()`. This matrix object is meaningless if `this->var_indep() == Range1D::Invalid` on return. This matrix object must be independent matrices `Gc` and/or `Gh` Therefore, it must be legal to destroy `Gc` and/or `Gh` without affecting the behavior of the direct sensitivity matrix object `D`.
GcUP	[out] Auxiliary sensistivity matrix `GcUP = Gc(var_indep,equ_undecomp)' + Gc(var_dep,equ_undecomp)'*D`. If `GcUP == NULL` on input then this quantity is not updated. If `GcUP != NULL` then this must have been created by `this->factory_GcUP()->create()`. This matrix object is meaningless if `this->var_indep() == Range1D::Invalid` on return. This matrix object must be independent of the matrices `Gc` and/or `Gh` and/or `D`. Therefore, it must be legal to destroy `Gc` and/or `Gh` and/or `D` without affecting the behavior of the matrix object `GcUP`.
mat_rel	[in] Determines if the matrix objects must be completely independent or not. MATRICES_INDEP_IMPS: The matrix objects must have independent implementations (default). MATRICES_ALLOW_DEP_IMPS: The matrix objects can have implementation dependencies.
out	[in/out] If `out!=NULL`, then some information about the operations performed internally may be printed to `*out`. The amount of this output should be very minimal and should not significantly increase with the size of the problem being solved.

Preconditions:

Gc != NULL || Gh != NULL
[Gc != NULL && Gh != NULL] Gc->space_cols().is_compatible(Gh->space_cols()) == true
[Gc != NULL] Gc->space_cols().sub_space(var_dep()).get() != NULL
[Gc != NULL] Gc->space_cols().sub_space(var_indep()).get() != NULL
[Gc != NULL] Gc->space_rows().sub_space(equ_decomp()).get() != NULL
[Gc != NULL && equ_decomp().size() > 0 ] Gc.space_rows().sub_space(equ_decomp()).get() != NULL
[Gc != NULL && equ_undecomp().size() > 0 ] Gc.space_rows().sub_space(equ_undecomp()).get() != NULL
C != NULL || D != NULL || GcUP != NULL

Postconditions:

this->var_dep() != Range1D::Invalid && !this->var_dep().full_range()
[C != NULL && Gc != NULL && equ_decomp().size() > 0] C->space_cols().sub_space(equ_decomp())->is_compatible(Gc->space_rows().sub_space(equ_decomp())) && C->space_rows().is_compatible(Gc->space_cols().sub_space(var_dep()))
[C != NULL && Gh != NULL && inequ_decomp().size() > 0] C->space_cols().sub_space(equ_decomp().size()+inequ_decomp())->is_compatible(Gh->space_rows().sub_space(inequ_decomp())) && C->space_rows().is_compatible(Gh->space_cols().sub_space(var_dep()))
[D != NULL && Gc != NULL && var_indep().size() > 0 && equ_decomp().size() > 0] D->space_cols().sub_space(equ_decomp())->is_compatible(Gc->space_rows().sub_space(equ_decomp())) && D->space_rows().is_compatible(Gc->space_cols().sub_space(var_indep()))
[D != NULL && Gh != NULL && var_indep().size() > 0 && inequ_decomp().size() > 0] D->space_cols().sub_space(equ_decomp().size()+inequ_decomp())->is_compatible(Gh->space_rows().sub_space(inequ_decomp())) && D->space_rows().is_compatible(Gh->space_cols().sub_space(var_indep()))
[GcUP != NULL && var_indep().size() > 0 && equ_undecomp().size() > 0] GcUP->space_rows()->is_compatible(Gc->space_cols().sub_space(var_indep())) && GcUP->space_cols()->is_compatible(Gc->space_rows().sub_space(equ_undecomp()))

This method with throw a SingularBasis exception if the updated basis matrix C is too close (as defined by the underlying implementation by some means) to being numerically singular.

Implemented in AbstractLinAlgPack::BasisSystemComposite, and AbstractLinAlgPack::BasisSystemPermDirectSparse.
