Abstract base class for all polymorphic symmetrix nonsingular matrices that can be used to compute matrix-vector products and solve for linear systems relatively efficently. More...

#include <AbstractLinAlgPack_MatrixSymOpNonsing.hpp>

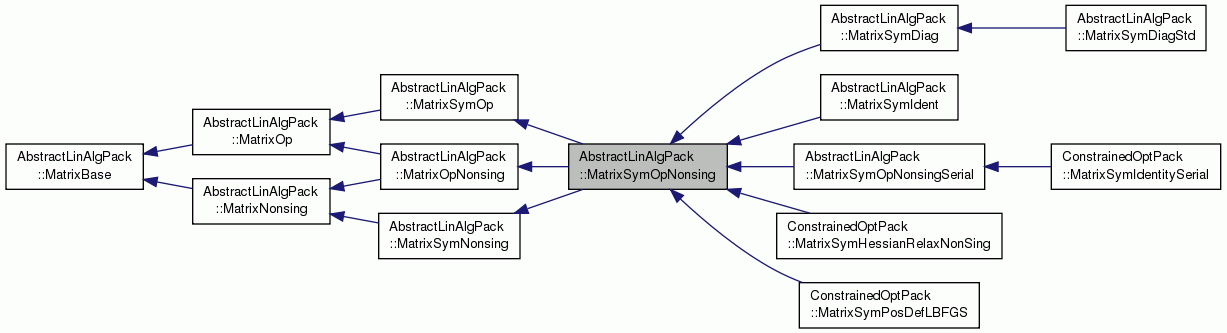

Inheritance diagram for AbstractLinAlgPack::MatrixSymOpNonsing:

[legend]

Public Member Functions
MatrixSymOpNonsing &	operator= (const MatrixSymOpNonsing &M)
	Calls operator=(MatrixOp&) More...

Public Member Functions inherited from AbstractLinAlgPack::MatrixSymOp
virtual MatrixSymOp &	operator= (const MatrixSymOp &M)
	Calls operator=(MatrixOp&) More...

size_type	cols () const
	Returns `this->rows()` More...

const VectorSpace &	space_rows () const
	Vector space for vectors that are compatible with the rows of the matrix. More...

Public Member Functions inherited from AbstractLinAlgPack::MatrixOp
virtual void	zero_out ()
	M_lhs = 0 : Zero out the matrix. More...

virtual void	Mt_S (value_type alpha)
	M_lhs *= alpha : Multiply a matrix by a scalar. More...

virtual MatrixOp &	operator= (const MatrixOp &mwo_rhs)
	M_lhs = mwo_rhs : Virtual assignment operator. More...

virtual std::ostream &	output (std::ostream &out) const
	Virtual output function. More...

const MatNorm	calc_norm (EMatNormType requested_norm_type=MAT_NORM_1, bool allow_replacement=false) const
	Compute a norm of this matrix. More...

virtual mat_ptr_t	sub_view (const Range1D &row_rng, const Range1D &col_rng) const
	Create a transient constant sub-matrix view of this matrix (if supported). More...

mat_ptr_t	sub_view (const index_type &rl, const index_type &ru, const index_type &cl, const index_type &cu) const
	Inlined implementation calls `this->sub_view(Range1D(rl,ru),Range1D(cl,cu))`. More...

virtual mat_ptr_t	perm_view (const Permutation P_row, const index_type row_part[], int num_row_part, const Permutation P_col, const index_type col_part[], int num_col_part) const
	Create a permuted view: `M_perm = P_row' * M * P_col`. More...

virtual mat_ptr_t	perm_view_update (const Permutation P_row, const index_type row_part[], int num_row_part, const Permutation P_col, const index_type col_part[], int num_col_part, const mat_ptr_t &perm_view) const
	Reinitialize a permuted view: `M_perm = P_row' * M * P_col`. More...

Public Member Functions inherited from AbstractLinAlgPack::MatrixBase
virtual	~MatrixBase ()
	Virtual destructor. More...

virtual const VectorSpace &	space_cols () const =0
	Vector space for vectors that are compatible with the columns of the matrix. More...

virtual size_type	rows () const
	Return the number of rows in the matrix. More...

virtual size_type	nz () const
	Return the number of nonzero elements in the matrix. More...

Public Member Functions inherited from AbstractLinAlgPack::MatrixSymNonsing
Public Member Functions inherited from AbstractLinAlgPack::MatrixNonsing
virtual void	V_InvMtV (VectorMutable *v_lhs, BLAS_Cpp::Transp trans_rhs1, const Vector &v_rhs2) const =0
	v_lhs = inv(op(M_rhs1)) * vs_rhs2 More...

virtual void	V_InvMtV (VectorMutable *v_lhs, BLAS_Cpp::Transp trans_rhs1, const SpVectorSlice &sv_rhs2) const
	v_lhs = inv(op(M_rhs1)) * sv_rhs2 More...

virtual value_type	transVtInvMtV (const Vector &v_rhs1, BLAS_Cpp::Transp trans_rhs2, const Vector &v_rhs3) const
	result = vs_rhs1' * inv(op(M_rhs2)) * vs_rhs3 More...

virtual value_type	transVtInvMtV (const SpVectorSlice &sv_rhs1, BLAS_Cpp::Transp trans_rhs2, const SpVectorSlice &sv_rhs3) const
	result = sv_rhs1' * inv(op(M_rhs2)) * sv_rhs3 More...

virtual void	M_StInvMtM (MatrixOp *m_lhs, value_type alpha, BLAS_Cpp::Transp trans_rhs1, const MatrixOp &mwo_rhs2, BLAS_Cpp::Transp trans_rhs2) const
	m_lhs = alpha * inv(op(M_rhs1)) * op(mwo_rhs2) (right). More...

virtual void	M_StMtInvM (MatrixOp *m_lhs, value_type alpha, const MatrixOp &mwo_rhs1, BLAS_Cpp::Transp trans_rhs1, BLAS_Cpp::Transp trans_rhs2) const
	m_lhs = alpha * op(mwo_rhs1) * inv(op(M_rhs2)) (left). More...

Public Member Functions inherited from AbstractLinAlgPack::MatrixOpNonsing
MatrixOpNonsing &	operator= (const MatrixOpNonsing &M)
	Calls operator=(MatrixOp&) More...

const MatNorm	calc_cond_num (EMatNormType requested_norm_type=MAT_NORM_1, bool allow_replacement=false) const
	Compute an estimate of the condition number of this matrix. More...

Clone
virtual mat_mswons_mut_ptr_t	clone_mswons ()
	Clone the non-const matrix object (if supported). More...

virtual mat_mswons_ptr_t	clone_mswons () const
	Clone the const matrix object (if supported). More...

Overridden from MatrixOp
mat_mut_ptr_t	clone ()
	Returns `this->clone_mswons()`. More...

mat_ptr_t	clone () const
	Returns `this->clone_mswons()`. More...

Overridden from MatrixNonsing
mat_mns_mut_ptr_t	clone_mns ()
	Returns `this->clone_mswons()`. More...

mat_mns_ptr_t	clone_mns () const
	Returns `this->clone_mswons()`. More...

Overridden from MatrixSymOp
mat_mswo_mut_ptr_t	clone_mswo ()
	Returns `this->clone_mswons()`. More...

mat_mswo_ptr_t	clone_mswo () const
	Returns `this->clone_mswons()`. More...

Overridden from MatrixSymNonsing
mat_msns_mut_ptr_t	clone_msns ()
	Returns `this->clone_mswons()`. More...

mat_msns_ptr_t	clone_msns () const
	Returns `this->clone_mswons()`. More...

Overridden from MatrixOpNonsing
mat_mwons_mut_ptr_t	clone_mwons ()
	Returns `this->clone_mswons()`. More...

mat_mwons_ptr_t	clone_mwons () const
	Returns `this->clone_mswons()`. More...

Detailed Description

Abstract base class for all polymorphic symmetrix nonsingular matrices that can be used to compute matrix-vector products and solve for linear systems relatively efficently.

Definition at line 55 of file AbstractLinAlgPack_MatrixSymOpNonsing.hpp.

Member Function Documentation

MatrixSymOpNonsing::mat_mswons_mut_ptr_t AbstractLinAlgPack::MatrixSymOpNonsing::clone_mswons ( )

virtual

Clone the non-const matrix object (if supported).

The default implementation returns NULL which is perfectly acceptable. A matrix object is not required to return a non-NULL value but almost every good matrix implementation will.

Definition at line 47 of file AbstractLinAlgPack_MatrixSymOpNonsing.cpp.

MatrixSymOpNonsing::mat_mswons_ptr_t AbstractLinAlgPack::MatrixSymOpNonsing::clone_mswons ( ) const

virtual

Clone the const matrix object (if supported).

The behavior of this method is the same as for the non-const version above except it returns a smart pointer to a const matrix object.

Definition at line 53 of file AbstractLinAlgPack_MatrixSymOpNonsing.cpp.

MatrixSymOpNonsing::mat_mut_ptr_t AbstractLinAlgPack::MatrixSymOpNonsing::clone ( )

virtual

Returns this->clone_mswons().

Reimplemented from AbstractLinAlgPack::MatrixOpNonsing.

Reimplemented in AbstractLinAlgPack::MatrixSymOpNonsingSerial.

Definition at line 61 of file AbstractLinAlgPack_MatrixSymOpNonsing.cpp.

MatrixSymOpNonsing::mat_ptr_t AbstractLinAlgPack::MatrixSymOpNonsing::clone ( ) const

virtual

Returns this->clone_mswons().

Reimplemented from AbstractLinAlgPack::MatrixOpNonsing.

Reimplemented in AbstractLinAlgPack::MatrixSymOpNonsingSerial.

Definition at line 67 of file AbstractLinAlgPack_MatrixSymOpNonsing.cpp.

MatrixSymOpNonsing::mat_mns_mut_ptr_t AbstractLinAlgPack::MatrixSymOpNonsing::clone_mns ( )

virtual

Returns this->clone_mswons().

Reimplemented from AbstractLinAlgPack::MatrixOpNonsing.

Reimplemented in AbstractLinAlgPack::MatrixSymOpNonsingSerial.

Definition at line 75 of file AbstractLinAlgPack_MatrixSymOpNonsing.cpp.

MatrixSymOpNonsing::mat_mns_ptr_t AbstractLinAlgPack::MatrixSymOpNonsing::clone_mns ( ) const

virtual

Returns this->clone_mswons().

Reimplemented from AbstractLinAlgPack::MatrixOpNonsing.

Reimplemented in AbstractLinAlgPack::MatrixSymOpNonsingSerial.

Definition at line 81 of file AbstractLinAlgPack_MatrixSymOpNonsing.cpp.

MatrixSymOpNonsing::mat_mswo_mut_ptr_t AbstractLinAlgPack::MatrixSymOpNonsing::clone_mswo ( )

virtual

Returns this->clone_mswons().

Reimplemented from AbstractLinAlgPack::MatrixSymOp.

Definition at line 89 of file AbstractLinAlgPack_MatrixSymOpNonsing.cpp.

MatrixSymOpNonsing::mat_mswo_ptr_t AbstractLinAlgPack::MatrixSymOpNonsing::clone_mswo ( ) const

virtual

Returns this->clone_mswons().

Reimplemented from AbstractLinAlgPack::MatrixSymOp.

Definition at line 95 of file AbstractLinAlgPack_MatrixSymOpNonsing.cpp.

MatrixSymOpNonsing::mat_msns_mut_ptr_t AbstractLinAlgPack::MatrixSymOpNonsing::clone_msns ( )

virtual

Returns this->clone_mswons().

Reimplemented from AbstractLinAlgPack::MatrixSymNonsing.

Definition at line 103 of file AbstractLinAlgPack_MatrixSymOpNonsing.cpp.

MatrixSymOpNonsing::mat_msns_ptr_t AbstractLinAlgPack::MatrixSymOpNonsing::clone_msns ( ) const

virtual

Returns this->clone_mswons().

Reimplemented from AbstractLinAlgPack::MatrixSymNonsing.

Definition at line 109 of file AbstractLinAlgPack_MatrixSymOpNonsing.cpp.

MatrixSymOpNonsing::mat_mwons_mut_ptr_t AbstractLinAlgPack::MatrixSymOpNonsing::clone_mwons ( )

virtual

Returns this->clone_mswons().

Reimplemented from AbstractLinAlgPack::MatrixOpNonsing.

Definition at line 117 of file AbstractLinAlgPack_MatrixSymOpNonsing.cpp.

MatrixSymOpNonsing::mat_mwons_ptr_t AbstractLinAlgPack::MatrixSymOpNonsing::clone_mwons ( ) const

virtual

Returns this->clone_mswons().

Reimplemented from AbstractLinAlgPack::MatrixOpNonsing.

Definition at line 123 of file AbstractLinAlgPack_MatrixSymOpNonsing.cpp.

MatrixSymOpNonsing& AbstractLinAlgPack::MatrixSymOpNonsing::operator= ( const MatrixSymOpNonsing & M )

inline

Calls operator=(MatrixOp&)

Definition at line 135 of file AbstractLinAlgPack_MatrixSymOpNonsing.hpp.
