Epetra_OskiMatrix: A class for constructing and using OSKI Matrices within Epetra. For information on known issues with OSKI see the detailed description. More...

#include <Epetra_OskiMatrix.h>

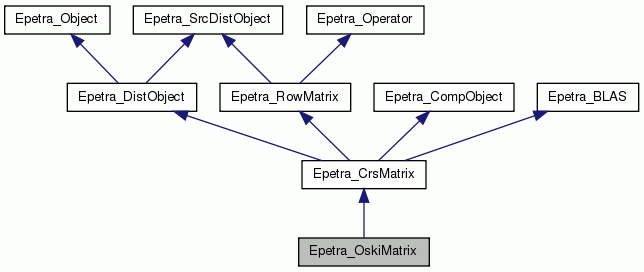

Inheritance diagram for Epetra_OskiMatrix:

[legend]

Private Attributes
const Epetra_CrsMatrix *	Epetra_View_

oski_matrix_t	A_tunable_

bool	Copy_Created_

Constructors/Destructor
	Epetra_OskiMatrix (const Epetra_OskiMatrix &Source)
	Copy constructor. More...

	Epetra_OskiMatrix (const Epetra_CrsMatrix &Source, const Teuchos::ParameterList &List)
	Constructor creates an Epetra_OskiMatrix from an Epetra_CrsMatrix. More...

virtual	~Epetra_OskiMatrix ()
	Destructor. More...

Extract/Replace Values
int	ReplaceMyValues (int MyRow, int NumEntries, double Values, int Indices)
	Replace current values with this list of entries for a given local row of the matrix. Warning this could be expensive. More...

int	SumIntoMyValues (int MyRow, int NumEntries, double Values, int Indices)
	Add this list of entries to existing values for a given local row of the matrix. WARNING: this could be expensive. More...

int	ExtractDiagonalCopy (Epetra_Vector &Diagonal) const
	Returns a copy of the main diagonal in a user-provided vector. More...

int	ReplaceDiagonalValues (const Epetra_OskiVector &Diagonal)
	Replaces diagonal values of the matrix with those in the user-provided vector. More...

Computational methods
int	Multiply (bool TransA, const Epetra_Vector &x, Epetra_Vector &y) const
	Performs a matrix vector multiply of y = this^TransA*x. More...

int	Multiply (bool TransA, const Epetra_Vector &x, Epetra_Vector &y, double Alpha, double Beta=0.0) const
	Performs a matrix vector multiply of y = Alphathis^TransAx + Beta*y. More...

int	Multiply (bool TransA, const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
	Performs a matrix multi-vector multiply of Y = this^TransA*X. More...

int	Multiply (bool TransA, const Epetra_MultiVector &X, Epetra_MultiVector &Y, double Alpha, double Beta=0.0) const
	Performs a matrix multi-vector multiply of Y = Alphathis^TransAX + Beta*Y. More...

int	Solve (bool Upper, bool TransA, bool UnitDiagonal, const Epetra_Vector &x, Epetra_Vector &y) const
	Performs a triangular solve of y = (this^TransA)^-1*x where this is a triangular matrix. More...

int	Solve (bool TransA, const Epetra_Vector &x, Epetra_Vector &y, double Alpha=1.0) const
	Performs a triangular solve of y = Alpha(this^TransA)^-1x where this is a triangular matrix. More...

int	Solve (bool Upper, bool TransA, bool UnitDiagonal, const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
	Performs a triangular solve of Y = (this^TransA)^-1*X where this is a triangular matrix. More...

int	Solve (bool TransA, const Epetra_MultiVector &X, Epetra_MultiVector &Y, double Alpha=1.0) const
	Performs a triangular solve of Y = Alpha(this^TransA)^-1X where this is a triangular matrix. More...

int	MatTransMatMultiply (bool ATA, const Epetra_Vector &x, Epetra_Vector &y, Epetra_Vector *t, double Alpha=1.0, double Beta=0.0) const
	Performs two matrix vector multiplies of y = Alphathis^TransAthisx + Betay or y = Alphathisthis^TransAx + Betay. More...

int	MatTransMatMultiply (bool ATA, const Epetra_MultiVector &X, Epetra_MultiVector &Y, Epetra_MultiVector *T, double Alpha=1.0, double Beta=0.0) const
	Performs two matrix multi-vector multiplies of Y = Alphathis^TransAthisX + BetaY or Y = Alphathisthis^TransAX + BetaY. More...

int	MultiplyAndMatTransMultiply (bool TransA, const Epetra_Vector &x, Epetra_Vector &y, const Epetra_Vector &w, Epetra_Vector &z, double Alpha=1.0, double Beta=0.0, double Omega=1.0, double Zeta=0.0) const
	Performs the two matrix vector multiplies of y = Alphathisx + Betay and z = Omegathis^TransAw + Zetaz. More...

int	MultiplyAndMatTransMultiply (bool TransA, const Epetra_MultiVector &X, Epetra_MultiVector &Y, const Epetra_MultiVector &W, Epetra_MultiVector &Z, double Alpha=1.0, double Beta=0.0, double Omega=1.0, double Zeta=0.0) const
	Performs the two matrix multi-vector multiplies of Y = AlphathisX + BetaY and Z = Omegathis^TransAW + ZetaZ. More...

int	MatPowMultiply (bool TransA, const Epetra_Vector &x, Epetra_Vector &y, Epetra_MultiVector &T, int Power=2, double Alpha=1.0, double Beta=0.0) const
	Performs a matrix vector multiply of y = Alpha(this^TransA)^Powerx + Beta*y. This is not implemented as described in the detailed description. More...

int	MatPowMultiply (bool TransA, const Epetra_Vector &x, Epetra_Vector &y, int Power=2, double Alpha=1.0, double Beta=0.0) const
	Performs a matrix vector multiply of y = Alpha(this^TransA)^Powerx + Beta*y. This is not implemented as described in the detailed description. More...

Tuning
int	SetHint (const Teuchos::ParameterList &List)
	Stores the hints in List in the matrix structure. More...

int	SetHintMultiply (bool TransA, double Alpha, const Epetra_OskiMultiVector &InVec, double Beta, const Epetra_OskiMultiVector &OutVec, int NumCalls, const Teuchos::ParameterList &List)
	Workload hints for computing a matrix-vector multiply used by OskiTuneMat to optimize the data structure storage, and the routine to compute the calculation. More...

int	SetHintSolve (bool TransA, double Alpha, const Epetra_OskiMultiVector &Vector, int NumCalls, const Teuchos::ParameterList &List)
	Workload hints for computing a triangular solve used by OskiTuneMat to optimize the data structure storage, and the routine to compute the calculation. More...

int	SetHintMatTransMatMultiply (bool ATA, double Alpha, const Epetra_OskiMultiVector &InVec, double Beta, const Epetra_OskiMultiVector &OutVec, const Epetra_OskiMultiVector &Intermediate, int NumCalls, const Teuchos::ParameterList &List)
	Workload hints for computing a two matrix-vector multiplies that are composed used by OskiTuneMat to optimize the data structure storage, and the routine to compute the calculation. More...

int	SetHintMultiplyAndMatTransMultiply (bool TransA, double Alpha, const Epetra_OskiMultiVector &InVec, double Beta, const Epetra_OskiMultiVector &OutVec, double Omega, const Epetra_OskiMultiVector &InVec2, double Zeta, const Epetra_OskiMultiVector &OutVec2, int NumCalls, const Teuchos::ParameterList &List)
	Workload hints for computing two matrix-vector multiplies used by OskiTuneMat to optimize the data structure storage, and the routine to compute the calculation. More...

int	SetHintPowMultiply (bool TransA, double Alpha, const Epetra_OskiMultiVector &InVec, double Beta, const Epetra_OskiMultiVector &OutVec, const Epetra_OskiMultiVector &Intermediate, int Power, int NumCalls, const Teuchos::ParameterList &List)
	Workload hints for computing a matrix-vector multiply performed Power times used by OskiTuneMat to optimize the data structure storage and the routine to compute the calculation. More...

int	TuneMatrix ()
	Tunes the matrix multiply if its deemed profitable. More...

Data Structure Transformation Methods
int	IsMatrixTransformed () const
	Returns 1 if the matrix has been reordered by tuning, and 0 if it has not been. More...

const Epetra_OskiMatrix &	ViewTransformedMat () const
	Returns the transformed version of InMat if InMat has been transformed. If InMat has not been transformed then the return will equal InMat. More...

const Epetra_OskiPermutation &	ViewRowPermutation () const
	Returns a read only row/left permutation of the Matrix. More...

const Epetra_OskiPermutation &	ViewColumnPermutation () const
	Returns a read only column/right permutation of the Matrix. More...

char *	GetMatrixTransforms () const
	Returns a string holding the transformations performed on the matrix when it was tuned. More...

int	ApplyMatrixTransforms (const char *Transforms)
	Replaces the current data structure of the matrix with the one specified in Transforms. More...

Additional Inherited Members
Public Member Functions inherited from Epetra_CrsMatrix
void	FusedImport (const Epetra_CrsMatrix &SourceMatrix, const Epetra_Import &RowImporter, const Epetra_Map DomainMap, const Epetra_Map RangeMap, bool RestrictCommunicator)

void	FusedExport (const Epetra_CrsMatrix &SourceMatrix, const Epetra_Export &RowExporter, const Epetra_Map DomainMap, const Epetra_Map RangeMap, bool RestrictCommunicator)

void	FusedImport (const Epetra_CrsMatrix &SourceMatrix, const Epetra_Import &RowImporter, const Epetra_Import DomainImporter, const Epetra_Map DomainMap, const Epetra_Map *RangeMap, bool RestrictCommunicator)

void	FusedExport (const Epetra_CrsMatrix &SourceMatrix, const Epetra_Export &RowExporter, const Epetra_Export DomainExporter, const Epetra_Map DomainMap, const Epetra_Map *RangeMap, bool RestrictCommunicator)

	Epetra_CrsMatrix (Epetra_DataAccess CV, const Epetra_Map &RowMap, const int *NumEntriesPerRow, bool StaticProfile=false)
	Epetra_CrsMatrix constructor with variable number of indices per row. More...

	Epetra_CrsMatrix (Epetra_DataAccess CV, const Epetra_Map &RowMap, int NumEntriesPerRow, bool StaticProfile=false)
	Epetra_CrsMatrix constructor with fixed number of indices per row. More...

	Epetra_CrsMatrix (Epetra_DataAccess CV, const Epetra_Map &RowMap, const Epetra_Map &ColMap, const int *NumEntriesPerRow, bool StaticProfile=false)
	Epetra_CrsMatrix constructor with variable number of indices per row. More...

	Epetra_CrsMatrix (Epetra_DataAccess CV, const Epetra_Map &RowMap, const Epetra_Map &ColMap, int NumEntriesPerRow, bool StaticProfile=false)
	Epetra_CrsMatrix constuctor with fixed number of indices per row. More...

	Epetra_CrsMatrix (Epetra_DataAccess CV, const Epetra_CrsGraph &Graph)
	Construct a matrix using an existing Epetra_CrsGraph object. More...

	Epetra_CrsMatrix (const Epetra_CrsMatrix &SourceMatrix, const Epetra_Import &RowImporter, const Epetra_Map DomainMap=0, const Epetra_Map RangeMap=0, bool RestrictCommunicator=false)
	Epetra CrsMatrix constructor that also fuses Import and FillComplete(). More...

	Epetra_CrsMatrix (const Epetra_CrsMatrix &SourceMatrix, const Epetra_Import &RowImporter, const Epetra_Import DomainImporter, const Epetra_Map DomainMap, const Epetra_Map *RangeMap, bool RestrictCommunicator)
	Epetra CrsMatrix constructor that also fuses Import and FillComplete(). More...

	Epetra_CrsMatrix (const Epetra_CrsMatrix &SourceMatrix, const Epetra_Export &RowExporter, const Epetra_Map DomainMap=0, const Epetra_Map RangeMap=0, bool RestrictCommunicator=false)
	Epetra CrsMatrix constructor that also fuses Ex[prt and FillComplete(). More...

	Epetra_CrsMatrix (const Epetra_CrsMatrix &SourceMatrix, const Epetra_Export &RowExporter, const Epetra_Export DomainExporter, const Epetra_Map DomainMap, const Epetra_Map *RangeMap, bool RestrictCommunicator)
	Epetra CrsMatrix constructor that also fuses Ex[prt and FillComplete(). More...

	Epetra_CrsMatrix (const Epetra_CrsMatrix &Matrix)
	Copy constructor. More...

virtual	~Epetra_CrsMatrix ()
	Epetra_CrsMatrix Destructor. More...

Epetra_CrsMatrix &	operator= (const Epetra_CrsMatrix &src)
	Assignment operator. More...

int	PutScalar (double ScalarConstant)
	Initialize all values in the matrix with constant value. More...

int	Scale (double ScalarConstant)
	Multiply all values in the matrix by a constant value (in place: A <- ScalarConstant * A). More...

virtual int	InsertGlobalValues (int GlobalRow, int NumEntries, const double Values, const int Indices)
	Insert a list of elements in a given global row of the matrix. More...

virtual int	InsertGlobalValues (long long GlobalRow, int NumEntries, const double Values, const long long Indices)

virtual int	InsertGlobalValues (int GlobalRow, int NumEntries, double Values, int Indices)
	Insert a list of elements in a given global row of the matrix. More...

virtual int	InsertGlobalValues (long long GlobalRow, int NumEntries, double Values, long long Indices)

virtual int	ReplaceGlobalValues (int GlobalRow, int NumEntries, const double Values, const int Indices)
	Replace specified existing values with this list of entries for a given global row of the matrix. More...

virtual int	ReplaceGlobalValues (long long GlobalRow, int NumEntries, const double Values, const long long Indices)

virtual int	SumIntoGlobalValues (int GlobalRow, int NumEntries, const double Values, const int Indices)
	Add this list of entries to existing values for a given global row of the matrix. More...

virtual int	SumIntoGlobalValues (long long GlobalRow, int NumEntries, const double Values, const long long Indices)

int	InsertMyValues (int MyRow, int NumEntries, const double Values, const int Indices)
	Insert a list of elements in a given local row of the matrix. More...

int	InsertMyValues (int MyRow, int NumEntries, double Values, int Indices)
	Insert a list of elements in a given local row of the matrix. More...

int	ReplaceMyValues (int MyRow, int NumEntries, const double Values, const int Indices)
	Replace current values with this list of entries for a given local row of the matrix. More...

int	SumIntoMyValues (int MyRow, int NumEntries, const double Values, const int Indices)
	Add this list of entries to existing values for a given local row of the matrix. More...

int	ReplaceDiagonalValues (const Epetra_Vector &Diagonal)
	Replaces diagonal values of the matrix with those in the user-provided vector. More...

int	FillComplete (bool OptimizeDataStorage=true)
	Signal that data entry is complete. Perform transformations to local index space. More...

int	FillComplete (const Epetra_Map &DomainMap, const Epetra_Map &RangeMap, bool OptimizeDataStorage=true)
	Signal that data entry is complete. Perform transformations to local index space. More...

int	OptimizeStorage ()
	Make consecutive row index sections contiguous, minimize internal storage used for constructing graph. More...

int	MakeDataContiguous ()
	Eliminates memory that is used for construction. Make consecutive row index sections contiguous. More...

int	ExtractGlobalRowCopy (int GlobalRow, int Length, int &NumEntries, double Values, int Indices) const
	Returns a copy of the specified global row in user-provided arrays. More...

int	ExtractGlobalRowCopy (long long GlobalRow, int Length, int &NumEntries, double Values, long long Indices) const

int	ExtractMyRowCopy (int MyRow, int Length, int &NumEntries, double Values, int Indices) const
	Returns a copy of the specified local row in user-provided arrays. More...

int	ExtractGlobalRowCopy (int GlobalRow, int Length, int &NumEntries, double *Values) const
	Returns a copy of the specified global row values in user-provided array. More...

int	ExtractGlobalRowCopy (long long GlobalRow, int Length, int &NumEntries, double *Values) const

int	ExtractMyRowCopy (int MyRow, int Length, int &NumEntries, double *Values) const
	Returns a copy of the specified local row values in user-provided array. More...

int	ExtractGlobalRowView (int GlobalRow, int &NumEntries, double &Values, int &Indices) const
	Returns a view of the specified global row values via pointers to internal data. More...

int	ExtractGlobalRowView (long long GlobalRow, int &NumEntries, double &Values, long long &Indices) const

int	ExtractMyRowView (int MyRow, int &NumEntries, double &Values, int &Indices) const
	Returns a view of the specified local row values via pointers to internal data. More...

int	ExtractGlobalRowView (int GlobalRow, int &NumEntries, double *&Values) const
	Returns a view of the specified global row values via pointers to internal data. More...

int	ExtractGlobalRowView (long long GlobalRow, int &NumEntries, double *&Values) const

int	ExtractMyRowView (int MyRow, int &NumEntries, double *&Values) const
	Returns a view of the specified local row values via pointers to internal data. More...

int	Multiply (bool TransA, const Epetra_Vector &x, Epetra_Vector &y) const
	Returns the result of a Epetra_CrsMatrix multiplied by a Epetra_Vector x in y. More...

int	Multiply1 (bool TransA, const Epetra_Vector &x, Epetra_Vector &y) const

int	Multiply1 (bool TransA, const Epetra_MultiVector &X, Epetra_MultiVector &Y) const

int	Solve (bool Upper, bool Trans, bool UnitDiagonal, const Epetra_Vector &x, Epetra_Vector &y) const
	Returns the result of a local solve using the Epetra_CrsMatrix on a Epetra_Vector x in y. More...

int	InvRowSums (Epetra_Vector &x) const
	Computes the inverse of the sum of absolute values of the rows of the Epetra_CrsMatrix, results returned in x. More...

int	InvRowMaxs (Epetra_Vector &x) const
	Computes the inverse of the max of absolute values of the rows of the Epetra_CrsMatrix, results returned in x. More...

int	LeftScale (const Epetra_Vector &x)
	Scales the Epetra_CrsMatrix on the left with a Epetra_Vector x. More...

int	InvColSums (Epetra_Vector &x) const
	Computes the inverse of the sum of absolute values of the columns of the Epetra_CrsMatrix, results returned in x. More...

int	InvColMaxs (Epetra_Vector &x) const
	Computes the max of absolute values of the columns of the Epetra_CrsMatrix, results returned in x. More...

int	RightScale (const Epetra_Vector &x)
	Scales the Epetra_CrsMatrix on the right with a Epetra_Vector x. More...

bool	Filled () const
	If FillComplete() has been called, this query returns true, otherwise it returns false. More...

bool	StorageOptimized () const
	If OptimizeStorage() has been called, this query returns true, otherwise it returns false. More...

bool	IndicesAreGlobal () const
	If matrix indices has not been transformed to local, this query returns true, otherwise it returns false. More...

bool	IndicesAreLocal () const
	If matrix indices has been transformed to local, this query returns true, otherwise it returns false. More...

bool	IndicesAreContiguous () const
	If matrix indices are packed into single array (done in OptimizeStorage()) return true, otherwise false. More...

bool	LowerTriangular () const
	If matrix is lower triangular in local index space, this query returns true, otherwise it returns false. More...

bool	UpperTriangular () const
	If matrix is upper triangular in local index space, this query returns true, otherwise it returns false. More...

bool	NoDiagonal () const
	If matrix has no diagonal entries in global index space, this query returns true, otherwise it returns false. More...

double	NormInf () const
	Returns the infinity norm of the global matrix. More...

double	NormOne () const
	Returns the one norm of the global matrix. More...

double	NormFrobenius () const
	Returns the frobenius norm of the global matrix. More...

int	NumGlobalNonzeros () const
	Returns the number of nonzero entries in the global matrix. More...

long long	NumGlobalNonzeros64 () const

int	NumGlobalRows () const
	Returns the number of global matrix rows. More...

long long	NumGlobalRows64 () const

int	NumGlobalCols () const
	Returns the number of global matrix columns. More...

long long	NumGlobalCols64 () const

int	NumGlobalDiagonals () const
	Returns the number of global nonzero diagonal entries, based on global row/column index comparisons. More...

long long	NumGlobalDiagonals64 () const

int	NumMyNonzeros () const
	Returns the number of nonzero entries in the calling processor's portion of the matrix. More...

int	NumMyRows () const
	Returns the number of matrix rows owned by the calling processor. More...

int	NumMyCols () const
	Returns the number of entries in the set of column-indices that appear on this processor. More...

int	NumMyDiagonals () const
	Returns the number of local nonzero diagonal entries, based on global row/column index comparisons. More...

int	NumGlobalEntries (long long Row) const
	Returns the current number of nonzero entries in specified global row on this processor. More...

int	NumAllocatedGlobalEntries (int Row) const
	Returns the allocated number of nonzero entries in specified global row on this processor. More...

int	MaxNumEntries () const
	Returns the maximum number of nonzero entries across all rows on this processor. More...

int	GlobalMaxNumEntries () const
	Returns the maximum number of nonzero entries across all rows on all processors. More...

int	NumMyEntries (int Row) const
	Returns the current number of nonzero entries in specified local row on this processor. More...

int	NumAllocatedMyEntries (int Row) const
	Returns the allocated number of nonzero entries in specified local row on this processor. More...

int	IndexBase () const
	Returns the index base for row and column indices for this graph. More...

long long	IndexBase64 () const

bool	StaticGraph ()
	Returns true if the graph associated with this matrix was pre-constructed and therefore not changeable. More...

const Epetra_CrsGraph &	Graph () const
	Returns a reference to the Epetra_CrsGraph object associated with this matrix. More...

const Epetra_Map &	RowMap () const
	Returns the Epetra_Map object associated with the rows of this matrix. More...

int	ReplaceRowMap (const Epetra_BlockMap &newmap)
	Replaces the current RowMap with the user-specified map object. More...

bool	HaveColMap () const
	Returns true if we have a well-defined ColMap, and returns false otherwise. More...

int	ReplaceColMap (const Epetra_BlockMap &newmap)
	Replaces the current ColMap with the user-specified map object. More...

int	ReplaceDomainMapAndImporter (const Epetra_Map &NewDomainMap, const Epetra_Import *NewImporter)
	Replaces the current DomainMap & Importer with the user-specified map object. More...

int	RemoveEmptyProcessesInPlace (const Epetra_BlockMap *NewMap)
	Remove processes owning zero rows from the Maps and their communicator. More...

const Epetra_Map &	ColMap () const
	Returns the Epetra_Map object that describes the set of column-indices that appear in each processor's locally owned matrix rows. More...

const Epetra_Map &	DomainMap () const
	Returns the Epetra_Map object associated with the domain of this matrix operator. More...

const Epetra_Map &	RangeMap () const
	Returns the Epetra_Map object associated with the range of this matrix operator. More...

const Epetra_Import *	Importer () const
	Returns the Epetra_Import object that contains the import operations for distributed operations. More...

const Epetra_Export *	Exporter () const
	Returns the Epetra_Export object that contains the export operations for distributed operations. More...

const Epetra_Comm &	Comm () const
	Returns a pointer to the Epetra_Comm communicator associated with this matrix. More...

int	LRID (int GRID_in) const
	Returns the local row index for given global row index, returns -1 if no local row for this global row. More...

int	LRID (long long GRID_in) const

int	GRID (int LRID_in) const
	Returns the global row index for give local row index, returns IndexBase-1 if we don't have this local row. More...

long long	GRID64 (int LRID_in) const

int	LCID (int GCID_in) const
	Returns the local column index for given global column index, returns -1 if no local column for this global column. More...

int	LCID (long long GCID_in) const

int	GCID (int LCID_in) const
	Returns the global column index for give local column index, returns IndexBase-1 if we don't have this local column. More...

long long	GCID64 (int LCID_in) const

bool	MyGRID (int GRID_in) const
	Returns true if the GRID passed in belongs to the calling processor in this map, otherwise returns false. More...

bool	MyGRID (long long GRID_in) const

bool	MyLRID (int LRID_in) const
	Returns true if the LRID passed in belongs to the calling processor in this map, otherwise returns false. More...

bool	MyGCID (int GCID_in) const
	Returns true if the GCID passed in belongs to the calling processor in this map, otherwise returns false. More...

bool	MyGCID (long long GCID_in) const

bool	MyLCID (int LCID_in) const
	Returns true if the LRID passed in belongs to the calling processor in this map, otherwise returns false. More...

bool	MyGlobalRow (int GID) const
	Returns true of GID is owned by the calling processor, otherwise it returns false. More...

bool	MyGlobalRow (long long GID) const

virtual void	Print (std::ostream &os) const
	Print method. More...

const char *	Label () const
	Returns a character string describing the operator. More...

int	SetUseTranspose (bool UseTranspose_in)
	If set true, transpose of this operator will be applied. More...

int	Apply (const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
	Returns the result of a Epetra_Operator applied to a Epetra_MultiVector X in Y. More...

int	ApplyInverse (const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
	Returns the result of a Epetra_Operator inverse applied to an Epetra_MultiVector X in Y. More...

bool	HasNormInf () const
	Returns true because this class can compute an Inf-norm. More...

bool	UseTranspose () const
	Returns the current UseTranspose setting. More...

const Epetra_Map &	OperatorDomainMap () const
	Returns the Epetra_Map object associated with the domain of this matrix operator. More...

const Epetra_Map &	OperatorRangeMap () const
	Returns the Epetra_Map object associated with the range of this matrix operator. More...

int	NumMyRowEntries (int MyRow, int &NumEntries) const
	Return the current number of values stored for the specified local row. More...

const Epetra_BlockMap &	Map () const
	Map() method inherited from Epetra_DistObject. More...

const Epetra_Map &	RowMatrixRowMap () const
	Returns the Epetra_Map object associated with the rows of this matrix. More...

const Epetra_Map &	RowMatrixColMap () const
	Returns the Epetra_Map object associated with columns of this matrix. More...

const Epetra_Import *	RowMatrixImporter () const
	Returns the Epetra_Import object that contains the import operations for distributed operations. More...

double *	operator[] (int Loc)
	Inlined bracket operator for fast access to data. (Const and Non-const versions) More...

double *	operator[] (int Loc) const

int	ExtractCrsDataPointers (int &IndexOffset, int &Indices, double *&Values_in) const
	Returns internal data pointers associated with Crs matrix format. More...

Epetra_IntSerialDenseVector &	ExpertExtractIndexOffset ()
	Returns a reference to the Epetra_IntSerialDenseVector used to hold the local IndexOffsets (CRS rowptr) More...

Epetra_IntSerialDenseVector &	ExpertExtractIndices ()
	Returns a reference to the Epetra_IntSerialDenseVector used to hold the local All_Indices (CRS colind) More...

double *&	ExpertExtractValues ()
	Returns a reference to the double* used to hold the values array. More...

int	ExpertStaticFillComplete (const Epetra_Map &DomainMap, const Epetra_Map &RangeMap, const Epetra_Import Importer=0, const Epetra_Export Exporter=0, int NumMyDiagonals=-1)
	Performs a FillComplete on an object that aready has filled CRS data. More...

int	ExpertMakeUniqueCrsGraphData ()
	Makes sure this matrix has a unique CrsGraphData object. More...

int	SortGhostsAssociatedWithEachProcessor (bool Flag)
	Forces FillComplete() to locally order ghostnodes associated with each remote processor in ascending order. More...

const Epetra_Map &	ImportMap () const
	Use ColMap() instead. More...

int	TransformToLocal ()
	Use FillComplete() instead. More...

int	TransformToLocal (const Epetra_Map DomainMap, const Epetra_Map RangeMap)
	Use FillComplete(const Epetra_Map& DomainMap, const Epetra_Map& RangeMap) instead. More...

Public Member Functions inherited from Epetra_DistObject
	Epetra_DistObject (const Epetra_BlockMap &Map)
	Basic Epetra_DistObject constuctor. More...

	Epetra_DistObject (const Epetra_BlockMap &Map, const char *const Label)

	Epetra_DistObject (const Epetra_DistObject &Source)
	Epetra_DistObject copy constructor. More...

virtual	~Epetra_DistObject ()
	Epetra_DistObject destructor. More...

int	Import (const Epetra_SrcDistObject &A, const Epetra_Import &Importer, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
	Imports an Epetra_DistObject using the Epetra_Import object. More...

int	Import (const Epetra_SrcDistObject &A, const Epetra_Export &Exporter, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
	Imports an Epetra_DistObject using the Epetra_Export object. More...

int	Export (const Epetra_SrcDistObject &A, const Epetra_Import &Importer, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
	Exports an Epetra_DistObject using the Epetra_Import object. More...

int	Export (const Epetra_SrcDistObject &A, const Epetra_Export &Exporter, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
	Exports an Epetra_DistObject using the Epetra_Export object. More...

const Epetra_BlockMap &	Map () const
	Returns the address of the Epetra_BlockMap for this multi-vector. More...

const Epetra_Comm &	Comm () const
	Returns the address of the Epetra_Comm for this multi-vector. More...

bool	DistributedGlobal () const
	Returns true if this multi-vector is distributed global, i.e., not local replicated. More...

Public Member Functions inherited from Epetra_Object
	Epetra_Object (int TracebackModeIn=-1, bool set_label=true)
	Epetra_Object Constructor. More...

	Epetra_Object (const char *const Label, int TracebackModeIn=-1)
	Epetra_Object Constructor. More...

	Epetra_Object (const Epetra_Object &Object)
	Epetra_Object Copy Constructor. More...

virtual	~Epetra_Object ()
	Epetra_Object Destructor. More...

virtual void	SetLabel (const char *const Label)
	Epetra_Object Label definition using char *. More...

virtual int	ReportError (const std::string Message, int ErrorCode) const
	Error reporting method. More...

Public Member Functions inherited from Epetra_SrcDistObject
virtual	~Epetra_SrcDistObject ()
	Epetra_SrcDistObject destructor. More...

Public Member Functions inherited from Epetra_CompObject
Epetra_CompObject &	operator= (const Epetra_CompObject &src)

	Epetra_CompObject ()
	Basic Epetra_CompObject constuctor. More...

	Epetra_CompObject (const Epetra_CompObject &Source)
	Epetra_CompObject copy constructor. More...

virtual	~Epetra_CompObject ()
	Epetra_CompObject destructor. More...

void	SetFlopCounter (const Epetra_Flops &FlopCounter_in)
	Set the internal Epetra_Flops() pointer. More...

void	SetFlopCounter (const Epetra_CompObject &CompObject)
	Set the internal Epetra_Flops() pointer to the flop counter of another Epetra_CompObject. More...

void	UnsetFlopCounter ()
	Set the internal Epetra_Flops() pointer to 0 (no flops counted). More...

Epetra_Flops *	GetFlopCounter () const
	Get the pointer to the Epetra_Flops() object associated with this object, returns 0 if none. More...

void	ResetFlops () const
	Resets the number of floating point operations to zero for this multi-vector. More...

double	Flops () const
	Returns the number of floating point operations with this multi-vector. More...

void	UpdateFlops (int Flops_in) const
	Increment Flop count for this object. More...

void	UpdateFlops (long int Flops_in) const
	Increment Flop count for this object. More...

void	UpdateFlops (long long Flops_in) const
	Increment Flop count for this object. More...

void	UpdateFlops (double Flops_in) const
	Increment Flop count for this object. More...

void	UpdateFlops (float Flops_in) const
	Increment Flop count for this object. More...

Public Member Functions inherited from Epetra_BLAS
	Epetra_BLAS (void)
	Epetra_BLAS Constructor. More...

	Epetra_BLAS (const Epetra_BLAS &BLAS)
	Epetra_BLAS Copy Constructor. More...

virtual	~Epetra_BLAS (void)
	Epetra_BLAS Destructor. More...

float	ASUM (const int N, const float *X, const int INCX=1) const
	Epetra_BLAS one norm function (SASUM). More...

double	ASUM (const int N, const double *X, const int INCX=1) const
	Epetra_BLAS one norm function (DASUM). More...

float	DOT (const int N, const float X, const float Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS dot product function (SDOT). More...

double	DOT (const int N, const double X, const double Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS dot product function (DDOT). More...

float	NRM2 (const int N, const float *X, const int INCX=1) const
	Epetra_BLAS norm function (SNRM2). More...

double	NRM2 (const int N, const double *X, const int INCX=1) const
	Epetra_BLAS norm function (DNRM2). More...

void	SCAL (const int N, const float ALPHA, float *X, const int INCX=1) const
	Epetra_BLAS vector scale function (SSCAL) More...

void	SCAL (const int N, const double ALPHA, double *X, const int INCX=1) const
	Epetra_BLAS vector scale function (DSCAL) More...

void	COPY (const int N, const float X, float Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS vector copy function (SCOPY) More...

void	COPY (const int N, const double X, double Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS vector scale function (DCOPY) More...

int	IAMAX (const int N, const float *X, const int INCX=1) const
	Epetra_BLAS arg maximum of absolute value function (ISAMAX) More...

int	IAMAX (const int N, const double *X, const int INCX=1) const
	Epetra_BLAS arg maximum of absolute value function (IDAMAX) More...

void	AXPY (const int N, const float ALPHA, const float X, float Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS vector update function (SAXPY) More...

void	AXPY (const int N, const double ALPHA, const double X, double Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS vector update function (DAXPY) More...

void	GEMV (const char TRANS, const int M, const int N, const float ALPHA, const float A, const int LDA, const float X, const float BETA, float *Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS matrix-vector multiply function (SGEMV) More...

void	GEMV (const char TRANS, const int M, const int N, const double ALPHA, const double A, const int LDA, const double X, const double BETA, double *Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS matrix-vector multiply function (DGEMV) More...

void	GEMM (const char TRANSA, const char TRANSB, const int M, const int N, const int K, const float ALPHA, const float A, const int LDA, const float B, const int LDB, const float BETA, float *C, const int LDC) const
	Epetra_BLAS matrix-matrix multiply function (SGEMM) More...

void	GEMM (const char TRANSA, const char TRANSB, const int M, const int N, const int K, const double ALPHA, const double A, const int LDA, const double B, const int LDB, const double BETA, double *C, const int LDC) const
	Epetra_BLAS matrix-matrix multiply function (DGEMM) More...

void	SYMM (const char SIDE, const char UPLO, const int M, const int N, const float ALPHA, const float A, const int LDA, const float B, const int LDB, const float BETA, float *C, const int LDC) const
	Epetra_BLAS symmetric matrix-matrix multiply function (SSYMM) More...

void	SYMM (const char SIDE, const char UPLO, const int M, const int N, const double ALPHA, const double A, const int LDA, const double B, const int LDB, const double BETA, double *C, const int LDC) const
	Epetra_BLAS matrix-matrix multiply function (DSYMM) More...

void	TRMM (const char SIDE, const char UPLO, const char TRANSA, const char DIAG, const int M, const int N, const float ALPHA, const float A, const int LDA, float B, const int LDB) const
	Epetra_BLAS triangular matrix-matrix multiply function (STRMM) More...

void	TRMM (const char SIDE, const char UPLO, const char TRANSA, const char DIAG, const int M, const int N, const double ALPHA, const double A, const int LDA, double B, const int LDB) const
	Epetra_BLAS triangular matrix-matrix multiply function (DTRMM) More...

void	SYRK (const char UPLO, const char TRANS, const int N, const int K, const float ALPHA, const float A, const int LDA, const float BETA, float C, const int LDC) const
	Eperta_BLAS symetric rank k funtion (ssyrk) More...

void	SYRK (const char UPLO, const char TRANS, const int N, const int K, const double ALPHA, const double A, const int LDA, const double BETA, double C, const int LDC) const
	Eperta_BLAS symetric rank k funtion (dsyrk) More...

Public Member Functions inherited from Epetra_RowMatrix
virtual	~Epetra_RowMatrix ()
	Destructor. More...

Public Member Functions inherited from Epetra_Operator
virtual	~Epetra_Operator ()
	Destructor. More...

Static Public Member Functions inherited from Epetra_Object
static void	SetTracebackMode (int TracebackModeValue)
	Set the value of the Epetra_Object error traceback report mode. More...

static int	GetTracebackMode ()
	Get the value of the Epetra_Object error report mode. More...

static std::ostream &	GetTracebackStream ()
	Get the output stream for error reporting. More...

Static Public Attributes inherited from Epetra_Object
static int	TracebackMode

Protected Member Functions inherited from Epetra_CrsMatrix
bool	Allocated () const

int	SetAllocated (bool Flag)

double **	Values () const

double *	All_Values () const

double *	Values (int LocalRow) const

void	InitializeDefaults ()

int	Allocate ()

int	InsertValues (int LocalRow, int NumEntries, double Values, int Indices)

int	InsertValues (int LocalRow, int NumEntries, const double Values, const int Indices)

int	InsertValues (int LocalRow, int NumEntries, double Values, long long Indices)

int	InsertValues (int LocalRow, int NumEntries, const double Values, const long long Indices)

int	InsertOffsetValues (long long GlobalRow, int NumEntries, double Values, int Indices)

int	InsertOffsetValues (long long GlobalRow, int NumEntries, const double Values, const int Indices)

int	ReplaceOffsetValues (long long GlobalRow, int NumEntries, const double Values, const int Indices)

int	SumIntoOffsetValues (long long GlobalRow, int NumEntries, const double Values, const int Indices)

void	UpdateImportVector (int NumVectors) const

void	UpdateExportVector (int NumVectors) const

void	GeneralMV (double x, double y) const

void	GeneralMTV (double x, double y) const

void	GeneralMM (double X, int LDX, double Y, int LDY, int NumVectors) const

void	GeneralMTM (double X, int LDX, double Y, int LDY, int NumVectors) const

void	GeneralSV (bool Upper, bool Trans, bool UnitDiagonal, double x, double y) const

void	GeneralSM (bool Upper, bool Trans, bool UnitDiagonal, double X, int LDX, double Y, int LDY, int NumVectors) const

void	SetStaticGraph (bool Flag)

int	CheckSizes (const Epetra_SrcDistObject &A)
	Allows the source and target (this) objects to be compared for compatibility, return nonzero if not. More...

int	CopyAndPermute (const Epetra_SrcDistObject &Source, int NumSameIDs, int NumPermuteIDs, int PermuteToLIDs, int PermuteFromLIDs, const Epetra_OffsetIndex *Indexor, Epetra_CombineMode CombineMode=Zero)
	Perform ID copies and permutations that are on processor. More...

int	CopyAndPermuteCrsMatrix (const Epetra_CrsMatrix &A, int NumSameIDs, int NumPermuteIDs, int PermuteToLIDs, int PermuteFromLIDs, const Epetra_OffsetIndex *Indexor, Epetra_CombineMode CombineMode)

int	CopyAndPermuteRowMatrix (const Epetra_RowMatrix &A, int NumSameIDs, int NumPermuteIDs, int PermuteToLIDs, int PermuteFromLIDs, const Epetra_OffsetIndex *Indexor, Epetra_CombineMode CombineMode)

int	PackAndPrepare (const Epetra_SrcDistObject &Source, int NumExportIDs, int ExportLIDs, int &LenExports, char &Exports, int &SizeOfPacket, int *Sizes, bool &VarSizes, Epetra_Distributor &Distor)
	Perform any packing or preparation required for call to DoTransfer(). More...

int	UnpackAndCombine (const Epetra_SrcDistObject &Source, int NumImportIDs, int ImportLIDs, int LenImports, char Imports, int &SizeOfPacket, Epetra_Distributor &Distor, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor)
	Perform any unpacking and combining after call to DoTransfer(). More...

int	SortEntries ()
	Sort column entries, row-by-row, in ascending order. More...

bool	Sorted () const
	If SortEntries() has been called, this query returns true, otherwise it returns false. More...

int	MergeRedundantEntries ()
	Add entries that have the same column index. Remove redundant entries from list. More...

bool	NoRedundancies () const
	If MergeRedundantEntries() has been called, this query returns true, otherwise it returns false. More...

void	DeleteMemory ()

Protected Member Functions inherited from Epetra_DistObject
virtual int	DoTransfer (const Epetra_SrcDistObject &A, Epetra_CombineMode CombineMode, int NumSameIDs, int NumPermuteIDs, int NumRemoteIDs, int NumExportIDs, int PermuteToLIDs, int PermuteFromLIDs, int RemoteLIDs, int ExportLIDs, int &LenExports, char &Exports, int &LenImports, char &Imports, Epetra_Distributor &Distor, bool DoReverse, const Epetra_OffsetIndex *Indexor)
	Perform actual transfer (redistribution) of data across memory images, using Epetra_Distributor object. More...

Protected Member Functions inherited from Epetra_Object
std::string	toString (const int &x) const

std::string	toString (const long long &x) const

std::string	toString (const double &x) const

Protected Attributes inherited from Epetra_CrsMatrix
Epetra_CrsGraph	Graph_

bool	Allocated_

bool	StaticGraph_

bool	UseTranspose_

bool	constructedWithFilledGraph_

bool	matrixFillCompleteCalled_

bool	StorageOptimized_

double **	Values_

int *	Values_alloc_lengths_

double *	All_Values_

double	NormInf_

double	NormOne_

double	NormFrob_

int	NumMyRows_

Epetra_MultiVector *	ImportVector_

Epetra_MultiVector *	ExportVector_

Epetra_DataAccess	CV_

bool	squareFillCompleteCalled_

Protected Attributes inherited from Epetra_DistObject
Epetra_BlockMap	Map_

const Epetra_Comm *	Comm_

char *	Exports_

char *	Imports_

int	LenExports_

int	LenImports_

int *	Sizes_

Protected Attributes inherited from Epetra_CompObject
Epetra_Flops *	FlopCounter_

Detailed Description

Epetra_OskiMatrix: A class for constructing and using OSKI Matrices within Epetra. For information on known issues with OSKI see the detailed description.

OSKI is a high-performance sparse matrix kernel package written by the UC Berkeley Benchmarking and Optimization Group. The Epetra_OskiMatrix class is a lightweight interface to allow Epetra users access to OSKI functionality. This interface includes lightweight conversion of Epetra matrices to OSKI matrices, runtime tuning based on parameter list hints, and access to high-performance computational kernels to perform matrix-vector/matrix multi-vector calculations.

The Epetra_OskiMatrix class provides access to the entire OSKI interface. However, the following features are not fully implemented in OSKI version oski-1.0.1h, and therefore are unsupported in the Epetra_OskiMatrix class:

OSKI does not provide stock composed kernels. Hence, the tune function must be called in order to see performance gains when using the MatTransMatMultiply and MultiplyAndMatTransMultiply kernels.
The MatPowMultiply kernel does not work.
Optimized multivector kernels are not created by default when installing OSKI.
The tune function cannot transform a (nearly) symmetric matrix to be stored as such.
In order to use the OSKI kernel (MatTransMatMultiply), in oski/src/MBCSR/ata.c you must replace the lines
const char *kernel_name = (opA == OP_AT_A)

? "SubmatRperTransSubmatRperMult" : "SubmatRperHermSubmatRperMult";

with
const char *kernel_name = (opA == OP_AT_A)

? "SubmatReprTransSubmatReprMult" : "SubmatReprHermSubmatReprMult";
OSKI does not convert between CSR and CSC when it could be profitable, such as when performing on a CSR matrix.
OSKI may be incompatible with the following architectures:
- Barcelona (quad-core Opteron): errors during "make install" (confirmed with OSKI developers)
- single core Xeon: OSKI installs, but never transforms matrices. This includes cases where other machines will transform the same matrices, and where one would expect the matrix to be transformed, based on OSKI tuning data.

Definition at line 102 of file Epetra_OskiMatrix.h.

Constructor & Destructor Documentation

Epetra_OskiMatrix::Epetra_OskiMatrix ( const Epetra_OskiMatrix & Source )

Copy constructor.

Epetra_OskiMatrix::Epetra_OskiMatrix	(	const Epetra_CrsMatrix &	Source,
		const Teuchos::ParameterList &	List
	)

Constructor creates an Epetra_OskiMatrix from an Epetra_CrsMatrix.

Parameters

Source	(In) An Epetra_CrsMatrix that is to be wrapped as an Epetra_OskiMatrix.
List	(In) Any options or data wanted or needed for the conversion.

Returns: Pointer to an Epetra_OskiMatrix.

Options that can be passed to the List are presented below. They are: "<type> <option name> <default value>: <description of purpose>"

bool autotune false: If true, Epetra tries to set as many hints as possible based on its knowledge of the matrix.

string matrixtype general: Other types that can be taken are: uppertri, lowertri, uppersymm, lowersymm, fullsymm, upperherm, lowerherm and fullherm.

bool diagstored false: If true, the diagonal entries are not stored in the matrix and are all assumed to be 1.

bool zerobased false: If true, the array is zero based, as in C. Otherwise, it is 1 based, as in Fortran.

bool sorted false: If true, all elements in the passed in array are sorted.
bool unique false: If true, a value in a column only appears once in each row.
bool deepcopy false: If true, when the OSKI matrix is created it will be a deepcopy of the data in the function.

virtual Epetra_OskiMatrix::~Epetra_OskiMatrix ( )

virtual

Destructor.

Member Function Documentation

int Epetra_OskiMatrix::ReplaceMyValues	(	int	MyRow,
		int	NumEntries,
		double *	Values,
		int *	Indices
	)

Replace current values with this list of entries for a given local row of the matrix. Warning this could be expensive.

The reason this function could be expensive is its underlying implementation. Both the OSKI and Epetra versions of the matrix must be changed when the matrix has been permuted. When this is the case, a call must be made to the Epetra ReplaceMyValues, and NumEntries calls must be made to a function that changes the OSKI matrix's values one at a time.

Parameters

MyRow	(In) Row number (in local coordinates) to put elements.
NumEntries	(In) Number of entries.
Values	(In) Values to enter.
Indices	(In) Local column indices corresponding to the values.

Returns: Integer error code, set to 0 if successful. Note that if the allocated length of the row has to be expanded, Oski will fail. A positive warning code may be returned, but this should be treated as a fatal error; part of the data will be changed, and OSKI cannot support adding in new data values.

Precondition: IndicesAreLocal()==true

Postcondition: The given Values at the given Indices have been summed into the entries of MyRow.

int Epetra_OskiMatrix::SumIntoMyValues	(	int	MyRow,
		int	NumEntries,
		double *	Values,
		int *	Indices
	)

Add this list of entries to existing values for a given local row of the matrix. WARNING: this could be expensive.

The reason this function could be expensive is its underlying implementation. Both the OSKI and Epetra versions of the Matrix must be changed when the matrix has been permuted. When this is the case, a call must be made to the Epetra SumIntoMyValues, and NumEntries calls must be made to a function that changes the OSKI matrix's values one at a time.

Parameters

MyRow	- (In) Row number (in local coordinates) to put elements.
NumEntries	- (In) Number of entries.
Values	- (In) Values to enter.
Indices	- (In) Local column indices corresponding to values.

Returns: Integer error code, set to 0 if successful. Note that if the allocated length of the row has to be expanded, a positive warning code may be returned. This should be treated as a fatal error, as part of the data will be changed, and OSKI cannot support adding in new data values.

Precondition: IndicesAreLocal()==true

Postcondition: The given Values at the given Indices have been summed into the entries of MyRow.

int Epetra_OskiMatrix::ExtractDiagonalCopy ( Epetra_Vector & Diagonal ) const

virtual

Returns a copy of the main diagonal in a user-provided vector.

Parameters

Diagonal - (Out) Extracted main diagonal.

Returns: Integer error code, set to 0 if successful and non-zero if not.

Precondition: Filled()==true

Postcondition: Unchanged.

Reimplemented from Epetra_CrsMatrix.

int Epetra_OskiMatrix::ReplaceDiagonalValues ( const Epetra_OskiVector & Diagonal )

Replaces diagonal values of the matrix with those in the user-provided vector.

This routine is meant to allow replacement of { existing} diagonal values. If a diagonal value does not exist for a given row, the corresponding value in the input Epetra_OskiVector will be ignored, and the return code will be set to 1.

Parameters

Diagonal - (In) New values to be placed in the main diagonal.

Returns: Integer error code, set to 0 if successful, set to 1 on the calling processor if one or more diagonal entries not present in matrix. Other error codes can be returned as well, indicating improperly constructed matrices or vectors.

Precondition: Filled()==true

Postcondition: Diagonal values have been replaced with the values of Diagonal.

int Epetra_OskiMatrix::Multiply	(	bool	TransA,
		const Epetra_Vector &	x,
		Epetra_Vector &	y
	)		const

Performs a matrix vector multiply of y = this^TransA*x.

The vectors x and y can be either Epetra_Vectors or Epetra_OskiVectors.

Parameters

TransA	(In) If TransA = TRUE then use the transpose of the matrix in computing the product.
x	(In) The vector the matrix is multiplied by.
y	(Out) The vector where the calculation result is stored.

Returns: Integer error code, set to 0 if successful.

Precondition: Filled()==true

Postcondition: Unchanged

int Epetra_OskiMatrix::Multiply	(	bool	TransA,
		const Epetra_Vector &	x,
		Epetra_Vector &	y,
		double	Alpha,
		double	Beta = `0.0`
	)		const

Performs a matrix vector multiply of y = Alpha*this^TransA*x + Beta*y.

The vectors x and y can be either Epetra_Vectors or Epetra_OskiVectors.

Parameters

TransA	(In) If TransA = TRUE then use the transpose of the matrix in computing the product.
x	(In) The vector the matrix is multiplied by.
y	(In/Out) The vector where the calculation result is stored.
Alpha	(In) A scalar constant used to scale x.
Beta	(In) A scalar constant used to scale y.

Returns: Integer error code, set to 0 if successful.

Precondition: Filled()==true

Postcondition: Unchanged

int Epetra_OskiMatrix::Multiply	(	bool	TransA,
		const Epetra_MultiVector &	X,
		Epetra_MultiVector &	Y
	)		const

virtual

Performs a matrix multi-vector multiply of Y = this^TransA*X.

The multi-vectors X and Y can be either Epetra_MultiVectors or Epetra_OskiMultiVectors.

Parameters

TransA	(In) If Trans = TRUE then use the transpose of the matrix in computing the product.
X	(In) The multi-vector the matrix is multiplied by.
Y	(Out) The multi-vector where the calculation result is stored.

Returns: Integer error code, set to 0 if successful.

Precondition: Filled()==true

Postcondition: Unchanged

Reimplemented from Epetra_CrsMatrix.

int Epetra_OskiMatrix::Multiply	(	bool	TransA,
		const Epetra_MultiVector &	X,
		Epetra_MultiVector &	Y,
		double	Alpha,
		double	Beta = `0.0`
	)		const

Performs a matrix multi-vector multiply of Y = Alpha*this^TransA*X + Beta*Y.

The multi-vectors X and Y can be either Epetra_MultiVectors or Epetra_OskiMultiVectors.

Parameters

TransA	(In) If Trans = TRUE then use the transpose of the matrix in computing the product.
X	(In) The multi-vector the matrix is multiplied by.
Y	(In/Out) The multi-vector where the calculation result is stored.
Alpha	(In) A scalar constant used to scale X.
Beta	(In) A scalar constant used to scale Y.

Returns: Integer error code, set to 0 if successful.

Precondition: Filled()==true

Postcondition: Unchanged

int Epetra_OskiMatrix::Solve	(	bool	Upper,
		bool	TransA,
		bool	UnitDiagonal,
		const Epetra_Vector &	x,
		Epetra_Vector &	y
	)		const

Performs a triangular solve of y = (this^TransA)^-1*x where this is a triangular matrix.

The vector x can be either be an Epetra_Vector or Epetra_OskiVector. The OskiMatrix must already be triangular, and the UnitDiagonal setting associated with it will be used.

Parameters

Upper	(In) This parameter is ignored, and is here only to match the Epetra_CrsMatrix::Solve syntax.
TransA	(In) If TransA = TRUE then use the transpose of the matrix in solving the equations.
UnitDiagonal	(In) This parameter is ignored only here to match the Epetra_CrsMatrix::Solve syntax.
x	(In) The vector solved against.
y	(Out) The solution vector.

Returns: Integer error code, set to 0 if successful.

Precondition: Filled()==true

Postcondition: Unchanged

int Epetra_OskiMatrix::Solve	(	bool	TransA,
		const Epetra_Vector &	x,
		Epetra_Vector &	y,
		double	Alpha = `1.0`
	)		const

Performs a triangular solve of y = Alpha*(this^TransA)^-1*x where this is a triangular matrix.

The vector x can be either be an Epetra_Vector or Epetra_OskiVector.

Parameters

TransA	(In) If TransA = TRUE then use the transpose of the matrix in solving the equations.
x	(In) The vector solved against.
y	(Out) The solution vector.
Alpha	(In) A scalar constant used to scale x.

Returns: Integer error code, set to 0 if successful.

Precondition: Filled()==true

Postcondition: Unchanged

int Epetra_OskiMatrix::Solve	(	bool	Upper,
		bool	TransA,
		bool	UnitDiagonal,
		const Epetra_MultiVector &	X,
		Epetra_MultiVector &	Y
	)		const

virtual

Performs a triangular solve of Y = (this^TransA)^-1*X where this is a triangular matrix.

The vector X can be either be an Epetra_MultiVector or Epetra_OskiMultiVector. The OskiMatrix must already be triangular, and the UnitDiagonal setting associated with it will be used.

Parameters

Upper	(In) This parameter is ignored only here to match the Epetra_CrsMatrix::Solve syntax.
TransA	(In) If TransA = TRUE then use the transpose of the matrix in solving the equations.
UnitDiagonal	(In) This parameter is ignored only here to match the Epetra_CrsMatrix::Solve syntax.
X	(In) The multi-vector solved against.
Y	(Out) The solution multi-vector.

Returns: Integer error code, set to 0 if successful.

Precondition: Filled()==true

Postcondition: Unchanged

Reimplemented from Epetra_CrsMatrix.

int Epetra_OskiMatrix::Solve	(	bool	TransA,
		const Epetra_MultiVector &	X,
		Epetra_MultiVector &	Y,
		double	Alpha = `1.0`
	)		const

Performs a triangular solve of Y = Alpha*(this^TransA)^-1*X where this is a triangular matrix.

The vector X can be either be an Epetra_MultiVector or Epetra_OskiMultiVector.

Parameters

TransA	(In) If TransA = TRUE then use the transpose of the matrix in solving the equations.
X	(In) The multi-vector solved against.
Y	(Out) The solution multi-vector.
Alpha	(In) A scalar constant used to scale X.

Returns: Integer error code, set to 0 if successful.

Precondition: Filled()==true

Postcondition: Unchanged

int Epetra_OskiMatrix::MatTransMatMultiply	(	bool	ATA,
		const Epetra_Vector &	x,
		Epetra_Vector &	y,
		Epetra_Vector *	t,
		double	Alpha = `1.0`,
		double	Beta = `0.0`
	)		const

Performs two matrix vector multiplies of y = Alpha*this^TransA*this*x + Beta*y or y = Alpha*this*this^TransA*x + Beta*y.

The vectors x, y and t can be either Epetra_Vectors or Epetra_OskiVectors. This composed routine is most commonly used in linear least squares and bidiagonalization methods. The parallel version of y = Alpha*this*this^TransA*x + Beta*y uses calls to the Multiply routine under the hood, as it is not possible to perform both multiplies automatically.

Parameters

ATA	(In) If TransA = TRUE then compute this^Tthisx otherwise compute thisthis^Tx.
x	(In) The vector the matrix is multiplied by.
y	(In/Out) The vector where the calculation result is stored.
t	(Out) The vector where the result of the thisx is stored if TransA = true and this^Tx is stored otherwise.
Alpha	(In) A scalar constant used to scale x.
Beta	(In) A scalar constant used to scale y.

Returns: Integer error code, set to 0 if successful.

Precondition: Filled()==true

Postcondition: Unchanged

int Epetra_OskiMatrix::MatTransMatMultiply	(	bool	ATA,
		const Epetra_MultiVector &	X,
		Epetra_MultiVector &	Y,
		Epetra_MultiVector *	T,
		double	Alpha = `1.0`,
		double	Beta = `0.0`
	)		const

Performs two matrix multi-vector multiplies of Y = Alpha*this^TransA*this*X + Beta*Y or Y = Alpha*this*this^TransA*X + Beta*Y.

The multi-vectors X, Y and T can be either Epetra_MultiVectors or Epetra_OskiMultiVectors. This composed routine is most commonly used in linear least squares and bidiagonalization methods. The parallel version of Y = Alpha*this*this^TransA*X + Beta*Y uses calls to the Multiply routine under the hood, as it is not possible to perform both multiplies automatically.

Parameters

ATA	(In) If TransA = TRUE then compute this^TthisX otherwise compute thisthis^TX.
X	(In) The vector the matrix is multiplied by.
Y	(In/Out) The vector where the calculation result is stored.
T	(Out) The multi-vector where the result of the thisX is stored if TransA = true and this^TX is stored otherwise.
Alpha	(In) A scalar constant used to scale X.
Beta	(In) A scalar constant used to scale Y.

Returns: Integer error code, set to 0 if successful.

Precondition: Filled()==true

Postcondition: Unchanged

int Epetra_OskiMatrix::MultiplyAndMatTransMultiply	(	bool	TransA,
		const Epetra_Vector &	x,
		Epetra_Vector &	y,
		const Epetra_Vector &	w,
		Epetra_Vector &	z,
		double	Alpha = `1.0`,
		double	Beta = `0.0`,
		double	Omega = `1.0`,
		double	Zeta = `0.0`
	)		const

Performs the two matrix vector multiplies of y = Alpha*this*x + Beta*y and z = Omega*this^TransA*w + Zeta*z.

The vectors x, y, w and z can be either Epetra_Vectors or Epetra_OskiVectors. This composed routine is most commonly used in bi-conjugate gradient calculations.

Parameters

TransA	(In) If TransA = TRUE then use the transpose of the matrix in computing the second product.
x	(In) A vector the matrix is multiplied by.
y	(In/Out) A vector where the calculation result of the first multiply is stored.
w	(In) A vector the matrix is multiplied by.
z	(In/Out) A vector where the calculation result of the second multiply is stored.
Alpha	(In) A scalar constant used to scale x.
Beta	(In) A scalar constant used to scale y.
Omega	(In) A scalar constant used to scale w.
Zeta	(In) A scalar constant used to scale z.

Returns: Integer error code, set to 0 if successful.

Precondition: Filled()==true

Postcondition: Unchanged

int Epetra_OskiMatrix::MultiplyAndMatTransMultiply	(	bool	TransA,
		const Epetra_MultiVector &	X,
		Epetra_MultiVector &	Y,
		const Epetra_MultiVector &	W,
		Epetra_MultiVector &	Z,
		double	Alpha = `1.0`,
		double	Beta = `0.0`,
		double	Omega = `1.0`,
		double	Zeta = `0.0`
	)		const

Performs the two matrix multi-vector multiplies of Y = Alpha*this*X + Beta*Y and Z = Omega*this^TransA*W + Zeta*Z.

The multi-vectors X, Y, W and Z can be either Epetra_MultiVectors or Epetra_OskiMultiVectors. This composed routine is most commonly used in bi-conjugate gradient calculations.

Parameters

TransA	(In) If TransA = TRUE then use the transpose of the matrix in computing the second product.
X	(In) A multi-vector the matrix is multiplied by.
Y	(In/Out) A multi-vector where the calculation result of the first multiply is stored.
W	(In) A multi-vector the matrix is multiplied by.
Z	(In/Out) A multi-vector where the calculation result of the second multiply is stored.
Alpha	(In) A scalar constant used to scale X.
Beta	(In) A scalar constant used to scale Y.
Omega	(In) A scalar constant used to scale W.
Zeta	(In) A scalar constant used to scale Z.

Returns: Integer error code, set to 0 if successful.

Precondition: Filled()==true

Postcondition: Unchanged

int Epetra_OskiMatrix::MatPowMultiply	(	bool	TransA,
		const Epetra_Vector &	x,
		Epetra_Vector &	y,
		Epetra_MultiVector &	T,
		int	Power = `2`,
		double	Alpha = `1.0`,
		double	Beta = `0.0`
	)		const

Performs a matrix vector multiply of y = Alpha*(this^TransA)^Power*x + Beta*y. This is not implemented as described in the detailed description.

The vectors x and y can be either Epetra_Vectors or Epetra_OskiVectors. The vector T can be either an Epetra_MultiVector or Epetra_OskiMultiVector. This composed routine is used in power and S-step methods. This routine is not implemented due a bug in the oski-1.01h kernel that makes testing of correctness impossible.

Parameters

TransA	(In) If TransA = TRUE then use the transpose of the matrix in computing the product.
x	(In) The vector the matrix is multiplied by.
y	(In/Out) The vector where the calculation result is stored.
T	(Out) The multi-vector where the result of each subsequent multiplication thisx ... this^(Power-1)x is stored.
Power	(In) The power to raise the matrix to in the calculation.
Alpha	(In) A scalar constant used to scale x.
Beta	(In) A scalar constant used to scale y.

Returns: Integer error code, set to 0 if successful.

Precondition: Filled()==true

Postcondition: Unchanged

int Epetra_OskiMatrix::MatPowMultiply	(	bool	TransA,
		const Epetra_Vector &	x,
		Epetra_Vector &	y,
		int	Power = `2`,
		double	Alpha = `1.0`,
		double	Beta = `0.0`
	)		const

Performs a matrix vector multiply of y = Alpha*(this^TransA)^Power*x + Beta*y. This is not implemented as described in the detailed description.

The vectors x and y can be either Epetra_Vectors or Epetra_OskiVectors. This composed routine is used in power and S-step methods. This routine is not implemented due a bug in the oski-1.01h kernel that makes testing of correctness impossible.

Parameters

TransA	(In) If TransA = TRUE then use the transpose of the matrix in computing the product.
x	(In) The vector the matrix is multiplied by.
y	(In/Out) The vector where the calculation result is stored.
Power	(In) The power to raise the matrix to in the calculation.
Alpha	(In) A scalar constant used to scale x.
Beta	(In) A scalar constant used to scale y.

Returns: Integer error code, set to 0 if successful.

Precondition: Filled()==true

Postcondition: Unchanged

int Epetra_OskiMatrix::SetHint ( const Teuchos::ParameterList & List )

Stores the hints in List in the matrix structure.

  \param List (In) A list of hints and options to register along with the matrix
   used for tuning purposes.  The full list is given below.  It may
   be moved to the user guide in the future.
  \return On successful storage of the hint 0 is returned.  On failure an error code
    is returned.

        Options that can be passed to the List are presented below.  They are: "<type> <option name>: <description of purpose>".  The

available hints are grouped by section, and only one hint from each section can be true for a given matrix. For options where multiple arguments can be passed in at once the interface only supports up to 5. This means only 5 block sizes or 5 diaganols can be passed in at once. If you have more changing the code to support your needs should be simple, but every case you use must be enumerated. Of course you can just say there are diagonals and blocks and not pass in specific sizes as wells.

- bool noblocks: If true, the matrix has no block structure
- bool singleblocksize: If true, the matrix structure is dominated by blocks of the size of the next two parameters.
- int row: The number of rows in each block.
- int col: The number of columns in each block.
- bool multipleblocksize: If true, the matrix consists of multiple block sizes. The next 3 parameters describe these and are optional.
- int blocks: The number of block sizes in the matrix.
- int row<x>: Where x is the block number, and x goes from 1 to blocks. This is the number of rows in block x.
- int col<x>: Where x is the block number, and x goes from 1 to blocks. This is the number of cols in block x.

- bool alignedblocks: If true, all blocks are aligned to a grid.
- bool unalignedblocks: If true, blocks are not aligned to a grid.

- bool symmetricpattern: If true, the matrix is either symmetric or nearly symmetric.
- bool nonsymmetricpattern: If true, the matrix has a very unsymmetric pattern.

- bool randompattern: If true, the matrix's non-zeros are distributed in a random pattern.
- bool correlatedpattern: If true, the row and column indices for
non-zeros are highly correlated.

- bool nodiags : If true, the matrix has little or no diagonal structure.
- bool diags: If true, the matrix consists of diagonal structure described the next two optional parameters.
- int numdiags: The number of diagonal sizes known to be present others not listed could be present.
- int diag<x>: Where x is the diagonal number, and x goes from 1 to numdiags. This is the size of the diagonal.

int Epetra_OskiMatrix::SetHintMultiply	(	bool	TransA,
		double	Alpha,
		const Epetra_OskiMultiVector &	InVec,
		double	Beta,
		const Epetra_OskiMultiVector &	OutVec,
		int	NumCalls,
		const Teuchos::ParameterList &	List
	)

Workload hints for computing a matrix-vector multiply used by OskiTuneMat to optimize the data structure storage, and the routine to compute the calculation.

In parallel the routine uses symbolic vectors. This is done for two reasons. Doing this
saves on data allocation and potentially communication overhead. For a matrix-vector
routine there should be no advantage to having the actual vector, as its size must be the same
as a matrix dimension. For a matrix-multivector routine there could be gains from knowing the
number of vectors in the multi-vector. However, OSKI does not perform multi-vector optimizations,
so there is no need to add the overhead.
\param Trans (In) If Trans = true then the transpose of the matrix will be used in
computing the product.
\param Alpha (In) A scalar constant used to scale InVec.
\param InVec (In) The vector the matrix is multiplied by or whether it is a single vector or multi-vector.
\param Beta (In) A scalar constant used to scale OutVec.
\param OutVec (In) The vector where the calculation result is stored or whether it is a single vector or multi-vector.
\param NumCalls (In) The number of times the operation is called or the tuning level wanted.
\param List (In) Used for denoting the use of symbolic vectors for both InVec
and OutVec, as well as for level of aggressive tuning if either NumCalls not
known or to be overridden. Options are shown below. It should be noted that
by using these options the associated vector or NumCalls becomes invalid.
\return Stores the workload hint in the matrix if the operation is valid. If the
operation is not valid an error code is returned.

Options that can be passed to the List are presented below. They are: "<type> <option name>: <description of purpose>". The

available hints are grouped by section, and only one hint from each section can be true for a given matrix.

  These replace InVec.
  - bool symminvec: If true, use a symbolic vector rather than the vector passed in for tuning purposes.
  - bool symminmultivec: If true, use a symbolic multi-vector rather than the multi-vector passed in for tuning purposes.

        These replace OutVec.
  - bool symmoutvec: If true, use a symbolic vector rather than the vector passed in for tuning purposes.
  - bool symmoutmultivec: If true, use a symbolic multi-vector rather than the multi-vector passed in for tuning purposes.

  - bool tune: If true, have OSKI tune moderately rather than using the number of calls passed in.
  - bool tuneaggressive: If true, have OSKI tune aggressively rather than using the number of calls passed in.

int Epetra_OskiMatrix::SetHintSolve	(	bool	TransA,
		double	Alpha,
		const Epetra_OskiMultiVector &	Vector,
		int	NumCalls,
		const Teuchos::ParameterList &	List
	)

Workload hints for computing a triangular solve used by OskiTuneMat to optimize the data structure storage, and the routine to compute the calculation.

  In parallel the routine uses symbolic vectors.  This is done for two reasons.  Doing this
        saves on data allocation and potentially communication overhead.  For a matrix-vector
        routine there should be no advantage to having the actual vector, as its size must be the same
        as a matrix dimension.  For a matrix-multivector routine there could be gains from knowing the
        number of vectors in the multi-vector. However, OSKI does not perform multi-vector optimizations,
        so there is no need to add the overhead.

        \param Trans (In) If Trans = true then the transpose of the matrix will be used in
         computing the product.
  \param Alpha (In) A scalar constant used to scale InVec.
  \param Vector (In) The vector being used in the solve and to store the solution.
  \param NumCalls (In) The number of times the operation is called or the tuning level wanted.
  \param List (In) Used for denoting the use of a symbolic vectors, as well as for
   level of aggressive tuning if either NumCalls not
   known or to be overridden.  Options are shown below. It should be noted that
   by using these options the associated vector or NumCalls becomes invalid.
  \return Stores the workload hint in the matrix if the operation is valid.  If the
          operation is not valid an error code is returned.

        Options that can be passed to the List are presented below.  They are: "<type> <option name>: <description of purpose>".  The

available hints are grouped by section, and only one hint from each section can be true for a given matrix.

  These replace Vector.
  - bool symmvec: If true, use a symbolic vector rather than the vector passed in for tuning purposes.
  - bool symmmultivec: If true, use a symbolic multi-vector rather than the multi-vector passed in for tuning purposes.

  - bool tune: If true, have OSKI tune moderately rather than using the number of calls passed in.
  - bool tuneaggressive: If true, have OSKI tune aggressively rather than using the number of calls passed in.

int Epetra_OskiMatrix::SetHintMatTransMatMultiply	(	bool	ATA,
		double	Alpha,
		const Epetra_OskiMultiVector &	InVec,
		double	Beta,
		const Epetra_OskiMultiVector &	OutVec,
		const Epetra_OskiMultiVector &	Intermediate,
		int	NumCalls,
		const Teuchos::ParameterList &	List
	)

Workload hints for computing a two matrix-vector multiplies that are composed used by OskiTuneMat to optimize the data structure storage, and the routine to compute the calculation.

In parallel the routine uses symbolic vectors. This is done for two reasons. Doing this
saves on data allocation and potentially communication overhead. For a matrix-vector
routine there should be no advantage to having the actual vector, as its size must be the same
as a matrix dimension. For a matrix-multivector routine there could be gains from knowing the
number of vectors in the multi-vector. However, OSKI does not perform multi-vector optimizations,
so there is no need to add the overhead.
\param ATA (In) If ATA = true then this^T*this*x will be computed otherwise this*this^T*x will be.
\param Alpha (In) A scalar constant used to scale InVec.
\param InVec (In) The vector the matrix is multiplied by or whether it is a single vector or multi-vector.
\param Beta (In) A scalar constant used to scale OutVec.
\param OutVec (In) The vector where the calculation result is stored or whether it is a single vector or multi-vector.
\param Intermediate (In) The vector where result of the first product can be stored
or whether it is a single vector or multi-vector. If this quantity is NULL
then the intermediate product is not stored.
\param NumCalls (In) The number of times the operation is called or the tuning level wanted.
\param List (In) Used for denoting the use of symbolic vectors for InVec,
OutVec and Intermediate, along with the level of aggressive tuning if either NumCalls not
known or to be overridden. Options are shown below. It should be noted that
by using these options the associated vector or NumCalls becomes invalid.
\return Stores the workload hint in the matrix if the operation is valid. If the
operation is not valid an error code is returned.

Options that can be passed to the List are presented below. They are: "<type> <option name>: <description of purpose>". The

available hints are grouped by section, and only one hint from each section can be true for a given matrix.

  These replace InVec.
  - bool symminvec: If true, use a symbolic vector rather than the vector passed in for tuning purposes.
  - bool symminmultivec: If true, use a symbolic multi-vector rather than the multi-vector passed in for tuning purposes.

        These replace OutVec.
  - bool symmoutvec: If true, use a symbolic vector rather than the vector passed in for tuning purposes.
  - bool symmoutmultivec: If true, use a symbolic multi-vector rather than the multi-vector passed in for tuning purposes.

        These replace Intermediate.
  - bool symmintervec: If true, use a symbolic vector rather than the vector passed in for tuning purposes.
  - bool symmintermultivec: If true, use a symbolic multi-vector rather than the multi-vector passed in for tuning purposes.

  - bool tune: If true, have OSKI tune moderately rather than using the number of calls passed in.
  - bool tuneaggressive: If true, have OSKI tune aggressively rather than using the number of calls passed in.

int Epetra_OskiMatrix::SetHintMultiplyAndMatTransMultiply	(	bool	TransA,
		double	Alpha,
		const Epetra_OskiMultiVector &	InVec,
		double	Beta,
		const Epetra_OskiMultiVector &	OutVec,
		double	Omega,
		const Epetra_OskiMultiVector &	InVec2,
		double	Zeta,
		const Epetra_OskiMultiVector &	OutVec2,
		int	NumCalls,
		const Teuchos::ParameterList &	List
	)

Workload hints for computing two matrix-vector multiplies used by OskiTuneMat to optimize the data structure storage, and the routine to compute the calculation.

In parallel the routine uses symbolic vectors. This is done for two reasons. Doing this
saves on data allocation and potentially communication overhead. For a matrix-vector
routine there should be no advantage to having the actual vector, as its size must be the same
as a matrix dimension. For a matrix-multivector routine there could be gains from knowing the
number of vectors in the multi-vector. However, OSKI does not perform multi-vector optimizations,
so there is no need to add the overhead.

\param Trans (In) If Trans = true then the transpose of the matrix will be used in
computing the product.
\param Alpha (In) A scalar constant used to scale InVec.
\param InVec (In) The vector the matrix is multiplied by or whether it is a single vector or multi-vector.
\param Beta (In) A scalar constant used to scale OutVec.
\param OutVec (In) The vector where the calculation result is stored or whether it is a single vector or multi-vector.
\param Omega (In) A scalar constant used to scale InVec2.
\param InVec2 (In) The vector the matrix is multiplied by or whether it is a single vector or multi-vector.
\param Zeta (In) A scalar constant used to scale OutVec2.
\param OutVec2 (In) The vector where the calculation result is stored or whether it is a single vector or multi-vector.
\param NumCalls (In) The number of times the operation is called or the tuning level wanted.
\param List (In) Used for denoting the use of symbolic vectors for both InVec
and OutVec, as well as for level of aggressive tuning if either NumCalls not
known or to be overridden. Options are shown below. It should be noted that
by using these options the associated vector or NumCalls becomes invalid.
\return Stores the workload hint in the matrix if the operation is valid. If the
operation is not valid an error code is returned.

Options that can be passed to the List are presented below. They are: "<type> <option name>: <description of purpose>". The

available hints are grouped by section, and only one hint from each section can be true for a given matrix.

  These replace InVec.
  - bool symminvec: If true, use a symbolic vector rather than the vector passed in for tuning purposes.
  - bool symminmultivec: If true, use a symbolic multi-vector rather than the multi-vector passed in for tuning purposes.

        These replace OutVec.
  - bool symmoutvec: If true, use a symbolic vector rather than the vector passed in for tuning purposes.
  - bool symmoutmultivec: If true, use a symbolic multi-vector rather than the multi-vector passed in for tuning purposes.

  These replace InVec2.
  - bool symminvec2: If true, use a symbolic vector rather than the vector passed in for tuning purposes.
  - bool symminmultivec2: If true, use a symbolic multi-vector rather than the multi-vector passed in for tuning purposes.

        These replace OutVec2.
  - bool symmoutvec2: If true, use a symbolic vector rather than the vector passed in for tuning purposes.
  - bool symmoutmultivec2: If true, use a symbolic multi-vector rather than the multi-vector passed in for tuning purposes.

  - bool tune: If true, have OSKI tune moderately rather than using the number of calls passed in.
  - bool tuneaggressive: If true, have OSKI tune aggressively rather than using the number of calls passed in.

int Epetra_OskiMatrix::SetHintPowMultiply	(	bool	TransA,
		double	Alpha,
		const Epetra_OskiMultiVector &	InVec,
		double	Beta,
		const Epetra_OskiMultiVector &	OutVec,
		const Epetra_OskiMultiVector &	Intermediate,
		int	Power,
		int	NumCalls,
		const Teuchos::ParameterList &	List
	)

Workload hints for computing a matrix-vector multiply performed Power times used by OskiTuneMat to optimize the data structure storage and the routine to compute the calculation.

In parallel the routine uses symbolic vectors. This is done for two reasons. Doing this
saves on data allocation and potentially communication overhead. For a matrix-vector
routine there should be no advantage to having the actual vector, as its size must be the same
as a matrix dimension. For a matrix-multivector routine there could be gains from knowing the
number of vectors in the multi-vector. However, OSKI does not perform multi-vector optimizations,
so there is no need to add the overhead.
\param Trans (In) If Trans = true then the transpose of the matrix will be used in
computing the product.
\param Alpha (In) A scalar constant used to scale InVec.
\param InVec (In) The vector the matrix is multiplied by or whether it is a single vector or multi-vector.
\param Beta (In) A scalar constant used to scale OutVec.
\param OutVec (In) The vector where the calculation result is stored or whether it is a single vector or multi-vector.
\param Intermediate (In) The multi-vector where result of the first product can be stored
or whether it is a single vector or multi-vector. If this quantity is NULL
then the intermediate product is not stored.
\param Power (In) The power to raise the matrix to in the calculation.
\param NumCalls (In) The number of times the operation is called or the tuning level wanted.
\param List (In) Used for denoting the use of symbolic vectors for both InVec
and OutVec, as well as for level of aggressive tuning if either NumCalls not
known or to be overridden. Options are shown below. It should be noted that
by using these options the associated vector or NumCalls becomes invalid.
\return Stores the workload hint in the matrix if the operation is valid. If the
operation is not valid an error code is returned.

Options that can be passed to the List are presented below. They are: "<type> <option name>: <description of purpose>". The

available hints are grouped by section, and only one hint from each section can be true for a given matrix.

  These replace InVec.
  - bool symminvec: If true, use a symbolic vector rather than the vector passed in for tuning purposes.
  - bool symminmultivec: If true, use a symbolic multi-vector rather than the multi-vector passed in for tuning purposes.

        These replace OutVec.
  - bool symmoutvec: If true, use a symbolic vector rather than the vector passed in for tuning purposes.
  - bool symmoutmultivec: If true, use a symbolic multi-vector rather than the multi-vector passed in for tuning purposes.

        This replaces Intermediate.
  - bool symmintermultivec: If true, use a symbolic multi-vector rather than the multi-vector passed in for tuning purposes.

  - bool tune: If true, have OSKI tune moderately rather than using the number of calls passed in.
  - bool tuneaggressive: If true, have OSKI tune aggressively rather than using the number of calls passed in.

int Epetra_OskiMatrix::TuneMatrix ( )

Tunes the matrix multiply if its deemed profitable.

The routine tunes based upon user provided hints if given. If hints are not given the tuning is performed based on expected future workload for the calculation.

Returns: On success returns a non-negative status code of the transformations performed. On failure an error code is returned.

int Epetra_OskiMatrix::IsMatrixTransformed ( ) const

Returns 1 if the matrix has been reordered by tuning, and 0 if it has not been.

const Epetra_OskiMatrix& Epetra_OskiMatrix::ViewTransformedMat ( ) const

Returns the transformed version of InMat if InMat has been transformed. If InMat has not been transformed then the return will equal InMat.

const Epetra_OskiPermutation& Epetra_OskiMatrix::ViewRowPermutation ( ) const

Returns a read only row/left permutation of the Matrix.

const Epetra_OskiPermutation& Epetra_OskiMatrix::ViewColumnPermutation ( ) const

Returns a read only column/right permutation of the Matrix.

char* Epetra_OskiMatrix::GetMatrixTransforms ( ) const

Returns a string holding the transformations performed on the matrix when it was tuned.

Returns: Upon success returns a newly-allocated string that stores the transformations applied to the matrix during tuning. NULL is returned upon an error. It is the users responsibility to deallocate the returned string.

int Epetra_OskiMatrix::ApplyMatrixTransforms ( const char * Transforms )

Replaces the current data structure of the matrix with the one specified in Transforms.

If a previously tuned copy of the Matrix existed it is now replaced by one specified in Transforms.

Parameters

Transforms (In) A string that holds the transformations to be applied to the matrix. If Transforms is NULL or the empty string then no changes to the data structure are made.

Returns: If the transformation was successful 0 is returned. Otherwise an error code is returned.

Member Data Documentation

const Epetra_CrsMatrix* Epetra_OskiMatrix::Epetra_View_

private

Definition at line 805 of file Epetra_OskiMatrix.h.

oski_matrix_t Epetra_OskiMatrix::A_tunable_

private

Definition at line 806 of file Epetra_OskiMatrix.h.

bool Epetra_OskiMatrix::Copy_Created_

private

Definition at line 807 of file Epetra_OskiMatrix.h.

The documentation for this class was generated from the following file:

Epetra_OskiMatrix.h

Private Attributes

Constructors/Destructor

Extract/Replace Values

Computational methods

Tuning

Data Structure Transformation Methods

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
