Xpetra::DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > Class Template Reference

All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Macros Groups Pages

#include <Xpetra_DistObject.hpp>

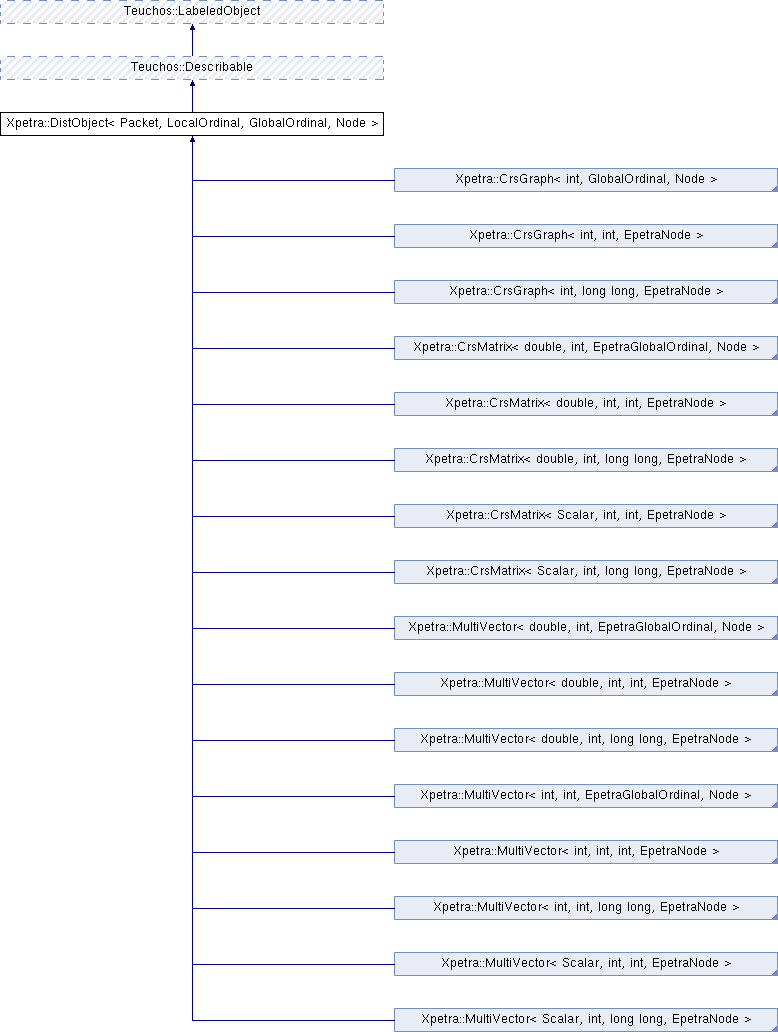

Inheritance diagram for Xpetra::DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node >:

Constructor/Destructor Methods
virtual	~DistObject ()
	Destructor. More...

Public methods for redistributing data
virtual void	doImport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)=0
	Import data into this object using an Import object ("forward mode"). More...

virtual void	doExport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)=0
	Export data into this object using an Export object ("forward mode"). More...

virtual void	doImport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)=0
	Import data into this object using an Export object ("reverse mode"). More...

virtual void	doExport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)=0
	Export data into this object using an Import object ("reverse mode"). More...

Attribute accessor methods
virtual Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > >	getMap () const =0
	The Map describing the parallel distribution of this object. More...

Implementation of Teuchos::Describable
virtual std::string	description () const =0
	One-line descriptiion of this object. More...

virtual void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const =0
	Print a descriptiion of this object to the given output stream. More...

Additional Inherited Members
Public Member Functions inherited from Teuchos::Describable
void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual	~Describable ()

	LabeledObject ()

virtual	~LabeledObject ()

virtual void	setObjectLabel (const std::string &objectLabel)

virtual std::string	getObjectLabel () const

DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default

Detailed Description

template<class Packet, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>
class Xpetra::DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node >

Definition at line 64 of file Xpetra_DistObject.hpp.

Constructor & Destructor Documentation

template<class Packet, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual Xpetra::DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node >::~DistObject ( )

inlinevirtual

Destructor.

Definition at line 74 of file Xpetra_DistObject.hpp.

Member Function Documentation

template<class Packet, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual void Xpetra::DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node >::doImport	(	const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &	source,
		const Import< LocalOrdinal, GlobalOrdinal, Node > &	importer,
		CombineMode	CM
	)

pure virtual

Import data into this object using an Import object ("forward mode").

Implemented in Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::TpetraMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Packet, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual void Xpetra::DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node >::doExport	(	const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &	source,
		const Export< LocalOrdinal, GlobalOrdinal, Node > &	exporter,
		CombineMode	CM
	)

pure virtual

Export data into this object using an Export object ("forward mode").

Implemented in Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::TpetraMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Packet, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual void Xpetra::DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node >::doImport	(	const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &	source,
		const Export< LocalOrdinal, GlobalOrdinal, Node > &	exporter,
		CombineMode	CM
	)

pure virtual

Import data into this object using an Export object ("reverse mode").

Implemented in Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::TpetraMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Packet, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual void Xpetra::DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node >::doExport	(	const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &	source,
		const Import< LocalOrdinal, GlobalOrdinal, Node > &	importer,
		CombineMode	CM
	)

pure virtual

Export data into this object using an Import object ("reverse mode").

Implemented in Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::TpetraMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Packet, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > Xpetra::DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node >::getMap ( ) const

pure virtual

The Map describing the parallel distribution of this object.

Implemented in Xpetra::EpetraCrsMatrixT< long long, EpetraNode >, Xpetra::TpetraCrsMatrix< Scalar, int, long long, EpetraNode >, Xpetra::EpetraCrsMatrixT< int, EpetraNode >, Xpetra::TpetraBlockCrsMatrix< Scalar, int, long long, EpetraNode >, Xpetra::EpetraIntMultiVectorT< long long, EpetraNode >, Xpetra::EpetraIntVectorT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::EpetraMultiVectorT< long long, EpetraNode >, Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraMultiVector< Scalar, int, long long, EpetraNode >, Xpetra::TpetraCrsMatrix< Scalar, int, int, EpetraNode >, Xpetra::TpetraBlockCrsMatrix< Scalar, int, int, EpetraNode >, Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::EpetraIntMultiVectorT< int, EpetraNode >, Xpetra::TpetraMultiVector< Scalar, int, int, EpetraNode >, Xpetra::EpetraIntVectorT< int, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::EpetraMultiVectorT< int, EpetraNode >, Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, Xpetra::EpetraIntMultiVectorT< EpetraGlobalOrdinal, Node >, Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >, Xpetra::EpetraIntVectorT< GO, NO >, Xpetra::TpetraMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::EpetraMultiVectorT< EpetraGlobalOrdinal, Node >, and Xpetra::EpetraCrsMatrixT< EpetraGlobalOrdinal, Node >.

template<class Packet, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual std::string Xpetra::DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node >::description ( ) const

pure virtual

One-line descriptiion of this object.

Reimplemented from Teuchos::Describable.

Implemented in Xpetra::EpetraCrsMatrixT< long long, EpetraNode >, Xpetra::TpetraCrsMatrix< Scalar, int, long long, EpetraNode >, Xpetra::TpetraBlockCrsMatrix< Scalar, int, long long, EpetraNode >, Xpetra::EpetraIntMultiVectorT< long long, EpetraNode >, Xpetra::EpetraIntVectorT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::EpetraMultiVectorT< long long, EpetraNode >, Xpetra::EpetraCrsMatrixT< int, EpetraNode >, Xpetra::TpetraMultiVector< Scalar, int, long long, EpetraNode >, Xpetra::TpetraCrsMatrix< Scalar, int, int, EpetraNode >, Xpetra::TpetraBlockCrsMatrix< Scalar, int, int, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::TpetraMultiVector< Scalar, int, int, EpetraNode >, Xpetra::EpetraIntMultiVectorT< int, EpetraNode >, Xpetra::EpetraIntVectorT< int, EpetraNode >, Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::EpetraMultiVectorT< int, EpetraNode >, Xpetra::EpetraVectorT< long long, EpetraNode >, Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::TpetraVector< Scalar, int, long long, EpetraNode >, Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::EpetraVectorT< int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::EpetraIntMultiVectorT< EpetraGlobalOrdinal, Node >, Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >, Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::CrsMatrix< double, int, int, EpetraNode >, Xpetra::CrsMatrix< Scalar, int, int, EpetraNode >, Xpetra::CrsMatrix< double, int, EpetraGlobalOrdinal, Node >, Xpetra::CrsMatrix< Scalar, int, long long, EpetraNode >, Xpetra::CrsMatrix< double, int, long long, EpetraNode >, Xpetra::EpetraIntVectorT< GO, NO >, Xpetra::TpetraVector< Scalar, int, int, EpetraNode >, Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >, Xpetra::CrsGraph< int, long long, EpetraNode >, Xpetra::CrsGraph< int, GlobalOrdinal, Node >, Xpetra::CrsGraph< int, int, EpetraNode >, Xpetra::TpetraMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::MultiVector< double, int, int, EpetraNode >, Xpetra::MultiVector< Scalar, int, int, EpetraNode >, Xpetra::MultiVector< double, int, EpetraGlobalOrdinal, Node >, Xpetra::MultiVector< int, int, long long, EpetraNode >, Xpetra::MultiVector< Scalar, int, long long, EpetraNode >, Xpetra::MultiVector< double, int, long long, EpetraNode >, Xpetra::MultiVector< int, int, int, EpetraNode >, Xpetra::MultiVector< int, int, EpetraGlobalOrdinal, Node >, Xpetra::EpetraMultiVectorT< EpetraGlobalOrdinal, Node >, Xpetra::EpetraCrsMatrixT< EpetraGlobalOrdinal, Node >, Xpetra::EpetraVectorT< GO, NO >, Xpetra::Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::Vector< double, int, int, EpetraNode >, Xpetra::Vector< Scalar, int, int, EpetraNode >, Xpetra::Vector< double, int, EpetraGlobalOrdinal, Node >, Xpetra::Vector< int, int, long long, EpetraNode >, Xpetra::Vector< Scalar, int, long long, EpetraNode >, Xpetra::Vector< int, int, int, EpetraNode >, Xpetra::Vector< double, int, long long, EpetraNode >, Xpetra::Vector< int, int, EpetraGlobalOrdinal, Node >, Xpetra::TpetraVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::ReorderedBlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Packet, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual void Xpetra::DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node >::describe	(	Teuchos::FancyOStream &	out,
		const Teuchos::EVerbosityLevel	verbLevel = `Teuchos::Describable::verbLevel_default`
	)		const

pure virtual

Print a descriptiion of this object to the given output stream.

Reimplemented from Teuchos::Describable.

Implemented in Xpetra::EpetraCrsMatrixT< long long, EpetraNode >, Xpetra::TpetraCrsMatrix< Scalar, int, long long, EpetraNode >, Xpetra::TpetraBlockCrsMatrix< Scalar, int, long long, EpetraNode >, Xpetra::EpetraIntMultiVectorT< long long, EpetraNode >, Xpetra::EpetraIntVectorT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::EpetraMultiVectorT< long long, EpetraNode >, Xpetra::EpetraCrsMatrixT< int, EpetraNode >, Xpetra::TpetraMultiVector< Scalar, int, long long, EpetraNode >, Xpetra::TpetraCrsMatrix< Scalar, int, int, EpetraNode >, Xpetra::TpetraBlockCrsMatrix< Scalar, int, int, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::TpetraMultiVector< Scalar, int, int, EpetraNode >, Xpetra::EpetraIntMultiVectorT< int, EpetraNode >, Xpetra::EpetraIntVectorT< int, EpetraNode >, Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::EpetraMultiVectorT< int, EpetraNode >, Xpetra::EpetraVectorT< long long, EpetraNode >, Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::TpetraVector< Scalar, int, long long, EpetraNode >, Xpetra::EpetraVectorT< int, EpetraNode >, Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::EpetraIntMultiVectorT< EpetraGlobalOrdinal, Node >, Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >, Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::EpetraIntVectorT< GO, NO >, Xpetra::CrsMatrix< double, int, int, EpetraNode >, Xpetra::CrsMatrix< Scalar, int, int, EpetraNode >, Xpetra::CrsMatrix< double, int, EpetraGlobalOrdinal, Node >, Xpetra::CrsMatrix< Scalar, int, long long, EpetraNode >, Xpetra::CrsMatrix< double, int, long long, EpetraNode >, Xpetra::TpetraVector< Scalar, int, int, EpetraNode >, Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >, Xpetra::CrsGraph< int, long long, EpetraNode >, Xpetra::CrsGraph< int, GlobalOrdinal, Node >, Xpetra::CrsGraph< int, int, EpetraNode >, Xpetra::TpetraMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::MultiVector< double, int, int, EpetraNode >, Xpetra::MultiVector< Scalar, int, int, EpetraNode >, Xpetra::MultiVector< double, int, EpetraGlobalOrdinal, Node >, Xpetra::MultiVector< int, int, long long, EpetraNode >, Xpetra::MultiVector< Scalar, int, long long, EpetraNode >, Xpetra::MultiVector< double, int, long long, EpetraNode >, Xpetra::MultiVector< int, int, int, EpetraNode >, Xpetra::MultiVector< int, int, EpetraGlobalOrdinal, Node >, Xpetra::EpetraMultiVectorT< EpetraGlobalOrdinal, Node >, Xpetra::EpetraCrsMatrixT< EpetraGlobalOrdinal, Node >, Xpetra::EpetraVectorT< GO, NO >, Xpetra::Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::Vector< double, int, int, EpetraNode >, Xpetra::Vector< Scalar, int, int, EpetraNode >, Xpetra::Vector< double, int, EpetraGlobalOrdinal, Node >, Xpetra::Vector< int, int, long long, EpetraNode >, Xpetra::Vector< Scalar, int, long long, EpetraNode >, Xpetra::Vector< int, int, int, EpetraNode >, Xpetra::Vector< double, int, long long, EpetraNode >, Xpetra::Vector< int, int, EpetraGlobalOrdinal, Node >, Xpetra::TpetraVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::ReorderedBlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

The documentation for this class was generated from the following file:

Xpetra_DistObject.hpp
