#include <Xpetra_EpetraCrsMatrix.hpp>

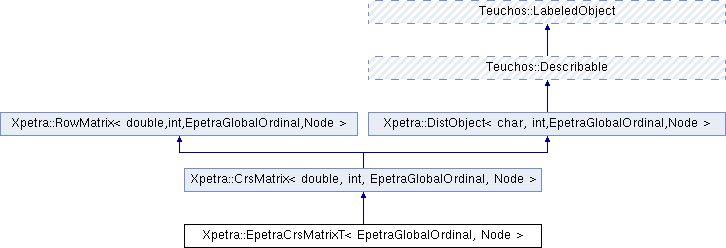

Inheritance diagram for Xpetra::EpetraCrsMatrixT< EpetraGlobalOrdinal, Node >:

Public Member Functions
	EpetraCrsMatrixT (const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rowMap, size_t maxNumEntriesPerRow, ProfileType pftype=DynamicProfile, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)

	EpetraCrsMatrixT (const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rowMap, const ArrayRCP< const size_t > &NumEntriesPerRowToAlloc, ProfileType pftype=DynamicProfile, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)

	EpetraCrsMatrixT (const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rowMap, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &colMap, size_t maxNumEntriesPerRow, ProfileType pftype=DynamicProfile, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)

	EpetraCrsMatrixT (const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rowMap, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &colMap, const ArrayRCP< const size_t > &NumEntriesPerRowToAlloc, ProfileType pftype=DynamicProfile, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)

	EpetraCrsMatrixT (const Teuchos::RCP< const CrsGraph< LocalOrdinal, GlobalOrdinal, Node > > &graph, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)

	EpetraCrsMatrixT (const Teuchos::RCP< const CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &sourceMatrix, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &domainMap=Teuchos::null, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rangeMap=Teuchos::null, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)

	EpetraCrsMatrixT (const Teuchos::RCP< const CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &sourceMatrix, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &domainMap=Teuchos::null, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rangeMap=Teuchos::null, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)

	EpetraCrsMatrixT (const Teuchos::RCP< const CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &sourceMatrix, const Import< LocalOrdinal, GlobalOrdinal, Node > &RowImporter, const Teuchos::RCP< const Import< LocalOrdinal, GlobalOrdinal, Node > > DomainImporter, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &domainMap, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rangeMap, const Teuchos::RCP< Teuchos::ParameterList > &params)

	EpetraCrsMatrixT (const Teuchos::RCP< const CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &sourceMatrix, const Export< LocalOrdinal, GlobalOrdinal, Node > &RowExporter, const Teuchos::RCP< const Export< LocalOrdinal, GlobalOrdinal, Node > > DomainExporter, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &domainMap, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rangeMap, const Teuchos::RCP< Teuchos::ParameterList > &params)

virtual	~EpetraCrsMatrixT ()

void	insertGlobalValues (GlobalOrdinal globalRow, const ArrayView< const GlobalOrdinal > &cols, const ArrayView< const Scalar > &vals)

void	insertLocalValues (LocalOrdinal localRow, const ArrayView< const LocalOrdinal > &cols, const ArrayView< const Scalar > &vals)

void	replaceGlobalValues (GlobalOrdinal globalRow, const ArrayView< const GlobalOrdinal > &cols, const ArrayView< const Scalar > &vals)

void	replaceLocalValues (LocalOrdinal localRow, const ArrayView< const LocalOrdinal > &cols, const ArrayView< const Scalar > &vals)

void	setAllToScalar (const Scalar &alpha)

void	scale (const Scalar &alpha)

void	allocateAllValues (size_t numNonZeros, ArrayRCP< size_t > &rowptr, ArrayRCP< LocalOrdinal > &colind, ArrayRCP< Scalar > &values)

void	setAllValues (const ArrayRCP< size_t > &rowptr, const ArrayRCP< LocalOrdinal > &colind, const ArrayRCP< Scalar > &values)

void	getAllValues (ArrayRCP< const size_t > &rowptr, ArrayRCP< const LocalOrdinal > &colind, ArrayRCP< const Scalar > &values) const

bool	haveGlobalConstants () const
	Returns true if globalConstants have been computed; false otherwise. More...

void	expertStaticFillComplete (const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &domainMap, const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rangeMap, const RCP< const Import< LocalOrdinal, GlobalOrdinal, Node > > &importer=Teuchos::null, const RCP< const Export< LocalOrdinal, GlobalOrdinal, Node > > &exporter=Teuchos::null, const RCP< ParameterList > &params=Teuchos::null)

void	resumeFill (const RCP< ParameterList > &params=null)

void	fillComplete (const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &domainMap, const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rangeMap, const RCP< ParameterList > &params=null)

void	fillComplete (const RCP< ParameterList > &params=null)
	Signal that data entry is complete. More...

void	replaceDomainMapAndImporter (const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &newDomainMap, Teuchos::RCP< const Import< LocalOrdinal, GlobalOrdinal, Node > > &newImporter)

const RCP< const Comm< int > >	getComm () const

const RCP< const Map < LocalOrdinal, GlobalOrdinal, Node > >	getRowMap () const
	Returns the Map that describes the row distribution in this matrix. More...

const RCP< const Map < LocalOrdinal, GlobalOrdinal, Node > >	getColMap () const
	Returns the Map that describes the column distribution in this matrix. More...

RCP< const CrsGraph < LocalOrdinal, GlobalOrdinal, Node > >	getCrsGraph () const
	Returns the CrsGraph associated with this matrix. More...

global_size_t	getGlobalNumRows () const
	Number of global elements in the row map of this matrix. More...

global_size_t	getGlobalNumCols () const
	Number of global columns in the matrix. More...

size_t	getNodeNumRows () const
	Returns the number of matrix rows owned on the calling node. More...

size_t	getNodeNumCols () const
	Returns the number of matrix columns owned on the calling node. More...

global_size_t	getGlobalNumEntries () const
	Returns the global number of entries in this matrix. More...

size_t	getNodeNumEntries () const
	Returns the local number of entries in this matrix. More...

size_t	getNumEntriesInLocalRow (LocalOrdinal localRow) const

size_t	getGlobalMaxNumRowEntries () const
	Returns the maximum number of entries across all rows/columns on all nodes. More...

size_t	getNodeMaxNumRowEntries () const
	Returns the maximum number of entries across all rows/columns on this node. More...

bool	isLocallyIndexed () const
	If matrix indices are in the local range, this function returns true. Otherwise, this function returns false. More...

bool	isGloballyIndexed () const
	If matrix indices are in the global range, this function returns true. Otherwise, this function returns false. More...

bool	isFillComplete () const
	Returns true if the matrix is in compute mode, i.e. if fillComplete() has been called. More...

bool	isFillActive () const
	Returns true if the matrix is in edit mode. More...

ScalarTraits< Scalar > ::magnitudeType	getFrobeniusNorm () const
	Returns the Frobenius norm of the matrix. More...

bool	supportsRowViews () const
	Returns true if getLocalRowView() and getGlobalRowView() are valid for this class. More...

void	getLocalRowCopy (LocalOrdinal LocalRow, const ArrayView< LocalOrdinal > &Indices, const ArrayView< Scalar > &Values, size_t &NumEntries) const

void	getGlobalRowCopy (GlobalOrdinal GlobalRow, const ArrayView< GlobalOrdinal > &Indices, const ArrayView< Scalar > &Values, size_t &NumEntries) const

void	getGlobalRowView (GlobalOrdinal GlobalRow, ArrayView< const GlobalOrdinal > &indices, ArrayView< const Scalar > &values) const

void	getLocalRowView (LocalOrdinal LocalRow, ArrayView< const LocalOrdinal > &indices, ArrayView< const Scalar > &values) const

void	getLocalDiagCopy (Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &diag) const

void	getLocalDiagOffsets (Teuchos::ArrayRCP< size_t > &offsets) const
	Get offsets of the diagonal entries in the matrix. More...

void	getLocalDiagCopy (Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &diag, const Teuchos::ArrayView< const size_t > &offsets) const

void	replaceDiag (const Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &diag)

void	leftScale (const Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &x)

void	rightScale (const Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &x)

void	apply (const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &X, MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &Y, Teuchos::ETransp mode=Teuchos::NO_TRANS, Scalar alpha=ScalarTraits< Scalar >::one(), Scalar beta=ScalarTraits< Scalar >::zero()) const

const RCP< const Map < LocalOrdinal, GlobalOrdinal, Node > >	getDomainMap () const
	Returns the Map associated with the domain of this operator. This will be null until fillComplete() is called. More...

const RCP< const Map < LocalOrdinal, GlobalOrdinal, Node > >	getRangeMap () const
	Returns the Map associated with the range of this operator, which must be compatible with Y.getMap(). More...

std::string	description () const
	A simple one-line description of this object. More...

void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
	Print the object with some verbosity level to an FancyOStream object. More...

void	setObjectLabel (const std::string &objectLabel)

	EpetraCrsMatrixT (const EpetraCrsMatrixT &matrix)

Teuchos::RCP< const Map < LocalOrdinal, GlobalOrdinal, Node > >	getMap () const
	The Map describing the parallel distribution of this object. More...

void	doImport (const DistObject< char, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)

void	doExport (const DistObject< char, LocalOrdinal, GlobalOrdinal, Node > &dest, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)

void	doImport (const DistObject< char, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)

void	doExport (const DistObject< char, LocalOrdinal, GlobalOrdinal, Node > &dest, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)

void	removeEmptyProcessesInPlace (const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &newMap)

bool	hasMatrix () const
	Does this have an underlying matrix. More...

	EpetraCrsMatrixT (const Teuchos::RCP< Epetra_CrsMatrix > &mtx)

RCP< const Epetra_CrsMatrix >	getEpetra_CrsMatrix () const

RCP< Epetra_CrsMatrix >	getEpetra_CrsMatrixNonConst () const

Public Member Functions inherited from Xpetra::CrsMatrix< double, int, EpetraGlobalOrdinal, Node >
virtual void	getLocalRowCopy (intLocalRow, const ArrayView< int > &Indices, const ArrayView< double > &Values, size_t &NumEntries) const =0
	Extract a list of entries in a specified local row of the matrix. Put into storage allocated by calling routine. More...

virtual	~CrsMatrix ()
	Destructor. More...

virtual void	insertGlobalValues (EpetraGlobalOrdinalglobalRow, const ArrayView< const EpetraGlobalOrdinal > &cols, const ArrayView< const double > &vals)=0
	Insert matrix entries, using global IDs. More...

virtual void	insertLocalValues (intlocalRow, const ArrayView< const int > &cols, const ArrayView< const double > &vals)=0
	Insert matrix entries, using local IDs. More...

virtual void	replaceGlobalValues (EpetraGlobalOrdinalglobalRow, const ArrayView< const EpetraGlobalOrdinal > &cols, const ArrayView< const double > &vals)=0
	Replace matrix entries, using global IDs. More...

virtual void	replaceLocalValues (intlocalRow, const ArrayView< const int > &cols, const ArrayView< const double > &vals)=0
	Replace matrix entries, using local IDs. More...

virtual void	setAllToScalar (const double &alpha)=0
	Set all matrix entries equal to scalarThis. More...

virtual void	scale (const double &alpha)=0
	Scale the current values of a matrix, this = alpha*this. More...

virtual void	allocateAllValues (size_t numNonZeros, ArrayRCP< size_t > &rowptr, ArrayRCP< int > &colind, ArrayRCP< double > &values)=0
	Allocates and returns ArrayRCPs of the Crs arrays — This is an Xpetra-only routine. More...

virtual void	setAllValues (const ArrayRCP< size_t > &rowptr, const ArrayRCP< int > &colind, const ArrayRCP< double > &values)=0
	Sets the 1D pointer arrays of the graph. More...

virtual void	getAllValues (ArrayRCP< const size_t > &rowptr, ArrayRCP< const int > &colind, ArrayRCP< const double > &values) const =0
	Gets the 1D pointer arrays of the graph. More...

virtual void	fillComplete (const RCP< const Map< int, EpetraGlobalOrdinal, Node > > &domainMap, const RCP< const Map< int, EpetraGlobalOrdinal, Node > > &rangeMap, const RCP< ParameterList > &params=null)=0
	Signal that data entry is complete, specifying domain and range maps. More...

virtual void	replaceDomainMapAndImporter (const Teuchos::RCP< const Map< int, EpetraGlobalOrdinal, Node > > &newDomainMap, Teuchos::RCP< const Import< int, EpetraGlobalOrdinal, Node > > &newImporter)=0
	Replaces the current domainMap and importer with the user-specified objects. More...

virtual void	expertStaticFillComplete (const RCP< const Map< int, EpetraGlobalOrdinal, Node > > &domainMap, const RCP< const Map< int, EpetraGlobalOrdinal, Node > > &rangeMap, const RCP< const Import< int, EpetraGlobalOrdinal, Node > > &importer=Teuchos::null, const RCP< const Export< int, EpetraGlobalOrdinal, Node > > &exporter=Teuchos::null, const RCP< ParameterList > &params=Teuchos::null)=0
	Expert static fill complete. More...

virtual size_t	getNumEntriesInLocalRow (intlocalRow) const =0
	Returns the current number of entries on this node in the specified local row. More...

virtual void	getGlobalRowView (EpetraGlobalOrdinalGlobalRow, ArrayView< const EpetraGlobalOrdinal > &indices, ArrayView< const double > &values) const =0
	Extract a const, non-persisting view of global indices in a specified row of the matrix. More...

virtual void	getGlobalRowCopy (EpetraGlobalOrdinalGlobalRow, const ArrayView< EpetraGlobalOrdinal > &indices, const ArrayView< double > &values, size_t &numEntries) const =0
	Extract a list of entries in a specified global row of this matrix. Put into pre-allocated storage. More...

virtual void	getLocalRowView (intLocalRow, ArrayView< const int > &indices, ArrayView< const double > &values) const =0
	Extract a const, non-persisting view of local indices in a specified row of the matrix. More...

virtual void	getLocalDiagCopy (Vector< double, int, EpetraGlobalOrdinal, Node > &diag) const =0
	Get a copy of the diagonal entries owned by this node, with local row indices. More...

virtual void	getLocalDiagCopy (Vector< double, int, EpetraGlobalOrdinal, Node > &diag, const Teuchos::ArrayView< const size_t > &offsets) const =0
	Get a copy of the diagonal entries owned by this node, with local row indices, using row offsets. More...

virtual void	replaceDiag (const Vector< double, int, EpetraGlobalOrdinal, Node > &diag)=0
	Replace the diagonal entries of the matrix. More...

virtual void	leftScale (const Vector< double, int, EpetraGlobalOrdinal, Node > &x)=0
	Left scale matrix using the given vector entries. More...

virtual void	rightScale (const Vector< double, int, EpetraGlobalOrdinal, Node > &x)=0
	Right scale matrix using the given vector entries. More...

virtual void	removeEmptyProcessesInPlace (const RCP< const Map< int, EpetraGlobalOrdinal, Node > > &newMap)=0

virtual void	apply (const MultiVector< double, int, EpetraGlobalOrdinal, Node > &X, MultiVector< double, int, EpetraGlobalOrdinal, Node > &Y, Teuchos::ETransp mode=Teuchos::NO_TRANS, doublealpha=ScalarTraits< double >::one(), doublebeta=ScalarTraits< double >::zero()) const =0
	Computes the sparse matrix-multivector multiplication. More...

Public Member Functions inherited from Xpetra::RowMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >
virtual	~RowMatrix ()
	Destructor. More...

virtual size_t	getNumEntriesInLocalRow (LocalOrdinal localRow) const =0
	Returns the current number of entries on this node in the specified local row. More...

virtual void	getLocalRowCopy (LocalOrdinal LocalRow, const Teuchos::ArrayView< LocalOrdinal > &Indices, const Teuchos::ArrayView< Scalar > &Values, size_t &NumEntries) const =0
	Extract a list of entries in a specified local row of the graph. Put into storage allocated by calling routine. More...

virtual void	getGlobalRowView (GlobalOrdinal GlobalRow, ArrayView< const GlobalOrdinal > &indices, ArrayView< const Scalar > &values) const =0
	Extract a const, non-persisting view of global indices in a specified row of the matrix. More...

virtual void	getLocalRowView (LocalOrdinal LocalRow, ArrayView< const LocalOrdinal > &indices, ArrayView< const Scalar > &values) const =0
	Extract a const, non-persisting view of local indices in a specified row of the matrix. More...

virtual void	getLocalDiagCopy (Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &diag) const =0
	Get a copy of the diagonal entries owned by this node, with local row indices. More...

virtual void	apply (const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &X, MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &Y, Teuchos::ETransp mode=Teuchos::NO_TRANS, Scalar alpha=Teuchos::ScalarTraits< Scalar >::one(), Scalar beta=Teuchos::ScalarTraits< Scalar >::zero()) const =0
	Computes the operator-multivector application. More...

Public Member Functions inherited from Xpetra::DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node >
virtual	~DistObject ()
	Destructor. More...

virtual void	doImport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)=0
	Import data into this object using an Import object ("forward mode"). More...

virtual void	doExport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)=0
	Export data into this object using an Export object ("forward mode"). More...

virtual void	doImport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)=0
	Import data into this object using an Export object ("reverse mode"). More...

virtual void	doExport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)=0
	Export data into this object using an Import object ("reverse mode"). More...

Public Member Functions inherited from Teuchos::Describable
void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual	~Describable ()

	LabeledObject ()

virtual	~LabeledObject ()

virtual std::string	getObjectLabel () const

DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

Private Types
typedef EpetraGlobalOrdinal	GlobalOrdinal

typedef CrsMatrix< double, int, GlobalOrdinal, Node > ::scalar_type	Scalar

typedef CrsMatrix< double, int, GlobalOrdinal, Node > ::local_ordinal_type	LocalOrdinal

Additional Inherited Members
Public Types inherited from Xpetra::CrsMatrix< double, int, EpetraGlobalOrdinal, Node >
typedef double	scalar_type

typedef int	local_ordinal_type

typedef EpetraGlobalOrdinal	global_ordinal_type

typedef Node	node_type

Public Types inherited from Xpetra::RowMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >
typedef Scalar	scalar_type

typedef LocalOrdinal	local_ordinal_type

typedef GlobalOrdinal	global_ordinal_type

typedef Node	node_type

Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default
