#include <Xpetra_BlockedMultiVector.hpp>

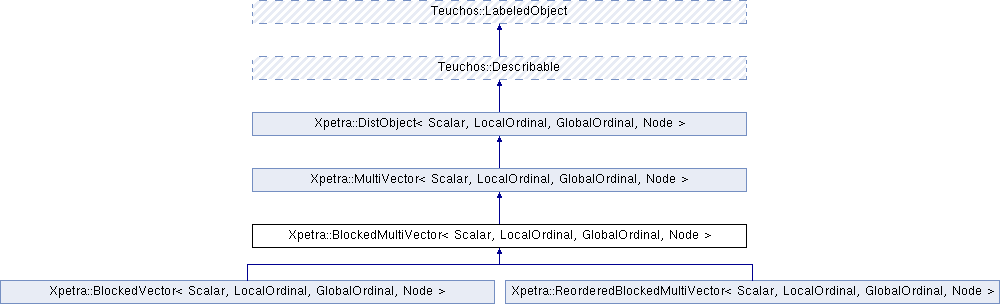

Inheritance diagram for Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >:

Public Types
typedef Scalar	scalar_type

typedef LocalOrdinal	local_ordinal_type

typedef GlobalOrdinal	global_ordinal_type

typedef Node	node_type

Public Types inherited from Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >
typedef Scalar	scalar_type

typedef LocalOrdinal	local_ordinal_type

typedef GlobalOrdinal	global_ordinal_type

typedef Node	node_type

Public Member Functions
Teuchos::RCP< const Map >	getMap () const
	Access function for the underlying Map this DistObject was constructed with. More...

Teuchos::RCP< const Xpetra::BlockedMap < LocalOrdinal, GlobalOrdinal, Node > >	getBlockedMap () const
	Access function for the underlying Map this DistObject was constructed with. More...

Teuchos::RCP< MultiVector >	getMultiVector (size_t r) const
	return partial multivector associated with block row r More...

Teuchos::RCP< MultiVector >	getMultiVector (size_t r, bool bThyraMode) const
	return partial multivector associated with block row r More...

void	setMultiVector (size_t r, Teuchos::RCP< const MultiVector > v, bool bThyraMode)
	set partial multivector associated with block row r More...

Teuchos::RCP< MultiVector >	Merge () const
	merge BlockedMultiVector blocks to a single MultiVector More...

Public Member Functions inherited from Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >
virtual	~MultiVector ()
	Destructor. More...

MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	operator= (const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &rhs)
	Assignment operator: Does a deep copy. More...

Public Member Functions inherited from Xpetra::DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node >
virtual	~DistObject ()
	Destructor. More...

Public Member Functions inherited from Teuchos::Describable
void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual	~Describable ()

	LabeledObject ()

virtual	~LabeledObject ()

virtual void	setObjectLabel (const std::string &objectLabel)

virtual std::string	getObjectLabel () const

DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

Protected Member Functions
virtual void	assign (const MultiVector &rhs)
	Implementation of the assignment operator (operator=); does a deep copy. More...

Private Member Functions
void	ExtractVector (RCP< const MultiVector > &full, size_t block, RCP< MultiVector > &partial) const

void	ExtractVector (RCP< MultiVector > &full, size_t block, RCP< MultiVector > &partial) const

RCP< MultiVector >	ExtractVector (RCP< const MultiVector > &full, size_t block, bool bThyraMode=false) const

RCP< MultiVector >	ExtractVector (RCP< MultiVector > &full, size_t block, bool bThyraMode=false) const

void	ExtractVector (const MultiVector &full, size_t block, MultiVector &partial) const

void	InsertVector (const MultiVector &partial, size_t block, MultiVector &full, bool bThyraMode=false) const

void	InsertVector (RCP< const MultiVector > partial, size_t block, RCP< MultiVector > full, bool bThyraMode=false) const

void	InsertVector (RCP< MultiVector > partial, size_t block, RCP< MultiVector > full, bool bThyraMode=false) const

Private Attributes
Teuchos::RCP< const BlockedMap >	map_
	blocked map containing the sub block maps (either thyra or xpetra mode) More...

std::vector< Teuchos::RCP < MultiVector > >	vv_
	array containing RCPs of the partial vectors More...

size_t	numVectors_
	number of vectors (columns in multi vector) More...

Constructor/Destructor Methods
	BlockedMultiVector (const Teuchos::RCP< const BlockedMap > &map, size_t NumVectors, bool zeroOut=true)
	Constructor. More...

	BlockedMultiVector (Teuchos::RCP< const Xpetra::BlockedMap< LocalOrdinal, GlobalOrdinal, Node > > bmap, Teuchos::RCP< const MultiVector > v)

	BlockedMultiVector (Teuchos::RCP< const Xpetra::BlockedMap< LocalOrdinal, GlobalOrdinal, Node > > bmap, Teuchos::RCP< MultiVector > v)

	BlockedMultiVector (Teuchos::RCP< const Xpetra::MapExtractor< Scalar, LocalOrdinal, GlobalOrdinal, Node > > mapExtractor, Teuchos::RCP< const MultiVector > v)

	BlockedMultiVector (Teuchos::RCP< const Xpetra::MapExtractor< Scalar, LocalOrdinal, GlobalOrdinal, Node > > mapExtractor, Teuchos::RCP< MultiVector > v)

	BlockedMultiVector (const Teuchos::RCP< const BlockedMap > &map, std::vector< Teuchos::RCP< MultiVector > > &vin)

virtual	~BlockedMultiVector ()
	Destructor. More...

BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	operator= (const MultiVector &rhs)
	Assignment operator: Does a deep copy. More...

Post-construction modification routines
virtual void	replaceGlobalValue (GlobalOrdinal, size_t, const Scalar &)
	Replace value, using global (row) index. More...

virtual void	sumIntoGlobalValue (GlobalOrdinal, size_t, const Scalar &)
	Add value to existing value, using global (row) index. More...

virtual void	replaceLocalValue (LocalOrdinal, size_t, const Scalar &)
	Replace value, using local (row) index. More...

virtual void	sumIntoLocalValue (LocalOrdinal, size_t, const Scalar &)
	Add value to existing value, using local (row) index. More...

virtual void	putScalar (const Scalar &value)
	Set all values in the multivector with the given value. More...

Data Copy and View get methods
virtual Teuchos::RCP< const Xpetra::Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > >	getVector (size_t j) const
	Return a Vector which is a const view of column j. More...

virtual Teuchos::RCP < Xpetra::Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > >	getVectorNonConst (size_t j)
	Return a Vector which is a nonconst view of column j. More...

virtual Teuchos::ArrayRCP < const Scalar >	getData (size_t j) const
	Const view of the local values in a particular vector of this multivector. More...

virtual Teuchos::ArrayRCP< Scalar >	getDataNonConst (size_t j)
	View of the local values in a particular vector of this multivector. More...

Mathematical methods
virtual void	dot (const MultiVector &, const Teuchos::ArrayView< Scalar > &) const
	Compute dot product of each corresponding pair of vectors, dots[i] = this[i].dot(A[i]). More...

virtual void	abs (const MultiVector &)
	Put element-wise absolute values of input Multi-vector in target: A = abs(this). More...

virtual void	reciprocal (const MultiVector &)
	Put element-wise reciprocal values of input Multi-vector in target, this(i,j) = 1/A(i,j). More...

virtual void	scale (const Scalar &alpha)
	Scale the current values of a multi-vector, this = alpha*this. More...

virtual void	scale (Teuchos::ArrayView< const Scalar > alpha)
	Scale the current values of a multi-vector, this[j] = alpha[j]*this[j]. More...

virtual void	update (const Scalar &alpha, const MultiVector &A, const Scalar &beta)
	Update multi-vector values with scaled values of A, this = betathis + alphaA. More...

virtual void	update (const Scalar &alpha, const MultiVector &A, const Scalar &beta, const MultiVector &B, const Scalar &gamma)
	Update multi-vector with scaled values of A and B, this = gammathis + alphaA + beta*B. More...

virtual void	norm1 (const Teuchos::ArrayView< typename Teuchos::ScalarTraits< Scalar >::magnitudeType > &norms) const
	Compute 1-norm of each vector in multi-vector. More...

virtual void	norm2 (const Teuchos::ArrayView< typename Teuchos::ScalarTraits< Scalar >::magnitudeType > &norms) const

virtual void	normInf (const Teuchos::ArrayView< typename Teuchos::ScalarTraits< Scalar >::magnitudeType > &norms) const
	Compute Inf-norm of each vector in multi-vector. More...

virtual void	meanValue (const Teuchos::ArrayView< Scalar > &) const
	Compute mean (average) value of each vector in multi-vector. The outcome of this routine is undefined for non-floating point scalar types (e.g., int). More...

virtual void	multiply (Teuchos::ETransp, Teuchos::ETransp, const Scalar &, const MultiVector &, const MultiVector &, const Scalar &)
	Matrix-matrix multiplication: this = betathis + alphaop(A)*op(B). More...

virtual void	elementWiseMultiply (Scalar scalarAB, const Xpetra::Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &A, const MultiVector &B, Scalar scalarThis)
	Element-wise multiply of a Vector A with a MultiVector B. More...

Attribute access functions
virtual size_t	getNumVectors () const
	Number of columns in the multivector. More...

virtual size_t	getLocalLength () const
	Local number of rows on the calling process. More...

virtual global_size_t	getGlobalLength () const
	Global number of rows in the multivector. More...

virtual bool	isSameSize (const Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &vec) const
	Local number of rows on the calling process. More...

Overridden from Teuchos::Describable
virtual std::string	description () const
	A simple one-line description of this object. More...

virtual void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
	Print the object with the given verbosity level to a FancyOStream. More...

virtual void	replaceMap (const RCP< const Map > &map)

virtual void	doImport (const DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node > &, const Import &, CombineMode)
	Import. More...

virtual void	doExport (const DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node > &, const Import &, CombineMode)
	Export. More...

virtual void	doImport (const DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node > &, const Export &, CombineMode)
	Import (using an Exporter). More...

virtual void	doExport (const DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node > &, const Export &, CombineMode)
	Export (using an Importer). More...

Xpetra specific
virtual void	setSeed (unsigned int seed)
	Set seed for Random function. More...

virtual void	randomize (bool bUseXpetraImplementation=false)
	Set multi-vector values to random numbers. More...

virtual void	Xpetra_randomize ()
	Set multi-vector values to random numbers. XPetra implementation. More...

Additional Inherited Members
Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default

Detailed Description

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>
class Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Definition at line 72 of file Xpetra_BlockedMultiVector.hpp.

Member Typedef Documentation

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

typedef Scalar Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::scalar_type

Definition at line 76 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

typedef LocalOrdinal Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::local_ordinal_type

Definition at line 77 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

typedef GlobalOrdinal Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::global_ordinal_type

Definition at line 78 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

typedef Node Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::node_type

Definition at line 79 of file Xpetra_BlockedMultiVector.hpp.

Constructor & Destructor Documentation

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::BlockedMultiVector	(	const Teuchos::RCP< const BlockedMap > &	map,
		size_t	NumVectors,
		bool	zeroOut = `true`
	)

inline

Constructor.

Const version of constructor which accepts a const version of a blocked map

Parameters

map	BlockedMap defining the block structure of the multi vector
NumVectors	Number of vector columns in multi vector
zeroOut	If true initialize multivector with zeros

Definition at line 99 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::BlockedMultiVector	(	Teuchos::RCP< const Xpetra::BlockedMap< LocalOrdinal, GlobalOrdinal, Node > >	bmap,
		Teuchos::RCP< const MultiVector >	v
	)

inline

Const version of constructor which accepts a const version of the multi-vector

Note: If you change the information in input vector v the data in the blocked multi-vector are not affected (and vice versa). Consider the blocked multivector to be a copy of the input multivector (not a view)

Parameters

bmap	BlockedMap object containing information about the block splitting
v	MultiVector that is to be splitted into a blocked multi vector

Definition at line 124 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::BlockedMultiVector	(	Teuchos::RCP< const Xpetra::BlockedMap< LocalOrdinal, GlobalOrdinal, Node > >	bmap,
		Teuchos::RCP< MultiVector >	v
	)

inline

NonConst version of constructor which accepts a const version of the multi-vector

Note: If you change the information in input vector v the data in the blocked multi-vector are not affected (and vice versa). Consider the blocked multivector to be a copy of the input multivector (not a view)

Parameters

bmap	BlockedMap object containing information about the block splitting
v	MultiVector that is to be splitted into a blocked multi vector

Definition at line 154 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::BlockedMultiVector	(	Teuchos::RCP< const Xpetra::MapExtractor< Scalar, LocalOrdinal, GlobalOrdinal, Node > >	mapExtractor,
		Teuchos::RCP< const MultiVector >	v
	)

inline

Const version of constructor which accepts a const version of the multi-vector

Note: If you change the information in input vector v the data in the blocked multi-vector are not affected (and vice versa). Consider the blocked multivector to be a copy of the input multivector (not a view)

Parameters

mapExtractor	MapExtractor object containing information about the block splitting
v	MultiVector that is to be splitted into a blocked multi vector

Definition at line 182 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::BlockedMultiVector	(	Teuchos::RCP< const Xpetra::MapExtractor< Scalar, LocalOrdinal, GlobalOrdinal, Node > >	mapExtractor,
		Teuchos::RCP< MultiVector >	v
	)

inline

Non-const version of constructor which accepts a non-const version of the multi-vector

Note: If you change the information in input vector v the data in the blocked multi-vector are not affected (and vice versa). Consider the blocked multivector to be a copy of the input multivector (not a view)

Parameters

mapExtractor	MapExtractor object containing information about the block splitting
v	MultiVector that is to be splitted into a blocked multi vector

Definition at line 212 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::BlockedMultiVector	(	const Teuchos::RCP< const BlockedMap > &	map,
		std::vector< Teuchos::RCP< MultiVector > > &	vin
	)

inline

Constructor to build a blocked multivector from a blocked map and component vectors

Note: We do NOT check map compatibility between the BlockedMap and the array of multivectors

Parameters

map	BlockedMap object containing information about the block splitting
vin	A std::vector of RCPs to component vectors

Definition at line 238 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::~BlockedMultiVector ( )

inlinevirtual

Destructor.

Definition at line 247 of file Xpetra_BlockedMultiVector.hpp.

Member Function Documentation

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

BlockedMultiVector<Scalar,LocalOrdinal,GlobalOrdinal,Node>& Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::operator= ( const MultiVector & rhs )

inline

Assignment operator: Does a deep copy.

The assignment operator does a deep copy, just like subclasses' copy constructors.

Note: This currently only works if both *this and the input argument are instances of the same subclass.

Definition at line 262 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual void Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::replaceGlobalValue	(	GlobalOrdinal	,
		size_t	,
		const Scalar &
	)

inlinevirtual

Replace value, using global (row) index.

Implements Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 272 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual void Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::sumIntoGlobalValue	(	GlobalOrdinal	,
		size_t	,
		const Scalar &
	)

inlinevirtual

Add value to existing value, using global (row) index.

Implements Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 277 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual void Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::replaceLocalValue	(	LocalOrdinal	,
		size_t	,
		const Scalar &
	)

inlinevirtual

Replace value, using local (row) index.

Implements Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 282 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual void Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::sumIntoLocalValue	(	LocalOrdinal	,
		size_t	,
		const Scalar &
	)

inlinevirtual

Add value to existing value, using local (row) index.

Implements Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 287 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual void Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::putScalar ( const Scalar & value )

inlinevirtual

Set all values in the multivector with the given value.

Implements Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 292 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual Teuchos::RCP< const Xpetra::Vector<Scalar,LocalOrdinal,GlobalOrdinal,Node> > Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getVector ( size_t j ) const

inlinevirtual

Return a Vector which is a const view of column j.

Implements Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 305 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual Teuchos::RCP< Xpetra::Vector<Scalar,LocalOrdinal,GlobalOrdinal,Node> > Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getVectorNonConst ( size_t j )

inlinevirtual

Return a Vector which is a nonconst view of column j.

Implements Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 318 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual Teuchos::ArrayRCP< const Scalar > Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getData ( size_t j ) const

inlinevirtual

Const view of the local values in a particular vector of this multivector.

Implements Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 325 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual Teuchos::ArrayRCP< Scalar > Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getDataNonConst ( size_t j )

inlinevirtual

View of the local values in a particular vector of this multivector.

Implements Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 334 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual void Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::dot	(	const MultiVector &	,
		const Teuchos::ArrayView< Scalar > &
	)		const

inlinevirtual

Compute dot product of each corresponding pair of vectors, dots[i] = this[i].dot(A[i]).

Implements Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 348 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual void Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::abs ( const MultiVector & )

inlinevirtual

Put element-wise absolute values of input Multi-vector in target: A = abs(this).

Implements Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 353 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual void Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::reciprocal ( const MultiVector & )

inlinevirtual

Put element-wise reciprocal values of input Multi-vector in target, this(i,j) = 1/A(i,j).

Implements Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 358 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual void Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::scale ( const Scalar & alpha )

inlinevirtual

Scale the current values of a multi-vector, this = alpha*this.

Implements Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 363 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual void Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::scale ( Teuchos::ArrayView< const Scalar > alpha )

inlinevirtual

Scale the current values of a multi-vector, this[j] = alpha[j]*this[j].

Implements Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 373 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual void Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::update	(	const Scalar &	alpha,
		const MultiVector &	A,
		const Scalar &	beta
	)

inlinevirtual

Update multi-vector values with scaled values of A, this = beta*this + alpha*A.

Implements Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 383 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual void Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::update	(	const Scalar &	alpha,
		const MultiVector &	A,
		const Scalar &	beta,
		const MultiVector &	B,
		const Scalar &	gamma
	)

inlinevirtual

Update multi-vector with scaled values of A and B, this = gamma*this + alpha*A + beta*B.

Implements Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 443 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual void Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::norm1 ( const Teuchos::ArrayView< typename Teuchos::ScalarTraits< Scalar >::magnitudeType > & norms ) const

inlinevirtual

Compute 1-norm of each vector in multi-vector.

Implements Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 467 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual void Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::norm2 ( const Teuchos::ArrayView< typename Teuchos::ScalarTraits< Scalar >::magnitudeType > & norms ) const

inlinevirtual

Implements Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 483 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual void Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::normInf ( const Teuchos::ArrayView< typename Teuchos::ScalarTraits< Scalar >::magnitudeType > & norms ) const

inlinevirtual

Compute Inf-norm of each vector in multi-vector.

Implements Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 503 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual void Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::meanValue ( const Teuchos::ArrayView< Scalar > & ) const

inlinevirtual

Compute mean (average) value of each vector in multi-vector. The outcome of this routine is undefined for non-floating point scalar types (e.g., int).

Implements Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 519 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual void Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::multiply	(	Teuchos::ETransp	,
		Teuchos::ETransp	,
		const Scalar &	,
		const MultiVector &	,
		const MultiVector &	,
		const Scalar &
	)

inlinevirtual

Matrix-matrix multiplication: this = beta*this + alpha*op(A)*op(B).

Implements Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 524 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual void Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::elementWiseMultiply	(	Scalar	scalarAB,
		const Xpetra::Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	A,
		const MultiVector &	B,
		Scalar	scalarThis
	)

inlinevirtual

Element-wise multiply of a Vector A with a MultiVector B.

Implements Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 529 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual size_t Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getNumVectors ( ) const

inlinevirtual

Number of columns in the multivector.

Implements Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 565 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual size_t Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getLocalLength ( ) const

inlinevirtual

Local number of rows on the calling process.

Implements Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 570 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual global_size_t Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getGlobalLength ( ) const

inlinevirtual

Global number of rows in the multivector.

Implements Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 576 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual bool Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::isSameSize ( const Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > & vec ) const

inlinevirtual

Local number of rows on the calling process.

Implements Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 582 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual std::string Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::description ( ) const

inlinevirtual

A simple one-line description of this object.

Implements Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::ReorderedBlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 603 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual void Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::describe	(	Teuchos::FancyOStream &	out,
		const Teuchos::EVerbosityLevel	verbLevel = `Teuchos::Describable::verbLevel_default`
	)		const

inlinevirtual

Print the object with the given verbosity level to a FancyOStream.

Implements Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::ReorderedBlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 608 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual void Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::replaceMap ( const RCP< const Map > & map )

inlinevirtual

Implements Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 614 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual void Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::doImport	(	const DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	,
		const Import &	,
		CombineMode
	)

inlinevirtual

Import.

Implements Xpetra::DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 639 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual void Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::doExport	(	const DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	,
		const Import &	,
		CombineMode
	)

inlinevirtual

Export.

Implements Xpetra::DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 644 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual void Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::doImport	(	const DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	,
		const Export &	,
		CombineMode
	)

inlinevirtual

Import (using an Exporter).

Implements Xpetra::DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 649 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual void Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::doExport	(	const DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	,
		const Export &	,
		CombineMode
	)

inlinevirtual

Export (using an Importer).

Implements Xpetra::DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 654 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual void Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::setSeed ( unsigned int seed )

inlinevirtual

Set seed for Random function.

Implements Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 664 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual void Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::randomize ( bool bUseXpetraImplementation = false )

inlinevirtual

Set multi-vector values to random numbers.

Implements Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 671 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual void Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Xpetra_randomize ( )

inlinevirtual

Set multi-vector values to random numbers. XPetra implementation.

Reimplemented from Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 678 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

Teuchos::RCP< const Map> Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getMap ( ) const

inlinevirtual

Access function for the underlying Map this DistObject was constructed with.

Implements Xpetra::DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 728 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

Teuchos::RCP< const Xpetra::BlockedMap<LocalOrdinal,GlobalOrdinal,Node> > Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getBlockedMap ( ) const

inline

Access function for the underlying Map this DistObject was constructed with.

Definition at line 731 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

Teuchos::RCP<MultiVector> Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getMultiVector ( size_t r ) const

inline

return partial multivector associated with block row r

Definition at line 734 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

Teuchos::RCP<MultiVector> Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getMultiVector	(	size_t	r,
		bool	bThyraMode
	)		const

inline

return partial multivector associated with block row r

Definition at line 741 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

void Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::setMultiVector	(	size_t	r,
		Teuchos::RCP< const MultiVector >	v,
		bool	bThyraMode
	)

inline

set partial multivector associated with block row r

Definition at line 750 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

Teuchos::RCP<MultiVector> Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Merge ( ) const

inline

merge BlockedMultiVector blocks to a single MultiVector

Definition at line 766 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

virtual void Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::assign ( const MultiVector & rhs )

inlineprotectedvirtual

Implementation of the assignment operator (operator=); does a deep copy.

Each subclass must implement this. This includes Xpetra::EpetraMultiVector and Xpetra::TpetraMultiVector as well as Xpetra::BockedMultiVector

Implements Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 795 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

void Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::ExtractVector	(	RCP< const MultiVector > &	full,
		size_t	block,
		RCP< MultiVector > &	partial
	)		const

inlineprivate

Definition at line 842 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

void Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::ExtractVector	(	RCP< MultiVector > &	full,
		size_t	block,
		RCP< MultiVector > &	partial
	)		const

inlineprivate

Definition at line 843 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

RCP<MultiVector> Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::ExtractVector	(	RCP< const MultiVector > &	full,
		size_t	block,
		bool	bThyraMode = `false`
	)		const

inlineprivate

Definition at line 845 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

RCP<MultiVector> Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::ExtractVector	(	RCP< MultiVector > &	full,
		size_t	block,
		bool	bThyraMode = `false`
	)		const

inlineprivate

Definition at line 876 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

void Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::ExtractVector	(	const MultiVector &	full,
		size_t	block,
		MultiVector &	partial
	)		const

inlineprivate

Definition at line 906 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

void Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::InsertVector	(	const MultiVector &	partial,
		size_t	block,
		MultiVector &	full,
		bool	bThyraMode = `false`
	)		const

inlineprivate

Definition at line 913 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

void Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::InsertVector	(	RCP< const MultiVector >	partial,
		size_t	block,
		RCP< MultiVector >	full,
		bool	bThyraMode = `false`
	)		const

inlineprivate

Definition at line 953 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

void Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::InsertVector	(	RCP< MultiVector >	partial,
		size_t	block,
		RCP< MultiVector >	full,
		bool	bThyraMode = `false`
	)		const

inlineprivate

Definition at line 963 of file Xpetra_BlockedMultiVector.hpp.

Member Data Documentation

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

Teuchos::RCP<const BlockedMap> Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::map_

private

blocked map containing the sub block maps (either thyra or xpetra mode)

Definition at line 975 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

std::vector<Teuchos::RCP<MultiVector> > Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::vv_

private

array containing RCPs of the partial vectors

Definition at line 976 of file Xpetra_BlockedMultiVector.hpp.

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>

size_t Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::numVectors_

private

number of vectors (columns in multi vector)

Definition at line 977 of file Xpetra_BlockedMultiVector.hpp.

The documentation for this class was generated from the following file:

Xpetra_BlockedMultiVector.hpp

Public Types

Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Constructor/Destructor Methods

Post-construction modification routines

Data Copy and View get methods

Mathematical methods

Attribute access functions

Overridden from Teuchos::Describable

Xpetra specific

Additional Inherited Members

Detailed Description

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type> class Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<class Scalar = double, class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>
class Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >
