#include <Xpetra_TpetraBlockCrsMatrix.hpp>

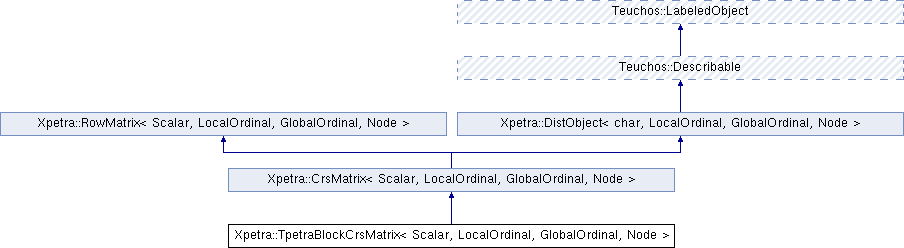

Inheritance diagram for Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >:

Public Member Functions
void	getLocalDiagCopy (Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &diag) const
	Deep copy constructor. More...

void	getLocalDiagOffsets (Teuchos::ArrayRCP< size_t > &offsets) const
	Get offsets of the diagonal entries in the matrix. More...

void	getLocalDiagCopy (Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &diag, const Teuchos::ArrayView< const size_t > &offsets) const
	Get a copy of the diagonal entries owned by this node, with local row indices. More...

void	replaceDiag (const Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &diag)
	Replace the diagonal entries of the matrix. More...

void	leftScale (const Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &x)
	Left scale operator with given vector values. More...

void	rightScale (const Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &x)
	Right scale operator with given vector values. More...

Teuchos::RCP< const Map < LocalOrdinal, GlobalOrdinal, Node > >	getMap () const
	Implements DistObject interface. More...

void	doImport (const DistObject< char, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)
	Import. More...

void	doExport (const DistObject< char, LocalOrdinal, GlobalOrdinal, Node > &dest, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)
	Export. More...

void	doImport (const DistObject< char, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)
	Import (using an Exporter). More...

void	doExport (const DistObject< char, LocalOrdinal, GlobalOrdinal, Node > &dest, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)
	Export (using an Importer). More...

void	removeEmptyProcessesInPlace (const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &newMap)

Public Member Functions inherited from Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >
virtual	~CrsMatrix ()
	Destructor. More...

Public Member Functions inherited from Xpetra::RowMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >
virtual	~RowMatrix ()
	Destructor. More...

Public Member Functions inherited from Xpetra::DistObject< char, LocalOrdinal, GlobalOrdinal, Node >
virtual	~DistObject ()
	Destructor. More...

Public Member Functions inherited from Teuchos::Describable
void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual	~Describable ()

	LabeledObject ()

virtual	~LabeledObject ()

virtual std::string	getObjectLabel () const

DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

Private Types
typedef TpetraBlockCrsMatrix < Scalar, LocalOrdinal, GlobalOrdinal, Node >	TpetraBlockCrsMatrixClass

typedef TpetraVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >	TpetraVectorClass

typedef TpetraImport < LocalOrdinal, GlobalOrdinal, Node >	TpetraImportClass

typedef TpetraExport < LocalOrdinal, GlobalOrdinal, Node >	TpetraExportClass

Private Attributes
RCP < Tpetra::Experimental::BlockCrsMatrix < Scalar, LocalOrdinal, GlobalOrdinal, Node > >	mtx_

Constructor/Destructor Methods
	TpetraBlockCrsMatrix (const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rowMap, size_t maxNumEntriesPerRow, ProfileType pftype=DynamicProfile, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	Constructor specifying fixed number of entries for each row (not implemented) More...

	TpetraBlockCrsMatrix (const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rowMap, const ArrayRCP< const size_t > &NumEntriesPerRowToAlloc, ProfileType pftype=DynamicProfile, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	Constructor specifying (possibly different) number of entries in each row (not implemented) More...

	TpetraBlockCrsMatrix (const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rowMap, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &colMap, size_t maxNumEntriesPerRow, ProfileType pftype=DynamicProfile, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	Constructor specifying column Map and fixed number of entries for each row (not implemented) More...

	TpetraBlockCrsMatrix (const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rowMap, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &colMap, const ArrayRCP< const size_t > &NumEntriesPerRowToAlloc, ProfileType pftype=DynamicProfile, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	Constructor specifying column Map and number of entries in each row (not implemented) More...

	TpetraBlockCrsMatrix (const Teuchos::RCP< const CrsGraph< LocalOrdinal, GlobalOrdinal, Node > > &graph, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	Constructor specifying a previously constructed graph ( not implemented ) More...

	TpetraBlockCrsMatrix (const Teuchos::RCP< const CrsGraph< LocalOrdinal, GlobalOrdinal, Node > > &graph, const LocalOrdinal blockSize)
	Constructor specifying a previously constructed graph & blocksize. More...

	TpetraBlockCrsMatrix (const Teuchos::RCP< const Tpetra::Experimental::BlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &sourceMatrix, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &domainMap=Teuchos::null, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rangeMap=Teuchos::null, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	Constructor for a fused import ( not implemented ) More...

	TpetraBlockCrsMatrix (const Teuchos::RCP< const Tpetra::Experimental::BlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &sourceMatrix, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &domainMap=Teuchos::null, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rangeMap=Teuchos::null, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	Constructor for a fused export (not implemented(. More...

	TpetraBlockCrsMatrix (const Teuchos::RCP< const Tpetra::Experimental::BlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &sourceMatrix, const Import< LocalOrdinal, GlobalOrdinal, Node > &RowImporter, const Teuchos::RCP< const Import< LocalOrdinal, GlobalOrdinal, Node > > DomainImporter, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &domainMap, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rangeMap, const Teuchos::RCP< Teuchos::ParameterList > &params)
	Constructor for a fused import ( not implemented ) More...

	TpetraBlockCrsMatrix (const Teuchos::RCP< const Tpetra::Experimental::BlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &sourceMatrix, const Export< LocalOrdinal, GlobalOrdinal, Node > &RowExporter, const Teuchos::RCP< const Export< LocalOrdinal, GlobalOrdinal, Node > > DomainExporter, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &domainMap, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rangeMap, const Teuchos::RCP< Teuchos::ParameterList > &params)
	Constructor for a fused export (not implemented(. More...

virtual	~TpetraBlockCrsMatrix ()
	Destructor. More...

Insertion/Removal Methods
void	insertGlobalValues (GlobalOrdinal globalRow, const ArrayView< const GlobalOrdinal > &cols, const ArrayView< const Scalar > &vals)
	Insert matrix entries, using global IDs (not implemented) More...

void	insertLocalValues (LocalOrdinal localRow, const ArrayView< const LocalOrdinal > &cols, const ArrayView< const Scalar > &vals)
	Insert matrix entries, using local IDs (not implemented) More...

void	replaceGlobalValues (GlobalOrdinal globalRow, const ArrayView< const GlobalOrdinal > &cols, const ArrayView< const Scalar > &vals)
	Replace matrix entries, using global IDs (not implemented) More...

void	replaceLocalValues (LocalOrdinal localRow, const ArrayView< const LocalOrdinal > &cols, const ArrayView< const Scalar > &vals)
	Replace matrix entries, using local IDs. More...

void	setAllToScalar (const Scalar &alpha)
	Set all matrix entries equal to scalarThis. More...

void	scale (const Scalar &alpha)
	Scale the current values of a matrix, this = alpha*this (not implemented) More...

void	allocateAllValues (size_t numNonZeros, ArrayRCP< size_t > &rowptr, ArrayRCP< LocalOrdinal > &colind, ArrayRCP< Scalar > &values)
	Allocates and returns ArrayRCPs of the Crs arrays — This is an Xpetra-only routine. More...

void	setAllValues (const ArrayRCP< size_t > &rowptr, const ArrayRCP< LocalOrdinal > &colind, const ArrayRCP< Scalar > &values)
	Sets the 1D pointer arrays of the graph (not impelmented) More...

void	getAllValues (ArrayRCP< const size_t > &rowptr, ArrayRCP< const LocalOrdinal > &colind, ArrayRCP< const Scalar > &values) const
	Gets the 1D pointer arrays of the graph (not implemented) More...

Transformational Methods
void	resumeFill (const RCP< ParameterList > &params=null)

void	fillComplete (const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &domainMap, const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rangeMap, const RCP< ParameterList > &params=null)
	Signal that data entry is complete, specifying domain and range maps. More...

void	fillComplete (const RCP< ParameterList > &params=null)
	Signal that data entry is complete. More...

void	replaceDomainMapAndImporter (const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &newDomainMap, Teuchos::RCP< const Import< LocalOrdinal, GlobalOrdinal, Node > > &newImporter)
	Replaces the current domainMap and importer with the user-specified objects. More...

void	expertStaticFillComplete (const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &domainMap, const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rangeMap, const RCP< const Import< LocalOrdinal, GlobalOrdinal, Node > > &importer=Teuchos::null, const RCP< const Export< LocalOrdinal, GlobalOrdinal, Node > > &exporter=Teuchos::null, const RCP< ParameterList > &params=Teuchos::null)
	Expert static fill complete. More...

Methods implementing RowMatrix
const RCP< const Map < LocalOrdinal, GlobalOrdinal, Node > >	getRowMap () const
	Returns the Map that describes the row distribution in this matrix. More...

const RCP< const Map < LocalOrdinal, GlobalOrdinal, Node > >	getColMap () const
	Returns the Map that describes the column distribution in this matrix. More...

RCP< const CrsGraph < LocalOrdinal, GlobalOrdinal, Node > >	getCrsGraph () const
	Returns the CrsGraph associated with this matrix. More...

global_size_t	getGlobalNumRows () const
	Number of global elements in the row map of this matrix. More...

global_size_t	getGlobalNumCols () const
	Number of global columns in the matrix. More...

size_t	getNodeNumRows () const
	Returns the number of matrix rows owned on the calling node. More...

size_t	getNodeNumCols () const
	Returns the number of columns connected to the locally owned rows of this matrix. More...

global_size_t	getGlobalNumEntries () const
	Returns the global number of entries in this matrix. More...

size_t	getNodeNumEntries () const
	Returns the local number of entries in this matrix. More...

size_t	getNumEntriesInLocalRow (LocalOrdinal localRow) const
	Returns the current number of entries on this node in the specified local row. More...

size_t	getGlobalMaxNumRowEntries () const
	Returns the maximum number of entries across all rows/columns on all nodes. More...

size_t	getNodeMaxNumRowEntries () const
	Returns the maximum number of entries across all rows/columns on this node. More...

bool	isLocallyIndexed () const
	If matrix indices are in the local range, this function returns true. Otherwise, this function returns false. More...

bool	isGloballyIndexed () const
	If matrix indices are in the global range, this function returns true. Otherwise, this function returns false. More...

bool	isFillComplete () const
	Returns true if the matrix is in compute mode, i.e. if fillComplete() has been called. More...

bool	isFillActive () const
	Returns true if the matrix is in edit mode. More...

ScalarTraits< Scalar > ::magnitudeType	getFrobeniusNorm () const
	Returns the Frobenius norm of the matrix. More...

bool	supportsRowViews () const
	Returns true if getLocalRowView() and getGlobalRowView() are valid for this class. More...

void	getLocalRowCopy (LocalOrdinal LocalRow, const ArrayView< LocalOrdinal > &Indices, const ArrayView< Scalar > &Values, size_t &NumEntries) const
	Extract a list of entries in a specified local row of the matrix. Put into storage allocated by calling routine. More...

void	getGlobalRowView (GlobalOrdinal GlobalRow, ArrayView< const GlobalOrdinal > &indices, ArrayView< const Scalar > &values) const
	Extract a const, non-persisting view of global indices in a specified row of the matrix. More...

void	getGlobalRowCopy (GlobalOrdinal GlobalRow, const ArrayView< GlobalOrdinal > &indices, const ArrayView< Scalar > &values, size_t &numEntries) const
	Extract a list of entries in a specified global row of this matrix. Put into pre-allocated storage. More...

void	getLocalRowView (LocalOrdinal LocalRow, ArrayView< const LocalOrdinal > &indices, ArrayView< const Scalar > &values) const
	Extract a const, non-persisting view of local indices in a specified row of the matrix. More...

virtual bool	haveGlobalConstants () const
	Returns true if globalConstants have been computed; false otherwise. More...

Methods implementing Operator
void	apply (const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &X, MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &Y, Teuchos::ETransp mode=Teuchos::NO_TRANS, Scalar alpha=ScalarTraits< Scalar >::one(), Scalar beta=ScalarTraits< Scalar >::zero()) const
	Computes the sparse matrix-multivector multiplication. More...

const RCP< const Map < LocalOrdinal, GlobalOrdinal, Node > >	getDomainMap () const
	Returns the Map associated with the domain of this operator. This will be null until fillComplete() is called. More...

const RCP< const Map < LocalOrdinal, GlobalOrdinal, Node > >	getRangeMap () const
	Returns the Map associated with the range of this operator, which must be compatible with Y.getMap(). More...

Overridden from Teuchos::Describable
std::string	description () const
	A simple one-line description of this object. More...

void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
	Print the object with some verbosity level to an FancyOStream object. More...

Overridden from Teuchos::LabeledObject
void	setObjectLabel (const std::string &objectLabel)

Xpetra specific
bool	hasMatrix () const
	Does this have an underlying matrix. More...

	TpetraBlockCrsMatrix (const Teuchos::RCP< Tpetra::Experimental::BlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &mtx)
	TpetraBlockCrsMatrix constructor to wrap a Tpetra::BlockCrsMatrix object. More...

RCP< const Tpetra::Experimental::BlockCrsMatrix < Scalar, LocalOrdinal, GlobalOrdinal, Node > >	getTpetra_BlockCrsMatrix () const
	Get the underlying Tpetra matrix. More...

RCP < Tpetra::Experimental::BlockCrsMatrix < Scalar, LocalOrdinal, GlobalOrdinal, Node > >	getTpetra_BlockCrsMatrixNonConst () const
	Get the underlying Tpetra matrix. More...

Additional Inherited Members
Public Types inherited from Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >
typedef Scalar	scalar_type

typedef LocalOrdinal	local_ordinal_type

typedef GlobalOrdinal	global_ordinal_type

typedef Node	node_type

Public Types inherited from Xpetra::RowMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >
typedef Scalar	scalar_type

typedef LocalOrdinal	local_ordinal_type

typedef GlobalOrdinal	global_ordinal_type

typedef Node	node_type

Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default

Detailed Description

template<class Scalar, class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>
class Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Definition at line 68 of file Xpetra_TpetraBlockCrsMatrix.hpp.

Member Typedef Documentation

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

typedef TpetraBlockCrsMatrix<Scalar,LocalOrdinal,GlobalOrdinal,Node> Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraBlockCrsMatrixClass

private

Definition at line 73 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

typedef TpetraVector<Scalar,LocalOrdinal,GlobalOrdinal,Node> Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraVectorClass

private

Definition at line 74 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

typedef TpetraImport<LocalOrdinal,GlobalOrdinal,Node> Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraImportClass

private

Definition at line 75 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

typedef TpetraExport<LocalOrdinal,GlobalOrdinal,Node> Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraExportClass

private

Definition at line 76 of file Xpetra_TpetraBlockCrsMatrix.hpp.

Constructor & Destructor Documentation

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraBlockCrsMatrix	(	const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rowMap,
		size_t	maxNumEntriesPerRow,
		ProfileType	pftype = `DynamicProfile`,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = `Teuchos::null`
	)

inline

Constructor specifying fixed number of entries for each row (not implemented)

Definition at line 84 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraBlockCrsMatrix	(	const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rowMap,
		const ArrayRCP< const size_t > &	NumEntriesPerRowToAlloc,
		ProfileType	pftype = `DynamicProfile`,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = `Teuchos::null`
	)

inline

Constructor specifying (possibly different) number of entries in each row (not implemented)

Definition at line 88 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraBlockCrsMatrix	(	const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rowMap,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	colMap,
		size_t	maxNumEntriesPerRow,
		ProfileType	pftype = `DynamicProfile`,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = `Teuchos::null`
	)

inline

Constructor specifying column Map and fixed number of entries for each row (not implemented)

Definition at line 92 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraBlockCrsMatrix	(	const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rowMap,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	colMap,
		const ArrayRCP< const size_t > &	NumEntriesPerRowToAlloc,
		ProfileType	pftype = `DynamicProfile`,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = `Teuchos::null`
	)

inline

Constructor specifying column Map and number of entries in each row (not implemented)

Definition at line 96 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraBlockCrsMatrix	(	const Teuchos::RCP< const CrsGraph< LocalOrdinal, GlobalOrdinal, Node > > &	graph,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = `Teuchos::null`
	)

inline

Constructor specifying a previously constructed graph ( not implemented )

Definition at line 100 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraBlockCrsMatrix	(	const Teuchos::RCP< const CrsGraph< LocalOrdinal, GlobalOrdinal, Node > > &	graph,
		const LocalOrdinal	blockSize
	)

inline

Constructor specifying a previously constructed graph & blocksize.

Definition at line 105 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraBlockCrsMatrix	(	const Teuchos::RCP< const Tpetra::Experimental::BlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &	sourceMatrix,
		const Import< LocalOrdinal, GlobalOrdinal, Node > &	importer,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	domainMap = `Teuchos::null`,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rangeMap = `Teuchos::null`,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = `Teuchos::null`
	)

inline

Constructor for a fused import ( not implemented )

Definition at line 112 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraBlockCrsMatrix	(	const Teuchos::RCP< const Tpetra::Experimental::BlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &	sourceMatrix,
		const Export< LocalOrdinal, GlobalOrdinal, Node > &	exporter,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	domainMap = `Teuchos::null`,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rangeMap = `Teuchos::null`,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = `Teuchos::null`
	)

inline

Constructor for a fused export (not implemented(.

Definition at line 120 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraBlockCrsMatrix	(	const Teuchos::RCP< const Tpetra::Experimental::BlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &	sourceMatrix,
		const Import< LocalOrdinal, GlobalOrdinal, Node > &	RowImporter,
		const Teuchos::RCP< const Import< LocalOrdinal, GlobalOrdinal, Node > >	DomainImporter,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	domainMap,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rangeMap,
		const Teuchos::RCP< Teuchos::ParameterList > &	params
	)

inline

Constructor for a fused import ( not implemented )

Definition at line 128 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraBlockCrsMatrix	(	const Teuchos::RCP< const Tpetra::Experimental::BlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &	sourceMatrix,
		const Export< LocalOrdinal, GlobalOrdinal, Node > &	RowExporter,
		const Teuchos::RCP< const Export< LocalOrdinal, GlobalOrdinal, Node > >	DomainExporter,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	domainMap,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rangeMap,
		const Teuchos::RCP< Teuchos::ParameterList > &	params
	)

inline

Constructor for a fused export (not implemented(.

Definition at line 137 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

virtual Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::~TpetraBlockCrsMatrix ( )

inlinevirtual

Destructor.

Definition at line 146 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraBlockCrsMatrix ( const Teuchos::RCP< Tpetra::Experimental::BlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > > & mtx )

inline

TpetraBlockCrsMatrix constructor to wrap a Tpetra::BlockCrsMatrix object.

Definition at line 442 of file Xpetra_TpetraBlockCrsMatrix.hpp.

Member Function Documentation

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::insertGlobalValues	(	GlobalOrdinal	globalRow,
		const ArrayView< const GlobalOrdinal > &	cols,
		const ArrayView< const Scalar > &	vals
	)

inlinevirtual

Insert matrix entries, using global IDs (not implemented)

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 154 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::insertLocalValues	(	LocalOrdinal	localRow,
		const ArrayView< const LocalOrdinal > &	cols,
		const ArrayView< const Scalar > &	vals
	)

inlinevirtual

Insert matrix entries, using local IDs (not implemented)

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 158 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::replaceGlobalValues	(	GlobalOrdinal	globalRow,
		const ArrayView< const GlobalOrdinal > &	cols,
		const ArrayView< const Scalar > &	vals
	)

inlinevirtual

Replace matrix entries, using global IDs (not implemented)

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 162 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::replaceLocalValues	(	LocalOrdinal	localRow,
		const ArrayView< const LocalOrdinal > &	cols,
		const ArrayView< const Scalar > &	vals
	)

inlinevirtual

Replace matrix entries, using local IDs.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 166 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::setAllToScalar ( const Scalar & alpha )

inlinevirtual

Set all matrix entries equal to scalarThis.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 173 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::scale ( const Scalar & alpha )

inlinevirtual

Scale the current values of a matrix, this = alpha*this (not implemented)

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 176 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::allocateAllValues	(	size_t	numNonZeros,
		ArrayRCP< size_t > &	rowptr,
		ArrayRCP< LocalOrdinal > &	colind,
		ArrayRCP< Scalar > &	values
	)

inlinevirtual

Allocates and returns ArrayRCPs of the Crs arrays — This is an Xpetra-only routine.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 181 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::setAllValues	(	const ArrayRCP< size_t > &	rowptr,
		const ArrayRCP< LocalOrdinal > &	colind,
		const ArrayRCP< Scalar > &	values
	)

inlinevirtual

Sets the 1D pointer arrays of the graph (not impelmented)

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 185 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getAllValues	(	ArrayRCP< const size_t > &	rowptr,
		ArrayRCP< const LocalOrdinal > &	colind,
		ArrayRCP< const Scalar > &	values
	)		const

inlinevirtual

Gets the 1D pointer arrays of the graph (not implemented)

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 189 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::resumeFill ( const RCP< ParameterList > & params = null )

inlinevirtual

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 198 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::fillComplete	(	const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	domainMap,
		const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rangeMap,
		const RCP< ParameterList > &	params = `null`
	)

inlinevirtual

Signal that data entry is complete, specifying domain and range maps.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 201 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::fillComplete ( const RCP< ParameterList > & params = null )

inlinevirtual

Signal that data entry is complete.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 204 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::replaceDomainMapAndImporter	(	const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	newDomainMap,
		Teuchos::RCP< const Import< LocalOrdinal, GlobalOrdinal, Node > > &	newImporter
	)

inlinevirtual

Replaces the current domainMap and importer with the user-specified objects.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 208 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::expertStaticFillComplete	(	const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	domainMap,
		const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rangeMap,
		const RCP< const Import< LocalOrdinal, GlobalOrdinal, Node > > &	importer = `Teuchos::null`,
		const RCP< const Export< LocalOrdinal, GlobalOrdinal, Node > > &	exporter = `Teuchos::null`,
		const RCP< ParameterList > &	params = `Teuchos::null`
	)

inlinevirtual

Expert static fill complete.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 212 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getRowMap ( ) const

inlinevirtual

Returns the Map that describes the row distribution in this matrix.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 225 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getColMap ( ) const

inlinevirtual

Returns the Map that describes the column distribution in this matrix.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 228 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

RCP< const CrsGraph< LocalOrdinal, GlobalOrdinal, Node> > Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getCrsGraph ( ) const

inlinevirtual

Returns the CrsGraph associated with this matrix.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 231 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

global_size_t Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getGlobalNumRows ( ) const

inlinevirtual

Number of global elements in the row map of this matrix.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 235 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

global_size_t Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getGlobalNumCols ( ) const

inlinevirtual

Number of global columns in the matrix.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 238 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

size_t Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getNodeNumRows ( ) const

inlinevirtual

Returns the number of matrix rows owned on the calling node.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 241 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

size_t Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getNodeNumCols ( ) const

inlinevirtual

Returns the number of columns connected to the locally owned rows of this matrix.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 244 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

global_size_t Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getGlobalNumEntries ( ) const

inlinevirtual

Returns the global number of entries in this matrix.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 247 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

size_t Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getNodeNumEntries ( ) const

inlinevirtual

Returns the local number of entries in this matrix.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 250 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

size_t Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getNumEntriesInLocalRow ( LocalOrdinal localRow ) const

inlinevirtual

Returns the current number of entries on this node in the specified local row.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 253 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

size_t Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getGlobalMaxNumRowEntries ( ) const

inlinevirtual

Returns the maximum number of entries across all rows/columns on all nodes.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 256 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

size_t Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getNodeMaxNumRowEntries ( ) const

inlinevirtual

Returns the maximum number of entries across all rows/columns on this node.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 259 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

bool Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::isLocallyIndexed ( ) const

inlinevirtual

If matrix indices are in the local range, this function returns true. Otherwise, this function returns false.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 262 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

bool Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::isGloballyIndexed ( ) const

inlinevirtual

If matrix indices are in the global range, this function returns true. Otherwise, this function returns false.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 265 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

bool Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::isFillComplete ( ) const

inlinevirtual

Returns true if the matrix is in compute mode, i.e. if fillComplete() has been called.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 268 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

bool Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::isFillActive ( ) const

inlinevirtual

Returns true if the matrix is in edit mode.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 271 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

ScalarTraits< Scalar >::magnitudeType Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getFrobeniusNorm ( ) const

inlinevirtual

Returns the Frobenius norm of the matrix.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 274 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

bool Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::supportsRowViews ( ) const

inlinevirtual

Returns true if getLocalRowView() and getGlobalRowView() are valid for this class.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 277 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getLocalRowCopy	(	LocalOrdinal	LocalRow,
		const ArrayView< LocalOrdinal > &	Indices,
		const ArrayView< Scalar > &	Values,
		size_t &	NumEntries
	)		const

inlinevirtual

Extract a list of entries in a specified local row of the matrix. Put into storage allocated by calling routine.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 280 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getGlobalRowView	(	GlobalOrdinal	GlobalRow,
		ArrayView< const GlobalOrdinal > &	indices,
		ArrayView< const Scalar > &	values
	)		const

inlinevirtual

Extract a const, non-persisting view of global indices in a specified row of the matrix.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 283 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getGlobalRowCopy	(	GlobalOrdinal	GlobalRow,
		const ArrayView< GlobalOrdinal > &	indices,
		const ArrayView< Scalar > &	values,
		size_t &	numEntries
	)		const

inlinevirtual

Extract a list of entries in a specified global row of this matrix. Put into pre-allocated storage.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 286 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getLocalRowView	(	LocalOrdinal	LocalRow,
		ArrayView< const LocalOrdinal > &	indices,
		ArrayView< const Scalar > &	values
	)		const

inlinevirtual

Extract a const, non-persisting view of local indices in a specified row of the matrix.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 289 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

virtual bool Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::haveGlobalConstants ( ) const

inlinevirtual

Returns true if globalConstants have been computed; false otherwise.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 292 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::apply	(	const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	X,
		MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	Y,
		Teuchos::ETransp	mode = `Teuchos::NO_TRANS`,
		Scalar	alpha = `ScalarTraits< Scalar >::one()`,
		Scalar	beta = `ScalarTraits< Scalar >::zero()`
	)		const

inlinevirtual

Computes the sparse matrix-multivector multiplication.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 301 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getDomainMap ( ) const

inlinevirtual

Returns the Map associated with the domain of this operator. This will be null until fillComplete() is called.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 304 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getRangeMap ( ) const

inlinevirtual

Returns the Map associated with the range of this operator, which must be compatible with Y.getMap().

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 307 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

std::string Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::description ( ) const

inlinevirtual

A simple one-line description of this object.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 315 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::describe	(	Teuchos::FancyOStream &	out,
		const Teuchos::EVerbosityLevel	verbLevel = `Teuchos::Describable::verbLevel_default`
	)		const

inlinevirtual

Print the object with some verbosity level to an FancyOStream object.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 318 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::setObjectLabel ( const std::string & objectLabel )

inlinevirtual

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 324 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getLocalDiagCopy ( Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > & diag ) const

inlinevirtual

Deep copy constructor.

Get a copy of the diagonal entries owned by this node, with local row idices {

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 338 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getLocalDiagOffsets ( Teuchos::ArrayRCP< size_t > & offsets ) const

inlinevirtual

Get offsets of the diagonal entries in the matrix.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 346 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getLocalDiagCopy	(	Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	diag,
		const Teuchos::ArrayView< const size_t > &	offsets
	)		const

inlinevirtual

Get a copy of the diagonal entries owned by this node, with local row indices.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 380 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::replaceDiag ( const Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > & diag )

inlinevirtual

Replace the diagonal entries of the matrix.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 383 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::leftScale ( const Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > & x )

inlinevirtual

Left scale operator with given vector values.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 388 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::rightScale ( const Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > & x )

inlinevirtual

Right scale operator with given vector values.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 393 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getMap ( ) const

inlinevirtual

Implements DistObject interface.

Access function for the Tpetra::Map this DistObject was constructed with.

Implements Xpetra::DistObject< char, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 401 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::doImport	(	const DistObject< char, LocalOrdinal, GlobalOrdinal, Node > &	source,
		const Import< LocalOrdinal, GlobalOrdinal, Node > &	importer,
		CombineMode	CM
	)

inlinevirtual

Import.

Implements Xpetra::DistObject< char, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 404 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::doExport	(	const DistObject< char, LocalOrdinal, GlobalOrdinal, Node > &	dest,
		const Import< LocalOrdinal, GlobalOrdinal, Node > &	importer,
		CombineMode	CM
	)

inlinevirtual

Export.

Implements Xpetra::DistObject< char, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 409 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::doImport	(	const DistObject< char, LocalOrdinal, GlobalOrdinal, Node > &	source,
		const Export< LocalOrdinal, GlobalOrdinal, Node > &	exporter,
		CombineMode	CM
	)

inlinevirtual

Import (using an Exporter).

Implements Xpetra::DistObject< char, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 414 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::doExport	(	const DistObject< char, LocalOrdinal, GlobalOrdinal, Node > &	dest,
		const Export< LocalOrdinal, GlobalOrdinal, Node > &	exporter,
		CombineMode	CM
	)

inlinevirtual

Export (using an Importer).

Implements Xpetra::DistObject< char, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 419 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::removeEmptyProcessesInPlace ( const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > & newMap )

inlinevirtual

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 423 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

bool Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::hasMatrix ( ) const

inlinevirtual

Does this have an underlying matrix.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 439 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

RCP<const Tpetra::Experimental::BlockCrsMatrix<Scalar, LocalOrdinal, GlobalOrdinal, Node> > Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getTpetra_BlockCrsMatrix ( ) const

inline

Get the underlying Tpetra matrix.

Definition at line 445 of file Xpetra_TpetraBlockCrsMatrix.hpp.

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

RCP<Tpetra::Experimental::BlockCrsMatrix<Scalar, LocalOrdinal, GlobalOrdinal, Node> > Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getTpetra_BlockCrsMatrixNonConst ( ) const

inline

Get the underlying Tpetra matrix.

Definition at line 448 of file Xpetra_TpetraBlockCrsMatrix.hpp.

Member Data Documentation

template<class Scalar , class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

RCP< Tpetra::Experimental::BlockCrsMatrix<Scalar, LocalOrdinal, GlobalOrdinal, Node> > Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::mtx_

private

Definition at line 474 of file Xpetra_TpetraBlockCrsMatrix.hpp.

The documentation for this class was generated from the following file:

Xpetra_TpetraBlockCrsMatrix.hpp

Public Member Functions

Private Types

Private Attributes

Constructor/Destructor Methods

Insertion/Removal Methods

Transformational Methods

Methods implementing RowMatrix

Methods implementing Operator

Overridden from Teuchos::Describable

Overridden from Teuchos::LabeledObject

Xpetra specific

Additional Inherited Members

Detailed Description

template<class Scalar, class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType> class Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<class Scalar, class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>
class Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >
