Thyra::DefaultMultiPeriodModelEvaluator< Scalar > Class Template Reference

Composite subclass that takes a single ModelEvaluator object and represents it as a single aggregate multi-period ModelEvalator object. More...

#include <Thyra_DefaultMultiPeriodModelEvaluator.hpp>

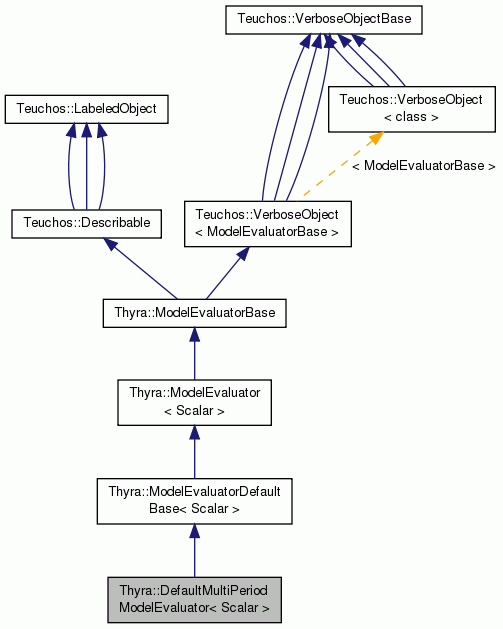

Inheritance diagram for Thyra::DefaultMultiPeriodModelEvaluator< Scalar >:

Constructors/Intializers/Accessors
	DefaultMultiPeriodModelEvaluator ()
	DefaultMultiPeriodModelEvaluator (const int N, const Array< RCP< ModelEvaluator< Scalar > > > &periodModels, const Array< int > &z_indexes, const Array< Array< RCP< const VectorBase< Scalar > > > > &z, const int g_index, const Array< Scalar > g_weights, const RCP< const ProductVectorSpaceBase< Scalar > > &x_bar_space=Teuchos::null, const RCP< const ProductVectorSpaceBase< Scalar > > &f_bar_space=Teuchos::null, const RCP< LinearOpWithSolveFactoryBase< Scalar > > &W_bar_factory=Teuchos::null)
	Calls intialize(...). More...
void	initialize (const int N, const Array< RCP< ModelEvaluator< Scalar > > > &periodModels, const Array< int > &z_indexes, const Array< Array< RCP< const VectorBase< Scalar > > > > &z, const int g_index, const Array< Scalar > g_weights, const RCP< const ProductVectorSpaceBase< Scalar > > &x_bar_space=Teuchos::null, const RCP< const ProductVectorSpaceBase< Scalar > > &f_bar_space=Teuchos::null, const RCP< LinearOpWithSolveFactoryBase< Scalar > > &W_bar_factory=Teuchos::null)
	Initialize. More...
void	reset_z (const Array< Array< RCP< const VectorBase< Scalar > > > > &z)
	Reset z. More...

Public functions overridden from ModelEvaulator.
int	Np () const
int	Ng () const
RCP< const VectorSpaceBase < Scalar > >	get_x_space () const
RCP< const VectorSpaceBase < Scalar > >	get_f_space () const
RCP< const VectorSpaceBase < Scalar > >	get_p_space (int l) const
RCP< const Array< std::string > >	get_p_names (int l) const
RCP< const VectorSpaceBase < Scalar > >	get_g_space (int j) const
ArrayView< const std::string >	get_g_names (int j) const
ModelEvaluatorBase::InArgs < Scalar >	getNominalValues () const
ModelEvaluatorBase::InArgs < Scalar >	getLowerBounds () const
ModelEvaluatorBase::InArgs < Scalar >	getUpperBounds () const
RCP< LinearOpBase< Scalar > >	create_W_op () const
RCP< PreconditionerBase< Scalar > >	create_W_prec () const
RCP< const LinearOpWithSolveFactoryBase < Scalar > >	get_W_factory () const
ModelEvaluatorBase::InArgs < Scalar >	createInArgs () const
void	reportFinalPoint (const ModelEvaluatorBase::InArgs< Scalar > &finalPoint, const bool wasSolved)
	Ignores the final point. More...

Additional Inherited Members
Public Types inherited from Thyra::ModelEvaluator< Scalar >
typedef Teuchos::ScalarTraits < Scalar >::magnitudeType	ScalarMag
Public Types inherited from Thyra::ModelEvaluatorBase
enum	EInArgsMembers {   IN_ARG_x_dot_dot, IN_ARG_x_dot, IN_ARG_x, IN_ARG_x_dot_poly,   IN_ARG_x_poly, IN_ARG_x_dot_mp, IN_ARG_x_mp, IN_ARG_t,   IN_ARG_alpha, IN_ARG_beta, IN_ARG_W_x_dot_dot_coeff, IN_ARG_step_size,   IN_ARG_stage_number }
enum	EInArgs_p_mp { IN_ARG_p_mp }
enum	EEvalType { , EVAL_TYPE_APPROX_DERIV, EVAL_TYPE_VERY_APPROX_DERIV }
	The type of an evaluation. More...
enum	EDerivativeMultiVectorOrientation { DERIV_MV_JACOBIAN_FORM, DERIV_MV_GRADIENT_FORM, DERIV_MV_BY_COL = DERIV_MV_JACOBIAN_FORM, DERIV_TRANS_MV_BY_ROW = DERIV_MV_GRADIENT_FORM }
enum	EDerivativeLinearOp { DERIV_LINEAR_OP }
enum	EDerivativeLinearity { DERIV_LINEARITY_UNKNOWN, DERIV_LINEARITY_CONST, DERIV_LINEARITY_NONCONST }
enum	ERankStatus { DERIV_RANK_UNKNOWN, DERIV_RANK_FULL, DERIV_RANK_DEFICIENT }
enum	EOutArgsMembers {   OUT_ARG_f, OUT_ARG_W, OUT_ARG_f_mp, OUT_ARG_W_mp,   OUT_ARG_W_op, OUT_ARG_W_prec, OUT_ARG_f_poly }
enum	EOutArgsDfDp { OUT_ARG_DfDp }
enum	EOutArgsDgDx_dot { OUT_ARG_DgDx_dot }
enum	EOutArgsDgDx { OUT_ARG_DgDx }
enum	EOutArgsDgDp { OUT_ARG_DgDp }
enum	EOutArgsDfDp_mp { OUT_ARG_DfDp_mp }
enum	EOutArgs_g_mp { OUT_ARG_g_mp }
enum	EOutArgsDgDx_dot_mp { OUT_ARG_DgDx_dot_mp }
enum	EOutArgsDgDx_mp { OUT_ARG_DgDx_mp }
enum	EOutArgsDgDp_mp { OUT_ARG_DgDp_mp }
Public Member Functions inherited from Thyra::ModelEvaluatorDefaultBase< Scalar >
int	Np () const
int	Ng () const
RCP< LinearOpBase< Scalar > >	create_DfDp_op (int l) const
RCP< LinearOpBase< Scalar > >	create_DgDx_dot_op (int j) const
RCP< LinearOpBase< Scalar > >	create_DgDx_op (int j) const
RCP< LinearOpBase< Scalar > >	create_DgDp_op (int j, int l) const
RCP< LinearOpWithSolveBase < Scalar > >	create_W () const
ModelEvaluatorBase::OutArgs < Scalar >	createOutArgs () const
void	evalModel (const ModelEvaluatorBase::InArgs< Scalar > &inArgs, const ModelEvaluatorBase::OutArgs< Scalar > &outArgs) const
Public Member Functions inherited from Thyra::ModelEvaluator< Scalar >
Public Member Functions inherited from Thyra::ModelEvaluatorBase
	ModelEvaluatorBase ()
	constructor More...
Static Public Attributes inherited from Thyra::ModelEvaluatorBase
static const int	NUM_E_IN_ARGS_MEMBERS =13
static const int	NUM_E_OUT_ARGS_MEMBERS =7
Protected Member Functions inherited from Thyra::ModelEvaluatorDefaultBase< Scalar >
	ModelEvaluatorDefaultBase ()
void	initializeDefaultBase ()
	Function called by subclasses to fully initialize this object on any important change. More...
void	resetDefaultBase ()
	Sets the the DefaultBase to an uninitialized state, forcing lazy initialization when needed. More...
Related Functions inherited from Thyra::ModelEvaluatorDefaultBase< Scalar >
template<class Scalar >
RCP < ModelEvaluatorBase::InArgs < Scalar > >	clone (const ModelEvaluatorBase::InArgs< Scalar > &inArgs)
	Create a clone of an InArgs object. More...
template<class Scalar >
ModelEvaluatorBase::Derivative < Scalar >	derivativeGradient (const RCP< MultiVectorBase< Scalar > > &grad)
template<class Scalar >
ModelEvaluatorBase::DerivativeMultiVector < Scalar >	create_DfDp_mv (const ModelEvaluator< Scalar > &model, int l, ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)
template<class Scalar >
ModelEvaluatorBase::DerivativeMultiVector < Scalar >	create_DgDx_dot_mv (const ModelEvaluator< Scalar > &model, int j, ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)
template<class Scalar >
ModelEvaluatorBase::DerivativeMultiVector < Scalar >	create_DgDx_mv (const ModelEvaluator< Scalar > &model, int j, ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)
template<class Scalar >
ModelEvaluatorBase::DerivativeMultiVector < Scalar >	create_DgDp_mv (const ModelEvaluator< Scalar > &model, int j, int l, ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)
template<class Scalar >
ModelEvaluatorBase::DerivativeMultiVector < Scalar >	get_dmv (const ModelEvaluatorBase::Derivative< Scalar > &deriv, const std::string &derivName)
template<class Scalar >
RCP< MultiVectorBase< Scalar > >	get_mv (const ModelEvaluatorBase::Derivative< Scalar > &deriv, const std::string &derivName, ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)
template<class Scalar >
void	assertDerivSpaces (const std::string &modelEvalDescription, const ModelEvaluatorBase::Derivative< Scalar > &deriv, const std::string &deriv_name, const VectorSpaceBase< Scalar > &fnc_space, const std::string &fnc_space_name, const VectorSpaceBase< Scalar > &var_space, const std::string &var_space_name)
	Assert that that Thyra objects imbedded in a Derivative object matches its function and variable spaces. More...
template<class Scalar >
void	assertInArgsOutArgsSetup (const std::string &modelEvalDescription, const ModelEvaluatorBase::InArgs< Scalar > &inArgs, const ModelEvaluatorBase::OutArgs< Scalar > &outArgs)
	Assert that an InArgs and OutArgs object are setup consistently. More...
template<class Scalar >
void	assertInArgsEvalObjects (const ModelEvaluator< Scalar > &model, const ModelEvaluatorBase::InArgs< Scalar > &inArgs)
	Assert that the objects in an InArgs object match a given model. More...
template<class Scalar >
void	assertOutArgsEvalObjects (const ModelEvaluator< Scalar > &model, const ModelEvaluatorBase::OutArgs< Scalar > &outArgs, const ModelEvaluatorBase::InArgs< Scalar > *inArgs=0)
	Assert that the objects in an OutArgs object match a given model. More...
Related Functions inherited from Thyra::ModelEvaluatorBase
std::string	toString (ModelEvaluatorBase::EInArgsMembers)
std::string	toString (ModelEvaluatorBase::EOutArgsMembers)
std::string	toString (ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)
ModelEvaluatorBase::EDerivativeMultiVectorOrientation	getOtherDerivativeMultiVectorOrientation (ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)

Detailed Description

template<class Scalar>
class Thyra::DefaultMultiPeriodModelEvaluator< Scalar >

Composite subclass that takes a single ModelEvaluator object and represents it as a single aggregate multi-period ModelEvalator object.

Mathematically, this subclass is used to form a multi-period (or multi-point) problem of the form:

  (x_bar,{p_l}\p_period) -> f_bar

  (x_bar,{p_l}\p_period) -> g_bar

where

  x_bar = [ x[0]; x[1]; ...; x[N-1]]

  {p_l}\p_period = { p_(0), p_(1), ..., p_(z_index-1), p_(z_index+1), ..., p_(Np-1) }

  f_bar(...) = [ f(x[0],{p_l},z[0]); f(x[1],{p_l},z[1]); ..., f(x[N-1],{p_l},z[N-1]) ]

  g_bar(...) = sum( g_weights[i]*g[g_index](x[0],{p_l},z[i]), i = 0,...,N-1 )

Above, the notation {p_l} is meant to represent the set of all parameter subvectors in each of the constituent models minus the parameter subvector used to define period data.

This gives the first derivative objects:

                     [ W[0], 0,     ...  0      ]
                     [ 0,    W[i],  ...  0      ]
  W_bar = DfDx_bar = [ .,    .,     ...  .      ]
                     [ 0,    0,     ...  W[N-1] ]


                [ DfDp[0][l]   ]
                [ DfDp[1][l]   ]
  DfDp_bar[l] = [ ...          ]
                [ DfDp[N=1][l] ]


                 [ g_wieght[0] * DgDx_dot[0]     ]
                 [ g_wieght[1] * DgDx_dot[1]     ]
  DgDx_dot_bar = [ ...                           ]
                 [ g_wieght[N-1] * DgDx_dot[N-1] ]


             [ g_wieght[0] * DgDx[0]     ]
             [ g_wieght[1] * DgDx[1]     ]
  DgDx_bar = [ ...                       ]
             [ g_wieght[N-1] * DgDx[N-1] ]


  DgDp_bar = sum( g_weights[i]*DgDp[i][g_index], i = 0,...,N-1 )

This class could be made much more general but for now ???

Definition at line 131 of file Thyra_DefaultMultiPeriodModelEvaluator.hpp.

Constructor & Destructor Documentation

template<class Scalar >

Thyra::DefaultMultiPeriodModelEvaluator< Scalar >::DefaultMultiPeriodModelEvaluator

(

)

Definition at line 368 of file Thyra_DefaultMultiPeriodModelEvaluator.hpp.

template<class Scalar >

Thyra::DefaultMultiPeriodModelEvaluator< Scalar >::DefaultMultiPeriodModelEvaluator	(	const int	N,
		const Array< RCP< ModelEvaluator< Scalar > > > &	periodModels,
		const Array< int > &	z_indexes,
		const Array< Array< RCP< const VectorBase< Scalar > > > > &	z,
		const int	g_index,
		const Array< Scalar >	g_weights,
		const RCP< const ProductVectorSpaceBase< Scalar > > &	x_bar_space = Teuchos::null,
		const RCP< const ProductVectorSpaceBase< Scalar > > &	f_bar_space = Teuchos::null,
		const RCP< LinearOpWithSolveFactoryBase< Scalar > > &	W_bar_factory = Teuchos::null
	)

Calls intialize(...).

Definition at line 374 of file Thyra_DefaultMultiPeriodModelEvaluator.hpp.

Member Function Documentation

template<class Scalar >

void Thyra::DefaultMultiPeriodModelEvaluator< Scalar >::initialize	(	const int	N,
		const Array< RCP< ModelEvaluator< Scalar > > > &	periodModels,
		const Array< int > &	z_indexes,
		const Array< Array< RCP< const VectorBase< Scalar > > > > &	z,
		const int	g_index,
		const Array< Scalar >	g_weights,
		const RCP< const ProductVectorSpaceBase< Scalar > > &	x_bar_space = Teuchos::null,
		const RCP< const ProductVectorSpaceBase< Scalar > > &	f_bar_space = Teuchos::null,
		const RCP< LinearOpWithSolveFactoryBase< Scalar > > &	W_bar_factory = Teuchos::null
	)

Initialize.

Parameters

N	[in] The number of periods.
periodModels	[in] Array (length N) of the period models. For now, each of the period models at periodModels[i] must have an identical structure for every input and output. The reason that different models are passed in is so that different behaviors of the output functions and different nominal values for each period's x and bounds can be specified. The nominal values from periodModels[0] will be used to set the nominal values for the non-peroid parameters.
z_indexes	[in] Array of sorted zero-based indexes of the model's parameter subvector that represents z[i]. Note, this array must be sorted from smallest to largets and can not have any duplicate entires!
z	[in] Array (length N) of the period defining auxiliary paramter subvectors. Each entry z[i] is an array of subvectors where z[i][k] is the subvector p(z_indexes[k]) in the underlying perild model. Therefore, the array z[i] must be ordered according to z_indexes. Note that z[i][k] is allowed to be null in which case the underlying default value for this parameter will be used.
g_index	[in] The index of the response function that will be used for the period objective function.
g_weights	[in] Array (length N) of the g_weights for the auxiliary response functions in the summation for g_bar(...) shown above.
x_bar_space	[in] The product vector space that represents the space for x_bar as defined above. If x_bar_space.get()==NULL then a default version of this product space will be created internally.
f_bar_space	[in] The product vector space that represents the space for f_bar as defined above. If f_bar_space.get()==NULL then a default version of this product space will be created internally.
W_bar_factory	[in] Factory object that is used to create the block LOWS object that will be used to represent the block diagonal object W_bar. If is_null(W_bar_factory)==true on input then a DefaultBlockedTriangularLinearOpWithSolveFactory object will be created and used internally.

Preconditions:

• N > 0
• periodModels.size()==N.
• z_indexes.size() > 0 and z_indexes[k] >= 0 and z_indexes[k] are sorted low to high and are unique.
• z.size()==N and z[i].size()==z_indexes.size(), for i=0...N-1

Definition at line 395 of file Thyra_DefaultMultiPeriodModelEvaluator.hpp.

template<class Scalar >

void Thyra::DefaultMultiPeriodModelEvaluator< Scalar >::reset_z

(

const Array< Array< RCP< const VectorBase< Scalar > > > > &

z

)

Reset z.

Parameters

z	[in] See initialize().

Preconditions:

• See initialize()

Definition at line 482 of file Thyra_DefaultMultiPeriodModelEvaluator.hpp.

template<class Scalar >

int Thyra::DefaultMultiPeriodModelEvaluator< Scalar >::Np ( ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Definition at line 511 of file Thyra_DefaultMultiPeriodModelEvaluator.hpp.

template<class Scalar >

int Thyra::DefaultMultiPeriodModelEvaluator< Scalar >::Ng ( ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Definition at line 518 of file Thyra_DefaultMultiPeriodModelEvaluator.hpp.

template<class Scalar >

RCP< const VectorSpaceBase< Scalar > > Thyra::DefaultMultiPeriodModelEvaluator< Scalar >::get_x_space ( ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Definition at line 526 of file Thyra_DefaultMultiPeriodModelEvaluator.hpp.

template<class Scalar >

RCP< const VectorSpaceBase< Scalar > > Thyra::DefaultMultiPeriodModelEvaluator< Scalar >::get_f_space ( ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Definition at line 534 of file Thyra_DefaultMultiPeriodModelEvaluator.hpp.

template<class Scalar >

RCP< const VectorSpaceBase< Scalar > > Thyra::DefaultMultiPeriodModelEvaluator< Scalar >::get_p_space ( int  l ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Definition at line 542 of file Thyra_DefaultMultiPeriodModelEvaluator.hpp.

template<class Scalar >

RCP< const Array< std::string > > Thyra::DefaultMultiPeriodModelEvaluator< Scalar >::get_p_names ( int  l ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Definition at line 550 of file Thyra_DefaultMultiPeriodModelEvaluator.hpp.

template<class Scalar >

RCP< const VectorSpaceBase< Scalar > > Thyra::DefaultMultiPeriodModelEvaluator< Scalar >::get_g_space ( int  j ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Definition at line 558 of file Thyra_DefaultMultiPeriodModelEvaluator.hpp.

template<class Scalar >

ArrayView< const std::string > Thyra::DefaultMultiPeriodModelEvaluator< Scalar >::get_g_names ( int  j ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Definition at line 567 of file Thyra_DefaultMultiPeriodModelEvaluator.hpp.

template<class Scalar >

ModelEvaluatorBase::InArgs< Scalar > Thyra::DefaultMultiPeriodModelEvaluator< Scalar >::getNominalValues ( ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Definition at line 575 of file Thyra_DefaultMultiPeriodModelEvaluator.hpp.

template<class Scalar >

ModelEvaluatorBase::InArgs< Scalar > Thyra::DefaultMultiPeriodModelEvaluator< Scalar >::getLowerBounds ( ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Definition at line 583 of file Thyra_DefaultMultiPeriodModelEvaluator.hpp.

template<class Scalar >

ModelEvaluatorBase::InArgs< Scalar > Thyra::DefaultMultiPeriodModelEvaluator< Scalar >::getUpperBounds ( ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Definition at line 591 of file Thyra_DefaultMultiPeriodModelEvaluator.hpp.

template<class Scalar >

RCP< LinearOpBase< Scalar > > Thyra::DefaultMultiPeriodModelEvaluator< Scalar >::create_W_op ( ) const

virtual

.

Implements Thyra::ModelEvaluator< Scalar >.

Definition at line 599 of file Thyra_DefaultMultiPeriodModelEvaluator.hpp.

template<class Scalar >

RCP< PreconditionerBase< Scalar > > Thyra::DefaultMultiPeriodModelEvaluator< Scalar >::create_W_prec ( ) const

virtual

.

Implements Thyra::ModelEvaluator< Scalar >.

Definition at line 616 of file Thyra_DefaultMultiPeriodModelEvaluator.hpp.

template<class Scalar >

RCP< const LinearOpWithSolveFactoryBase< Scalar > > Thyra::DefaultMultiPeriodModelEvaluator< Scalar >::get_W_factory ( ) const

virtual

.

Implements Thyra::ModelEvaluator< Scalar >.

Definition at line 624 of file Thyra_DefaultMultiPeriodModelEvaluator.hpp.

template<class Scalar >

ModelEvaluatorBase::InArgs< Scalar > Thyra::DefaultMultiPeriodModelEvaluator< Scalar >::createInArgs ( ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Definition at line 632 of file Thyra_DefaultMultiPeriodModelEvaluator.hpp.

template<class Scalar >

void Thyra::DefaultMultiPeriodModelEvaluator< Scalar >::reportFinalPoint ( const ModelEvaluatorBase::InArgs< Scalar > &  finalPoint, const bool  wasSolved  )

virtual

Ignores the final point.

Implements Thyra::ModelEvaluator< Scalar >.

Definition at line 645 of file Thyra_DefaultMultiPeriodModelEvaluator.hpp.

---

The documentation for this class was generated from the following file:

• Thyra_DefaultMultiPeriodModelEvaluator.hpp
