A ModelEvaluator which wraps the application ModelEvaluator. More...

#include <Tempus_WrapperModelEvaluator.hpp>

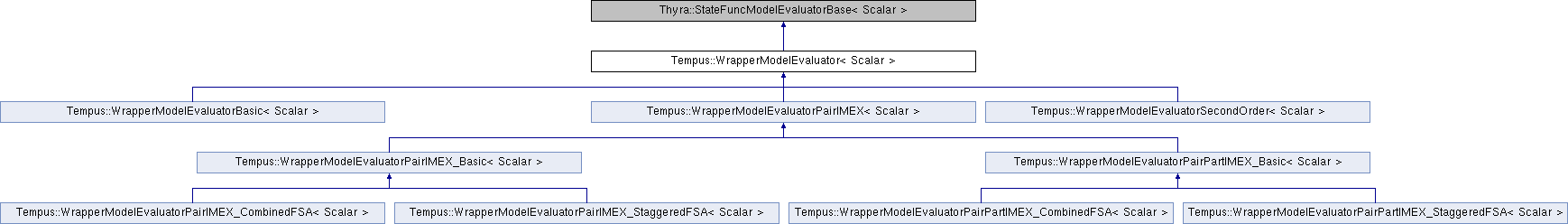

Inheritance diagram for Tempus::WrapperModelEvaluator< Scalar >:

Public Member Functions
virtual void	setAppModel (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &me)=0
	Set the underlying application ModelEvaluator. More...

virtual Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > >	getAppModel () const =0
	Get the underlying application ModelEvaluator. More...

virtual void	setInArgs (Thyra::ModelEvaluatorBase::InArgs< Scalar > inArgs)=0
	Set InArgs the wrapper ModelEvalutor. More...

virtual Thyra::ModelEvaluatorBase::InArgs < Scalar >	getInArgs ()=0
	Get InArgs the wrapper ModelEvalutor. More...

virtual void	setOutArgs (Thyra::ModelEvaluatorBase::OutArgs< Scalar > outArgs)=0
	Set OutArgs the wrapper ModelEvalutor. More...

virtual Thyra::ModelEvaluatorBase::OutArgs < Scalar >	getOutArgs ()=0
	Get OutArgs the wrapper ModelEvalutor. More...

virtual void	setForSolve (Teuchos::RCP< TimeDerivative< Scalar > > td, Thyra::ModelEvaluatorBase::InArgs< Scalar > inArgs, Thyra::ModelEvaluatorBase::OutArgs< Scalar > outArgs, EVALUATION_TYPE evaluationType=SOLVE_FOR_X)=0
	Set parameters for application implicit ModelEvaluator solve. More...

Vector Methods.
virtual Teuchos::RCP< const Thyra::VectorSpaceBase< Scalar > >	get_x_space () const =0
	Get the x-solution space. More...

virtual Teuchos::RCP< const Thyra::VectorSpaceBase< Scalar > >	get_g_space (int i) const =0
	Get the g space. More...

virtual Teuchos::RCP< const Thyra::VectorSpaceBase< Scalar > >	get_p_space (int i) const =0
	Get the p space. More...

Detailed Description

template<typename Scalar>
class Tempus::WrapperModelEvaluator< Scalar >

A ModelEvaluator which wraps the application ModelEvaluator.

The WrapperModelEvaluator takes a state, $x$ , computes time derivative(s), $\dot{x}$ and/or $\ddot{x}$ , from the implicit stepper (StepperImplicit) and calls the application ModelEvaluator to determine its residual, $\mathcal{F}(x)$ , which is suitable for the nonlinear solve.

Definition at line 34 of file Tempus_WrapperModelEvaluator.hpp.

Member Function Documentation

template<typename Scalar >

virtual Teuchos::RCP<const Thyra::VectorSpaceBase<Scalar> > Tempus::WrapperModelEvaluator< Scalar >::get_g_space ( int i ) const

pure virtual

Get the g space.

Implemented in Tempus::WrapperModelEvaluatorSecondOrder< Scalar >, Tempus::WrapperModelEvaluatorPairIMEX_Basic< Scalar >, Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >, Tempus::WrapperModelEvaluatorBasic< Scalar >, and Tempus::WrapperModelEvaluatorPairIMEX< Scalar >.

template<typename Scalar >

virtual Teuchos::RCP<const Thyra::VectorSpaceBase<Scalar> > Tempus::WrapperModelEvaluator< Scalar >::get_p_space ( int i ) const

pure virtual

Get the p space.

Implemented in Tempus::WrapperModelEvaluatorSecondOrder< Scalar >, Tempus::WrapperModelEvaluatorPairIMEX_Basic< Scalar >, Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >, Tempus::WrapperModelEvaluatorBasic< Scalar >, Tempus::WrapperModelEvaluatorPairPartIMEX_CombinedFSA< Scalar >, Tempus::WrapperModelEvaluatorPairPartIMEX_StaggeredFSA< Scalar >, and Tempus::WrapperModelEvaluatorPairIMEX< Scalar >.

template<typename Scalar >

virtual Teuchos::RCP<const Thyra::VectorSpaceBase<Scalar> > Tempus::WrapperModelEvaluator< Scalar >::get_x_space ( ) const

pure virtual

Get the x-solution space.

Implemented in Tempus::WrapperModelEvaluatorSecondOrder< Scalar >, Tempus::WrapperModelEvaluatorPairIMEX_Basic< Scalar >, Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >, Tempus::WrapperModelEvaluatorBasic< Scalar >, and Tempus::WrapperModelEvaluatorPairIMEX< Scalar >.

template<typename Scalar >

virtual Teuchos::RCP<const Thyra::ModelEvaluator<Scalar> > Tempus::WrapperModelEvaluator< Scalar >::getAppModel ( ) const

pure virtual

Get the underlying application ModelEvaluator.

Implemented in Tempus::WrapperModelEvaluatorSecondOrder< Scalar >, Tempus::WrapperModelEvaluatorPairIMEX_Basic< Scalar >, Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >, and Tempus::WrapperModelEvaluatorBasic< Scalar >.

template<typename Scalar >

virtual Thyra::ModelEvaluatorBase::InArgs<Scalar> Tempus::WrapperModelEvaluator< Scalar >::getInArgs ( )

pure virtual

Get InArgs the wrapper ModelEvalutor.

Implemented in Tempus::WrapperModelEvaluatorSecondOrder< Scalar >, Tempus::WrapperModelEvaluatorPairIMEX_Basic< Scalar >, Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >, and Tempus::WrapperModelEvaluatorBasic< Scalar >.

template<typename Scalar >

virtual Thyra::ModelEvaluatorBase::OutArgs<Scalar> Tempus::WrapperModelEvaluator< Scalar >::getOutArgs ( )

pure virtual

Get OutArgs the wrapper ModelEvalutor.

Implemented in Tempus::WrapperModelEvaluatorSecondOrder< Scalar >, Tempus::WrapperModelEvaluatorPairIMEX_Basic< Scalar >, Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >, and Tempus::WrapperModelEvaluatorBasic< Scalar >.

template<typename Scalar >

virtual void Tempus::WrapperModelEvaluator< Scalar >::setAppModel ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > & me )

pure virtual

Set the underlying application ModelEvaluator.

Implemented in Tempus::WrapperModelEvaluatorPairIMEX_Basic< Scalar >, Tempus::WrapperModelEvaluatorSecondOrder< Scalar >, Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >, and Tempus::WrapperModelEvaluatorBasic< Scalar >.

template<typename Scalar >

virtual void Tempus::WrapperModelEvaluator< Scalar >::setForSolve	(	Teuchos::RCP< TimeDerivative< Scalar > >	td,
		Thyra::ModelEvaluatorBase::InArgs< Scalar >	inArgs,
		Thyra::ModelEvaluatorBase::OutArgs< Scalar >	outArgs,
		EVALUATION_TYPE	evaluationType = `SOLVE_FOR_X`
	)
