Time integrator suitable for pseudotransient adjoint sensitivity analysis. More...

#include <Tempus_IntegratorPseudoTransientAdjointSensitivity_decl.hpp>

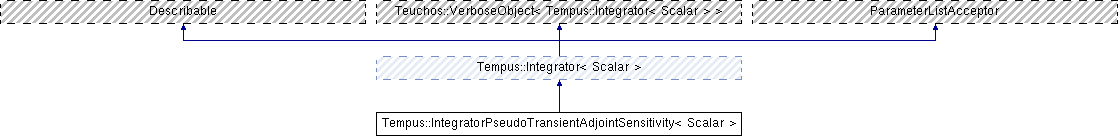

Inheritance diagram for Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >:

Public Member Functions
	IntegratorPseudoTransientAdjointSensitivity (Teuchos::RCP< Teuchos::ParameterList > pList, const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &model)
	Constructor with ParameterList and model, and will be fully initialized. More...

	IntegratorPseudoTransientAdjointSensitivity (const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &model, std::string stepperType)
	Constructor with model and "Stepper Type" and is fully initialized with default settings. More...

	IntegratorPseudoTransientAdjointSensitivity ()
	Destructor. More...

virtual	~IntegratorPseudoTransientAdjointSensitivity ()
	Destructor. More...

virtual void	initializeSolutionHistory (Scalar t0, Teuchos::RCP< const Thyra::VectorBase< Scalar > > x0, Teuchos::RCP< const Thyra::VectorBase< Scalar > > xdot0=Teuchos::null, Teuchos::RCP< const Thyra::VectorBase< Scalar > > xdotdot0=Teuchos::null, Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > > y0=Teuchos::null, Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > > ydot0=Teuchos::null, Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > > ydotdot0=Teuchos::null)
	Set the initial state from Thyra::VectorBase(s) More...

virtual Teuchos::RCP< const Thyra::VectorBase< Scalar > >	getX () const
	Get current the solution, x. More...

virtual Teuchos::RCP< const Thyra::VectorBase< Scalar > >	getXdot () const
	Get current the time derivative of the solution, xdot. More...

virtual Teuchos::RCP< const Thyra::VectorBase< Scalar > >	getXdotdot () const
	Get current the second time derivative of the solution, xdotdot. More...

virtual Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > >	getDgDp () const
	Return adjoint sensitivity stored in gradient format. More...

Basic integrator methods
virtual bool	advanceTime ()
	Advance the solution to timeMax, and return true if successful. More...

virtual bool	advanceTime (const Scalar timeFinal) override
	Advance the solution to timeFinal, and return true if successful. More...

virtual Scalar	getTime () const override
	Get current time. More...

virtual Scalar	getIndex () const override
	Get current index. More...

virtual Status	getStatus () const override
	Get Status. More...

virtual Teuchos::RCP< Stepper < Scalar > >	getStepper () const override
	Get the Stepper. More...

virtual Teuchos::RCP < Teuchos::ParameterList >	getTempusParameterList () override
	Return a copy of the Tempus ParameterList. More...

virtual void	setTempusParameterList (Teuchos::RCP< Teuchos::ParameterList > pl) override

virtual Teuchos::RCP< const SolutionHistory< Scalar > >	getSolutionHistory () const override
	Get the SolutionHistory. More...

virtual Teuchos::RCP< const TimeStepControl< Scalar > >	getTimeStepControl () const override
	Get the TimeStepControl. More...

virtual Teuchos::RCP < Teuchos::Time >	getIntegratorTimer () const override
	Returns the IntegratorTimer_ for this Integrator. More...

virtual Teuchos::RCP < Teuchos::Time >	getStepperTimer () const override

Overridden from Teuchos::ParameterListAcceptor
void	setParameterList (const Teuchos::RCP< Teuchos::ParameterList > &pl) override

Teuchos::RCP < Teuchos::ParameterList >	getNonconstParameterList () override

Teuchos::RCP < Teuchos::ParameterList >	unsetParameterList () override

Teuchos::RCP< const Teuchos::ParameterList >	getValidParameters () const override

Overridden from Teuchos::Describable
std::string	description () const override

void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const override

Basic integrator methods

Protected Types
typedef Thyra::DefaultMultiVectorProductVector < Scalar >	DMVPV

Protected Member Functions
Teuchos::RCP < AdjointSensitivityModelEvaluator < Scalar > >	createSensitivityModel (const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &model, const Teuchos::RCP< Teuchos::ParameterList > &inputPL)

void	buildSolutionHistory ()

Protected Attributes
Teuchos::RCP < Thyra::ModelEvaluator < Scalar > >	model_

Teuchos::RCP < AdjointSensitivityModelEvaluator < Scalar > >	sens_model_

Teuchos::RCP< IntegratorBasic < Scalar > >	state_integrator_

Teuchos::RCP< IntegratorBasic < Scalar > >	sens_integrator_

Teuchos::RCP< SolutionHistory < Scalar > >	solutionHistory_

Teuchos::RCP< DMVPV >	dgdp_

Detailed Description

template<class Scalar>
class Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >

Time integrator suitable for pseudotransient adjoint sensitivity analysis.

For some problems, time integrators are used to compute steady-state solutions (also known as pseudo-transient solvers). When computing sensitivities, it is not necessary in these cases to propagate sensitivities all the way through the forward time integration. Instead the steady-state is first computed as usual, and then the sensitivities are computed using a similar pseudo-transient time integration applied to the adjoint sensitivity equations with the state frozen to the computed steady-state. This integrator specializes the transient sensitivity methods implemented by Tempus::IntegratorAdjointSensitivity to this case.

Consider an implicit ODE f(x_dot,x,p) = 0 with a stable steady-state solution x = x^s, x_dot = 0 where f(0,x^s,p) = 0 and all of the eigenvalues of df/dx(0,x^s,p) are in the right half-plane (for an explicit ODE, the eigenvalues must be in the left half-plane). In the pseudo-transient method a time-integrator is applied to f(x_dot,x,p) = 0 until x_dot is sufficiently small. Now consider the adjoint sensitivity equations for some response function g(x,p): df/dx_dot^T*y_dot + df/dx^T*y - dg/dx^T = 0 after the transformation tau = T - t has been applied, where T is the final time. For pseudo-transient adjoint sensitivities, the above is integrated from y(0) = 0 until y_dot is sufficiently small, in which case y^s = (df/dx)^{-T}*(dg/dx)^T. Then the final sensitivity of g is dg/dp^T - df/dp^T*y^s. One can see that y^s is the only steady-state solution of the adjoint equations, since df/dx and dg/dx are constant, and must be linearly stable (since the eigenvalues of df/dx^T are the same as df/dx).

Definition at line 51 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_decl.hpp.

Member Typedef Documentation

template<class Scalar >

typedef Thyra::DefaultMultiVectorProductVector<Scalar> Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::DMVPV

protected

Definition at line 159 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar >

Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::IntegratorPseudoTransientAdjointSensitivity	(	Teuchos::RCP< Teuchos::ParameterList >	pList,
		const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &	model
	)

Constructor with ParameterList and model, and will be fully initialized.

In addition to all of the regular integrator options, the supplied parameter list supports the following options contained within a sublist "Sensitivities" from the top-level parameter list:

"Sensitivity Parameter Index", (default: 0) The model evaluator parameter index for which sensitivities will be computed.
"Response Function Index", (default: 0) The model evaluator response index for which sensitivities will be computed.
"Mass Matrix Is Constant" (default: true) Whether the mass matrix df/dx_dot is a constant matrix. As describe above, this is currently required to be true.
"Mass Matrix Is Identity" (default: false) Whether the mass matrix is the identity matrix, in which some computations can be skipped.

Definition at line 22 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

template<class Scalar >

Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::IntegratorPseudoTransientAdjointSensitivity	(	const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &	model,
		std::string	stepperType
	)

Constructor with model and "Stepper Type" and is fully initialized with default settings.

Definition at line 34 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

template<class Scalar >

Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::IntegratorPseudoTransientAdjointSensitivity ( )

Destructor.

Constructor that requires a subsequent setParameterList, setStepper, and initialize calls.

Definition at line 46 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

template<class Scalar >

virtual Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::~IntegratorPseudoTransientAdjointSensitivity ( )

inlinevirtual

Destructor.

Definition at line 88 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_decl.hpp.

Member Function Documentation

template<class Scalar >

bool Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::advanceTime ( )

virtual

Advance the solution to timeMax, and return true if successful.

Definition at line 55 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

template<class Scalar >

bool Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::advanceTime ( const Scalar timeFinal )

overridevirtual

Advance the solution to timeFinal, and return true if successful.

Implements Tempus::Integrator< Scalar >.

Definition at line 65 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

template<class Scalar >

void Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::buildSolutionHistory ( )

protected

Definition at line 339 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

template<class Scalar >

Teuchos::RCP< Tempus::AdjointSensitivityModelEvaluator< Scalar > > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::createSensitivityModel	(	const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &	model,
		const Teuchos::RCP< Teuchos::ParameterList > &	inputPL
	)

protected

Definition at line 321 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

template<class Scalar >

void Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::describe	(	Teuchos::FancyOStream &	out,
		const Teuchos::EVerbosityLevel	verbLevel
	)		const

override

Definition at line 266 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

template<class Scalar >

std::string Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::description ( ) const

override

Definition at line 257 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

template<class Scalar >

Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getDgDp ( ) const

virtual

Return adjoint sensitivity stored in gradient format.

Definition at line 249 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

template<class Scalar >

Scalar Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getIndex ( ) const

overridevirtual

Get current index.

Implements Tempus::Integrator< Scalar >.

Definition at line 115 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

template<class Scalar >

virtual Teuchos::RCP<Teuchos::Time> Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getIntegratorTimer ( ) const

inlineoverridevirtual

Returns the IntegratorTimer_ for this Integrator.

Implements Tempus::Integrator< Scalar >.

Definition at line 113 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_decl.hpp.

template<class Scalar >

Teuchos::RCP< Teuchos::ParameterList > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getNonconstParameterList ( )

override

Definition at line 313 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

template<class Scalar >

Teuchos::RCP< const SolutionHistory< Scalar > > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getSolutionHistory ( ) const

overridevirtual

Get the SolutionHistory.

Implements Tempus::Integrator< Scalar >.

Definition at line 162 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

template<class Scalar >

Status Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getStatus ( ) const

overridevirtual

Get Status.

Implements Tempus::Integrator< Scalar >.

Definition at line 123 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

template<class Scalar >

Teuchos::RCP< Stepper< Scalar > > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getStepper ( ) const

overridevirtual

Get the Stepper.

Implements Tempus::Integrator< Scalar >.

Definition at line 137 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

template<class Scalar >

virtual Teuchos::RCP<Teuchos::Time> Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getStepperTimer ( ) const

inlineoverridevirtual

Implements Tempus::Integrator< Scalar >.

Definition at line 115 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_decl.hpp.

template<class Scalar >

Teuchos::RCP< Teuchos::ParameterList > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getTempusParameterList ( )

overridevirtual

Return a copy of the Tempus ParameterList.

Implements Tempus::Integrator< Scalar >.

Definition at line 145 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

template<class Scalar >

Scalar Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getTime ( ) const

overridevirtual

Get current time.

Implements Tempus::Integrator< Scalar >.

Definition at line 107 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

template<class Scalar >

Teuchos::RCP< const TimeStepControl< Scalar > > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getTimeStepControl ( ) const

overridevirtual

Get the TimeStepControl.

Implements Tempus::Integrator< Scalar >.

Definition at line 170 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

template<class Scalar >

Teuchos::RCP< const Teuchos::ParameterList > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getValidParameters ( ) const

override

Definition at line 296 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

template<class Scalar >

Teuchos::RCP< const Thyra::VectorBase< Scalar > > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getX ( ) const

virtual

Get current the solution, x.

Definition at line 225 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

template<class Scalar >

Teuchos::RCP< const Thyra::VectorBase< Scalar > > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getXdot ( ) const

virtual

Get current the time derivative of the solution, xdot.

Definition at line 233 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

template<class Scalar >

Teuchos::RCP< const Thyra::VectorBase< Scalar > > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getXdotdot ( ) const

virtual

Get current the second time derivative of the solution, xdotdot.

Definition at line 241 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

template<class Scalar >

void Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::initializeSolutionHistory	(	Scalar	t0,
		Teuchos::RCP< const Thyra::VectorBase< Scalar > >	x0,
		Teuchos::RCP< const Thyra::VectorBase< Scalar > >	xdot0 = `Teuchos::null`,
		Teuchos::RCP< const Thyra::VectorBase< Scalar > >	xdotdot0 = `Teuchos::null`,
		Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > >	y0 = `Teuchos::null`,
		Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > >	ydot0 = `Teuchos::null`,
		Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > >	ydotdot0 = `Teuchos::null`
	)

virtual

Set the initial state from Thyra::VectorBase(s)

Definition at line 177 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

template<class Scalar >

void Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::setParameterList ( const Teuchos::RCP< Teuchos::ParameterList > & pl )

override

Definition at line 278 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

template<class Scalar >

void Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::setTempusParameterList ( Teuchos::RCP< Teuchos::ParameterList > pl )

overridevirtual

Implements Tempus::Integrator< Scalar >.

Definition at line 153 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

template<class Scalar >

Teuchos::RCP< Teuchos::ParameterList > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::unsetParameterList ( )

override

Definition at line 287 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

Member Data Documentation

template<class Scalar >

Teuchos::RCP<DMVPV> Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::dgdp_

protected

Definition at line 174 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_decl.hpp.

template<class Scalar >

Teuchos::RCP<Thyra::ModelEvaluator<Scalar> > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::model_

protected

Definition at line 169 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_decl.hpp.

template<class Scalar >

Teuchos::RCP<IntegratorBasic<Scalar> > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::sens_integrator_

protected

Definition at line 172 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_decl.hpp.

template<class Scalar >

Teuchos::RCP<AdjointSensitivityModelEvaluator<Scalar> > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::sens_model_

protected

Definition at line 170 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_decl.hpp.

template<class Scalar >

Teuchos::RCP<SolutionHistory<Scalar> > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::solutionHistory_

protected

Definition at line 173 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_decl.hpp.

template<class Scalar >

Teuchos::RCP<IntegratorBasic<Scalar> > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::state_integrator_

protected

Definition at line 171 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_decl.hpp.

The documentation for this class was generated from the following files:

http://docs.trilinos.org/r12.16/packages/tempus/src/Tempus_IntegratorPseudoTransientAdjointSensitivity_decl.hpp
http://docs.trilinos.org/r12.16/packages/tempus/src/Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

template<class Scalar> class Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<class Scalar>
class Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >
