Tempus::Integrator< Scalar > Class Template Reference

Thyra Base interface for time integrators. Time integrators are designed to advance the solution from an initial time, , to a final time, . More...

#include <Tempus_Integrator.hpp>

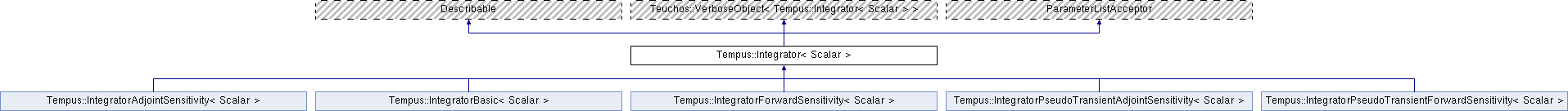

Inheritance diagram for Tempus::Integrator< Scalar >:

Public Member Functions
Basic integrator methods
virtual bool	advanceTime (const Scalar time_final)=0
	Advance the solution to time, and return true if successful. More...
virtual Scalar	getTime () const =0
	Get current time. More...
virtual Scalar	getIndex () const =0
	Get current index. More...
virtual Tempus::Status	getStatus () const =0
	Get the Status. More...
virtual Teuchos::RCP< Stepper < Scalar > >	getStepper () const =0
	Get the stepper. More...
virtual Teuchos::RCP < Teuchos::ParameterList >	getTempusParameterList ()=0
	Return a copy of the Tempus ParameterList. More...
virtual void	setTempusParameterList (Teuchos::RCP< Teuchos::ParameterList > pl)=0
virtual Teuchos::RCP< const SolutionHistory< Scalar > >	getSolutionHistory () const =0
	Returns the SolutionHistory for this Integrator. More...
virtual Teuchos::RCP< const TimeStepControl< Scalar > >	getTimeStepControl () const =0
	Returns the TimeStepControl for this Integrator. More...
virtual Teuchos::RCP < Teuchos::Time >	getIntegratorTimer () const =0
	Returns the IntegratorTimer_ for this Integrator. More...
virtual Teuchos::RCP < Teuchos::Time >	getStepperTimer () const =0

Detailed Description

template<class Scalar>
class Tempus::Integrator< Scalar >

Thyra Base interface for time integrators. Time integrators are designed to advance the solution from an initial time, , to a final time, .

Design Considerations

• Integrators manage multiple time steps
• Integrators have a single Stepper
• Time-step ramping and startup are handled by TimeStepControl.
• Solution output, e.g., solution plotting and check pointing, is coordinated in the Integrator.
• Solution stability is handled in the timeStepControl, e.g., CFL constraint.
• Error control over multiple time steps is handled in the Integrators, while error control over a single time step is handled in the Steppers.
• Integrators will collect error control information from the Stepper and determine the next time step size and order.
• Integrator maintains its own copy of the time history in the SolutionHistory, which may be just a single time step up to the entire solution history.
• Integrators should compute the next time, and after accepting the time step advance the solution. This allows a simple undo capability, if a solution is not acceptable.

CS Design Considerations

• Integrators will be fully constructed with input or default parameters.
• All input parameters (i.e., ParameterList) can be set by public methods.
• The Integrator ParameterList must be consistent.
  • The "set" methods which update parameters in the ParameterList must update the Integrator ParameterList.

Definition at line 62 of file Tempus_Integrator.hpp.

Member Function Documentation

template<class Scalar>

virtual bool Tempus::Integrator< Scalar >::advanceTime ( const Scalar  time_final )

pure virtual

Advance the solution to time, and return true if successful.

Implemented in Tempus::IntegratorPseudoTransientForwardSensitivity< Scalar >, Tempus::IntegratorForwardSensitivity< Scalar >, Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >, Tempus::IntegratorAdjointSensitivity< Scalar >, and Tempus::IntegratorBasic< Scalar >.

template<class Scalar>

virtual Scalar Tempus::Integrator< Scalar >::getIndex ( ) const

pure virtual

Get current index.

Implemented in Tempus::IntegratorForwardSensitivity< Scalar >, Tempus::IntegratorPseudoTransientForwardSensitivity< Scalar >, Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >, Tempus::IntegratorAdjointSensitivity< Scalar >, and Tempus::IntegratorBasic< Scalar >.

template<class Scalar>

virtual Teuchos::RCP<Teuchos::Time> Tempus::Integrator< Scalar >::getIntegratorTimer ( ) const

pure virtual

Returns the IntegratorTimer_ for this Integrator.

Implemented in Tempus::IntegratorForwardSensitivity< Scalar >, Tempus::IntegratorBasic< Scalar >, Tempus::IntegratorPseudoTransientForwardSensitivity< Scalar >, Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >, and Tempus::IntegratorAdjointSensitivity< Scalar >.

template<class Scalar>

virtual Teuchos::RCP<const SolutionHistory<Scalar> > Tempus::Integrator< Scalar >::getSolutionHistory ( ) const

pure virtual

Returns the SolutionHistory for this Integrator.

Implemented in Tempus::IntegratorForwardSensitivity< Scalar >, Tempus::IntegratorPseudoTransientForwardSensitivity< Scalar >, Tempus::IntegratorBasic< Scalar >, Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >, and Tempus::IntegratorAdjointSensitivity< Scalar >.

template<class Scalar>

virtual Tempus::Status Tempus::Integrator< Scalar >::getStatus ( ) const

pure virtual

Get the Status.

Implemented in Tempus::IntegratorForwardSensitivity< Scalar >, Tempus::IntegratorPseudoTransientForwardSensitivity< Scalar >, Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >, Tempus::IntegratorAdjointSensitivity< Scalar >, and Tempus::IntegratorBasic< Scalar >.

template<class Scalar>

virtual Teuchos::RCP<Stepper<Scalar> > Tempus::Integrator< Scalar >::getStepper ( ) const

pure virtual

Get the stepper.

Implemented in Tempus::IntegratorForwardSensitivity< Scalar >, Tempus::IntegratorPseudoTransientForwardSensitivity< Scalar >, Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >, Tempus::IntegratorAdjointSensitivity< Scalar >, and Tempus::IntegratorBasic< Scalar >.

template<class Scalar>

virtual Teuchos::RCP<Teuchos::Time> Tempus::Integrator< Scalar >::getStepperTimer ( ) const

pure virtual

Implemented in Tempus::IntegratorForwardSensitivity< Scalar >, Tempus::IntegratorBasic< Scalar >, Tempus::IntegratorPseudoTransientForwardSensitivity< Scalar >, Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >, and Tempus::IntegratorAdjointSensitivity< Scalar >.

template<class Scalar>

virtual Teuchos::RCP<Teuchos::ParameterList> Tempus::Integrator< Scalar >::getTempusParameterList ( )

pure virtual

Return a copy of the Tempus ParameterList.

Implemented in Tempus::IntegratorPseudoTransientForwardSensitivity< Scalar >, Tempus::IntegratorForwardSensitivity< Scalar >, Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >, Tempus::IntegratorAdjointSensitivity< Scalar >, and Tempus::IntegratorBasic< Scalar >.

template<class Scalar>

virtual Scalar Tempus::Integrator< Scalar >::getTime ( ) const

pure virtual

Get current time.

Implemented in Tempus::IntegratorForwardSensitivity< Scalar >, Tempus::IntegratorPseudoTransientForwardSensitivity< Scalar >, Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >, Tempus::IntegratorAdjointSensitivity< Scalar >, and Tempus::IntegratorBasic< Scalar >.

template<class Scalar>

virtual Teuchos::RCP<const TimeStepControl<Scalar> > Tempus::Integrator< Scalar >::getTimeStepControl ( ) const

pure virtual

Returns the TimeStepControl for this Integrator.

Implemented in Tempus::IntegratorForwardSensitivity< Scalar >, Tempus::IntegratorPseudoTransientForwardSensitivity< Scalar >, Tempus::IntegratorBasic< Scalar >, Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >, and Tempus::IntegratorAdjointSensitivity< Scalar >.

template<class Scalar>

virtual void Tempus::Integrator< Scalar >::setTempusParameterList ( Teuchos::RCP< Teuchos::ParameterList >  pl )

pure virtual

Implemented in Tempus::IntegratorForwardSensitivity< Scalar >, Tempus::IntegratorPseudoTransientForwardSensitivity< Scalar >, Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >, Tempus::IntegratorAdjointSensitivity< Scalar >, and Tempus::IntegratorBasic< Scalar >.

---

The documentation for this class was generated from the following file:

• http://docs.trilinos.org/r12.16/packages/tempus/src/Tempus_Integrator.hpp
