Thyra Base interface for time steppers. More...

#include <Tempus_Integrator.hpp>

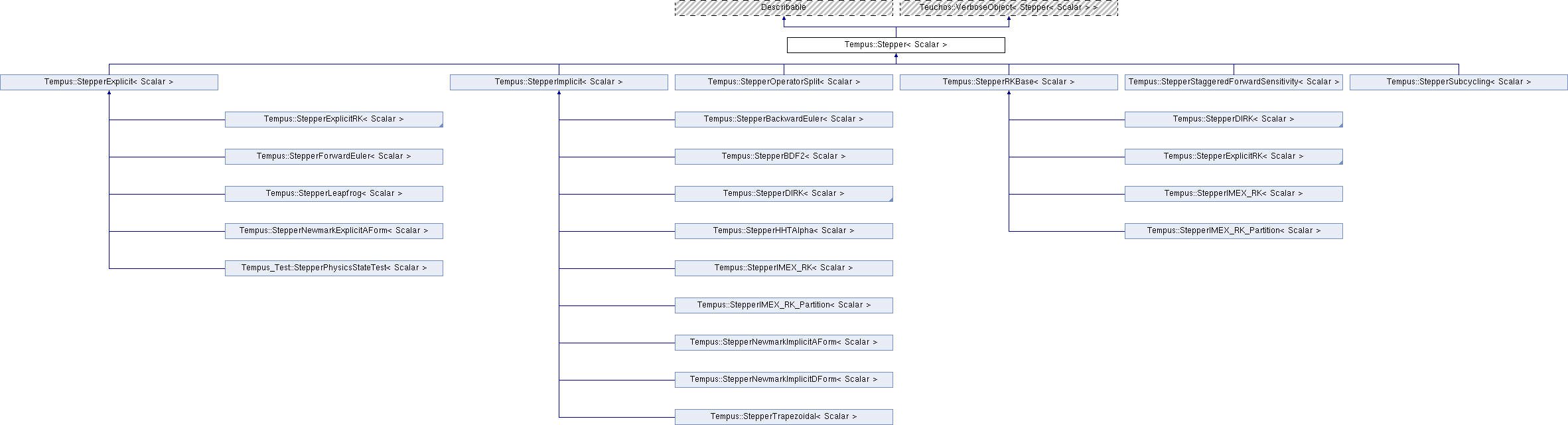

Inheritance diagram for Tempus::Stepper< Scalar >:

Public Member Functions
virtual bool	isValidSetup (Teuchos::FancyOStream &out) const

virtual Teuchos::RCP< const Teuchos::ParameterList >	getValidParameters () const =0

Basic stepper methods
virtual void	setModel (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel)

virtual void	setNonConstModel (const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &)

virtual Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > >	getModel ()

virtual void	setSolver (Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > solver)
	Set solver. More...

virtual Teuchos::RCP < Thyra::NonlinearSolverBase < Scalar > >	getSolver () const
	Get solver. More...

virtual void	setObserver (Teuchos::RCP< StepperObserver< Scalar > > obs=Teuchos::null)
	Set Observer. More...

virtual Teuchos::RCP < StepperObserver< Scalar > >	getObserver () const
	Get Observer. More...

virtual void	initialize ()
	Initialize after construction and changing input parameters. More...

virtual bool	isInitialized ()
	True if stepper's member data is initialized. More...

virtual void	checkInitialized ()
	Check initialization, and error out on failure. More...

virtual void	setInitialConditions (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)=0
	Set initial conditions, make them consistent, and set stepper memory. More...

virtual void	takeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)=0
	Take the specified timestep, dt, and return true if successful. More...

virtual void	setInitialGuess (Teuchos::RCP< const Thyra::VectorBase< Scalar > > initialGuess=Teuchos::null)=0
	Pass initial guess to Newton solver (for implicit schemes) More...

virtual Teuchos::RCP < Tempus::StepperState< Scalar > >	getDefaultStepperState ()=0

virtual Scalar	getOrder () const =0

virtual Scalar	getOrderMin () const =0

virtual Scalar	getOrderMax () const =0

virtual Scalar	getInitTimeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory) const =0

virtual bool	isExplicit () const =0

virtual bool	isImplicit () const =0

virtual bool	isExplicitImplicit () const =0

virtual bool	isOneStepMethod () const =0

virtual bool	isMultiStepMethod () const =0

void	setStepperType (std::string s)

std::string	getStepperType () const

void	setUseFSAL (bool a)

bool	getUseFSAL () const

virtual bool	getUseFSALDefault () const

void	setICConsistency (std::string s)

std::string	getICConsistency () const

virtual std::string	getICConsistencyDefault () const

void	setICConsistencyCheck (bool c)

bool	getICConsistencyCheck () const

virtual bool	getICConsistencyCheckDefault () const

virtual OrderODE	getOrderODE () const =0

virtual Teuchos::RCP < Thyra::VectorBase< Scalar > >	getStepperX (Teuchos::RCP< SolutionState< Scalar > > state)
	Get x from SolutionState or Stepper storage. More...

virtual Teuchos::RCP < Thyra::VectorBase< Scalar > >	getStepperXDot (Teuchos::RCP< SolutionState< Scalar > > state)
	Get xDot from SolutionState or Stepper storage. More...

virtual Teuchos::RCP < Thyra::VectorBase< Scalar > >	getStepperXDotDot (Teuchos::RCP< SolutionState< Scalar > > state)
	Get xDotDot from SolutionState or Stepper storage. More...

Overridden from Teuchos::Describable
virtual std::string	description () const

virtual void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const

Functions for Steppers with subSteppers (e.g., OperatorSplit)
virtual void	createSubSteppers (std::vector< Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > >)

Protected Member Functions
virtual void	setStepperX (Teuchos::RCP< Thyra::VectorBase< Scalar > > x)
	Set x for Stepper storage. More...

virtual void	setStepperXDot (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDot)
	Set xDot for Stepper storage. More...

virtual void	setStepperXDotDot (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDotDot)
	Set x for Stepper storage. More...

Protected Attributes
bool	isInitialized_ = false
	True if stepper's member data is initialized. More...

Private Attributes
std::string	stepperType_
	Name of stepper type. More...

bool	useFSAL_ = false
	Use First-Step-As-Last (FSAL) principle. More...

std::string	ICConsistency_ = std::string("None")
	Type of consistency to apply to ICs. More...

bool	ICConsistencyCheck_ = true
	Check if the initial condition is consistent. More...

Teuchos::RCP < Thyra::VectorBase< Scalar > >	stepperX_

Teuchos::RCP < Thyra::VectorBase< Scalar > >	stepperXDot_

Teuchos::RCP < Thyra::VectorBase< Scalar > >	stepperXDotDot_

Detailed Description

template<typename Scalar>
class Tempus::Stepper< Scalar >

Thyra Base interface for time steppers.

Design Considerations

Time steppers are designed to take a single time step.
- a single implicit solve for a time step
- a single solve for a IMEX time step
Multiple time steps should be managed by Integrators.
Steppers can be built from other Sub-Steppers.
- An operator-split Stepper is possible with interoperable Steppers.
For explicit steppers, only one ModelEvaluator and one solution vector are required.
For implicit steppers, only one ModelEvaluator, one solution vector, and one solver are required.
Steppers will PASS/FAIL the time step based on Solver, error and order requirements, and not adjust the time step size.
Steppers can provide a suggested time step size for the next time step.
For more complex steppers, multiple ModelEvaluators, solution vectors, and solvers are possible when a common single time-integration method is desired for all solutions. Examples:
- Solution A with ModelEvaluator A and Solution B with ModelEvaluator B using the same solver
- Solution A with ModelEvaluator A using Solver A and Solution B with ModelEvaluator B using Solver B
- Solution A with ModelEvaluator A using Solver A and Solutions A and B with ModelEvaluator C using Solver B
Steppers may maintain their own time history of the solution, e.g., BDF steppers.

Definition at line 24 of file Tempus_Integrator.hpp.

Member Function Documentation

template<class Scalar >

void Tempus::Stepper< Scalar >::checkInitialized ( )

virtual

Check initialization, and error out on failure.

Definition at line 165 of file Tempus_Stepper_impl.hpp.

template<typename Scalar>

virtual void Tempus::Stepper< Scalar >::createSubSteppers ( std::vector< Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > > )

inlinevirtual

Definition at line 180 of file Tempus_Stepper_decl.hpp.

template<class Scalar >

void Tempus::Stepper< Scalar >::describe	(	Teuchos::FancyOStream &	out,
		const Teuchos::EVerbosityLevel	verbLevel
	)		const

virtual

template<typename Scalar>

virtual std::string Tempus::Stepper< Scalar >::description ( ) const

inlinevirtual

Reimplemented in Tempus::StepperStaggeredForwardSensitivity< Scalar >.

Definition at line 167 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

virtual Teuchos::RCP<Tempus::StepperState<Scalar> > Tempus::Stepper< Scalar >::getDefaultStepperState ( )

pure virtual

template<typename Scalar>

std::string Tempus::Stepper< Scalar >::getICConsistency ( ) const

inline

Definition at line 142 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

bool Tempus::Stepper< Scalar >::getICConsistencyCheck ( ) const

inline

Definition at line 147 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

virtual bool Tempus::Stepper< Scalar >::getICConsistencyCheckDefault ( ) const

inlinevirtual

Definition at line 148 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

virtual std::string Tempus::Stepper< Scalar >::getICConsistencyDefault ( ) const

inlinevirtual

Reimplemented in Tempus::StepperNewmarkImplicitAForm< Scalar >, Tempus::StepperNewmarkExplicitAForm< Scalar >, Tempus::StepperLeapfrog< Scalar >, and Tempus::StepperTrapezoidal< Scalar >.

Definition at line 143 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

virtual Scalar Tempus::Stepper< Scalar >::getInitTimeStep ( const Teuchos::RCP< SolutionHistory< Scalar > > & solutionHistory ) const

pure virtual

Implemented in Tempus::StepperImplicit< Scalar >, Tempus::StepperOperatorSplit< Scalar >, Tempus::StepperExplicitRK< Scalar >, Tempus::StepperLeapfrog< Scalar >, Tempus::StepperStaggeredForwardSensitivity< Scalar >, Tempus::StepperNewmarkExplicitAForm< Scalar >, Tempus::StepperSubcycling< Scalar >, and Tempus::StepperExplicit< Scalar >.

template<typename Scalar>

virtual Teuchos::RCP<const Thyra::ModelEvaluator<Scalar> > Tempus::Stepper< Scalar >::getModel ( )

inlinevirtual

Reimplemented in Tempus::StepperIMEX_RK_Partition< Scalar >, Tempus::StepperIMEX_RK< Scalar >, Tempus::StepperImplicit< Scalar >, Tempus::StepperOperatorSplit< Scalar >, Tempus::StepperStaggeredForwardSensitivity< Scalar >, Tempus::StepperSubcycling< Scalar >, and Tempus::StepperExplicit< Scalar >.

Definition at line 77 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

virtual Teuchos::RCP<StepperObserver<Scalar> > Tempus::Stepper< Scalar >::getObserver ( ) const

inlinevirtual

Get Observer.

Definition at line 93 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

virtual Scalar Tempus::Stepper< Scalar >::getOrder ( ) const

pure virtual

template<typename Scalar>

virtual Scalar Tempus::Stepper< Scalar >::getOrderMax ( ) const

pure virtual

template<typename Scalar>

virtual Scalar Tempus::Stepper< Scalar >::getOrderMin ( ) const

pure virtual

template<typename Scalar>

virtual OrderODE Tempus::Stepper< Scalar >::getOrderODE ( ) const

pure virtual

template<typename Scalar>

virtual Teuchos::RCP<Thyra::NonlinearSolverBase<Scalar> > Tempus::Stepper< Scalar >::getSolver ( ) const

inlinevirtual

Get solver.

Reimplemented in Tempus::StepperImplicit< Scalar >, Tempus::StepperSubcycling< Scalar >, Tempus::StepperOperatorSplit< Scalar >, Tempus::StepperStaggeredForwardSensitivity< Scalar >, and Tempus::StepperExplicit< Scalar >.

Definition at line 85 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

std::string Tempus::Stepper< Scalar >::getStepperType ( ) const

inline

Definition at line 134 of file Tempus_Stepper_decl.hpp.

template<class Scalar >

Teuchos::RCP< Thyra::VectorBase< Scalar > > Tempus::Stepper< Scalar >::getStepperX ( Teuchos::RCP< SolutionState< Scalar > > state )

virtual

Get x from SolutionState or Stepper storage.

Definition at line 178 of file Tempus_Stepper_impl.hpp.

template<class Scalar >

Teuchos::RCP< Thyra::VectorBase< Scalar > > Tempus::Stepper< Scalar >::getStepperXDot ( Teuchos::RCP< SolutionState< Scalar > > state )

virtual

Get xDot from SolutionState or Stepper storage.

Definition at line 193 of file Tempus_Stepper_impl.hpp.

template<class Scalar >

Teuchos::RCP< Thyra::VectorBase< Scalar > > Tempus::Stepper< Scalar >::getStepperXDotDot ( Teuchos::RCP< SolutionState< Scalar > > state )

virtual

Get xDotDot from SolutionState or Stepper storage.

Definition at line 208 of file Tempus_Stepper_impl.hpp.

template<typename Scalar>

bool Tempus::Stepper< Scalar >::getUseFSAL ( ) const

inline

Definition at line 137 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

virtual bool Tempus::Stepper< Scalar >::getUseFSALDefault ( ) const

inlinevirtual

Reimplemented in Tempus::StepperNewmarkImplicitAForm< Scalar >, Tempus::StepperNewmarkExplicitAForm< Scalar >, and Tempus::StepperTrapezoidal< Scalar >.

Definition at line 138 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

virtual Teuchos::RCP<const Teuchos::ParameterList> Tempus::Stepper< Scalar >::getValidParameters ( ) const

pure virtual

template<class Scalar >

void Tempus::Stepper< Scalar >::initialize ( )

virtual

Initialize after construction and changing input parameters.

Reimplemented in Tempus::StepperIMEX_RK_Partition< Scalar >, Tempus::StepperIMEX_RK< Scalar >, Tempus::StepperDIRK< Scalar >, Tempus::StepperBDF2< Scalar >, Tempus::StepperExplicitRK< Scalar >, Tempus::StepperOperatorSplit< Scalar >, Tempus::StepperSubcycling< Scalar >, and Tempus_Test::StepperPhysicsStateTest< Scalar >.

Definition at line 151 of file Tempus_Stepper_impl.hpp.

template<typename Scalar>

virtual bool Tempus::Stepper< Scalar >::isExplicit ( ) const

pure virtual

template<typename Scalar>

virtual bool Tempus::Stepper< Scalar >::isExplicitImplicit ( ) const

pure virtual

template<typename Scalar>

virtual bool Tempus::Stepper< Scalar >::isImplicit ( ) const

pure virtual

template<typename Scalar>

virtual bool Tempus::Stepper< Scalar >::isInitialized ( )

inlinevirtual

True if stepper's member data is initialized.

Definition at line 100 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

virtual bool Tempus::Stepper< Scalar >::isMultiStepMethod ( ) const

pure virtual

template<typename Scalar>

virtual bool Tempus::Stepper< Scalar >::isOneStepMethod ( ) const

pure virtual

template<class Scalar >

bool Tempus::Stepper< Scalar >::isValidSetup ( Teuchos::FancyOStream & out ) const

virtual

Definition at line 239 of file Tempus_Stepper_impl.hpp.

template<typename Scalar>

void Tempus::Stepper< Scalar >::setICConsistency ( std::string s )

inline

Definition at line 140 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

void Tempus::Stepper< Scalar >::setICConsistencyCheck ( bool c )

inline

Definition at line 145 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

virtual void Tempus::Stepper< Scalar >::setInitialConditions ( const Teuchos::RCP< SolutionHistory< Scalar > > & solutionHistory )

pure virtual

Set initial conditions, make them consistent, and set stepper memory.

template<typename Scalar>

virtual void Tempus::Stepper< Scalar >::setInitialGuess ( Teuchos::RCP< const Thyra::VectorBase< Scalar > > initialGuess = Teuchos::null )

pure virtual

Pass initial guess to Newton solver (for implicit schemes)

Implemented in Tempus::StepperImplicit< Scalar >, Tempus::StepperStaggeredForwardSensitivity< Scalar >, Tempus::StepperOperatorSplit< Scalar >, Tempus::StepperSubcycling< Scalar >, and Tempus::StepperExplicit< Scalar >.

template<typename Scalar>

virtual void Tempus::Stepper< Scalar >::setModel ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > & appModel )

inlinevirtual

Reimplemented in Tempus::StepperIMEX_RK_Partition< Scalar >, Tempus::StepperIMEX_RK< Scalar >, Tempus::StepperImplicit< Scalar >, Tempus::StepperBDF2< Scalar >, Tempus::StepperNewmarkImplicitAForm< Scalar >, Tempus::StepperStaggeredForwardSensitivity< Scalar >, Tempus::StepperOperatorSplit< Scalar >, Tempus::StepperHHTAlpha< Scalar >, Tempus::StepperSubcycling< Scalar >, and Tempus::StepperExplicit< Scalar >.

Definition at line 69 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

virtual void Tempus::Stepper< Scalar >::setNonConstModel ( const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > & )

inlinevirtual

Reimplemented in Tempus::StepperSubcycling< Scalar >.

Definition at line 73 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

virtual void Tempus::Stepper< Scalar >::setObserver ( Teuchos::RCP< StepperObserver< Scalar > > obs = Teuchos::null )

inlinevirtual

Set Observer.

Definition at line 89 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

virtual void Tempus::Stepper< Scalar >::setSolver ( Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > solver )

inlinevirtual

Set solver.

Reimplemented in Tempus::StepperImplicit< Scalar >, Tempus::StepperSubcycling< Scalar >, Tempus::StepperOperatorSplit< Scalar >, Tempus::StepperStaggeredForwardSensitivity< Scalar >, and Tempus::StepperExplicit< Scalar >.

Definition at line 81 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

void Tempus::Stepper< Scalar >::setStepperType ( std::string s )

inline

Definition at line 132 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

virtual void Tempus::Stepper< Scalar >::setStepperX ( Teuchos::RCP< Thyra::VectorBase< Scalar > > x )

inlineprotectedvirtual

Set x for Stepper storage.

Definition at line 201 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

virtual void Tempus::Stepper< Scalar >::setStepperXDot ( Teuchos::RCP< Thyra::VectorBase< Scalar > > xDot )

inlineprotectedvirtual

Set xDot for Stepper storage.

Definition at line 205 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

virtual void Tempus::Stepper< Scalar >::setStepperXDotDot ( Teuchos::RCP< Thyra::VectorBase< Scalar > > xDotDot )

inlineprotectedvirtual

Set x for Stepper storage.

Definition at line 209 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

void Tempus::Stepper< Scalar >::setUseFSAL ( bool a )

inline

Definition at line 136 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

virtual void Tempus::Stepper< Scalar >::takeStep ( const Teuchos::RCP< SolutionHistory< Scalar > > & solutionHistory )

pure virtual

Take the specified timestep, dt, and return true if successful.

Member Data Documentation

template<typename Scalar>

std::string Tempus::Stepper< Scalar >::ICConsistency_ = std::string("None")

private

Type of consistency to apply to ICs.

Definition at line 190 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

bool Tempus::Stepper< Scalar >::ICConsistencyCheck_ = true

private

Check if the initial condition is consistent.

Definition at line 191 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

bool Tempus::Stepper< Scalar >::isInitialized_ = false

protected

True if stepper's member data is initialized.

Definition at line 212 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

std::string Tempus::Stepper< Scalar >::stepperType_

private

Name of stepper type.

Definition at line 188 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

Teuchos::RCP<Thyra::VectorBase<Scalar> > Tempus::Stepper< Scalar >::stepperX_

private

Definition at line 194 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

Teuchos::RCP<Thyra::VectorBase<Scalar> > Tempus::Stepper< Scalar >::stepperXDot_

private

Definition at line 195 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

Teuchos::RCP<Thyra::VectorBase<Scalar> > Tempus::Stepper< Scalar >::stepperXDotDot_

private

Definition at line 196 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

bool Tempus::Stepper< Scalar >::useFSAL_ = false

private

Use First-Step-As-Last (FSAL) principle.

Definition at line 189 of file Tempus_Stepper_decl.hpp.

The documentation for this class was generated from the following files:

http://docs.trilinos.org/r13.0/packages/tempus/src/Tempus_Integrator.hpp
http://docs.trilinos.org/r13.0/packages/tempus/src/Tempus_Stepper_decl.hpp
http://docs.trilinos.org/r13.0/packages/tempus/src/Tempus_Stepper_impl.hpp

Public Member Functions

Protected Member Functions

Protected Attributes

Private Attributes

Detailed Description

template<typename Scalar> class Tempus::Stepper< Scalar >

Member Function Documentation

Member Data Documentation

template<typename Scalar>
class Tempus::Stepper< Scalar >
