Tempus::StepperIMEX_RK< Scalar > Class Template Reference

Implicit-Explicit Runge-Kutta (IMEX-RK) time stepper. More...

#include <Tempus_StepperIMEX_RK_decl.hpp>

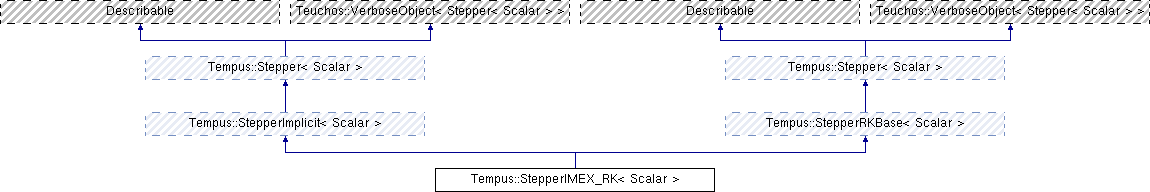

Inheritance diagram for Tempus::StepperIMEX_RK< Scalar >:
Tempus::StepperImplicit< Scalar > Tempus::StepperRKBase< Scalar > Tempus::Stepper< Scalar > Tempus::Stepper< Scalar >

Public Member Functions

 StepperIMEX_RK ()
 Default constructor. More...

 StepperIMEX_RK (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel, const Teuchos::RCP< StepperObserver< Scalar > > &obs, const Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > &solver, bool useFSAL, std::string ICConsistency, bool ICConsistencyCheck, bool zeroInitialGuess, std::string stepperType, Teuchos::RCP< const RKButcherTableau< Scalar > > explicitTableau, Teuchos::RCP< const RKButcherTableau< Scalar > > implicitTableau, Scalar order)
 Constructor for all member data. More...

 StepperIMEX_RK (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel, const Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > &solver, bool useFSAL, std::string ICConsistency, bool ICConsistencyCheck, bool zeroInitialGuess, const Teuchos::RCP< StepperRKAppAction< Scalar > > &stepperRKAppAction, std::string stepperType, Teuchos::RCP< const RKButcherTableau< Scalar > > explicitTableau, Teuchos::RCP< const RKButcherTableau< Scalar > > implicitTableau, Scalar order)

std::vector< Teuchos::RCP
< Thyra::VectorBase< Scalar > > > & 		getStageF ()

std::vector< Teuchos::RCP
< Thyra::VectorBase< Scalar > > > & 		getStageG ()

Teuchos::RCP
< Thyra::VectorBase< Scalar > > & 		getXTilde ()

virtual Scalar getAlpha (const Scalar dt) const
 Return alpha = d(xDot)/dx. More...

virtual Scalar getBeta (const Scalar) const
 Return beta = d(x)/dx. More...

Teuchos::RCP< const
Teuchos::ParameterList > 		getValidParameters () const

virtual bool isValidSetup (Teuchos::FancyOStream &out) const

void evalImplicitModelExplicitly (const Teuchos::RCP< const Thyra::VectorBase< Scalar > > &X, Scalar time, Scalar stepSize, Scalar stageNumber, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &G) const

void evalExplicitModel (const Teuchos::RCP< const Thyra::VectorBase< Scalar > > &X, Scalar time, Scalar stepSize, Scalar stageNumber, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &F) const

virtual bool getICConsistencyCheckDefault () const

void setOrder (Scalar order)

Basic stepper methods
virtual Teuchos::RCP< const
RKButcherTableau< Scalar > > 		getTableau () const
 Returns the explicit tableau! More...

virtual void setTableaus (std::string stepperType="", Teuchos::RCP< const RKButcherTableau< Scalar > > explicitTableau=Teuchos::null, Teuchos::RCP< const RKButcherTableau< Scalar > > implicitTableau=Teuchos::null)
 Set both the explicit and implicit tableau from ParameterList. More...

virtual Teuchos::RCP< const
RKButcherTableau< Scalar > > 		getExplicitTableau () const
 Return explicit tableau. More...

virtual void setExplicitTableau (Teuchos::RCP< const RKButcherTableau< Scalar > > explicitTableau)
 Set the explicit tableau from tableau. More...

virtual Teuchos::RCP< const
RKButcherTableau< Scalar > > 		getImplicitTableau () const
 Return implicit tableau. More...

virtual void setImplicitTableau (Teuchos::RCP< const RKButcherTableau< Scalar > > implicitTableau)
 Set the implicit tableau from tableau. More...

virtual void setModel (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel)

virtual Teuchos::RCP< const
Thyra::ModelEvaluator< Scalar > > 		getModel ()

virtual void setModelPair (const Teuchos::RCP< WrapperModelEvaluatorPairIMEX_Basic< Scalar > > &mePair)
 Create WrapperModelPairIMEX from user-supplied ModelEvaluator pair. More...

virtual void setModelPair (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &explicitModel, const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &implicitModel)
 Create WrapperModelPairIMEX from explicit/implicit ModelEvaluators. More...

virtual void setObserver (Teuchos::RCP< StepperObserver< Scalar > > obs=Teuchos::null)
 Set Observer. More...

virtual Teuchos::RCP
< StepperObserver< Scalar > > 		getObserver () const
 Get Observer. More...

virtual void initialize ()
 Initialize during construction and after changing input parameters. More...

virtual void setInitialConditions (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)
 Set the initial conditions and make them consistent. More...

virtual void takeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)
 Take the specified timestep, dt, and return true if successful. More...

virtual Teuchos::RCP
< Tempus::StepperState< Scalar > > 		getDefaultStepperState ()
 Provide a StepperState to the SolutionState. This Stepper does not have any special state data, so just provide the base class StepperState with the Stepper description. This can be checked to ensure that the input StepperState can be used by this Stepper. More...

virtual Scalar getOrder () const

virtual Scalar getOrderMin () const

virtual Scalar getOrderMax () const

virtual bool isExplicit () const

virtual bool isImplicit () const

virtual bool isExplicitImplicit () const

virtual bool isOneStepMethod () const

virtual bool isMultiStepMethod () const

virtual OrderODE getOrderODE () const

Overridden from Teuchos::Describable
virtual void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const

- Public Member Functions inherited from Tempus::StepperImplicit< Scalar >
virtual Teuchos::RCP< const
WrapperModelEvaluator< Scalar > > 		getWrapperModel ()

virtual void setDefaultSolver ()

virtual void setSolver (Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > solver)
 Set solver. More...

virtual Teuchos::RCP
< Thyra::NonlinearSolverBase
< Scalar > > 		getSolver () const
 Get solver. More...

const Thyra::SolveStatus< Scalar > solveImplicitODE (const Teuchos::RCP< Thyra::VectorBase< Scalar > > &x)
 Solve problem using x in-place. (Needs to be deprecated!) More...

const Thyra::SolveStatus< Scalar > solveImplicitODE (const Teuchos::RCP< Thyra::VectorBase< Scalar > > &x, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &xDot, const Scalar time, const Teuchos::RCP< ImplicitODEParameters< Scalar > > &p)
 Solve implicit ODE, f(x, xDot, t, p) = 0. More...

void evaluateImplicitODE (Teuchos::RCP< Thyra::VectorBase< Scalar > > &f, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &x, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &xDot, const Scalar time, const Teuchos::RCP< ImplicitODEParameters< Scalar > > &p)
 Evaluate implicit ODE residual, f(x, xDot, t, p). More...

virtual void setInitialGuess (Teuchos::RCP< const Thyra::VectorBase< Scalar > > initialGuess)
 Pass initial guess to Newton solver (only relevant for implicit solvers) More...

virtual void setZeroInitialGuess (bool zIG)
 Set parameter so that the initial guess is set to zero (=True) or use last timestep (=False). More...

virtual bool getZeroInitialGuess () const

virtual Scalar getInitTimeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &) const

- Public Member Functions inherited from Tempus::Stepper< Scalar >
virtual void setNonConstModel (const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &)

virtual bool isInitialized ()
 True if stepper's member data is initialized. More...

virtual void checkInitialized ()
 Check initialization, and error out on failure. More...

void setStepperType (std::string s)

std::string getStepperType () const

void setUseFSAL (bool a)

bool getUseFSAL () const

virtual bool getUseFSALDefault () const

void setICConsistency (std::string s)

std::string getICConsistency () const

virtual std::string getICConsistencyDefault () const

void setICConsistencyCheck (bool c)

bool getICConsistencyCheck () const

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > > 		getStepperX (Teuchos::RCP< SolutionState< Scalar > > state)
 Get x from SolutionState or Stepper storage. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > > 		getStepperXDot (Teuchos::RCP< SolutionState< Scalar > > state)
 Get xDot from SolutionState or Stepper storage. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > > 		getStepperXDotDot (Teuchos::RCP< SolutionState< Scalar > > state)
 Get xDotDot from SolutionState or Stepper storage. More...

virtual std::string description () const

virtual void createSubSteppers (std::vector< Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > >)

- Public Member Functions inherited from Tempus::StepperRKBase< Scalar >
virtual int getNumberOfStages () const

virtual int getStageNumber () const

virtual void setStageNumber (int s)

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > > 		getStageX ()

virtual Teuchos::RCP< const
Thyra::VectorBase< Scalar > > 		getStageX () const

virtual void setAppAction (Teuchos::RCP< StepperRKAppAction< Scalar > > appAction)

virtual Teuchos::RCP
< StepperRKAppAction< Scalar > > 		getAppAction () const


Protected Attributes

Teuchos::RCP< const
RKButcherTableau< Scalar > > 		explicitTableau_

Teuchos::RCP< const
RKButcherTableau< Scalar > > 		implicitTableau_

Scalar order_

std::vector< Teuchos::RCP
< Thyra::VectorBase< Scalar > > > 		stageF_

std::vector< Teuchos::RCP
< Thyra::VectorBase< Scalar > > > 		stageG_

Teuchos::RCP
< Thyra::VectorBase< Scalar > > 		xTilde_

Teuchos::RCP
< StepperRKObserverComposite
< Scalar > > 		stepperObserver_

- Protected Attributes inherited from Tempus::StepperImplicit< Scalar >
Teuchos::RCP
< WrapperModelEvaluator
< Scalar > > 		wrapperModel_

Teuchos::RCP
< Thyra::NonlinearSolverBase
< Scalar > > 		solver_

Teuchos::RCP< const
Thyra::VectorBase< Scalar > > 		initialGuess_

bool zeroInitialGuess_

Teuchos::RCP< StepperObserver
< Scalar > > 		stepperObserver_

- Protected Attributes inherited from Tempus::Stepper< Scalar >
bool isInitialized_ = false
 True if stepper's member data is initialized. More...

- Protected Attributes inherited from Tempus::StepperRKBase< Scalar >
Teuchos::RCP< RKButcherTableau
< Scalar > > 		tableau_

int stageNumber_
 The current Runge-Kutta stage number, {0,...,s-1}. -1 indicates outside stage loop. More...

Teuchos::RCP
< Thyra::VectorBase< Scalar > > 		stageX_

Teuchos::RCP
< StepperRKAppAction< Scalar > > 		stepperRKAppAction_


Additional Inherited Members

- Protected Member Functions inherited from Tempus::Stepper< Scalar >
virtual void setStepperX (Teuchos::RCP< Thyra::VectorBase< Scalar > > x)
 Set x for Stepper storage. More...

virtual void setStepperXDot (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDot)
 Set xDot for Stepper storage. More...

virtual void setStepperXDotDot (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDotDot)
 Set x for Stepper storage. More...


Detailed Description

template<class Scalar>
class Tempus::StepperIMEX_RK< Scalar >

Implicit-Explicit Runge-Kutta (IMEX-RK) time stepper.

For the implicit ODE system, $ \mathcal{F}(\dot{x},x,t) = 0 $, we need to specialize this in order to separate the explicit, implicit, and temporal terms for the IMEX-RK time stepper,

\[ M(x,t)\, \dot{x}(x,t) + G(x,t) + F(x,t) = 0 \]

or

\[ \mathcal{G}(\dot{x},x,t) + F(x,t) = 0, \]

where $\mathcal{G}(\dot{x},x,t) = M(x,t)\, \dot{x} + G(x,t)$, $M(x,t)$ is the mass matrix, $F(x,t)$ is the operator representing the "slow" physics (and is evolved explicitly), and $G(x,t)$ is the operator representing the "fast" physics (and is evolved implicitly). Additionally, we assume that the mass matrix is invertible, so that

\[ \dot{x}(x,t) + g(x,t) + f(x,t) = 0 \]

where $f(x,t) = M(x,t)^{-1}\, F(x,t)$, and $g(x,t) = M(x,t)^{-1}\, G(x,t)$. Using Butcher tableaus for the explicit and implicit terms,

\[ \begin{array}{c|c} \hat{c} & \hat{a} \\ \hline & \hat{b}^T \end{array} \;\;\;\; \mbox{ and } \;\;\;\; \begin{array}{c|c} c & a \\ \hline & b^T \end{array}, \]

respectively, the basic IMEX-RK method for $s$-stages can be written as

\[ \begin{array}{rcll} X_i & = & x_{n-1} - \Delta t \sum_{j=1}^{i-1} \hat{a}_{ij}\, f(X_j,\hat{t}_j) - \Delta t \sum_{j=1}^i a_{ij}\, g(X_j,t_j) & \mbox{for } i=1\ldots s, \\ x_n & = & x_{n-1} - \Delta t \sum_{i=1}^s \hat{b}_{i}\, f(X_i,\hat{t}_i) - \Delta t \sum_{i=1}^s b_{i}\, g(X_i,t_i) & \end{array} \]

where $\hat{t}_i = t_{n-1}+\hat{c}_i\Delta t$ and $t_i = t_{n-1}+c_i\Delta t$. Note that the "slow" explicit physics, $f(X_j,\hat{t}_j)$, is evaluated at the explicit stage time, $\hat{t}_j$, and the "fast" implicit physics, $g(X_j,t_j)$, is evaluated at the implicit stage time, $t_j$. We can write the stage solution, $X_i$, as

\[ X_i = \tilde{X} - a_{ii} \Delta t\, g(X_i,t_i) \]

where

\[ \tilde{X} = x_{n-1} - \Delta t \sum_{j=1}^{i-1} \left(\hat{a}_{ij}\, f(X_j,\hat{t}_j) + a_{ij}\, g(X_j,t_j)\right) \]

Rewriting this in a form for Newton-type solvers, the implicit ODE is

\[ \mathcal{G}(\tilde{\dot{X}},X_i,t_i) = \tilde{\dot{X}} + g(X_i,t_i) = 0 \]

where we have defined a pseudo time derivative, $\tilde{\dot{X}}$,

\[ \tilde{\dot{X}} \equiv \frac{X_i - \tilde{X}}{a_{ii} \Delta t} \quad \quad \left[ = -g(X_i,t_i)\right] \]

that can be used with the implicit solve but is not the stage time derivative, $\dot{X}_i$. (Note that $\tilde{\dot{X}}$ can be interpreted as the rate of change of the solution due to the implicit "fast" physics, and the "mass" version of the implicit ODE, $\mathcal{G}(\tilde{\dot{X}},X_i,t) = M(X_i,t_i)\, \tilde{\dot{X}} + G(X_i,t_i) = 0$, can also be used to solve for $\tilde{\dot{X}}$).

To obtain the stage time derivative, $\dot{X}_i$, we can evaluate the governing equation at the implicit stage time, $t_i$,

\[ \dot{X}_i(X_i,t_i) + g(X_i,t_i) + f(X_i,t_i) = 0 \]

Note that even the explicit term, $f(X_i,t_i)$, is evaluated at the implicit stage time, $t_i$. Solving for $\dot{X}_i$, we find

\begin{eqnarray*} \dot{X}(X_i,t_i) & = & - g(X_i,t_i) - f(X_i,t_i) \\ \dot{X}(X_i,t_i) & = & \tilde{\dot{X}} - f(X_i,t_i) \end{eqnarray*}

Iteration Matrix, $W$. Recalling that the definition of the iteration matrix, $W$, is

\[ W = \alpha \frac{\partial \mathcal{F}_n}{\partial \dot{x}_n} + \beta \frac{\partial \mathcal{F}_n}{\partial x_n}, \]

where $ \alpha \equiv \frac{\partial \dot{x}_n(x_n) }{\partial x_n}, $ and $ \beta \equiv \frac{\partial x_n}{\partial x_n} = 1$. For the stage solutions, we are solving

\[ \mathcal{G} = \tilde{\dot{X}} + g(X_i,t_i) = 0. \]

where $\mathcal{F}_n \rightarrow \mathcal{G}$, $x_n \rightarrow X_{i}$, and $\dot{x}_n(x_n) \rightarrow \tilde{\dot{X}}(X_{i})$. The time derivative for the implicit solves is

\[ \tilde{\dot{X}} \equiv \frac{X_i - \tilde{X}}{a_{ii} \Delta t} \]

and we can determine that $ \alpha = \frac{1}{a_{ii} \Delta t} $ and $ \beta = 1 $, and therefore write

\[ W = \frac{1}{a_{ii} \Delta t} \frac{\partial \mathcal{G}}{\partial \tilde{\dot{X}}} + \frac{\partial \mathcal{G}}{\partial X_i}. \]

Explicit Stage in the Implicit Tableau. For the special case of an explicit stage in the implicit tableau, $a_{ii}=0$, we find that the stage solution, $X_i$, is

\[ X_i = x_{n-1} - \Delta t\,\sum_{j=1}^{i-1} \left( \hat{a}_{ij}\,f(X_j,\hat{t}_j) + a_{ij}\,g(X_j,t_j) \right) = \tilde{X} \]

and the time derivative of the stage solution, $\dot{X}(X_i,t_i)$, is

\[ \dot{X}_i(X_i,t_i) = - g(X_i,t_i) - f(X_i,t_i) \]

and again note that the explicit term, $f(X_i,t_i)$, is evaluated at the implicit stage time, $t_i$.

IMEX-RK Algorithm

The single-timestep algorithm for IMEX-RK is

\begin{algorithm} \renewcommand{\thealgorithm}{} \caption{IMEX RK with the application-action locations indicated.} \begin{algorithmic}[1] \State {\it appAction.execute(solutionHistory, stepper, BEGIN\_STEP)} \State $X \leftarrow x_{n-1}$ \Comment Set initial guess to last timestep. \For {$i = 0 \ldots s-1$} \State $\tilde{X} \leftarrow x_{n-1} - \Delta t\,\sum_{j=1}^{i-1} \left( \hat{a}_{ij}\, f_j + a_{ij}\, g_j \right)$ \State {\it appAction.execute(solutionHistory, stepper, BEGIN\_STAGE)} \State \Comment Implicit Tableau \If {$a_{ii} = 0$} \State $X \leftarrow \tilde{X}$ \If {$a_{k,i} = 0 \;\forall k = (i+1,\ldots, s-1)$, $b(i) = 0$, $b^\ast(i) = 0$} \State $g_i \leftarrow 0$ \Comment{Not needed for later calculations.} \Else \State $g_i \leftarrow M(X, t_i)^{-1}\, G(X, t_i)$ \EndIf \Else \State {\it appAction.execute(solutionHistory, stepper, BEFORE\_SOLVE)} \If {``Zero initial guess.''} \State $X \leftarrow 0$ \Comment{Else use previous stage value as initial guess.} \EndIf \State Solve $\mathcal{G}\left(\tilde{\dot{X}} = \frac{X-\tilde{X}}{a_{ii} \Delta t},X,t_i\right) = 0$ for $X$ \State {\it appAction.execute(solutionHistory, stepper, AFTER\_SOLVE)} \State $\tilde{\dot{X}} \leftarrow \frac{X - \tilde{X}}{a_{ii} \Delta t}$ \State $g_i \leftarrow - \tilde{\dot{X}}$ \EndIf \State \Comment Explicit Tableau \State {\it appAction.execute(solutionHistory, stepper, BEFORE\_EXPLICIT\_EVAL)} \State $f_i \leftarrow M(X,\hat{t}_i)^{-1}\, F(X,\hat{t}_i)$ \State $\dot{X} \leftarrow - g_i - f_i$ [Optionally] \State {\it appAction.execute(solutionHistory, stepper, END\_STAGE)} \EndFor \State $x_n \leftarrow x_{n-1} - \Delta t\,\sum_{i=1}^{s}\hat{b}_i\,f_i - \Delta t\,\sum_{i=1}^{s} b_i \,g_i$ \State {\it appAction.execute(solutionHistory, stepper, END\_STEP)} \end{algorithmic} \end{algorithm}

The following table contains the pre-coded IMEX-RK tableaus.

IMEX-RK Tableaus
Name Order Implicit Tableau Explicit Tableau
IMEX RK 1st order 1st

\[ \begin{array}{c|cc} 0 & 0 & 0 \\ 1 & 0 & 1 \\ \hline & 0 & 1 \end{array} \]

\[ \begin{array}{c|cc} 0 & 0 & 0 \\ 1 & 1 & 0 \\ \hline & 1 & 0 \end{array} \]

SSP1_111 1st

\[ \begin{array}{c|c} 1 & 1 \\ \hline & 1 \end{array} \]

\[ \begin{array}{c|c} 0 & 0 \\ \hline & 1 \end{array} \]

IMEX RK SSP2
SSP2_222_L
$\gamma = 1-1/\sqrt{2}$ 		2nd

\[ \begin{array}{c|cc} \gamma & \gamma & 0 \\ 1-\gamma & 1-2\gamma & \gamma \\ \hline & 1/2 & 1/2 \end{array} \]

\[ \begin{array}{c|cc} 0 & 0 & 0 \\ 1 & 1 & 0 \\ \hline & 1/2 & 1/2 \end{array} \]

SSP2_222
SSP2_222_A
$\gamma = 1/2$ 		2nd

\[ \begin{array}{c|cc} \gamma & \gamma & 0 \\ 1-\gamma & 1-2\gamma & \gamma \\ \hline & 1/2 & 1/2 \end{array} \]

\[ \begin{array}{c|cc} 0 & 0 & 0 \\ 1 & 1 & 0 \\ \hline & 1/2 & 1/2 \end{array} \]

IMEX RK SSP3
SSP3_332
$\gamma = 1/ (2 + \sqrt{2})$ 		3rd

\[ \begin{array}{c|ccc} 0 & 0 & & \\ 1 & 1 & 0 & \\ 1/2 & 1/4 & 1/4 & 0 \\ \hline & 1/6 & 1/6 & 4/6 \end{array} \]

\[ \begin{array}{c|ccc} \gamma & \gamma & & \\ 1-\gamma & 1-2\gamma & \gamma & \\ 1-2 & 1/2 -\gamma & 0 & \gamma \\ \hline & 1/6 & 1/6 & 2/3 \end{array} \]

IMEX RK ARS 233
ARS 233
$\gamma = (3+\sqrt{3})/6$ 		3rd

\[ \begin{array}{c|ccc} 0 & 0 & 0 & 0 \\ \gamma & 0 & \gamma & 0 \\ 1-\gamma & 0 & 1-2\gamma & \gamma \\ \hline & 0 & 1/2 & 1/2 \end{array} \]

\[ \begin{array}{c|ccc} 0 & 0 & 0 & 0 \\ \gamma & \gamma & 0 & 0 \\ 1-\gamma & \gamma-1 & 2-2\gamma & 0 \\ \hline & 0 & 1/2 & 1/2 \end{array} \]

The First-Step-As-Last (FSAL) principle is not valid for IMEX RK. The default is to set useFSAL=false, and useFSAL=true will result in an error.

References

  1. Ascher, Ruuth, Spiteri, "Implicit-explicit Runge-Kutta methods for time-dependent partial differential equations", Applied Numerical Mathematics 25 (1997) 151-167.
  2. Cyr, "IMEX Lagrangian Methods", SAND2015-3745C.
  3. Shadid, Cyr, Pawlowski, Widley, Scovazzi, Zeng, Phillips, Conde, Chuadhry, Hensinger, Fischer, Robinson, Rider, Niederhaus, Sanchez, "Towards an IMEX Monolithic ALE Method with Integrated UQ for Multiphysics Shock-hydro", SAND2016-11353, 2016, pp. 21-28.

Definition at line 286 of file Tempus_StepperIMEX_RK_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar >
Tempus::StepperIMEX_RK< Scalar >::StepperIMEX_RK ( )

Default constructor.

Requires subsequent setModel(), setSolver() and initialize() calls before calling takeStep().

Definition at line 27 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
Tempus::StepperIMEX_RK< Scalar >::StepperIMEX_RK ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &  appModel,
const Teuchos::RCP< StepperObserver< Scalar > > &  obs,
const Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > &  solver,
bool  useFSAL,
std::string  ICConsistency,
bool  ICConsistencyCheck,
bool  zeroInitialGuess,
std::string  stepperType,
Teuchos::RCP< const RKButcherTableau< Scalar > >  explicitTableau,
Teuchos::RCP< const RKButcherTableau< Scalar > >  implicitTableau,
Scalar  order
)

Constructor for all member data.

Definition at line 48 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
Tempus::StepperIMEX_RK< Scalar >::StepperIMEX_RK ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &  appModel,
const Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > &  solver,
bool  useFSAL,
std::string  ICConsistency,
bool  ICConsistencyCheck,
bool  zeroInitialGuess,
const Teuchos::RCP< StepperRKAppAction< Scalar > > &  stepperRKAppAction,
std::string  stepperType,
Teuchos::RCP< const RKButcherTableau< Scalar > >  explicitTableau,
Teuchos::RCP< const RKButcherTableau< Scalar > >  implicitTableau,
Scalar  order
)

Definition at line 83 of file Tempus_StepperIMEX_RK_impl.hpp.

Member Function Documentation

template<class Scalar >
void Tempus::StepperIMEX_RK< Scalar >::describe ( Teuchos::FancyOStream &  out,
const Teuchos::EVerbosityLevel  verbLevel
) const
virtual

Reimplemented from Tempus::StepperImplicit< Scalar >.

Definition at line 816 of file Tempus_StepperIMEX_RK_impl.hpp.

template<typename Scalar >
void Tempus::StepperIMEX_RK< Scalar >::evalExplicitModel ( const Teuchos::RCP< const Thyra::VectorBase< Scalar > > &  X,
Scalar  time,
Scalar  stepSize,
Scalar  stageNumber,
const Teuchos::RCP< Thyra::VectorBase< Scalar > > &  F
) const

Definition at line 615 of file Tempus_StepperIMEX_RK_impl.hpp.

template<typename Scalar >
void Tempus::StepperIMEX_RK< Scalar >::evalImplicitModelExplicitly ( const Teuchos::RCP< const Thyra::VectorBase< Scalar > > &  X,
Scalar  time,
Scalar  stepSize,
Scalar  stageNumber,
const Teuchos::RCP< Thyra::VectorBase< Scalar > > &  G
) const

Definition at line 583 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperIMEX_RK< Scalar >::getAlpha ( const Scalar  dt) const
inlinevirtual

Return alpha = d(xDot)/dx.

Implements Tempus::StepperImplicit< Scalar >.

Definition at line 405 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperIMEX_RK< Scalar >::getBeta ( const Scalar  ) const
inlinevirtual

Return beta = d(x)/dx.

Implements Tempus::StepperImplicit< Scalar >.

Definition at line 411 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
Teuchos::RCP< Tempus::StepperState< Scalar > > Tempus::StepperIMEX_RK< Scalar >::getDefaultStepperState ( )
virtual

Provide a StepperState to the SolutionState. This Stepper does not have any special state data, so just provide the base class StepperState with the Stepper description. This can be checked to ensure that the input StepperState can be used by this Stepper.

Implements Tempus::Stepper< Scalar >.

Definition at line 807 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
virtual Teuchos::RCP<const RKButcherTableau<Scalar> > Tempus::StepperIMEX_RK< Scalar >::getExplicitTableau ( ) const
inlinevirtual

Return explicit tableau.

Definition at line 339 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperIMEX_RK< Scalar >::getICConsistencyCheckDefault ( ) const
inlinevirtual

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 433 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
virtual Teuchos::RCP<const RKButcherTableau<Scalar> > Tempus::StepperIMEX_RK< Scalar >::getImplicitTableau ( ) const
inlinevirtual

Return implicit tableau.

Definition at line 347 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
virtual Teuchos::RCP<const Thyra::ModelEvaluator<Scalar> > Tempus::StepperIMEX_RK< Scalar >::getModel ( )
inlinevirtual

Reimplemented from Tempus::StepperImplicit< Scalar >.

Definition at line 357 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
virtual Teuchos::RCP<StepperObserver<Scalar> > Tempus::StepperIMEX_RK< Scalar >::getObserver ( ) const
inlinevirtual

Get Observer.

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 371 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperIMEX_RK< Scalar >::getOrder ( ) const
inlinevirtual

Reimplemented from Tempus::StepperRKBase< Scalar >.

Definition at line 386 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperIMEX_RK< Scalar >::getOrderMax ( ) const
inlinevirtual

Reimplemented from Tempus::StepperRKBase< Scalar >.

Definition at line 388 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperIMEX_RK< Scalar >::getOrderMin ( ) const
inlinevirtual

Reimplemented from Tempus::StepperRKBase< Scalar >.

Definition at line 387 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
virtual OrderODE Tempus::StepperIMEX_RK< Scalar >::getOrderODE ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 397 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
std::vector<Teuchos::RCP<Thyra::VectorBase<Scalar> > >& Tempus::StepperIMEX_RK< Scalar >::getStageF ( )
inline

Definition at line 400 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
std::vector<Teuchos::RCP<Thyra::VectorBase<Scalar> > >& Tempus::StepperIMEX_RK< Scalar >::getStageG ( )
inline

Definition at line 401 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
virtual Teuchos::RCP<const RKButcherTableau<Scalar> > Tempus::StepperIMEX_RK< Scalar >::getTableau ( ) const
inlinevirtual

Returns the explicit tableau!

Reimplemented from Tempus::StepperRKBase< Scalar >.

Definition at line 330 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
Teuchos::RCP< const Teuchos::ParameterList > Tempus::StepperIMEX_RK< Scalar >::getValidParameters ( ) const
virtual

Implements Tempus::Stepper< Scalar >.

Definition at line 903 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
Teuchos::RCP<Thyra::VectorBase<Scalar> >& Tempus::StepperIMEX_RK< Scalar >::getXTilde ( )
inline

Definition at line 402 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
void Tempus::StepperIMEX_RK< Scalar >::initialize ( )
virtual

Initialize during construction and after changing input parameters.

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 510 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
virtual bool Tempus::StepperIMEX_RK< Scalar >::isExplicit ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 390 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperIMEX_RK< Scalar >::isExplicitImplicit ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 392 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperIMEX_RK< Scalar >::isImplicit ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 391 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperIMEX_RK< Scalar >::isMultiStepMethod ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 395 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperIMEX_RK< Scalar >::isOneStepMethod ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 394 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
bool Tempus::StepperIMEX_RK< Scalar >::isValidSetup ( Teuchos::FancyOStream &  out) const
virtual

Reimplemented from Tempus::StepperImplicit< Scalar >.

Definition at line 851 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
void Tempus::StepperIMEX_RK< Scalar >::setExplicitTableau ( Teuchos::RCP< const RKButcherTableau< Scalar > >  explicitTableau)
virtual

Set the explicit tableau from tableau.

Definition at line 373 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
void Tempus::StepperIMEX_RK< Scalar >::setImplicitTableau ( Teuchos::RCP< const RKButcherTableau< Scalar > >  implicitTableau)
virtual

Set the implicit tableau from tableau.

Definition at line 387 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
void Tempus::StepperIMEX_RK< Scalar >::setInitialConditions ( const Teuchos::RCP< SolutionHistory< Scalar > > &  solutionHistory)
virtual

Set the initial conditions and make them consistent.

Reimplemented from Tempus::StepperImplicit< Scalar >.

Definition at line 536 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
void Tempus::StepperIMEX_RK< Scalar >::setModel ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &  appModel)
virtual

Reimplemented from Tempus::StepperImplicit< Scalar >.

Definition at line 400 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
void Tempus::StepperIMEX_RK< Scalar >::setModelPair ( const Teuchos::RCP< WrapperModelEvaluatorPairIMEX_Basic< Scalar > > &  modelPairIMEX)
virtual

Create WrapperModelPairIMEX from user-supplied ModelEvaluator pair.

The user-supplied ME pair can contain any user-specific IMEX interactions between explicit and implicit MEs.

Definition at line 433 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
void Tempus::StepperIMEX_RK< Scalar >::setModelPair ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &  explicitModel,
const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &  implicitModel
)
virtual

Create WrapperModelPairIMEX from explicit/implicit ModelEvaluators.

Use the supplied explicit/implicit MEs to create a WrapperModelPairIMEX with basic IMEX interactions between explicit and implicit MEs.

Definition at line 463 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
void Tempus::StepperIMEX_RK< Scalar >::setObserver ( Teuchos::RCP< StepperObserver< Scalar > >  obs = Teuchos::null)
virtual

Set Observer.

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 479 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
void Tempus::StepperIMEX_RK< Scalar >::setOrder ( Scalar  order)
inline

Definition at line 435 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
void Tempus::StepperIMEX_RK< Scalar >::setTableaus ( std::string  stepperType = "",
Teuchos::RCP< const RKButcherTableau< Scalar > >  explicitTableau = Teuchos::null,
Teuchos::RCP< const RKButcherTableau< Scalar > >  implicitTableau = Teuchos::null
)
virtual

Set both the explicit and implicit tableau from ParameterList.

Definition at line 121 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
void Tempus::StepperIMEX_RK< Scalar >::takeStep ( const Teuchos::RCP< SolutionHistory< Scalar > > &  solutionHistory)
virtual

Take the specified timestep, dt, and return true if successful.

Implements Tempus::Stepper< Scalar >.

Definition at line 650 of file Tempus_StepperIMEX_RK_impl.hpp.

Member Data Documentation

template<class Scalar >
Teuchos::RCP<const RKButcherTableau<Scalar> > Tempus::StepperIMEX_RK< Scalar >::explicitTableau_
protected

Definition at line 439 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
Teuchos::RCP<const RKButcherTableau<Scalar> > Tempus::StepperIMEX_RK< Scalar >::implicitTableau_
protected

Definition at line 440 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
Scalar Tempus::StepperIMEX_RK< Scalar >::order_
protected

Definition at line 442 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
std::vector<Teuchos::RCP<Thyra::VectorBase<Scalar> > > Tempus::StepperIMEX_RK< Scalar >::stageF_
protected

Definition at line 444 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
std::vector<Teuchos::RCP<Thyra::VectorBase<Scalar> > > Tempus::StepperIMEX_RK< Scalar >::stageG_
protected

Definition at line 445 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
Teuchos::RCP<StepperRKObserverComposite<Scalar> > Tempus::StepperIMEX_RK< Scalar >::stepperObserver_
protected

Definition at line 450 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
Teuchos::RCP<Thyra::VectorBase<Scalar> > Tempus::StepperIMEX_RK< Scalar >::xTilde_
protected

Definition at line 447 of file Tempus_StepperIMEX_RK_decl.hpp.

The documentation for this class was generated from the following files:
