Tempus::StepperDIRK_BackwardEuler< Scalar > Class Template Reference

Backward Euler Runge-Kutta Butcher Tableau. More...

#include <Tempus_StepperRKButcherTableau.hpp>

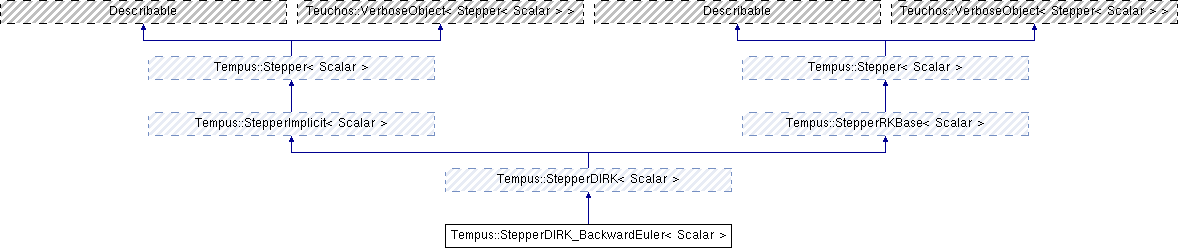

Inheritance diagram for Tempus::StepperDIRK_BackwardEuler< Scalar >:
Tempus::StepperDIRK< Scalar > Tempus::StepperImplicit< Scalar > Tempus::StepperRKBase< Scalar > Tempus::Stepper< Scalar > Tempus::Stepper< Scalar >

Public Member Functions

 StepperDIRK_BackwardEuler ()
 Default constructor. More...

 StepperDIRK_BackwardEuler (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel, const Teuchos::RCP< StepperRKObserverComposite< Scalar > > &obs, const Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > &solver, bool useFSAL, std::string ICConsistency, bool ICConsistencyCheck, bool useEmbedded, bool zeroInitialGuess)

 StepperDIRK_BackwardEuler (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel, const Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > &solver, bool useFSAL, std::string ICConsistency, bool ICConsistencyCheck, bool useEmbedded, bool zeroInitialGuess, const Teuchos::RCP< StepperRKAppAction< Scalar > > &stepperRKAppAction)

std::string getDescription () const

virtual bool getICConsistencyCheckDefault () const

Teuchos::RCP< const
Teuchos::ParameterList >
getValidParameters () const

- Public Member Functions inherited from Tempus::StepperDIRK< Scalar >
std::vector< Teuchos::RCP
< Thyra::VectorBase< Scalar > > > &
getStageXDot ()

Teuchos::RCP
< Thyra::VectorBase< Scalar > > &
getXTilde ()

virtual Scalar getAlpha (const Scalar dt) const
 Return alpha = d(xDot)/dx. More...

virtual Scalar getBeta (const Scalar) const
 Return beta = d(x)/dx. More...

virtual bool isValidSetup (Teuchos::FancyOStream &out) const

virtual void setObserver (Teuchos::RCP< StepperObserver< Scalar > > obs=Teuchos::null)
 Set Observer. More...

virtual Teuchos::RCP
< StepperObserver< Scalar > >
getObserver () const
 Get Observer. More...

virtual void initialize ()
 Initialize after construction and changing input parameters. More...

virtual void setInitialConditions (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)
 Set the initial conditions and make them consistent. More...

virtual void setResetInitialGuess (bool reset_guess)
 Set parameter so that the initial guess is reset at the beginning of each timestep. More...

virtual bool getResetInitialGuess () const

virtual void takeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)
 Take the specified timestep, dt, and return true if successful. More...

virtual Teuchos::RCP
< Tempus::StepperState< Scalar > >
getDefaultStepperState ()
 Get a default (initial) StepperState. More...

virtual bool isExplicit () const

virtual bool isImplicit () const

virtual bool isExplicitImplicit () const

virtual bool isOneStepMethod () const

virtual bool isMultiStepMethod () const

virtual OrderODE getOrderODE () const

void getValidParametersBasicDIRK (Teuchos::RCP< Teuchos::ParameterList > pl) const

virtual void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const

virtual void setUseEmbedded (bool a)
 Use embedded if avialable. More...

virtual bool getUseEmbedded () const

virtual bool getUseEmbeddedDefault () const

- Public Member Functions inherited from Tempus::StepperImplicit< Scalar >
virtual void setModel (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel)

virtual Teuchos::RCP< const
Thyra::ModelEvaluator< Scalar > >
getModel ()

virtual Teuchos::RCP< const
WrapperModelEvaluator< Scalar > >
getWrapperModel ()

virtual void setDefaultSolver ()

virtual void setSolver (Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > solver)
 Set solver. More...

virtual Teuchos::RCP
< Thyra::NonlinearSolverBase
< Scalar > >
getSolver () const
 Get solver. More...

const Thyra::SolveStatus< Scalar > solveImplicitODE (const Teuchos::RCP< Thyra::VectorBase< Scalar > > &x)
 Solve problem using x in-place. (Needs to be deprecated!) More...

const Thyra::SolveStatus< Scalar > solveImplicitODE (const Teuchos::RCP< Thyra::VectorBase< Scalar > > &x, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &xDot, const Scalar time, const Teuchos::RCP< ImplicitODEParameters< Scalar > > &p)
 Solve implicit ODE, f(x, xDot, t, p) = 0. More...

void evaluateImplicitODE (Teuchos::RCP< Thyra::VectorBase< Scalar > > &f, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &x, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &xDot, const Scalar time, const Teuchos::RCP< ImplicitODEParameters< Scalar > > &p)
 Evaluate implicit ODE residual, f(x, xDot, t, p). More...

virtual void setInitialGuess (Teuchos::RCP< const Thyra::VectorBase< Scalar > > initialGuess)
 Pass initial guess to Newton solver (only relevant for implicit solvers) More...

virtual void setZeroInitialGuess (bool zIG)
 Set parameter so that the initial guess is set to zero (=True) or use last timestep (=False). More...

virtual bool getZeroInitialGuess () const

virtual Scalar getInitTimeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &) const

- Public Member Functions inherited from Tempus::Stepper< Scalar >
virtual void setNonConstModel (const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &)

virtual bool isInitialized ()
 True if stepper's member data is initialized. More...

virtual void checkInitialized ()
 Check initialization, and error out on failure. More...

void setStepperType (std::string s)

std::string getStepperType () const

void setUseFSAL (bool a)

bool getUseFSAL () const

virtual bool getUseFSALDefault () const

void setICConsistency (std::string s)

std::string getICConsistency () const

virtual std::string getICConsistencyDefault () const

void setICConsistencyCheck (bool c)

bool getICConsistencyCheck () const

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > >
getStepperX (Teuchos::RCP< SolutionState< Scalar > > state)
 Get x from SolutionState or Stepper storage. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > >
getStepperXDot (Teuchos::RCP< SolutionState< Scalar > > state)
 Get xDot from SolutionState or Stepper storage. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > >
getStepperXDotDot (Teuchos::RCP< SolutionState< Scalar > > state)
 Get xDotDot from SolutionState or Stepper storage. More...

virtual std::string description () const

virtual void createSubSteppers (std::vector< Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > >)

- Public Member Functions inherited from Tempus::StepperRKBase< Scalar >
virtual Teuchos::RCP< const
RKButcherTableau< Scalar > >
getTableau () const

virtual Scalar getOrder () const

virtual Scalar getOrderMin () const

virtual Scalar getOrderMax () const

virtual int getNumberOfStages () const

virtual int getStageNumber () const

virtual void setStageNumber (int s)

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > >
getStageX ()

virtual Teuchos::RCP< const
Thyra::VectorBase< Scalar > >
getStageX () const

virtual void setAppAction (Teuchos::RCP< StepperRKAppAction< Scalar > > appAction)

virtual Teuchos::RCP
< StepperRKAppAction< Scalar > >
getAppAction () const


Protected Member Functions

void setupTableau ()

- Protected Member Functions inherited from Tempus::StepperDIRK< Scalar >
virtual void setupDefault ()
 Default setup for constructor. More...

virtual void setup (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &wrapperModel, const Teuchos::RCP< StepperRKObserver< Scalar > > &obs, const Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > &solver, bool useFSAL, std::string ICConsistency, bool ICConsistencyCheck, bool useEmbedded, bool zeroInitialGuess)
 Setup for constructor. More...

virtual void setup (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &wrapperModel, const Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > &solver, bool useFSAL, std::string ICConsistency, bool ICConsistencyCheck, bool useEmbedded, bool zeroInitialGuess, const Teuchos::RCP< StepperRKAppAction< Scalar > > &stepperRKAppAction)

- Protected Member Functions inherited from Tempus::Stepper< Scalar >
virtual void setStepperX (Teuchos::RCP< Thyra::VectorBase< Scalar > > x)
 Set x for Stepper storage. More...

virtual void setStepperXDot (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDot)
 Set xDot for Stepper storage. More...

virtual void setStepperXDotDot (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDotDot)
 Set x for Stepper storage. More...


Additional Inherited Members

- Protected Attributes inherited from Tempus::StepperDIRK< Scalar >
std::vector< Teuchos::RCP
< Thyra::VectorBase< Scalar > > >
stageXDot_

Teuchos::RCP
< Thyra::VectorBase< Scalar > >
xTilde_

Teuchos::RCP
< StepperRKObserverComposite
< Scalar > >
stepperObserver_

bool useEmbedded_

Teuchos::RCP
< Thyra::VectorBase< Scalar > >
ee_

Teuchos::RCP
< Thyra::VectorBase< Scalar > >
abs_u0

Teuchos::RCP
< Thyra::VectorBase< Scalar > >
abs_u

Teuchos::RCP
< Thyra::VectorBase< Scalar > >
sc

bool resetGuess_ = true

- Protected Attributes inherited from Tempus::StepperImplicit< Scalar >
Teuchos::RCP
< WrapperModelEvaluator
< Scalar > >
wrapperModel_

Teuchos::RCP
< Thyra::NonlinearSolverBase
< Scalar > >
solver_

Teuchos::RCP< const
Thyra::VectorBase< Scalar > >
initialGuess_

bool zeroInitialGuess_

Teuchos::RCP< StepperObserver
< Scalar > >
stepperObserver_

- Protected Attributes inherited from Tempus::Stepper< Scalar >
bool isInitialized_ = false
 True if stepper's member data is initialized. More...

- Protected Attributes inherited from Tempus::StepperRKBase< Scalar >
Teuchos::RCP< RKButcherTableau
< Scalar > >
tableau_

int stageNumber_
 The current Runge-Kutta stage number, {0,...,s-1}. -1 indicates outside stage loop. More...

Teuchos::RCP
< Thyra::VectorBase< Scalar > >
stageX_

Teuchos::RCP
< StepperRKAppAction< Scalar > >
stepperRKAppAction_


Detailed Description

template<class Scalar>
class Tempus::StepperDIRK_BackwardEuler< Scalar >

Backward Euler Runge-Kutta Butcher Tableau.

The tableau for Backward Euler (order=1) is

\[ \begin{array}{c|c} c & A \\ \hline & b^T \end{array} \;\;\;\;\mbox{ where }\;\;\;\; \begin{array}{c|c} 1 & 1 \\ \hline & 1 \end{array} \]

Definition at line 1875 of file Tempus_StepperRKButcherTableau.hpp.

Constructor & Destructor Documentation

template<class Scalar >
Tempus::StepperDIRK_BackwardEuler< Scalar >::StepperDIRK_BackwardEuler ( )
inline

Default constructor.

Requires subsequent setModel() and initialize() calls before calling takeStep().

Definition at line 1884 of file Tempus_StepperRKButcherTableau.hpp.

template<class Scalar >
Tempus::StepperDIRK_BackwardEuler< Scalar >::StepperDIRK_BackwardEuler ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &  appModel,
const Teuchos::RCP< StepperRKObserverComposite< Scalar > > &  obs,
const Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > &  solver,
bool  useFSAL,
std::string  ICConsistency,
bool  ICConsistencyCheck,
bool  useEmbedded,
bool  zeroInitialGuess
)
inline

Definition at line 1892 of file Tempus_StepperRKButcherTableau.hpp.

template<class Scalar >
Tempus::StepperDIRK_BackwardEuler< Scalar >::StepperDIRK_BackwardEuler ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &  appModel,
const Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > &  solver,
bool  useFSAL,
std::string  ICConsistency,
bool  ICConsistencyCheck,
bool  useEmbedded,
bool  zeroInitialGuess,
const Teuchos::RCP< StepperRKAppAction< Scalar > > &  stepperRKAppAction
)
inline

Definition at line 1908 of file Tempus_StepperRKButcherTableau.hpp.

Member Function Documentation

template<class Scalar >
std::string Tempus::StepperDIRK_BackwardEuler< Scalar >::getDescription ( ) const
inlinevirtual
template<class Scalar >
virtual bool Tempus::StepperDIRK_BackwardEuler< Scalar >::getICConsistencyCheckDefault ( ) const
inlinevirtual

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 1934 of file Tempus_StepperRKButcherTableau.hpp.

template<class Scalar >
Teuchos::RCP<const Teuchos::ParameterList> Tempus::StepperDIRK_BackwardEuler< Scalar >::getValidParameters ( ) const
inlinevirtual

Reimplemented from Tempus::StepperDIRK< Scalar >.

Definition at line 1937 of file Tempus_StepperRKButcherTableau.hpp.

template<class Scalar >
void Tempus::StepperDIRK_BackwardEuler< Scalar >::setupTableau ( )
inlineprotectedvirtual

The documentation for this class was generated from the following file:
