Thyra Base interface for implicit time steppers. More...

#include <Tempus_StepperExplicit_decl.hpp>

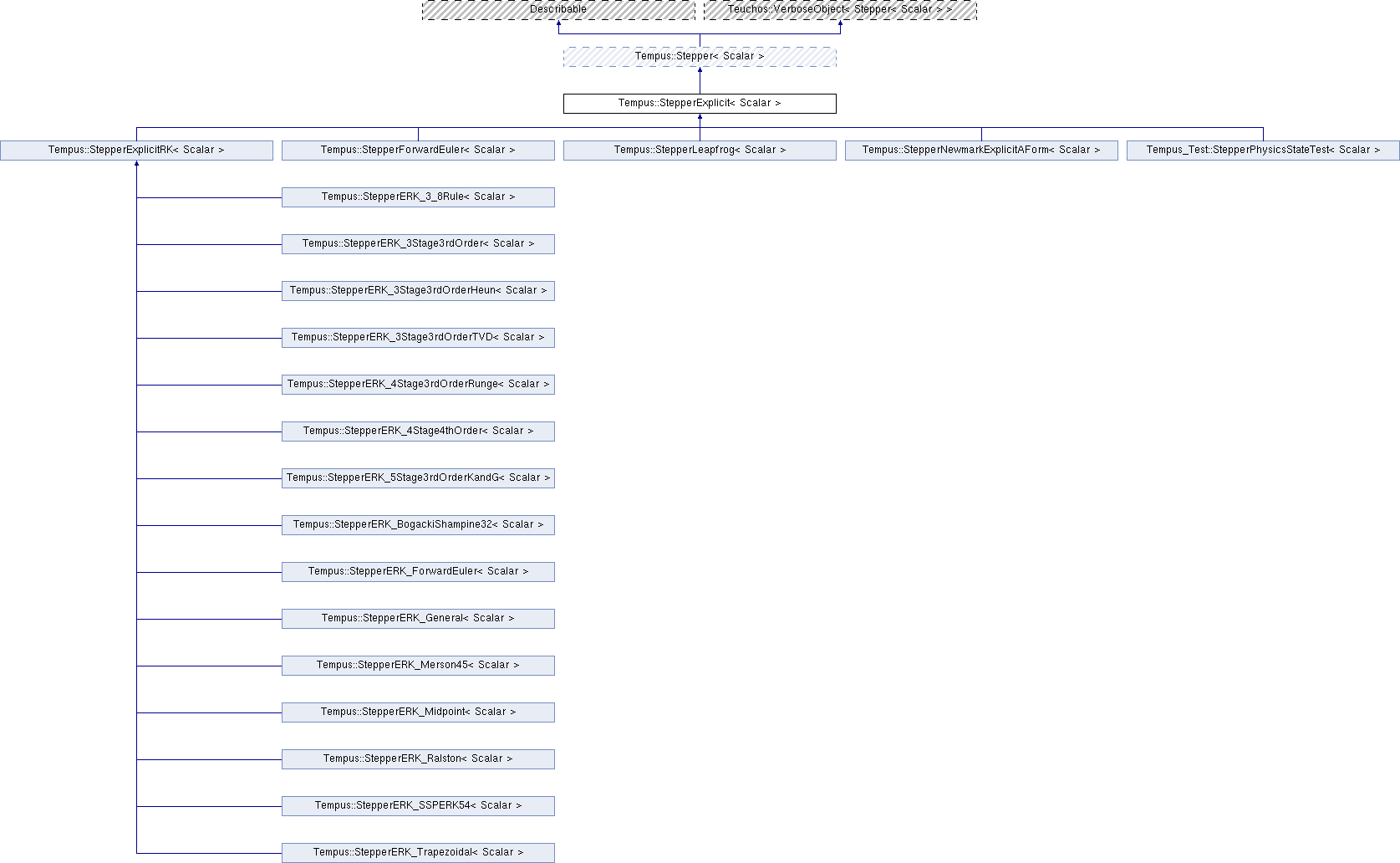

Inheritance diagram for Tempus::StepperExplicit< Scalar >:

Public Member Functions
virtual bool	isValidSetup (Teuchos::FancyOStream &out) const

Basic explicit stepper methods
virtual void	setModel (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel)

virtual Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > >	getModel ()

virtual Scalar	getInitTimeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &) const

virtual void	setInitialConditions (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)
	Set the initial conditions, make them consistent, and set needed memory. More...

virtual void	setSolver (Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > solver)
	Set solver. More...

virtual Teuchos::RCP < Thyra::NonlinearSolverBase < Scalar > >	getSolver () const
	Get solver. More...

virtual void	setInitialGuess (Teuchos::RCP< const Thyra::VectorBase< Scalar > >)
	Pass initial guess to Newton solver (only relevant for implicit solvers) More...

virtual bool	isExplicit () const

virtual bool	isImplicit () const

virtual bool	isExplicitImplicit () const

virtual bool	isOneStepMethod () const

virtual bool	isMultiStepMethod () const

virtual void	evaluateExplicitODE (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDot, Teuchos::RCP< const Thyra::VectorBase< Scalar > > x, const Scalar time, const Teuchos::RCP< ExplicitODEParameters< Scalar > > &p)
	Evaluate xDot = f(x,t). More...

virtual void	evaluateExplicitODE (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDotDot, Teuchos::RCP< const Thyra::VectorBase< Scalar > > x, Teuchos::RCP< const Thyra::VectorBase< Scalar > > xDot, const Scalar time, const Teuchos::RCP< ExplicitODEParameters< Scalar > > &p)
	Evaluate xDotDot = f(x, xDot, t). More...

Overridden from Teuchos::Describable
virtual void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const

Public Member Functions inherited from Tempus::Stepper< Scalar >
virtual Teuchos::RCP< const Teuchos::ParameterList >	getValidParameters () const =0

virtual void	setNonConstModel (const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &)

virtual void	setObserver (Teuchos::RCP< StepperObserver< Scalar > > obs=Teuchos::null)
	Set Observer. More...

virtual Teuchos::RCP < StepperObserver< Scalar > >	getObserver () const
	Get Observer. More...

virtual void	initialize ()
	Initialize after construction and changing input parameters. More...

virtual bool	isInitialized ()
	True if stepper's member data is initialized. More...

virtual void	checkInitialized ()
	Check initialization, and error out on failure. More...

virtual void	takeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)=0
	Take the specified timestep, dt, and return true if successful. More...

virtual Teuchos::RCP < Tempus::StepperState< Scalar > >	getDefaultStepperState ()=0

virtual Scalar	getOrder () const =0

virtual Scalar	getOrderMin () const =0

virtual Scalar	getOrderMax () const =0

void	setStepperType (std::string s)

std::string	getStepperType () const

void	setUseFSAL (bool a)

bool	getUseFSAL () const

virtual bool	getUseFSALDefault () const

void	setICConsistency (std::string s)

std::string	getICConsistency () const

virtual std::string	getICConsistencyDefault () const

void	setICConsistencyCheck (bool c)

bool	getICConsistencyCheck () const

virtual bool	getICConsistencyCheckDefault () const

virtual OrderODE	getOrderODE () const =0

virtual Teuchos::RCP < Thyra::VectorBase< Scalar > >	getStepperX (Teuchos::RCP< SolutionState< Scalar > > state)
	Get x from SolutionState or Stepper storage. More...

virtual Teuchos::RCP < Thyra::VectorBase< Scalar > >	getStepperXDot (Teuchos::RCP< SolutionState< Scalar > > state)
	Get xDot from SolutionState or Stepper storage. More...

virtual Teuchos::RCP < Thyra::VectorBase< Scalar > >	getStepperXDotDot (Teuchos::RCP< SolutionState< Scalar > > state)
	Get xDotDot from SolutionState or Stepper storage. More...

virtual std::string	description () const

virtual void	createSubSteppers (std::vector< Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > >)

Protected Attributes
Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > >	appModel_
	Explicit ODE ModelEvaluator. More...

Thyra::ModelEvaluatorBase::InArgs < Scalar >	inArgs_

Thyra::ModelEvaluatorBase::OutArgs < Scalar >	outArgs_

Teuchos::RCP< StepperObserver < Scalar > >	stepperObserver_

Protected Attributes inherited from Tempus::Stepper< Scalar >
bool	isInitialized_ = false
	True if stepper's member data is initialized. More...

Additional Inherited Members
Protected Member Functions inherited from Tempus::Stepper< Scalar >
virtual void	setStepperX (Teuchos::RCP< Thyra::VectorBase< Scalar > > x)
	Set x for Stepper storage. More...

virtual void	setStepperXDot (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDot)
	Set xDot for Stepper storage. More...

virtual void	setStepperXDotDot (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDotDot)
	Set x for Stepper storage. More...

Detailed Description

template<class Scalar>
class Tempus::StepperExplicit< Scalar >

Thyra Base interface for implicit time steppers.

Definition at line 41 of file Tempus_StepperExplicit_decl.hpp.

Member Function Documentation

template<class Scalar >

void Tempus::StepperExplicit< Scalar >::describe	(	Teuchos::FancyOStream &	out,
		const Teuchos::EVerbosityLevel	verbLevel
	)		const

virtual

Reimplemented from Tempus::Stepper< Scalar >.

Reimplemented in Tempus::StepperExplicitRK< Scalar >, Tempus::StepperLeapfrog< Scalar >, Tempus::StepperForwardEuler< Scalar >, and Tempus::StepperNewmarkExplicitAForm< Scalar >.

Definition at line 302 of file Tempus_StepperExplicit_impl.hpp.

template<class Scalar >

void Tempus::StepperExplicit< Scalar >::evaluateExplicitODE	(	Teuchos::RCP< Thyra::VectorBase< Scalar > >	xDot,
		Teuchos::RCP< const Thyra::VectorBase< Scalar > >	x,
		const Scalar	time,
		const Teuchos::RCP< ExplicitODEParameters< Scalar > > &	p
	)

virtual

Evaluate xDot = f(x,t).

Definition at line 241 of file Tempus_StepperExplicit_impl.hpp.

template<class Scalar >

void Tempus::StepperExplicit< Scalar >::evaluateExplicitODE	(	Teuchos::RCP< Thyra::VectorBase< Scalar > >	xDotDot,
		Teuchos::RCP< const Thyra::VectorBase< Scalar > >	x,
		Teuchos::RCP< const Thyra::VectorBase< Scalar > >	xDot,
		const Scalar	time,
		const Teuchos::RCP< ExplicitODEParameters< Scalar > > &	p
	)

virtual

Evaluate xDotDot = f(x, xDot, t).

Definition at line 270 of file Tempus_StepperExplicit_impl.hpp.

template<class Scalar >

virtual Scalar Tempus::StepperExplicit< Scalar >::getInitTimeStep ( const Teuchos::RCP< SolutionHistory< Scalar > > & ) const

inlinevirtual

Implements Tempus::Stepper< Scalar >.

Reimplemented in Tempus::StepperExplicitRK< Scalar >, Tempus::StepperLeapfrog< Scalar >, and Tempus::StepperNewmarkExplicitAForm< Scalar >.

Definition at line 53 of file Tempus_StepperExplicit_decl.hpp.

template<class Scalar >

virtual Teuchos::RCP<const Thyra::ModelEvaluator<Scalar> > Tempus::StepperExplicit< Scalar >::getModel ( )

inlinevirtual

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 51 of file Tempus_StepperExplicit_decl.hpp.

template<class Scalar >

virtual Teuchos::RCP<Thyra::NonlinearSolverBase<Scalar> > Tempus::StepperExplicit< Scalar >::getSolver ( ) const

inlinevirtual

Get solver.

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 64 of file Tempus_StepperExplicit_decl.hpp.

template<class Scalar >

virtual bool Tempus::StepperExplicit< Scalar >::isExplicit ( ) const

inlinevirtual

Implements Tempus::Stepper< Scalar >.

Reimplemented in Tempus::StepperExplicitRK< Scalar >, Tempus::StepperLeapfrog< Scalar >, and Tempus::StepperNewmarkExplicitAForm< Scalar >.

Definition at line 72 of file Tempus_StepperExplicit_decl.hpp.

template<class Scalar >

virtual bool Tempus::StepperExplicit< Scalar >::isExplicitImplicit ( ) const

inlinevirtual

Implements Tempus::Stepper< Scalar >.

Reimplemented in Tempus::StepperExplicitRK< Scalar >, Tempus::StepperLeapfrog< Scalar >, and Tempus::StepperNewmarkExplicitAForm< Scalar >.

Definition at line 74 of file Tempus_StepperExplicit_decl.hpp.

template<class Scalar >

virtual bool Tempus::StepperExplicit< Scalar >::isImplicit ( ) const

inlinevirtual

Implements Tempus::Stepper< Scalar >.

Reimplemented in Tempus::StepperExplicitRK< Scalar >, Tempus::StepperLeapfrog< Scalar >, and Tempus::StepperNewmarkExplicitAForm< Scalar >.

Definition at line 73 of file Tempus_StepperExplicit_decl.hpp.

template<class Scalar >

virtual bool Tempus::StepperExplicit< Scalar >::isMultiStepMethod ( ) const

inlinevirtual

Implements Tempus::Stepper< Scalar >.

Reimplemented in Tempus::StepperExplicitRK< Scalar >, Tempus::StepperLeapfrog< Scalar >, and Tempus::StepperNewmarkExplicitAForm< Scalar >.

Definition at line 77 of file Tempus_StepperExplicit_decl.hpp.

template<class Scalar >

virtual bool Tempus::StepperExplicit< Scalar >::isOneStepMethod ( ) const

inlinevirtual

Implements Tempus::Stepper< Scalar >.

Reimplemented in Tempus::StepperExplicitRK< Scalar >, Tempus::StepperLeapfrog< Scalar >, and Tempus::StepperNewmarkExplicitAForm< Scalar >.

Definition at line 76 of file Tempus_StepperExplicit_decl.hpp.

template<class Scalar >

bool Tempus::StepperExplicit< Scalar >::isValidSetup ( Teuchos::FancyOStream & out ) const

virtual

Reimplemented from Tempus::Stepper< Scalar >.

Reimplemented in Tempus::StepperExplicitRK< Scalar >, Tempus::StepperLeapfrog< Scalar >, Tempus::StepperForwardEuler< Scalar >, and Tempus::StepperNewmarkExplicitAForm< Scalar >.

Definition at line 313 of file Tempus_StepperExplicit_impl.hpp.

template<class Scalar >

void Tempus::StepperExplicit< Scalar >::setInitialConditions ( const Teuchos::RCP< SolutionHistory< Scalar > > & solutionHistory )

virtual

Set the initial conditions, make them consistent, and set needed memory.

Implements Tempus::Stepper< Scalar >.

Reimplemented in Tempus::StepperExplicitRK< Scalar >, Tempus::StepperLeapfrog< Scalar >, Tempus::StepperForwardEuler< Scalar >, and Tempus::StepperNewmarkExplicitAForm< Scalar >.

Definition at line 29 of file Tempus_StepperExplicit_impl.hpp.

template<class Scalar >

virtual void Tempus::StepperExplicit< Scalar >::setInitialGuess ( Teuchos::RCP< const Thyra::VectorBase< Scalar > > )

inlinevirtual

Pass initial guess to Newton solver (only relevant for implicit solvers)

Implements Tempus::Stepper< Scalar >.

Definition at line 69 of file Tempus_StepperExplicit_decl.hpp.

template<class Scalar >

void Tempus::StepperExplicit< Scalar >::setModel ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > & appModel )

virtual

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 17 of file Tempus_StepperExplicit_impl.hpp.

template<class Scalar >

void Tempus::StepperExplicit< Scalar >::setSolver ( Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > solver )

virtual

Set solver.

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 229 of file Tempus_StepperExplicit_impl.hpp.

Member Data Documentation

template<class Scalar >

Teuchos::RCP<const Thyra::ModelEvaluator<Scalar> > Tempus::StepperExplicit< Scalar >::appModel_

protected

Explicit ODE ModelEvaluator.

Definition at line 106 of file Tempus_StepperExplicit_decl.hpp.

template<class Scalar >

Thyra::ModelEvaluatorBase::InArgs<Scalar> Tempus::StepperExplicit< Scalar >::inArgs_

protected

Definition at line 108 of file Tempus_StepperExplicit_decl.hpp.

template<class Scalar >

Thyra::ModelEvaluatorBase::OutArgs<Scalar> Tempus::StepperExplicit< Scalar >::outArgs_

protected

Definition at line 109 of file Tempus_StepperExplicit_decl.hpp.

template<class Scalar >

Teuchos::RCP<StepperObserver<Scalar> > Tempus::StepperExplicit< Scalar >::stepperObserver_

protected

Definition at line 111 of file Tempus_StepperExplicit_decl.hpp.

The documentation for this class was generated from the following files:

http://docs.trilinos.org/r13.0/packages/tempus/src/Tempus_StepperExplicit_decl.hpp
http://docs.trilinos.org/r13.0/packages/tempus/src/Tempus_StepperExplicit_impl.hpp

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

template<class Scalar> class Tempus::StepperExplicit< Scalar >

Member Function Documentation

Member Data Documentation

template<class Scalar>
class Tempus::StepperExplicit< Scalar >
