#include <Xpetra_EpetraCrsGraph.hpp>

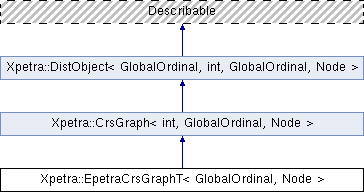

Inheritance diagram for Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >:

Public Member Functions
Teuchos::RCP< const Map < LocalOrdinal, GlobalOrdinal, Node > >	getMap () const
	Implements DistObject interface. More...

void	doImport (const DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)
	Import. More...

void	doExport (const DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &dest, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)
	Export. More...

void	doImport (const DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)
	Import (using an Exporter). More...

void	doExport (const DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &dest, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)
	Export (using an Importer). More...

Public Member Functions inherited from Xpetra::CrsGraph< int, GlobalOrdinal, Node >
virtual void	getLocalDiagOffsets (const Kokkos::View< size_t *, device_type, Kokkos::MemoryUnmanaged > &offsets) const =0
	Get offsets of the diagonal entries in the matrix. More...

virtual	~CrsGraph ()
	Destructor. More...

virtual void	fillComplete (const RCP< const Map< int, GlobalOrdinal, Node > > &domainMap, const RCP< const Map< int, GlobalOrdinal, Node > > &rangeMap, const RCP< ParameterList > &params=null)=0
	Signal that data entry is complete, specifying domain and range maps. More...

virtual void	expertStaticFillComplete (const RCP< const Map< int, GlobalOrdinal, Node > > &domainMap, const RCP< const Map< int, GlobalOrdinal, Node > > &rangeMap, const RCP< const Import< int, GlobalOrdinal, Node > > &importer=null, const RCP< const Export< int, GlobalOrdinal, Node > > &exporter=null, const RCP< Teuchos::ParameterList > &params=null)=0
	Expert version of fillComplete. More...

Public Member Functions inherited from Xpetra::DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node >
virtual	~DistObject ()
	Destructor. More...

virtual void	doImport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)=0
	Import data into this object using an Import object ("forward mode"). More...

virtual void	beginImport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)
	Import data into this object using an Import object ("forward mode"). More...

virtual void	endImport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)
	Import data into this object using an Import object ("forward mode"). More...

virtual void	doExport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)=0
	Export data into this object using an Export object ("forward mode"). More...

virtual void	beginExport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)
	Export data into this object using an Export object ("forward mode"). More...

virtual void	endExport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)
	Export data into this object using an Export object ("forward mode"). More...

virtual void	doImport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)=0
	Import data into this object using an Export object ("reverse mode"). More...

virtual void	beginImport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)
	Import data into this object using an Export object ("reverse mode"). More...

virtual void	endImport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)
	Import data into this object using an Export object ("reverse mode"). More...

virtual void	doExport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)=0
	Export data into this object using an Import object ("reverse mode"). More...

virtual void	beginExport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)
	Export data into this object using an Import object ("reverse mode"). More...

virtual void	endExport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)
	Export data into this object using an Import object ("reverse mode"). More...

Private Types
typedef int	LocalOrdinal

typedef Map< LocalOrdinal, GlobalOrdinal, Node >	map_type
	The specialization of Map used by this class. More...

typedef Xpetra::CrsGraph < LocalOrdinal, GlobalOrdinal, Node >::local_graph_type	local_graph_type

typedef Xpetra::CrsGraph < LocalOrdinal, GlobalOrdinal, Node >::node_type	node_type

typedef node_type::execution_space	execution_space

Constructor/Destructor Methods
	EpetraCrsGraphT (const RCP< const map_type > &rowMap, const RCP< Teuchos::ParameterList > &plist=Teuchos::null)
	Constructor for empty DynamicProfile graph (no space is preallocated). More...

	EpetraCrsGraphT (const RCP< const map_type > &rowMap, size_t maxNumEntriesPerRow, const RCP< Teuchos::ParameterList > &plist=Teuchos::null)
	Constructor specifying fixed number of entries for each row. More...

	EpetraCrsGraphT (const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node >> &rowMap, const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node >> &colMap, size_t maxNumEntriesPerRow, const Teuchos::RCP< Teuchos::ParameterList > &plist=null)
	Constructor specifying column Map and fixed number of entries for each row. More...

	EpetraCrsGraphT (const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node >> &rowMap, const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node >> &colMap, const ArrayRCP< const size_t > &NumEntriesPerRowToAlloc, const RCP< ParameterList > &params=null)

	EpetraCrsGraphT (const RCP< const CrsGraph< LocalOrdinal, GlobalOrdinal, Node >> &sourceGraph, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node >> &domainMap=Teuchos::null, const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node >> &rangeMap=Teuchos::null, const RCP< Teuchos::ParameterList > &params=Teuchos::null)

	EpetraCrsGraphT (const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node >> &rowMap, const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node >> &colMap, const typename local_graph_type::row_map_type &rowPointers, const typename local_graph_type::entries_type::non_const_type &columnIndices, const RCP< Teuchos::ParameterList > &plist=Teuchos::null)
	Constructor specifying column Map, number of entries in each row and column indices in each row. More...

	EpetraCrsGraphT (const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node >> &rowMap, const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node >> &colMap, const local_graph_type &lclGraph, const RCP< Teuchos::ParameterList > &plist=Teuchos::null)
	Constructor specifying column Map, number of entries in each row and column indices in each row. More...

	EpetraCrsGraphT (const local_graph_type &lclGraph, const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node >> &rowMap, const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node >> &colMap, const Teuchos::RCP< const map_type > &domainMap=Teuchos::null, const Teuchos::RCP< const map_type > &rangeMap=Teuchos::null, const RCP< Teuchos::ParameterList > &plist=Teuchos::null)
	Constructor specifying column Map, number of entries in each row and column indices in each row. More...

virtual	~EpetraCrsGraphT ()
	Destructor. More...

Insertion/Removal Methods
void	insertGlobalIndices (GlobalOrdinal globalRow, const ArrayView< const GlobalOrdinal > &indices)
	Insert global indices into the graph. More...

void	insertLocalIndices (const LocalOrdinal localRow, const ArrayView< const LocalOrdinal > &indices)
	Insert local indices into the graph. More...

void	removeLocalIndices (LocalOrdinal localRow)
	Remove all graph indices from the specified local row. More...

void	allocateAllIndices (size_t numNonZeros, ArrayRCP< size_t > &rowptr, ArrayRCP< LocalOrdinal > &colind)
	Allocates the 1D pointer arrays of the graph. More...

void	setAllIndices (const ArrayRCP< size_t > &rowptr, const ArrayRCP< LocalOrdinal > &colind)
	Sets the 1D pointer arrays of the graph. More...

void	getAllIndices (ArrayRCP< const size_t > &rowptr, ArrayRCP< const LocalOrdinal > &colind) const
	Gets the 1D pointer arrays of the graph. More...

Transformational Methods
void	fillComplete (const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node >> &domainMap, const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node >> &rangeMap, const RCP< ParameterList > &params=null)
	Signal that data entry is complete, specifying domain and range maps. More...

void	fillComplete (const RCP< ParameterList > &params=null)
	Signal that data entry is complete. More...

void	expertStaticFillComplete (const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node >> &domainMap, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node >> &rangeMap, const Teuchos::RCP< const Import< LocalOrdinal, GlobalOrdinal, Node >> &importer=Teuchos::null, const Teuchos::RCP< const Export< LocalOrdinal, GlobalOrdinal, Node >> &exporter=Teuchos::null, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	Expert version of fillComplete. More...

Methods implementing RowGraph.
RCP< const Comm< int > >	getComm () const
	Returns the communicator. More...

RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > >	getRowMap () const
	Returns the Map that describes the row distribution in this graph. More...

RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > >	getColMap () const
	Returns the Map that describes the column distribution in this graph. More...

RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > >	getDomainMap () const
	Returns the Map associated with the domain of this graph. More...

RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > >	getRangeMap () const
	Returns the Map associated with the domain of this graph. More...

RCP< const Import < LocalOrdinal, GlobalOrdinal, Node > >	getImporter () const
	Returns the importer associated with this graph. More...

RCP< const Export < LocalOrdinal, GlobalOrdinal, Node > >	getExporter () const
	Returns the exporter associated with this graph. More...

global_size_t	getGlobalNumRows () const
	Returns the number of global rows in the graph. More...

global_size_t	getGlobalNumCols () const
	Returns the number of global columns in the graph. More...

size_t	getLocalNumRows () const
	Returns the number of graph rows owned on the calling node. More...

size_t	getLocalNumCols () const
	Returns the number of columns connected to the locally owned rows of this graph. More...

GlobalOrdinal	getIndexBase () const
	Returns the index base for global indices for this graph. More...

global_size_t	getGlobalNumEntries () const
	Returns the global number of entries in the graph. More...

size_t	getLocalNumEntries () const
	Returns the local number of entries in the graph. More...

size_t	getNumEntriesInGlobalRow (GlobalOrdinal globalRow) const
	Returns the current number of entries on this node in the specified global row. More...

size_t	getNumEntriesInLocalRow (LocalOrdinal localRow) const
	Returns the current number of entries on this node in the specified local row. More...

size_t	getNumAllocatedEntriesInGlobalRow (GlobalOrdinal globalRow) const
	Returns the current number of allocated entries for this node in the specified global row . More...

size_t	getNumAllocatedEntriesInLocalRow (LocalOrdinal localRow) const
	Returns the current number of allocated entries on this node in the specified local row. More...

size_t	getGlobalMaxNumRowEntries () const
	Maximum number of entries in all rows over all processes. More...

size_t	getLocalMaxNumRowEntries () const
	Maximum number of entries in all rows owned by the calling process. More...

bool	hasColMap () const
	Whether the graph has a column Map. More...

bool	isLocallyIndexed () const
	Whether column indices are stored using local indices on the calling process. More...

bool	isGloballyIndexed () const
	Whether column indices are stored using global indices on the calling process. More...

bool	isFillComplete () const
	Whether fillComplete() has been called and the graph is in compute mode. More...

bool	isStorageOptimized () const
	Returns true if storage has been optimized. More...

void	getGlobalRowView (GlobalOrdinal GlobalRow, ArrayView< const GlobalOrdinal > &Indices) const
	Return a const, nonpersisting view of global indices in the given row. More...

void	getLocalRowView (LocalOrdinal LocalRow, ArrayView< const LocalOrdinal > &indices) const
	Return a const, nonpersisting view of local indices in the given row. More...

local_graph_type::HostMirror	getLocalGraphHost () const
	Get the local graph. More...

local_graph_type	getLocalGraphDevice () const

void	getLocalDiagOffsets (const Kokkos::View< size_t *, typename Node::device_type, Kokkos::MemoryUnmanaged > &offsets) const

void	computeGlobalConstants ()
	Force the computation of global constants if we don't have them. More...

Overridden from Teuchos::Describable
std::string	description () const
	Return a simple one-line description of this object. More...

void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
	Print the object with some verbosity level to an FancyOStream object. More...

Xpetra specific
	EpetraCrsGraphT (const Teuchos::RCP< Epetra_CrsGraph > &graph)
	EpetraCrsGraphT constructor to wrap a Epetra_CrsGraph object. More...

RCP< const Epetra_CrsGraph >	getEpetra_CrsGraph () const
	Get the underlying Epetra graph. More...

Additional Inherited Members
Public Types inherited from Xpetra::CrsGraph< int, GlobalOrdinal, Node >
typedef int	local_ordinal_type

typedef GlobalOrdinal	global_ordinal_type

typedef Node	node_type

typedef node_type::execution_space	execution_space

typedef node_type::device_type	device_type

typedef Kokkos::StaticCrsGraph < int, Kokkos::LayoutLeft, device_type, void, size_t >	local_graph_type

Detailed Description

template<class GlobalOrdinal, class Node>
class Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >

Definition at line 83 of file Xpetra_EpetraCrsGraph.hpp.

Member Typedef Documentation

template<class GlobalOrdinal , class Node >

typedef int Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::LocalOrdinal

private

Definition at line 85 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

typedef Map<LocalOrdinal, GlobalOrdinal, Node> Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::map_type

private

The specialization of Map used by this class.

Definition at line 88 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

typedef Xpetra::CrsGraph<LocalOrdinal, GlobalOrdinal, Node>::local_graph_type Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::local_graph_type

private

Definition at line 91 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

typedef Xpetra::CrsGraph<LocalOrdinal, GlobalOrdinal, Node>::node_type Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::node_type

private

Definition at line 92 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

typedef node_type::execution_space Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::execution_space

private

Definition at line 93 of file Xpetra_EpetraCrsGraph.hpp.

Constructor & Destructor Documentation

template<class GlobalOrdinal , class Node >

Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::EpetraCrsGraphT	(	const RCP< const map_type > &	rowMap,
		const RCP< Teuchos::ParameterList > &	plist = `Teuchos::null`
	)

inline

Constructor for empty DynamicProfile graph (no space is preallocated).

Definition at line 100 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::EpetraCrsGraphT	(	const RCP< const map_type > &	rowMap,
		size_t	maxNumEntriesPerRow,
		const RCP< Teuchos::ParameterList > &	plist = `Teuchos::null`
	)

inline

Constructor specifying fixed number of entries for each row.

Definition at line 106 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::EpetraCrsGraphT	(	const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node >> &	rowMap,
		const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node >> &	colMap,
		size_t	maxNumEntriesPerRow,
		const Teuchos::RCP< Teuchos::ParameterList > &	plist = `null`
	)

inline

Constructor specifying column Map and fixed number of entries for each row.

Definition at line 112 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::EpetraCrsGraphT	(	const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node >> &	rowMap,
		const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node >> &	colMap,
		const ArrayRCP< const size_t > &	NumEntriesPerRowToAlloc,
		const RCP< ParameterList > &	params = `null`
	)

inline

Definition at line 119 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::EpetraCrsGraphT	(	const RCP< const CrsGraph< LocalOrdinal, GlobalOrdinal, Node >> &	sourceGraph,
		const Import< LocalOrdinal, GlobalOrdinal, Node > &	importer,
		const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node >> &	domainMap = `Teuchos::null`,
		const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node >> &	rangeMap = `Teuchos::null`,
		const RCP< Teuchos::ParameterList > &	params = `Teuchos::null`
	)

inline

Definition at line 125 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::EpetraCrsGraphT	(	const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node >> &	rowMap,
		const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node >> &	colMap,
		const typename local_graph_type::row_map_type &	rowPointers,
		const typename local_graph_type::entries_type::non_const_type &	columnIndices,
		const RCP< Teuchos::ParameterList > &	plist = `Teuchos::null`
	)

inline

Constructor specifying column Map, number of entries in each row and column indices in each row.

Definition at line 136 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::EpetraCrsGraphT	(	const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node >> &	rowMap,
		const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node >> &	colMap,
		const local_graph_type &	lclGraph,
		const RCP< Teuchos::ParameterList > &	plist = `Teuchos::null`
	)

inline

Constructor specifying column Map, number of entries in each row and column indices in each row.

Definition at line 146 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::EpetraCrsGraphT	(	const local_graph_type &	lclGraph,
		const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node >> &	rowMap,
		const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node >> &	colMap,
		const Teuchos::RCP< const map_type > &	domainMap = `Teuchos::null`,
		const Teuchos::RCP< const map_type > &	rangeMap = `Teuchos::null`,
		const RCP< Teuchos::ParameterList > &	plist = `Teuchos::null`
	)

inline

Constructor specifying column Map, number of entries in each row and column indices in each row.

Definition at line 155 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

virtual Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::~EpetraCrsGraphT ( )

inlinevirtual

Destructor.

Definition at line 167 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::EpetraCrsGraphT ( const Teuchos::RCP< Epetra_CrsGraph > & graph )

inline

EpetraCrsGraphT constructor to wrap a Epetra_CrsGraph object.

Definition at line 375 of file Xpetra_EpetraCrsGraph.hpp.

Member Function Documentation

template<class GlobalOrdinal , class Node >

void Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::insertGlobalIndices	(	GlobalOrdinal	globalRow,
		const ArrayView< const GlobalOrdinal > &	indices
	)

inlinevirtual

Insert global indices into the graph.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 175 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

void Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::insertLocalIndices	(	const LocalOrdinal	localRow,
		const ArrayView< const LocalOrdinal > &	indices
	)

inlinevirtual

Insert local indices into the graph.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 178 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

void Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::removeLocalIndices ( LocalOrdinal localRow )

inlinevirtual

Remove all graph indices from the specified local row.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 181 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

void Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::allocateAllIndices	(	size_t	numNonZeros,
		ArrayRCP< size_t > &	rowptr,
		ArrayRCP< LocalOrdinal > &	colind
	)

inlinevirtual

Allocates the 1D pointer arrays of the graph.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 184 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

void Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::setAllIndices	(	const ArrayRCP< size_t > &	rowptr,
		const ArrayRCP< LocalOrdinal > &	colind
	)

inlinevirtual

Sets the 1D pointer arrays of the graph.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 187 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

void Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::getAllIndices	(	ArrayRCP< const size_t > &	rowptr,
		ArrayRCP< const LocalOrdinal > &	colind
	)		const

inlinevirtual

Gets the 1D pointer arrays of the graph.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 190 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

void Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::fillComplete	(	const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node >> &	domainMap,
		const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node >> &	rangeMap,
		const RCP< ParameterList > &	params = `null`
	)

inline

Signal that data entry is complete, specifying domain and range maps.

Definition at line 198 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

void Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::fillComplete ( const RCP< ParameterList > & params = null )

inlinevirtual

Signal that data entry is complete.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 201 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

void Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::expertStaticFillComplete	(	const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node >> &	domainMap,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node >> &	rangeMap,
		const Teuchos::RCP< const Import< LocalOrdinal, GlobalOrdinal, Node >> &	importer = `Teuchos::null`,
		const Teuchos::RCP< const Export< LocalOrdinal, GlobalOrdinal, Node >> &	exporter = `Teuchos::null`,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = `Teuchos::null`
	)

inline

Expert version of fillComplete.

Definition at line 205 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

RCP<const Comm<int> > Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::getComm ( ) const

inlinevirtual

Returns the communicator.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 220 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

RCP<const Map<LocalOrdinal, GlobalOrdinal, Node> > Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::getRowMap ( ) const

inlinevirtual

Returns the Map that describes the row distribution in this graph.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 225 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

RCP<const Map<LocalOrdinal, GlobalOrdinal, Node> > Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::getColMap ( ) const

inlinevirtual

Returns the Map that describes the column distribution in this graph.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 228 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

RCP<const Map<LocalOrdinal, GlobalOrdinal, Node> > Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::getDomainMap ( ) const

inlinevirtual

Returns the Map associated with the domain of this graph.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 231 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

RCP<const Map<LocalOrdinal, GlobalOrdinal, Node> > Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::getRangeMap ( ) const

inlinevirtual

Returns the Map associated with the domain of this graph.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 234 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

RCP<const Import<LocalOrdinal, GlobalOrdinal, Node> > Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::getImporter ( ) const

inlinevirtual

Returns the importer associated with this graph.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 237 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

RCP<const Export<LocalOrdinal, GlobalOrdinal, Node> > Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::getExporter ( ) const

inlinevirtual

Returns the exporter associated with this graph.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 240 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

global_size_t Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::getGlobalNumRows ( ) const

inlinevirtual

Returns the number of global rows in the graph.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 243 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

global_size_t Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::getGlobalNumCols ( ) const

inlinevirtual

Returns the number of global columns in the graph.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 246 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

size_t Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::getLocalNumRows ( ) const

inlinevirtual

Returns the number of graph rows owned on the calling node.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 249 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

size_t Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::getLocalNumCols ( ) const

inlinevirtual

Returns the number of columns connected to the locally owned rows of this graph.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 252 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

GlobalOrdinal Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::getIndexBase ( ) const

inlinevirtual

Returns the index base for global indices for this graph.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 255 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

global_size_t Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::getGlobalNumEntries ( ) const

inlinevirtual

Returns the global number of entries in the graph.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 258 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

size_t Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::getLocalNumEntries ( ) const

inlinevirtual

Returns the local number of entries in the graph.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 261 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

size_t Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::getNumEntriesInGlobalRow ( GlobalOrdinal globalRow ) const

inlinevirtual

Returns the current number of entries on this node in the specified global row.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 264 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

size_t Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::getNumEntriesInLocalRow ( LocalOrdinal localRow ) const

inlinevirtual

Returns the current number of entries on this node in the specified local row.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 267 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

size_t Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::getNumAllocatedEntriesInGlobalRow ( GlobalOrdinal globalRow ) const

inlinevirtual

Returns the current number of allocated entries for this node in the specified global row .

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 270 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

size_t Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::getNumAllocatedEntriesInLocalRow ( LocalOrdinal localRow ) const

inlinevirtual

Returns the current number of allocated entries on this node in the specified local row.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 273 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

size_t Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::getGlobalMaxNumRowEntries ( ) const

inlinevirtual

Maximum number of entries in all rows over all processes.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 276 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

size_t Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::getLocalMaxNumRowEntries ( ) const

inlinevirtual

Maximum number of entries in all rows owned by the calling process.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 279 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

bool Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::hasColMap ( ) const

inlinevirtual

Whether the graph has a column Map.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 282 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

bool Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::isLocallyIndexed ( ) const

inlinevirtual

Whether column indices are stored using local indices on the calling process.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 285 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

bool Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::isGloballyIndexed ( ) const

inlinevirtual

Whether column indices are stored using global indices on the calling process.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 288 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

bool Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::isFillComplete ( ) const

inlinevirtual

Whether fillComplete() has been called and the graph is in compute mode.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 291 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

bool Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::isStorageOptimized ( ) const

inlinevirtual

Returns true if storage has been optimized.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 294 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

void Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::getGlobalRowView	(	GlobalOrdinal	GlobalRow,
		ArrayView< const GlobalOrdinal > &	Indices
	)		const

inlinevirtual

Return a const, nonpersisting view of global indices in the given row.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 297 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

void Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::getLocalRowView	(	LocalOrdinal	LocalRow,
		ArrayView< const LocalOrdinal > &	indices
	)		const

inlinevirtual

Return a const, nonpersisting view of local indices in the given row.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 300 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

local_graph_type::HostMirror Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::getLocalGraphHost ( ) const

inlinevirtual

Get the local graph.

Warning: THIS IS AN EXPERT MODE FUNCTION. THIS IS AN IMPLEMENTATION DETAIL. DO NOT CALL THIS FUNCTION!!!

This is only a valid representation of the local graph if the (global) graph is fill complete.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 303 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

local_graph_type Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::getLocalGraphDevice ( ) const

inlinevirtual

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 315 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

void Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::getLocalDiagOffsets ( const Kokkos::View< size_t *, typename Node::device_type, Kokkos::MemoryUnmanaged > & offsets ) const

inline

Definition at line 321 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

void Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::computeGlobalConstants ( )

inlinevirtual

Force the computation of global constants if we don't have them.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 333 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

std::string Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::description ( ) const

inlinevirtual

Return a simple one-line description of this object.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 341 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

void Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::describe	(	Teuchos::FancyOStream &	out,
		const Teuchos::EVerbosityLevel	verbLevel = `Teuchos::Describable::verbLevel_default`
	)		const

inlinevirtual

Print the object with some verbosity level to an FancyOStream object.

Implements Xpetra::CrsGraph< int, GlobalOrdinal, Node >.

Definition at line 344 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

Teuchos::RCP<const Map<LocalOrdinal, GlobalOrdinal, Node> > Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::getMap ( ) const

inlinevirtual

Implements DistObject interface.

Access function for the Tpetra::Map this DistObject was constructed with.

Implements Xpetra::DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 352 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

void Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::doImport	(	const DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &	source,
		const Import< LocalOrdinal, GlobalOrdinal, Node > &	importer,
		CombineMode	CM
	)

inline

Import.

Definition at line 355 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

void Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::doExport	(	const DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &	dest,
		const Import< LocalOrdinal, GlobalOrdinal, Node > &	importer,
		CombineMode	CM
	)

inline

Export.

Definition at line 359 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

void Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::doImport	(	const DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &	source,
		const Export< LocalOrdinal, GlobalOrdinal, Node > &	exporter,
		CombineMode	CM
	)

inline

Import (using an Exporter).

Definition at line 363 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

void Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::doExport	(	const DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &	dest,
		const Export< LocalOrdinal, GlobalOrdinal, Node > &	exporter,
		CombineMode	CM
	)

inline

Export (using an Importer).

Definition at line 367 of file Xpetra_EpetraCrsGraph.hpp.

template<class GlobalOrdinal , class Node >

RCP<const Epetra_CrsGraph> Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >::getEpetra_CrsGraph ( ) const

inline

Get the underlying Epetra graph.

Definition at line 381 of file Xpetra_EpetraCrsGraph.hpp.

The documentation for this class was generated from the following file:

Xpetra_EpetraCrsGraph.hpp

Public Member Functions

Private Types

Constructor/Destructor Methods

Insertion/Removal Methods

Transformational Methods

Methods implementing RowGraph.

Overridden from Teuchos::Describable

Xpetra specific

Additional Inherited Members

Detailed Description

template<class GlobalOrdinal, class Node> class Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

template<class GlobalOrdinal, class Node>
class Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >
