Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node > Class Template Reference

#include <Xpetra_TpetraCrsGraph_decl.hpp>

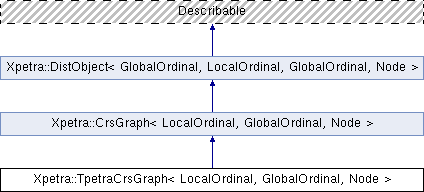

Inheritance diagram for Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >:
Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node > Xpetra::DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node >

Public Member Functions

Teuchos::RCP< const MapgetMap () const
 Implements DistObject interface. More...

void doImport (const DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &source, const Import &importer, CombineMode CM)
 Import. More...

void doExport (const DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &dest, const Import &importer, CombineMode CM)
 Export. More...

void doImport (const DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &source, const Export &exporter, CombineMode CM)
 Import (using an Exporter). More...

void doExport (const DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &dest, const Export &exporter, CombineMode CM)
 Export (using an Importer). More...

- Public Member Functions inherited from Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >
virtual ~CrsGraph ()
 Destructor. More...

virtual void expertStaticFillComplete (const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &domainMap, const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rangeMap, const RCP< const Import< LocalOrdinal, GlobalOrdinal, Node > > &importer=null, const RCP< const Export< LocalOrdinal, GlobalOrdinal, Node > > &exporter=null, const RCP< Teuchos::ParameterList > &params=null)=0
 Expert version of fillComplete. More...

virtual void getLocalDiagOffsets (const Kokkos::View< size_t *, device_type, Kokkos::MemoryUnmanaged > &offsets) const =0
 Get offsets of the diagonal entries in the matrix. More...

- Public Member Functions inherited from Xpetra::DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node >
virtual ~DistObject ()
 Destructor. More...

virtual void beginImport (const DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)
 Import data into this object using an Import object ("forward mode"). More...

virtual void beginImport (const DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)
 Import data into this object using an Export object ("reverse mode"). More...

virtual void endImport (const DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)
 Import data into this object using an Import object ("forward mode"). More...

virtual void endImport (const DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)
 Import data into this object using an Export object ("reverse mode"). More...

virtual void beginExport (const DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)
 Export data into this object using an Export object ("forward mode"). More...

virtual void beginExport (const DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)
 Export data into this object using an Import object ("reverse mode"). More...

virtual void endExport (const DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)
 Export data into this object using an Export object ("forward mode"). More...

virtual void endExport (const DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)
 Export data into this object using an Import object ("reverse mode"). More...


Private Types

typedef TpetraCrsGraph
< LocalOrdinal, GlobalOrdinal,
Node >
TpetraCrsGraphClass

typedef TpetraImport
< LocalOrdinal, GlobalOrdinal,
Node >
TpetraImportClass

typedef TpetraExport
< LocalOrdinal, GlobalOrdinal,
Node >
TpetraExportClass

typedef Map map_type

typedef Xpetra::CrsGraph
< LocalOrdinal, GlobalOrdinal,
Node >::local_graph_type
local_graph_type


Private Attributes

RCP< Tpetra::CrsGraph
< LocalOrdinal, GlobalOrdinal,
Node > >
graph_


Constructor/Destructor Methods

 TpetraCrsGraph (const RCP< const Map > &rowMap, size_t maxNumEntriesPerRow, const RCP< ParameterList > &params=null)
 Constructor specifying fixed number of entries for each row. More...

 TpetraCrsGraph (const RCP< const Map > &rowMap, const ArrayRCP< const size_t > &NumEntriesPerRowToAlloc, const RCP< ParameterList > &params=null)
 Constructor specifying (possibly different) number of entries in each row. More...

 TpetraCrsGraph (const RCP< const Map > &rowMap, const RCP< const Map > &colMap, size_t maxNumEntriesPerRow, const RCP< ParameterList > &params=null)
 Constructor specifying column Map and fixed number of entries for each row. More...

 TpetraCrsGraph (const RCP< const Map > &rowMap, const RCP< const Map > &colMap, const ArrayRCP< const size_t > &NumEntriesPerRowToAlloc, const RCP< ParameterList > &params=null)
 Constructor specifying column Map and number of entries in each row. More...

 TpetraCrsGraph (const RCP< const CrsGraph > &sourceGraph, const Import &importer, const RCP< const Map > &domainMap=Teuchos::null, const RCP< const Map > &rangeMap=Teuchos::null, const RCP< Teuchos::ParameterList > &params=Teuchos::null)

 TpetraCrsGraph (const Teuchos::RCP< const Map > &rowMap, const Teuchos::RCP< const Map > &colMap, const typename local_graph_type::row_map_type &rowPointers, const typename local_graph_type::entries_type::non_const_type &columnIndices, const Teuchos::RCP< Teuchos::ParameterList > &plist=Teuchos::null)
 Constructor specifying column Map and arrays containing the graph in sorted, local ids. More...

 TpetraCrsGraph (const local_graph_type &lclGraph, const Teuchos::RCP< const map_type > &rowMap, const Teuchos::RCP< const map_type > &colMap, const Teuchos::RCP< const map_type > &domainMap=Teuchos::null, const Teuchos::RCP< const map_type > &rangeMap=Teuchos::null, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
 Constructor specifying column, domain and range maps, and a local (sorted) graph, which the resulting CrsGraph views. More...

 TpetraCrsGraph (const Teuchos::RCP< const Map > &rowMap, const Teuchos::RCP< const Map > &colMap, const local_graph_type &lclGraph, const Teuchos::RCP< Teuchos::ParameterList > &params)
 Constructor specifying column Map and a local (sorted) graph, which the resulting CrsGraph views. More...

 TpetraCrsGraph (const Teuchos::RCP< const Map > &rowMap, const Teuchos::RCP< const Map > &colMap, const Teuchos::ArrayRCP< size_t > &rowPointers, const Teuchos::ArrayRCP< LocalOrdinal > &columnIndices, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)

virtual ~TpetraCrsGraph ()
 Destructor. More...


Insertion/Removal Methods

void insertGlobalIndices (GlobalOrdinal globalRow, const ArrayView< const GlobalOrdinal > &indices)
 Insert global indices into the graph. More...

void insertLocalIndices (const LocalOrdinal localRow, const ArrayView< const LocalOrdinal > &indices)
 Insert local indices into the graph. More...

void removeLocalIndices (LocalOrdinal localRow)
 Remove all graph indices from the specified local row. More...

void allocateAllIndices (size_t numNonZeros, ArrayRCP< size_t > &rowptr, ArrayRCP< LocalOrdinal > &colind)
 Allocates the 1D pointer arrays of the graph. More...

void setAllIndices (const ArrayRCP< size_t > &rowptr, const ArrayRCP< LocalOrdinal > &colind)
 Sets the 1D pointer arrays of the graph. More...

void getAllIndices (ArrayRCP< const size_t > &rowptr, ArrayRCP< const LocalOrdinal > &colind) const
 Gets the 1D pointer arrays of the graph. More...


Transformational Methods

void fillComplete (const RCP< const Map > &domainMap, const RCP< const Map > &rangeMap, const RCP< ParameterList > &params=null)
 Signal that data entry is complete, specifying domain and range maps. More...

void fillComplete (const RCP< ParameterList > &params=null)
 Signal that data entry is complete. More...

void expertStaticFillComplete (const Teuchos::RCP< const map_type > &domainMap, const Teuchos::RCP< const map_type > &rangeMap, const Teuchos::RCP< const Import > &importer=Teuchos::null, const Teuchos::RCP< const Export > &exporter=Teuchos::null, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
 Expert version of fillComplete. More...


Methods implementing RowGraph.

RCP< const Comm< int > > getComm () const
 Returns the communicator. More...

RCP< const MapgetRowMap () const
 Returns the Map that describes the row distribution in this graph. More...

RCP< const MapgetColMap () const
 Returns the Map that describes the column distribution in this graph. More...

RCP< const MapgetDomainMap () const
 Returns the Map associated with the domain of this graph. More...

RCP< const MapgetRangeMap () const
 Returns the Map associated with the domain of this graph. More...

RCP< const ImportgetImporter () const
 Returns the importer associated with this graph. More...

RCP< const ExportgetExporter () const
 Returns the exporter associated with this graph. More...

global_size_t getGlobalNumRows () const
 Returns the number of global rows in the graph. More...

global_size_t getGlobalNumCols () const
 Returns the number of global columns in the graph. More...

size_t getLocalNumRows () const
 Returns the number of graph rows owned on the calling node. More...

size_t getLocalNumCols () const
 Returns the number of columns connected to the locally owned rows of this graph. More...

GlobalOrdinal getIndexBase () const
 Returns the index base for global indices for this graph. More...

global_size_t getGlobalNumEntries () const
 Returns the global number of entries in the graph. More...

size_t getLocalNumEntries () const
 Returns the local number of entries in the graph. More...

size_t getNumEntriesInGlobalRow (GlobalOrdinal globalRow) const
 Returns the current number of entries on this node in the specified global row. More...

size_t getNumEntriesInLocalRow (LocalOrdinal localRow) const
 Returns the current number of entries on this node in the specified local row. More...

size_t getNumAllocatedEntriesInGlobalRow (GlobalOrdinal globalRow) const
 Returns the current number of allocated entries for this node in the specified global row . More...

size_t getNumAllocatedEntriesInLocalRow (LocalOrdinal localRow) const
 Returns the current number of allocated entries on this node in the specified local row. More...

size_t getGlobalMaxNumRowEntries () const
 Maximum number of entries in all rows over all processes. More...

size_t getLocalMaxNumRowEntries () const
 Maximum number of entries in all rows owned by the calling process. More...

bool hasColMap () const
 Whether the graph has a column Map. More...

bool isLocallyIndexed () const
 Whether column indices are stored using local indices on the calling process. More...

bool isGloballyIndexed () const
 Whether column indices are stored using global indices on the calling process. More...

bool isFillComplete () const
 Whether fillComplete() has been called and the graph is in compute mode. More...

bool isStorageOptimized () const
 Returns true if storage has been optimized. More...

void getGlobalRowView (GlobalOrdinal GlobalRow, ArrayView< const GlobalOrdinal > &Indices) const
 Return a const, nonpersisting view of global indices in the given row. More...

void getLocalRowView (LocalOrdinal LocalRow, ArrayView< const LocalOrdinal > &indices) const
 Return a const, nonpersisting view of local indices in the given row. More...

local_graph_type::HostMirror getLocalGraphHost () const
 Access the local KokkosSparse::StaticCrsGraph data for host use. More...

local_graph_type getLocalGraphDevice () const
 Access the local KokkosSparse::StaticCrsGraph data for device use. More...

void getLocalDiagOffsets (const Kokkos::View< size_t *, typename Node::device_type, Kokkos::MemoryUnmanaged > &offsets) const
 Get offsets of the diagonal entries in the matrix. More...

void computeGlobalConstants ()
 Force the computation of global constants if we don't have them. More...


Overridden from Teuchos::Describable

std::string description () const
 Return a simple one-line description of this object. More...

void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
 Print the object with some verbosity level to an FancyOStream object. More...


Advanced methods, at increased risk of deprecation.

ArrayRCP< const size_t > getNodeRowPtrs () const
 Get an ArrayRCP of the row-offsets. More...


Xpetra specific

 TpetraCrsGraph (const Teuchos::RCP< Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node > > &graph)
 TpetraCrsGraph constructor to wrap a Tpetra::CrsGraph object. More...

RCP< const Tpetra::CrsGraph
< LocalOrdinal, GlobalOrdinal,
Node > >
getTpetra_CrsGraph () const
 Get the underlying Tpetra graph. More...


Additional Inherited Members

- Public Types inherited from Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >
typedef LocalOrdinal local_ordinal_type

typedef GlobalOrdinal global_ordinal_type

typedef Node node_type

typedef node_type::execution_space execution_space

typedef node_type::device_type device_type

typedef Kokkos::StaticCrsGraph
< LocalOrdinal,
Kokkos::LayoutLeft,
device_type, void, size_t >
local_graph_type


Detailed Description

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
class Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >

Definition at line 67 of file Xpetra_TpetraCrsGraph_decl.hpp.

Member Typedef Documentation

template<class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
typedef TpetraCrsGraph<LocalOrdinal, GlobalOrdinal, Node> Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::TpetraCrsGraphClass
private

Definition at line 72 of file Xpetra_TpetraCrsGraph_decl.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
typedef TpetraImport<LocalOrdinal, GlobalOrdinal, Node> Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::TpetraImportClass
private

Definition at line 73 of file Xpetra_TpetraCrsGraph_decl.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
typedef TpetraExport<LocalOrdinal, GlobalOrdinal, Node> Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::TpetraExportClass
private

Definition at line 74 of file Xpetra_TpetraCrsGraph_decl.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
typedef Map Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::map_type
private

Definition at line 75 of file Xpetra_TpetraCrsGraph_decl.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
typedef Xpetra::CrsGraph<LocalOrdinal, GlobalOrdinal, Node>::local_graph_type Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::local_graph_type
private

Definition at line 77 of file Xpetra_TpetraCrsGraph_decl.hpp.

Constructor & Destructor Documentation

template<class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::TpetraCrsGraph ( const RCP< const Map > &  rowMap,
size_t  maxNumEntriesPerRow,
const RCP< ParameterList > &  params = null
)

Constructor specifying fixed number of entries for each row.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::TpetraCrsGraph ( const RCP< const Map > &  rowMap,
const ArrayRCP< const size_t > &  NumEntriesPerRowToAlloc,
const RCP< ParameterList > &  params = null
)

Constructor specifying (possibly different) number of entries in each row.

Definition at line 67 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::TpetraCrsGraph ( const RCP< const Map > &  rowMap,
const RCP< const Map > &  colMap,
size_t  maxNumEntriesPerRow,
const RCP< ParameterList > &  params = null
)

Constructor specifying column Map and fixed number of entries for each row.

Definition at line 71 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::TpetraCrsGraph ( const RCP< const Map > &  rowMap,
const RCP< const Map > &  colMap,
const ArrayRCP< const size_t > &  NumEntriesPerRowToAlloc,
const RCP< ParameterList > &  params = null
)

Constructor specifying column Map and number of entries in each row.

Definition at line 75 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::TpetraCrsGraph ( const RCP< const CrsGraph > &  sourceGraph,
const Import importer,
const RCP< const Map > &  domainMap = Teuchos::null,
const RCP< const Map > &  rangeMap = Teuchos::null,
const RCP< Teuchos::ParameterList > &  params = Teuchos::null
)
template<class LocalOrdinal , class GlobalOrdinal , class Node >
Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::TpetraCrsGraph ( const Teuchos::RCP< const Map > &  rowMap,
const Teuchos::RCP< const Map > &  colMap,
const typename local_graph_type::row_map_type &  rowPointers,
const typename local_graph_type::entries_type::non_const_type &  columnIndices,
const Teuchos::RCP< Teuchos::ParameterList > &  plist = Teuchos::null
)

Constructor specifying column Map and arrays containing the graph in sorted, local ids.

Parameters
rowMap[in] Distribution of rows of the graph.
colMap[in] Distribution of columns of the graph.
rowPointers[in] The beginning of each row in the graph, as in a CSR "rowptr" array. The length of this vector should be equal to the number of rows in the graph, plus one. This last entry should store the nunber of nonzeros in the graph.
columnIndices[in] The local indices of the columns, as in a CSR "colind" array. The length of this vector should be equal to the number of unknowns in the graph.
params[in/out] Optional list of parameters. If not null, any missing parameters will be filled in with their default values.

Definition at line 99 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::TpetraCrsGraph ( const local_graph_type lclGraph,
const Teuchos::RCP< const map_type > &  rowMap,
const Teuchos::RCP< const map_type > &  colMap,
const Teuchos::RCP< const map_type > &  domainMap = Teuchos::null,
const Teuchos::RCP< const map_type > &  rangeMap = Teuchos::null,
const Teuchos::RCP< Teuchos::ParameterList > &  params = Teuchos::null
)

Constructor specifying column, domain and range maps, and a local (sorted) graph, which the resulting CrsGraph views.

Unlike most other CrsGraph constructors, successful completion of this constructor will result in a fill-complete graph.

Parameters
rowMap[in] Distribution of rows of the graph.
colMap[in] Distribution of columns of the graph.
domainMap[in] The graph's domain Map. MUST be one to one!
rangeMap[in] The graph's range Map. MUST be one to one! May be, but need not be, the same as the domain Map.
lclGraph[in] A locally indexed Kokkos::StaticCrsGraph whose local row indices come from the specified row Map, and whose local column indices come from the specified column Map.
params[in/out] Optional list of parameters. If not null, any missing parameters will be filled in with their default values.

Definition at line 116 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::TpetraCrsGraph ( const Teuchos::RCP< const Map > &  rowMap,
const Teuchos::RCP< const Map > &  colMap,
const local_graph_type lclGraph,
const Teuchos::RCP< Teuchos::ParameterList > &  params
)

Constructor specifying column Map and a local (sorted) graph, which the resulting CrsGraph views.

Unlike most other CrsGraph constructors, successful completion of this constructor will result in a fill-complete graph.

Parameters
rowMap[in] Distribution of rows of the graph.
colMap[in] Distribution of columns of the graph.
lclGraph[in] A locally indexed Kokkos::StaticCrsGraph whose local row indices come from the specified row Map, and whose local column indices come from the specified column Map.
params[in/out] Optional list of parameters. If not null, any missing parameters will be filled in with their default values.

Definition at line 108 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::TpetraCrsGraph ( const Teuchos::RCP< const Map > &  rowMap,
const Teuchos::RCP< const Map > &  colMap,
const Teuchos::ArrayRCP< size_t > &  rowPointers,
const Teuchos::ArrayRCP< LocalOrdinal > &  columnIndices,
const Teuchos::RCP< Teuchos::ParameterList > &  params = Teuchos::null
)

Definition at line 126 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::~TpetraCrsGraph ( )
virtual

Destructor.

Definition at line 134 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::TpetraCrsGraph ( const Teuchos::RCP< Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node > > &  graph)

TpetraCrsGraph constructor to wrap a Tpetra::CrsGraph object.

Definition at line 465 of file Xpetra_TpetraCrsGraph_def.hpp.

Member Function Documentation

template<class LocalOrdinal , class GlobalOrdinal , class Node >
void Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::insertGlobalIndices ( GlobalOrdinal  globalRow,
const ArrayView< const GlobalOrdinal > &  indices
)
virtual

Insert global indices into the graph.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 137 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
void Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::insertLocalIndices ( const LocalOrdinal  localRow,
const ArrayView< const LocalOrdinal > &  indices
)
virtual

Insert local indices into the graph.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 143 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
void Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::removeLocalIndices ( LocalOrdinal  localRow)
virtual

Remove all graph indices from the specified local row.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 149 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
void Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::allocateAllIndices ( size_t  numNonZeros,
ArrayRCP< size_t > &  rowptr,
ArrayRCP< LocalOrdinal > &  colind
)
virtual

Allocates the 1D pointer arrays of the graph.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 156 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
void Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::setAllIndices ( const ArrayRCP< size_t > &  rowptr,
const ArrayRCP< LocalOrdinal > &  colind
)
virtual

Sets the 1D pointer arrays of the graph.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 163 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
void Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getAllIndices ( ArrayRCP< const size_t > &  rowptr,
ArrayRCP< const LocalOrdinal > &  colind
) const
virtual

Gets the 1D pointer arrays of the graph.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 169 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
void Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::fillComplete ( const RCP< const Map > &  domainMap,
const RCP< const Map > &  rangeMap,
const RCP< ParameterList > &  params = null
)
virtual

Signal that data entry is complete, specifying domain and range maps.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 175 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
void Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::fillComplete ( const RCP< ParameterList > &  params = null)
virtual

Signal that data entry is complete.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 181 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
void Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::expertStaticFillComplete ( const Teuchos::RCP< const map_type > &  domainMap,
const Teuchos::RCP< const map_type > &  rangeMap,
const Teuchos::RCP< const Import > &  importer = Teuchos::null,
const Teuchos::RCP< const Export > &  exporter = Teuchos::null,
const Teuchos::RCP< Teuchos::ParameterList > &  params = Teuchos::null
)

Expert version of fillComplete.

Definition at line 188 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
RCP< const Comm< int > > Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getComm ( ) const
virtual

Returns the communicator.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 210 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getRowMap ( ) const
virtual

Returns the Map that describes the row distribution in this graph.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 216 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getColMap ( ) const
virtual

Returns the Map that describes the column distribution in this graph.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 222 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getDomainMap ( ) const
virtual

Returns the Map associated with the domain of this graph.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 228 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getRangeMap ( ) const
virtual

Returns the Map associated with the domain of this graph.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 234 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
RCP< const Import< LocalOrdinal, GlobalOrdinal, Node > > Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getImporter ( ) const
virtual

Returns the importer associated with this graph.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 240 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
RCP< const Export< LocalOrdinal, GlobalOrdinal, Node > > Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getExporter ( ) const
virtual

Returns the exporter associated with this graph.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 246 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
global_size_t Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getGlobalNumRows ( ) const
virtual

Returns the number of global rows in the graph.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 252 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
global_size_t Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getGlobalNumCols ( ) const
virtual

Returns the number of global columns in the graph.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 258 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
size_t Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalNumRows ( ) const
virtual

Returns the number of graph rows owned on the calling node.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 264 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
size_t Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalNumCols ( ) const
virtual

Returns the number of columns connected to the locally owned rows of this graph.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 270 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
GlobalOrdinal Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getIndexBase ( ) const
virtual

Returns the index base for global indices for this graph.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 276 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
global_size_t Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getGlobalNumEntries ( ) const
virtual

Returns the global number of entries in the graph.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 282 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
size_t Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalNumEntries ( ) const
virtual

Returns the local number of entries in the graph.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 288 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
size_t Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getNumEntriesInGlobalRow ( GlobalOrdinal  globalRow) const
virtual

Returns the current number of entries on this node in the specified global row.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 294 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
size_t Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getNumEntriesInLocalRow ( LocalOrdinal  localRow) const
virtual

Returns the current number of entries on this node in the specified local row.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 300 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
size_t Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getNumAllocatedEntriesInGlobalRow ( GlobalOrdinal  globalRow) const
virtual

Returns the current number of allocated entries for this node in the specified global row .

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 306 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
size_t Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getNumAllocatedEntriesInLocalRow ( LocalOrdinal  localRow) const
virtual

Returns the current number of allocated entries on this node in the specified local row.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 312 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
size_t Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getGlobalMaxNumRowEntries ( ) const
virtual

Maximum number of entries in all rows over all processes.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 318 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
size_t Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalMaxNumRowEntries ( ) const
virtual

Maximum number of entries in all rows owned by the calling process.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 324 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
bool Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::hasColMap ( ) const
virtual

Whether the graph has a column Map.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 330 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
bool Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::isLocallyIndexed ( ) const
virtual

Whether column indices are stored using local indices on the calling process.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 336 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
bool Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::isGloballyIndexed ( ) const
virtual

Whether column indices are stored using global indices on the calling process.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 342 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
bool Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::isFillComplete ( ) const
virtual

Whether fillComplete() has been called and the graph is in compute mode.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 348 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
bool Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::isStorageOptimized ( ) const
virtual

Returns true if storage has been optimized.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 354 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
void Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getGlobalRowView ( GlobalOrdinal  GlobalRow,
ArrayView< const GlobalOrdinal > &  Indices
) const
virtual

Return a const, nonpersisting view of global indices in the given row.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 360 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
void Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalRowView ( LocalOrdinal  LocalRow,
ArrayView< const LocalOrdinal > &  indices
) const
virtual

Return a const, nonpersisting view of local indices in the given row.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 368 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::local_graph_type::HostMirror Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalGraphHost ( ) const
virtual

Access the local KokkosSparse::StaticCrsGraph data for host use.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 376 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::local_graph_type Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalGraphDevice ( ) const
virtual

Access the local KokkosSparse::StaticCrsGraph data for device use.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 381 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
void Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalDiagOffsets ( const Kokkos::View< size_t *, typename Node::device_type, Kokkos::MemoryUnmanaged > &  offsets) const

Get offsets of the diagonal entries in the matrix.

Definition at line 386 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
void Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::computeGlobalConstants ( )
virtual

Force the computation of global constants if we don't have them.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 391 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
std::string Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::description ( ) const
virtual

Return a simple one-line description of this object.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 397 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
void Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::describe ( Teuchos::FancyOStream &  out,
const Teuchos::EVerbosityLevel  verbLevel = Teuchos::Describable::verbLevel_default
) const
virtual

Print the object with some verbosity level to an FancyOStream object.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 403 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
ArrayRCP< const size_t > Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getNodeRowPtrs ( ) const

Get an ArrayRCP of the row-offsets.

Definition at line 409 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getMap ( ) const
virtual

Implements DistObject interface.

Access function for the Tpetra::Map this DistObject was constructed with.

Implements Xpetra::DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 415 of file Xpetra_TpetraCrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >
void Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::doImport ( const DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &  source,
const Import importer,
CombineMode  CM
)
virtual
template<class LocalOrdinal , class GlobalOrdinal , class Node >
void Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::doExport ( const DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &  dest,
const Import importer,
CombineMode  CM
)
virtual
template<class LocalOrdinal , class GlobalOrdinal , class Node >
void Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::doImport ( const DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &  source,
const Export exporter,
CombineMode  CM
)
virtual
template<class LocalOrdinal , class GlobalOrdinal , class Node >
void Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::doExport ( const DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &  dest,
const Export exporter,
CombineMode  CM
)
virtual
template<class LocalOrdinal , class GlobalOrdinal , class Node >
RCP< const Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node > > Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getTpetra_CrsGraph ( ) const

Get the underlying Tpetra graph.

Definition at line 469 of file Xpetra_TpetraCrsGraph_def.hpp.

Member Data Documentation

template<class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
RCP<Tpetra::CrsGraph<LocalOrdinal, GlobalOrdinal, Node> > Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::graph_
private

Definition at line 389 of file Xpetra_TpetraCrsGraph_decl.hpp.


The documentation for this class was generated from the following files:
