Concrete implementation of an SPMD vector space subclass which creates DefaultSpmdVector and DefaultSpmdMultiVector objects. More...

#include <Thyra_DefaultSpmdVectorSpace_decl.hpp>

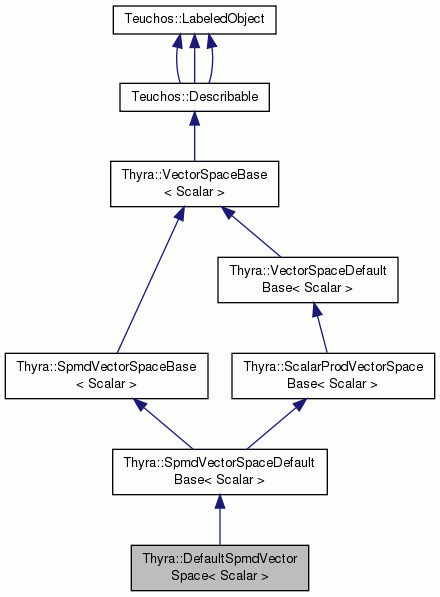

Inheritance diagram for Thyra::DefaultSpmdVectorSpace< Scalar >:

[legend]

Related Functions
(Note that these are not member functions.)
template<class Scalar >
RCP< DefaultSpmdVectorSpace < Scalar > >	defaultSpmdVectorSpace ()
	Nonmember consturctor that creats an uninitialized vector space. More...

template<class Scalar >
RCP< DefaultSpmdVectorSpace < Scalar > >	defaultSpmdVectorSpace (const Ordinal dim)
	Nonmember consturctor that creats a serial vector space. More...

template<class Scalar >
RCP< DefaultSpmdVectorSpace < Scalar > >	defaultSpmdVectorSpace (const RCP< const Teuchos::Comm< Ordinal > > &comm, const Ordinal localSubDim, const Ordinal globalDim, const bool isLocallyReplicated=false)
	Nonmember consturctor function that creates a distributed or locally-replicated parallel vector space. More...

template<class Scalar >
RCP< DefaultSpmdVectorSpace < Scalar > >	locallyReplicatedDefaultSpmdVectorSpace (const RCP< const Teuchos::Comm< Ordinal > > &comm, const Ordinal globalDim)
	Nonmember consturctor function that creates a locally-replicated parallel vector space. More...

Related Functions inherited from Thyra::VectorSpaceBase< Scalar >
template<class Scalar >
RCP< const VectorSpaceBase < Scalar > >	makeHaveOwnership (const RCP< const VectorSpaceBase< Scalar > > &vs)
	Helper function that clones a `VectorSpaceBase` object if the `RCP` does not have ownership. More...

template<class Scalar >
RCP< VectorBase< Scalar > >	createMember (const RCP< const VectorSpaceBase< Scalar > > &vs, const std::string &label="")
	Create a vector member from the vector space. More...

template<class Scalar >
RCP< VectorBase< Scalar > >	createMember (const VectorSpaceBase< Scalar > &vs, const std::string &label="")
	Calls `createMember(Teuchos::rcp(&vs,false))`. More...

template<class Scalar >
RCP< MultiVectorBase< Scalar > >	createMembers (const RCP< const VectorSpaceBase< Scalar > > &vs, int numMembers, const std::string &label="")
	Create a set of vector members (a `MultiVectorBase`) from the vector space. More...

template<class Scalar >
RCP< MultiVectorBase< Scalar > >	createMembers (const RCP< const VectorSpaceBase< Scalar > > &vs, const RCP< const VectorSpaceBase< Scalar > > &domain, const std::string &label="")
	Create a set of vector members (a `MultiVectorBase`) from the vector space. More...

template<class Scalar >
RCP< MultiVectorBase< Scalar > >	createMembers (const VectorSpaceBase< Scalar > &vs, int numMembers, const std::string &label="")
	Calls `createMembers(Teuchos::rcp(&vs,false),numMembers)`. More...

template<class Scalar >
RCP< VectorBase< Scalar > >	createMemberView (const RCP< const VectorSpaceBase< Scalar > > &vs, const RTOpPack::SubVectorView< Scalar > &raw_v, const std::string &label="")
	Create a vector member that is a non-`const` view of raw data. More...

template<class Scalar >
RCP< VectorBase< Scalar > >	createMemberView (const VectorSpaceBase< Scalar > &vs, const RTOpPack::SubVectorView< Scalar > &raw_v, const std::string &label="")
	Calls `createMemberView(Teuchos::rcp(&vs,false),raw_v)`. More...

template<class Scalar >
RCP< const VectorBase< Scalar > >	createMemberView (const RCP< const VectorSpaceBase< Scalar > > &vs, const RTOpPack::ConstSubVectorView< Scalar > &raw_v, const std::string &label="")
	Create a vector member that is a `const` view of raw data. More...

template<class Scalar >
RCP< const VectorBase< Scalar > >	createMemberView (const VectorSpaceBase< Scalar > &vs, const RTOpPack::ConstSubVectorView< Scalar > &raw_v, const std::string &label="")
	Calls `createMemberView(Teuchos::rcp(&vs,false),raw_v)`. More...

template<class Scalar >
RCP< MultiVectorBase< Scalar > >	createMembersView (const RCP< const VectorSpaceBase< Scalar > > &vs, const RTOpPack::SubMultiVectorView< Scalar > &raw_mv, const std::string &label="")
	Create a multi-vector member that is a non-`const` view of raw data. More...

template<class Scalar >
RCP< MultiVectorBase< Scalar > >	createMembersView (const VectorSpaceBase< Scalar > &vs, const RTOpPack::SubMultiVectorView< Scalar > &raw_mv, const std::string &label="")
	Calls `createMembersView(Teuchos::rcp(&vs,false),raw_mv)`. More...

template<class Scalar >
RCP< const MultiVectorBase < Scalar > >	createMembersView (const RCP< const VectorSpaceBase< Scalar > > &vs, const RTOpPack::ConstSubMultiVectorView< Scalar > &raw_mv, const std::string &label="")
	Create a multi-vector member that is a `const` view of raw data. More...

template<class Scalar >
RCP< const MultiVectorBase < Scalar > >	createMembersView (const VectorSpaceBase< Scalar > &vs, const RTOpPack::ConstSubMultiVectorView< Scalar > &raw_mv, const std::string &label="")
	Calls `createMembersView(Teuchos::rcp(&vs,false),raw_mv)`. More...

Related Functions inherited from Thyra::ScalarProdVectorSpaceBase< Scalar >
template<class Scalar >
RCP< const ScalarProdVectorSpaceBase < Scalar > >	createSmallScalarProdVectorSpaceBase (const RCP< const VectorSpaceBase< Scalar > > &vs, const Ordinal dim)
	Create a small vector space casted to ScalarProdVectorSpaceBase. More...

Constructors and initializers
static RCP < DefaultSpmdVectorSpace < Scalar > >	create ()
	Create with weak ownership to self. More...

void	initialize (const Ordinal dim)
	Initialize a serial space. More...

void	initialize (const RCP< const Teuchos::Comm< Ordinal > > &comm, const Ordinal localSubDim, const Ordinal globalDim, const bool isLocallyReplicated=false)
	Initialize an SPMD space. More...

void	uninitialize ()
	Set to an uninitialized state. More...

Public overridden from VectorSpaceBase
bool	hasInCoreView (const Range1D &rng, const EViewType viewType, const EStrideType strideType) const
	Returns true if all the elements in `rng` are in this process. More...

RCP< const VectorSpaceBase < Scalar > >	clone () const

Protected overridden from VectorSpaceBase
RCP< VectorBase< Scalar > >	createMember () const

RCP< MultiVectorBase< Scalar > >	createMembers (int numMembers) const

RCP< VectorBase< Scalar > >	createMemberView (const RTOpPack::SubVectorView< Scalar > &raw_v) const

RCP< const VectorBase< Scalar > >	createMemberView (const RTOpPack::ConstSubVectorView< Scalar > &raw_v) const

RCP< MultiVectorBase< Scalar > >	createMembersView (const RTOpPack::SubMultiVectorView< Scalar > &raw_mv) const

RCP< const MultiVectorBase < Scalar > >	createMembersView (const RTOpPack::ConstSubMultiVectorView< Scalar > &raw_mv) const

Public overridden from SpmdVectorSpaceDefaultBase
RCP< const Teuchos::Comm < Ordinal > >	getComm () const

Ordinal	localSubDim () const

Additional Inherited Members
Public Member Functions inherited from Thyra::SpmdVectorSpaceDefaultBase< Scalar >
	SpmdVectorSpaceDefaultBase ()

Ordinal	localOffset () const

Ordinal	mapCode () const

bool	isLocallyReplicated () const
	Returns true if vector space is locally replicated space. More...

std::string	description () const

Ordinal	dim () const
	Returns the sum of the local number of elements on every process. More...

Teuchos::RCP< const VectorSpaceFactoryBase< Scalar > >	smallVecSpcFcty () const
	Returns a `DefaultSpmdVectorSpaceFactory` object that has been given `getComm()`. More...

bool	isCompatible (const VectorSpaceBase< Scalar > &vecSpc) const
	Checks the general compatibility of parallel (or serial on one process) Spmd-based vector spaces. More...

Public Member Functions inherited from Thyra::SpmdVectorSpaceBase< Scalar >
Public Member Functions inherited from Thyra::VectorSpaceBase< Scalar >
void	scalarProds (const MultiVectorBase< Scalar > &X, const MultiVectorBase< Scalar > &Y, const ArrayView< Scalar > &scalarProds_out) const
	Return the scalar product of each column in two multi-vectors in the vector space. More...

virtual RCP< MultiVectorBase < Scalar > >	createCachedMembersView (const RTOpPack::SubMultiVectorView< Scalar > &raw_mv, bool initialize=true) const
	Create a (possibly) cached multi-vector member that is a non-`const` view of raw multi-vector data. The caching mechanism must be implemented by child classes, by default this just calls the regular `createMembersView`. More...

virtual RCP< const MultiVectorBase< Scalar > >	createCachedMembersView (const RTOpPack::ConstSubMultiVectorView< Scalar > &raw_mv) const
	Create a (possibly) cached multi-vector member that is a `const` view of raw multi-vector data. The caching mechanism must be implemented by child classes, by default this just calls the regular `createMembersView`. More...

Public Member Functions inherited from Thyra::ScalarProdVectorSpaceBase< Scalar >
	ScalarProdVectorSpaceBase ()
	Construct to use dot product as the default. More...

	ScalarProdVectorSpaceBase (const RCP< const ScalarProdBase< Scalar > > &scalarProd)
	Construct with a different scalar product. More...

virtual void	setScalarProd (const RCP< const ScalarProdBase< Scalar > > &scalarProd)
	Set a different scalar product. More...

RCP< const ScalarProdBase < Scalar > >	getScalarProd () const
	Return the current scalar product. More...

bool	isEuclidean () const
	Returns `getScalarProd()->isEuclidean()` More...

Scalar	scalarProd (const VectorBase< Scalar > &x, const VectorBase< Scalar > &y) const
	Returns `getScalarProd()->scalarProd(x,y)` More...

void	scalarProdsImpl (const MultiVectorBase< Scalar > &X, const MultiVectorBase< Scalar > &Y, const ArrayView< Scalar > &scalarProds_out) const
	Calls `getScalarProd()->scalarProds(X,Y,scalar_prods)` More...

Protected Member Functions inherited from Thyra::SpmdVectorSpaceDefaultBase< Scalar >
virtual void	updateState (const Ordinal globalDim, const bool isLocallyReplicated=false)
	This function must be called whenever the state of `this` changes and some internal state must be updated. More...

Protected Member Functions inherited from Thyra::VectorSpaceBase< Scalar >
Protected Member Functions inherited from Thyra::VectorSpaceDefaultBase< Scalar >

Detailed Description

template<class Scalar>
class Thyra::DefaultSpmdVectorSpace< Scalar >

Concrete implementation of an SPMD vector space subclass which creates DefaultSpmdVector and DefaultSpmdMultiVector objects.

This is a simple but yet fully general and functional concrete subclass of SpmdVectorSpaceBase that returns DefaultSpmdMultiVector objects from createMembers() and DefaultSpmdVector objects from createMember().

See the function initialize() that describes the different kinds of distributions this class can handle.

Definition at line 36 of file Thyra_DefaultSpmdVectorSpace_decl.hpp.

Member Function Documentation

template<class Scalar >

RCP< DefaultSpmdVectorSpace< Scalar > > Thyra::DefaultSpmdVectorSpace< Scalar >::create ( )

static

Create with weak ownership to self.

Definition at line 26 of file Thyra_DefaultSpmdVectorSpace_def.hpp.

template<class Scalar >

void Thyra::DefaultSpmdVectorSpace< Scalar >::initialize ( const Ordinal dim )

Initialize a serial space.

Parameters

dim	[in] Gives the dimension of the vector space.

Equivalent to calling this->initialize(Teuchos::null,dim,dim)

Definition at line 35 of file Thyra_DefaultSpmdVectorSpace_def.hpp.

template<class Scalar >

void Thyra::DefaultSpmdVectorSpace< Scalar >::initialize	(	const RCP< const Teuchos::Comm< Ordinal > > &	comm,
		const Ordinal	localSubDim,
		const Ordinal	globalDim,
		const bool	isLocallyReplicated = `false`
	)

Initialize an SPMD space.

Parameters

comm	[in] The communicator. This object must be maintained by the client the entire time that `this` is in use.
localSubDim	[in] The number of elements in the local process. This number can be different in every process.
globalDim	[in] Gives the number of global elements in the vector if `globalDim > 0`. If `globalDim < 0` then the global dimension is determined by the above argument `localSubDim` but requires a global communication to do so (i.e. `Spmd_Allreduce()`).

Preconditions:

localSubDim > 0
globalDim != 0
[comm.get() != NULL && globalDim > 0] globalDim >= localSubDim

Postconditions:




this->getComm().get() == comm.get()

this->localSubDim() == localSubDim

[comm.get() == NULL] this->dim() == localSubDim

[comm.get() != NULL && globalDim > 0] this->dim() == globalDim

[comm.get() != NULL && globalDim < 0] this->dim() == sum(localSubDim[i],i=0...numProc-1)

This function supports three different types of use-cases:




comm.get()==NULL : Serial (i.e. single process) vectors where this->dim() == localSubDim.



comm.get()!=NULL && globalDim < 0 : Distributed-memory vectors where this->dim() is equal to the sum of the localSubDim arguments in each process. This will result in a call to Spmd_Allreduce() inside of this function.



comm.get()!=NULL && globalDim > 0 : Distributed-memory vectors where this->dim() returns globalDim. This will not result in a call to Teuchos::reduceAll() inside this function and therefore the client had better be sure that globalDim is consistent with localSubDim in each process.



comm.get()!=NULL && globalDim == localSubDim : Locally-replicated distributed-memory vectors where this->dim() == globalDim == localSubDim.

Definition at line 44 of file Thyra_DefaultSpmdVectorSpace_def.hpp.

template<class Scalar >

void Thyra::DefaultSpmdVectorSpace< Scalar >::uninitialize ( )

Set to an uninitialized state.

Postconditions:

this->getComm().get() == NULL
this->localSubDim() == 0
this->dim() == 0

Definition at line 68 of file Thyra_DefaultSpmdVectorSpace_def.hpp.

template<class Scalar >

bool Thyra::DefaultSpmdVectorSpace< Scalar >::hasInCoreView	(	const Range1D &	rng,
		const EViewType	viewType,
		const EStrideType	strideType
	)		const

virtual

Returns true if all the elements in rng are in this process.

Reimplemented from Thyra::VectorSpaceBase< Scalar >.

Definition at line 193 of file Thyra_DefaultSpmdVectorSpace_def.hpp.

template<class Scalar >

RCP< const VectorSpaceBase< Scalar > > Thyra::DefaultSpmdVectorSpace< Scalar >::clone ( ) const

virtual

Reimplemented from Thyra::VectorSpaceBase< Scalar >.

Definition at line 205 of file Thyra_DefaultSpmdVectorSpace_def.hpp.

template<class Scalar >

RCP< VectorBase< Scalar > > Thyra::DefaultSpmdVectorSpace< Scalar >::createMember ( ) const

protectedvirtual

Implements Thyra::VectorSpaceBase< Scalar >.

Definition at line 80 of file Thyra_DefaultSpmdVectorSpace_def.hpp.

template<class Scalar >

RCP< MultiVectorBase< Scalar > > Thyra::DefaultSpmdVectorSpace< Scalar >::createMembers ( int numMembers ) const

protectedvirtual

Implements Thyra::VectorSpaceBase< Scalar >.

Definition at line 97 of file Thyra_DefaultSpmdVectorSpace_def.hpp.

template<class Scalar >

RCP< VectorBase< Scalar > > Thyra::DefaultSpmdVectorSpace< Scalar >::createMemberView ( const RTOpPack::SubVectorView< Scalar > & raw_v ) const

protectedvirtual

Implements Thyra::VectorSpaceBase< Scalar >.

Definition at line 112 of file Thyra_DefaultSpmdVectorSpace_def.hpp.

template<class Scalar >

RCP< const VectorBase< Scalar > > Thyra::DefaultSpmdVectorSpace< Scalar >::createMemberView ( const RTOpPack::ConstSubVectorView< Scalar > & raw_v ) const

protectedvirtual

Implements Thyra::VectorSpaceBase< Scalar >.

Definition at line 131 of file Thyra_DefaultSpmdVectorSpace_def.hpp.

template<class Scalar >

RCP< MultiVectorBase< Scalar > > Thyra::DefaultSpmdVectorSpace< Scalar >::createMembersView ( const RTOpPack::SubMultiVectorView< Scalar > & raw_mv ) const

protectedvirtual

Implements Thyra::VectorSpaceBase< Scalar >.

Definition at line 150 of file Thyra_DefaultSpmdVectorSpace_def.hpp.

template<class Scalar >

RCP< const MultiVectorBase< Scalar > > Thyra::DefaultSpmdVectorSpace< Scalar >::createMembersView ( const RTOpPack::ConstSubMultiVectorView< Scalar > & raw_mv ) const

protectedvirtual

Implements Thyra::VectorSpaceBase< Scalar >.

Definition at line 171 of file Thyra_DefaultSpmdVectorSpace_def.hpp.

template<class Scalar >

RCP< const Teuchos::Comm< Ordinal > > Thyra::DefaultSpmdVectorSpace< Scalar >::getComm ( ) const

virtual

Implements Thyra::SpmdVectorSpaceBase< Scalar >.

Definition at line 217 of file Thyra_DefaultSpmdVectorSpace_def.hpp.

template<class Scalar >

Ordinal Thyra::DefaultSpmdVectorSpace< Scalar >::localSubDim ( ) const

virtual

Implements Thyra::SpmdVectorSpaceBase< Scalar >.

Definition at line 224 of file Thyra_DefaultSpmdVectorSpace_def.hpp.

Friends And Related Function Documentation

template<class Scalar >

RCP< DefaultSpmdVectorSpace< Scalar > > defaultSpmdVectorSpace ( )

Definition at line 205 of file Thyra_DefaultSpmdVectorSpace_decl.hpp.

template<class Scalar >

RCP< DefaultSpmdVectorSpace< Scalar > > defaultSpmdVectorSpace ( const Ordinal dim )

Definition at line 217 of file Thyra_DefaultSpmdVectorSpace_decl.hpp.

template<class Scalar >

RCP< DefaultSpmdVectorSpace< Scalar > > defaultSpmdVectorSpace	(	const RCP< const Teuchos::Comm< Ordinal > > &	comm,
		const Ordinal	localSubDim,
		const Ordinal	globalDim,
		const bool	isLocallyReplicated = `false`
	)

Definition at line 233 of file Thyra_DefaultSpmdVectorSpace_decl.hpp.

template<class Scalar >

RCP< DefaultSpmdVectorSpace< Scalar > > locallyReplicatedDefaultSpmdVectorSpace	(	const RCP< const Teuchos::Comm< Ordinal > > &	comm,
		const Ordinal	globalDim
	)

Definition at line 253 of file Thyra_DefaultSpmdVectorSpace_decl.hpp.

The documentation for this class was generated from the following files:

Related Functions

Constructors and initializers

Public overridden from VectorSpaceBase

Protected overridden from VectorSpaceBase

Public overridden from SpmdVectorSpaceDefaultBase

Additional Inherited Members

Detailed Description

template<class Scalar> class Thyra::DefaultSpmdVectorSpace< Scalar >

Member Function Documentation

Friends And Related Function Documentation

template<class Scalar>
class Thyra::DefaultSpmdVectorSpace< Scalar >
