Thyra::DefaultMultipliedLinearOp< Scalar > Class Template Reference
Development of linear Abstract Numerical Algorithms (ANAs) (Client Support)

Concrete composite LinearOpBase subclass that creates an implicitly multiplied linear operator out of one or more constituent LinearOpBase objects. More...

#include <Thyra_DefaultMultipliedLinearOp_decl.hpp>

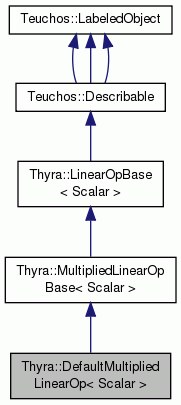

Inheritance diagram for Thyra::DefaultMultipliedLinearOp< Scalar >:
Inheritance graph
[legend]

Related Functions

(Note that these are not member functions.)

template<class Scalar >
RCP< DefaultMultipliedLinearOp
< Scalar > > 		defaultMultipliedLinearOp ()
 Nonmember constructor. More...

template<class Scalar >
RCP< DefaultMultipliedLinearOp
< Scalar > > 		defaultMultipliedLinearOp (const ArrayView< const RCP< LinearOpBase< Scalar > > > &Ops)
 Nonmember constructor. More...

template<class Scalar >
RCP< DefaultMultipliedLinearOp
< Scalar > > 		defaultMultipliedLinearOp (const ArrayView< const RCP< const LinearOpBase< Scalar > > > &Ops)
 Nonmember constructor. More...

template<class Scalar >
RCP< LinearOpBase< Scalar > > nonconstMultiply (const RCP< LinearOpBase< Scalar > > &A, const RCP< LinearOpBase< Scalar > > &B, const std::string &M_label="")
 Form an implicit multiplication of two linear operators: M = A. More...

template<class Scalar >
RCP< const LinearOpBase< Scalar > > multiply (const RCP< const LinearOpBase< Scalar > > &A, const RCP< const LinearOpBase< Scalar > > &B, const std::string &M_label="")
 Form an implicit multiplication of two linear operators: M = A. More...

template<class Scalar >
RCP< const LinearOpBase< Scalar > > multiply (const RCP< const LinearOpBase< Scalar > > &A, const RCP< const LinearOpBase< Scalar > > &B, const RCP< const LinearOpBase< Scalar > > &C, const std::string &M_label="")
 Form an implicit multiplication of three linear operators: M = A * B * C. More...

- Related Functions inherited from Thyra::LinearOpBase< Scalar >
template<class Scalar >
bool isFullyUninitialized (const LinearOpBase< Scalar > &M)
 Determines if a linear operator is in the "Fully Uninitialized" state or not. More...

template<class Scalar >
bool isPartiallyInitialized (const LinearOpBase< Scalar > &M)
 Determines if a linear operator is in the "Partially Initialized" state or not. More...

template<class Scalar >
bool isFullyInitialized (const LinearOpBase< Scalar > &M)
 Determines if a linear operator is in the "Fully Initialized" state or not. More...

template<class Scalar >
bool opSupported (const LinearOpBase< Scalar > &M, EOpTransp M_trans)
 Determines if an operation is supported for a single scalar type. More...

template<class Scalar >
void apply (const LinearOpBase< Scalar > &M, const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha=static_cast< Scalar >(1.0), const Scalar beta=static_cast< Scalar >(0.0))
 Non-member function call for M.apply(...). More...

void apply (const LinearOpBase< double > &M, const EOpTransp M_trans, const MultiVectorBase< double > &X, const Ptr< MultiVectorBase< double > > &Y, const double alpha=1.0, const double beta=0.0)
 Calls apply<double>(...). More...


Constructors/initializers/accessors

 DefaultMultipliedLinearOp ()
 Constructs to uninitialized. More...

void initialize (const ArrayView< const RCP< LinearOpBase< Scalar > > > &Ops)
 Initialize given a list of non-const linear operators. More...

void initialize (const ArrayView< const RCP< const LinearOpBase< Scalar > > > &Ops)
 Initialize given a list of const linear operators. More...

void uninitialize ()
 Set to uninitialized. More...


Overridden from MultipliedLinearOpBase

int numOps () const

bool opIsConst (const int k) const

RCP< LinearOpBase< Scalar > > getNonconstOp (const int k)

RCP< const LinearOpBase< Scalar > > getOp (const int k) const


Overridden from LinearOpBase

RCP< const VectorSpaceBase
< Scalar > > 		range () const
 Returns this->getOp(0).range() if <t>this->numOps() > 0 and returns Teuchos::null otherwise. More...

RCP< const VectorSpaceBase
< Scalar > > 		domain () const
 Returns this->getOp(this->numOps()-1).domain() if <t>this->numOps() > 0 and returns Teuchos::null otherwise. More...

RCP< const LinearOpBase< Scalar > > clone () const

bool opSupportedImpl (EOpTransp M_trans) const
 Returns true only if all constituent operators support M_trans. More...

void applyImpl (const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha, const Scalar beta) const


Overridden from Teuchos::Describable

std::string description () const
 Prints just the name DefaultMultipliedLinearOp along with the overall dimensions and the number of constituent operators. More...

void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const
 Prints the details about the constituent linear operators. More...


Detailed Description

template<class Scalar>
class Thyra::DefaultMultipliedLinearOp< Scalar >

Concrete composite LinearOpBase subclass that creates an implicitly multiplied linear operator out of one or more constituent LinearOpBase objects.

This class represents a multiplied linear operator M of the form:

M = Op[0] * Op[1] * ... * Op[numOps-1]

where Op[] is an array of numOps LinearOp objects. Of course the operator M is not constructed explicitly but instead just applies the constituent linear operators accordingly using temporaries.

In other words, this class defines apply() as:

y = alpha*M*x + beta*y
  = alpha * ( Op[0] * ( Op[1] * ( .... ( Op[numOps-1] * x ) ... ) ) ) + beta * y

for the case where M_trans==NOTRANS and as:

y = alpha*M'*x + beta*y
  = alpha * ( Op[numOps-1]' * ( .... ( Op[1]' * ( Op[0]' * x ) ) ... ) ) + beta * y

for the case where real_trans(M_trans)!=NOTRANS (where the transpose ' either defines TRANS or CONJTRANS).

Constructing a multiplied operator is easy. For example, suppose one wants to construct the multiplied operator D = A * B' * C. To do so one would do:

template<class Scalar>
void constructD(
const RCP<const Thyra::LinearOpBase<Scalar> > &A,
const RCP<const Thyra::LinearOpBase<Scalar> > &B,
const RCP<const Thyra::LinearOpBase<Scalar> > &C,
const Ptr<RCP<const Thyra::LinearOpBase<Scalar> > > &D
)
{
typedef RCP<const Thyra::LinearOpBase<Scalar> > LOB;
D = Teuchos::rcp(
new Thyra::DefaultMultipliedLinearOp<Scalar>(
Teuchos::tuple<LOB>(A, adjoin(B), C)()
)
);
}

Rather than calling the constructor directly, consider using the non-member helper functions described here.

Definition at line 120 of file Thyra_DefaultMultipliedLinearOp_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar >
Thyra::DefaultMultipliedLinearOp< Scalar >::DefaultMultipliedLinearOp ( )

Constructs to uninitialized.

Postconditions:

Definition at line 93 of file Thyra_DefaultMultipliedLinearOp_def.hpp.

Member Function Documentation

template<class Scalar >
void Thyra::DefaultMultipliedLinearOp< Scalar >::initialize ( const ArrayView< const RCP< LinearOpBase< Scalar > > > &  Ops)

Initialize given a list of non-const linear operators.

Parameters
Ops[in] Array (length numOps) of constituent linear operators and their aggregated default definitions of the non-transposed operator.

Preconditions:

  • numOps > 0
  • Ops != NULL
  • Ops[k].op().get()!=NULL, for k=0...numOps-1

Postconditions:

  • this->numOps()==numOps
  • this->getOp(k).op().get()==Ops[k].op().get(), for k=0...numOps-1

Definition at line 98 of file Thyra_DefaultMultipliedLinearOp_def.hpp.

template<class Scalar >
void Thyra::DefaultMultipliedLinearOp< Scalar >::initialize ( const ArrayView< const RCP< const LinearOpBase< Scalar > > > &  Ops)

Initialize given a list of const linear operators.

Parameters
Ops[in] Array (length numOps) of constituent linear operators and their aggregated default definitions of the non-transposed operator.

Preconditions:

  • numOps > 0
  • Ops != NULL
  • Ops[k].op().get()!=NULL, for k=0...numOps-1

Postconditions:

  • this->numOps()==numOps
  • this->getOp(k).op().get()==Ops[k].op().get(), for k=0...numOps-1

Definition at line 111 of file Thyra_DefaultMultipliedLinearOp_def.hpp.

template<class Scalar >
void Thyra::DefaultMultipliedLinearOp< Scalar >::uninitialize ( )

Set to uninitialized.

Postconditions:

Definition at line 124 of file Thyra_DefaultMultipliedLinearOp_def.hpp.

template<class Scalar >
int Thyra::DefaultMultipliedLinearOp< Scalar >::numOps ( ) const
virtual

Implements Thyra::MultipliedLinearOpBase< Scalar >.

Definition at line 135 of file Thyra_DefaultMultipliedLinearOp_def.hpp.

template<class Scalar >
bool Thyra::DefaultMultipliedLinearOp< Scalar >::opIsConst ( const int  k) const
virtual

Implements Thyra::MultipliedLinearOpBase< Scalar >.

Definition at line 142 of file Thyra_DefaultMultipliedLinearOp_def.hpp.

template<class Scalar >
RCP< LinearOpBase< Scalar > > Thyra::DefaultMultipliedLinearOp< Scalar >::getNonconstOp ( const int  k)
virtual

Implements Thyra::MultipliedLinearOpBase< Scalar >.

Definition at line 153 of file Thyra_DefaultMultipliedLinearOp_def.hpp.

template<class Scalar >
RCP< const LinearOpBase< Scalar > > Thyra::DefaultMultipliedLinearOp< Scalar >::getOp ( const int  k) const
virtual

Implements Thyra::MultipliedLinearOpBase< Scalar >.

Definition at line 164 of file Thyra_DefaultMultipliedLinearOp_def.hpp.

template<class Scalar >
RCP< const VectorSpaceBase< Scalar > > Thyra::DefaultMultipliedLinearOp< Scalar >::range ( ) const
virtual

Returns this->getOp(0).range() if <t>this->numOps() > 0 and returns Teuchos::null otherwise.

Implements Thyra::LinearOpBase< Scalar >.

Definition at line 178 of file Thyra_DefaultMultipliedLinearOp_def.hpp.

template<class Scalar >
RCP< const VectorSpaceBase< Scalar > > Thyra::DefaultMultipliedLinearOp< Scalar >::domain ( ) const
virtual

Returns this->getOp(this->numOps()-1).domain() if <t>this->numOps() > 0 and returns Teuchos::null otherwise.

Implements Thyra::LinearOpBase< Scalar >.

Definition at line 189 of file Thyra_DefaultMultipliedLinearOp_def.hpp.

template<class Scalar >
RCP< const LinearOpBase< Scalar > > Thyra::DefaultMultipliedLinearOp< Scalar >::clone ( ) const
virtual

Reimplemented from Thyra::LinearOpBase< Scalar >.

Definition at line 200 of file Thyra_DefaultMultipliedLinearOp_def.hpp.

template<class Scalar >
std::string Thyra::DefaultMultipliedLinearOp< Scalar >::description ( ) const
virtual

Prints just the name DefaultMultipliedLinearOp along with the overall dimensions and the number of constituent operators.

Reimplemented from Teuchos::Describable.

Definition at line 210 of file Thyra_DefaultMultipliedLinearOp_def.hpp.

template<class Scalar >
void Thyra::DefaultMultipliedLinearOp< Scalar >::describe ( Teuchos::FancyOStream &  out,
const Teuchos::EVerbosityLevel  verbLevel
) const
virtual

Prints the details about the constituent linear operators.

This function outputs different levels of detail based on the value passed in for verbLevel:

ToDo: Finish documentation!

Reimplemented from Teuchos::Describable.

Definition at line 220 of file Thyra_DefaultMultipliedLinearOp_def.hpp.

template<class Scalar >
bool Thyra::DefaultMultipliedLinearOp< Scalar >::opSupportedImpl ( EOpTransp  M_trans) const
protectedvirtual

Returns true only if all constituent operators support M_trans.

Implements Thyra::LinearOpBase< Scalar >.

Definition at line 262 of file Thyra_DefaultMultipliedLinearOp_def.hpp.

template<class Scalar >
void Thyra::DefaultMultipliedLinearOp< Scalar >::applyImpl ( const EOpTransp  M_trans,
const MultiVectorBase< Scalar > &  X,
const Ptr< MultiVectorBase< Scalar > > &  Y,
const Scalar  alpha,
const Scalar  beta
) const
protectedvirtual

Implements Thyra::LinearOpBase< Scalar >.

Definition at line 273 of file Thyra_DefaultMultipliedLinearOp_def.hpp.

Friends And Related Function Documentation

template<class Scalar >
RCP< DefaultMultipliedLinearOp< Scalar > > defaultMultipliedLinearOp ( )
related

Nonmember constructor.

Definition at line 286 of file Thyra_DefaultMultipliedLinearOp_decl.hpp.

template<class Scalar >
RCP< DefaultMultipliedLinearOp< Scalar > > defaultMultipliedLinearOp ( const ArrayView< const RCP< LinearOpBase< Scalar > > > &  Ops)
related

Nonmember constructor.

Definition at line 298 of file Thyra_DefaultMultipliedLinearOp_decl.hpp.

template<class Scalar >
RCP< DefaultMultipliedLinearOp< Scalar > > defaultMultipliedLinearOp ( const ArrayView< const RCP< const LinearOpBase< Scalar > > > &  Ops)
related

Nonmember constructor.

Definition at line 312 of file Thyra_DefaultMultipliedLinearOp_decl.hpp.

template<class Scalar >
RCP< LinearOpBase< Scalar > > nonconstMultiply ( const RCP< LinearOpBase< Scalar > > &  A,
const RCP< LinearOpBase< Scalar > > &  B,
const std::string &  M_label = ""
)
related

Form an implicit multiplication of two linear operators: M = A.

  • B.
template<class Scalar >
RCP< const LinearOpBase< Scalar > > multiply ( const RCP< const LinearOpBase< Scalar > > &  A,
const RCP< const LinearOpBase< Scalar > > &  B,
const std::string &  M_label = ""
)
related

Form an implicit multiplication of two linear operators: M = A.

  • B.
template<class Scalar >
RCP< const LinearOpBase< Scalar > > multiply ( const RCP< const LinearOpBase< Scalar > > &  A,
const RCP< const LinearOpBase< Scalar > > &  B,
const RCP< const LinearOpBase< Scalar > > &  C,
const std::string &  M_label = ""
)
related

Form an implicit multiplication of three linear operators: M = A * B * C.

The documentation for this class was generated from the following files:
Generated on Tue Apr 23 2024 09:20:52 for Thyra by   doxygen 1.8.5
