Simple example subclass for Spmd tridiagonal matrices. More...
#include <ExampleTridiagSpmdLinearOp.hpp>
Public Member Functions | |
| ExampleTridiagSpmdLinearOp () | |
| ExampleTridiagSpmdLinearOp (const Teuchos::RCP< const Teuchos::Comm< Thyra::Ordinal > > &comm, const Thyra::Ordinal localDim, const Teuchos::ArrayView< const Scalar > &lower, const Teuchos::ArrayView< const Scalar > &diag, const Teuchos::ArrayView< const Scalar > &upper) | |
| void | initialize (const Teuchos::RCP< const Teuchos::Comm< Thyra::Ordinal > > &comm, const Thyra::Ordinal localDim, const Teuchos::ArrayView< const Scalar > &lower, const Teuchos::ArrayView< const Scalar > &diag, const Teuchos::ArrayView< const Scalar > &upper) |

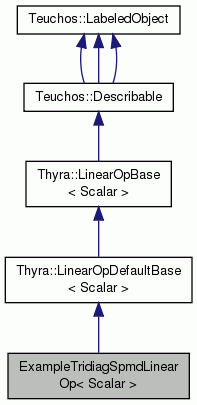

 Public Member Functions inherited from Thyra::LinearOpDefaultBase< Scalar > | |
| std::string | description () const |
| Default description that gives the label, type, and dimenstion . More... | |
| void | describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const |
| Generates a default outputting for all linear operators. More... | |
| Public Member Functions inherited from Thyra::LinearOpBase< Scalar > | |
| bool | opSupported (EOpTransp M_trans) const |
Return if the M_trans operation of apply() is supported or not. More... | |
| void | apply (const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha, const Scalar beta) const |
Apply the linear operator to a multi-vector : Y = alpha*op(M)*X + beta*Y. More... | |
| virtual RCP< const LinearOpBase< Scalar > > | clone () const |
| Clone the linear operator object (if supported). More... | |
Protected Member Functions | |
| Teuchos::RCP< const Thyra::VectorSpaceBase< Scalar > > | range () const |
| Teuchos::RCP< const Thyra::VectorSpaceBase< Scalar > > | domain () const |
| bool | opSupportedImpl (Thyra::EOpTransp M_trans) const |
| void | applyImpl (const Thyra::EOpTransp M_trans, const Thyra::MultiVectorBase< Scalar > &X_in, const Teuchos::Ptr< Thyra::MultiVectorBase< Scalar > > &Y_inout, const Scalar alpha, const Scalar beta) const |
| Protected Member Functions inherited from Thyra::LinearOpBase< Scalar > | |
Additional Inherited Members | |
| Related Functions inherited from Thyra::LinearOpBase< Scalar > | |
| template<class Scalar > | |
| bool | isFullyUninitialized (const LinearOpBase< Scalar > &M) |
| Determines if a linear operator is in the "Fully Uninitialized" state or not. More... | |
| template<class Scalar > | |
| bool | isPartiallyInitialized (const LinearOpBase< Scalar > &M) |
| Determines if a linear operator is in the "Partially Initialized" state or not. More... | |
| template<class Scalar > | |
| bool | isFullyInitialized (const LinearOpBase< Scalar > &M) |
| Determines if a linear operator is in the "Fully Initialized" state or not. More... | |
| template<class Scalar > | |
| bool | opSupported (const LinearOpBase< Scalar > &M, EOpTransp M_trans) |
| Determines if an operation is supported for a single scalar type. More... | |
| template<class Scalar > | |
| void | apply (const LinearOpBase< Scalar > &M, const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha=static_cast< Scalar >(1.0), const Scalar beta=static_cast< Scalar >(0.0)) |
Non-member function call for M.apply(...). More... | |
| void | apply (const LinearOpBase< double > &M, const EOpTransp M_trans, const MultiVectorBase< double > &X, const Ptr< MultiVectorBase< double > > &Y, const double alpha=1.0, const double beta=0.0) |
Calls apply<double>(...). More... | |
Simple example subclass for Spmd tridiagonal matrices.
This subclass represents a linear operator for tridiagonal matrices of the global form:
![\[ M= \left[\begin{array}{ccccc} d_{(1)} & u_{(1)} \\ l_{(1)} & d_{(2)} & u_{(2)} \\ & \ddots & \ddots & \ddots \\ & & l_{(n-2)} & d_{(n-1)} & u_{(n-1)} \\ & & & l_{(n-1)} & d_{(n)} \end{array}\right]. \]](form_59.png)
If there is only
processes then the arrays lower[], diag[], and upper[] of dimension localDim-1, localDim and localDim-1 respectively are stored (see initialize()).
If there
processes then locally this class stores slightly different arrays of data depending on which process this is and process-to-process communication is required.
On process 0 with
local vector elements the following sub-matrix is stored:
![\[ \left[\begin{array}{cccccc} d_{(1)} & u_{(1)} \\ l_{(1)} & d_{(2)} & u_{(2)} \\ & \ddots & \ddots & \ddots \\ & & l_{(n_0-2)} & d_{(n_0-1)} & u_{(n_0-1)} \\ & & & l_{(n_0-1)} & d_{(n_0)} & u_{(n_0)} \end{array}\right]. \]](form_63.png)
In this case, arrays lower[], diag[], and upper[] of dimension localDim-1, localDim and localDim respectively are stored (see initialize()).
On process
, where
, with local offset
and
local vector elements the following sub-matrix is stored:
![\[ \left[\begin{array}{cccccc} l_{(g_i)} & d_{(g_i+1)} & u_{(g_i+1)} \\ & \ddots & \ddots & \ddots \\ & & & l_{(g_i+n_i-1)} & d_{(g_i+n_i)} & u_{(g_i+n_i)} \end{array}\right]. \]](form_68.png)
In this case, arrays lower[], diag[], and upper[] of dimension localDim, localDim and localDim respectively are stored (see initialize()).
On process
with local offset
and
local vector elements the following sub-matrix is stored:
![\[ \left[\begin{array}{cccccc} l_{(g_{N-1})} & d_{(g_{N-1}+1)} & u_{(g_{N-1}+1)} \\ & \ddots & \ddots & \ddots \\ & & & l_{(g_{N-1}+n_{N-1}-1)} & d_{(g_{N-1}+n_{N-1})} \end{array}\right]. \]](form_72.png)
In this case, arrays lower[], diag[], and upper[] of dimension localDim, localDim and localDim-1 respectively are stored (see initialize()).
See the source code for this simple example by clicking on the link to the definition below.
Definition at line 111 of file ExampleTridiagSpmdLinearOp.hpp.
|
inline |
Construct to uninitialized.
Definition at line 115 of file ExampleTridiagSpmdLinearOp.hpp.
|
inline |
Calls initialize().
Definition at line 118 of file ExampleTridiagSpmdLinearOp.hpp.
| void ExampleTridiagSpmdLinearOp< Scalar >::initialize | ( | const Teuchos::RCP< const Teuchos::Comm< Thyra::Ordinal > > & | comm, |
| const Thyra::Ordinal | localDim, | ||
| const Teuchos::ArrayView< const Scalar > & | lower, | ||
| const Teuchos::ArrayView< const Scalar > & | diag, | ||
| const Teuchos::ArrayView< const Scalar > & | upper | ||
| ) |
Initialize given lower, diagonal and upper arrays of data.
| comm | [in] Communicator (allowed to be Teuchos::null) |
| localDim | [in] Dimension of this matrix (must be >= 2). |
| lower | [in] Array (length ( procRank == 0 ? localDim - 1 : localDim )) of the lower diagonal elements |
| diag | [in] Array (length localDim) of the central diagonal elements |
| upper | [in] Array (length ( procRank == numProc-1 ? localDim - 1 : localDim )) of the upper diagonal elements |
Preconditions:
localDim >= 2 Postconditions:
Definition at line 200 of file ExampleTridiagSpmdLinearOp.hpp.
|
inlineprotectedvirtual |
Implements Thyra::LinearOpBase< Scalar >.
Definition at line 161 of file ExampleTridiagSpmdLinearOp.hpp.
|
inlineprotectedvirtual |
Implements Thyra::LinearOpBase< Scalar >.
Definition at line 165 of file ExampleTridiagSpmdLinearOp.hpp.
|
inlineprotectedvirtual |
Implements Thyra::LinearOpBase< Scalar >.
Definition at line 169 of file ExampleTridiagSpmdLinearOp.hpp.
|
protectedvirtual |
Implements Thyra::LinearOpBase< Scalar >.
Definition at line 218 of file ExampleTridiagSpmdLinearOp.hpp.
