Base ModifierX for StepperTrapezoidal. More...

#include <Tempus_StepperTrapezoidalModifierXBase.hpp>

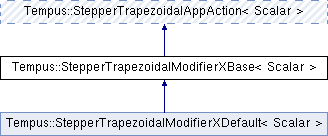

Inheritance diagram for Tempus::StepperTrapezoidalModifierXBase< Scalar >:

Public Types
enum	MODIFIER_TYPE { X_BEGIN_STEP, X_BEFORE_SOLVE, X_AFTER_SOLVE, XDOT_END_STEP }
	Indicates the location of application action (see algorithm). More...

Public Types inherited from Tempus::StepperTrapezoidalAppAction< Scalar >
enum	ACTION_LOCATION { BEGIN_STEP, BEFORE_SOLVE, AFTER_SOLVE, END_STEP }
	Indicates the location of application action (see algorithm). More...

Public Member Functions
virtual void	modify (Teuchos::RCP< Thyra::VectorBase< Scalar > >, const Scalar, const Scalar, const MODIFIER_TYPE modType)=0
	Modify solution based on the MODIFIER_TYPE. More...

Public Member Functions inherited from Tempus::StepperTrapezoidalAppAction< Scalar >
	StepperTrapezoidalAppAction ()
	Constructor. More...

virtual	~StepperTrapezoidalAppAction ()
	Destructor. More...

Private Member Functions
void	execute (Teuchos::RCP< SolutionHistory< Scalar > > sh, Teuchos::RCP< StepperTrapezoidal< Scalar > > stepper, const typename StepperTrapezoidalAppAction< Scalar >::ACTION_LOCATION actLoc)
	Execute application action for Trapezoidal Stepper. More...

Detailed Description

template<class Scalar>
class Tempus::StepperTrapezoidalModifierXBase< Scalar >

Base ModifierX for StepperTrapezoidal.

This class provides a means to modify just the solution values (i.e., $x$ and $dot{x}$ ), and nothing else, but time and timestep are also provided.

Users deriving from this class can access and change the solution during the timestep (e.g., limiting the solution for monoticity). It is expected that the user knows what changes are allowable without affecting the Stepper correctness, performance, accuracy and stability (i.e., USER BEWARE!!).

The locations of the StepperTrapezoidalModifierXBase::MODIFIER_TYPE which correspond to the AppAction calls (StepperTrapezoidalAppAction::ACTION_LOCATION) are shown in the algorithm documentation of the StepperTrapezoidal.

Definition at line 37 of file Tempus_StepperTrapezoidalModifierXBase.hpp.

Member Enumeration Documentation

template<class Scalar>

enum Tempus::StepperTrapezoidalModifierXBase::MODIFIER_TYPE

Indicates the location of application action (see algorithm).

Enumerator
X_BEGIN_STEP	Modify at the beginning of the step.
X_BEFORE_SOLVE	Modify before the implicit solve.
X_AFTER_SOLVE	Modify after the implicit solve.
XDOT_END_STEP	Modify $\dot{x}$ at the end of the step.

Definition at line 101 of file Tempus_StepperTrapezoidalModifierXBase.hpp.

Member Function Documentation

template<class Scalar>

void Tempus::StepperTrapezoidalModifierXBase< Scalar >::execute	(	Teuchos::RCP< SolutionHistory< Scalar > >	sh,
		Teuchos::RCP< StepperTrapezoidal< Scalar > >	stepper,
		const typename StepperTrapezoidalAppAction< Scalar >::ACTION_LOCATION	actLoc
	)

inlineprivatevirtual

Execute application action for Trapezoidal Stepper.

Implements Tempus::StepperTrapezoidalAppAction< Scalar >.

Definition at line 53 of file Tempus_StepperTrapezoidalModifierXBase.hpp.

template<class Scalar>

virtual void Tempus::StepperTrapezoidalModifierXBase< Scalar >::modify	(	Teuchos::RCP< Thyra::VectorBase< Scalar > >	,
		const Scalar	,
		const Scalar	,
		const MODIFIER_TYPE	modType
	)

pure virtual

Modify solution based on the MODIFIER_TYPE.

The documentation for this class was generated from the following file:

Tempus_StepperTrapezoidalModifierXBase.hpp
