Tempus::StepperTrapezoidal< Scalar > Class Template Reference

Trapezoidal method time stepper. More...

#include <Tempus_StepperTrapezoidal_decl.hpp>

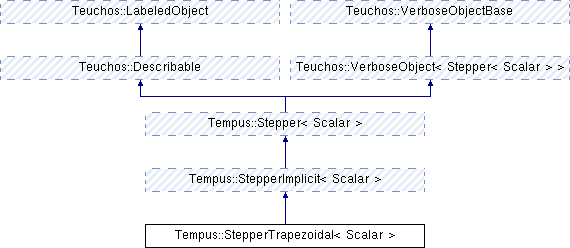

Inheritance diagram for Tempus::StepperTrapezoidal< Scalar >:
Tempus::StepperImplicit< Scalar > Tempus::Stepper< Scalar > Teuchos::Describable Teuchos::VerboseObject< Stepper< Scalar > > Teuchos::LabeledObject Teuchos::VerboseObjectBase

Public Member Functions

 StepperTrapezoidal ()
 Default constructor. More...

 StepperTrapezoidal (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel, const Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > &solver, bool useFSAL, std::string ICConsistency, bool ICConsistencyCheck, bool zeroInitialGuess, const Teuchos::RCP< StepperTrapezoidalAppAction< Scalar > > &stepperTrapAppAction)
 Constructor. More...

virtual Scalar getAlpha (const Scalar dt) const
 Return alpha = d(xDot)/dx. More...

virtual Scalar getBeta (const Scalar) const
 Return beta = d(x)/dx. More...

virtual bool isValidSetup (Teuchos::FancyOStream &out) const

- Public Member Functions inherited from Tempus::StepperImplicit< Scalar >
virtual Teuchos::RCP< const
Teuchos::ParameterList
getValidParameters () const override

Teuchos::RCP
< Teuchos::ParameterList
getValidParametersBasicImplicit () const

void setStepperImplicitValues (Teuchos::RCP< Teuchos::ParameterList > pl)
 Set StepperImplicit member data from the ParameterList. More...

void setStepperSolverValues (Teuchos::RCP< Teuchos::ParameterList > pl)
 Set solver from ParameterList. More...

void setSolverName (std::string i)
 Set the Solver Name. More...

std::string getSolverName () const
 Get the Solver Name. More...

virtual void setModel (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel) override
 Set the model. More...

virtual Teuchos::RCP< const
Thyra::ModelEvaluator< Scalar > >
getModel () const override

virtual Teuchos::RCP< const
WrapperModelEvaluator< Scalar > >
getWrapperModel ()

virtual void setDefaultSolver ()

virtual void setSolver (Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > solver) override
 Set solver. More...

virtual Teuchos::RCP
< Thyra::NonlinearSolverBase
< Scalar > >
getSolver () const override
 Get solver. More...

const Thyra::SolveStatus< Scalar > solveImplicitODE (const Teuchos::RCP< Thyra::VectorBase< Scalar > > &x, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &xDot, const Scalar time, const Teuchos::RCP< ImplicitODEParameters< Scalar > > &p, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &y=Teuchos::null, const int index=-1)
 Solve implicit ODE, f(x, xDot, t, p) = 0. More...

void evaluateImplicitODE (Teuchos::RCP< Thyra::VectorBase< Scalar > > &f, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &x, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &xDot, const Scalar time, const Teuchos::RCP< ImplicitODEParameters< Scalar > > &p)
 Evaluate implicit ODE residual, f(x, xDot, t, p). More...

virtual void setInitialGuess (Teuchos::RCP< const Thyra::VectorBase< Scalar > > initialGuess) override
 Pass initial guess to Newton solver (only relevant for implicit solvers) More...

virtual void setZeroInitialGuess (bool zIG)

virtual bool getZeroInitialGuess () const

virtual Scalar getInitTimeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &) const override

- Public Member Functions inherited from Tempus::Stepper< Scalar >
void setStepperValues (const Teuchos::RCP< Teuchos::ParameterList > pl)
 Set Stepper member data from ParameterList. More...

Teuchos::RCP
< Teuchos::ParameterList
getValidParametersBasic () const
 Add basic parameters to Steppers ParameterList. More...

virtual void initialize ()
 Initialize after construction and changing input parameters. More...

virtual bool isInitialized ()
 True if stepper's member data is initialized. More...

virtual void checkInitialized ()
 Check initialization, and error out on failure. More...

void setStepperName (std::string s)
 Set the stepper name. More...

std::string getStepperName () const
 Get the stepper name. More...

std::string getStepperType () const
 Get the stepper type. The stepper type is used as an identifier for the stepper, and can only be set by the derived Stepper class. More...

void setUseFSALTrueOnly (bool a)

void setUseFSALFalseOnly (bool a)

bool getUseFSAL () const

void setICConsistency (std::string s)

std::string getICConsistency () const

void setICConsistencyCheck (bool c)

bool getICConsistencyCheck () const

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > >
getStepperX ()
 Get Stepper x. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > >
getStepperXDot ()
 Get Stepper xDot. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > >
getStepperXDotDot ()
 Get Stepper xDotDot. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > >
getStepperXDotDot (Teuchos::RCP< SolutionState< Scalar > > state)
 Get xDotDot from SolutionState or Stepper storage. More...

virtual std::string description () const

- Public Member Functions inherited from Teuchos::Describable
void describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual ~Describable ()

 LabeledObject ()

virtual ~LabeledObject ()

virtual void setObjectLabel (const std::string &objectLabel)

virtual std::string getObjectLabel () const

DescribableStreamManipulatorState describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream & operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

- Public Member Functions inherited from Teuchos::VerboseObject< Stepper< Scalar > >
 VerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectsetVerbLevel (const EVerbosityLevel verbLevel) const

virtual const VerboseObjectsetOverridingVerbLevel (const EVerbosityLevel verbLevel) const

virtual EVerbosityLevel getVerbLevel () const

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
RCP< const ParameterList
getValidVerboseObjectSublist ()

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
void
setupVerboseObjectSublist (ParameterList *paramList)

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
void
readVerboseObjectSublist (ParameterList *paramList, RCP< FancyOStream > *oStream, EVerbosityLevel *verbLevel)

void readVerboseObjectSublist (ParameterList *paramList, VerboseObject< ObjectType > *verboseObject)

- Public Member Functions inherited from Teuchos::VerboseObjectBase
virtual ~VerboseObjectBase ()

 VerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectBasesetOStream (const RCP< FancyOStream > &oStream) const

virtual const VerboseObjectBasesetOverridingOStream (const RCP< FancyOStream > &oStream) const

virtual VerboseObjectBasesetLinePrefix (const std::string &linePrefix)

virtual RCP< FancyOStreamgetOStream () const

virtual RCP< FancyOStreamgetOverridingOStream () const

virtual std::string getLinePrefix () const

virtual OSTab getOSTab (const int tabs=1, const std::string &linePrefix="") const


Private Attributes

Teuchos::RCP
< StepperTrapezoidalAppAction
< Scalar > >
stepperTrapAppAction_


Basic stepper methods

virtual void setAppAction (Teuchos::RCP< StepperTrapezoidalAppAction< Scalar > > appAction)

virtual Teuchos::RCP
< StepperTrapezoidalAppAction
< Scalar > >
getAppAction () const

virtual void setInitialConditions (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)
 Set the initial conditions and make them consistent. More...

virtual void takeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)
 Take the specified timestep, dt, and return true if successful. More...

virtual Teuchos::RCP
< Tempus::StepperState< Scalar > >
getDefaultStepperState ()
 Get a default (initial) StepperState. More...

virtual Scalar getOrder () const

virtual Scalar getOrderMin () const

virtual Scalar getOrderMax () const

virtual bool isExplicit () const

virtual bool isImplicit () const

virtual bool isExplicitImplicit () const

virtual bool isOneStepMethod () const

virtual bool isMultiStepMethod () const

virtual void setUseFSAL (bool a)

virtual OrderODE getOrderODE () const


Overridden from Teuchos::Describable

virtual void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const


Additional Inherited Members

- Static Public Member Functions inherited from Teuchos::VerboseObject< Stepper< Scalar > >
static void setDefaultVerbLevel (const EVerbosityLevel defaultVerbLevel)

static EVerbosityLevel getDefaultVerbLevel ()

- Static Public Member Functions inherited from Teuchos::VerboseObjectBase
static void setDefaultOStream (const RCP< FancyOStream > &defaultOStream)

static RCP< FancyOStreamgetDefaultOStream ()

- Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel verbLevel_default

- Protected Member Functions inherited from Tempus::Stepper< Scalar >
virtual void setStepperX (Teuchos::RCP< Thyra::VectorBase< Scalar > > x)
 Set x for Stepper storage. More...

virtual void setStepperXDot (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDot)
 Set xDot for Stepper storage. More...

virtual void setStepperXDotDot (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDotDot)
 Set x for Stepper storage. More...

void setStepperType (std::string s)
 Set the stepper type. More...

- Protected Member Functions inherited from Teuchos::VerboseObject< Stepper< Scalar > >
void initializeVerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

- Protected Member Functions inherited from Teuchos::VerboseObjectBase
void initializeVerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual void informUpdatedVerbosityState () const

- Protected Attributes inherited from Tempus::StepperImplicit< Scalar >
Teuchos::RCP
< WrapperModelEvaluator
< Scalar > >
wrapperModel_

Teuchos::RCP
< Thyra::NonlinearSolverBase
< Scalar > >
solver_

Teuchos::RCP< const
Thyra::VectorBase< Scalar > >
initialGuess_

bool zeroInitialGuess_

std::string solverName_

- Protected Attributes inherited from Tempus::Stepper< Scalar >
bool useFSAL_ = false
 Use First-Same-As-Last (FSAL) principle. More...

bool isInitialized_
 True if stepper's member data is initialized. More...


Detailed Description

template<class Scalar>
class Tempus::StepperTrapezoidal< Scalar >

Trapezoidal method time stepper.

For the implicit ODE system, $\mathcal{F}(\dot{x},x,t) = 0$, the solution, $\dot{x}$ and $x$, is determined using a solver (e.g., a non-linear solver, like NOX).

Algorithm The single-timestep algorithm for Trapezoidal is

\begin{center} \parbox{5in}{ \rule{5in}{0.4pt} \\ {\bf Algorithm} Trapezoidal \\ \rule{5in}{0.4pt} \vspace{-15pt} \begin{enumerate} \setlength{\itemsep}{0pt} \setlength{\parskip}{0pt} \setlength{\parsep}{0pt} \item {\it appAction.execute(solutionHistory, stepper, BEGIN\_STEP)} \item {\bf Set ODE parameters.} \item \quad {\bf Time derivative: } $\dot{x}_{n} = \frac{(x_{n} - x_{n-1})}{(\Delta t_n/2)} - \dot{x}_{n-1}.$ \item \quad {\bf Alpha: $\alpha = \frac{2}{\Delta t_n}$} \item \quad {\bf Beta: $\beta = 1$} \item {\it appAction.execute(solutionHistory, stepper, BEFORE\_SOLVE)} \item {\bf Solve $\mathcal{F}_n(\dot{x}=(x_n-x_{n-1})/(\Delta t_n/2) - \dot{x}_{n-1}, x_n, t_n)=0$ for $x_n$} \item {\it appAction.execute(solutionHistory, stepper, AFTER\_SOLVE)} \item $\dot{x}_n \leftarrow (x_n-x_{n-1})/(\Delta t_n/2) - \dot{x}_{n-1}$ \item {\it appAction.execute(solutionHistory, stepper, END\_STEP)} \end{enumerate} \vspace{-10pt} \rule{5in}{0.4pt} } \end{center}

The First-Same-As-Last (FSAL) principle is required for the Trapezoidal Stepper (i.e., useFSAL=true)! With useFSAL=true does assume that the solution, $x$, and its time derivative, $\dot{x}$, are consistent at the initial conditions (ICs), i.e., $\dot{x}_{0} = \bar{f}(x_{0},t_{0})$. This can be ensured by setting setICConsistency("Consistent"), and checked with setICConsistencyCheck(true).

Iteration Matrix, $W$. Recalling that the definition of the iteration matrix, $W$, is

\[ W = \alpha \frac{\partial \mathcal{F}_n}{\partial \dot{x}_n} + \beta \frac{\partial \mathcal{F}_n}{\partial x_n}, \]

where $ \alpha \equiv \frac{\partial \dot{x}_n(x_n) }{\partial x_n}, $ and $ \beta \equiv \frac{\partial x_n}{\partial x_n} = 1$, and the time derivative for Trapezoidal method is

\[ \dot{x}_n = (x_n-x_{n-1})/(\Delta t/2) - \dot{x}_{n-1}, \]

we can determine that $ \alpha = \frac{2}{\Delta t} $ and $ \beta = 1 $, and therefore write

\[ W = \frac{2}{\Delta t} \frac{\partial \mathcal{F}_n}{\partial \dot{x}_n} + \frac{\partial \mathcal{F}_n}{\partial x_n}. \]

Definition at line 83 of file Tempus_StepperTrapezoidal_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar >
Tempus::StepperTrapezoidal< Scalar >::StepperTrapezoidal ( )

Default constructor.

Requires subsequent setModel(), setSolver() and initialize() calls before calling takeStep().

Definition at line 19 of file Tempus_StepperTrapezoidal_impl.hpp.

template<class Scalar >
Tempus::StepperTrapezoidal< Scalar >::StepperTrapezoidal ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &  appModel,
const Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > &  solver,
bool  useFSAL,
std::string  ICConsistency,
bool  ICConsistencyCheck,
bool  zeroInitialGuess,
const Teuchos::RCP< StepperTrapezoidalAppAction< Scalar > > &  stepperTrapAppAction
)

Constructor.

Definition at line 33 of file Tempus_StepperTrapezoidal_impl.hpp.

Member Function Documentation

template<class Scalar >
void Tempus::StepperTrapezoidal< Scalar >::setAppAction ( Teuchos::RCP< StepperTrapezoidalAppAction< Scalar > >  appAction)
virtual

Definition at line 58 of file Tempus_StepperTrapezoidal_impl.hpp.

template<class Scalar >
virtual Teuchos::RCP<StepperTrapezoidalAppAction<Scalar> > Tempus::StepperTrapezoidal< Scalar >::getAppAction ( ) const
inlinevirtual

Definition at line 106 of file Tempus_StepperTrapezoidal_decl.hpp.

template<class Scalar >
void Tempus::StepperTrapezoidal< Scalar >::setInitialConditions ( const Teuchos::RCP< SolutionHistory< Scalar > > &  solutionHistory)
virtual

Set the initial conditions and make them consistent.

Reimplemented from Tempus::StepperImplicit< Scalar >.

Definition at line 73 of file Tempus_StepperTrapezoidal_impl.hpp.

template<class Scalar >
void Tempus::StepperTrapezoidal< Scalar >::takeStep ( const Teuchos::RCP< SolutionHistory< Scalar > > &  solutionHistory)
virtual

Take the specified timestep, dt, and return true if successful.

Implements Tempus::Stepper< Scalar >.

Definition at line 102 of file Tempus_StepperTrapezoidal_impl.hpp.

template<class Scalar >
Teuchos::RCP< Tempus::StepperState< Scalar > > Tempus::StepperTrapezoidal< Scalar >::getDefaultStepperState ( )
virtual

Get a default (initial) StepperState.

Provide a StepperState to the SolutionState. This Stepper does not have any special state data, so just provide the base class StepperState with the Stepper description. This can be checked to ensure that the input StepperState can be used by this Stepper.

Implements Tempus::Stepper< Scalar >.

Definition at line 178 of file Tempus_StepperTrapezoidal_impl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperTrapezoidal< Scalar >::getOrder ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 122 of file Tempus_StepperTrapezoidal_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperTrapezoidal< Scalar >::getOrderMin ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 123 of file Tempus_StepperTrapezoidal_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperTrapezoidal< Scalar >::getOrderMax ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 124 of file Tempus_StepperTrapezoidal_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperTrapezoidal< Scalar >::isExplicit ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 126 of file Tempus_StepperTrapezoidal_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperTrapezoidal< Scalar >::isImplicit ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 127 of file Tempus_StepperTrapezoidal_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperTrapezoidal< Scalar >::isExplicitImplicit ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 128 of file Tempus_StepperTrapezoidal_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperTrapezoidal< Scalar >::isOneStepMethod ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 132 of file Tempus_StepperTrapezoidal_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperTrapezoidal< Scalar >::isMultiStepMethod ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 133 of file Tempus_StepperTrapezoidal_decl.hpp.

template<class Scalar >
virtual void Tempus::StepperTrapezoidal< Scalar >::setUseFSAL ( bool  a)
inlinevirtual

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 134 of file Tempus_StepperTrapezoidal_decl.hpp.

template<class Scalar >
virtual OrderODE Tempus::StepperTrapezoidal< Scalar >::getOrderODE ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 135 of file Tempus_StepperTrapezoidal_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperTrapezoidal< Scalar >::getAlpha ( const Scalar  dt) const
inlinevirtual

Return alpha = d(xDot)/dx.

Implements Tempus::StepperImplicit< Scalar >.

Definition at line 139 of file Tempus_StepperTrapezoidal_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperTrapezoidal< Scalar >::getBeta ( const Scalar  ) const
inlinevirtual

Return beta = d(x)/dx.

Implements Tempus::StepperImplicit< Scalar >.

Definition at line 141 of file Tempus_StepperTrapezoidal_decl.hpp.

template<class Scalar >
void Tempus::StepperTrapezoidal< Scalar >::describe ( Teuchos::FancyOStream out,
const Teuchos::EVerbosityLevel  verbLevel
) const
virtual

Reimplemented from Tempus::StepperImplicit< Scalar >.

Definition at line 186 of file Tempus_StepperTrapezoidal_impl.hpp.

template<class Scalar >
bool Tempus::StepperTrapezoidal< Scalar >::isValidSetup ( Teuchos::FancyOStream out) const
virtual

Reimplemented from Tempus::StepperImplicit< Scalar >.

Definition at line 200 of file Tempus_StepperTrapezoidal_impl.hpp.

Member Data Documentation

template<class Scalar >
Teuchos::RCP<StepperTrapezoidalAppAction<Scalar> > Tempus::StepperTrapezoidal< Scalar >::stepperTrapAppAction_
private

Definition at line 152 of file Tempus_StepperTrapezoidal_decl.hpp.


The documentation for this class was generated from the following files:
