Base modifier for StepperTrapezoidal. More...

#include <Tempus_StepperTrapezoidalModifierBase.hpp>

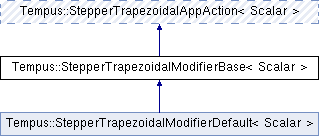

Inheritance diagram for Tempus::StepperTrapezoidalModifierBase< Scalar >:

Public Member Functions
virtual void	modify (Teuchos::RCP< SolutionHistory< Scalar > >, Teuchos::RCP< StepperTrapezoidal< Scalar > >, const typename StepperTrapezoidalAppAction< Scalar >::ACTION_LOCATION actLoc)=0
	Modify Trapezoidal Stepper. More...

Public Member Functions inherited from Tempus::StepperTrapezoidalAppAction< Scalar >
	StepperTrapezoidalAppAction ()
	Constructor. More...

virtual	~StepperTrapezoidalAppAction ()
	Destructor. More...

Private Member Functions
void	execute (Teuchos::RCP< SolutionHistory< Scalar > > sh, Teuchos::RCP< StepperTrapezoidal< Scalar > > stepper, const typename StepperTrapezoidalAppAction< Scalar >::ACTION_LOCATION actLoc)
	Execute application action for Trapezoidal Stepper. More...

Additional Inherited Members
Public Types inherited from Tempus::StepperTrapezoidalAppAction< Scalar >
enum	ACTION_LOCATION { BEGIN_STEP, BEFORE_SOLVE, AFTER_SOLVE, END_STEP }
	Indicates the location of application action (see algorithm). More...

Detailed Description

template<class Scalar>
class Tempus::StepperTrapezoidalModifierBase< Scalar >

Base modifier for StepperTrapezoidal.

This class provides a means to modify values (e.g., solution variables through SolutionHistory, and stepper member data through the Stepper), and can be very powerful and easy to make changes to the stepper and the solution.

Users deriving from this class can access a lot of data, and it is expected that those users know what changes are allowable without affecting the Stepper correctness, performance, accuracy and stability. Thus the user should be careful when accessing data through classes derived from the default modifier (i.e., USER BEWARE!!).

The locations for these AppAction calls (StepperTrapezoidalAppAction::ACTION_LOCATION) are shown in the algorithm documentation of the StepperTrapezoidal.

Definition at line 38 of file Tempus_StepperTrapezoidalModifierBase.hpp.

Member Function Documentation

template<class Scalar>

void Tempus::StepperTrapezoidalModifierBase< Scalar >::execute	(	Teuchos::RCP< SolutionHistory< Scalar > >	sh,
		Teuchos::RCP< StepperTrapezoidal< Scalar > >	stepper,
		const typename StepperTrapezoidalAppAction< Scalar >::ACTION_LOCATION	actLoc
	)

inlineprivatevirtual

Execute application action for Trapezoidal Stepper.

Implements Tempus::StepperTrapezoidalAppAction< Scalar >.

Definition at line 50 of file Tempus_StepperTrapezoidalModifierBase.hpp.

template<class Scalar>

virtual void Tempus::StepperTrapezoidalModifierBase< Scalar >::modify	(	Teuchos::RCP< SolutionHistory< Scalar > >	,
		Teuchos::RCP< StepperTrapezoidal< Scalar > >	,
		const typename StepperTrapezoidalAppAction< Scalar >::ACTION_LOCATION	actLoc
	)

pure virtual

Modify Trapezoidal Stepper.

Implemented in Tempus::StepperTrapezoidalModifierDefault< Scalar >.

The documentation for this class was generated from the following file:

Tempus_StepperTrapezoidalModifierBase.hpp
