Tempus::StepperSubcyclingObserverBase< Scalar > Class Template Referenceabstract

Base observer for StepperSubcycling. More...

#include <Tempus_StepperSubcyclingObserverBase.hpp>

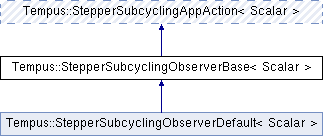

Inheritance diagram for Tempus::StepperSubcyclingObserverBase< Scalar >:
Tempus::StepperSubcyclingAppAction< Scalar > Tempus::StepperSubcyclingObserverDefault< Scalar >

Public Member Functions

virtual void observe (Teuchos::RCP< const SolutionHistory< Scalar > >, Teuchos::RCP< const StepperSubcycling< Scalar > >, const typename StepperSubcyclingAppAction< Scalar >::ACTION_LOCATION actLoc)=0
 Observe Subcycling Stepper. More...

- Public Member Functions inherited from Tempus::StepperSubcyclingAppAction< Scalar >
 StepperSubcyclingAppAction ()
 Constructor. More...

virtual ~StepperSubcyclingAppAction ()
 Destructor. More...


Private Member Functions

void execute (Teuchos::RCP< SolutionHistory< Scalar > > sh, Teuchos::RCP< StepperSubcycling< Scalar > > stepper, const typename StepperSubcyclingAppAction< Scalar >::ACTION_LOCATION actLoc)
 Execute application action for Subcycling Stepper. More...


Additional Inherited Members

- Public Types inherited from Tempus::StepperSubcyclingAppAction< Scalar >
enum  ACTION_LOCATION { BEGIN_STEP, END_STEP }
 Indicates the location of application action (see algorithm). More...


Detailed Description

template<class Scalar>
class Tempus::StepperSubcyclingObserverBase< Scalar >

Base observer for StepperSubcycling.

This class provides a means to observe values (e.g., solution variables through SolutionHistory, and stepper member data through the Stepper), and cannot modify them.

Users deriving from this class can observer a lot of data, and it is expected that users will NOT modify any of that data. If the user wishes to modify the solution and/or stepper data during the Stepper::takeStep, they should use the Modifier class (with care!).

The locations for these AppAction calls (StepperSubcyclingAppAction::ACTION_LOCATION) are shown in the algorithm documentation of the StepperSubcycling.

Definition at line 35 of file Tempus_StepperSubcyclingObserverBase.hpp.

Member Function Documentation

template<class Scalar>
void Tempus::StepperSubcyclingObserverBase< Scalar >::execute ( Teuchos::RCP< SolutionHistory< Scalar > >  sh,
Teuchos::RCP< StepperSubcycling< Scalar > >  stepper,
const typename StepperSubcyclingAppAction< Scalar >::ACTION_LOCATION  actLoc
)
inlineprivatevirtual

Execute application action for Subcycling Stepper.

Implements Tempus::StepperSubcyclingAppAction< Scalar >.

Definition at line 48 of file Tempus_StepperSubcyclingObserverBase.hpp.

template<class Scalar>
virtual void Tempus::StepperSubcyclingObserverBase< Scalar >::observe ( Teuchos::RCP< const SolutionHistory< Scalar > >  ,
Teuchos::RCP< const StepperSubcycling< Scalar > >  ,
const typename StepperSubcyclingAppAction< Scalar >::ACTION_LOCATION  actLoc
)
pure virtual

Observe Subcycling Stepper.

Implemented in Tempus::StepperSubcyclingObserverDefault< Scalar >.


The documentation for this class was generated from the following file:
