Subcycling time stepper. More...

#include <Tempus_StepperSubcycling_decl.hpp>

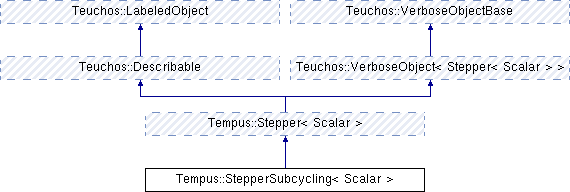

Inheritance diagram for Tempus::StepperSubcycling< Scalar >:

Public Member Functions
	StepperSubcycling ()
	Default constructor. More...

	StepperSubcycling (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel, const Teuchos::RCP< IntegratorBasic< Scalar > > &integrator, bool useFSAL, std::string ICConsistency, bool ICConsistencyCheck, const Teuchos::RCP< StepperSubcyclingAppAction< Scalar > > &stepperSCAppAction)
	Constructor. More...

Teuchos::RCP< const Teuchos::ParameterList >	getValidParameters () const

Public Member Functions inherited from Tempus::Stepper< Scalar >
virtual bool	isValidSetup (Teuchos::FancyOStream &out) const

void	setStepperValues (const Teuchos::RCP< Teuchos::ParameterList > pl)
	Set Stepper member data from ParameterList. More...

Teuchos::RCP < Teuchos::ParameterList >	getValidParametersBasic () const
	Add basic parameters to Steppers ParameterList. More...

virtual bool	isInitialized ()
	True if stepper's member data is initialized. More...

virtual void	checkInitialized ()
	Check initialization, and error out on failure. More...

void	setStepperName (std::string s)
	Set the stepper name. More...

std::string	getStepperName () const
	Get the stepper name. More...

std::string	getStepperType () const
	Get the stepper type. The stepper type is used as an identifier for the stepper, and can only be set by the derived Stepper class. More...

virtual void	setUseFSAL (bool a)

void	setUseFSALTrueOnly (bool a)

void	setUseFSALFalseOnly (bool a)

bool	getUseFSAL () const

void	setICConsistency (std::string s)

std::string	getICConsistency () const

void	setICConsistencyCheck (bool c)

bool	getICConsistencyCheck () const

virtual Teuchos::RCP < Thyra::VectorBase< Scalar > >	getStepperX ()
	Get Stepper x. More...

virtual Teuchos::RCP < Thyra::VectorBase< Scalar > >	getStepperXDot ()
	Get Stepper xDot. More...

virtual Teuchos::RCP < Thyra::VectorBase< Scalar > >	getStepperXDotDot ()
	Get Stepper xDotDot. More...

virtual Teuchos::RCP < Thyra::VectorBase< Scalar > >	getStepperXDotDot (Teuchos::RCP< SolutionState< Scalar > > state)
	Get xDotDot from SolutionState or Stepper storage. More...

virtual std::string	description () const

Public Member Functions inherited from Teuchos::Describable
void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual	~Describable ()

	LabeledObject ()

virtual	~LabeledObject ()

virtual void	setObjectLabel (const std::string &objectLabel)

virtual std::string	getObjectLabel () const

DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

Public Member Functions inherited from Teuchos::VerboseObject< Stepper< Scalar > >
	VerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObject &	setVerbLevel (const EVerbosityLevel verbLevel) const

virtual const VerboseObject &	setOverridingVerbLevel (const EVerbosityLevel verbLevel) const

virtual EVerbosityLevel	getVerbLevel () const

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT RCP< const ParameterList >	getValidVerboseObjectSublist ()

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT void	setupVerboseObjectSublist (ParameterList *paramList)

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT void	readVerboseObjectSublist (ParameterList paramList, RCP< FancyOStream > oStream, EVerbosityLevel *verbLevel)

void	readVerboseObjectSublist (ParameterList paramList, VerboseObject< ObjectType > verboseObject)

Public Member Functions inherited from Teuchos::VerboseObjectBase
virtual	~VerboseObjectBase ()

	VerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectBase &	setOStream (const RCP< FancyOStream > &oStream) const

virtual const VerboseObjectBase &	setOverridingOStream (const RCP< FancyOStream > &oStream) const

virtual VerboseObjectBase &	setLinePrefix (const std::string &linePrefix)

virtual RCP< FancyOStream >	getOStream () const

virtual RCP< FancyOStream >	getOverridingOStream () const

virtual std::string	getLinePrefix () const

virtual OSTab	getOSTab (const int tabs=1, const std::string &linePrefix="") const

Protected Attributes
Teuchos::RCP < StepperSubcyclingAppAction < Scalar > >	stepperSCAppAction_

Teuchos::RCP< IntegratorBasic < Scalar > >	scIntegrator_

Protected Attributes inherited from Tempus::Stepper< Scalar >
bool	useFSAL_ = false
	Use First-Same-As-Last (FSAL) principle. More...

bool	isInitialized_
	True if stepper's member data is initialized. More...

Basic stepper methods
virtual void	setModel (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel)

virtual void	setNonConstModel (const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &appModel)

virtual Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > >	getModel () const

virtual void	setAppAction (Teuchos::RCP< StepperSubcyclingAppAction< Scalar > > appAction=Teuchos::null)

virtual Teuchos::RCP < StepperSubcyclingAppAction < Scalar > >	getAppAction () const

virtual void	initialize ()
	Initialize during construction and after changing input parameters. More...

virtual Scalar	getInitTimeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory) const

virtual void	setInitialConditions (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)
	Set the initial conditions, make them consistent, and set needed memory. More...

virtual void	setInitialGuess (Teuchos::RCP< const Thyra::VectorBase< Scalar > > initial_guess)
	Pass initial guess to Newton solver (only relevant for implicit solvers) More...

virtual void	setSolver (Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > solver=Teuchos::null)
	Set solver. More...

virtual Teuchos::RCP < Thyra::NonlinearSolverBase < Scalar > >	getSolver () const
	Get solver. More...

virtual void	takeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)
	Take the specified timestep, dt, and return true if successful. More...

virtual Teuchos::RCP < Tempus::StepperState< Scalar > >	getDefaultStepperState ()
	Get a default (initial) StepperState. More...

virtual bool	isExplicit () const

virtual bool	isImplicit () const

virtual bool	isExplicitImplicit () const

virtual bool	isOneStepMethod () const

virtual bool	isMultiStepMethod () const

virtual Scalar	getOrder () const

virtual Scalar	getOrderMin () const

virtual Scalar	getOrderMax () const

virtual OrderODE	getOrderODE () const

Overridden from Teuchos::Describable
virtual void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const

Functions to set the subcycling stepper values.
virtual void	setSubcyclingStepper (Teuchos::RCP< Stepper< Scalar > > stepper)

virtual void	setSubcyclingMinTimeStep (Scalar MinTimeStep)

virtual void	setSubcyclingInitTimeStep (Scalar InitTimeStep)

virtual void	setSubcyclingMaxTimeStep (Scalar MaxTimeStep)

virtual void	setSubcyclingMaxFailures (int MaxFailures)

virtual void	setSubcyclingMaxConsecFailures (int MaxConsecFailures)

virtual void	setSubcyclingScreenOutputIndexInterval (int i)

virtual void	setSubcyclingScreenOutputIndexList (std::string s)

virtual void	setSubcyclingTimeStepControlStrategy (Teuchos::RCP< TimeStepControlStrategy< Scalar > > tscs)

virtual void	setSubcyclingIntegratorObserver (Teuchos::RCP< IntegratorObserver< Scalar > > obs)

virtual void	setSubcyclingPrintDtChanges (bool printDtChanges)

Functions to get the subcycling stepper values.
virtual Teuchos::RCP< const Stepper< Scalar > >	getSubcyclingStepper () const

virtual Scalar	getSubcyclingMinTimeStep () const

virtual Scalar	getSubcyclingInitTimeStep () const

virtual Scalar	getSubcyclingMaxTimeStep () const

virtual std::string	getSubcyclingStepType () const

virtual int	getSubcyclingMaxFailures () const

virtual int	getSubcyclingMaxConsecFailures () const

virtual int	getSubcyclingScreenOutputIndexInterval () const

virtual std::string	getSubcyclingScreenOutputIndexList () const

virtual Teuchos::RCP < TimeStepControlStrategy < Scalar > >	getSubcyclingTimeStepControlStrategy () const

virtual Teuchos::RCP < IntegratorObserver< Scalar > >	getSubcyclingIntegratorObserver () const

virtual bool	getSubcyclingPrintDtChanges () const

Additional Inherited Members
Static Public Member Functions inherited from Teuchos::VerboseObject< Stepper< Scalar > >
static void	setDefaultVerbLevel (const EVerbosityLevel defaultVerbLevel)

static EVerbosityLevel	getDefaultVerbLevel ()

Static Public Member Functions inherited from Teuchos::VerboseObjectBase
static void	setDefaultOStream (const RCP< FancyOStream > &defaultOStream)

static RCP< FancyOStream >	getDefaultOStream ()

Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default

Protected Member Functions inherited from Tempus::Stepper< Scalar >
virtual void	setStepperX (Teuchos::RCP< Thyra::VectorBase< Scalar > > x)
	Set x for Stepper storage. More...

virtual void	setStepperXDot (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDot)
	Set xDot for Stepper storage. More...

virtual void	setStepperXDotDot (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDotDot)
	Set x for Stepper storage. More...

void	setStepperType (std::string s)
	Set the stepper type. More...

Protected Member Functions inherited from Teuchos::VerboseObject< Stepper< Scalar > >
void	initializeVerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

Protected Member Functions inherited from Teuchos::VerboseObjectBase
void	initializeVerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual void	informUpdatedVerbosityState () const

Detailed Description

template<class Scalar>
class Tempus::StepperSubcycling< Scalar >

Subcycling time stepper.

This stepper wraps an IntegratorBasic object to perform the subcycling, thus it has all the capbilities of an IntegratorBasic with the following specializations and defaults:

Main Integrator operates independently from subcycling Stepper, and can be driven by another physics.
Need separate TimeStepControl for the subcycling so it can be driven by the physics (e.g., variable time stepping).
Finish the subcycling exactly on the full timestep.
No solution I/O within the subcycling.
No restart capability within subcycling, but still have restart capability from the full timestep.
Do not need to keep a solution history of the subcycling.

Algorithm The algorithm for Subcycling stepper is

$\begin{center} \parbox{5in}{ \rule{5in}{0.4pt} \\ {\bf Algorithm} Subcycling \\ \rule{5in}{0.4pt} \vspace{-15pt} \begin{enumerate} \setlength{\itemsep}{0pt} \setlength{\parskip}{0pt} \setlength{\parsep}{0pt} \item {\it appAction.execute(solutionHistory, stepper, BEGIN\_STEP)} \item {\bf Advance solution, $x_{n}$ from $x_{n-1}$, by cycling substeppers.} \item {\it appAction.execute(solutionHistory, stepper, END\_STEP)} \end{enumerate} \vspace{-10pt} \rule{5in}{0.4pt} } \end{center}$

Definition at line 52 of file Tempus_StepperSubcycling_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar >

Tempus::StepperSubcycling< Scalar >::StepperSubcycling ( )

Default constructor.

Requires subsequent setModel() and initialize() call before calling takeStep().

Definition at line 24 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

Tempus::StepperSubcycling< Scalar >::StepperSubcycling	(	const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &	appModel,
		const Teuchos::RCP< IntegratorBasic< Scalar > > &	integrator,
		bool	useFSAL,
		std::string	ICConsistency,
		bool	ICConsistencyCheck,
		const Teuchos::RCP< StepperSubcyclingAppAction< Scalar > > &	stepperSCAppAction
	)

Constructor.

Definition at line 78 of file Tempus_StepperSubcycling_impl.hpp.

Member Function Documentation

template<class Scalar >

void Tempus::StepperSubcycling< Scalar >::setModel ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > & appModel )

virtual

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 260 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

void Tempus::StepperSubcycling< Scalar >::setNonConstModel ( const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > & appModel )

virtual

Definition at line 268 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

virtual Teuchos::RCP<const Thyra::ModelEvaluator<Scalar> > Tempus::StepperSubcycling< Scalar >::getModel ( ) const

inlinevirtual

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 77 of file Tempus_StepperSubcycling_decl.hpp.

template<class Scalar >

void Tempus::StepperSubcycling< Scalar >::setAppAction ( Teuchos::RCP< StepperSubcyclingAppAction< Scalar > > appAction = Teuchos::null )

virtual

Definition at line 276 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

virtual Teuchos::RCP<StepperSubcyclingAppAction<Scalar> > Tempus::StepperSubcycling< Scalar >::getAppAction ( ) const

inlinevirtual

Definition at line 85 of file Tempus_StepperSubcycling_decl.hpp.

template<class Scalar >

void Tempus::StepperSubcycling< Scalar >::initialize ( )

virtual

Initialize during construction and after changing input parameters.

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 291 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

Scalar Tempus::StepperSubcycling< Scalar >::getInitTimeStep ( const Teuchos::RCP< SolutionHistory< Scalar > > & solutionHistory ) const

virtual

Implements Tempus::Stepper< Scalar >.

Definition at line 373 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

void Tempus::StepperSubcycling< Scalar >::setInitialConditions ( const Teuchos::RCP< SolutionHistory< Scalar > > & solutionHistory )

virtual

Set the initial conditions, make them consistent, and set needed memory.

Implements Tempus::Stepper< Scalar >.

Definition at line 388 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

void Tempus::StepperSubcycling< Scalar >::setInitialGuess ( Teuchos::RCP< const Thyra::VectorBase< Scalar > > initial_guess )

virtual

Pass initial guess to Newton solver (only relevant for implicit solvers)

Implements Tempus::Stepper< Scalar >.

Definition at line 380 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

void Tempus::StepperSubcycling< Scalar >::setSolver ( Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > solver = Teuchos::null )

virtual

Set solver.

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 396 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > Tempus::StepperSubcycling< Scalar >::getSolver ( ) const

virtual

Get solver.

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 405 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

void Tempus::StepperSubcycling< Scalar >::takeStep ( const Teuchos::RCP< SolutionHistory< Scalar > > & solutionHistory )

virtual

Take the specified timestep, dt, and return true if successful.

Implements Tempus::Stepper< Scalar >.

Definition at line 411 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

Teuchos::RCP< Tempus::StepperState< Scalar > > Tempus::StepperSubcycling< Scalar >::getDefaultStepperState ( )

virtual

Get a default (initial) StepperState.

Provide a StepperState to the SolutionState. This Stepper does not have any special state data, so just provide the base class StepperState with the Stepper description. This can be checked to ensure that the input StepperState can be used by this Stepper.

Implements Tempus::Stepper< Scalar >.

Definition at line 508 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

bool Tempus::StepperSubcycling< Scalar >::isExplicit ( ) const

virtual

Implements Tempus::Stepper< Scalar >.

Definition at line 319 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

bool Tempus::StepperSubcycling< Scalar >::isImplicit ( ) const

virtual

Implements Tempus::Stepper< Scalar >.

Definition at line 325 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

bool Tempus::StepperSubcycling< Scalar >::isExplicitImplicit ( ) const

virtual

Implements Tempus::Stepper< Scalar >.

Definition at line 331 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

bool Tempus::StepperSubcycling< Scalar >::isOneStepMethod ( ) const

virtual

Implements Tempus::Stepper< Scalar >.

Definition at line 337 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

bool Tempus::StepperSubcycling< Scalar >::isMultiStepMethod ( ) const

virtual

Implements Tempus::Stepper< Scalar >.

Definition at line 343 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

Scalar Tempus::StepperSubcycling< Scalar >::getOrder ( ) const

virtual

Implements Tempus::Stepper< Scalar >.

Definition at line 349 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

Scalar Tempus::StepperSubcycling< Scalar >::getOrderMin ( ) const

virtual

Implements Tempus::Stepper< Scalar >.

Definition at line 355 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

Scalar Tempus::StepperSubcycling< Scalar >::getOrderMax ( ) const

virtual

Implements Tempus::Stepper< Scalar >.

Definition at line 361 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

OrderODE Tempus::StepperSubcycling< Scalar >::getOrderODE ( ) const

virtual

Implements Tempus::Stepper< Scalar >.

Definition at line 367 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

Teuchos::RCP< const Teuchos::ParameterList > Tempus::StepperSubcycling< Scalar >::getValidParameters ( ) const

virtual

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 532 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

void Tempus::StepperSubcycling< Scalar >::describe	(	Teuchos::FancyOStream &	out,
		const Teuchos::EVerbosityLevel	verbLevel
	)		const

virtual

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 516 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

void Tempus::StepperSubcycling< Scalar >::setSubcyclingStepper ( Teuchos::RCP< Stepper< Scalar > > stepper )

virtual

Definition at line 100 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

void Tempus::StepperSubcycling< Scalar >::setSubcyclingMinTimeStep ( Scalar MinTimeStep )

virtual

Definition at line 108 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

void Tempus::StepperSubcycling< Scalar >::setSubcyclingInitTimeStep ( Scalar InitTimeStep )

virtual

Definition at line 115 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

void Tempus::StepperSubcycling< Scalar >::setSubcyclingMaxTimeStep ( Scalar MaxTimeStep )

virtual

Definition at line 122 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

void Tempus::StepperSubcycling< Scalar >::setSubcyclingMaxFailures ( int MaxFailures )

virtual

Definition at line 129 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

void Tempus::StepperSubcycling< Scalar >::setSubcyclingMaxConsecFailures ( int MaxConsecFailures )

virtual

Definition at line 136 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

void Tempus::StepperSubcycling< Scalar >::setSubcyclingScreenOutputIndexInterval ( int i )

virtual

Definition at line 145 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

void Tempus::StepperSubcycling< Scalar >::setSubcyclingScreenOutputIndexList ( std::string s )

virtual

Definition at line 152 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

void Tempus::StepperSubcycling< Scalar >::setSubcyclingTimeStepControlStrategy ( Teuchos::RCP< TimeStepControlStrategy< Scalar > > tscs )

virtual

Definition at line 160 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

void Tempus::StepperSubcycling< Scalar >::setSubcyclingIntegratorObserver ( Teuchos::RCP< IntegratorObserver< Scalar > > obs )

virtual

Definition at line 168 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

void Tempus::StepperSubcycling< Scalar >::setSubcyclingPrintDtChanges ( bool printDtChanges )

virtual

Definition at line 176 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

Teuchos::RCP< const Stepper< Scalar > > Tempus::StepperSubcycling< Scalar >::getSubcyclingStepper ( ) const

virtual

Definition at line 185 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

Scalar Tempus::StepperSubcycling< Scalar >::getSubcyclingMinTimeStep ( ) const

virtual

Definition at line 191 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

Scalar Tempus::StepperSubcycling< Scalar >::getSubcyclingInitTimeStep ( ) const

virtual

Definition at line 197 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

Scalar Tempus::StepperSubcycling< Scalar >::getSubcyclingMaxTimeStep ( ) const

virtual

Definition at line 203 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

std::string Tempus::StepperSubcycling< Scalar >::getSubcyclingStepType ( ) const

virtual

Definition at line 209 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

int Tempus::StepperSubcycling< Scalar >::getSubcyclingMaxFailures ( ) const

virtual

Definition at line 215 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

int Tempus::StepperSubcycling< Scalar >::getSubcyclingMaxConsecFailures ( ) const

virtual

Definition at line 221 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

int Tempus::StepperSubcycling< Scalar >::getSubcyclingScreenOutputIndexInterval ( ) const

virtual

Definition at line 227 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

std::string Tempus::StepperSubcycling< Scalar >::getSubcyclingScreenOutputIndexList ( ) const

virtual

Definition at line 233 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

Teuchos::RCP< TimeStepControlStrategy< Scalar > > Tempus::StepperSubcycling< Scalar >::getSubcyclingTimeStepControlStrategy ( ) const

virtual

Definition at line 241 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

Teuchos::RCP< IntegratorObserver< Scalar > > Tempus::StepperSubcycling< Scalar >::getSubcyclingIntegratorObserver ( ) const

virtual

Definition at line 248 of file Tempus_StepperSubcycling_impl.hpp.

template<class Scalar >

bool Tempus::StepperSubcycling< Scalar >::getSubcyclingPrintDtChanges ( ) const

virtual

Definition at line 254 of file Tempus_StepperSubcycling_impl.hpp.

Member Data Documentation

template<class Scalar >

Teuchos::RCP<StepperSubcyclingAppAction<Scalar> > Tempus::StepperSubcycling< Scalar >::stepperSCAppAction_

protected

Definition at line 173 of file Tempus_StepperSubcycling_decl.hpp.

template<class Scalar >

Teuchos::RCP<IntegratorBasic<Scalar> > Tempus::StepperSubcycling< Scalar >::scIntegrator_

protected

Definition at line 174 of file Tempus_StepperSubcycling_decl.hpp.

The documentation for this class was generated from the following files:

Public Member Functions

Protected Attributes

Basic stepper methods

Overridden from Teuchos::Describable

Functions to set the subcycling stepper values.

Functions to get the subcycling stepper values.

Additional Inherited Members

Detailed Description

template<class Scalar> class Tempus::StepperSubcycling< Scalar >

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<class Scalar>
class Tempus::StepperSubcycling< Scalar >
