Tempus::StepperNewmarkImplicitDFormAppAction< Scalar > Class Template Reference

Application Action for StepperNewmarkImplicitDForm. More...

#include <Tempus_StepperNewmarkImplicitDFormAppAction.hpp>

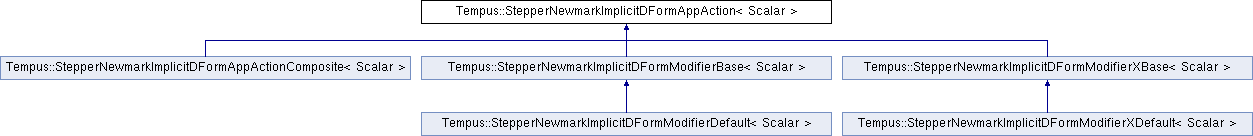

Inheritance diagram for Tempus::StepperNewmarkImplicitDFormAppAction< Scalar >:

Public Types
enum	ACTION_LOCATION { BEGIN_STEP, BEFORE_SOLVE, AFTER_SOLVE, END_STEP }
	Indicates the location of application action (see algorithm). More...

Public Member Functions
	StepperNewmarkImplicitDFormAppAction ()
	Constructor. More...
virtual	~StepperNewmarkImplicitDFormAppAction ()
	Destructor. More...
virtual void	execute (Teuchos::RCP< SolutionHistory< Scalar > > sh, Teuchos::RCP< StepperNewmarkImplicitDForm< Scalar > > stepper, const typename StepperNewmarkImplicitDFormAppAction< Scalar >::ACTION_LOCATION actLoc)=0
	Execute application action for NewmarkImplicitDForm Stepper. More...

Detailed Description

template<class Scalar>
class Tempus::StepperNewmarkImplicitDFormAppAction< Scalar >

Application Action for StepperNewmarkImplicitDForm.

This class provides a means to apply various actions with the NewmarkImplicitDForm time step. The data available to this class is solution variables (through SolutionHistory), and stepper data (through the Stepper). It allows the application to just observe this data, i.e., use but not change any of it (USER BEWARE!).

The locations for these AppAction calls (StepperNewmarkImplicitDFormAppAction::ACTION_LOCATION) are shown in the algorithm documentation of the StepperNewmarkImplicitDForm.

Definition at line 35 of file Tempus_StepperNewmarkImplicitDFormAppAction.hpp.

Member Enumeration Documentation

template<class Scalar>

enum Tempus::StepperNewmarkImplicitDFormAppAction::ACTION_LOCATION

Indicates the location of application action (see algorithm).

Enumerator
BEGIN_STEP	At the beginning of the step.
BEFORE_SOLVE	Before the implicit solve.
AFTER_SOLVE	After the implicit solve.
END_STEP	At the end of the step.

Definition at line 38 of file Tempus_StepperNewmarkImplicitDFormAppAction.hpp.

Constructor & Destructor Documentation

template<class Scalar>

Tempus::StepperNewmarkImplicitDFormAppAction< Scalar >::StepperNewmarkImplicitDFormAppAction ( )

inline

Constructor.

Definition at line 46 of file Tempus_StepperNewmarkImplicitDFormAppAction.hpp.

template<class Scalar>

virtual Tempus::StepperNewmarkImplicitDFormAppAction< Scalar >::~StepperNewmarkImplicitDFormAppAction ( )

inlinevirtual

Destructor.

Definition at line 49 of file Tempus_StepperNewmarkImplicitDFormAppAction.hpp.

Member Function Documentation

template<class Scalar>

virtual void Tempus::StepperNewmarkImplicitDFormAppAction< Scalar >::execute ( Teuchos::RCP< SolutionHistory< Scalar > >  sh, Teuchos::RCP< StepperNewmarkImplicitDForm< Scalar > >  stepper, const typename StepperNewmarkImplicitDFormAppAction< Scalar >::ACTION_LOCATION  actLoc  )

pure virtual

Execute application action for NewmarkImplicitDForm Stepper.

Implemented in Tempus::StepperNewmarkImplicitDFormModifierXBase< Scalar >, Tempus::StepperNewmarkImplicitDFormModifierXBase< double >, Tempus::StepperNewmarkImplicitDFormModifierBase< Scalar >, Tempus::StepperNewmarkImplicitDFormModifierBase< double >, and Tempus::StepperNewmarkImplicitDFormAppActionComposite< Scalar >.

---

The documentation for this class was generated from the following file:

• Tempus_StepperNewmarkImplicitDFormAppAction.hpp
