Tempus::StepperNewmarkImplicitDForm< Scalar > Class Template Reference

Newmark time stepper. More...

#include <Tempus_StepperNewmarkImplicitDForm_decl.hpp>

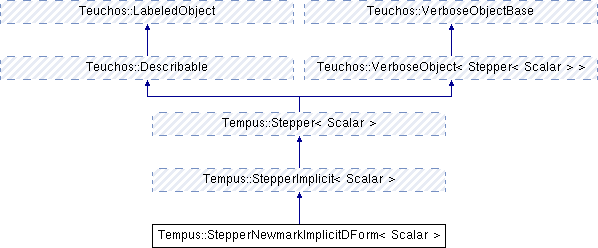

Inheritance diagram for Tempus::StepperNewmarkImplicitDForm< Scalar >:
Tempus::StepperImplicit< Scalar > Tempus::Stepper< Scalar > Teuchos::Describable Teuchos::VerboseObject< Stepper< Scalar > > Teuchos::LabeledObject Teuchos::VerboseObjectBase

Public Member Functions

 StepperNewmarkImplicitDForm ()
 Default constructor. More...

 StepperNewmarkImplicitDForm (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel, const Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > &solver, bool useFSAL, std::string ICConsistency, bool ICConsistencyCheck, bool zeroInitialGuess, std::string schemeName, Scalar beta, Scalar gamma, const Teuchos::RCP< StepperNewmarkImplicitDFormAppAction< Scalar > > &stepperAppAction)
 Constructor. More...

virtual Scalar getW_xDotDot_coeff (const Scalar dt) const
 Return W_xDotxDot_coeff = d(xDotDot)/d(x). More...

virtual Scalar getAlpha (const Scalar dt) const
 Return alpha = d(xDot)/d(x). More...

virtual Scalar getBeta (const Scalar) const
 Return beta = d(x)/d(x). More...

Teuchos::RCP< const
Teuchos::ParameterList
getValidParameters () const

virtual bool isValidSetup (Teuchos::FancyOStream &out) const

void predictVelocity (Thyra::VectorBase< Scalar > &vPred, const Thyra::VectorBase< Scalar > &v, const Thyra::VectorBase< Scalar > &a, const Scalar dt) const

void predictDisplacement (Thyra::VectorBase< Scalar > &dPred, const Thyra::VectorBase< Scalar > &d, const Thyra::VectorBase< Scalar > &v, const Thyra::VectorBase< Scalar > &a, const Scalar dt) const

void correctVelocity (Thyra::VectorBase< Scalar > &v, const Thyra::VectorBase< Scalar > &vPred, const Thyra::VectorBase< Scalar > &a, const Scalar dt) const

void correctDisplacement (Thyra::VectorBase< Scalar > &d, const Thyra::VectorBase< Scalar > &dPred, const Thyra::VectorBase< Scalar > &a, const Scalar dt) const

void correctAcceleration (Thyra::VectorBase< Scalar > &a, const Thyra::VectorBase< Scalar > &dPred, const Thyra::VectorBase< Scalar > &d, const Scalar dt) const

void setSchemeName (std::string schemeName)

void setBeta (Scalar beta)

void setGamma (Scalar gamma)

- Public Member Functions inherited from Tempus::StepperImplicit< Scalar >
Teuchos::RCP
< Teuchos::ParameterList
getValidParametersBasicImplicit () const

void setStepperImplicitValues (Teuchos::RCP< Teuchos::ParameterList > pl)
 Set StepperImplicit member data from the ParameterList. More...

void setStepperSolverValues (Teuchos::RCP< Teuchos::ParameterList > pl)
 Set solver from ParameterList. More...

void setSolverName (std::string i)
 Set the Solver Name. More...

std::string getSolverName () const
 Get the Solver Name. More...

virtual void setModel (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel) override
 Set the model. More...

virtual Teuchos::RCP< const
Thyra::ModelEvaluator< Scalar > >
getModel () const override

virtual Teuchos::RCP< const
WrapperModelEvaluator< Scalar > >
getWrapperModel ()

virtual void setDefaultSolver ()

virtual void setSolver (Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > solver) override
 Set solver. More...

virtual Teuchos::RCP
< Thyra::NonlinearSolverBase
< Scalar > >
getSolver () const override
 Get solver. More...

const Thyra::SolveStatus< Scalar > solveImplicitODE (const Teuchos::RCP< Thyra::VectorBase< Scalar > > &x, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &xDot, const Scalar time, const Teuchos::RCP< ImplicitODEParameters< Scalar > > &p, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &y=Teuchos::null, const int index=0)
 Solve implicit ODE, f(x, xDot, t, p) = 0. More...

void evaluateImplicitODE (Teuchos::RCP< Thyra::VectorBase< Scalar > > &f, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &x, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &xDot, const Scalar time, const Teuchos::RCP< ImplicitODEParameters< Scalar > > &p)
 Evaluate implicit ODE residual, f(x, xDot, t, p). More...

virtual void setInitialGuess (Teuchos::RCP< const Thyra::VectorBase< Scalar > > initialGuess) override
 Pass initial guess to Newton solver (only relevant for implicit solvers) More...

virtual void setZeroInitialGuess (bool zIG)
 Set parameter so that the initial guess is set to zero (=True) or use last timestep (=False). More...

virtual bool getZeroInitialGuess () const

virtual Scalar getInitTimeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &) const override

- Public Member Functions inherited from Tempus::Stepper< Scalar >
void setStepperValues (const Teuchos::RCP< Teuchos::ParameterList > pl)
 Set Stepper member data from ParameterList. More...

Teuchos::RCP
< Teuchos::ParameterList
getValidParametersBasic () const
 Add basic parameters to Steppers ParameterList. More...

virtual void initialize ()
 Initialize after construction and changing input parameters. More...

virtual bool isInitialized ()
 True if stepper's member data is initialized. More...

virtual void checkInitialized ()
 Check initialization, and error out on failure. More...

virtual void takeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)=0
 Take the specified timestep, dt, and return true if successful. More...

void setStepperName (std::string s)
 Set the stepper name. More...

std::string getStepperName () const
 Get the stepper name. More...

std::string getStepperType () const
 Get the stepper type. The stepper type is used as an identifier for the stepper, and can only be set by the derived Stepper class. More...

virtual void setUseFSAL (bool a)

void setUseFSALTrueOnly (bool a)

void setUseFSALFalseOnly (bool a)

bool getUseFSAL () const

void setICConsistency (std::string s)

std::string getICConsistency () const

void setICConsistencyCheck (bool c)

bool getICConsistencyCheck () const

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > >
getStepperX ()
 Get Stepper x. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > >
getStepperXDot ()
 Get Stepper xDot. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > >
getStepperXDotDot ()
 Get Stepper xDotDot. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > >
getStepperXDotDot (Teuchos::RCP< SolutionState< Scalar > > state)
 Get xDotDot from SolutionState or Stepper storage. More...

virtual std::string description () const

- Public Member Functions inherited from Teuchos::Describable
void describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual ~Describable ()

 LabeledObject ()

virtual ~LabeledObject ()

virtual void setObjectLabel (const std::string &objectLabel)

virtual std::string getObjectLabel () const

DescribableStreamManipulatorState describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream & operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

- Public Member Functions inherited from Teuchos::VerboseObject< Stepper< Scalar > >
 VerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectsetVerbLevel (const EVerbosityLevel verbLevel) const

virtual const VerboseObjectsetOverridingVerbLevel (const EVerbosityLevel verbLevel) const

virtual EVerbosityLevel getVerbLevel () const

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
RCP< const ParameterList
getValidVerboseObjectSublist ()

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
void
setupVerboseObjectSublist (ParameterList *paramList)

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
void
readVerboseObjectSublist (ParameterList *paramList, RCP< FancyOStream > *oStream, EVerbosityLevel *verbLevel)

void readVerboseObjectSublist (ParameterList *paramList, VerboseObject< ObjectType > *verboseObject)

- Public Member Functions inherited from Teuchos::VerboseObjectBase
virtual ~VerboseObjectBase ()

 VerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectBasesetOStream (const RCP< FancyOStream > &oStream) const

virtual const VerboseObjectBasesetOverridingOStream (const RCP< FancyOStream > &oStream) const

virtual VerboseObjectBasesetLinePrefix (const std::string &linePrefix)

virtual RCP< FancyOStreamgetOStream () const

virtual RCP< FancyOStreamgetOverridingOStream () const

virtual std::string getLinePrefix () const

virtual OSTab getOSTab (const int tabs=1, const std::string &linePrefix="") const


Protected Attributes

std::string schemeName_

Scalar beta_

Scalar gamma_

Teuchos::RCP
< Teuchos::FancyOStream
out_

Teuchos::RCP
< StepperNewmarkImplicitDFormAppAction
< Scalar > >
stepperNewmarkImpAppAction_

- Protected Attributes inherited from Tempus::StepperImplicit< Scalar >
Teuchos::RCP
< WrapperModelEvaluator
< Scalar > >
wrapperModel_

Teuchos::RCP
< Thyra::NonlinearSolverBase
< Scalar > >
solver_

Teuchos::RCP< const
Thyra::VectorBase< Scalar > >
initialGuess_

bool zeroInitialGuess_

std::string solverName_

- Protected Attributes inherited from Tempus::Stepper< Scalar >
bool useFSAL_ = false
 Use First-Same-As-Last (FSAL) principle. More...

bool isInitialized_ = false
 True if stepper's member data is initialized. More...


Basic stepper methods

virtual void setModel (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar >> &appModel)

virtual Teuchos::RCP
< StepperNewmarkImplicitDFormAppAction
< Scalar > >
getAppAction () const

virtual void setAppAction (Teuchos::RCP< StepperNewmarkImplicitDFormAppAction< Scalar > > appAction)

virtual void setInitialConditions (const Teuchos::RCP< SolutionHistory< Scalar > > &)
 Set the initial conditions and make them consistent. More...

virtual void takeStep (const Teuchos::RCP< SolutionHistory< Scalar >> &solutionHistory)
 Take the specified timestep, dt, and return true if successful. More...

virtual Teuchos::RCP
< Tempus::StepperState< Scalar > >
getDefaultStepperState ()
 Get a default (initial) StepperState. More...

virtual Scalar getOrder () const

virtual Scalar getOrderMin () const

virtual Scalar getOrderMax () const

virtual bool isExplicit () const

virtual bool isImplicit () const

virtual bool isExplicitImplicit () const

virtual bool isOneStepMethod () const

virtual bool isMultiStepMethod () const

virtual OrderODE getOrderODE () const


Overridden from Teuchos::Describable

virtual void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const


Additional Inherited Members

- Static Public Member Functions inherited from Teuchos::VerboseObject< Stepper< Scalar > >
static void setDefaultVerbLevel (const EVerbosityLevel defaultVerbLevel)

static EVerbosityLevel getDefaultVerbLevel ()

- Static Public Member Functions inherited from Teuchos::VerboseObjectBase
static void setDefaultOStream (const RCP< FancyOStream > &defaultOStream)

static RCP< FancyOStreamgetDefaultOStream ()

- Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel verbLevel_default

- Protected Member Functions inherited from Tempus::Stepper< Scalar >
virtual void setStepperX (Teuchos::RCP< Thyra::VectorBase< Scalar > > x)
 Set x for Stepper storage. More...

virtual void setStepperXDot (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDot)
 Set xDot for Stepper storage. More...

virtual void setStepperXDotDot (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDotDot)
 Set x for Stepper storage. More...

void setStepperType (std::string s)
 Set the stepper type. More...

- Protected Member Functions inherited from Teuchos::VerboseObject< Stepper< Scalar > >
void initializeVerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

- Protected Member Functions inherited from Teuchos::VerboseObjectBase
void initializeVerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual void informUpdatedVerbosityState () const


Detailed Description

template<class Scalar>
class Tempus::StepperNewmarkImplicitDForm< Scalar >

Newmark time stepper.

Here, we implement the Newmark scheme in displacement predictor/corrector form; see equations (34)-(35) in: A. Mota, W. Klug, M. Ortiz, "Finite element simulation of firearm injury to the human cranium", Computational Mechanics 31(1) 115-121 (2003).

Newmark has two parameters: $\beta$ and $\gamma$, both of which need to be in the range $[0,1]$. Newmark can be an explicit or implicit method, depending on the value of the $\beta$ parameter. If $\beta = 0$, the method is explicit; but note that the d-form of the Newmark scheme is not defined for the explicit case.

Newmark is second order accurate if $\gamma = 0.5$; otherwise it is first order accurate. Some additional properties about the Newmark Beta scheme can be found here.

Algorithm The algorithm for the Newmark implicit D-form with predictors and correctors is

\begin{center} \parbox{5in}{ \rule{5in}{0.4pt} \\ {\bf Algorithm} Newmark Implicit D-form \\ \rule{5in}{0.4pt} \vspace{-15pt} \begin{enumerate} \setlength{\itemsep}{0pt} \setlength{\parskip}{0pt} \setlength{\parsep}{0pt} \item {\it appAction.execute(solutionHistory, stepper, BEGIN\_STEP)} \item $\mathbf{d}^{\ast} = \mathbf{d}^{n-1} + \Delta t \mathbf{v}^{n-1} + \Delta t^2 (1-2 \beta) \mathbf{a}^{n-1} / 2$ \item $\mathbf{v}^{\ast} = \mathbf{v}^{n-1} + \Delta t (1-\gamma) \mathbf{a}^{n-1}$ \item {\it appAction.execute(solutionHistory, stepper, BEFORE\_SOLVE)} \item {\bf Solve $\mathbf{f}(\mathbf{d}^n, \mathbf{v}^n, \mathbf{a}^n, t^n) = 0$ for $\mathbf{d}^n$ where} \\ $\mathbf{a}^n = (\mathbf{d}^n - \mathbf{d}^{\ast})/(\beta \Delta t^2)$ \\ $\mathbf{v}^n = \mathbf{v}^{\ast} + \gamma \Delta t \mathbf{a}^n$ \item {\it appAction.execute(solutionHistory, stepper, AFTER\_SOLVE)} \item $\mathbf{a}^n = (\mathbf{d}^n - \mathbf{d}^{\ast})/(\beta \Delta t^2)$ \item $\mathbf{v}^n = \mathbf{v}^{\ast} + \gamma \Delta t \mathbf{a}^n$ \item {\it appAction.execute(solutionHistory, stepper, END\_STEP)} \end{enumerate} \vspace{-10pt} \rule{5in}{0.4pt} } \end{center}

The First-Same-As-Last (FSAL) principle is not used with the Newmark implicit D-Form method. The default is to set useFSAL=false, however useFSAL=true will also work but have no affect (i.e., no-op).

Definition at line 74 of file Tempus_StepperNewmarkImplicitDForm_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar >
Tempus::StepperNewmarkImplicitDForm< Scalar >::StepperNewmarkImplicitDForm ( )

Default constructor.

Requires subsequent setModel(), setSolver() and initialize() calls before calling takeStep().

Definition at line 172 of file Tempus_StepperNewmarkImplicitDForm_impl.hpp.

template<class Scalar >
Tempus::StepperNewmarkImplicitDForm< Scalar >::StepperNewmarkImplicitDForm ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &  appModel,
const Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > &  solver,
bool  useFSAL,
std::string  ICConsistency,
bool  ICConsistencyCheck,
bool  zeroInitialGuess,
std::string  schemeName,
Scalar  beta,
Scalar  gamma,
const Teuchos::RCP< StepperNewmarkImplicitDFormAppAction< Scalar > > &  stepperAppAction
)

Constructor.

Definition at line 191 of file Tempus_StepperNewmarkImplicitDForm_impl.hpp.

Member Function Documentation

template<class Scalar >
void Tempus::StepperNewmarkImplicitDForm< Scalar >::setModel ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar >> &  appModel)
virtual

Definition at line 224 of file Tempus_StepperNewmarkImplicitDForm_impl.hpp.

template<class Scalar >
virtual Teuchos::RCP<StepperNewmarkImplicitDFormAppAction<Scalar> > Tempus::StepperNewmarkImplicitDForm< Scalar >::getAppAction ( ) const
inlinevirtual

Definition at line 102 of file Tempus_StepperNewmarkImplicitDForm_decl.hpp.

template<class Scalar >
void Tempus::StepperNewmarkImplicitDForm< Scalar >::setAppAction ( Teuchos::RCP< StepperNewmarkImplicitDFormAppAction< Scalar > >  appAction)
virtual

Definition at line 244 of file Tempus_StepperNewmarkImplicitDForm_impl.hpp.

template<class Scalar >
virtual void Tempus::StepperNewmarkImplicitDForm< Scalar >::setInitialConditions ( const Teuchos::RCP< SolutionHistory< Scalar > > &  )
inlinevirtual

Set the initial conditions and make them consistent.

Reimplemented from Tempus::StepperImplicit< Scalar >.

Definition at line 109 of file Tempus_StepperNewmarkImplicitDForm_decl.hpp.

template<class Scalar >
void Tempus::StepperNewmarkImplicitDForm< Scalar >::takeStep ( const Teuchos::RCP< SolutionHistory< Scalar >> &  solutionHistory)
virtual

Take the specified timestep, dt, and return true if successful.

Definition at line 262 of file Tempus_StepperNewmarkImplicitDForm_impl.hpp.

template<class Scalar >
Teuchos::RCP< Tempus::StepperState< Scalar > > Tempus::StepperNewmarkImplicitDForm< Scalar >::getDefaultStepperState ( )
virtual

Get a default (initial) StepperState.

Provide a StepperState to the SolutionState. This Stepper does not have any special state data, so just provide the base class StepperState with the Stepper description. This can be checked to ensure that the input StepperState can be used by this Stepper.

Implements Tempus::Stepper< Scalar >.

Definition at line 439 of file Tempus_StepperNewmarkImplicitDForm_impl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperNewmarkImplicitDForm< Scalar >::getOrder ( ) const
inlinevirtual
template<class Scalar >
virtual Scalar Tempus::StepperNewmarkImplicitDForm< Scalar >::getOrderMin ( ) const
inlinevirtual
template<class Scalar >
virtual Scalar Tempus::StepperNewmarkImplicitDForm< Scalar >::getOrderMax ( ) const
inlinevirtual
template<class Scalar >
virtual bool Tempus::StepperNewmarkImplicitDForm< Scalar >::isExplicit ( ) const
inlinevirtual
template<class Scalar >
virtual bool Tempus::StepperNewmarkImplicitDForm< Scalar >::isImplicit ( ) const
inlinevirtual
template<class Scalar >
virtual bool Tempus::StepperNewmarkImplicitDForm< Scalar >::isExplicitImplicit ( ) const
inlinevirtual
template<class Scalar >
virtual bool Tempus::StepperNewmarkImplicitDForm< Scalar >::isOneStepMethod ( ) const
inlinevirtual
template<class Scalar >
virtual bool Tempus::StepperNewmarkImplicitDForm< Scalar >::isMultiStepMethod ( ) const
inlinevirtual
template<class Scalar >
virtual OrderODE Tempus::StepperNewmarkImplicitDForm< Scalar >::getOrderODE ( ) const
inlinevirtual
template<class Scalar >
virtual Scalar Tempus::StepperNewmarkImplicitDForm< Scalar >::getW_xDotDot_coeff ( const Scalar  dt) const
inlinevirtual

Return W_xDotxDot_coeff = d(xDotDot)/d(x).

Definition at line 144 of file Tempus_StepperNewmarkImplicitDForm_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperNewmarkImplicitDForm< Scalar >::getAlpha ( const Scalar  dt) const
inlinevirtual

Return alpha = d(xDot)/d(x).

Implements Tempus::StepperImplicit< Scalar >.

Definition at line 147 of file Tempus_StepperNewmarkImplicitDForm_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperNewmarkImplicitDForm< Scalar >::getBeta ( const Scalar  ) const
inlinevirtual

Return beta = d(x)/d(x).

Implements Tempus::StepperImplicit< Scalar >.

Definition at line 149 of file Tempus_StepperNewmarkImplicitDForm_decl.hpp.

template<class Scalar >
Teuchos::RCP< const Teuchos::ParameterList > Tempus::StepperNewmarkImplicitDForm< Scalar >::getValidParameters ( ) const
virtual
template<class Scalar >
void Tempus::StepperNewmarkImplicitDForm< Scalar >::describe ( Teuchos::FancyOStream out,
const Teuchos::EVerbosityLevel  verbLevel
) const
virtual
template<class Scalar >
bool Tempus::StepperNewmarkImplicitDForm< Scalar >::isValidSetup ( Teuchos::FancyOStream out) const
virtual
template<class Scalar >
void Tempus::StepperNewmarkImplicitDForm< Scalar >::predictVelocity ( Thyra::VectorBase< Scalar > &  vPred,
const Thyra::VectorBase< Scalar > &  v,
const Thyra::VectorBase< Scalar > &  a,
const Scalar  dt
) const

Definition at line 23 of file Tempus_StepperNewmarkImplicitDForm_impl.hpp.

template<class Scalar >
void Tempus::StepperNewmarkImplicitDForm< Scalar >::predictDisplacement ( Thyra::VectorBase< Scalar > &  dPred,
const Thyra::VectorBase< Scalar > &  d,
const Thyra::VectorBase< Scalar > &  v,
const Thyra::VectorBase< Scalar > &  a,
const Scalar  dt
) const

Definition at line 35 of file Tempus_StepperNewmarkImplicitDForm_impl.hpp.

template<class Scalar >
void Tempus::StepperNewmarkImplicitDForm< Scalar >::correctVelocity ( Thyra::VectorBase< Scalar > &  v,
const Thyra::VectorBase< Scalar > &  vPred,
const Thyra::VectorBase< Scalar > &  a,
const Scalar  dt
) const

Definition at line 53 of file Tempus_StepperNewmarkImplicitDForm_impl.hpp.

template<class Scalar >
void Tempus::StepperNewmarkImplicitDForm< Scalar >::correctDisplacement ( Thyra::VectorBase< Scalar > &  d,
const Thyra::VectorBase< Scalar > &  dPred,
const Thyra::VectorBase< Scalar > &  a,
const Scalar  dt
) const

Definition at line 65 of file Tempus_StepperNewmarkImplicitDForm_impl.hpp.

template<class Scalar >
void Tempus::StepperNewmarkImplicitDForm< Scalar >::correctAcceleration ( Thyra::VectorBase< Scalar > &  a,
const Thyra::VectorBase< Scalar > &  dPred,
const Thyra::VectorBase< Scalar > &  d,
const Scalar  dt
) const

Definition at line 77 of file Tempus_StepperNewmarkImplicitDForm_impl.hpp.

template<class Scalar >
void Tempus::StepperNewmarkImplicitDForm< Scalar >::setSchemeName ( std::string  schemeName)

Definition at line 140 of file Tempus_StepperNewmarkImplicitDForm_impl.hpp.

template<class Scalar >
void Tempus::StepperNewmarkImplicitDForm< Scalar >::setBeta ( Scalar  beta)

Definition at line 89 of file Tempus_StepperNewmarkImplicitDForm_impl.hpp.

template<class Scalar >
void Tempus::StepperNewmarkImplicitDForm< Scalar >::setGamma ( Scalar  gamma)

Definition at line 120 of file Tempus_StepperNewmarkImplicitDForm_impl.hpp.

Member Data Documentation

template<class Scalar >
std::string Tempus::StepperNewmarkImplicitDForm< Scalar >::schemeName_
protected

Definition at line 194 of file Tempus_StepperNewmarkImplicitDForm_decl.hpp.

template<class Scalar >
Scalar Tempus::StepperNewmarkImplicitDForm< Scalar >::beta_
protected

Definition at line 195 of file Tempus_StepperNewmarkImplicitDForm_decl.hpp.

template<class Scalar >
Scalar Tempus::StepperNewmarkImplicitDForm< Scalar >::gamma_
protected

Definition at line 196 of file Tempus_StepperNewmarkImplicitDForm_decl.hpp.

template<class Scalar >
Teuchos::RCP<Teuchos::FancyOStream> Tempus::StepperNewmarkImplicitDForm< Scalar >::out_
protected

Definition at line 198 of file Tempus_StepperNewmarkImplicitDForm_decl.hpp.

template<class Scalar >
Teuchos::RCP<StepperNewmarkImplicitDFormAppAction<Scalar> > Tempus::StepperNewmarkImplicitDForm< Scalar >::stepperNewmarkImpAppAction_
protected

Definition at line 199 of file Tempus_StepperNewmarkImplicitDForm_decl.hpp.


The documentation for this class was generated from the following files:
