ROL::SimulatedVector< Real > Class Template Reference

Defines the linear algebra of a vector space on a generic partitioned vector where the individual vectors are distributed in batches defined by ROL::BatchManager. This is a batch-distributed version of ROL::PartitionedVector. More...

#include <ROL_SimulatedVector.hpp>

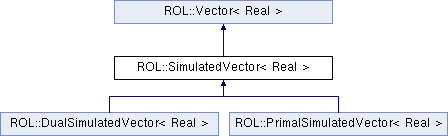

+ Inheritance diagram for ROL::SimulatedVector< Real >:

Public Types

typedef std::vector< PV >
::size_type
size_type


Public Member Functions

 SimulatedVector (const std::vector< Vp > &vecs, const VBMp &bman)

void set (const V &x)
 Set \(y \leftarrow x\) where \(y = \mathtt{*this}\). More...

void plus (const V &x)
 Compute \(y \leftarrow y + x\), where \(y = \mathtt{*this}\). More...

void scale (const Real alpha)
 Compute \(y \leftarrow \alpha y\) where \(y = \mathtt{*this}\). More...

void axpy (const Real alpha, const V &x)
 Compute \(y \leftarrow \alpha x + y\) where \(y = \mathtt{*this}\). More...

virtual Real dot (const V &x) const
 Compute \( \langle y,x \rangle \) where \(y = \mathtt{*this}\). More...

Real norm () const
 Returns \( \| y \| \) where \(y = \mathtt{*this}\). More...

virtual Vp clone () const
 Clone to make a new (uninitialized) vector. More...

virtual const Vdual (void) const
 Return dual representation of \(\mathtt{*this}\), for example, the result of applying a Riesz map, or change of basis, or change of memory layout. More...

Vp basis (const int i) const
 Return i-th basis vector. More...

int dimension () const
 Return dimension of the vector space. More...

void zero ()
 Set to zero vector. More...

void applyUnary (const Elementwise::UnaryFunction< Real > &f)

void applyBinary (const Elementwise::BinaryFunction< Real > &f, const V &x)

Real reduce (const Elementwise::ReductionOp< Real > &r) const

void setScalar (const Real C)
 Set \(y \leftarrow C\) where \(C\in\mathbb{R}\). More...

void randomize (const Real l=0.0, const Real u=1.0)
 Set vector to be uniform random between [l,u]. More...

ROL::Ptr< const Vector< Real > > get (size_type i) const

ROL::Ptr< Vector< Real > > get (size_type i)

void set (size_type i, const V &x)

void zero (size_type i)

size_type numVectors () const

- Public Member Functions inherited from ROL::Vector< Real >
virtual ~Vector ()

virtual Real apply (const Vector< Real > &x) const
 Apply \(\mathtt{*this}\) to a dual vector. This is equivalent to the call \(\mathtt{this->dot(x.dual())}\). More...

virtual void print (std::ostream &outStream) const

virtual std::vector< Real > checkVector (const Vector< Real > &x, const Vector< Real > &y, const bool printToStream=true, std::ostream &outStream=std::cout) const
 Verify vector-space methods. More...


Private Types

typedef Vector< Real > V

typedef ROL::Ptr< VVp

typedef ROL::Ptr< BatchManager
< Real > >
VBMp

typedef SimulatedVector< Real > PV


Private Attributes

const std::vector< Vpvecs_

ROL::Ptr< BatchManager< Real > > bman_

std::vector< Vpdual_vecs_

ROL::Ptr< PVdual_pvec_


Detailed Description

template<class Real>
class ROL::SimulatedVector< Real >

Defines the linear algebra of a vector space on a generic partitioned vector where the individual vectors are distributed in batches defined by ROL::BatchManager. This is a batch-distributed version of ROL::PartitionedVector.

Definition at line 34 of file ROL_SimulatedVector.hpp.

Member Typedef Documentation

template<class Real>
typedef Vector<Real> ROL::SimulatedVector< Real >::V
private

Definition at line 36 of file ROL_SimulatedVector.hpp.

template<class Real>
typedef ROL::Ptr<V> ROL::SimulatedVector< Real >::Vp
private

Definition at line 37 of file ROL_SimulatedVector.hpp.

template<class Real>
typedef ROL::Ptr<BatchManager<Real> > ROL::SimulatedVector< Real >::VBMp
private

Definition at line 38 of file ROL_SimulatedVector.hpp.

template<class Real>
typedef SimulatedVector<Real> ROL::SimulatedVector< Real >::PV
private

Definition at line 39 of file ROL_SimulatedVector.hpp.

template<class Real>
typedef std::vector<PV>::size_type ROL::SimulatedVector< Real >::size_type

Definition at line 48 of file ROL_SimulatedVector.hpp.

Constructor & Destructor Documentation

template<class Real>
ROL::SimulatedVector< Real >::SimulatedVector ( const std::vector< Vp > &  vecs,
const VBMp bman
)
inline

Member Function Documentation

template<class Real>
void ROL::SimulatedVector< Real >::set ( const V x)
inlinevirtual

Set \(y \leftarrow x\) where \(y = \mathtt{*this}\).

Parameters
[in]xis a vector.

On return \(\mathtt{*this} = x\). Uses zero and plus methods for the computation. Please overload if a more efficient implementation is needed.


Reimplemented from ROL::Vector< Real >.

Definition at line 56 of file ROL_SimulatedVector.hpp.

References ROL::SimulatedVector< Real >::get(), ROL::SimulatedVector< Real >::numVectors(), and ROL::SimulatedVector< Real >::vecs_.

Referenced by ROL::SimulatedVector< Real >::basis().

template<class Real>
void ROL::SimulatedVector< Real >::plus ( const V x)
inlinevirtual

Compute \(y \leftarrow y + x\), where \(y = \mathtt{*this}\).

Parameters
[in]xis the vector to be added to \(\mathtt{*this}\).

On return \(\mathtt{*this} = \mathtt{*this} + x\).


Implements ROL::Vector< Real >.

Definition at line 69 of file ROL_SimulatedVector.hpp.

References ROL::SimulatedVector< Real >::get(), ROL::SimulatedVector< Real >::numVectors(), and ROL::SimulatedVector< Real >::vecs_.

template<class Real>
void ROL::SimulatedVector< Real >::scale ( const Real  alpha)
inlinevirtual

Compute \(y \leftarrow \alpha y\) where \(y = \mathtt{*this}\).

Parameters
[in]alphais the scaling of \(\mathtt{*this}\).

On return \(\mathtt{*this} = \alpha (\mathtt{*this}) \).


Implements ROL::Vector< Real >.

Definition at line 82 of file ROL_SimulatedVector.hpp.

References ROL::SimulatedVector< Real >::vecs_.

template<class Real>
void ROL::SimulatedVector< Real >::axpy ( const Real  alpha,
const V x
)
inlinevirtual

Compute \(y \leftarrow \alpha x + y\) where \(y = \mathtt{*this}\).

Parameters
[in]alphais the scaling of x.
[in]xis a vector.

On return \(\mathtt{*this} = \mathtt{*this} + \alpha x \). Uses clone, set, scale and plus for the computation. Please overload if a more efficient implementation is needed.


Reimplemented from ROL::Vector< Real >.

Definition at line 88 of file ROL_SimulatedVector.hpp.

References ROL::SimulatedVector< Real >::get(), ROL::SimulatedVector< Real >::numVectors(), and ROL::SimulatedVector< Real >::vecs_.

template<class Real>
virtual Real ROL::SimulatedVector< Real >::dot ( const V x) const
inlinevirtual

Compute \( \langle y,x \rangle \) where \(y = \mathtt{*this}\).

Parameters
[in]xis the vector that forms the dot product with \(\mathtt{*this}\).
Returns
The number equal to \(\langle \mathtt{*this}, x \rangle\).

Implements ROL::Vector< Real >.

Reimplemented in ROL::DualSimulatedVector< Real >, and ROL::PrimalSimulatedVector< Real >.

Definition at line 101 of file ROL_SimulatedVector.hpp.

References ROL::SimulatedVector< Real >::bman_, ROL::SimulatedVector< Real >::get(), ROL::SimulatedVector< Real >::numVectors(), and ROL::SimulatedVector< Real >::vecs_.

Referenced by ROL::SimulatedVector< Real >::norm().

template<class Real>
Real ROL::SimulatedVector< Real >::norm ( ) const
inlinevirtual

Returns \( \| y \| \) where \(y = \mathtt{*this}\).

Returns
A nonnegative number equal to the norm of \(\mathtt{*this}\).

Implements ROL::Vector< Real >.

Definition at line 120 of file ROL_SimulatedVector.hpp.

References ROL::SimulatedVector< Real >::dot().

template<class Real>
virtual Vp ROL::SimulatedVector< Real >::clone ( ) const
inlinevirtual

Clone to make a new (uninitialized) vector.

Returns
A reference-counted pointer to the cloned vector.

Provides the means of allocating temporary memory in ROL.


Implements ROL::Vector< Real >.

Reimplemented in ROL::DualSimulatedVector< Real >, and ROL::PrimalSimulatedVector< Real >.

Definition at line 124 of file ROL_SimulatedVector.hpp.

References ROL::SimulatedVector< Real >::bman_, and ROL::SimulatedVector< Real >::vecs_.

Referenced by ROL::SimulatedVector< Real >::basis(), and ROL::SimulatedVector< Real >::SimulatedVector().

template<class Real>
virtual const V& ROL::SimulatedVector< Real >::dual ( void  ) const
inlinevirtual

Return dual representation of \(\mathtt{*this}\), for example, the result of applying a Riesz map, or change of basis, or change of memory layout.

Returns
A const reference to dual representation.

By default, returns the current object. Please overload if you need a dual representation.


Reimplemented from ROL::Vector< Real >.

Reimplemented in ROL::DualSimulatedVector< Real >, and ROL::PrimalSimulatedVector< Real >.

Definition at line 135 of file ROL_SimulatedVector.hpp.

References ROL::SimulatedVector< Real >::bman_, ROL::SimulatedVector< Real >::dual_pvec_, ROL::SimulatedVector< Real >::dual_vecs_, and ROL::SimulatedVector< Real >::vecs_.

Referenced by ROL::SimulatedVector< Real >::SimulatedVector().

template<class Real>
Vp ROL::SimulatedVector< Real >::basis ( const int  i) const
inlinevirtual

Return i-th basis vector.

Parameters
[in]iis the index of the basis function.
Returns
A reference-counted pointer to the basis vector with index i.

Overloading the basis is only required if the default gradient implementation is used, which computes a finite-difference approximation.


Reimplemented from ROL::Vector< Real >.

Definition at line 145 of file ROL_SimulatedVector.hpp.

References ROL::SimulatedVector< Real >::clone(), ROL::SimulatedVector< Real >::dimension(), ROL::SimulatedVector< Real >::set(), ROL::SimulatedVector< Real >::vecs_, and ROL::SimulatedVector< Real >::zero().

template<class Real>
int ROL::SimulatedVector< Real >::dimension ( void  ) const
inlinevirtual

Return dimension of the vector space.

Returns
The dimension of the vector space, i.e., the total number of basis vectors.

Overload if the basis is overloaded.


Reimplemented from ROL::Vector< Real >.

Definition at line 176 of file ROL_SimulatedVector.hpp.

References ROL::SimulatedVector< Real >::vecs_.

Referenced by ROL::SimulatedVector< Real >::basis().

template<class Real>
void ROL::SimulatedVector< Real >::zero ( )
inlinevirtual

Set to zero vector.

Uses scale by zero for the computation. Please overload if a more efficient implementation is needed.


Reimplemented from ROL::Vector< Real >.

Definition at line 184 of file ROL_SimulatedVector.hpp.

References ROL::SimulatedVector< Real >::vecs_.

Referenced by ROL::SimulatedVector< Real >::basis().

template<class Real>
void ROL::SimulatedVector< Real >::applyUnary ( const Elementwise::UnaryFunction< Real > &  f)
inlinevirtual

Reimplemented from ROL::Vector< Real >.

Definition at line 191 of file ROL_SimulatedVector.hpp.

References ROL::SimulatedVector< Real >::vecs_.

template<class Real>
void ROL::SimulatedVector< Real >::applyBinary ( const Elementwise::BinaryFunction< Real > &  f,
const V x
)
inlinevirtual
template<class Real>
Real ROL::SimulatedVector< Real >::reduce ( const Elementwise::ReductionOp< Real > &  r) const
inlinevirtual

Reimplemented from ROL::Vector< Real >.

Definition at line 206 of file ROL_SimulatedVector.hpp.

References ROL::SimulatedVector< Real >::vecs_.

template<class Real>
void ROL::SimulatedVector< Real >::setScalar ( const Real  C)
inlinevirtual

Set \(y \leftarrow C\) where \(C\in\mathbb{R}\).

Parameters
[in]Cis a scalar.

On return \(\mathtt{*this} = C\). Uses applyUnary methods for the computation. Please overload if a more efficient implementation is needed.


Reimplemented from ROL::Vector< Real >.

Definition at line 215 of file ROL_SimulatedVector.hpp.

References ROL::SimulatedVector< Real >::vecs_.

template<class Real>
void ROL::SimulatedVector< Real >::randomize ( const Real  l = 0.0,
const Real  u = 1.0
)
inlinevirtual

Set vector to be uniform random between [l,u].

Parameters
[in]lis a the lower bound.
[in]uis a the upper bound.

On return the components of \(\mathtt{*this}\) are uniform random numbers on the interval \([l,u]\). The default implementation uses applyUnary methods for the computation. Please overload if a more efficient implementation is needed.


Reimplemented from ROL::Vector< Real >.

Definition at line 221 of file ROL_SimulatedVector.hpp.

References ROL::SimulatedVector< Real >::vecs_.

template<class Real>
ROL::Ptr<const Vector<Real> > ROL::SimulatedVector< Real >::get ( size_type  i) const
inline
template<class Real>
ROL::Ptr<Vector<Real> > ROL::SimulatedVector< Real >::get ( size_type  i)
inline

Definition at line 235 of file ROL_SimulatedVector.hpp.

References ROL::SimulatedVector< Real >::vecs_.

template<class Real>
void ROL::SimulatedVector< Real >::set ( size_type  i,
const V x
)
inline

Definition at line 239 of file ROL_SimulatedVector.hpp.

References ROL::SimulatedVector< Real >::vecs_.

template<class Real>
void ROL::SimulatedVector< Real >::zero ( size_type  i)
inline

Definition at line 243 of file ROL_SimulatedVector.hpp.

References ROL::SimulatedVector< Real >::vecs_.

template<class Real>
size_type ROL::SimulatedVector< Real >::numVectors ( ) const
inline

Member Data Documentation

template<class Real>
const std::vector<Vp> ROL::SimulatedVector< Real >::vecs_
private
template<class Real>
ROL::Ptr<BatchManager<Real> > ROL::SimulatedVector< Real >::bman_
private
template<class Real>
std::vector<Vp> ROL::SimulatedVector< Real >::dual_vecs_
mutableprivate
template<class Real>
ROL::Ptr<PV> ROL::SimulatedVector< Real >::dual_pvec_
mutableprivate

Definition at line 45 of file ROL_SimulatedVector.hpp.

Referenced by ROL::SimulatedVector< Real >::dual().


The documentation for this class was generated from the following file:
