Specialization of LOCA::MultiContinuation::ExtendedGroup to natural continuation. More...

#include <LOCA_MultiContinuation_NaturalGroup.H>

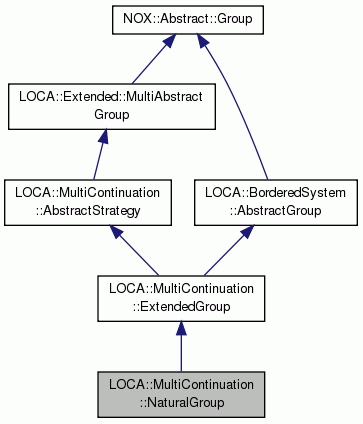

Inheritance diagram for LOCA::MultiContinuation::NaturalGroup:

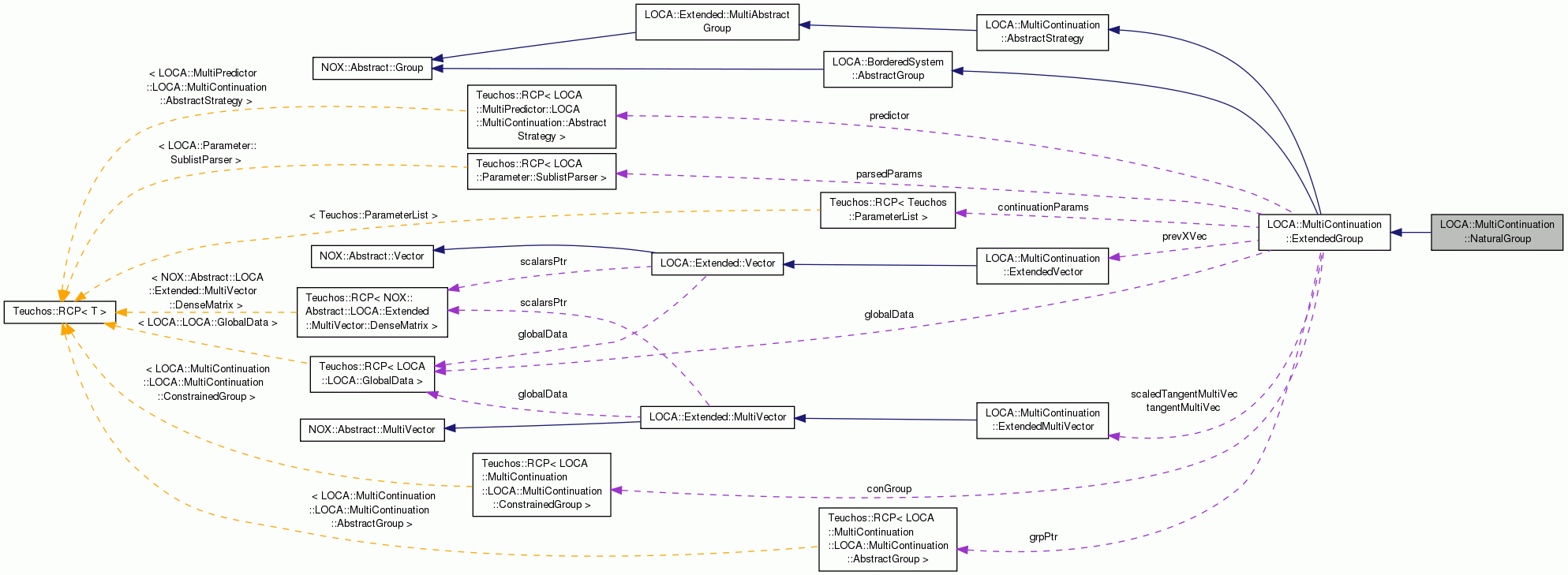

Collaboration diagram for LOCA::MultiContinuation::NaturalGroup:

Public Member Functions
	NaturalGroup (const Teuchos::RCP< LOCA::GlobalData > &global_data, const Teuchos::RCP< LOCA::Parameter::SublistParser > &topParams, const Teuchos::RCP< Teuchos::ParameterList > &continuationParams, const Teuchos::RCP< LOCA::MultiContinuation::AbstractGroup > &grp, const Teuchos::RCP< LOCA::MultiPredictor::AbstractStrategy > &pred, const std::vector< int > &paramIDs)
	Constructor. More...

	NaturalGroup (const NaturalGroup &source, NOX::CopyType type=NOX::DeepCopy)
	Copy constructor.

virtual	~NaturalGroup ()
	Destructor.

Implementation of NOX::Abstract::Group virtual methods
virtual NOX::Abstract::Group &	operator= (const NOX::Abstract::Group &source)
	Assignment operator.

virtual Teuchos::RCP < NOX::Abstract::Group >	clone (NOX::CopyType type=NOX::DeepCopy) const
	Clone function.

Implementation of LOCA::MultiContinuation::AbstractStrategy virtual methods
virtual void	copy (const NOX::Abstract::Group &source)
	Copy.

Public Member Functions inherited from LOCA::MultiContinuation::ExtendedGroup
	ExtendedGroup (const ExtendedGroup &source, NOX::CopyType type=NOX::DeepCopy)
	Copy constructor.

virtual	~ExtendedGroup ()
	Destructor.

virtual void	setX (const NOX::Abstract::Vector &y)
	Set the solution vector to y.

virtual void	computeX (const NOX::Abstract::Group &g, const NOX::Abstract::Vector &d, double step)
	Compute and return solution vector, x, where this.x = grp.x + step * d.

virtual NOX::Abstract::Group::ReturnType	computeF ()
	Compute extended continuation equations.

virtual NOX::Abstract::Group::ReturnType	computeJacobian ()
	Compute extended continuation jacobian.

virtual NOX::Abstract::Group::ReturnType	computeGradient ()
	Gradient is not defined for this system.

virtual NOX::Abstract::Group::ReturnType	computeNewton (Teuchos::ParameterList &params)
	Compute Newton direction for extended continuation system.

virtual NOX::Abstract::Group::ReturnType	applyJacobian (const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
	Applies Jacobian for extended system.

virtual NOX::Abstract::Group::ReturnType	applyJacobianTranspose (const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
	Jacobian transpose not defined for this system.

virtual NOX::Abstract::Group::ReturnType	applyJacobianInverse (Teuchos::ParameterList &params, const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
	Applies Jacobian inverse for extended system.

virtual NOX::Abstract::Group::ReturnType	applyJacobianMultiVector (const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
	Applies Jacobian for extended system.

virtual NOX::Abstract::Group::ReturnType	applyJacobianTransposeMultiVector (const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
	Jacobian transpose not defined for this system.

virtual NOX::Abstract::Group::ReturnType	applyJacobianInverseMultiVector (Teuchos::ParameterList &params, const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
	Applies Jacobian inverse for extended system.

virtual bool	isF () const
	Return `true` if extended residual is valid.

virtual bool	isJacobian () const
	Return `true` if the extended Jacobian is valid.

virtual bool	isGradient () const
	Always returns false.

virtual bool	isNewton () const
	Return `true` if the extended Newton direction is valid.

virtual const NOX::Abstract::Vector &	getX () const
	Return extended solution vector.

virtual const NOX::Abstract::Vector &	getF () const
	Return extended residual.

virtual double	getNormF () const
	Return 2-norm of extended residual.

virtual const NOX::Abstract::Vector &	getGradient () const
	Gradient is never valid.

virtual const NOX::Abstract::Vector &	getNewton () const
	Return extended Newton direction.

virtual Teuchos::RCP< const NOX::Abstract::Vector >	getXPtr () const
	Return extended solution vector.

virtual Teuchos::RCP< const NOX::Abstract::Vector >	getFPtr () const
	Return extended residual.

virtual Teuchos::RCP< const NOX::Abstract::Vector >	getGradientPtr () const
	Gradient is never valid.

virtual Teuchos::RCP< const NOX::Abstract::Vector >	getNewtonPtr () const
	Return extended Newton direction.

virtual double	getNormNewtonSolveResidual () const
	Returns 2-norm of extended Newton solve residual.

virtual Teuchos::RCP< const LOCA::MultiContinuation::AbstractGroup >	getUnderlyingGroup () const
	Return underlying group.

virtual Teuchos::RCP < LOCA::MultiContinuation::AbstractGroup >	getUnderlyingGroup ()
	Return underlying group.

virtual int	getNumParams () const
	Returns number of parameters.

virtual void	preProcessContinuationStep (LOCA::Abstract::Iterator::StepStatus stepStatus)
	Perform any preprocessing before a continuation step starts. More...

virtual void	postProcessContinuationStep (LOCA::Abstract::Iterator::StepStatus stepStatus)
	Perform any postprocessing after a continuation step finishes. More...

virtual NOX::Abstract::Group::ReturnType	computePredictor ()
	Compute predictor directions.

virtual bool	isPredictor () const
	Is Predictor valid.

virtual void	scaleTangent ()
	Scales tangent to predictor.

virtual void	setPredictorTangentDirection (const LOCA::MultiContinuation::ExtendedVector &v, int i)
	Sets tangent to predictor. More...

virtual const LOCA::MultiContinuation::ExtendedMultiVector &	getPredictorTangent () const
	Returns tangent to predictor.

virtual const LOCA::MultiContinuation::ExtendedMultiVector &	getScaledPredictorTangent () const
	Returns scaled tangent to predictor.

virtual void	setPrevX (const NOX::Abstract::Vector &y)
	Set the previous solution vector y.

virtual const LOCA::MultiContinuation::ExtendedVector &	getPrevX () const
	Gets the previous solution vector.

virtual void	setStepSize (double deltaS, int i=0)
	Set step size for continuation constraint equation i.

virtual double	getStepSize (int i=0) const
	Get step size for continuation constraint equation i.

virtual void	setContinuationParameter (double val, int i=0)
	Sets the value for continuation parameter i.

virtual double	getContinuationParameter (int i=0) const
	Returns the value for continuation parameter i.

virtual int	getContinuationParameterID (int i=0) const
	Get the continuation parameter id for parameter i.

virtual const std::vector< int > &	getContinuationParameterIDs () const
	Get the continuation parameter ids.

virtual std::string	getContinuationParameterName (int i=0) const
	Get the continuation parameter id for parameter i.

virtual double	getStepSizeScaleFactor (int i=0) const
	Returns step size scale factor for constraint equation i.

virtual void	printSolution () const
	Prints the group.

virtual double	computeScaledDotProduct (const NOX::Abstract::Vector &x, const NOX::Abstract::Vector &y) const
	Computes a scaled dot product between two continuation vectors.

virtual int	projectToDrawDimension () const
	Returns dimension of project to draw array.

virtual void	projectToDraw (const LOCA::MultiContinuation::ExtendedVector &x, double *px) const
	Fills the project to draw array.

virtual int	getBorderedWidth () const
	Return the total width of the bordered rows/columns.

virtual Teuchos::RCP< const NOX::Abstract::Group >	getUnborderedGroup () const
	Get bottom-level unbordered group.

virtual bool	isCombinedAZero () const
	Indicates whether combined A block is zero.

virtual bool	isCombinedBZero () const
	Indicates whether combined B block is zero.

virtual bool	isCombinedCZero () const
	Indicates whether combined C block is zero.

virtual void	extractSolutionComponent (const NOX::Abstract::MultiVector &v, NOX::Abstract::MultiVector &v_x) const

virtual void	extractParameterComponent (bool use_transpose, const NOX::Abstract::MultiVector &v, NOX::Abstract::MultiVector::DenseMatrix &v_p) const

virtual void	loadNestedComponents (const NOX::Abstract::MultiVector &v_x, const NOX::Abstract::MultiVector::DenseMatrix &v_p, NOX::Abstract::MultiVector &v) const

virtual void	fillA (NOX::Abstract::MultiVector &A) const
	Fill the combined A block as described above.

virtual void	fillB (NOX::Abstract::MultiVector &B) const
	Fill the combined B block as described above.

virtual void	fillC (NOX::Abstract::MultiVector::DenseMatrix &C) const
	Fill the combined C block as described above.

Public Member Functions inherited from LOCA::MultiContinuation::AbstractStrategy
	AbstractStrategy ()
	Constructor.

virtual	~AbstractStrategy ()
	Destructor.

Public Member Functions inherited from LOCA::Extended::MultiAbstractGroup
	MultiAbstractGroup ()
	Default constructor.

virtual	~MultiAbstractGroup ()
	Destructor.

virtual Teuchos::RCP < NOX::Abstract::Group >	getNestedGroup ()
	Override from NOX::Abstract::Group base class. Calls getUnderlyingGroup() from this class.

virtual Teuchos::RCP< const NOX::Abstract::Group >	getNestedGroup () const
	Override from NOX::Abstract::Group base class. Calls getUnderlyingGroup() from this class.

virtual Teuchos::RCP< const LOCA::MultiContinuation::AbstractGroup >	getBaseLevelUnderlyingGroup () const
	Return base-level underlying group. More...

virtual Teuchos::RCP < LOCA::MultiContinuation::AbstractGroup >	getBaseLevelUnderlyingGroup ()
	Return base-level underlying group. More...

Public Member Functions inherited from NOX::Abstract::Group
	Group ()
	Constructor. More...

virtual	~Group ()
	Destructor.

virtual NOX::Abstract::Group::ReturnType	applyRightPreconditioning (bool useTranspose, Teuchos::ParameterList &params, const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
	Apply right preconditiong to the given input vector. More...

virtual NOX::Abstract::Group::ReturnType	applyRightPreconditioningMultiVector (bool useTranspose, Teuchos::ParameterList &params, const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
	applyRightPreconditioning for multiple right-hand sides More...

virtual const NOX::Abstract::Vector &	getScaledX () const

virtual void	logLastLinearSolveStats (NOX::SolverStats &stats) const
	Adds statistics from last linear solve to the SovlerStats object.

virtual NOX::Abstract::Group::ReturnType	getNormLastLinearSolveResidual (double &residual) const
	Return the norm of the last linear solve residual as the result of either a call to computeNewton() or applyJacobianInverse(). More...

Public Member Functions inherited from LOCA::BorderedSystem::AbstractGroup
	AbstractGroup ()
	Constructor.

virtual	~AbstractGroup ()
	Destructor.

Additional Inherited Members
Public Types inherited from NOX::Abstract::Group
enum	ReturnType { Ok, NotDefined, BadDependency, NotConverged, Failed }
	The computation of, say, the Newton direction in computeNewton() may fail in many different ways, so we have included a variety of return codes to describe the failures. Of course, we also have a code for success. More...

Protected Member Functions inherited from LOCA::MultiContinuation::ExtendedGroup
	ExtendedGroup (const Teuchos::RCP< LOCA::GlobalData > &global_data, const Teuchos::RCP< LOCA::Parameter::SublistParser > &topParams, const Teuchos::RCP< Teuchos::ParameterList > &continuationParams, const Teuchos::RCP< LOCA::MultiContinuation::AbstractGroup > &grp, const Teuchos::RCP< LOCA::MultiPredictor::AbstractStrategy > &pred, const std::vector< int > &paramIDs)
	Constructor used by derived classes.

virtual void	setConstraints (const Teuchos::RCP< LOCA::MultiContinuation::ConstraintInterface > &constraints, bool skip_dfdp)
	Set constraint object. More...

Protected Attributes inherited from LOCA::MultiContinuation::ExtendedGroup
Teuchos::RCP< LOCA::GlobalData >	globalData
	Pointer LOCA global data object.

Teuchos::RCP < LOCA::Parameter::SublistParser >	parsedParams
	Parsed top-level parameters.

Teuchos::RCP < Teuchos::ParameterList >	continuationParams
	Continuation parameter list.

Teuchos::RCP < LOCA::MultiContinuation::AbstractGroup >	grpPtr
	Pointer to underlying group.

Teuchos::RCP < LOCA::MultiPredictor::AbstractStrategy >	predictor
	Pointer to predictor object.

Teuchos::RCP < LOCA::MultiContinuation::ConstrainedGroup >	conGroup
	Pointer to constrained group implementation.

int	numParams
	Number of parameters.

LOCA::MultiContinuation::ExtendedMultiVector	tangentMultiVec
	Stores the tangent to the predictor.

LOCA::MultiContinuation::ExtendedMultiVector	scaledTangentMultiVec
	Stores the scaled tangent to the predictor.

LOCA::MultiContinuation::ExtendedVector	prevXVec
	Stores the previous extended solution vector.

std::vector< int >	conParamIDs
	integer id of continuation parameters

std::vector< double >	stepSize
	continuation step size

std::vector< double >	stepSizeScaleFactor
	step size scale factors

bool	isValidPredictor
	Is Predictor vector valid.

bool	baseOnSecant
	Flag indicating whether to base predictor direction on secant.

Detailed Description

Specialization of LOCA::MultiContinuation::ExtendedGroup to natural continuation.

Natural continuation corresponds to a continuation equation $g(x,p,x_0,p_0,x^\ast,p^\ast,v,\Delta s)=0$ with $g$ given by

$g(x,p,x_0,p_0,x^\ast,p^\ast,v,\Delta s)= p-p_0-v_p \Delta s$

where $v_p$ is the parameter component of the predictor direction $v$ . This corresponds geometrically to constraining the nonlinear solver steps used in calculating $F(x,p)=0$ to be orthogonal to the parameter axis. The natural constraint $g$ is represented by a LOCA::MultiContinuation::NaturalConstraint object.

Constructor & Destructor Documentation

LOCA::MultiContinuation::NaturalGroup::NaturalGroup	(	const Teuchos::RCP< LOCA::GlobalData > &	global_data,
		const Teuchos::RCP< LOCA::Parameter::SublistParser > &	topParams,
		const Teuchos::RCP< Teuchos::ParameterList > &	continuationParams,
		const Teuchos::RCP< LOCA::MultiContinuation::AbstractGroup > &	grp,
		const Teuchos::RCP< LOCA::MultiPredictor::AbstractStrategy > &	pred,
		const std::vector< int > &	paramIDs
	)

Constructor.

Parameters

global_data	[in] Global data object
topParams	[in] Parsed top-level parameter list.
continuationParams	[in] Continuation parameters.
grp	[in] Group representing .
pred	[in] Predictor strategy.
paramIDs	[in] Parameter IDs of continuation parameters.

References LOCA::MultiContinuation::ExtendedGroup::continuationParams, Teuchos::ParameterList::get(), LOCA::MultiContinuation::ExtendedGroup::globalData, Teuchos::rcp(), and LOCA::MultiContinuation::ExtendedGroup::setConstraints().

The documentation for this class was generated from the following files:

LOCA_MultiContinuation_NaturalGroup.H
LOCA_MultiContinuation_NaturalGroup.C

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation
