Abstract interface for the constraint portion of a constrained nonlinear system. More...

#include <LOCA_MultiContinuation_ConstraintInterface.H>

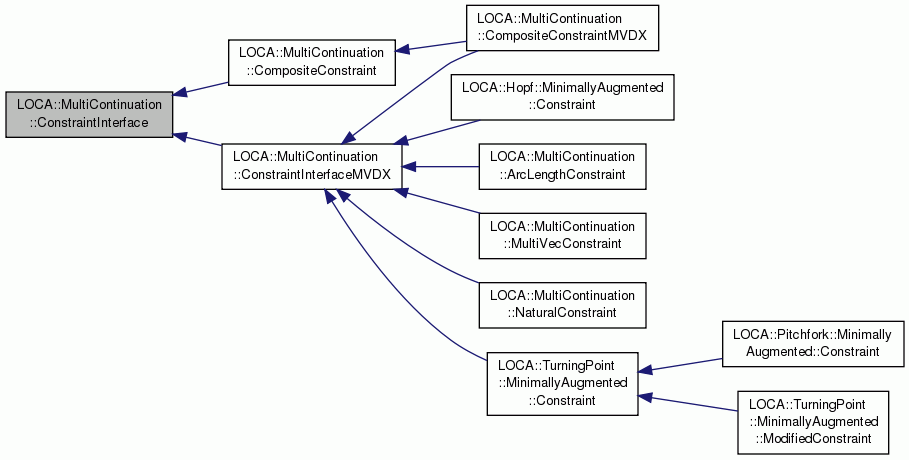

Inheritance diagram for LOCA::MultiContinuation::ConstraintInterface:

Public Member Functions
	ConstraintInterface ()
	Constructor.

virtual	~ConstraintInterface ()
	Destructor.

virtual void	copy (const ConstraintInterface &source)=0
	Copy.

virtual Teuchos::RCP < LOCA::MultiContinuation::ConstraintInterface >	clone (NOX::CopyType type=NOX::DeepCopy) const =0
	Cloning function.

virtual int	numConstraints () const =0
	Return number of constraints.

virtual void	setX (const NOX::Abstract::Vector &x)=0
	Set the solution vector to x.

virtual void	setParam (int paramID, double val)=0
	Sets parameter indexed by paramID.

virtual void	setParams (const std::vector< int > &paramIDs, const NOX::Abstract::MultiVector::DenseMatrix &vals)=0
	Sets parameters indexed by paramIDs.

virtual NOX::Abstract::Group::ReturnType	computeConstraints ()=0
	Compute constraint residuals.

virtual NOX::Abstract::Group::ReturnType	computeDX ()=0
	Compute derivative of constraints w.r.t. solution vector x.

virtual NOX::Abstract::Group::ReturnType	computeDP (const std::vector< int > &paramIDs, NOX::Abstract::MultiVector::DenseMatrix &dgdp, bool isValidG)=0
	Compute derivative of constraints w.r.t. supplied parameters. More...

virtual bool	isConstraints () const =0
	Return `true` if constraint residuals are valid.

virtual bool	isDX () const =0
	Return `true` if derivative of constraint w.r.t. x is valid.

virtual const NOX::Abstract::MultiVector::DenseMatrix &	getConstraints () const =0
	Return constraint residuals.

virtual NOX::Abstract::Group::ReturnType	multiplyDX (double alpha, const NOX::Abstract::MultiVector &input_x, NOX::Abstract::MultiVector::DenseMatrix &result_p) const =0
	Compute result_p = alpha * dg/dx * input_x. More...

virtual NOX::Abstract::Group::ReturnType	addDX (Teuchos::ETransp transb, double alpha, const NOX::Abstract::MultiVector::DenseMatrix &b, double beta, NOX::Abstract::MultiVector &result_x) const =0
	Compute result_x = alpha * dg/dx^T * op(b) + beta * result_x. More...

virtual bool	isDXZero () const =0
	Return `true` if solution component of constraint derivatives is zero.

virtual void	preProcessContinuationStep (LOCA::Abstract::Iterator::StepStatus)
	Perform any preprocessing before a continuation step starts. More...

virtual void	postProcessContinuationStep (LOCA::Abstract::Iterator::StepStatus)
	Perform any postprocessing after a continuation step finishes. More...

Detailed Description

Abstract interface for the constraint portion of a constrained nonlinear system.

This class is used in conjunction with LOCA::MultiContinuation::ConstrainedGroup to represent a constrained nonlinear system:

$f(x,y) = 0 g(x,y) = 0$

where $ f(x,y)$ is represented by a concrete implementation of a LOCA::MultiContinuation::AbstractGroup and $ g(x,y)$ (the constraint) is represented by an implementation of this class. Here it is assumed the resulting system is square, i.e., $x\in\Re^n$ , $y\in\Re^m$ , $f(x,y)\in\Re^n$ and $g(x,y)\in\Re^m$ .

This class provides an interface to evaluate $ g(x,y)$ , compute the derivatives $ g_x$ and $ g_y$ , and apply the derivative $ g_x$ to arbitrary multi-vectors (the implementation is never required to explicitly store $ g_x$ which is impractical in many situations).

Member Function Documentation

virtual NOX::Abstract::Group::ReturnType LOCA::MultiContinuation::ConstraintInterface::addDX	(	Teuchos::ETransp	transb,
		double	alpha,
		const NOX::Abstract::MultiVector::DenseMatrix &	b,
		double	beta,
		NOX::Abstract::MultiVector &	result_x
	)		const

pure virtual

Compute result_x = alpha * dg/dx^T * op(b) + beta * result_x.

Note that this should be equivalent to

result_x.update(transb, alpha, dgdx, b, beta);

Implemented in LOCA::MultiContinuation::CompositeConstraint, LOCA::MultiContinuation::CompositeConstraintMVDX, and LOCA::MultiContinuation::ConstraintInterfaceMVDX.

virtual NOX::Abstract::Group::ReturnType LOCA::MultiContinuation::ConstraintInterface::computeDP	(	const std::vector< int > &	paramIDs,
		NOX::Abstract::MultiVector::DenseMatrix &	dgdp,
		bool	isValidG
	)

pure virtual

Compute derivative of constraints w.r.t. supplied parameters.

The first column of dgdp should be filled with the constraint residuals $ g$ if isValidG is false. If isValidG is true, then the dgdp contains $ g$ on input.

Implemented in LOCA::TurningPoint::MinimallyAugmented::Constraint, LOCA::Hopf::MinimallyAugmented::Constraint, LOCA::Pitchfork::MinimallyAugmented::Constraint, LOCA::MultiContinuation::ArcLengthConstraint, LOCA::MultiContinuation::NaturalConstraint, LOCA::MultiContinuation::CompositeConstraint, LOCA::MultiContinuation::MultiVecConstraint, and LOCA::MultiContinuation::ConstraintModelEvaluator.

virtual NOX::Abstract::Group::ReturnType LOCA::MultiContinuation::ConstraintInterface::multiplyDX	(	double	alpha,
		const NOX::Abstract::MultiVector &	input_x,
		NOX::Abstract::MultiVector::DenseMatrix &	result_p
	)		const

pure virtual

Compute result_p = alpha * dg/dx * input_x.

Note that if there are n constraints and input_x has m columns, result_p should be a n by m matrix and is equivalent to

input_x.multiply(alpha, dgdx, result_p).

Implemented in LOCA::MultiContinuation::CompositeConstraint, LOCA::MultiContinuation::CompositeConstraintMVDX, and LOCA::MultiContinuation::ConstraintInterfaceMVDX.

Referenced by LOCA::BorderedSolver::LowerTriangularBlockElimination::solve(), LOCA::BorderedSolver::Bordering::solveContiguous(), LOCA::BorderedSolver::Bordering::solveFZero(), and LOCA::BorderedSolver::LowerTriangularBlockElimination::solveTranspose().

virtual void LOCA::MultiContinuation::ConstraintInterface::postProcessContinuationStep ( LOCA::Abstract::Iterator::StepStatus )

inlinevirtual

Perform any postprocessing after a continuation step finishes.

The stepStatus argument indicates whether the step was successful. The default implementation is empty.

Reimplemented in LOCA::TurningPoint::MinimallyAugmented::Constraint, LOCA::Hopf::MinimallyAugmented::Constraint, LOCA::MultiContinuation::CompositeConstraint, and LOCA::TurningPoint::MinimallyAugmented::ModifiedConstraint.

virtual void LOCA::MultiContinuation::ConstraintInterface::preProcessContinuationStep ( LOCA::Abstract::Iterator::StepStatus )

inlinevirtual

Perform any preprocessing before a continuation step starts.

The stepStatus argument indicates whether the previous step was successful. The default implementation is empty.

Reimplemented in LOCA::MultiContinuation::CompositeConstraint, and LOCA::TurningPoint::MinimallyAugmented::ModifiedConstraint.

Referenced by LOCA::TurningPoint::MinimallyAugmented::ModifiedConstraint::preProcessContinuationStep().

The documentation for this class was generated from the following file:

LOCA_MultiContinuation_ConstraintInterface.H
