LOCA::Abstract::Iterator Class Reference

An abstract interface for implementing iteration. More...

#include <LOCA_Abstract_Iterator.H>

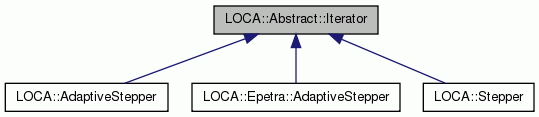

Inheritance diagram for LOCA::Abstract::Iterator:

Public Types
enum	IteratorStatus { LastIteration = 2, Finished = 1, Failed = 0, NotFinished = -1 }
	Enumerated type for status of the iterator. More...
enum	StepStatus { Successful = 1, Unsuccessful = 0, Provisional = -1 }
	Enumerated type for status of each step of iterator. More...

Public Member Functions
	Iterator (Teuchos::ParameterList &p)
	Constructor.
	Iterator (const Iterator &it)
	Copy Constructor.
virtual	~Iterator ()
	Destructor.
virtual bool	resetIterator (Teuchos::ParameterList &p)
	Reset the iterator to start a new iteration.
virtual IteratorStatus	getIteratorStatus () const
	Return the status of the iterator.
virtual int	getStepNumber () const
	Returns the number of accepted steps.
virtual int	getNumFailedSteps () const
	Returns the number of failed steps.
virtual int	getNumTotalSteps () const
	Returns the total number of steps attempted.
virtual IteratorStatus	run ()
	Run the iterator.

Protected Member Functions
	Iterator ()
	Constructor.
virtual IteratorStatus	iterate ()
	Perform iteration.
virtual IteratorStatus	stop (StepStatus)
	Check stopping criteria.
virtual IteratorStatus	start ()=0
	Intialize iterator.
virtual IteratorStatus	finish (IteratorStatus)=0
	Finalize iterator.
virtual StepStatus	preprocess (StepStatus)=0
	Preprocess step.
virtual StepStatus	compute (StepStatus)=0
	Compute step.
virtual StepStatus	postprocess (StepStatus)=0
	Postprocess step.
virtual void	setLastIteration ()
	Set iterator status as LastIteration.
virtual bool	isLastIteration ()
	Returns true of the iteratorStatus is LastIteration.
virtual StepStatus	computeStepStatus (StepStatus preStatus, StepStatus compStatus, StepStatus postStatus)
	Compute step, iterator status from status of each component of step.

Protected Attributes
int	stepNumber
	Current step number of continuation algorithm (does not include failed steps).
int	numFailedSteps
	Number of continuation steps that have failed.
int	numTotalSteps
	Total number of steps attempeted (includes failed and successful steps).
int	maxSteps
	Maximum number of continuation steps to take. Defaults to 100.
IteratorStatus	iteratorStatus
	Current status of the iterator.

Detailed Description

An abstract interface for implementing iteration.

The LOCA::Abstract::Iterator defines an interface for implementing many kinds of iterative processes. In LOCA, this is used to implement the Stepper which computes points along a continuation curve.

Many iterative processes can be abstracted in the following manner:

• Initialize iteration (start)
• Compute iteration (iterate)
  • while iterator is not finished
    • preprocess step (preprocess)
    • compute step (compute)
    • postprocess step (posprocess)
    • check iterator status (stop)
• Finalize iteration (finish)

The run method of the iterator implements this iterative process with start, finish, preprocess, compute and postprocess left as pure virtual methods to be implemented for the specific iterative process.

The iterator has one parameter, "Max Steps" (default 100) giving the maximum number of steps the iterator should take. The default implementation of stop only stops the iterator when this maximum number of steps has been reached.

Member Enumeration Documentation

enum LOCA::Abstract::Iterator::IteratorStatus

Enumerated type for status of the iterator.

Enumerator
LastIteration	This is the last iteration.
Finished	The iterator is finished.
Failed	The iterator has failed.
NotFinished	The iterator is not finished.

enum LOCA::Abstract::Iterator::StepStatus

Enumerated type for status of each step of iterator.

Enumerator
Successful	The last step was successful.
Unsuccessful	The last step was unsuccessful.
Provisional	One more unsuccessful step means failure.

---

The documentation for this class was generated from the following files:

• LOCA_Abstract_Iterator.H
• LOCA_Abstract_Iterator.C
