Abstract interface for multi-vectors used by NOX. More...

#include <NOX_Abstract_MultiVector.H>

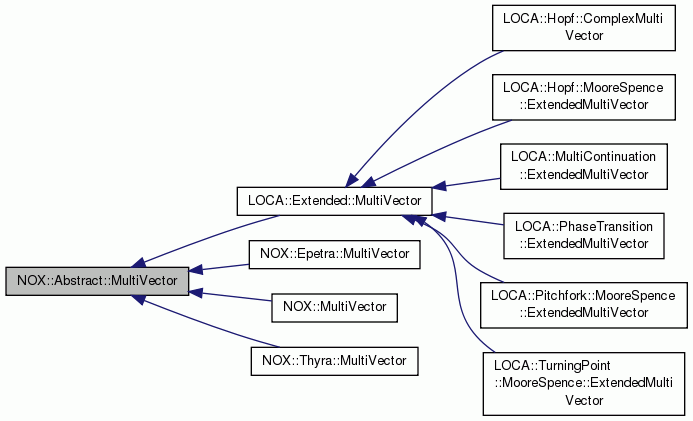

Inheritance diagram for NOX::Abstract::MultiVector:

Public Types
typedef Teuchos::SerialDenseMatrix < int, double >	DenseMatrix
	Typename of dense matrices.

Public Member Functions
	MultiVector ()
	Default constructor. Does nothing.

virtual	~MultiVector ()
	Destructor. Does nothing.

virtual NOX::size_type	length () const =0
	Return the length of multi-vector.

virtual int	numVectors () const =0
	Return the number of vectors in the multi-vector.

virtual void	print (std::ostream &stream) const =0
	Print the vector. This is meant for debugging purposes only.


virtual NOX::Abstract::MultiVector &	init (double gamma)=0
	Initialize every element of this multi-vector with `gamma`.

virtual NOX::Abstract::MultiVector &	random (bool useSeed=false, int seed=1)=0
	Initialize each element of this multi-vector with a random value.

virtual NOX::Abstract::MultiVector &	operator= (const NOX::Abstract::MultiVector &source)=0
	Copy source multi-vector `source` into this multi-vector.

virtual NOX::Abstract::MultiVector &	setBlock (const NOX::Abstract::MultiVector &source, const std::vector< int > &index)=0
	Copy the vectors in `source` to a set of vectors in `this`. The `index.size()` vectors in `source` are copied to a subset of vectors in `this` indicated by the indices given in `index`.

virtual NOX::Abstract::MultiVector &	augment (const NOX::Abstract::MultiVector &source)=0
	Append the vectors in `source` to `*this`.


virtual NOX::Abstract::Vector &	operator[] (int i)=0
	Return a reference to the i-th column of the multivector as an abstract vector. More...

virtual const NOX::Abstract::Vector &	operator[] (int i) const =0
	Return a const reference to the i-th column of the multivector as an abstract vector. More...


virtual NOX::Abstract::MultiVector &	scale (double gamma)=0
	Scale each element of this multivector by `gamma`.

virtual NOX::Abstract::MultiVector &	update (double alpha, const NOX::Abstract::MultiVector &a, double gamma=0.0)=0
	Compute x = (alpha * a) + (gamma * x) where `a` is a multi-vector and `x` = `*this`.

virtual NOX::Abstract::MultiVector &	update (double alpha, const NOX::Abstract::MultiVector &a, double beta, const NOX::Abstract::MultiVector &b, double gamma=0.0)=0
	Compute x = (alpha * a) + (beta * b) + (gamma * x) where `a` and `b` are multi-vectors and `x` = `*this`.

virtual NOX::Abstract::MultiVector &	update (Teuchos::ETransp transb, double alpha, const NOX::Abstract::MultiVector &a, const DenseMatrix &b, double gamma=0.0)=0
	Compute x = (alpha * a * op(b)) + (gamma * x) where `a` is a multivector, `b` is a dense matrix, `x` = `*this`, and op(b) = b if transb = Teuchos::NO_TRANS and op(b) is b transpose if transb = Teuchos::TRANS.


virtual Teuchos::RCP < NOX::Abstract::MultiVector >	clone (NOX::CopyType type=NOX::DeepCopy) const =0
	Create a new Vector of the same underlying type by cloning "this", and return a pointer to the new vector. More...

virtual Teuchos::RCP < NOX::Abstract::MultiVector >	clone (int numvecs) const =0
	Creates a new multi-vector with `numvecs` columns.

virtual Teuchos::RCP < NOX::Abstract::MultiVector >	subCopy (const std::vector< int > &index) const =0
	Creates a new multi-vector with `index.size()` columns whose columns are copies of the columns of `*this` given by `index`.

virtual Teuchos::RCP < NOX::Abstract::MultiVector >	subView (const std::vector< int > &index) const =0
	Creates a new multi-vector with `ndex.size()` columns that shares the columns of `*this` given by `index`.


virtual void	norm (std::vector< double > &result, NOX::Abstract::Vector::NormType type=NOX::Abstract::Vector::TwoNorm) const =0
	Norm.


virtual void	multiply (double alpha, const NOX::Abstract::MultiVector &y, DenseMatrix &b) const =0
	Computes the matrix-matrix product $\alpha * y^T * (*this)$ .

Detailed Description

Abstract interface for multi-vectors used by NOX.

Member Function Documentation

virtual Teuchos::RCP<NOX::Abstract::MultiVector> NOX::Abstract::MultiVector::clone ( NOX::CopyType type = NOX::DeepCopy ) const

pure virtual

Create a new Vector of the same underlying type by cloning "this", and return a pointer to the new vector.

If type is NOX::DeepCopy, then we need to create an exact replica of "this". Otherwise, if type is NOX::ShapeCopy, we need only replicate the shape of "this". Note that there is no assumption that a vector created by ShapeCopy is initialized to zeros.

Returns: Pointer to newly created vector or NULL if clone is not supported.

Implemented in NOX::Epetra::MultiVector, LOCA::Extended::MultiVector, NOX::Thyra::MultiVector, NOX::MultiVector, LOCA::MultiContinuation::ExtendedMultiVector, LOCA::Pitchfork::MooreSpence::ExtendedMultiVector, LOCA::TurningPoint::MooreSpence::ExtendedMultiVector, LOCA::Hopf::MooreSpence::ExtendedMultiVector, LOCA::PhaseTransition::ExtendedMultiVector, and LOCA::Hopf::ComplexMultiVector.

virtual NOX::Abstract::Vector& NOX::Abstract::MultiVector::operator[] ( int i )

pure virtual

Return a reference to the i-th column of the multivector as an abstract vector.

It is assumed that any implementation of this method returns a vector that has a view of the underlying data in the multivector

Implemented in NOX::Epetra::MultiVector, LOCA::Extended::MultiVector, NOX::Thyra::MultiVector, and NOX::MultiVector.

virtual const NOX::Abstract::Vector& NOX::Abstract::MultiVector::operator[] ( int i ) const

pure virtual

Return a const reference to the i-th column of the multivector as an abstract vector.

It is assumed that any implementation of this method returns a vector that has a view of the underlying data in the multivector.

Implemented in NOX::Epetra::MultiVector, LOCA::Extended::MultiVector, NOX::Thyra::MultiVector, and NOX::MultiVector.

The documentation for this class was generated from the following file:

NOX_Abstract_MultiVector.H
