LOCA's Homotopy Algorithm. More...

#include <LOCA_Homotopy_Group.H>

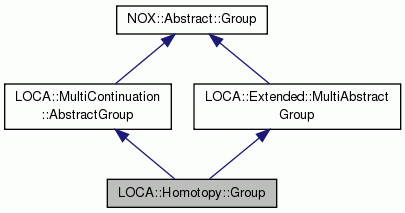

Inheritance diagram for LOCA::Homotopy::Group:

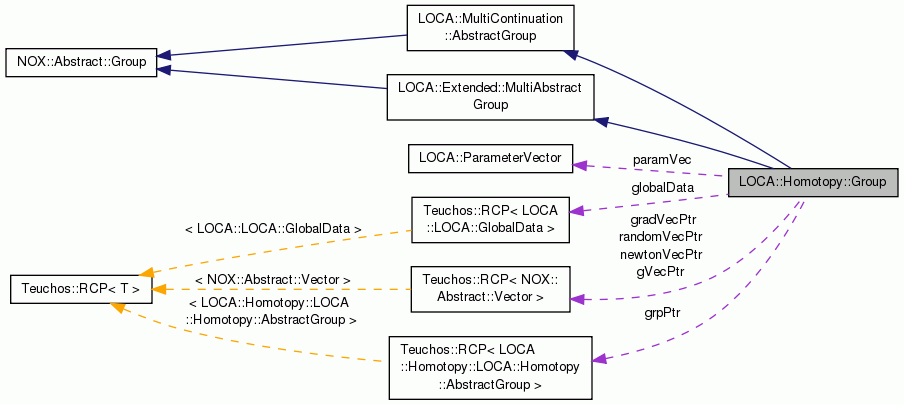

Collaboration diagram for LOCA::Homotopy::Group:

Public Member Functions
	Group (Teuchos::ParameterList &locaSublist, const Teuchos::RCP< LOCA::GlobalData > &global_data, const Teuchos::RCP< LOCA::Homotopy::AbstractGroup > &g, double scaleRandom=1.0, double scaleInitialGuess=0.0)
	Constructor to set the base group and generate the "%Stepper" sublist for homotopy continuation. More...

	Group (Teuchos::ParameterList &locaSublist, const Teuchos::RCP< LOCA::GlobalData > &global_data, const Teuchos::RCP< LOCA::Homotopy::AbstractGroup > &g, const NOX::Abstract::Vector &randomVector)
	Constructor with a user supplied random vector.

	Group (const Group &source, NOX::CopyType type=NOX::DeepCopy)
	Copy constructor.

virtual	~Group ()
	Destructor.

Implementation of NOX::Abstract::Group virtual methods
virtual NOX::Abstract::Group &	operator= (const NOX::Abstract::Group &source)
	Assignment operator.

virtual Teuchos::RCP < NOX::Abstract::Group >	clone (NOX::CopyType type=NOX::DeepCopy) const
	Cloning function.

virtual void	setX (const NOX::Abstract::Vector &y)
	Set the solution vector, x, to y.

virtual void	computeX (const NOX::Abstract::Group &g, const NOX::Abstract::Vector &d, double step)
	Compute this.x = grp.x + step * d.

virtual NOX::Abstract::Group::ReturnType	computeF ()
	Compute the homotopy residual $g$.

virtual NOX::Abstract::Group::ReturnType	computeJacobian ()
	Compute the Jacobian derivative of the homotopy residual $g$.

virtual NOX::Abstract::Group::ReturnType	computeGradient ()
	Compute gradient of homotopy residual $g$.

virtual NOX::Abstract::Group::ReturnType	computeNewton (Teuchos::ParameterList &params)
	Compute Newton direction using applyJacobianInverse.

virtual NOX::Abstract::Group::ReturnType	applyJacobian (const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
	Computes the homotopy Jacobian vector product.

virtual NOX::Abstract::Group::ReturnType	applyJacobianTranspose (const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
	Computes the homotopy Jacobian-transpose vector product.

virtual NOX::Abstract::Group::ReturnType	applyJacobianInverse (Teuchos::ParameterList &params, const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
	Applies the inverse of the homotopy Jacobian matrix.

virtual NOX::Abstract::Group::ReturnType	applyJacobianMultiVector (const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
	Applies Jacobian for homotopy system.

virtual NOX::Abstract::Group::ReturnType	applyJacobianTransposeMultiVector (const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
	Applies Jacobian-transpose for homotopy system.

virtual NOX::Abstract::Group::ReturnType	applyJacobianInverseMultiVector (Teuchos::ParameterList &params, const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
	Applies Jacobian inverse for homotopy system.

virtual bool	isF () const
	Return `true` if the homotopy residual is valid.

virtual bool	isJacobian () const
	Return `true` if the homotopy Jacobian is valid.

virtual bool	isGradient () const
	Return `true` if the homotopy gradient is valid.

virtual bool	isNewton () const
	Return `true` if the homotopy Newton direction is valid.

virtual const NOX::Abstract::Vector &	getX () const
	Return homotopy solution vector .

virtual const NOX::Abstract::Vector &	getF () const
	Return homotopy residual .

virtual double	getNormF () const
	Return 2-norm of .

virtual const NOX::Abstract::Vector &	getGradient () const
	Return homotopy gradient.

virtual const NOX::Abstract::Vector &	getNewton () const
	Return homotopy Newton direction.

virtual Teuchos::RCP< const NOX::Abstract::Vector >	getXPtr () const
	Return homotopy solution vector .

virtual Teuchos::RCP< const NOX::Abstract::Vector >	getFPtr () const
	Return homotopy residual .

virtual Teuchos::RCP< const NOX::Abstract::Vector >	getGradientPtr () const
	Return homotopy gradient.

virtual Teuchos::RCP< const NOX::Abstract::Vector >	getNewtonPtr () const
	Return homotopy Newton direction.

Implementation of LOCA::Extended::MultiAbstractGroup
virtual methods
virtual Teuchos::RCP< const LOCA::MultiContinuation::AbstractGroup >	getUnderlyingGroup () const
	Return underlying group.

virtual Teuchos::RCP < LOCA::MultiContinuation::AbstractGroup >	getUnderlyingGroup ()
	Return underlying group.

Implementation of LOCA::MultiContinuation::AbstractGroup
virtual methods
virtual void	copy (const NOX::Abstract::Group &source)
	Assignment.

virtual void	setParamsMulti (const std::vector< int > &paramIDs, const NOX::Abstract::MultiVector::DenseMatrix &vals)
	Set parameters indexed by (integer) paramIDs.

virtual void	setParams (const ParameterVector &p)
	Set the parameter vector in the group to p.

virtual void	setParam (int paramID, double val)
	Set parameter indexed by paramID.

virtual void	setParam (std::string paramID, double val)
	Set parameter indexed by paramID.

virtual const ParameterVector &	getParams () const
	Return a const reference to the paramter vector owned by the group.

virtual double	getParam (int paramID) const
	Return copy of parameter indexed by paramID.

virtual double	getParam (std::string paramID) const
	Return copy of parameter indexed by paramID.

virtual NOX::Abstract::Group::ReturnType	computeDfDpMulti (const std::vector< int > &paramIDs, NOX::Abstract::MultiVector &dfdp, bool isValidF)

virtual void	preProcessContinuationStep (LOCA::Abstract::Iterator::StepStatus stepStatus)
	Perform any preprocessing before a continuation step starts. More...

virtual void	postProcessContinuationStep (LOCA::Abstract::Iterator::StepStatus stepStatus)
	Perform any postprocessing after a continuation step finishes. More...

virtual void	projectToDraw (const NOX::Abstract::Vector &x, double *px) const
	Projects solution to a few scalars for multiparameter continuation.

virtual int	projectToDrawDimension () const
	Returns the dimension of the project to draw array.

virtual void	printSolution (const double conParam) const
	Function to print out solution and continuation parameter after successful continuation step.

virtual void	printSolution (const NOX::Abstract::Vector &x_, const double conParam) const
	Function to print out solution and continuation parameter after successful continuation step.

Public Member Functions inherited from LOCA::MultiContinuation::AbstractGroup
	AbstractGroup ()
	Default constructor.

virtual	~AbstractGroup ()
	Destructor.

virtual double	computeScaledDotProduct (const NOX::Abstract::Vector &a, const NOX::Abstract::Vector &b) const
	Compute a scaled dot product. More...

virtual void	scaleVector (NOX::Abstract::Vector &x) const
	Scales a vector using scaling vector. More...

Public Member Functions inherited from NOX::Abstract::Group
	Group ()
	Constructor. More...

virtual NOX::Abstract::Group::ReturnType	applyRightPreconditioning (bool useTranspose, Teuchos::ParameterList &params, const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
	Apply right preconditiong to the given input vector. More...

virtual NOX::Abstract::Group::ReturnType	applyRightPreconditioningMultiVector (bool useTranspose, Teuchos::ParameterList &params, const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
	applyRightPreconditioning for multiple right-hand sides More...

virtual const NOX::Abstract::Vector &	getScaledX () const

virtual void	logLastLinearSolveStats (NOX::SolverStats &stats) const
	Adds statistics from last linear solve to the SovlerStats object.

virtual NOX::Abstract::Group::ReturnType	getNormLastLinearSolveResidual (double &residual) const
	Return the norm of the last linear solve residual as the result of either a call to computeNewton() or applyJacobianInverse(). More...

Public Member Functions inherited from LOCA::Extended::MultiAbstractGroup
	MultiAbstractGroup ()
	Default constructor.

virtual	~MultiAbstractGroup ()
	Destructor.

virtual Teuchos::RCP < NOX::Abstract::Group >	getNestedGroup ()
	Override from NOX::Abstract::Group base class. Calls getUnderlyingGroup() from this class.

virtual Teuchos::RCP< const NOX::Abstract::Group >	getNestedGroup () const
	Override from NOX::Abstract::Group base class. Calls getUnderlyingGroup() from this class.

virtual Teuchos::RCP< const LOCA::MultiContinuation::AbstractGroup >	getBaseLevelUnderlyingGroup () const
	Return base-level underlying group. More...

virtual Teuchos::RCP < LOCA::MultiContinuation::AbstractGroup >	getBaseLevelUnderlyingGroup ()
	Return base-level underlying group. More...

Protected Member Functions
void	resetIsValidFlags ()
	Reset the isValid flags to false. More...

void	setStepperParameters (Teuchos::ParameterList &params)
	Creates and sets the "Stepper" parameter sublist.

Protected Attributes
Teuchos::RCP< LOCA::GlobalData >	globalData
	Pointer LOCA global data object.

Teuchos::RCP < LOCA::Homotopy::AbstractGroup >	grpPtr
	Stores the underlying loca group.

Teuchos::RCP < NOX::Abstract::Vector >	gVecPtr
	Stores the homotopy residual vector, .

Teuchos::RCP < NOX::Abstract::Vector >	randomVecPtr
	Stores the random Vector, .

Teuchos::RCP < NOX::Abstract::Vector >	newtonVecPtr
	Stores the homotopy Newton vector, $\frac{\partial r}{\partial x}$ .

Teuchos::RCP < NOX::Abstract::Vector >	gradVecPtr

bool	isValidF
	Is residual vector valid.

bool	isValidJacobian
	Is Jacobian matrix valid.

bool	isValidNewton
	Is Newton vector valid.

bool	isValidGradient
	Is gradient vector valid.

LOCA::ParameterVector	paramVec
	Copy of the ParameterVector for the underlying grpPtr. More...

double	conParam
	Value of the homotopy continuation parameter. More...

int	conParamID
	Continuatioin parameter ID number from the ParameterVector.

const std::string	conParamLabel
	Contains the std::string used to identify the homotopy parameter in the ParameterVector object.

bool	augmentJacForHomotopyNotImplemented
	Tracks whether the LOCA::Homotopy::Group method augmentJacobianForHomotopy is implemented. If not, the augmentation is applied during the applyJacobian assuming a matrix-free implementation.

Additional Inherited Members
Public Types inherited from NOX::Abstract::Group
enum	ReturnType { Ok, NotDefined, BadDependency, NotConverged, Failed }
	The computation of, say, the Newton direction in computeNewton() may fail in many different ways, so we have included a variety of return codes to describe the failures. Of course, we also have a code for success. More...

Detailed Description

LOCA's Homotopy Algorithm.

The HomotopyGroup is a concrete implementation of the LOCA::Continuation::AbstractGroup that modifies the set of nonlinear equations to be solved to allow for Homotopy to be applied to the system. This object should be used in conjunction with the LOCA::Stepper object to drive the continuation. This algorithm solves a system of nonlinear equations supplied by the user ( $ F(x) $ ) through continuation. An artificial parameter $\lambda$ is used to control the continuation. The idea is to solve a simple equation starting at $\lambda$ = 0 and, using the solution from the previous step, solve systems of equations that gets progressively closer to the true system of interest ( at $\lambda$ = 1.0 we recover the original equations $ F(x) $ ). By constraining the definition of $g(x, \lambda)$ and using artificial parameter contiuation, the continuation branch should be free of multiplicity and bifurcation phenomena.

The modified system of equations, $g(x, \lambda)$ , supplied by the HomotopyGroup is defined as:

$g(x, \lambda) = \lambda F(x) + (1.0 - \lambda)(x - a)$

where $ x$ is the solution vector, $\lambda$ is an artificial parameter, $ F(x) $ is the set of nonlinear equations the user supplies, $ g(x) $ is the corresponding set of homotopy equations that LOCA will solve, and $ a $ is a random vector.

This group requires the loca Stepper for continuation from $\lambda$ = 0.0 (a simple set of equations to solve) to $\lambda$ = 1.0 (the set of equations requested by the user, $ F(x) $ ). The Homotopy::Group will generate the Stepper parameter sublist in the parameter list that is passed in to the constructor. The user is free to modify this list (it sets default values) before passing it into the stepper object but should NOT change the starting and stopping values for the continuation parameter.

References:

ALGORITHM 652 HOMPACK: A Suite of Codes for Globally Convergent Homotopy Algorithms, Watson, L.T., Billups, S.C, and Morgan, A.P., ACM Transactions on Mathematical Software, Vol. 13, No. 3, September 1987, pp281-310.

Constructor & Destructor Documentation

LOCA::Homotopy::Group::Group	(	Teuchos::ParameterList &	locaSublist,
		const Teuchos::RCP< LOCA::GlobalData > &	global_data,
		const Teuchos::RCP< LOCA::Homotopy::AbstractGroup > &	g,
		double	scaleRandom = `1.0`,
		double	scaleInitialGuess = `0.0`
	)

Constructor to set the base group and generate the "%Stepper" sublist for homotopy continuation.

The locaSublist variable is the "LOCA" sublist (of type Teuchos::ParameterList) that will be used in loca continuation runs.

The variables scalarRandomVector and scalarInitialGuess are used to give some control over the generation of the random vector. In certain instances we have seen the random vector force the solution to a set of variables that are unphysical and could break the function evaluations (cause them to return nan). For example, in heat transfer problems, the temperature could be the dependent variable. If the solution vector has an unphysical temperature ( the random vector could force the temperature to negative or near zero values for the solution at $\lambda = 0$ ) then property evaluations could break. The random vector can be modified to keep the values near the initial guess based on values supplied to the constructor of the HomotopyGroup:

$a = abs(r) * \mbox{scalarRandom} + x_o * \mbox{scalarInitialGuess}$

where $ r $ is the random vector generated by a call to NOX::Abstract::Vector::random(), $\mbox{scalarRandom}$ is a scalar value, $ x_o $ is the initial guess to the solution vector, and $\mbox{scalarInitialGuess}$ is a scalar value. The defualt values force the random vector to be calculated as:

$a = abs(r)$

IMPORTANT: For homotopy to work correctly you should not change the starting and stopping parameter values (0.0 and 1.0 respectively) set in the "%Stepper" sublist.

References NOX::Abstract::Vector::abs(), LOCA::ParameterVector::addParameter(), conParam, conParamID, conParamLabel, LOCA::ParameterVector::getIndex(), grpPtr, paramVec, NOX::Abstract::Vector::random(), randomVecPtr, resetIsValidFlags(), setStepperParameters(), and NOX::Abstract::Vector::update().

Member Function Documentation

NOX::Abstract::Group::ReturnType LOCA::Homotopy::Group::computeDfDpMulti	(	const std::vector< int > &	paramIDs,
		NOX::Abstract::MultiVector &	dfdp,
		bool	isValidF
	)

virtual

Compute $\partial F/\partial p$ for each parameter $ p$ indexed by paramIDs. The first column of dfdp holds F, which is valid if isValidF is true. Otherwise F must be computed.

Implements LOCA::MultiContinuation::AbstractGroup.

References NOX::Abstract::MultiVector::scale(), NOX::Abstract::MultiVector::subView(), and NOX::Abstract::MultiVector::update().

void LOCA::Homotopy::Group::postProcessContinuationStep ( LOCA::Abstract::Iterator::StepStatus stepStatus )

virtual

Perform any postprocessing after a continuation step finishes.

The stepStatus argument indicates whether the step was successful.

Reimplemented from LOCA::MultiContinuation::AbstractGroup.

void LOCA::Homotopy::Group::preProcessContinuationStep ( LOCA::Abstract::Iterator::StepStatus stepStatus )

virtual

Perform any preprocessing before a continuation step starts.

The stepStatus argument indicates whether the previous step was successful.

Reimplemented from LOCA::MultiContinuation::AbstractGroup.

void LOCA::Homotopy::Group::resetIsValidFlags ( )

protected

Reset the isValid flags to false.

  This is called when the solution vector or parameter vector

is changed.

Referenced by Group().

Member Data Documentation

double LOCA::Homotopy::Group::conParam

protected

Value of the homotopy continuation parameter.

Ranges from 0.0 (easy solution) to 1.0 (solution to the system of interest).

Referenced by copy(), and Group().

Teuchos::RCP<NOX::Abstract::Vector> LOCA::Homotopy::Group::gradVecPtr

protected

Stores the homotopy gradient vector if needed, $\frac{\partial r}{\partial x}$ .

Referenced by copy(), and Group().

LOCA::ParameterVector LOCA::Homotopy::Group::paramVec

protected

Copy of the ParameterVector for the underlying grpPtr.

We copy this and then add the homotopy parameter to the list.

Referenced by copy(), and Group().

The documentation for this class was generated from the following files:

LOCA_Homotopy_Group.H
LOCA_Homotopy_Group.C

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
