LOCA::Homotopy::AbstractGroup Class Referenceabstract

Interface to underlying groups for homotopy calculations. More...

#include <LOCA_Homotopy_AbstractGroup.H>

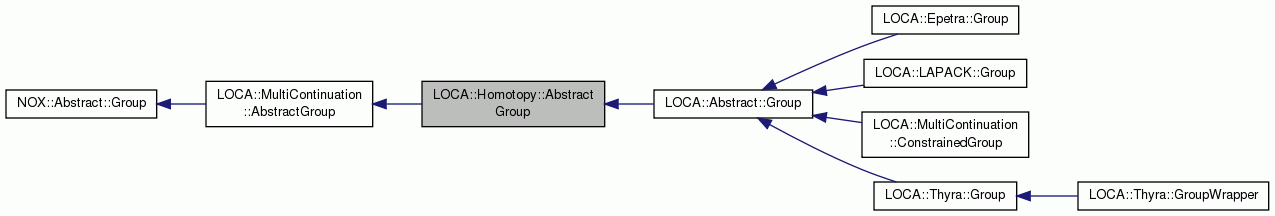

Inheritance diagram for LOCA::Homotopy::AbstractGroup:
Inheritance graph
[legend]
Collaboration diagram for LOCA::Homotopy::AbstractGroup:
Collaboration graph
[legend]

Public Member Functions

 AbstractGroup ()
 Default constructor.

virtual ~AbstractGroup ()
 Destructor.

Pure virtual methods

These methods must be defined by any concrete implementation

virtual
NOX::Abstract::Group::ReturnType
augmentJacobianForHomotopy (double a, double b)=0
 Replace Jacobian $ J$ by $ aJ+bI$ where $ I$ is the identity matrix.

- Public Member Functions inherited from LOCA::MultiContinuation::AbstractGroup
 AbstractGroup ()
 Default constructor.

virtual void copy (const NOX::Abstract::Group &source)=0
 Copy the group (replaces operator = )

virtual void setParamsMulti (const std::vector< int > &paramIDs, const NOX::Abstract::MultiVector::DenseMatrix &vals)=0
 Set parameters indexed by (integer) paramIDs.

virtual void setParams (const LOCA::ParameterVector &p)=0
 Set the parameter vector in the group to p (pVector = p).

virtual void setParam (int paramID, double val)=0
 Set parameter indexed by (integer) paramID.

virtual void setParam (std::string paramID, double val)=0
 Set parameter indexed by (std::string) paramID.

virtual const
LOCA::ParameterVector
getParams () const =0
 Return a const reference to the ParameterVector owned by the group.

virtual double getParam (int paramID) const =0
 Return copy of parameter indexed by (integer) paramID.

virtual double getParam (std::string paramID) const =0
 Return copy of parameter indexed by (std::string) paramID.

virtual
NOX::Abstract::Group::ReturnType
computeDfDpMulti (const std::vector< int > &paramIDs, NOX::Abstract::MultiVector &dfdp, bool isValidF)=0

virtual void preProcessContinuationStep (LOCA::Abstract::Iterator::StepStatus stepStatus)
 Perform any preprocessing before a continuation step starts. More...

virtual void postProcessContinuationStep (LOCA::Abstract::Iterator::StepStatus stepStatus)
 Perform any postprocessing after a continuation step finishes. More...

virtual void projectToDraw (const NOX::Abstract::Vector &x, double *px) const
 Projects solution to a few scalars for multiparameter continuation. More...

virtual int projectToDrawDimension () const
 Returns the dimension of the project to draw array. More...

virtual double computeScaledDotProduct (const NOX::Abstract::Vector &a, const NOX::Abstract::Vector &b) const
 Compute a scaled dot product. More...

virtual void printSolution (const double) const
 Function to print out solution and parameter after successful step. More...

virtual void printSolution (const NOX::Abstract::Vector &, const double) const
 Function to print out a vector and parameter after successful step. More...

virtual void scaleVector (NOX::Abstract::Vector &x) const
 Scales a vector using scaling vector. More...

- Public Member Functions inherited from NOX::Abstract::Group
 Group ()
 Constructor. More...

virtual ~Group ()
 Destructor.

virtual NOX::Abstract::Groupoperator= (const NOX::Abstract::Group &source)=0
 Copies the source group into this group. More...

virtual Teuchos::RCP
< NOX::Abstract::Group
getNestedGroup ()
 Return an internally stored group from this group. More...

virtual Teuchos::RCP< const
NOX::Abstract::Group
getNestedGroup () const
 Return an internally stored group from this group. More...

virtual void setX (const NOX::Abstract::Vector &y)=0
 Set the solution vector x to y. More...

virtual void computeX (const NOX::Abstract::Group &grp, const NOX::Abstract::Vector &d, double step)=0
 Compute x = grp.x + step * d. More...

virtual
NOX::Abstract::Group::ReturnType
computeF ()=0
 Compute and store F(x). More...

virtual
NOX::Abstract::Group::ReturnType
computeJacobian ()
 Compute and store Jacobian. More...

virtual
NOX::Abstract::Group::ReturnType
computeGradient ()
 Compute and store gradient. More...

virtual
NOX::Abstract::Group::ReturnType
computeNewton (Teuchos::ParameterList &params)
 Compute the Newton direction, using parameters for the linear solve. More...

virtual
NOX::Abstract::Group::ReturnType
applyJacobian (const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
 Applies Jacobian to the given input vector and puts the answer in the result. More...

virtual
NOX::Abstract::Group::ReturnType
applyJacobianTranspose (const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
 Applies Jacobian-Transpose to the given input vector and puts the answer in the result. More...

virtual
NOX::Abstract::Group::ReturnType
applyJacobianInverse (Teuchos::ParameterList &params, const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
 Applies the inverse of the Jacobian matrix to the given input vector and puts the answer in result. More...

virtual
NOX::Abstract::Group::ReturnType
applyRightPreconditioning (bool useTranspose, Teuchos::ParameterList &params, const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
 Apply right preconditiong to the given input vector. More...

virtual
NOX::Abstract::Group::ReturnType
applyJacobianMultiVector (const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
 applyJacobian for multiple right-hand sides More...

virtual
NOX::Abstract::Group::ReturnType
applyJacobianTransposeMultiVector (const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
 applyJacobianTranspose for multiple right-hand sides More...

virtual
NOX::Abstract::Group::ReturnType
applyJacobianInverseMultiVector (Teuchos::ParameterList &params, const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
 applyJacobianInverse for multiple right-hand sides More...

virtual
NOX::Abstract::Group::ReturnType
applyRightPreconditioningMultiVector (bool useTranspose, Teuchos::ParameterList &params, const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
 applyRightPreconditioning for multiple right-hand sides More...

virtual bool isF () const =0
 Return true if F is valid.

virtual bool isJacobian () const
 Return true if the Jacobian is valid. More...

virtual bool isGradient () const
 Return true if the gradient is valid. More...

virtual bool isNewton () const
 Return true if the Newton direction is valid. More...

virtual const
NOX::Abstract::Vector
getX () const =0
 Return solution vector.

virtual const
NOX::Abstract::Vector
getScaledX () const

virtual const
NOX::Abstract::Vector
getF () const =0
 Return F(x)

virtual double getNormF () const =0
 Return 2-norm of F(x). More...

virtual const
NOX::Abstract::Vector
getGradient () const =0
 Return gradient.

virtual const
NOX::Abstract::Vector
getNewton () const =0
 Return Newton direction.

virtual Teuchos::RCP< const
NOX::Abstract::Vector
getXPtr () const =0
 Return RCP to solution vector.

virtual Teuchos::RCP< const
NOX::Abstract::Vector
getFPtr () const =0
 Return RCP to F(x)

virtual Teuchos::RCP< const
NOX::Abstract::Vector
getGradientPtr () const =0
 Return RCP to gradient.

virtual Teuchos::RCP< const
NOX::Abstract::Vector
getNewtonPtr () const =0
 Return RCP to Newton direction.

virtual void logLastLinearSolveStats (NOX::SolverStats &stats) const
 Adds statistics from last linear solve to the SovlerStats object.

virtual
NOX::Abstract::Group::ReturnType
getNormLastLinearSolveResidual (double &residual) const
 Return the norm of the last linear solve residual as the result of either a call to computeNewton() or applyJacobianInverse(). More...

virtual Teuchos::RCP
< NOX::Abstract::Group
clone (NOX::CopyType type=NOX::DeepCopy) const =0
 Create a new Group of the same derived type as this one by cloning this one, and return a ref count pointer to the new group. More...


Additional Inherited Members

- Public Types inherited from NOX::Abstract::Group
enum  ReturnType {
  Ok, NotDefined, BadDependency, NotConverged,
  Failed
}
 The computation of, say, the Newton direction in computeNewton() may fail in many different ways, so we have included a variety of return codes to describe the failures. Of course, we also have a code for success. More...


Detailed Description

Interface to underlying groups for homotopy calculations.

This abstract class provides an interface for a homotopy technique for solving nonlinear equations. See LOCA::Homotopy::Group for a description of the technique used. This class provides a single pure virtual method, augmentJacobianForHomotopy(), which scales the diagonal of the Jacobian by a constant times the identity matrix.


The documentation for this class was generated from the following file:
