Interface to the Trilinos package Anasazi. More...

#include "ml_common.h"
#include <mpi.h>
#include "ml_include.h"
#include <iostream>
#include "EpetraExt_SolverMap_CrsMatrix.h"
#include "Epetra_DataAccess.h"

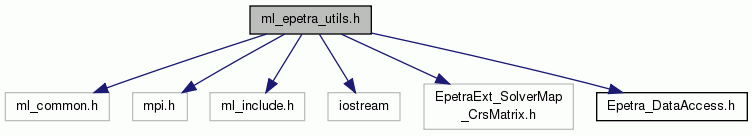

Include dependency graph for ml_epetra_utils.h:

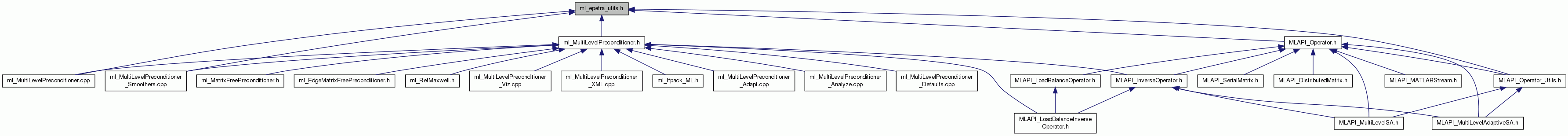

This graph shows which files directly or indirectly include this file:

Namespaces
	Teuchos

	ML_Epetra
	ML_Epetra: default namespace for all Epetra interfaces.

Functions
int	ML_Epetra_matvec (ML_Operator data, int in, double p, int out, double *ap)
	Matrix-vector function for Epetra matrices. More...

int	ML_Epetra_RowMatrix_matvec (ML_Operator data, int in, double p, int out, double *ap)

int	ML_Epetra_CrsMatrix_matvec (ML_Operator data, int in, double p, int out, double *ap)

int	ML_Epetra_VbrMatrix_matvec (ML_Operator data, int in, double p, int out, double *ap)

int	Epetra_ML_GetCrsDataptrs (ML_Operator data, double values, int cols, int *rowptr)

int	ML_Epetra_getrow (ML_Operator *data, int N_requested_rows, int requested_rows[], int allocated_space, int columns[], double values[], int row_lengths[])
	Getrow function for matrix of type Epetra_RowMatrix. More...

int	ML_Epetra_RowMatrix_getrow (ML_Operator *data, int N_requested_rows, int requested_rows[], int allocated_space, int columns[], double values[], int row_lengths[])

int	ML_Epetra_CrsMatrix_getrow (ML_Operator *data, int N_requested_rows, int requested_rows[], int allocated_space, int columns[], double values[], int row_lengths[])

int	ML_Epetra_CrsMatrix_get_one_row (ML_Operator *data, int N_requested_rows, int requested_rows[], int allocated_space, int columns[], double values[], int row_lengths[])

int	ML_Epetra_VbrMatrix_getrow (ML_Operator *data, int N_requested_rows, int requested_rows[], int allocated_space, int columns[], double values[], int row_lengths[])

void	ML_Set_Filter (Teuchos::ParameterList &List)

int	ML_Epetra_matvec_Filter (ML_Operator data, int in, double p, int out, double *ap)

int	ML_Epetra_getrow_Filter (ML_Operator *data, int N_requested_rows, int requested_rows[], int allocated_space, int columns[], double values[], int row_lengths[])

int	ML_Epetra_comm_wrapper (double vec[], void *data)
	Update vec's ghost node via communication. More...

int	ML_Epetra_CrsMatrix_comm_wrapper (double vec[], void *data)

int	ML_Epetra_VbrMatrix_comm_wrapper (double vec[], void *data)

int	ML_Epetra_CrsGraph_comm_wrapper (double vec[], void *data)

int	ML_Epetra_CrsGraph_matvec (ML_Operator data, int in, double p, int out, double *ap)

int	ML_Epetra_CrsGraph_getrow (ML_Operator *data, int N_requested_rows, int requested_rows[], int allocated_space, int columns[], double values[], int row_lengths[])

int	ML_Operator_WrapEpetraCrsGraph (Epetra_CrsGraph Graph, ML_Operator newMatrix)

void	ML_CreateSublists (const Teuchos::ParameterList &List, Teuchos::ParameterList &newList)

int	EpetraMatrix2MLMatrix (ML ml_handle, int level, Epetra_RowMatrix Amat)
	Wraps an Epetra_RowMatrix into an ML_Operators. More...

int	ML_Operator_WrapEpetraMatrix (Epetra_RowMatrix A, ML_Operator Result)
	Wraps an Epetra_RowMatrix into an ML_Operators, for the given level. More...

int	ML_Operator_WrapEpetraCrsMatrix (Epetra_CrsMatrix A, ML_Operator newMatrix, bool verbose=false)
	Wraps an Epetra_CrsMatrix into an ML_Operator, for the given level. More...

void	Epetra_CrsMatrix_Wrap_ML_Operator (ML_Operator A, const Epetra_Comm &Comm, const Epetra_Map &RowMap, Epetra_CrsMatrix *Result, Epetra_DataAccess CV=::View, int base=0)
	Wraps a ML_Operator into a Epetra_CrsMatrix. More...

Epetra_CrsMatrix *	Epetra_MatrixMult (Epetra_RowMatrix B, Epetra_RowMatrix Bt)
	Multiplies two Epetra_RowMatrix's, returns the results as an Epetra_CrsMatrix.

Epetra_CrsMatrix *	Epetra_MatrixAdd (Epetra_RowMatrix B, Epetra_RowMatrix Bt, double scalar)
	Adds two Epetra_RowMatrix's, returns the result as an Epetra_CrsMatrix.

int	ML_Epetra_CRSinsert (ML_Operator , int, int , double *, int)

int	ML_Operator2EpetraCrsMatrix (ML_Operator Ke, Epetra_CrsMatrix &CrsMatrix, int &MaxNumNonzeros, bool CheckNonzeroRow, double &, int base=0, bool verbose=false)
	Converts an ML_Operator into an Epetra_CrsMatrix. More...

int	ML_Operator2EpetraCrsMatrix (ML_Operator Ke, Epetra_CrsMatrix &CrsMatrix)

Epetra_Map *	Epetra_ML_readupdatevector (char *filename, Epetra_Comm &comm)

Epetra_CrsMatrix *	Epetra_ML_readaztecmatrix (char *filename, Epetra_Map &map, Epetra_Comm &comm)

int	ML_Epetra::ML_Epetra_PtAP (const Epetra_CrsMatrix &A, const Epetra_CrsMatrix &P, Epetra_CrsMatrix *&Result, bool verbose=false)
	Does an P^TAP for Epetra_CrsMatrices using ML's kernels.

int	ML_Epetra::ML_Epetra_RAP (const Epetra_CrsMatrix &A, const Epetra_CrsMatrix &P, const Epetra_CrsMatrix &R, Epetra_CrsMatrix *&Result, bool verbose)
	Does an RAP for Epetra_CrsMatrices using ML's kernels.

int	ML_Epetra::Epetra_PtAP (const Epetra_CrsMatrix &A, const Epetra_CrsMatrix &P, Epetra_CrsMatrix *&Result, bool keep_zero_rows=false, bool verbose=false)
	Does an P^TAP for Epetra_CrsMatrices using EpetraExt's kernels.

int *	ML_Epetra::FindLocalDiricheltRowsFromOnesAndZeros (const Epetra_CrsMatrix &Matrix, int &numBCRows)
	Finds the Dirichlet rows in a square matrix that got the one-and-zeros. More...

void	ML_Epetra::Apply_BCsToMatrixColumns (const int *dirichletRows, int numBCRows, const Epetra_CrsMatrix &Matrix)
	Applies Dirichlet conditions to columns that rows already have. More...

void	ML_Epetra::Apply_BCsToMatrixRows (const int *dirichletRows, int numBCRows, const Epetra_CrsMatrix &Matrix)
	Applies Dirichlet conditions to matrix rows.

void	ML_Epetra::Apply_BCsToMatrixRowsNodal (const int *dirichletRows, int numBCRows, int dofsPerNode, const Epetra_CrsMatrix &Matrix)
	Applies Dirichlet conditions to matrix rows (marking all dofs on a node as Dirichlet if any one dof is)

void	ML_Epetra::Apply_BCsToMatrixColumns (const Epetra_RowMatrix &iBoundaryMatrix, const Epetra_RowMatrix &iMatrix)
	Applies Dirichlet conditions to columns that rows already have. More...

void	ML_Epetra::Apply_BCsToMatrixColumns (const Epetra_IntVector &dirichletColumns, const Epetra_CrsMatrix &Matrix)

void	ML_Epetra::Apply_BCsToGradient (const Epetra_RowMatrix &EdgeMatrix, const Epetra_RowMatrix &T)
	Applies boundary conditions to gradient matrix. (Maxwell's equations)

void	ML_Epetra::Apply_OAZToMatrix (int *dirichletRows, int numBCRows, const Epetra_CrsMatrix &Matrix)
	Does Row/Column OAZ to a matrix.

Epetra_IntVector *	ML_Epetra::LocalRowstoColumns (int *Rows, int numRows, const Epetra_CrsMatrix &Matrix)
	Returns the local column numbers of the local rows passed in.

Epetra_IntVector *	ML_Epetra::FindLocalDirichletColumnsFromRows (const int *dirichletRows, int numBCRows, const Epetra_CrsMatrix &Matrix)
	Finds Dirichlet the local Dirichlet columns, given the local Dirichlet rows.

Epetra_IntVector *	ML_Epetra::FindLocalDirichletDomainsFromRows (const int *dirichletRows, int numBCRows, const Epetra_CrsMatrix &Matrix)
	Finds Dirichlet the local Dirichlet domains, given the local Dirichlet rows.

void	ML_Epetra::Remove_Zeroed_Rows (const Epetra_CrsMatrix &Matrix, double tol=0.0)
	Drops a 1 on the diagonal of zero'd our rows.

Epetra_RowMatrix *	ML_Epetra::ModifyEpetraMatrixColMap (const Epetra_RowMatrix &A, EpetraExt::CrsMatrix_SolverMap &transform, const char *matrixName=0, bool verbose=false)
	Transforms Epetra matrix column map (if necessary) to be compatible with. More...

int	ML_Epetra::UpdateList (Teuchos::ParameterList &source, Teuchos::ParameterList &dest, bool OverWrite)

int	ML_Operator_Destroy_DiscreteLaplacian ()

int	ML_Operator_DiscreteLaplacian (ML_Operator Op, int SymmetricPattern, double x_coord, double y_coord, double z_coord, double theta, ML_Operator **NewOp)

bool	Epetra_ML_readaztecvector (char *filename, Epetra_MultiVector &Vector, Epetra_Map &map, Epetra_Comm &comm, int ivec)

bool	Epetra_ML_readvariableblocks (char filename, Epetra_Map &map, Epetra_Comm &comm, int blocks, int *block_pde)

bool	Epetra_ML_writegidviz (char *filename, int label, Epetra_MultiVector &vector, int ivec, Epetra_Map &map, Epetra_Comm &comm)

void	ML_BreakForDebugger (const Epetra_Comm &comm)
	Stops the code, waiting for a debugger to attach. More...

Detailed Description

Interface to the Trilinos package Anasazi.

Date: Last update to Doxygen: 22-Jul-04

Function Documentation

void Epetra_CrsMatrix_Wrap_ML_Operator	(	ML_Operator *	A,
		const Epetra_Comm &	Comm,
		const Epetra_Map &	RowMap,
		Epetra_CrsMatrix **	Result,
		Epetra_DataAccess	CV = `::View`,
		int	base = `0`
	)

Wraps a ML_Operator into a Epetra_CrsMatrix.

This is a somewhat cheap wrap in that the pointers get dumped into the Epetra_CrsMatrix.

int EpetraMatrix2MLMatrix	(	ML *	ml_handle,
		int	level,
		Epetra_RowMatrix *	Amat
	)

Wraps an Epetra_RowMatrix into an ML_Operators.

This function creates an ML_Operator that is based on the input Epetra_RowMatrix. This is a "cheap" wrap in the sense that only function and pointers are created. Data is still coded as an Epetra_RowMatrix.

Note: ML requires A->RowMatrixRowMap() == A->OperatorRangeMap()

void ML_BreakForDebugger ( const Epetra_Comm & comm )

Stops the code, waiting for a debugger to attach.

BreakForDebugger() is useful when the user wants to attach to the running process(es). This is a very easy task for serial runs – just run gdb. Parallel runs may result more problematic. In this case, one can proceed as follows:

Either define the enviromental variable ML_BREAK_FOR_DEBUGGER or create an empty file called ML_Debug_Now
Run the parallel code on a terminal (example, mpirun -np 4 ml_example.exe )
The code will stop and print each process ID.
In another terminal, attach to the desired process.
Type one character to let the code continue, and debug as required.

Referenced by ML_Epetra::MultiLevelPreconditioner::ComputePreconditioner().

int ML_Epetra_comm_wrapper	(	double	vec[],
		void *	data
	)

Update vec's ghost node via communication.

Update vec's ghost node via communication. Note: the length of vec is given by N_local + N_ghost where Amat was created via AZ_matrix_create(N_local); and a 'getrow' function was supplied via AZ_set_MATFREE_getrow(Amat,,,,N_ghost,).

Parameters

vec	Vector containing data. On output, ghost values are updated.
data	points to user's data containing matrix values. and communication information.

Referenced by ML_Epetra::MultiLevelPreconditioner::ComputePreconditioner().

int ML_Epetra_getrow	(	ML_Operator *	data,
		int	N_requested_rows,
		int	requested_rows[],
		int	allocated_space,
		int	columns[],
		double	values[],
		int	row_lengths[]
	)

Getrow function for matrix of type Epetra_RowMatrix.

Supply local matrix (without ghost node columns) for rows given by requested_rows[0 ... N_requested_rows-1]. Return this information in 'row_lengths, columns, values'. If there is not enough space to complete this operation, return 0. Otherwise, return 1.

Parameters

data	(In) Points to user's data containing matrix values.
N_requested_rows	(In) Number of rows for which nonzero are to be returned.
requested_rows	(In) Requested_rows[0...N_requested_rows-1] give the row indices of the rows for which nonzero values are returned.
row_lengths	(Out) Row_lengths[i] is the number of nonzeros in the row 'requested_rows[i]'
columns,values	(Out) Columns[k] and values[k] contains the column number and value of a matrix nonzero where all nonzeros for requested_rows[i] appear before requested_rows[i+1]'s nonzeros. NOTE: Arrays are of size 'allocated_space'.
allocated_space	(In) Indicates the space available in 'columns' and 'values' for storing nonzeros. If more space is needed, return 0.

Referenced by ML_Epetra::MultiLevelPreconditioner::ComputePreconditioner().

int ML_Epetra_matvec	(	ML_Operator *	data,
		int	in,
		double *	p,
		int	out,
		double *	ap
	)

Matrix-vector function for Epetra matrices.

This is the ML matrix-vector wrap for Epetra matrices.

Referenced by ML_Epetra::MultiLevelPreconditioner::ComputePreconditioner().

int ML_Operator2EpetraCrsMatrix	(	ML_Operator *	Ke,
		Epetra_CrsMatrix *&	CrsMatrix,
		int &	MaxNumNonzeros,
		bool	CheckNonzeroRow,
		double &	,
		int	base = `0`,
		bool	verbose = `false`
	)

Converts an ML_Operator into an Epetra_CrsMatrix.

This function creates a new Epetra_CrsMatrix, and inserts all the nonzero elements of the ML_Operator in it. This is an expensive conversion, in the sense that the Epetra_RowMatrix is a copy of the input ML_Operator.

Note: This function can be used with rectangular matrices.

Referenced by ML_Epetra::MultiLevelPreconditioner::MultiLevelPreconditioner().

int ML_Operator_WrapEpetraCrsMatrix	(	Epetra_CrsMatrix *	A,
		ML_Operator *	newMatrix,
		bool	verbose = `false`
	)

Wraps an Epetra_CrsMatrix into an ML_Operator, for the given level.

This is an ultra cheap wrap in that I wrap the pointers that come out of Epetra's ExtractCrsDataPointers function.

You need to have remapped the Epetra Matrix to include all the columns before this routine gets called or else this won't work in parallel.

OptimizeStorage() must be called on the routines for the light wrap to be used. Otherwise, the routine calls ML_Operator_WrapEpetraMatrix as a fallback.

Note: ML requires A->RowMatrixRowMap() == A->OperatorRangeMap()

int ML_Operator_WrapEpetraMatrix	(	Epetra_RowMatrix *	A,
		ML_Operator *	Result
	)

Wraps an Epetra_RowMatrix into an ML_Operators, for the given level.

This function creates an ML_Operator that is based on the input Epetra_RowMatrix. This is a "cheap" wrap in the sense that only function and pointers are created. Data is still coded as an Epetra_RowMatrix. The ML_Operator is set in the specified level of the hierarchy.

Note: ML requires A->RowMatrixRowMap() == A->OperatorRangeMap()

Referenced by ML_Epetra::MultiLevelPreconditioner::ComputePreconditioner(), MLAPI::Operator::Reshape(), and MLAPI::LoadBalanceOperator::Reshape().
