Epetra_CrsMatrix Class Reference

Epetra_CrsMatrix: A class for constructing and using real-valued double-precision sparse compressed row matrices. More...

#include <Epetra_CrsMatrix.h>

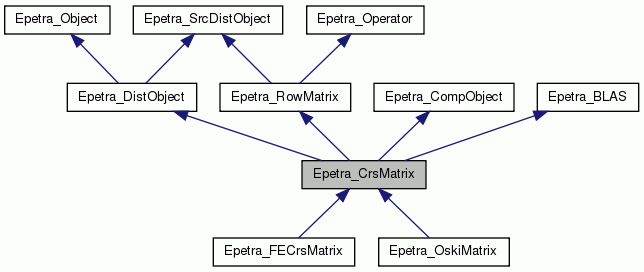

Inheritance diagram for Epetra_CrsMatrix:
Inheritance graph
[legend]

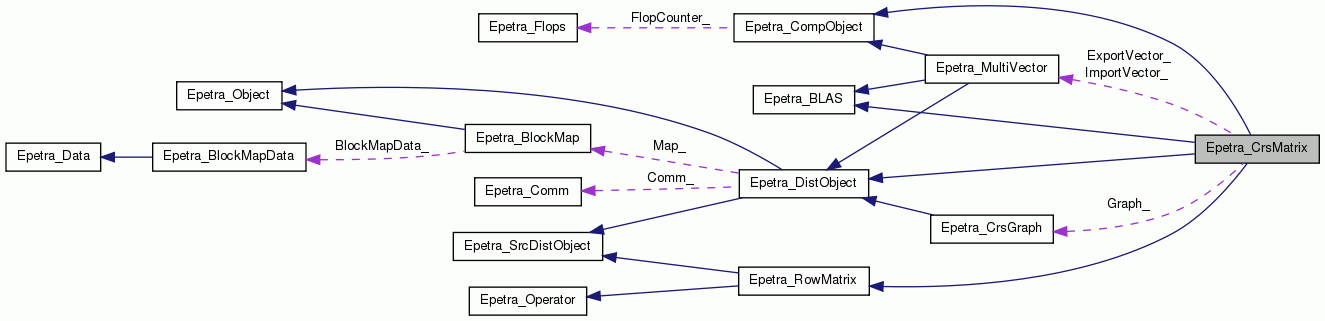

Collaboration diagram for Epetra_CrsMatrix:
Collaboration graph
[legend]

Public Member Functions

void FusedImport (const Epetra_CrsMatrix &SourceMatrix, const Epetra_Import &RowImporter, const Epetra_Map *DomainMap, const Epetra_Map *RangeMap, bool RestrictCommunicator)

void FusedExport (const Epetra_CrsMatrix &SourceMatrix, const Epetra_Export &RowExporter, const Epetra_Map *DomainMap, const Epetra_Map *RangeMap, bool RestrictCommunicator)

void FusedImport (const Epetra_CrsMatrix &SourceMatrix, const Epetra_Import &RowImporter, const Epetra_Import *DomainImporter, const Epetra_Map *DomainMap, const Epetra_Map *RangeMap, bool RestrictCommunicator)

void FusedExport (const Epetra_CrsMatrix &SourceMatrix, const Epetra_Export &RowExporter, const Epetra_Export *DomainExporter, const Epetra_Map *DomainMap, const Epetra_Map *RangeMap, bool RestrictCommunicator)

Constructors/Destructor
 Epetra_CrsMatrix (Epetra_DataAccess CV, const Epetra_Map &RowMap, const int *NumEntriesPerRow, bool StaticProfile=false)
 Epetra_CrsMatrix constructor with variable number of indices per row. More...

 Epetra_CrsMatrix (Epetra_DataAccess CV, const Epetra_Map &RowMap, int NumEntriesPerRow, bool StaticProfile=false)
 Epetra_CrsMatrix constructor with fixed number of indices per row. More...

 Epetra_CrsMatrix (Epetra_DataAccess CV, const Epetra_Map &RowMap, const Epetra_Map &ColMap, const int *NumEntriesPerRow, bool StaticProfile=false)
 Epetra_CrsMatrix constructor with variable number of indices per row. More...

 Epetra_CrsMatrix (Epetra_DataAccess CV, const Epetra_Map &RowMap, const Epetra_Map &ColMap, int NumEntriesPerRow, bool StaticProfile=false)
 Epetra_CrsMatrix constuctor with fixed number of indices per row. More...

 Epetra_CrsMatrix (Epetra_DataAccess CV, const Epetra_CrsGraph &Graph)
 Construct a matrix using an existing Epetra_CrsGraph object. More...

 Epetra_CrsMatrix (const Epetra_CrsMatrix &SourceMatrix, const Epetra_Import &RowImporter, const Epetra_Map *DomainMap=0, const Epetra_Map *RangeMap=0, bool RestrictCommunicator=false)
 Epetra CrsMatrix constructor that also fuses Import and FillComplete(). More...

 Epetra_CrsMatrix (const Epetra_CrsMatrix &SourceMatrix, const Epetra_Import &RowImporter, const Epetra_Import *DomainImporter, const Epetra_Map *DomainMap, const Epetra_Map *RangeMap, bool RestrictCommunicator)
 Epetra CrsMatrix constructor that also fuses Import and FillComplete(). More...

 Epetra_CrsMatrix (const Epetra_CrsMatrix &SourceMatrix, const Epetra_Export &RowExporter, const Epetra_Map *DomainMap=0, const Epetra_Map *RangeMap=0, bool RestrictCommunicator=false)
 Epetra CrsMatrix constructor that also fuses Ex[prt and FillComplete(). More...

 Epetra_CrsMatrix (const Epetra_CrsMatrix &SourceMatrix, const Epetra_Export &RowExporter, const Epetra_Export *DomainExporter, const Epetra_Map *DomainMap, const Epetra_Map *RangeMap, bool RestrictCommunicator)
 Epetra CrsMatrix constructor that also fuses Ex[prt and FillComplete(). More...

 Epetra_CrsMatrix (const Epetra_CrsMatrix &Matrix)
 Copy constructor.

virtual ~Epetra_CrsMatrix ()
 Epetra_CrsMatrix Destructor.

Insertion/Replace/SumInto methods
Epetra_CrsMatrixoperator= (const Epetra_CrsMatrix &src)
 Assignment operator.

int PutScalar (double ScalarConstant)
 Initialize all values in the matrix with constant value. More...

int Scale (double ScalarConstant)
 Multiply all values in the matrix by a constant value (in place: A <- ScalarConstant * A). More...

virtual int InsertGlobalValues (int GlobalRow, int NumEntries, const double *Values, const int *Indices)
 Insert a list of elements in a given global row of the matrix. More...

virtual int InsertGlobalValues (long long GlobalRow, int NumEntries, const double *Values, const long long *Indices)

virtual int InsertGlobalValues (int GlobalRow, int NumEntries, double *Values, int *Indices)
 Insert a list of elements in a given global row of the matrix. More...

virtual int InsertGlobalValues (long long GlobalRow, int NumEntries, double *Values, long long *Indices)

virtual int ReplaceGlobalValues (int GlobalRow, int NumEntries, const double *Values, const int *Indices)
 Replace specified existing values with this list of entries for a given global row of the matrix. More...

virtual int ReplaceGlobalValues (long long GlobalRow, int NumEntries, const double *Values, const long long *Indices)

virtual int SumIntoGlobalValues (int GlobalRow, int NumEntries, const double *Values, const int *Indices)
 Add this list of entries to existing values for a given global row of the matrix. More...

virtual int SumIntoGlobalValues (long long GlobalRow, int NumEntries, const double *Values, const long long *Indices)

int InsertMyValues (int MyRow, int NumEntries, const double *Values, const int *Indices)
 Insert a list of elements in a given local row of the matrix. More...

int InsertMyValues (int MyRow, int NumEntries, double *Values, int *Indices)
 Insert a list of elements in a given local row of the matrix. More...

int ReplaceMyValues (int MyRow, int NumEntries, const double *Values, const int *Indices)
 Replace current values with this list of entries for a given local row of the matrix. More...

int SumIntoMyValues (int MyRow, int NumEntries, const double *Values, const int *Indices)
 Add this list of entries to existing values for a given local row of the matrix. More...

int ReplaceDiagonalValues (const Epetra_Vector &Diagonal)
 Replaces diagonal values of the matrix with those in the user-provided vector. More...

Transformation methods
int FillComplete (bool OptimizeDataStorage=true)
 Signal that data entry is complete. Perform transformations to local index space.

int FillComplete (const Epetra_Map &DomainMap, const Epetra_Map &RangeMap, bool OptimizeDataStorage=true)
 Signal that data entry is complete. Perform transformations to local index space.

int OptimizeStorage ()
 Make consecutive row index sections contiguous, minimize internal storage used for constructing graph. More...

int MakeDataContiguous ()
 Eliminates memory that is used for construction. Make consecutive row index sections contiguous.

Extraction methods
int ExtractGlobalRowCopy (int GlobalRow, int Length, int &NumEntries, double *Values, int *Indices) const
 Returns a copy of the specified global row in user-provided arrays. More...

int ExtractGlobalRowCopy (long long GlobalRow, int Length, int &NumEntries, double *Values, long long *Indices) const

int ExtractMyRowCopy (int MyRow, int Length, int &NumEntries, double *Values, int *Indices) const
 Returns a copy of the specified local row in user-provided arrays. More...

int ExtractGlobalRowCopy (int GlobalRow, int Length, int &NumEntries, double *Values) const
 Returns a copy of the specified global row values in user-provided array. More...

int ExtractGlobalRowCopy (long long GlobalRow, int Length, int &NumEntries, double *Values) const

int ExtractMyRowCopy (int MyRow, int Length, int &NumEntries, double *Values) const
 Returns a copy of the specified local row values in user-provided array. More...

int ExtractDiagonalCopy (Epetra_Vector &Diagonal) const
 Returns a copy of the main diagonal in a user-provided vector. More...

int ExtractGlobalRowView (int GlobalRow, int &NumEntries, double *&Values, int *&Indices) const
 Returns a view of the specified global row values via pointers to internal data. More...

int ExtractGlobalRowView (long long GlobalRow, int &NumEntries, double *&Values, long long *&Indices) const

int ExtractMyRowView (int MyRow, int &NumEntries, double *&Values, int *&Indices) const
 Returns a view of the specified local row values via pointers to internal data. More...

int ExtractGlobalRowView (int GlobalRow, int &NumEntries, double *&Values) const
 Returns a view of the specified global row values via pointers to internal data. More...

int ExtractGlobalRowView (long long GlobalRow, int &NumEntries, double *&Values) const

int ExtractMyRowView (int MyRow, int &NumEntries, double *&Values) const
 Returns a view of the specified local row values via pointers to internal data. More...

Computational methods
int Multiply (bool TransA, const Epetra_Vector &x, Epetra_Vector &y) const
 Returns the result of a Epetra_CrsMatrix multiplied by a Epetra_Vector x in y. More...

int Multiply1 (bool TransA, const Epetra_Vector &x, Epetra_Vector &y) const

int Multiply (bool TransA, const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
 Returns the result of a Epetra_CrsMatrix multiplied by a Epetra_MultiVector X in Y. More...

int Multiply1 (bool TransA, const Epetra_MultiVector &X, Epetra_MultiVector &Y) const

int Solve (bool Upper, bool Trans, bool UnitDiagonal, const Epetra_Vector &x, Epetra_Vector &y) const
 Returns the result of a local solve using the Epetra_CrsMatrix on a Epetra_Vector x in y. More...

int Solve (bool Upper, bool Trans, bool UnitDiagonal, const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
 Returns the result of a local solve using the Epetra_CrsMatrix a Epetra_MultiVector X in Y. More...

int InvRowSums (Epetra_Vector &x) const
 Computes the inverse of the sum of absolute values of the rows of the Epetra_CrsMatrix, results returned in x. More...

int InvRowMaxs (Epetra_Vector &x) const
 Computes the inverse of the max of absolute values of the rows of the Epetra_CrsMatrix, results returned in x. More...

int LeftScale (const Epetra_Vector &x)
 Scales the Epetra_CrsMatrix on the left with a Epetra_Vector x. More...

int InvColSums (Epetra_Vector &x) const
 Computes the inverse of the sum of absolute values of the columns of the Epetra_CrsMatrix, results returned in x. More...

int InvColMaxs (Epetra_Vector &x) const
 Computes the max of absolute values of the columns of the Epetra_CrsMatrix, results returned in x. More...

int RightScale (const Epetra_Vector &x)
 Scales the Epetra_CrsMatrix on the right with a Epetra_Vector x. More...

Matrix Properties Query Methods
bool Filled () const
 If FillComplete() has been called, this query returns true, otherwise it returns false.

bool StorageOptimized () const
 If OptimizeStorage() has been called, this query returns true, otherwise it returns false.

bool IndicesAreGlobal () const
 If matrix indices has not been transformed to local, this query returns true, otherwise it returns false.

bool IndicesAreLocal () const
 If matrix indices has been transformed to local, this query returns true, otherwise it returns false.

bool IndicesAreContiguous () const
 If matrix indices are packed into single array (done in OptimizeStorage()) return true, otherwise false.

bool LowerTriangular () const
 If matrix is lower triangular in local index space, this query returns true, otherwise it returns false.

bool UpperTriangular () const
 If matrix is upper triangular in local index space, this query returns true, otherwise it returns false.

bool NoDiagonal () const
 If matrix has no diagonal entries in global index space, this query returns true, otherwise it returns false.

Attribute access functions
double NormInf () const
 Returns the infinity norm of the global matrix.

double NormOne () const
 Returns the one norm of the global matrix.

double NormFrobenius () const
 Returns the frobenius norm of the global matrix.

int NumGlobalNonzeros () const
 Returns the number of nonzero entries in the global matrix.

long long NumGlobalNonzeros64 () const

int NumGlobalRows () const
 Returns the number of global matrix rows.

long long NumGlobalRows64 () const

int NumGlobalCols () const
 Returns the number of global matrix columns.

long long NumGlobalCols64 () const

int NumGlobalDiagonals () const
 Returns the number of global nonzero diagonal entries, based on global row/column index comparisons.

long long NumGlobalDiagonals64 () const

int NumMyNonzeros () const
 Returns the number of nonzero entries in the calling processor's portion of the matrix.

int NumMyRows () const
 Returns the number of matrix rows owned by the calling processor.

int NumMyCols () const
 Returns the number of entries in the set of column-indices that appear on this processor. More...

int NumMyDiagonals () const
 Returns the number of local nonzero diagonal entries, based on global row/column index comparisons. More...

int NumGlobalEntries (long long Row) const
 Returns the current number of nonzero entries in specified global row on this processor.

int NumAllocatedGlobalEntries (int Row) const
 Returns the allocated number of nonzero entries in specified global row on this processor.

int MaxNumEntries () const
 Returns the maximum number of nonzero entries across all rows on this processor. More...

int GlobalMaxNumEntries () const
 Returns the maximum number of nonzero entries across all rows on all processors. More...

int NumMyEntries (int Row) const
 Returns the current number of nonzero entries in specified local row on this processor.

int NumAllocatedMyEntries (int Row) const
 Returns the allocated number of nonzero entries in specified local row on this processor.

int IndexBase () const
 Returns the index base for row and column indices for this graph. More...

long long IndexBase64 () const

bool StaticGraph ()
 Returns true if the graph associated with this matrix was pre-constructed and therefore not changeable.

const Epetra_CrsGraphGraph () const
 Returns a reference to the Epetra_CrsGraph object associated with this matrix.

const Epetra_MapRowMap () const
 Returns the Epetra_Map object associated with the rows of this matrix.

int ReplaceRowMap (const Epetra_BlockMap &newmap)
 Replaces the current RowMap with the user-specified map object. More...

bool HaveColMap () const
 Returns true if we have a well-defined ColMap, and returns false otherwise. More...

int ReplaceColMap (const Epetra_BlockMap &newmap)
 Replaces the current ColMap with the user-specified map object. More...

int ReplaceDomainMapAndImporter (const Epetra_Map &NewDomainMap, const Epetra_Import *NewImporter)
 Replaces the current DomainMap & Importer with the user-specified map object. More...

int RemoveEmptyProcessesInPlace (const Epetra_BlockMap *NewMap)
 Remove processes owning zero rows from the Maps and their communicator. More...

const Epetra_MapColMap () const
 Returns the Epetra_Map object that describes the set of column-indices that appear in each processor's locally owned matrix rows. More...

const Epetra_MapDomainMap () const
 Returns the Epetra_Map object associated with the domain of this matrix operator. More...

const Epetra_MapRangeMap () const
 Returns the Epetra_Map object associated with the range of this matrix operator. More...

const Epetra_ImportImporter () const
 Returns the Epetra_Import object that contains the import operations for distributed operations.

const Epetra_ExportExporter () const
 Returns the Epetra_Export object that contains the export operations for distributed operations.

const Epetra_CommComm () const
 Returns a pointer to the Epetra_Comm communicator associated with this matrix.

Local/Global ID methods
int LRID (int GRID_in) const
 Returns the local row index for given global row index, returns -1 if no local row for this global row.

int LRID (long long GRID_in) const

int GRID (int LRID_in) const
 Returns the global row index for give local row index, returns IndexBase-1 if we don't have this local row.

long long GRID64 (int LRID_in) const

int LCID (int GCID_in) const
 Returns the local column index for given global column index, returns -1 if no local column for this global column. More...

int LCID (long long GCID_in) const

int GCID (int LCID_in) const
 Returns the global column index for give local column index, returns IndexBase-1 if we don't have this local column. More...

long long GCID64 (int LCID_in) const

bool MyGRID (int GRID_in) const
 Returns true if the GRID passed in belongs to the calling processor in this map, otherwise returns false.

bool MyGRID (long long GRID_in) const

bool MyLRID (int LRID_in) const
 Returns true if the LRID passed in belongs to the calling processor in this map, otherwise returns false.

bool MyGCID (int GCID_in) const
 Returns true if the GCID passed in belongs to the calling processor in this map, otherwise returns false. More...

bool MyGCID (long long GCID_in) const

bool MyLCID (int LCID_in) const
 Returns true if the LRID passed in belongs to the calling processor in this map, otherwise returns false. More...

bool MyGlobalRow (int GID) const
 Returns true of GID is owned by the calling processor, otherwise it returns false.

bool MyGlobalRow (long long GID) const

I/O Methods
virtual void Print (std::ostream &os) const
 Print method.

Additional methods required to support the Epetra_Operator interface
const char * Label () const
 Returns a character string describing the operator.

int SetUseTranspose (bool UseTranspose_in)
 If set true, transpose of this operator will be applied. More...

int Apply (const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
 Returns the result of a Epetra_Operator applied to a Epetra_MultiVector X in Y. More...

int ApplyInverse (const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
 Returns the result of a Epetra_Operator inverse applied to an Epetra_MultiVector X in Y. More...

bool HasNormInf () const
 Returns true because this class can compute an Inf-norm.

bool UseTranspose () const
 Returns the current UseTranspose setting.

const Epetra_MapOperatorDomainMap () const
 Returns the Epetra_Map object associated with the domain of this matrix operator.

const Epetra_MapOperatorRangeMap () const
 Returns the Epetra_Map object associated with the range of this matrix operator.

Additional methods required to implement Epetra_RowMatrix interface
int NumMyRowEntries (int MyRow, int &NumEntries) const
 Return the current number of values stored for the specified local row. More...

const Epetra_BlockMapMap () const
 Map() method inherited from Epetra_DistObject.

const Epetra_MapRowMatrixRowMap () const
 Returns the Epetra_Map object associated with the rows of this matrix.

const Epetra_MapRowMatrixColMap () const
 Returns the Epetra_Map object associated with columns of this matrix.

const Epetra_ImportRowMatrixImporter () const
 Returns the Epetra_Import object that contains the import operations for distributed operations.

Inlined Operator Methods
double * operator[] (int Loc)
 Inlined bracket operator for fast access to data. (Const and Non-const versions) More...

double * operator[] (int Loc) const

Expert-only methods: These methods are intended for experts only and have some risk of changing in the future, since they rely on underlying data structure assumptions
int ExtractCrsDataPointers (int *&IndexOffset, int *&Indices, double *&Values_in) const
 Returns internal data pointers associated with Crs matrix format. More...

Epetra_IntSerialDenseVectorExpertExtractIndexOffset ()
 Returns a reference to the Epetra_IntSerialDenseVector used to hold the local IndexOffsets (CRS rowptr) More...

Epetra_IntSerialDenseVectorExpertExtractIndices ()
 Returns a reference to the Epetra_IntSerialDenseVector used to hold the local All_Indices (CRS colind) More...

double *& ExpertExtractValues ()
 Returns a reference to the double* used to hold the values array. More...

int ExpertStaticFillComplete (const Epetra_Map &DomainMap, const Epetra_Map &RangeMap, const Epetra_Import *Importer=0, const Epetra_Export *Exporter=0, int NumMyDiagonals=-1)
 Performs a FillComplete on an object that aready has filled CRS data. More...

int ExpertMakeUniqueCrsGraphData ()
 Makes sure this matrix has a unique CrsGraphData object. More...

int SortGhostsAssociatedWithEachProcessor (bool Flag)
 Forces FillComplete() to locally order ghostnodes associated with each remote processor in ascending order. More...

Deprecated methods: These methods still work, but will be removed in a future version
const Epetra_MapImportMap () const
 Use ColMap() instead.

int TransformToLocal ()
 Use FillComplete() instead.

int TransformToLocal (const Epetra_Map *DomainMap, const Epetra_Map *RangeMap)
 Use FillComplete(const Epetra_Map& DomainMap, const Epetra_Map& RangeMap) instead.

- Public Member Functions inherited from Epetra_DistObject
 Epetra_DistObject (const Epetra_BlockMap &Map)
 Basic Epetra_DistObject constuctor. More...

 Epetra_DistObject (const Epetra_BlockMap &Map, const char *const Label)

 Epetra_DistObject (const Epetra_DistObject &Source)
 Epetra_DistObject copy constructor.

virtual ~Epetra_DistObject ()
 Epetra_DistObject destructor.

int Import (const Epetra_SrcDistObject &A, const Epetra_Import &Importer, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
 Imports an Epetra_DistObject using the Epetra_Import object. More...

int Import (const Epetra_SrcDistObject &A, const Epetra_Export &Exporter, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
 Imports an Epetra_DistObject using the Epetra_Export object. More...

int Export (const Epetra_SrcDistObject &A, const Epetra_Import &Importer, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
 Exports an Epetra_DistObject using the Epetra_Import object. More...

int Export (const Epetra_SrcDistObject &A, const Epetra_Export &Exporter, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
 Exports an Epetra_DistObject using the Epetra_Export object. More...

const Epetra_BlockMapMap () const
 Returns the address of the Epetra_BlockMap for this multi-vector.

const Epetra_CommComm () const
 Returns the address of the Epetra_Comm for this multi-vector.

bool DistributedGlobal () const
 Returns true if this multi-vector is distributed global, i.e., not local replicated.

- Public Member Functions inherited from Epetra_Object
 Epetra_Object (int TracebackModeIn=-1, bool set_label=true)
 Epetra_Object Constructor. More...

 Epetra_Object (const char *const Label, int TracebackModeIn=-1)
 Epetra_Object Constructor. More...

 Epetra_Object (const Epetra_Object &Object)
 Epetra_Object Copy Constructor. More...

virtual ~Epetra_Object ()
 Epetra_Object Destructor. More...

virtual int ReportError (const std::string Message, int ErrorCode) const
 Error reporting method.

virtual void SetLabel (const char *const Label)
 Epetra_Object Label definition using char *. More...

- Public Member Functions inherited from Epetra_SrcDistObject
virtual ~Epetra_SrcDistObject ()
 Epetra_SrcDistObject destructor.

- Public Member Functions inherited from Epetra_CompObject
Epetra_CompObjectoperator= (const Epetra_CompObject &src)

 Epetra_CompObject ()
 Basic Epetra_CompObject constuctor.

 Epetra_CompObject (const Epetra_CompObject &Source)
 Epetra_CompObject copy constructor.

virtual ~Epetra_CompObject ()
 Epetra_CompObject destructor.

void SetFlopCounter (const Epetra_Flops &FlopCounter_in)
 Set the internal Epetra_Flops() pointer.

void SetFlopCounter (const Epetra_CompObject &CompObject)
 Set the internal Epetra_Flops() pointer to the flop counter of another Epetra_CompObject.

void UnsetFlopCounter ()
 Set the internal Epetra_Flops() pointer to 0 (no flops counted).

Epetra_FlopsGetFlopCounter () const
 Get the pointer to the Epetra_Flops() object associated with this object, returns 0 if none.

void ResetFlops () const
 Resets the number of floating point operations to zero for this multi-vector.

double Flops () const
 Returns the number of floating point operations with this multi-vector.

void UpdateFlops (int Flops_in) const
 Increment Flop count for this object.

void UpdateFlops (long int Flops_in) const
 Increment Flop count for this object.

void UpdateFlops (long long Flops_in) const
 Increment Flop count for this object.

void UpdateFlops (double Flops_in) const
 Increment Flop count for this object.

void UpdateFlops (float Flops_in) const
 Increment Flop count for this object.

- Public Member Functions inherited from Epetra_BLAS
 Epetra_BLAS (void)
 Epetra_BLAS Constructor. More...

 Epetra_BLAS (const Epetra_BLAS &BLAS)
 Epetra_BLAS Copy Constructor. More...

virtual ~Epetra_BLAS (void)
 Epetra_BLAS Destructor.

float ASUM (const int N, const float *X, const int INCX=1) const
 Epetra_BLAS one norm function (SASUM).

double ASUM (const int N, const double *X, const int INCX=1) const
 Epetra_BLAS one norm function (DASUM).

float DOT (const int N, const float *X, const float *Y, const int INCX=1, const int INCY=1) const
 Epetra_BLAS dot product function (SDOT).

double DOT (const int N, const double *X, const double *Y, const int INCX=1, const int INCY=1) const
 Epetra_BLAS dot product function (DDOT).

float NRM2 (const int N, const float *X, const int INCX=1) const
 Epetra_BLAS norm function (SNRM2).

double NRM2 (const int N, const double *X, const int INCX=1) const
 Epetra_BLAS norm function (DNRM2).

void SCAL (const int N, const float ALPHA, float *X, const int INCX=1) const
 Epetra_BLAS vector scale function (SSCAL)

void SCAL (const int N, const double ALPHA, double *X, const int INCX=1) const
 Epetra_BLAS vector scale function (DSCAL)

void COPY (const int N, const float *X, float *Y, const int INCX=1, const int INCY=1) const
 Epetra_BLAS vector copy function (SCOPY)

void COPY (const int N, const double *X, double *Y, const int INCX=1, const int INCY=1) const
 Epetra_BLAS vector scale function (DCOPY)

int IAMAX (const int N, const float *X, const int INCX=1) const
 Epetra_BLAS arg maximum of absolute value function (ISAMAX)

int IAMAX (const int N, const double *X, const int INCX=1) const
 Epetra_BLAS arg maximum of absolute value function (IDAMAX)

void AXPY (const int N, const float ALPHA, const float *X, float *Y, const int INCX=1, const int INCY=1) const
 Epetra_BLAS vector update function (SAXPY)

void AXPY (const int N, const double ALPHA, const double *X, double *Y, const int INCX=1, const int INCY=1) const
 Epetra_BLAS vector update function (DAXPY)

void GEMV (const char TRANS, const int M, const int N, const float ALPHA, const float *A, const int LDA, const float *X, const float BETA, float *Y, const int INCX=1, const int INCY=1) const
 Epetra_BLAS matrix-vector multiply function (SGEMV)

void GEMV (const char TRANS, const int M, const int N, const double ALPHA, const double *A, const int LDA, const double *X, const double BETA, double *Y, const int INCX=1, const int INCY=1) const
 Epetra_BLAS matrix-vector multiply function (DGEMV)

void GEMM (const char TRANSA, const char TRANSB, const int M, const int N, const int K, const float ALPHA, const float *A, const int LDA, const float *B, const int LDB, const float BETA, float *C, const int LDC) const
 Epetra_BLAS matrix-matrix multiply function (SGEMM)

void GEMM (const char TRANSA, const char TRANSB, const int M, const int N, const int K, const double ALPHA, const double *A, const int LDA, const double *B, const int LDB, const double BETA, double *C, const int LDC) const
 Epetra_BLAS matrix-matrix multiply function (DGEMM)

void SYMM (const char SIDE, const char UPLO, const int M, const int N, const float ALPHA, const float *A, const int LDA, const float *B, const int LDB, const float BETA, float *C, const int LDC) const
 Epetra_BLAS symmetric matrix-matrix multiply function (SSYMM)

void SYMM (const char SIDE, const char UPLO, const int M, const int N, const double ALPHA, const double *A, const int LDA, const double *B, const int LDB, const double BETA, double *C, const int LDC) const
 Epetra_BLAS matrix-matrix multiply function (DSYMM)

void TRMM (const char SIDE, const char UPLO, const char TRANSA, const char DIAG, const int M, const int N, const float ALPHA, const float *A, const int LDA, float *B, const int LDB) const
 Epetra_BLAS triangular matrix-matrix multiply function (STRMM)

void TRMM (const char SIDE, const char UPLO, const char TRANSA, const char DIAG, const int M, const int N, const double ALPHA, const double *A, const int LDA, double *B, const int LDB) const
 Epetra_BLAS triangular matrix-matrix multiply function (DTRMM)

void SYRK (const char UPLO, const char TRANS, const int N, const int K, const float ALPHA, const float *A, const int LDA, const float BETA, float *C, const int LDC) const
 Eperta_BLAS symetric rank k funtion (ssyrk)

void SYRK (const char UPLO, const char TRANS, const int N, const int K, const double ALPHA, const double *A, const int LDA, const double BETA, double *C, const int LDC) const
 Eperta_BLAS symetric rank k funtion (dsyrk)

- Public Member Functions inherited from Epetra_RowMatrix
virtual ~Epetra_RowMatrix ()
 Destructor.

- Public Member Functions inherited from Epetra_Operator
virtual ~Epetra_Operator ()
 Destructor.


Protected Member Functions

bool Allocated () const

int SetAllocated (bool Flag)

double ** Values () const

double * All_Values () const

double * Values (int LocalRow) const

void InitializeDefaults ()

int Allocate ()

int InsertValues (int LocalRow, int NumEntries, double *Values, int *Indices)

int InsertValues (int LocalRow, int NumEntries, const double *Values, const int *Indices)

int InsertValues (int LocalRow, int NumEntries, double *Values, long long *Indices)

int InsertValues (int LocalRow, int NumEntries, const double *Values, const long long *Indices)

int InsertOffsetValues (long long GlobalRow, int NumEntries, double *Values, int *Indices)

int InsertOffsetValues (long long GlobalRow, int NumEntries, const double *Values, const int *Indices)

int ReplaceOffsetValues (long long GlobalRow, int NumEntries, const double *Values, const int *Indices)

int SumIntoOffsetValues (long long GlobalRow, int NumEntries, const double *Values, const int *Indices)

void UpdateImportVector (int NumVectors) const

void UpdateExportVector (int NumVectors) const

void GeneralMV (double *x, double *y) const

void GeneralMTV (double *x, double *y) const

void GeneralMM (double **X, int LDX, double **Y, int LDY, int NumVectors) const

void GeneralMTM (double **X, int LDX, double **Y, int LDY, int NumVectors) const

void GeneralSV (bool Upper, bool Trans, bool UnitDiagonal, double *x, double *y) const

void GeneralSM (bool Upper, bool Trans, bool UnitDiagonal, double **X, int LDX, double **Y, int LDY, int NumVectors) const

void SetStaticGraph (bool Flag)

int CheckSizes (const Epetra_SrcDistObject &A)
 Allows the source and target (this) objects to be compared for compatibility, return nonzero if not.

int CopyAndPermute (const Epetra_SrcDistObject &Source, int NumSameIDs, int NumPermuteIDs, int *PermuteToLIDs, int *PermuteFromLIDs, const Epetra_OffsetIndex *Indexor, Epetra_CombineMode CombineMode=Zero)
 Perform ID copies and permutations that are on processor.

int CopyAndPermuteCrsMatrix (const Epetra_CrsMatrix &A, int NumSameIDs, int NumPermuteIDs, int *PermuteToLIDs, int *PermuteFromLIDs, const Epetra_OffsetIndex *Indexor, Epetra_CombineMode CombineMode)

int CopyAndPermuteRowMatrix (const Epetra_RowMatrix &A, int NumSameIDs, int NumPermuteIDs, int *PermuteToLIDs, int *PermuteFromLIDs, const Epetra_OffsetIndex *Indexor, Epetra_CombineMode CombineMode)

int PackAndPrepare (const Epetra_SrcDistObject &Source, int NumExportIDs, int *ExportLIDs, int &LenExports, char *&Exports, int &SizeOfPacket, int *Sizes, bool &VarSizes, Epetra_Distributor &Distor)
 Perform any packing or preparation required for call to DoTransfer().

int UnpackAndCombine (const Epetra_SrcDistObject &Source, int NumImportIDs, int *ImportLIDs, int LenImports, char *Imports, int &SizeOfPacket, Epetra_Distributor &Distor, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor)
 Perform any unpacking and combining after call to DoTransfer().

int SortEntries ()
 Sort column entries, row-by-row, in ascending order.

bool Sorted () const
 If SortEntries() has been called, this query returns true, otherwise it returns false.

int MergeRedundantEntries ()
 Add entries that have the same column index. Remove redundant entries from list.

bool NoRedundancies () const
 If MergeRedundantEntries() has been called, this query returns true, otherwise it returns false.

void DeleteMemory ()

- Protected Member Functions inherited from Epetra_DistObject
virtual int DoTransfer (const Epetra_SrcDistObject &A, Epetra_CombineMode CombineMode, int NumSameIDs, int NumPermuteIDs, int NumRemoteIDs, int NumExportIDs, int *PermuteToLIDs, int *PermuteFromLIDs, int *RemoteLIDs, int *ExportLIDs, int &LenExports, char *&Exports, int &LenImports, char *&Imports, Epetra_Distributor &Distor, bool DoReverse, const Epetra_OffsetIndex *Indexor)
 Perform actual transfer (redistribution) of data across memory images, using Epetra_Distributor object.

- Protected Member Functions inherited from Epetra_Object
std::string toString (const int &x) const

std::string toString (const long long &x) const

std::string toString (const double &x) const


Protected Attributes

Epetra_CrsGraph Graph_

bool Allocated_

bool StaticGraph_

bool UseTranspose_

bool constructedWithFilledGraph_

bool matrixFillCompleteCalled_

bool StorageOptimized_

double ** Values_

int * Values_alloc_lengths_

double * All_Values_

double NormInf_

double NormOne_

double NormFrob_

int NumMyRows_

Epetra_MultiVectorImportVector_

Epetra_MultiVectorExportVector_

Epetra_DataAccess CV_

bool squareFillCompleteCalled_

- Protected Attributes inherited from Epetra_DistObject
Epetra_BlockMap Map_

const Epetra_CommComm_

char * Exports_

char * Imports_

int LenExports_

int LenImports_

int * Sizes_

- Protected Attributes inherited from Epetra_CompObject
Epetra_FlopsFlopCounter_


Additional Inherited Members

- Static Public Member Functions inherited from Epetra_Object
static void SetTracebackMode (int TracebackModeValue)
 Set the value of the Epetra_Object error traceback report mode. More...

static int GetTracebackMode ()
 Get the value of the Epetra_Object error report mode.

static std::ostream & GetTracebackStream ()
 Get the output stream for error reporting.

- Static Public Attributes inherited from Epetra_Object
static int TracebackMode


Detailed Description

Epetra_CrsMatrix: A class for constructing and using real-valued double-precision sparse compressed row matrices.

The Epetra_CrsMatrix class is a sparse compressed row matrix object. This matrix can be

used in a parallel setting, with data distribution described by Epetra_Map attributes. The structure or graph of the matrix is defined by an Epetra_CrsGraph attribute.

In addition to coefficient access, the primary operations provided by Epetra_CrsMatrix are matrix times vector and matrix times multi-vector multiplication.

Epetra_CrsMatrix matrices can be square or rectangular.

Creating and filling Epetra_CrsMatrix objects

Constructing Epetra_CrsMatrix objects is a multi-step process. The basic steps are as follows:

  1. Create Epetra_CrsMatrix instance, including storage, via one of the constructors:
    • Constructor that accepts one Epetra_Map object, a row-map defining the distribution of matrix rows.
    • Constructor that accepts two Epetra_Map objects. (The second map is a column-map, and describes the set of column-indices that appear in each processor's portion of the matrix. Generally these are overlapping sets – column-indices may appear on more than one processor.)
    • Constructor that accepts an Epetra_CrsGraph object, defining the non-zero structure of the matrix.
    Note that the constructors which accept Epetra_Map arguments also accept an argument that gives an estimate of the number of nonzeros per row. This allows storage to be pre-allocated and can improve the performance of the data input methods. The estimate need not be accurate, as additional storage is allocated automatically when needed. However, a more accurate estimate helps performance by reducing the amount of extra memory allocation.
  2. Enter values via one or more Insert/Replace/SumInto functions.
  3. Complete construction by calling FillComplete.

Note that, even after a matrix is constructed (FillComplete has been called), it is possible to update existing matrix entries. It is not possible to create new entries.

Epetra_Map attributes

Epetra_CrsMatrix objects have four Epetra_Map attributes, which are held by the Epetra_CrsGraph attribute.

The Epetra_Map attributes can be obtained via these accessor methods:

It is important to note that while the row-map and the range-map are often the same, the column-map and the domain-map are almost never the same. The set of entries in a distributed column-map almost always form overlapping sets, with entries being associated with more than one processor. A domain-map, on the other hand, must be a 1-to-1 map, with entries being associated with only a single processor.

Local versus Global Indices

Epetra_CrsMatrix has query functions IndicesAreLocal() and IndicesAreGlobal(), which are used to determine whether the underlying Epetra_CrsGraph attribute's column-indices have been transformed into a local index space or not. (This transformation occurs when the method Epetra_CrsGraph::FillComplete() is called, which happens when the method Epetra_CrsMatrix::FillComplete() is called.) The state of the indices in the graph determines the behavior of many Epetra_CrsMatrix methods. If an Epetra_CrsMatrix instance is constructed using one of the constructors that does not accept a pre-existing Epetra_CrsGraph object, then an Epetra_CrsGraph attribute is created internally and its indices remain untransformed (IndicesAreGlobal()==true) until Epetra_CrsMatrix::FillComplete() is called. The query function Epetra_CrsMatrix::Filled() returns true if Epetra_CrsMatrix::FillComplete() has been called.

Note the following method characteristics:

Most methods have preconditions documented, check documentation for specific methods not mentioned here.

Counting Floating Point Operations

Each Epetra_CrsMatrix object keeps track of the number of serial floating point operations performed using the specified object as the this argument to the function. The Flops() function returns this number as a double precision number. Using this information, in conjunction with the Epetra_Time class, one can get accurate parallel performance numbers. The ResetFlops() function resets the floating point counter.

Warning
A Epetra_Map is required for the Epetra_CrsMatrix constructor.

Constructor & Destructor Documentation

Epetra_CrsMatrix::Epetra_CrsMatrix ( Epetra_DataAccess  CV,
const Epetra_Map RowMap,
const int *  NumEntriesPerRow,
bool  StaticProfile = false
)

Epetra_CrsMatrix constructor with variable number of indices per row.

Creates a Epetra_CrsMatrix object and allocates storage.
Parameters
CV- (In) An Epetra_DataAccess enumerated type set to Copy or View.
RowMap- (In) An Epetra_Map defining the numbering and distribution of matrix rows.
NumEntriesPerRow- (In) An integer array of length NumRows such that NumEntriesPerRow[i] indicates the (approximate if StaticProfile=false) number of entries in the ith row.
StaticProfile- (In) Optional argument that indicates whether or not NumIndicesPerRow should be interpreted as an exact count of nonzeros, or should be used as an approximation. By default this value is false, allowing the profile to be determined dynamically. If the user sets it to true, then the memory allocation for the Epetra_CrsGraph object will be done in one large block, saving on memory fragmentation and generally improving the performance of matrix multiplication and solve kernels.
Epetra_CrsMatrix::Epetra_CrsMatrix ( Epetra_DataAccess  CV,
const Epetra_Map RowMap,
int  NumEntriesPerRow,
bool  StaticProfile = false
)

Epetra_CrsMatrix constructor with fixed number of indices per row.

Creates a Epetra_CrsMatrix object and allocates storage.
Parameters
CV- (In) An Epetra_DataAccess enumerated type set to Copy or View.
RowMap- (In) An Epetra_Map defining the numbering and distribution of matrix rows.
NumEntriesPerRow- (In) An integer that indicates the (approximate) number of entries in the each row. Note that it is possible to use 0 for this value and let fill occur during the insertion phase.
StaticProfile- (In) Optional argument that indicates whether or not NumIndicesPerRow should be interpreted as an exact count of nonzeros, or should be used as an approximation. By default this value is false, allowing the profile to be determined dynamically. If the user sets it to true, then the memory allocation for the Epetra_CrsGraph object will be done in one large block, saving on memory fragmentation and generally improving the performance of matrix multiplication and solve kernels.
Epetra_CrsMatrix::Epetra_CrsMatrix ( Epetra_DataAccess  CV,
const Epetra_Map RowMap,
const Epetra_Map ColMap,
const int *  NumEntriesPerRow,
bool  StaticProfile = false
)

Epetra_CrsMatrix constructor with variable number of indices per row.

Creates a Epetra_CrsMatrix object and allocates storage.
Parameters
CV- (In) An Epetra_DataAccess enumerated type set to Copy or View.
RowMap- (In) An Epetra_Map defining the numbering and distribution of matrix rows.
ColMap- (In) An Epetra_Map defining the set of column-indices that appear in each processor's locally owned matrix rows.
NumEntriesPerRow- (In) An integer array of length NumRows such that NumEntriesPerRow[i] indicates the (approximate if StaticProfile=false) number of entries in the ith row.
StaticProfile- (In) Optional argument that indicates whether or not NumIndicesPerRow should be interpreted as an exact count of nonzeros, or should be used as an approximation. By default this value is false, allowing the profile to be determined dynamically. If the user sets it to true, then the memory allocation for the Epetra_CrsGraph object will be done in one large block, saving on memory fragmentation and generally improving the performance of matrix multiplication and solve kernels.
Epetra_CrsMatrix::Epetra_CrsMatrix ( Epetra_DataAccess  CV,
const Epetra_Map RowMap,
const Epetra_Map ColMap,
int  NumEntriesPerRow,
bool  StaticProfile = false
)

Epetra_CrsMatrix constuctor with fixed number of indices per row.

Creates a Epetra_CrsMatrix object and allocates storage.
Parameters
CV- (In) An Epetra_DataAccess enumerated type set to Copy or View.
RowMap- (In) An Epetra_Map defining the numbering and distribution of matrix rows.
ColMap- (In) An Epetra_Map defining the set of column-indices that appear in each processor's locally owned matrix rows.
NumEntriesPerRow- (In) An integer that indicates the (approximate if StaticProfile=false) number of entries in the each row. Note that it is possible to use 0 for this value and let fill occur during the insertion phase.
StaticProfile- (In) Optional argument that indicates whether or not NumIndicesPerRow should be interpreted as an exact count of nonzeros, or should be used as an approximation. By default this value is false, allowing the profile to be determined dynamically. If the user sets it to true, then the memory allocation for the Epetra_CrsGraph object will be done in one large block, saving on memory fragmentation and generally improving the performance of matrix multiplication and solve kernels.
Epetra_CrsMatrix::Epetra_CrsMatrix ( Epetra_DataAccess  CV,
const Epetra_CrsGraph Graph
)

Construct a matrix using an existing Epetra_CrsGraph object.

Allows the nonzero structure from another matrix, or a structure that was constructed independently, to be used for this matrix.

Parameters
CV- (In) An Epetra_DataAccess enumerated type set to Copy or View.
Graph- (In) A Epetra_CrsGraph object, constructed directly or extracted from another Epetra matrix object.
Epetra_CrsMatrix::Epetra_CrsMatrix ( const Epetra_CrsMatrix SourceMatrix,
const Epetra_Import RowImporter,
const Epetra_Map DomainMap = 0,
const Epetra_Map RangeMap = 0,
bool  RestrictCommunicator = false
)

Epetra CrsMatrix constructor that also fuses Import and FillComplete().

A common use case is to create an empty destination Epetra_CrsMatrix, redistribute from a source CrsMatrix (by an Import or Export operation), then call FillComplete() on the destination CrsMatrix. This constructor fuses these three cases, for an Import redistribution.

Fusing redistribution and FillComplete() exposes potential optimizations. For example, it may make constructing the column map faster, and it may avoid intermediate unoptimized storage in the destination Epetra_CrsMatrix. These optimizations may improve performance for specialized kernels like sparse matrix-matrix multiply, as well as for redistributing data after doing load balancing.

The resulting matrix is fill complete (in the sense of Filled()) and has optimized storage (in the sense of StorageOptimized()). It the DomainMap is taken from the SourceMatrix, the RangeMap is presumed to be RowImporter.TargetMap() if not specified

Parameters
SourceMatrix[in] The source matrix from which to import. The source of an Import must have a nonoverlapping distribution.
RowImporter[in] The Import instance containing a precomputed redistribution plan. The source Map of the Import must be the same as the row Map of sourceMatrix.
DomainMap[in] The new domainMap for the new matrix. If not specified, then the DomainMap of the SourceMatrix is used.
RangeMap[in] The new rangeMap for the new matrix. If not specified, then RowImporter.TargetMap() is used.
RestrictCommunicator[in] Restricts the resulting communicator to active processes only.
Epetra_CrsMatrix::Epetra_CrsMatrix ( const Epetra_CrsMatrix SourceMatrix,
const Epetra_Import RowImporter,
const Epetra_Import DomainImporter,
const Epetra_Map DomainMap,
const Epetra_Map RangeMap,
bool  RestrictCommunicator
)

Epetra CrsMatrix constructor that also fuses Import and FillComplete().

A common use case is to create an empty destination Epetra_CrsMatrix, redistribute from a source CrsMatrix (by an Import or Export operation), then call FillComplete() on the destination CrsMatrix. This constructor fuses these three cases, for an Import redistribution.

Fusing redistribution and FillComplete() exposes potential optimizations. For example, it may make constructing the column map faster, and it may avoid intermediate unoptimized storage in the destination Epetra_CrsMatrix. These optimizations may improve performance for specialized kernels like sparse matrix-matrix multiply, as well as for redistributing data after doing load balancing.

The resulting matrix is fill complete (in the sense of Filled()) and has optimized storage (in the sense of StorageOptimized()). It the DomainMap is taken from the SourceMatrix, the RangeMap is presumed to be RowImporter.TargetMap() if not specified

Parameters
SourceMatrix[in] The source matrix from which to import. The source of an Import must have a nonoverlapping distribution.
RowImporter[in] The Import instance containing a precomputed redistribution plan. The source Map of the Import must be the same as the row Map of sourceMatrix.
DomainImporter[in] The Import instance containing a precomputed redistribution plan (for the domain maps). The source Map of the Import must be the same as the domain Map of sourceMatrix.
DomainMap[in] The new domainMap for the new matrix.
RangeMap[in] The new rangeMap for the new matrix.
RestrictCommunicator[in] Restricts the resulting communicator to active processes only.
Epetra_CrsMatrix::Epetra_CrsMatrix ( const Epetra_CrsMatrix SourceMatrix,
const Epetra_Export RowExporter,
const Epetra_Map DomainMap = 0,
const Epetra_Map RangeMap = 0,
bool  RestrictCommunicator = false
)

Epetra CrsMatrix constructor that also fuses Ex[prt and FillComplete().

A common use case is to create an empty destination Epetra_CrsMatrix, redistribute from a source CrsMatrix (by an Import or Export operation), then call FillComplete() on the destination CrsMatrix. This constructor fuses these three cases, for an Import redistribution.

Fusing redistribution and FillComplete() exposes potential optimizations. For example, it may make constructing the column map faster, and it may avoid intermediate unoptimized storage in the destination Epetra_CrsMatrix. These optimizations may improve performance for specialized kernels like sparse matrix-matrix multiply, as well as for redistributing data after doing load balancing.

The resulting matrix is fill complete (in the sense of Filled()) and has optimized storage (in the sense of StorageOptimized()). It the DomainMap is taken from the SourceMatrix, the RangeMap is presumed to be RowImporter.TargetMap() if not specified

Parameters
SourceMatrix[in] The source matrix from which to import. The source of an Import must have a nonoverlapping distribution.
RowExporter[in] The Export instance containing a precomputed redistribution plan. The source Map of the Import must be the same as the row Map of sourceMatrix.
DomainMap[in] The new domainMap for the new matrix. If not specified, then the DomainMap of the SourceMatrix is used.
RangeMap[in] The new rangeMap for the new matrix. If not specified, then RowExporter.TargetMap() is used.
RestrictCommunicator[in] Restricts the resulting communicator to active processes only.
Epetra_CrsMatrix::Epetra_CrsMatrix ( const Epetra_CrsMatrix SourceMatrix,
const Epetra_Export RowExporter,
const Epetra_Export DomainExporter,
const Epetra_Map DomainMap,
const Epetra_Map RangeMap,
bool  RestrictCommunicator
)

Epetra CrsMatrix constructor that also fuses Ex[prt and FillComplete().

A common use case is to create an empty destination Epetra_CrsMatrix, redistribute from a source CrsMatrix (by an Import or Export operation), then call FillComplete() on the destination CrsMatrix. This constructor fuses these three cases, for an Import redistribution.

Fusing redistribution and FillComplete() exposes potential optimizations. For example, it may make constructing the column map faster, and it may avoid intermediate unoptimized storage in the destination Epetra_CrsMatrix. These optimizations may improve performance for specialized kernels like sparse matrix-matrix multiply, as well as for redistributing data after doing load balancing.

The resulting matrix is fill complete (in the sense of Filled()) and has optimized storage (in the sense of StorageOptimized()). It the DomainMap is taken from the SourceMatrix, the RangeMap is presumed to be RowImporter.TargetMap() if not specified

Parameters
SourceMatrix[in] The source matrix from which to import. The source of an Import must have a nonoverlapping distribution.
RowExporter[in] The Export instance containing a precomputed redistribution plan. The source Map of the Import must be the same as the row Map of sourceMatrix.
DomainExporter[in] The Export instance containing a precomputed redistribution plan (for the domain map. The source Map of the Import must be the same as the domain Map of sourceMatrix.
DomainMap[in] The new domainMap for the new matrix.
RangeMap[in] The new rangeMap for the new matrix.
RestrictCommunicator[in] Restricts the resulting communicator to active processes only.

Member Function Documentation

int Epetra_CrsMatrix::Apply ( const Epetra_MultiVector X,
Epetra_MultiVector Y
) const
inlinevirtual

Returns the result of a Epetra_Operator applied to a Epetra_MultiVector X in Y.

Parameters
X- (In) An Epetra_MultiVector of dimension NumVectors to multiply with matrix.
Y-(Out) An Epetra_MultiVector of dimension NumVectors containing result.
Returns
Integer error code, set to 0 if successful.
Precondition
Filled()==true
Postcondition
Unchanged.

Implements Epetra_Operator.

References Multiply(), and UseTranspose().

int Epetra_CrsMatrix::ApplyInverse ( const Epetra_MultiVector X,
Epetra_MultiVector Y
) const
inlinevirtual

Returns the result of a Epetra_Operator inverse applied to an Epetra_MultiVector X in Y.

In this implementation, we use several existing attributes to determine how virtual method ApplyInverse() should call the concrete method Solve(). We pass in the UpperTriangular(), the Epetra_CrsMatrix::UseTranspose(), and NoDiagonal() methods. The most notable warning is that if a matrix has no diagonal values we assume that there is an implicit unit diagonal that should be accounted for when doing a triangular solve.

Parameters
X- (In) An Epetra_MultiVector of dimension NumVectors to solve for.
Y- (Out) An Epetra_MultiVector of dimension NumVectors containing result.
Returns
Integer error code, set to 0 if successful.
Precondition
Filled()==true
Postcondition
Unchanged.

Implements Epetra_Operator.

References Epetra_RowMatrix::Solve(), Epetra_RowMatrix::UpperTriangular(), and UseTranspose().

const Epetra_Map& Epetra_CrsMatrix::ColMap ( ) const
inline

Returns the Epetra_Map object that describes the set of column-indices that appear in each processor's locally owned matrix rows.

Note that if the matrix was constructed with only a row-map, then until FillComplete() is called, this method returns a column-map that is a copy of the row-map. That 'initial' column-map is replaced with a computed column-map (that contains the set of column-indices appearing in each processor's local portion of the matrix) when FillComplete() is called.

Precondition
HaveColMap()==true
const Epetra_Map& Epetra_CrsMatrix::DomainMap ( ) const
inline

Returns the Epetra_Map object associated with the domain of this matrix operator.

Precondition
Filled()==true
Epetra_IntSerialDenseVector& Epetra_CrsMatrix::ExpertExtractIndexOffset ( )

Returns a reference to the Epetra_IntSerialDenseVector used to hold the local IndexOffsets (CRS rowptr)

Warning
This method is intended for experts only, its use may require user code modifications in future versions of Epetra.
Epetra_IntSerialDenseVector& Epetra_CrsMatrix::ExpertExtractIndices ( )

Returns a reference to the Epetra_IntSerialDenseVector used to hold the local All_Indices (CRS colind)

Warning
This method is intended for experts only, its use may require user code modifications in future versions of Epetra.
double*& Epetra_CrsMatrix::ExpertExtractValues ( )
inline

Returns a reference to the double* used to hold the values array.

Warning
This method is intended for experts only, its use may require user code modifications in future versions of Epetra.
int Epetra_CrsMatrix::ExpertMakeUniqueCrsGraphData ( )

Makes sure this matrix has a unique CrsGraphData object.

This routine is needed to support the EpetraExt::MatrixMatrix::Multiply and should not be called by users.

Warning
This method is intended for expert developer use only, and should never be called by user code.
int Epetra_CrsMatrix::ExpertStaticFillComplete ( const Epetra_Map DomainMap,
const Epetra_Map RangeMap,
const Epetra_Import Importer = 0,
const Epetra_Export Exporter = 0,
int  NumMyDiagonals = -1
)

Performs a FillComplete on an object that aready has filled CRS data.

Performs a lightweight FillComplete on an object that already has filled IndexOffsets, All_Indices and All_Values. This routine is needed to support the EpetraExt::MatrixMatrix::Multiply and should not be called by users.

Warning
Epetra_CrsMatrix will assume ownership of the Importer/Exporter you pass in. You should not deallocate it afterwards.
This method is intended for expert developer use only, and should never be called by user code.
int Epetra_CrsMatrix::ExtractCrsDataPointers ( int *&  IndexOffset,
int *&  Indices,
double *&  Values_in
) const
inline

Returns internal data pointers associated with Crs matrix format.

Returns data pointers to facilitate optimized code within external packages.

Parameters
IndexOffset- (Out) Extracted array of indices into Values[] and Indices[]. Local row k is stored in Values[IndexOffset[k]:IndexOffset[k+1]-1] and Indices[IndexOffset[k]:IndexOffset[k+1]-1].
Values- (Out) Extracted values for all local rows.
Indices- (Out) Extracted local column indices for the corresponding values.
Returns
Integer error code, set to 0 if successful. Returns -1 if FillComplete has not been performed or Storage has not been Optimized.
Warning
This method is intended for expert only, its use may require user code modifications in future versions of Epetra.
int Epetra_CrsMatrix::ExtractDiagonalCopy ( Epetra_Vector Diagonal) const
virtual

Returns a copy of the main diagonal in a user-provided vector.

Parameters
Diagonal- (Out) Extracted main diagonal.
Returns
Integer error code, set to 0 if successful.
Precondition
Filled()==true
Postcondition
Unchanged.

Implements Epetra_RowMatrix.

Reimplemented in Epetra_OskiMatrix.

int Epetra_CrsMatrix::ExtractGlobalRowCopy ( int  GlobalRow,
int  Length,
int &  NumEntries,
double *  Values,
int *  Indices
) const

Returns a copy of the specified global row in user-provided arrays.

\param GlobalRow - (In) Global row to extract.
\param ILength - (In) Length of Values and Indices.
\param NumEntries - (Out) Number of nonzero entries extracted.
\param Values - (Out) Extracted values for this row.
\param Indices - (Out) Extracted global column indices for the corresponding values.

\return Integer error code, set to 0 if successful, non-zero if global row is not owned by calling process

or if the number of entries in this row exceed the Length parameter.

int Epetra_CrsMatrix::ExtractGlobalRowCopy ( int  GlobalRow,
int  Length,
int &  NumEntries,
double *  Values
) const

Returns a copy of the specified global row values in user-provided array.

Parameters
GlobalRow- (In) Global row to extract.
Length- (In) Length of Values.
NumEntries- (Out) Number of nonzero entries extracted.
Values- (Out) Extracted values for this row.
Returns
Integer error code, set to 0 if successful.
int Epetra_CrsMatrix::ExtractGlobalRowView ( int  GlobalRow,
int &  NumEntries,
double *&  Values,
int *&  Indices
) const

Returns a view of the specified global row values via pointers to internal data.

Parameters
GlobalRow- (In) Global row to view.
NumEntries- (Out) Number of nonzero entries extracted.
Values- (Out) Extracted values for this row.
Indices- (Out) Extracted global column indices for the corresponding values.
Returns
Integer error code, set to 0 if successful. Returns -1 of row not on this processor. Returns -2 if matrix is not in global form (if FillComplete() has already been called).
Precondition
IndicesAreGlobal()==true
int Epetra_CrsMatrix::ExtractGlobalRowView ( int  GlobalRow,
int &  NumEntries,
double *&  Values
) const

Returns a view of the specified global row values via pointers to internal data.

Parameters
GlobalRow- (In) Global row to extract.
NumEntries- (Out) Number of nonzero entries extracted.
Values- (Out) Extracted values for this row.
Returns
Integer error code, set to 0 if successful.
int Epetra_CrsMatrix::ExtractMyRowCopy ( int  MyRow,
int  Length,
int &  NumEntries,
double *  Values,
int *  Indices
) const
virtual

Returns a copy of the specified local row in user-provided arrays.

Parameters
MyRow- (In) Local row to extract.
Length- (In) Length of Values and Indices.
NumEntries- (Out) Number of nonzero entries extracted.
Values- (Out) Extracted values for this row.
Indices- (Out) Extracted local column indices for the corresponding values.
Returns
Integer error code, set to 0 if successful.
Precondition
IndicesAreLocal()==true

Implements Epetra_RowMatrix.

int Epetra_CrsMatrix::ExtractMyRowCopy ( int  MyRow,
int  Length,
int &  NumEntries,
double *  Values
) const

Returns a copy of the specified local row values in user-provided array.

Parameters
MyRow- (In) Local row to extract.
Length- (In) Length of Values.
NumEntries- (Out) Number of nonzero entries extracted.
Values- (Out) Extracted values for this row.
Returns
Integer error code, set to 0 if successful.
int Epetra_CrsMatrix::ExtractMyRowView ( int  MyRow,
int &  NumEntries,
double *&  Values,
int *&  Indices
) const

Returns a view of the specified local row values via pointers to internal data.

Parameters
MyRow- (In) Local row to view.
NumEntries- (Out) Number of nonzero entries extracted.
Values- (Out) Extracted values for this row.
Indices- (Out) Extracted local column indices for the corresponding values.
Returns
Integer error code, set to 0 if successful. Returns -1 of row not on this processor. Returns -2 if matrix is not in local form (if FillComplete() has not been called).
Precondition
IndicesAreLocal()==true
int Epetra_CrsMatrix::ExtractMyRowView ( int  MyRow,
int &  NumEntries,
double *&  Values
) const

Returns a view of the specified local row values via pointers to internal data.

Parameters
MyRow- (In) Local row to extract.
NumEntries- (Out) Number of nonzero entries extracted.
Values- (Out) Extracted values for this row.
Returns
Integer error code, set to 0 if successful.
int Epetra_CrsMatrix::GCID ( int  LCID_in) const
inline

Returns the global column index for give local column index, returns IndexBase-1 if we don't have this local column.

Precondition
HaveColMap()==true (If HaveColMap()==false, returns -1)
int Epetra_CrsMatrix::GlobalMaxNumEntries ( ) const
inline

Returns the maximum number of nonzero entries across all rows on all processors.

Precondition
Filled()==true
bool Epetra_CrsMatrix::HaveColMap ( ) const
inline

Returns true if we have a well-defined ColMap, and returns false otherwise.

Precondition
We have a well-defined ColMap if a) a ColMap was passed in at construction, or b) the MakeColMap function has been called. (Calling either of the FillComplete functions will result in MakeColMap being called.)
int Epetra_CrsMatrix::IndexBase ( ) const
inline

Returns the index base for row and column indices for this graph.

Index base for this map.

virtual int Epetra_CrsMatrix::InsertGlobalValues ( int  GlobalRow,
int  NumEntries,
const double *  Values,
const int *  Indices
)
virtual

Insert a list of elements in a given global row of the matrix.

This method is used to construct a matrix for the first time. It cannot be used if the matrix structure has already been fixed (via a call to FillComplete()). If multiple values are inserted for the same matrix entry, the values are initially stored separately, so memory use will grow as a result. However, when FillComplete is called the values will be summed together and the additional memory will be released.

For example, if the values 2.0, 3.0 and 4.0 are all inserted in Row 1, Column 2, extra storage is used to store each of the three values separately. In this way, the insert process does not require any searching and can be faster. However, when FillComplete() is called, the values will be summed together to equal 9.0 and only a single entry will remain in the matrix for Row 1, Column 2.

Parameters
GlobalRow- (In) Row number (in global coordinates) to put elements.
NumEntries- (In) Number of entries.
Values- (In) Values to enter.
Indices- (In) Global column indices corresponding to values.
Returns
Integer error code, set to 0 if successful. Note that if the allocated length of the row has to be expanded, a positive warning code will be returned.
Warning
This method may not be called once FillComplete() has been called.
Precondition
IndicesAreLocal()==false && IndicesAreContiguous()==false

Reimplemented in Epetra_FECrsMatrix.

virtual int Epetra_CrsMatrix::InsertGlobalValues ( int  GlobalRow,
int  NumEntries,
double *  Values,
int *  Indices
)
virtual

Insert a list of elements in a given global row of the matrix.

This method is used to construct a matrix for the first time. It cannot be used if the matrix structure has already been fixed (via a call to FillComplete()). If multiple values are inserted for the same matrix entry, the values are initially stored separately, so memory use will grow as a result. However, when FillComplete is called the values will be summed together and the additional memory will be released.

For example, if the values 2.0, 3.0 and 4.0 are all inserted in Row 1, Column 2, extra storage is used to store each of the three values separately. In this way, the insert process does not require any searching and can be faster. However, when FillComplete() is called, the values will be summed together to equal 9.0 and only a single entry will remain in the matrix for Row 1, Column 2.

Parameters
GlobalRow- (In) Row number (in global coordinates) to put elements.
NumEntries- (In) Number of entries.
Values- (In) Values to enter.
Indices- (In) Global column indices corresponding to values.
Returns
Integer error code, set to 0 if successful. Note that if the allocated length of the row has to be expanded, a positive warning code will be returned.
Warning
This method may not be called once FillComplete() has been called.
Precondition
IndicesAreLocal()==false && IndicesAreContiguous()==false

Reimplemented in Epetra_FECrsMatrix.

int Epetra_CrsMatrix::InsertMyValues ( int  MyRow,
int  NumEntries,
const double *  Values,
const int *  Indices
)

Insert a list of elements in a given local row of the matrix.

Parameters
MyRow- (In) Row number (in local coordinates) to put elements.
NumEntries- (In) Number of entries.
Values- (In) Values to enter.
Indices- (In) Local column indices corresponding to values.
Returns
Integer error code, set to 0 if successful. Note that if the allocated length of the row has to be expanded, a positive warning code will be returned.
Precondition
IndicesAreGlobal()==false && (IndicesAreContiguous()==false || CV_==View)
Postcondition
The given local row of the matrix has been updated as described above.
int Epetra_CrsMatrix::InsertMyValues ( int  MyRow,
int  NumEntries,
double *  Values,
int *  Indices
)

Insert a list of elements in a given local row of the matrix.

Parameters
MyRow- (In) Row number (in local coordinates) to put elements.
NumEntries- (In) Number of entries.
Values- (In) Values to enter.
Indices- (In) Local column indices corresponding to values.
Returns
Integer error code, set to 0 if successful. Note that if the allocated length of the row has to be expanded, a positive warning code will be returned.
Precondition
IndicesAreGlobal()==false && (IndicesAreContiguous()==false || CV_==View)
Postcondition
The given local row of the matrix has been updated as described above.
int Epetra_CrsMatrix::InvColMaxs ( Epetra_Vector x) const

Computes the max of absolute values of the columns of the Epetra_CrsMatrix, results returned in x.

The vector x will return such that x[j] will contain the inverse of max of the absolute values of the entries in the jth row of the this matrix.

Warning
This method will not work when multiple processors contain partial sums for individual entries.
Parameters
x- (Out) An Epetra_Vector containing the column maxs of the this matrix.
Warning
When columns are fully replicated on multiple processors, it is assumed that the distribution of x is the same as the columns (ColMap()) of this. When each column of this is uniquely owned, the distribution of x can be that of the ColMap() or the DomainMap().
Returns
Integer error code, set to 0 if successful.
Precondition
Filled()==true
Postcondition
Unchanged.
int Epetra_CrsMatrix::InvColSums ( Epetra_Vector x) const
virtual

Computes the inverse of the sum of absolute values of the columns of the Epetra_CrsMatrix, results returned in x.

The vector x will return such that x[j] will contain the inverse of the sum of the absolute values of the entries in the jth column of the this matrix. Using the resulting vector from this function as input to RightScale() will make the one norm of the resulting matrix exactly 1.

Warning
The NormOne() method will not properly calculate the one norm for a matrix that has entries that are replicated on multiple processors. In this case, if the columns are fully replicated, NormOne() will return a value equal to the maximum number of processors that any individual column of the matrix is repliated on.
Parameters
x- (Out) An Epetra_Vector containing the column sums of the this matrix.
Warning
When columns are fully replicated on multiple processors, it is assumed that the distribution of x is the same as the columns (ColMap()) of this. When multiple processors contain partial sums for entries, the distribution of x is assumed to be the same as the DomainMap() of this. When each column of this is uniquely owned, the distribution of x can be that of the ColMap() or the DomainMap().
Returns
Integer error code, set to 0 if successful.
Precondition
Filled()==true
Postcondition
Unchanged.

Implements Epetra_RowMatrix.

int Epetra_CrsMatrix::InvRowMaxs ( Epetra_Vector x) const

Computes the inverse of the max of absolute values of the rows of the Epetra_CrsMatrix, results returned in x.

The vector x will return such that x[i] will contain the inverse of max of the absolute values of the entries in the ith row of the this matrix.

Warning
This method will not work when multiple processors contain partial sums for individual entries.
Parameters
x- (Out) An Epetra_Vector containing the inverse of the row maxs of the this matrix.
Warning
When rows are fully replicated on multiple processors, it is assumed that the distribution of x is the same as the rows (RowMap())of this. When each row of this is uniquely owned, the distribution of x can be that of the RowMap() or the RangeMap().
Returns
Integer error code, set to 0 if successful.
Precondition
Filled()==true
Postcondition
Unchanged.
int Epetra_CrsMatrix::InvRowSums ( Epetra_Vector x) const
virtual

Computes the inverse of the sum of absolute values of the rows of the Epetra_CrsMatrix, results returned in x.

The vector x will return such that x[i] will contain the inverse of the sum of the absolute values of the entries in the ith row of the this matrix. Using the resulting vector from this function as input to LeftScale() will make the infinity norm of the resulting matrix exactly 1.

Warning
The NormInf() method will not properly calculate the infinity norm for a matrix that has entries that are replicated on multiple processors. In this case, if the rows are fully replicated, NormInf() will return a value equal to the maximum number of processors that any individual row of the matrix is replicated on.
Parameters
x- (Out) An Epetra_Vector containing the inverse of the row sums of the this matrix.
Warning
When rows are fully replicated on multiple processors, it is assumed that the distribution of x is the same as the rows (RowMap())of this. When multiple processors contain partial sums for individual entries, the distribution of x is assumed to be the same as the RangeMap() of this. When each row of this is uniquely owned, the distribution of x can be that of the RowMap() or the RangeMap().
Returns
Integer error code, set to 0 if successful.
Precondition
Filled()==true
Postcondition
Unchanged.

Implements Epetra_RowMatrix.

int Epetra_CrsMatrix::LCID ( int  GCID_in) const
inline

Returns the local column index for given global column index, returns -1 if no local column for this global column.

Precondition
HaveColMap()==true (If HaveColMap()==false, returns -1)
int Epetra_CrsMatrix::LeftScale ( const Epetra_Vector x)
virtual

Scales the Epetra_CrsMatrix on the left with a Epetra_Vector x.

The this matrix will be scaled such that A(i,j) = x(i)*A(i,j) where i denotes the row number of A and j denotes the column number of A.

Parameters
x- (In) An Epetra_Vector to scale with.
Returns
Integer error code, set to 0 if successful.
Precondition
Filled()==true
Postcondition
The matrix will be scaled as described above.

Implements Epetra_RowMatrix.

int Epetra_CrsMatrix::MaxNumEntries ( ) const
inlinevirtual

Returns the maximum number of nonzero entries across all rows on this processor.

Precondition
Filled()==true

Implements Epetra_RowMatrix.

int Epetra_CrsMatrix::Multiply ( bool  TransA,
const Epetra_Vector x,
Epetra_Vector y
) const

Returns the result of a Epetra_CrsMatrix multiplied by a Epetra_Vector x in y.

Parameters
TransA- (In) If true, multiply by the transpose of matrix, otherwise just use matrix.
x- (In) An Epetra_Vector to multiply by.
y- (Out) An Epetra_Vector containing result.
Returns
Integer error code, set to 0 if successful.
Precondition
Filled()==true
Postcondition
Unchanged.

Referenced by Apply().

int Epetra_CrsMatrix::Multiply ( bool  TransA,
const Epetra_MultiVector X,
Epetra_MultiVector Y
) const
virtual

Returns the result of a Epetra_CrsMatrix multiplied by a Epetra_MultiVector X in Y.

Parameters
TransA- (In) If true, multiply by the transpose of matrix, otherwise just use matrix.
X- (In) An Epetra_MultiVector of dimension NumVectors to multiply with matrix.
Y- (Out) An Epetra_MultiVector of dimension NumVectorscontaining result.
Returns
Integer error code, set to 0 if successful.
Precondition
Filled()==true
Postcondition
Unchanged.

Implements Epetra_RowMatrix.

Reimplemented in Epetra_OskiMatrix.

bool Epetra_CrsMatrix::MyGCID ( int  GCID_in) const
inline

Returns true if the GCID passed in belongs to the calling processor in this map, otherwise returns false.

Precondition
HaveColMap()==true (If HaveColMap()==false, returns -1)
bool Epetra_CrsMatrix::MyLCID ( int  LCID_in) const
inline

Returns true if the LRID passed in belongs to the calling processor in this map, otherwise returns false.

Precondition
HaveColMap()==true (If HaveColMap()==false, returns -1)
int Epetra_CrsMatrix::NumMyCols ( ) const
inlinevirtual

Returns the number of entries in the set of column-indices that appear on this processor.

The set of column-indices that appear on this processor is the union of column-indices that appear in all local rows. The size of this set isn't available until FillComplete() has been called.

Precondition
Filled()==true

Implements Epetra_RowMatrix.

int Epetra_CrsMatrix::NumMyDiagonals ( ) const
inlinevirtual

Returns the number of local nonzero diagonal entries, based on global row/column index comparisons.

Precondition
Filled()==true

Implements Epetra_RowMatrix.

int Epetra_CrsMatrix::NumMyRowEntries ( int  MyRow,
int &  NumEntries
) const
virtual

Return the current number of values stored for the specified local row.

Similar to NumMyEntries() except NumEntries is returned as an argument and error checking is done on the input value MyRow.

Parameters
MyRow- (In) Local row.
NumEntries- (Out) Number of nonzero values.
Returns
Integer error code, set to 0 if successful.
Precondition
None.
Postcondition
Unchanged.

Implements Epetra_RowMatrix.

double* Epetra_CrsMatrix::operator[] ( int  Loc)
inline

Inlined bracket operator for fast access to data. (Const and Non-const versions)

No error checking and dangerous for optimization purposes.

Parameters
Loc- (In) Local row.
Returns
reference to pointer to locally indexed Loc row in matrix.
int Epetra_CrsMatrix::OptimizeStorage ( )

Make consecutive row index sections contiguous, minimize internal storage used for constructing graph.

After construction and during initialization (when values are being added), the matrix coefficients for each row are managed as separate segments of memory. This method moves the values for all rows into one large contiguous array and eliminates internal storage that is not needed after matrix construction. Calling this method can have a significant impact on memory costs and machine performance.

If this object was constructed in View mode then this method can't make non-contiguous values contiguous and will return a warning code of 1 if the viewed data isn't already contiguous.

Note
A call to this method will also call the OptimizeStorage method for the associated Epetra_CrsGraph object. If the storage for this graph has already been optimized this additional call will have no effect.
Returns
Integer error code, set to 0 if successful.
Precondition
Filled()==true.
If CV=View when the graph was constructed, then this method will be effective only if the indices of the graph were already contiguous. In this case, the indices are left untouched and internal storage for the graph is minimized.
Postcondition
StorageOptimized()==true, if successful.
Graph().StorageOptimized()==true, if successful.
int Epetra_CrsMatrix::PutScalar ( double  ScalarConstant)

Initialize all values in the matrix with constant value.

Parameters
ScalarConstant- (In) Value to use.
Returns
Integer error code, set to 0 if successful.
Precondition
None.
Postcondition
All values in this set to ScalarConstant.
const Epetra_Map& Epetra_CrsMatrix::RangeMap ( ) const
inline

Returns the Epetra_Map object associated with the range of this matrix operator.

Precondition
Filled()==true
int Epetra_CrsMatrix::RemoveEmptyProcessesInPlace ( const Epetra_BlockMap NewMap)

Remove processes owning zero rows from the Maps and their communicator.

Remove processes owning zero rows from the Maps and their communicator.

Warning
This method is ONLY for use by experts.
We make NO promises of backwards compatibility. This method may change or disappear at any time.
Parameters
newMap[in] This must be the result of calling the removeEmptyProcesses() method on the row Map. If it is not, this method's behavior is undefined. This pointer will be null on excluded processes.
int Epetra_CrsMatrix::ReplaceColMap ( const Epetra_BlockMap newmap)

Replaces the current ColMap with the user-specified map object.

Replaces the current ColMap with the user-specified map object, but only if no entries have been inserted into the matrix (both IndicesAreLocal() and IndicesAreGlobal() are false) or currentmap->PointSameAs(newmap) is true. This is a collective function. Returns 0 if map is replaced, -1 if not.

Precondition
(IndicesAreLocal()==false && IndicesAreGlobal()==false) || ColMap().PointSameAs(newmap)==true
int Epetra_CrsMatrix::ReplaceDiagonalValues ( const Epetra_Vector Diagonal)

Replaces diagonal values of the matrix with those in the user-provided vector.

This routine is meant to allow replacement of existing diagonal values. If a diagonal value does not exist for a given row, the corresponding value in the input Epetra_Vector will be ignored and the return code will be set to 1.

The Epetra_Map associated with the input Epetra_Vector must be compatible with the RowMap of the matrix.

Parameters
Diagonal- (In) New values to be placed in the main diagonal.
Returns
Integer error code, set to 0 if successful, set to 1 on the calling processor if one or more diagonal entries not present in matrix.
Precondition
Filled()==true
Postcondition
Diagonal values have been replaced with the values of Diagonal.
int Epetra_CrsMatrix::ReplaceDomainMapAndImporter ( const Epetra_Map NewDomainMap,
const Epetra_Import NewImporter
)

Replaces the current DomainMap & Importer with the user-specified map object.

Replaces the current DomainMap and Importer with the user-specified map object, but only if the matrix has been FillCompleted, Importer's TargetMap matches the ColMap and Importer's SourceMap matches the DomainMap (assuming the importer isn't null). If an Importer is passed in, Epetra_CrsMatrix will copy it.

Returns 0 if map/importer is replaced, -1 if not.

Precondition
(!NewImporter && ColMap().PointSameAs(NewDomainMap)) || (NewImporter && ColMap().PointSameAs(NewImporter->TargetMap()) && NewDomainMap.PointSameAs(NewImporter->SourceMap()))
virtual int Epetra_CrsMatrix::ReplaceGlobalValues ( int  GlobalRow,
int  NumEntries,
const double *  Values,
const int *  Indices
)
virtual

Replace specified existing values with this list of entries for a given global row of the matrix.

Parameters
GlobalRow- (In) Row number (in global coordinates) to put elements.
NumEntries- (In) Number of entries.
Values- (In) Values to enter.
Indices- (In) Global column indices corresponding to values.
Returns
Integer error code, set to 0 if successful. Note that if a value is not already present for the specified location in the matrix, the input value will be ignored and a positive warning code will be returned.
Precondition
IndicesAreLocal()==false && IndicesAreContiguous()==false

Reimplemented in Epetra_FECrsMatrix.

int Epetra_CrsMatrix::ReplaceMyValues ( int  MyRow,
int  NumEntries,
const double *  Values,
const int *  Indices
)

Replace current values with this list of entries for a given local row of the matrix.

Parameters
MyRow- (In) Row number (in local coordinates) to put elements.
NumEntries- (In) Number of entries.
Values- (In) Values to enter.
Indices- (In) Local column indices corresponding to values.
Returns
Integer error code, set to 0 if successful. Note that if a value is not already present for the specified location in the matrix, the input value will be ignored and a positive warning code will be returned.
Precondition
IndicesAreLocal()==true
Postcondition
MyRow contains the given list of Values at the given Indices.
int Epetra_CrsMatrix::ReplaceRowMap ( const Epetra_BlockMap newmap)

Replaces the current RowMap with the user-specified map object.

Replaces the current RowMap with the user-specified map object, but only if currentmap->PointSameAs(newmap) is true. This is a collective function. Returns 0 if map is replaced, -1 if not.

Precondition
RowMap().PointSameAs(newmap)==true
int Epetra_CrsMatrix::RightScale ( const Epetra_Vector x)
virtual

Scales the Epetra_CrsMatrix on the right with a Epetra_Vector x.

The this matrix will be scaled such that A(i,j) = x(j)*A(i,j) where i denotes the global row number of A and j denotes the global column number of A.

Parameters
x- (In) The Epetra_Vector used for scaling this.
Returns
Integer error code, set to 0 if successful.
Precondition
Filled()==true
Postcondition
The matrix will be scaled as described above.

Implements Epetra_RowMatrix.

int Epetra_CrsMatrix::Scale ( double  ScalarConstant)

Multiply all values in the matrix by a constant value (in place: A <- ScalarConstant * A).

Parameters
ScalarConstant- (In) Value to use.
Returns
Integer error code, set to 0 if successful.
Precondition
None.
Postcondition
All values of this have been multiplied by ScalarConstant.
int Epetra_CrsMatrix::SetUseTranspose ( bool  UseTranspose_in)
inlinevirtual

If set true, transpose of this operator will be applied.

This flag allows the transpose of the given operator to be used implicitly. Setting this flag affects only the Apply() and ApplyInverse() methods. If the implementation of this interface does not support transpose use, this method should return a value of -1.

Parameters
UseTranspose- (In) If true, multiply by the transpose of operator, otherwise just use operator.
Returns
Always returns 0.

Implements Epetra_Operator.

Referenced by Epetra_FastCrsOperator::SetUseTranspose().

int Epetra_CrsMatrix::Solve ( bool  Upper,
bool  Trans,
bool  UnitDiagonal,
const Epetra_Vector x,
Epetra_Vector y
) const

Returns the result of a local solve using the Epetra_CrsMatrix on a Epetra_Vector x in y.

This method solves a triangular system of equations asynchronously on each processor.

Parameters
Upper- (In) If true, solve Uy = x, otherwise solve Ly = x.
Trans- (In) If true, solve transpose problem.
UnitDiagonal- (In) If true, assume diagonal is unit (whether it's stored or not).
x- (In) An Epetra_Vector to solve for.
y- (Out) An Epetra_Vector containing result.
Returns
Integer error code, set to 0 if successful.
Precondition
Filled()==true
Postcondition
Unchanged.
int Epetra_CrsMatrix::Solve ( bool  Upper,
bool  Trans,
bool  UnitDiagonal,
const Epetra_MultiVector X,
Epetra_MultiVector Y
) const
virtual

Returns the result of a local solve using the Epetra_CrsMatrix a Epetra_MultiVector X in Y.

This method solves a triangular system of equations asynchronously on each processor.

Parameters
Upper- (In) If true, solve Uy = x, otherwise solve Ly = x.
Trans- (In) If true, solve transpose problem.
UnitDiagonal- (In) If true, assume diagonal is unit (whether it's stored or not).
X- (In) An Epetra_MultiVector of dimension NumVectors to solve for.
Y- (Out) An Epetra_MultiVector of dimension NumVectors containing result.
Returns
Integer error code, set to 0 if successful.
Precondition
Filled()==true
Postcondition
Unchanged.

Implements Epetra_RowMatrix.

Reimplemented in Epetra_OskiMatrix.

int Epetra_CrsMatrix::SortGhostsAssociatedWithEachProcessor ( bool  Flag)
inline

Forces FillComplete() to locally order ghostnodes associated with each remote processor in ascending order.

To be compliant with AztecOO, FillComplete() already locally orders ghostnodes such that information received from processor k has a lower local numbering than information received from processor j if k is less than j. SortGhostsAssociatedWithEachProcessor(True) further forces FillComplete() to locally number all ghostnodes received from processor k in ascending order. That is, the local numbering of b is less than c if the global numbering of b is less than c and if both b and c are owned by the same processor. This is done to be compliant with some limited block features within ML. In particular, some ML features require that a block structure of the matrix be maintained even within the ghost variables. Always returns 0.

virtual int Epetra_CrsMatrix::SumIntoGlobalValues ( int  GlobalRow,
int  NumEntries,
const double *  Values,
const int *  Indices
)
virtual

Add this list of entries to existing values for a given global row of the matrix.

Parameters
GlobalRow- (In) Row number (in global coordinates) to put elements.
NumEntries- (In) Number of entries.
Values- (In) Values to enter.
Indices- (In) Global column indices corresponding to values.
Returns
Integer error code, set to 0 if successful. Note that if a value is not already present for the specified location in the matrix, the input value will be ignored and a positive warning code will be returned.
Precondition
IndicesAreLocal()==false && IndicesAreContiguous()==false

Reimplemented in Epetra_FECrsMatrix.

int Epetra_CrsMatrix::SumIntoMyValues ( int  MyRow,
int  NumEntries,
const double *  Values,
const int *  Indices
)

Add this list of entries to existing values for a given local row of the matrix.

Parameters
MyRow- (In) Row number (in local coordinates) to put elements.
NumEntries- (In) Number of entries.
Values- (In) Values to enter.
Indices- (In) Local column indices corresponding to values.
Returns
Integer error code, set to 0 if successful. Note that if the allocated length of the row has to be expanded, a positive warning code will be returned.
Precondition
IndicesAreLocal()==true
Postcondition
The given Values at the given Indices have been summed into the entries of MyRow.

The documentation for this class was generated from the following file:
