Epetra_IntVector Class Reference

Epetra_IntVector: A class for constructing and using dense integer vectors on a parallel computer. More...

#include <Epetra_IntVector.h>

Inheritance diagram for Epetra_IntVector:
Inheritance graph
[legend]

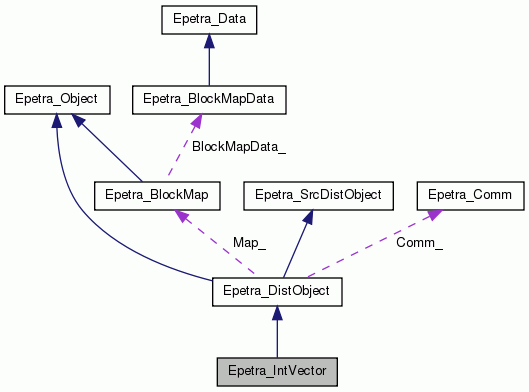

Collaboration diagram for Epetra_IntVector:
Collaboration graph
[legend]

Public Member Functions

Constructors/destructors
 Epetra_IntVector (const Epetra_BlockMap &Map, bool zeroOut=true)
 Basic Epetra_IntVector constuctor. More...

 Epetra_IntVector (const Epetra_IntVector &Source)
 Epetra_IntVector copy constructor.

 Epetra_IntVector (Epetra_DataAccess CV, const Epetra_BlockMap &Map, int *V)
 Set vector values from user array. More...

virtual ~Epetra_IntVector ()
 Epetra_IntVector destructor.

Post-construction modification methods
int PutValue (int Value)
 Set all elements of the vector to Value.

Extraction methods
int ExtractCopy (int *V) const
 Put vector values into user-provided array. More...

int ExtractView (int **V) const
 Set user-provided address of V. More...

Mathematical methods
int MaxValue ()
 Find maximum value. More...

int MinValue ()
 Find minimum value. More...

Overloaded operators
Epetra_IntVectoroperator= (const Epetra_IntVector &Source)
 = Operator. More...

int & operator[] (int index)
 Element access function. More...

const int & operator[] (int index) const
 Element access function. More...

Attribute access functions
int * Values () const
 Returns a pointer to an array containing the values of this vector.

int MyLength () const
 Returns the local vector length on the calling processor of vectors in the multi-vector.

int GlobalLength () const
 Returns the global vector length of vectors in the multi-vector.

long long GlobalLength64 () const

I/O methods
virtual void Print (std::ostream &os) const
 Print method.

- Public Member Functions inherited from Epetra_DistObject
 Epetra_DistObject (const Epetra_BlockMap &Map)
 Basic Epetra_DistObject constuctor. More...

 Epetra_DistObject (const Epetra_BlockMap &Map, const char *const Label)

 Epetra_DistObject (const Epetra_DistObject &Source)
 Epetra_DistObject copy constructor.

virtual ~Epetra_DistObject ()
 Epetra_DistObject destructor.

int Import (const Epetra_SrcDistObject &A, const Epetra_Import &Importer, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
 Imports an Epetra_DistObject using the Epetra_Import object. More...

int Import (const Epetra_SrcDistObject &A, const Epetra_Export &Exporter, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
 Imports an Epetra_DistObject using the Epetra_Export object. More...

int Export (const Epetra_SrcDistObject &A, const Epetra_Import &Importer, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
 Exports an Epetra_DistObject using the Epetra_Import object. More...

int Export (const Epetra_SrcDistObject &A, const Epetra_Export &Exporter, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
 Exports an Epetra_DistObject using the Epetra_Export object. More...

const Epetra_BlockMapMap () const
 Returns the address of the Epetra_BlockMap for this multi-vector.

const Epetra_CommComm () const
 Returns the address of the Epetra_Comm for this multi-vector.

bool DistributedGlobal () const
 Returns true if this multi-vector is distributed global, i.e., not local replicated.

- Public Member Functions inherited from Epetra_Object
 Epetra_Object (int TracebackModeIn=-1, bool set_label=true)
 Epetra_Object Constructor. More...

 Epetra_Object (const char *const Label, int TracebackModeIn=-1)
 Epetra_Object Constructor. More...

 Epetra_Object (const Epetra_Object &Object)
 Epetra_Object Copy Constructor. More...

virtual ~Epetra_Object ()
 Epetra_Object Destructor. More...

virtual int ReportError (const std::string Message, int ErrorCode) const
 Error reporting method.

virtual void SetLabel (const char *const Label)
 Epetra_Object Label definition using char *. More...

virtual const char * Label () const
 Epetra_Object Label access funtion. More...

- Public Member Functions inherited from Epetra_SrcDistObject
virtual ~Epetra_SrcDistObject ()
 Epetra_SrcDistObject destructor.


Additional Inherited Members

- Static Public Member Functions inherited from Epetra_Object
static void SetTracebackMode (int TracebackModeValue)
 Set the value of the Epetra_Object error traceback report mode. More...

static int GetTracebackMode ()
 Get the value of the Epetra_Object error report mode.

static std::ostream & GetTracebackStream ()
 Get the output stream for error reporting.

- Static Public Attributes inherited from Epetra_Object
static int TracebackMode

- Protected Member Functions inherited from Epetra_DistObject
virtual int DoTransfer (const Epetra_SrcDistObject &A, Epetra_CombineMode CombineMode, int NumSameIDs, int NumPermuteIDs, int NumRemoteIDs, int NumExportIDs, int *PermuteToLIDs, int *PermuteFromLIDs, int *RemoteLIDs, int *ExportLIDs, int &LenExports, char *&Exports, int &LenImports, char *&Imports, Epetra_Distributor &Distor, bool DoReverse, const Epetra_OffsetIndex *Indexor)
 Perform actual transfer (redistribution) of data across memory images, using Epetra_Distributor object.

- Protected Member Functions inherited from Epetra_Object
std::string toString (const int &x) const

std::string toString (const long long &x) const

std::string toString (const double &x) const

- Protected Attributes inherited from Epetra_DistObject
Epetra_BlockMap Map_

const Epetra_CommComm_

char * Exports_

char * Imports_

int LenExports_

int LenImports_

int * Sizes_


Detailed Description

Epetra_IntVector: A class for constructing and using dense integer vectors on a parallel computer.

The Epetra_IntVector class enables the construction and use of integer
 dense vectors in a distributed memory environment.  The distribution of the dense
vector is determined in part by a Epetra_Comm object and a Epetra_Map (or Epetra_LocalMap
or Epetra_BlockMap).

Distributed Global vs. Replicated Local

Constructing Epetra_IntVectors

There are four Epetra_IntVector constructors. The first is a basic constructor that allocates space and sets all values to zero, the second is a copy constructor. The third and fourth constructors work with user data. These constructors have two data access modes:

  1. Copy mode - Allocates memory and makes a copy of the user-provided data. In this case, the user data is not needed after construction.
  2. View mode - Creates a "view" of the user data. In this case, the user data is required to remain intact for the life of the vector.
Warning
View mode is extremely dangerous from a data hiding perspective. Therefore, we strongly encourage users to develop code using Copy mode first and only use the View mode in a secondary optimization phase.

All Epetra_IntVector constructors require a map argument that describes the layout of elements on the parallel machine. Specifically, map is a Epetra_Map, Epetra_LocalMap or Epetra_BlockMap object describing the desired memory layout for the vector.

There are four different Epetra_IntVector constructors:

Extracting Data from Epetra_IntVectors

Once a Epetra_IntVector is constructed, it is possible to extract a copy of the values or create a view of them.

Warning
ExtractView functions are extremely dangerous from a data hiding perspective. For both ExtractView fuctions, there is a corresponding ExtractCopy function. We strongly encourage users to develop code using ExtractCopy functions first and only use the ExtractView functions in a secondary optimization phase.

There are two Extract functions:

Warning
A Epetra_Map, Epetra_LocalMap or Epetra_BlockMap object is required for all Epetra_IntVector constructors.

Constructor & Destructor Documentation

Epetra_IntVector::Epetra_IntVector ( const Epetra_BlockMap Map,
bool  zeroOut = true
)

Basic Epetra_IntVector constuctor.

Creates a Epetra_IntVector object and, by default, fills with zero values.
Parameters
InMap - A Epetra_LocalMap, Epetra_Map or Epetra_BlockMap.
Warning
Note that, because Epetra_LocalMap derives from Epetra_Map and Epetra_Map derives from Epetra_BlockMap, this constructor works for all three types of Epetra map classes.
Parameters
InzeroOut - If true then the allocated memory will be zeroed out initialy. If false then this memory will not be touched which can be significantly faster.
Returns
Pointer to a Epetra_IntVector.
Epetra_IntVector::Epetra_IntVector ( Epetra_DataAccess  CV,
const Epetra_BlockMap Map,
int *  V
)

Set vector values from user array.

Parameters
InEpetra_DataAccess - Enumerated type set to Copy or View.
InMap - A Epetra_LocalMap, Epetra_Map or Epetra_BlockMap.
InV - Pointer to an array of integer numbers..
Returns
Integer error code, set to 0 if successful.

See Detailed Description section for further discussion.

Member Function Documentation

int Epetra_IntVector::ExtractCopy ( int *  V) const

Put vector values into user-provided array.

Parameters
OutV - Pointer to memory space that will contain the vector values.
Returns
Integer error code, set to 0 if successful.
int Epetra_IntVector::ExtractView ( int **  V) const

Set user-provided address of V.

Parameters
OutV - Address of a pointer to that will be set to point to the values of the vector.
Returns
Integer error code, set to 0 if successful.
int Epetra_IntVector::MaxValue ( )

Find maximum value.

Returns
Maximum value across all processors.
int Epetra_IntVector::MinValue ( )

Find minimum value.

Returns
Minimum value across all processors.
Epetra_IntVector& Epetra_IntVector::operator= ( const Epetra_IntVector Source)

= Operator.

Parameters
InA - Epetra_IntVector to copy.
Returns
Epetra_IntVector.
int& Epetra_IntVector::operator[] ( int  index)
inline

Element access function.

Returns
V[Index].
const int& Epetra_IntVector::operator[] ( int  index) const
inline

Element access function.

Returns
V[Index].

The documentation for this class was generated from the following file:
