The implementation of the numerical features of Container (Jacobi, Gauss-Seidel, SGS). This class allows a custom scalar type (LocalScalarType) to be used for storing blocks and solving the block systems. Hiding this template parameter from the Container interface simplifies the BlockRelaxation and ContainerFactory classes. More...

#include <Ifpack2_Container_decl.hpp>

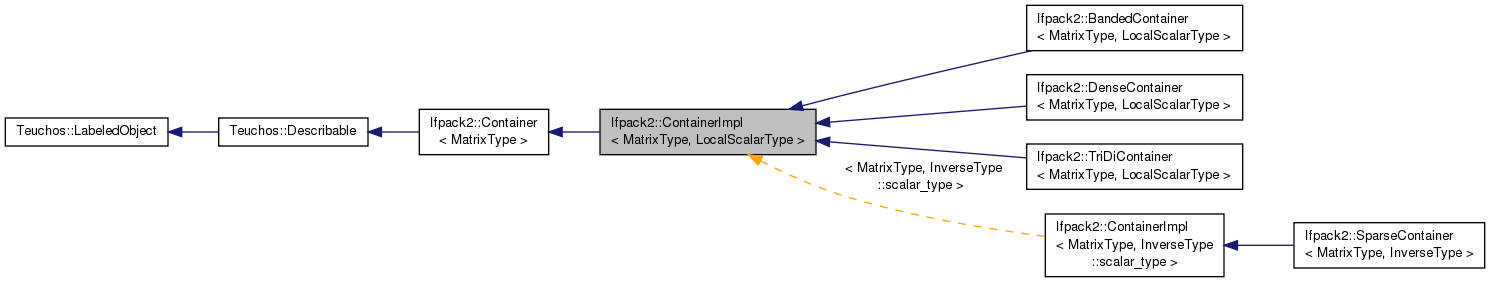

Inheritance diagram for Ifpack2::ContainerImpl< MatrixType, LocalScalarType >:

[legend]

Public Member Functions
virtual	~ContainerImpl ()
	Destructor. More...

virtual void	initialize ()=0
	Do all set-up operations that only require matrix structure. More...

virtual void	compute ()=0
	Extract the local diagonal blocks and prepare the solver. More...

virtual void	setParameters (const Teuchos::ParameterList &List)
	Set parameters, if any. More...

virtual void	apply (ConstHostView X, HostView Y, int blockIndex, Teuchos::ETransp mode=Teuchos::NO_TRANS, SC alpha=Teuchos::ScalarTraits< SC >::one(), SC beta=Teuchos::ScalarTraits< SC >::zero()) const
	Compute `Y := alpha * M^{-1} X + beta*Y`. More...

virtual void	weightedApply (ConstHostView X, HostView Y, ConstHostView D, int blockIndex, Teuchos::ETransp mode=Teuchos::NO_TRANS, SC alpha=Teuchos::ScalarTraits< SC >::one(), SC beta=Teuchos::ScalarTraits< SC >::zero()) const
	Compute `Y := alpha * diag(D) * M^{-1} (diag(D) * X) + beta*Y`. More...

virtual void	applyInverseJacobi (const mv_type &, mv_type &, SC dampingFactor, bool, int) const
	Compute `Y := (1 - a) Y + a D^{-1} (X - R*Y)`. More...

void	applyMV (const mv_type &X, mv_type &Y) const
	Wrapper for apply with MVs, used in unit tests (never called by BlockRelaxation) More...

void	weightedApplyMV (const mv_type &X, mv_type &Y, vector_type &W) const
	Wrapper for weightedApply with MVs, used in unit tests (never called by BlockRelaxation) More...

virtual std::ostream &	print (std::ostream &os) const =0
	Print basic information about the container to `os`. More...

Public Member Functions inherited from Ifpack2::Container< MatrixType >
	Container (const Teuchos::RCP< const row_matrix_type > &matrix, const Teuchos::Array< Teuchos::Array< LO > > &partitions, bool pointIndexed)
	Constructor. More...

virtual	~Container ()
	Destructor. More...

Teuchos::ArrayView< const LO >	getBlockRows (int blockIndex) const
	Local indices of the rows of the input matrix that belong to this block. More...

void	setBlockSizes (const Teuchos::Array< Teuchos::Array< LO > > &partitions)
	Initialize arrays with information about block sizes. More...

bool	isInitialized () const
	Whether the container has been successfully initialized. More...

bool	isComputed () const
	Whether the container has been successfully computed. More...

Static Public Member Functions
static std::string	getName ()

Static Public Member Functions inherited from Ifpack2::Container< MatrixType >
static std::string	getName ()

Protected Types
Internal typedefs (protected)
using	local_scalar_type = LocalScalarType

using	SC = typename Container< MatrixType >::scalar_type

using	LO = typename Container< MatrixType >::local_ordinal_type

using	GO = typename Container< MatrixType >::global_ordinal_type

using	NO = typename Container< MatrixType >::node_type

using	StridedRowView = Details::StridedRowView< SC, LO, GO, NO >

using	LSC = LocalScalarType
	The internal representation of LocalScalarType in Kokkos::View. More...

using	LISC = typename Kokkos::ArithTraits< LSC >::val_type

using	local_mv_type = Tpetra::MultiVector< LSC, LO, GO, NO >

using	HostViewLocal = typename local_mv_type::dual_view_type::t_host

using	HostSubviewLocal = Kokkos::View< LISC **, Kokkos::LayoutStride, typename HostViewLocal::memory_space >

using	ConstHostSubviewLocal = Kokkos::View< const LISC **, Kokkos::LayoutStride, typename HostViewLocal::memory_space >

Protected Types inherited from Ifpack2::Container< MatrixType >
using	ISC = typename Kokkos::ArithTraits< SC >::val_type
	Internal representation of Scalar in Kokkos::View. More...

using	HostView = typename mv_type::dual_view_type::t_host

Protected Member Functions
LO	translateRowToCol (LO row)

Details::StridedRowView< SC, LO, GO, NO >	getInputRowView (LO row) const
	View a row of the input matrix. More...

virtual void	extract ()=0
	Extract the submatrices identified by the local indices set by the constructor. BlockMatrix may be any type that supports direct entry access: `Scalar& operator()(size_t row, size_t col)`. More...

void	DoGSBlock (ConstHostView X, HostView Y, HostView Y2, HostView Resid, SC dampingFactor, LO i) const
	Do one step of Gauss-Seidel on block i (used by DoGaussSeidel and DoSGS) More...

virtual void	solveBlock (ConstHostSubviewLocal X, HostSubviewLocal Y, int blockIndex, Teuchos::ETransp mode, const LSC alpha, const LSC beta) const

Protected Attributes
HostViewLocal	X_local_
	Scratch vectors used in apply(). More...

HostViewLocal	weightedApplyScratch_

std::vector< HostSubviewLocal >	X_localBlocks_
	Views for holding pieces of X corresponding to each block. More...

std::vector< HostSubviewLocal >	Y_localBlocks_
	Views for holding pieces of Y corresponding to each block. More...

Protected Attributes inherited from Ifpack2::Container< MatrixType >
Teuchos::RCP< const row_matrix_type >	inputMatrix_
	The input matrix to the constructor. More...

Teuchos::RCP< const crs_matrix_type >	inputCrsMatrix_
	The input matrix, dynamic cast to CrsMatrix. May be null. More...

Teuchos::RCP< const block_crs_matrix_type >	inputBlockMatrix_
	The input matrix, dynamic cast to BlockCrsMatrix. May be null. More...

int	numBlocks_
	The number of blocks (partitions) in the container. More...

Teuchos::Array< LO >	blockRows_
	Local indices of the rows of the input matrix that belong to this block. More...

Teuchos::Array< LO >	blockSizes_
	Number of rows in each block. More...

Teuchos::Array< LO >	blockOffsets_
	Starting index in blockRows_ of local row indices for each block. More...

Teuchos::RCP< vector_type >	Diag_
	Diagonal elements. More...

bool	IsParallel_
	Whether the problem is distributed across multiple MPI processes. More...

LO	NumLocalRows_
	Number of local rows in input matrix. More...

GO	NumGlobalRows_
	Number of global rows in input matrix. More...

GO	NumGlobalNonzeros_
	Number of nonzeros in input matrix. More...

bool	hasBlockCrs_
	Whether the input matrix is a BlockCRS matrix. More...

int	bcrsBlockSize_
	If hasBlockCrs_, the number of DOFs per vertex. Otherwise 1. More...

bool	pointIndexed_
	(If hasBlockCrs_) Whether the blocks are described using sub-block row indices instead of full block rows. More...

LO	scalarsPerRow_

bool	IsInitialized_
	If `true`, the container has been successfully initialized. More...

bool	IsComputed_
	If `true`, the container has been successfully computed. More...

Detailed Description

template<class MatrixType, class LocalScalarType>
class Ifpack2::ContainerImpl< MatrixType, LocalScalarType >

The implementation of the numerical features of Container (Jacobi, Gauss-Seidel, SGS). This class allows a custom scalar type (LocalScalarType) to be used for storing blocks and solving the block systems. Hiding this template parameter from the Container interface simplifies the BlockRelaxation and ContainerFactory classes.

Member Typedef Documentation

template<class MatrixType, class LocalScalarType>

using Ifpack2::ContainerImpl< MatrixType, LocalScalarType >::LSC = LocalScalarType

protected

The internal representation of LocalScalarType in Kokkos::View.

Constructor & Destructor Documentation

template<class MatrixType , class LocalScalarType >

Ifpack2::ContainerImpl< MatrixType, LocalScalarType >::~ContainerImpl ( )

virtual

Destructor.

Member Function Documentation

template<class MatrixType , class LocalScalarType >

ContainerImpl< MatrixType, LocalScalarType >::LO Ifpack2::ContainerImpl< MatrixType, LocalScalarType >::translateRowToCol ( LO row )

protected

Translate local row (if pointIndexed_, then a row within a block row/node) to the corresponding column, so that the intersection of the row and column is on the global diagonal. Translates to global ID first using the row map, and then back to a local column ID using the col map. If the corresponding column is off-process, then returns OrdinalTraits<LO>::invalid() and does not throw an exception.

template<class MatrixType , class LocalScalarType >

Details::StridedRowView< typename ContainerImpl< MatrixType, LocalScalarType >::SC, typename ContainerImpl< MatrixType, LocalScalarType >::LO, typename ContainerImpl< MatrixType, LocalScalarType >::GO, typename ContainerImpl< MatrixType, LocalScalarType >::NO > Ifpack2::ContainerImpl< MatrixType, LocalScalarType >::getInputRowView ( LO row ) const

protected

View a row of the input matrix.

template<class MatrixType, class LocalScalarType>

virtual void Ifpack2::ContainerImpl< MatrixType, LocalScalarType >::extract ( )

protectedpure virtual

Extract the submatrices identified by the local indices set by the constructor. BlockMatrix may be any type that supports direct entry access: Scalar& operator()(size_t row, size_t col).

Parameters

diagBlocks [in/out] The diagonal block matrices. Its size must be this->numBlocks_. Each BlockMatrix must be ready for entries to be assigned.

template<class MatrixType, class LocalScalarType>

virtual void Ifpack2::ContainerImpl< MatrixType, LocalScalarType >::initialize ( )

pure virtual

Do all set-up operations that only require matrix structure.

If the input matrix's structure changes, you must call this method before you may call compute(). You must then call compute() before you may call apply() or weightedApply().

"Structure" refers to the graph of the matrix: the local and global dimensions, and the populated entries in each row.

Implements Ifpack2::Container< MatrixType >.

Implemented in Ifpack2::SparseContainer< MatrixType, InverseType >, Ifpack2::BandedContainer< MatrixType, LocalScalarType >, Ifpack2::DenseContainer< MatrixType, LocalScalarType >, and Ifpack2::TriDiContainer< MatrixType, LocalScalarType >.

template<class MatrixType, class LocalScalarType>

virtual void Ifpack2::ContainerImpl< MatrixType, LocalScalarType >::compute ( )

pure virtual

Extract the local diagonal blocks and prepare the solver.

If any entries' values in the input matrix have changed, you must call this method before you may call apply() or weightedApply().

If DOF decoupling is to be used, it must be enabled with enableDecoupling() before calling compute().

Implements Ifpack2::Container< MatrixType >.

Implemented in Ifpack2::SparseContainer< MatrixType, InverseType >, Ifpack2::BandedContainer< MatrixType, LocalScalarType >, Ifpack2::DenseContainer< MatrixType, LocalScalarType >, and Ifpack2::TriDiContainer< MatrixType, LocalScalarType >.

template<class MatrixType , class LocalScalarType >

void Ifpack2::ContainerImpl< MatrixType, LocalScalarType >::setParameters ( const Teuchos::ParameterList & List )

virtual

Set parameters, if any.

Implements Ifpack2::Container< MatrixType >.

Reimplemented in Ifpack2::SparseContainer< MatrixType, InverseType >, and Ifpack2::BandedContainer< MatrixType, LocalScalarType >.

template<class MatrixType , class LocalScalarType >

void Ifpack2::ContainerImpl< MatrixType, LocalScalarType >::apply	(	ConstHostView	X,
		HostView	Y,
		int	blockIndex,
		Teuchos::ETransp	mode = `Teuchos::NO_TRANS`,
		SC	alpha = `Teuchos::ScalarTraits<SC>::one()`,
		SC	beta = `Teuchos::ScalarTraits<SC>::zero()`
	)		const

virtual

Compute Y := alpha * M^{-1} X + beta*Y.

X is in the domain Map of the original matrix (the argument to compute()), and Y is in the range Map of the original matrix. This method only reads resp. modifies the permuted subset of entries of X resp. Y related to the diagonal block M. That permuted subset is defined by the indices passed into the constructor.

This method is marked const for compatibility with Tpetra::Operator's method of the same name. This might require subclasses to mark some of their instance data as mutable.

Implements Ifpack2::Container< MatrixType >.

Reimplemented in Ifpack2::SparseContainer< MatrixType, InverseType >.

template<class MatrixType , class LocalScalarType >

void Ifpack2::ContainerImpl< MatrixType, LocalScalarType >::weightedApply	(	ConstHostView	X,
		HostView	Y,
		ConstHostView	D,
		int	blockIndex,
		Teuchos::ETransp	mode = `Teuchos::NO_TRANS`,
		SC	alpha = `Teuchos::ScalarTraits<SC>::one()`,
		SC	beta = `Teuchos::ScalarTraits<SC>::zero()`
	)		const

virtual

Compute Y := alpha * diag(D) * M^{-1} (diag(D) * X) + beta*Y.

Implements Ifpack2::Container< MatrixType >.

Reimplemented in Ifpack2::SparseContainer< MatrixType, InverseType >.

template<class MatrixType , class LocalScalarType >

void Ifpack2::ContainerImpl< MatrixType, LocalScalarType >::applyInverseJacobi	(	const mv_type &	,
		mv_type &	,
		SC	dampingFactor,
		bool	,
		int
	)		const

virtual

Compute Y := (1 - a) Y + a D^{-1} (X - R*Y).

Implements Ifpack2::Container< MatrixType >.

template<class MatrixType , class LocalScalarType >

void Ifpack2::ContainerImpl< MatrixType, LocalScalarType >::applyMV	(	const mv_type &	X,
		mv_type &	Y
	)		const

virtual

Wrapper for apply with MVs, used in unit tests (never called by BlockRelaxation)

Reimplemented from Ifpack2::Container< MatrixType >.

template<class MatrixType , class LocalScalarType >

void Ifpack2::ContainerImpl< MatrixType, LocalScalarType >::weightedApplyMV	(	const mv_type &	X,
		mv_type &	Y,
		vector_type &	W
	)		const

virtual

Wrapper for weightedApply with MVs, used in unit tests (never called by BlockRelaxation)

Reimplemented from Ifpack2::Container< MatrixType >.

template<class MatrixType, class LocalScalarType>

virtual std::ostream& Ifpack2::ContainerImpl< MatrixType, LocalScalarType >::print ( std::ostream & os ) const

pure virtual

Print basic information about the container to os.

Implements Ifpack2::Container< MatrixType >.

Implemented in Ifpack2::SparseContainer< MatrixType, InverseType >, Ifpack2::BandedContainer< MatrixType, LocalScalarType >, Ifpack2::TriDiContainer< MatrixType, LocalScalarType >, and Ifpack2::DenseContainer< MatrixType, LocalScalarType >.

template<class MatrixType , class LocalScalarType >

std::string Ifpack2::ContainerImpl< MatrixType, LocalScalarType >::getName ( )

static

Returns string describing the container. See Details::ContainerFactory.

template<class MatrixType , typename LocalScalarType >

void Ifpack2::ContainerImpl< MatrixType, LocalScalarType >::DoGSBlock	(	ConstHostView	X,
		HostView	Y,
		HostView	Y2,
		HostView	Resid,
		SC	dampingFactor,
		LO	i
	)		const

protectedvirtual

Do one step of Gauss-Seidel on block i (used by DoGaussSeidel and DoSGS)

Reimplemented from Ifpack2::Container< MatrixType >.

template<class MatrixType , class LocalScalarType >

void Ifpack2::ContainerImpl< MatrixType, LocalScalarType >::solveBlock	(	ConstHostSubviewLocal	X,
		HostSubviewLocal	Y,
		int	blockIndex,
		Teuchos::ETransp	mode,
		const LSC	alpha,
		const LSC	beta
	)		const

protectedvirtual

Exactly solves the linear system By = x, where B is a diagonal block matrix (blockIndex), and X, Y are multivector subviews with the same length as B's dimensions.

The Dense, Banded and TriDi containers all implement this and it is used in ContainerImpl::apply(). The Sparse and BlockTriDi containers have their own implementation of apply() and do not use solveBlock.

Reimplemented in Ifpack2::TriDiContainer< MatrixType, LocalScalarType >.

Member Data Documentation

template<class MatrixType, class LocalScalarType>

HostViewLocal Ifpack2::ContainerImpl< MatrixType, LocalScalarType >::X_local_

mutableprotected

Scratch vectors used in apply().

template<class MatrixType, class LocalScalarType>

HostViewLocal Ifpack2::ContainerImpl< MatrixType, LocalScalarType >::weightedApplyScratch_

mutableprotected

applyScratch provides space for temporary block-sized vectors in weightedApply(), so that full Kokkos::Views don't need to be created for every block apply (slow).

Layout of applyScratch_:

Name	Range
D_local	0 to maxBlockSize_
X_scaled	maxBlockSize_ to 2 * maxBlockSize_
Y_temp	2 * maxBlockSize_ to 3 * maxBlockSize_

template<class MatrixType, class LocalScalarType>

std::vector<HostSubviewLocal> Ifpack2::ContainerImpl< MatrixType, LocalScalarType >::X_localBlocks_

mutableprotected

Views for holding pieces of X corresponding to each block.

template<class MatrixType, class LocalScalarType>

std::vector<HostSubviewLocal> Ifpack2::ContainerImpl< MatrixType, LocalScalarType >::Y_localBlocks_

mutableprotected

Views for holding pieces of Y corresponding to each block.

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

template<class MatrixType, class LocalScalarType> class Ifpack2::ContainerImpl< MatrixType, LocalScalarType >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<class MatrixType, class LocalScalarType>
class Ifpack2::ContainerImpl< MatrixType, LocalScalarType >
