Ifpack2::DenseContainer< MatrixType, LocalScalarType > Class Template Reference

Store and solve a local dense linear problem. More...

#include <Ifpack2_DenseContainer_decl.hpp>

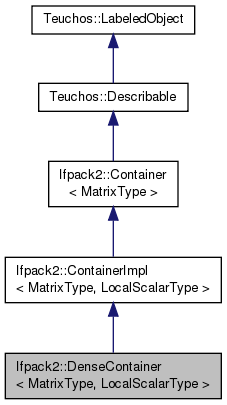

Inheritance diagram for Ifpack2::DenseContainer< MatrixType, LocalScalarType >:
Inheritance graph
[legend]

Public Member Functions

Constructor and destructor
 DenseContainer (const Teuchos::RCP< const row_matrix_type > &matrix, const Teuchos::Array< Teuchos::Array< LO > > &partitions, const Teuchos::RCP< const import_type > &importer, bool pointIndexed)
 Constructor. More...

 DenseContainer (const DenseContainer< MatrixType, LocalScalarType > &rhs)=delete

virtual ~DenseContainer ()
 Destructor (declared virtual for memory safety of derived classes). More...

Mathematical functions
virtual void initialize ()
 Do all set-up operations that only require matrix structure. More...

virtual void compute ()
 Extract the local diagonal block and prepare the solver. More...

void clearBlocks ()

Miscellaneous methods
virtual std::ostream & print (std::ostream &os) const
 Print information about this object to the given output stream. More...

Implementation of Teuchos::Describable
virtual std::string description () const
 A one-line description of this object. More...

virtual void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
 Print the object with some verbosity level to the given FancyOStream. More...

- Public Member Functions inherited from Ifpack2::ContainerImpl< MatrixType, LocalScalarType >
virtual ~ContainerImpl ()
 Destructor. More...

virtual void setParameters (const Teuchos::ParameterList &List)
 Set parameters, if any. More...

virtual void apply (ConstHostView X, HostView Y, int blockIndex, Teuchos::ETransp mode=Teuchos::NO_TRANS, SC alpha=Teuchos::ScalarTraits< SC >::one(), SC beta=Teuchos::ScalarTraits< SC >::zero()) const
 Compute Y := alpha * M^{-1} X + beta*Y. More...

virtual void weightedApply (ConstHostView X, HostView Y, ConstHostView D, int blockIndex, Teuchos::ETransp mode=Teuchos::NO_TRANS, SC alpha=Teuchos::ScalarTraits< SC >::one(), SC beta=Teuchos::ScalarTraits< SC >::zero()) const
 Compute Y := alpha * diag(D) * M^{-1} (diag(D) * X) + beta*Y. More...

virtual void applyInverseJacobi (const mv_type &, mv_type &, SC dampingFactor, bool, int) const
 Compute Y := (1 - a) Y + a D^{-1} (X - R*Y). More...

void applyMV (const mv_type &X, mv_type &Y) const
 Wrapper for apply with MVs, used in unit tests (never called by BlockRelaxation) More...

void weightedApplyMV (const mv_type &X, mv_type &Y, vector_type &W) const
 Wrapper for weightedApply with MVs, used in unit tests (never called by BlockRelaxation) More...

- Public Member Functions inherited from Ifpack2::Container< MatrixType >
 Container (const Teuchos::RCP< const row_matrix_type > &matrix, const Teuchos::Array< Teuchos::Array< LO > > &partitions, bool pointIndexed)
 Constructor. More...

virtual ~Container ()
 Destructor. More...

Teuchos::ArrayView< const LO > getBlockRows (int blockIndex) const
 Local indices of the rows of the input matrix that belong to this block. More...

void setBlockSizes (const Teuchos::Array< Teuchos::Array< LO > > &partitions)
 Initialize arrays with information about block sizes. More...

bool isInitialized () const
 Whether the container has been successfully initialized. More...

bool isComputed () const
 Whether the container has been successfully computed. More...


Static Public Member Functions

static std::string getName ()
 Get the name of this container type for Details::constructContainer() More...

- Static Public Member Functions inherited from Ifpack2::ContainerImpl< MatrixType, LocalScalarType >
static std::string getName ()

- Static Public Member Functions inherited from Ifpack2::Container< MatrixType >
static std::string getName ()


Additional Inherited Members

- Protected Types inherited from Ifpack2::ContainerImpl< MatrixType, LocalScalarType >
using local_scalar_type = LocalScalarType

using SC = typename Container< MatrixType >::scalar_type

using LO = typename Container< MatrixType >::local_ordinal_type

using GO = typename Container< MatrixType >::global_ordinal_type

using NO = typename Container< MatrixType >::node_type

using StridedRowView = Details::StridedRowView< SC, LO, GO, NO >

using LSC = LocalScalarType
 The internal representation of LocalScalarType in Kokkos::View. More...

using LISC = typename Kokkos::ArithTraits< LSC >::val_type

using local_mv_type = Tpetra::MultiVector< LSC, LO, GO, NO >

using HostViewLocal = typename local_mv_type::dual_view_type::t_host

using HostSubviewLocal = Kokkos::View< LISC **, Kokkos::LayoutStride, typename HostViewLocal::memory_space >

using ConstHostSubviewLocal = Kokkos::View< const LISC **, Kokkos::LayoutStride, typename HostViewLocal::memory_space >

- Protected Types inherited from Ifpack2::Container< MatrixType >
using ISC = typename Kokkos::ArithTraits< SC >::val_type
 Internal representation of Scalar in Kokkos::View. More...

using HostView = typename mv_type::dual_view_type::t_host

- Protected Member Functions inherited from Ifpack2::ContainerImpl< MatrixType, LocalScalarType >
LO translateRowToCol (LO row)

Details::StridedRowView< SC,
LO, GO, NO >
getInputRowView (LO row) const
 View a row of the input matrix. More...

void DoGSBlock (ConstHostView X, HostView Y, HostView Y2, HostView Resid, SC dampingFactor, LO i) const
 Do one step of Gauss-Seidel on block i (used by DoGaussSeidel and DoSGS) More...

- Protected Attributes inherited from Ifpack2::ContainerImpl< MatrixType, LocalScalarType >
HostViewLocal X_local_
 Scratch vectors used in apply(). More...

HostViewLocal weightedApplyScratch_

std::vector< HostSubviewLocal > X_localBlocks_
 Views for holding pieces of X corresponding to each block. More...

std::vector< HostSubviewLocal > Y_localBlocks_
 Views for holding pieces of Y corresponding to each block. More...

- Protected Attributes inherited from Ifpack2::Container< MatrixType >
Teuchos::RCP< const
row_matrix_type >
inputMatrix_
 The input matrix to the constructor. More...

Teuchos::RCP< const
crs_matrix_type >
inputCrsMatrix_
 The input matrix, dynamic cast to CrsMatrix. May be null. More...

Teuchos::RCP< const
block_crs_matrix_type >
inputBlockMatrix_
 The input matrix, dynamic cast to BlockCrsMatrix. May be null. More...

int numBlocks_
 The number of blocks (partitions) in the container. More...

Teuchos::Array< LO > blockRows_
 Local indices of the rows of the input matrix that belong to this block. More...

Teuchos::Array< LO > blockSizes_
 Number of rows in each block. More...

Teuchos::Array< LO > blockOffsets_
 Starting index in blockRows_ of local row indices for each block. More...

Teuchos::RCP< vector_type > Diag_
 Diagonal elements. More...

bool IsParallel_
 Whether the problem is distributed across multiple MPI processes. More...

LO NumLocalRows_
 Number of local rows in input matrix. More...

GO NumGlobalRows_
 Number of global rows in input matrix. More...

GO NumGlobalNonzeros_
 Number of nonzeros in input matrix. More...

bool hasBlockCrs_
 Whether the input matrix is a BlockCRS matrix. More...

int bcrsBlockSize_
 If hasBlockCrs_, the number of DOFs per vertex. Otherwise 1. More...

bool pointIndexed_
 (If hasBlockCrs_) Whether the blocks are described using sub-block row indices instead of full block rows. More...

LO scalarsPerRow_

bool IsInitialized_
 If true, the container has been successfully initialized. More...

bool IsComputed_
 If true, the container has been successfully computed. More...


Detailed Description

template<class MatrixType, class LocalScalarType>
class Ifpack2::DenseContainer< MatrixType, LocalScalarType >

Store and solve a local dense linear problem.

Template Parameters
MatrixTypeA specialization of Tpetra::RowMatrix.

Please refer to the documentation of the Container interface. Currently, Containers are used by BlockRelaxation. Block relaxations need to be able to do two things:

  1. Store the diagonal blocks
  2. Solve linear systems with each diagonal block

DenseContainer stores the diagonal blocks as dense matrices, and solves them using LAPACK.

As with Ifpack2::Container, MatrixType must be a specialization of Tpetra::RowMatrix. Using a dense matrix for each block is a good idea when the blocks are small. For large and / or sparse blocks, it would probably be better to use an implementation of Container that stores the blocks sparsely, in particular SparseContainer.

This class may store the dense local matrix using values of a different type (LocalScalarType) than those in MatrixType. You may mix and match so long as implicit conversions are available between LocalScalarType and MatrixType::scalar_type.

This class currently assumes the following about the column and row Maps of the input matrix:

  1. On all processes, the column and row Maps begin with the same set of on-process entries, in the same order. That is, on-process row and column indices are the same.
  2. On all processes, all off-process indices in the column Map of the input matrix occur after that initial set.

These assumptions may be violated if the input matrix is a Tpetra::CrsMatrix that was constructed with a user-provided column Map. The assumptions are not mathematically necessary and could be relaxed at any time. Implementers who wish to do so will need to modify the extract() method, so that it translates explicitly between local row and column indices, instead of just assuming that they are the same.

Constructor & Destructor Documentation

template<class MatrixType , class LocalScalarType >
Ifpack2::DenseContainer< MatrixType, LocalScalarType >::DenseContainer ( const Teuchos::RCP< const row_matrix_type > &  matrix,
const Teuchos::Array< Teuchos::Array< LO > > &  partitions,
const Teuchos::RCP< const import_type > &  importer,
bool  pointIndexed
)

Constructor.

Parameters
matrix[in] The original input matrix. This Container will construct local diagonal blocks from its rows according to partitions.
partitioner[in] The Partitioner object that assigns local rows of the input matrix to blocks.
pointIndexed[in] If the input matrix is a Tpetra::BlockCrsMatrix, whether elements of partitions[k] identify rows within blocks (true) or whole blocks (false).
template<class MatrixType , class LocalScalarType >
Ifpack2::DenseContainer< MatrixType, LocalScalarType >::~DenseContainer ( )
virtual

Destructor (declared virtual for memory safety of derived classes).

Member Function Documentation

template<class MatrixType , class LocalScalarType >
void Ifpack2::DenseContainer< MatrixType, LocalScalarType >::initialize ( )
virtual

Do all set-up operations that only require matrix structure.

Implements Ifpack2::ContainerImpl< MatrixType, LocalScalarType >.

template<class MatrixType , class LocalScalarType >
void Ifpack2::DenseContainer< MatrixType, LocalScalarType >::compute ( )
virtual

Extract the local diagonal block and prepare the solver.

Implements Ifpack2::ContainerImpl< MatrixType, LocalScalarType >.

template<class MatrixType , class LocalScalarType >
std::ostream & Ifpack2::DenseContainer< MatrixType, LocalScalarType >::print ( std::ostream &  os) const
virtual

Print information about this object to the given output stream.

operator<< uses this method.

Implements Ifpack2::ContainerImpl< MatrixType, LocalScalarType >.

template<class MatrixType , class LocalScalarType >
std::string Ifpack2::DenseContainer< MatrixType, LocalScalarType >::description ( ) const
virtual

A one-line description of this object.

Reimplemented from Teuchos::Describable.

template<class MatrixType , class LocalScalarType >
void Ifpack2::DenseContainer< MatrixType, LocalScalarType >::describe ( Teuchos::FancyOStream out,
const Teuchos::EVerbosityLevel  verbLevel = Teuchos::Describable::verbLevel_default
) const
virtual

Print the object with some verbosity level to the given FancyOStream.

Reimplemented from Teuchos::Describable.

template<class MatrixType , class LocalScalarType >
std::string Ifpack2::DenseContainer< MatrixType, LocalScalarType >::getName ( )
static

Get the name of this container type for Details::constructContainer()


The documentation for this class was generated from the following files:
