Interface for creating and solving a set of local linear problems. More...

#include <Ifpack2_Container_decl.hpp>

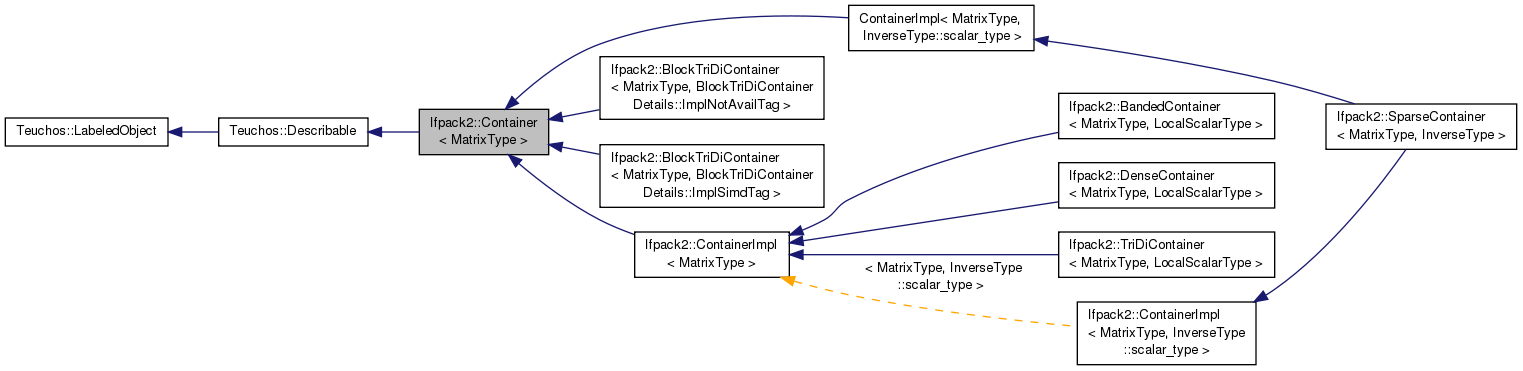

Inheritance diagram for Ifpack2::Container< MatrixType >:

Public Member Functions
	Container (const Teuchos::RCP< const row_matrix_type > &matrix, const Teuchos::Array< Teuchos::Array< LO > > &partitions, bool pointIndexed)
	Constructor. More...

virtual	~Container ()
	Destructor. More...

Teuchos::ArrayView< const LO >	getBlockRows (int blockIndex) const
	Local indices of the rows of the input matrix that belong to this block. More...

virtual void	initialize ()=0
	Do all set-up operations that only require matrix structure. More...

void	setBlockSizes (const Teuchos::Array< Teuchos::Array< LO > > &partitions)
	Initialize arrays with information about block sizes. More...

bool	isInitialized () const
	Whether the container has been successfully initialized. More...

bool	isComputed () const
	Whether the container has been successfully computed. More...

virtual void	compute ()=0
	Extract the local diagonal blocks and prepare the solver. More...

virtual void	setParameters (const Teuchos::ParameterList &List)=0
	Set parameters, if any. More...

virtual void	apply (ConstHostView X, HostView Y, int blockIndex, Teuchos::ETransp mode=Teuchos::NO_TRANS, SC alpha=Teuchos::ScalarTraits< SC >::one(), SC beta=Teuchos::ScalarTraits< SC >::zero()) const =0
	Compute `Y := alpha * M^{-1} X + beta*Y`. More...

virtual void	weightedApply (ConstHostView X, HostView Y, ConstHostView D, int blockIndex, Teuchos::ETransp mode=Teuchos::NO_TRANS, SC alpha=Teuchos::ScalarTraits< SC >::one(), SC beta=Teuchos::ScalarTraits< SC >::zero()) const =0
	Compute `Y := alpha * diag(D) * M^{-1} (diag(D) * X) + beta*Y`. More...

virtual void	applyInverseJacobi (const mv_type &, mv_type &, SC dampingFactor, bool, int) const =0
	Compute `Y := (1 - a) Y + a D^{-1} (X - R*Y)`. More...

virtual void	applyMV (const mv_type &X, mv_type &Y) const
	Wrapper for apply with MultiVector. More...

virtual void	weightedApplyMV (const mv_type &X, mv_type &Y, vector_type &W) const
	Wrapper for weightedApply with MultiVector. More...

virtual std::ostream &	print (std::ostream &os) const =0
	Print basic information about the container to `os`. More...

Static Public Member Functions
static std::string	getName ()

Protected Types
using	ISC = typename Kokkos::ArithTraits< SC >::val_type
	Internal representation of Scalar in Kokkos::View. More...

using	HostView = typename mv_type::dual_view_type::t_host

Protected Member Functions
virtual void	DoGSBlock (ConstHostView X, HostView Y, HostView Y2, HostView Resid, SC dampingFactor, LO i) const
	Do one step of Gauss-Seidel on block i (used by DoGaussSeidel and DoSGS) More...

Protected Attributes
Teuchos::RCP< const row_matrix_type >	inputMatrix_
	The input matrix to the constructor. More...

Teuchos::RCP< const crs_matrix_type >	inputCrsMatrix_
	The input matrix, dynamic cast to CrsMatrix. May be null. More...

Teuchos::RCP< const block_crs_matrix_type >	inputBlockMatrix_
	The input matrix, dynamic cast to BlockCrsMatrix. May be null. More...

int	numBlocks_
	The number of blocks (partitions) in the container. More...

Teuchos::Array< LO >	blockRows_
	Local indices of the rows of the input matrix that belong to this block. More...

Teuchos::Array< LO >	blockSizes_
	Number of rows in each block. More...

Teuchos::Array< LO >	blockOffsets_
	Starting index in blockRows_ of local row indices for each block. More...

Teuchos::RCP< vector_type >	Diag_
	Diagonal elements. More...

bool	IsParallel_
	Whether the problem is distributed across multiple MPI processes. More...

LO	NumLocalRows_
	Number of local rows in input matrix. More...

GO	NumGlobalRows_
	Number of global rows in input matrix. More...

GO	NumGlobalNonzeros_
	Number of nonzeros in input matrix. More...

bool	hasBlockCrs_
	Whether the input matrix is a BlockCRS matrix. More...

int	bcrsBlockSize_
	If hasBlockCrs_, the number of DOFs per vertex. Otherwise 1. More...

bool	pointIndexed_
	(If hasBlockCrs_) Whether the blocks are described using sub-block row indices instead of full block rows. More...

LO	scalarsPerRow_

bool	IsInitialized_
	If `true`, the container has been successfully initialized. More...

bool	IsComputed_
	If `true`, the container has been successfully computed. More...

Detailed Description

template<class MatrixType>
class Ifpack2::Container< MatrixType >

Interface for creating and solving a set of local linear problems.

Template Parameters

MatrixType A specialization of Tpetra::RowMatrix.

This class is mainly useful for the implementation of BlockRelaxation, and other preconditioners that need to solve linear systems with diagonal blocks of a sparse matrix.

Users of BlockRelaxation (and any analogous preconditioners) do not normally need to interact with the Container interface. However, they do need to specify a specific Container subclass to use, for example as the second template parameter (ContainerType) of BlockRelaxation. Implementations of Container specify

the kind of data structure used to store the local matrix, and
how to solve a linear system with the local matrix.

For example, the SparseContainer subclass uses sparse matrices (Tpetra::CrsMatrix) to store each diagonal block, and can use any given Ifpack2 Preconditioner subclass to solve linear systems.

A Container can create, populate, and solve local linear systems. A local linear system matrix, B, is a submatrix of the local components of the distributed matrix, A. The idea of Container is to specify the rows of A that are contained in each B, then extract B from A, and compute all it is necessary to solve a linear system in B. Then, set the initial guess (if necessary) and right-hand sides for B, and solve the linear systems in B.

If you are writing a class (comparable to BlockRelaxation) that uses Container, you should use it in the following way:

Create a Container object, specifying the global matrix A and the indices of the local rows of A that are contained in each B. The latter indices come from a Partitioner object.
Optionally, set linear solve parameters using setParameters().
Initialize the container by calling initialize().
Prepare the linear system solver using compute().
Solve a linear system using apply() for each block index (from 0 to numBlocks_) as needed.

For an example of Steps 1-5 above, see ExtractSubmatrices() and ApplyInverseGS() in Ifpack2_BlockRelaxation_def.hpp.

Member Typedef Documentation

template<class MatrixType>

using Ifpack2::Container< MatrixType >::ISC = typename Kokkos::ArithTraits<SC>::val_type

protected

Internal representation of Scalar in Kokkos::View.

template<class MatrixType>

using Ifpack2::Container< MatrixType >::HostView = typename mv_type::dual_view_type::t_host

protected

HostView (the host-space internal representation for Tpetra::Multivector) is the type of the vector arguments of DoJacobi, DoGaussSeidel, and DoSGS.

Constructor & Destructor Documentation

template<class MatrixType >

Ifpack2::Container< MatrixType >::Container	(	const Teuchos::RCP< const row_matrix_type > &	matrix,
		const Teuchos::Array< Teuchos::Array< LO > > &	partitions,
		bool	pointIndexed
	)

Constructor.

Parameters

matrix	[in] The original input matrix. This Container will construct local diagonal blocks from its rows according to `partitions`.
partitioner	[in] The Partitioner object that assigns local rows of the input matrix to blocks.
pointIndexed	[in] If the input matrix is a `Tpetra::BlockCrsMatrix`, whether elements of `partitions`[k] identify rows within blocks (true) or whole blocks (false).

template<class MatrixType >

Ifpack2::Container< MatrixType >::~Container ( )

virtual

Destructor.

Member Function Documentation

template<class MatrixType >

Teuchos::ArrayView< const typename MatrixType::local_ordinal_type > Ifpack2::Container< MatrixType >::getBlockRows ( int blockIndex ) const

Local indices of the rows of the input matrix that belong to this block.

The set of (local) rows assigned to this Container is defined by passing in a set of indices blockRows[i] = j to the constructor, where i (from 0 to getNumRows() - 1) indicates the Container's row, and j indicates the local row in the calling process. Subclasses must always pass along these indices to the base class.

The indices are usually used to reorder the local row index (on the calling process) of the i-th row in the Container.

For an example of how to use these indices, see the implementation of BlockRelaxation::ExtractSubmatrices() in Ifpack2_BlockRelaxation_def.hpp.

template<class MatrixType>

virtual void Ifpack2::Container< MatrixType >::initialize ( )

pure virtual

Do all set-up operations that only require matrix structure.

If the input matrix's structure changes, you must call this method before you may call compute(). You must then call compute() before you may call apply() or weightedApply().

"Structure" refers to the graph of the matrix: the local and global dimensions, and the populated entries in each row.

Implemented in Ifpack2::BlockTriDiContainer< MatrixType, BlockTriDiContainerDetails::ImplNotAvailTag >, Ifpack2::ContainerImpl< MatrixType, LocalScalarType >, Ifpack2::ContainerImpl< MatrixType, InverseType::scalar_type >, Ifpack2::BlockTriDiContainer< MatrixType, BlockTriDiContainerDetails::ImplSimdTag >, Ifpack2::SparseContainer< MatrixType, InverseType >, Ifpack2::BandedContainer< MatrixType, LocalScalarType >, Ifpack2::DenseContainer< MatrixType, LocalScalarType >, and Ifpack2::TriDiContainer< MatrixType, LocalScalarType >.

template<class MatrixType >

void Ifpack2::Container< MatrixType >::setBlockSizes ( const Teuchos::Array< Teuchos::Array< LO > > & partitions )

Initialize arrays with information about block sizes.

template<class MatrixType >

bool Ifpack2::Container< MatrixType >::isInitialized ( ) const

Whether the container has been successfully initialized.

template<class MatrixType >

bool Ifpack2::Container< MatrixType >::isComputed ( ) const

Whether the container has been successfully computed.

template<class MatrixType>

virtual void Ifpack2::Container< MatrixType >::compute ( )

pure virtual

Extract the local diagonal blocks and prepare the solver.

If any entries' values in the input matrix have changed, you must call this method before you may call apply() or weightedApply().

If DOF decoupling is to be used, it must be enabled with enableDecoupling() before calling compute().

Implemented in Ifpack2::BlockTriDiContainer< MatrixType, BlockTriDiContainerDetails::ImplNotAvailTag >, Ifpack2::ContainerImpl< MatrixType, LocalScalarType >, Ifpack2::ContainerImpl< MatrixType, InverseType::scalar_type >, Ifpack2::BlockTriDiContainer< MatrixType, BlockTriDiContainerDetails::ImplSimdTag >, Ifpack2::SparseContainer< MatrixType, InverseType >, Ifpack2::BandedContainer< MatrixType, LocalScalarType >, Ifpack2::DenseContainer< MatrixType, LocalScalarType >, and Ifpack2::TriDiContainer< MatrixType, LocalScalarType >.

template<class MatrixType>

virtual void Ifpack2::Container< MatrixType >::setParameters ( const Teuchos::ParameterList & List )

pure virtual

Set parameters, if any.

Implemented in Ifpack2::BlockTriDiContainer< MatrixType, BlockTriDiContainerDetails::ImplNotAvailTag >, Ifpack2::ContainerImpl< MatrixType, LocalScalarType >, Ifpack2::ContainerImpl< MatrixType, InverseType::scalar_type >, Ifpack2::BlockTriDiContainer< MatrixType, BlockTriDiContainerDetails::ImplSimdTag >, Ifpack2::SparseContainer< MatrixType, InverseType >, and Ifpack2::BandedContainer< MatrixType, LocalScalarType >.

template<class MatrixType>

virtual void Ifpack2::Container< MatrixType >::apply	(	ConstHostView	X,
		HostView	Y,
		int	blockIndex,
		Teuchos::ETransp	mode = `Teuchos::NO_TRANS`,
		SC	alpha = `Teuchos::ScalarTraits< SC >::one()`,
		SC	beta = `Teuchos::ScalarTraits< SC >::zero()`
	)		const

pure virtual

Compute Y := alpha * M^{-1} X + beta*Y.

X is in the domain Map of the original matrix (the argument to compute()), and Y is in the range Map of the original matrix. This method only reads resp. modifies the permuted subset of entries of X resp. Y related to the diagonal block M. That permuted subset is defined by the indices passed into the constructor.

This method is marked const for compatibility with Tpetra::Operator's method of the same name. This might require subclasses to mark some of their instance data as mutable.

Implemented in Ifpack2::ContainerImpl< MatrixType, LocalScalarType >, Ifpack2::ContainerImpl< MatrixType, InverseType::scalar_type >, and Ifpack2::SparseContainer< MatrixType, InverseType >.

template<class MatrixType>

virtual void Ifpack2::Container< MatrixType >::weightedApply	(	ConstHostView	X,
		HostView	Y,
		ConstHostView	D,
		int	blockIndex,
		Teuchos::ETransp	mode = `Teuchos::NO_TRANS`,
		SC	alpha = `Teuchos::ScalarTraits< SC >::one()`,
		SC	beta = `Teuchos::ScalarTraits< SC >::zero()`
	)		const

pure virtual

Compute Y := alpha * diag(D) * M^{-1} (diag(D) * X) + beta*Y.

Implemented in Ifpack2::ContainerImpl< MatrixType, LocalScalarType >, Ifpack2::ContainerImpl< MatrixType, InverseType::scalar_type >, and Ifpack2::SparseContainer< MatrixType, InverseType >.

template<class MatrixType>

virtual void Ifpack2::Container< MatrixType >::applyInverseJacobi	(	const mv_type &	,
		mv_type &	,
		SC	dampingFactor,
		bool	,
		int
	)		const

pure virtual

Compute Y := (1 - a) Y + a D^{-1} (X - R*Y).

Implemented in Ifpack2::ContainerImpl< MatrixType, LocalScalarType >, and Ifpack2::ContainerImpl< MatrixType, InverseType::scalar_type >.

template<class MatrixType >

void Ifpack2::Container< MatrixType >::applyMV	(	const mv_type &	X,
		mv_type &	Y
	)		const

virtual

Wrapper for apply with MultiVector.

Reimplemented in Ifpack2::ContainerImpl< MatrixType, LocalScalarType >, and Ifpack2::ContainerImpl< MatrixType, InverseType::scalar_type >.

template<class MatrixType >

void Ifpack2::Container< MatrixType >::weightedApplyMV	(	const mv_type &	X,
		mv_type &	Y,
		vector_type &	W
	)		const

virtual

Wrapper for weightedApply with MultiVector.

Reimplemented in Ifpack2::ContainerImpl< MatrixType, LocalScalarType >, and Ifpack2::ContainerImpl< MatrixType, InverseType::scalar_type >.

template<class MatrixType>

virtual std::ostream& Ifpack2::Container< MatrixType >::print ( std::ostream & os ) const

pure virtual

Print basic information about the container to os.

Implemented in Ifpack2::ContainerImpl< MatrixType, LocalScalarType >, Ifpack2::ContainerImpl< MatrixType, InverseType::scalar_type >, Ifpack2::BlockTriDiContainer< MatrixType, BlockTriDiContainerDetails::ImplNotAvailTag >, Ifpack2::BlockTriDiContainer< MatrixType, BlockTriDiContainerDetails::ImplSimdTag >, Ifpack2::SparseContainer< MatrixType, InverseType >, Ifpack2::BandedContainer< MatrixType, LocalScalarType >, Ifpack2::TriDiContainer< MatrixType, LocalScalarType >, and Ifpack2::DenseContainer< MatrixType, LocalScalarType >.

template<class MatrixType >

std::string Ifpack2::Container< MatrixType >::getName ( )

static

Returns string describing the container. See Details::ContainerFactory.

template<class MatrixType >

void Ifpack2::Container< MatrixType >::DoGSBlock	(	ConstHostView	X,
		HostView	Y,
		HostView	Y2,
		HostView	Resid,
		SC	dampingFactor,
		LO	i
	)		const

protectedvirtual

Do one step of Gauss-Seidel on block i (used by DoGaussSeidel and DoSGS)

Reimplemented in Ifpack2::ContainerImpl< MatrixType, LocalScalarType >, and Ifpack2::ContainerImpl< MatrixType, InverseType::scalar_type >.

Member Data Documentation

template<class MatrixType>

Teuchos::RCP<const row_matrix_type> Ifpack2::Container< MatrixType >::inputMatrix_

protected

The input matrix to the constructor.

template<class MatrixType>

Teuchos::RCP<const crs_matrix_type> Ifpack2::Container< MatrixType >::inputCrsMatrix_

protected

The input matrix, dynamic cast to CrsMatrix. May be null.

template<class MatrixType>

Teuchos::RCP<const block_crs_matrix_type> Ifpack2::Container< MatrixType >::inputBlockMatrix_

protected

The input matrix, dynamic cast to BlockCrsMatrix. May be null.

template<class MatrixType>

int Ifpack2::Container< MatrixType >::numBlocks_

protected

The number of blocks (partitions) in the container.

template<class MatrixType>

Teuchos::Array<LO> Ifpack2::Container< MatrixType >::blockRows_

protected

Local indices of the rows of the input matrix that belong to this block.

template<class MatrixType>

Teuchos::Array<LO> Ifpack2::Container< MatrixType >::blockSizes_

protected

Number of rows in each block.

template<class MatrixType>

Teuchos::Array<LO> Ifpack2::Container< MatrixType >::blockOffsets_

protected

Starting index in blockRows_ of local row indices for each block.

template<class MatrixType>

Teuchos::RCP<vector_type> Ifpack2::Container< MatrixType >::Diag_

mutableprotected

Diagonal elements.

template<class MatrixType>

bool Ifpack2::Container< MatrixType >::IsParallel_

protected

Whether the problem is distributed across multiple MPI processes.

template<class MatrixType>

LO Ifpack2::Container< MatrixType >::NumLocalRows_

protected

Number of local rows in input matrix.

template<class MatrixType>

GO Ifpack2::Container< MatrixType >::NumGlobalRows_

protected

Number of global rows in input matrix.

template<class MatrixType>

GO Ifpack2::Container< MatrixType >::NumGlobalNonzeros_

protected

Number of nonzeros in input matrix.

template<class MatrixType>

bool Ifpack2::Container< MatrixType >::hasBlockCrs_

protected

Whether the input matrix is a BlockCRS matrix.

template<class MatrixType>

int Ifpack2::Container< MatrixType >::bcrsBlockSize_

protected

If hasBlockCrs_, the number of DOFs per vertex. Otherwise 1.

template<class MatrixType>

bool Ifpack2::Container< MatrixType >::pointIndexed_

protected

(If hasBlockCrs_) Whether the blocks are described using sub-block row indices instead of full block rows.

template<class MatrixType>

LO Ifpack2::Container< MatrixType >::scalarsPerRow_

protected

Number of scalars corresponding to one element of blockRows_ If pointIndexed_, always 1. Otherwise if hasBlockCrs_, then bcrsBlockSize_. Otherwise 1.

template<class MatrixType>

bool Ifpack2::Container< MatrixType >::IsInitialized_

protected

If true, the container has been successfully initialized.

template<class MatrixType>

bool Ifpack2::Container< MatrixType >::IsComputed_

protected

If true, the container has been successfully computed.

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

template<class MatrixType> class Ifpack2::Container< MatrixType >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<class MatrixType>
class Ifpack2::Container< MatrixType >
