Epetra_IntMultiVector: A class for constructing and using dense multi-vectors, vectors and matrices in parallel. More...

#include <Epetra_IntMultiVector.h>

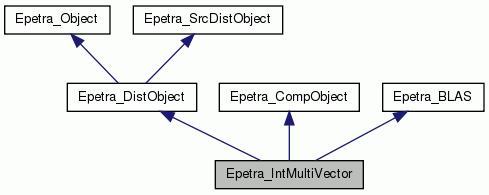

Inheritance diagram for Epetra_IntMultiVector:

[legend]

Public Member Functions
int	ReplaceMap (const Epetra_BlockMap &map)
	Replace map, only if new map has same point-structure as current map. More...

int	Reduce ()

Public Member Functions inherited from Epetra_DistObject
	Epetra_DistObject (const Epetra_BlockMap &Map)
	Basic Epetra_DistObject constuctor. More...

	Epetra_DistObject (const Epetra_BlockMap &Map, const char *const Label)

	Epetra_DistObject (const Epetra_DistObject &Source)
	Epetra_DistObject copy constructor. More...

virtual	~Epetra_DistObject ()
	Epetra_DistObject destructor. More...

int	Import (const Epetra_SrcDistObject &A, const Epetra_Import &Importer, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
	Imports an Epetra_DistObject using the Epetra_Import object. More...

int	Import (const Epetra_SrcDistObject &A, const Epetra_Export &Exporter, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
	Imports an Epetra_DistObject using the Epetra_Export object. More...

int	Export (const Epetra_SrcDistObject &A, const Epetra_Import &Importer, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
	Exports an Epetra_DistObject using the Epetra_Import object. More...

int	Export (const Epetra_SrcDistObject &A, const Epetra_Export &Exporter, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
	Exports an Epetra_DistObject using the Epetra_Export object. More...

const Epetra_BlockMap &	Map () const
	Returns the address of the Epetra_BlockMap for this multi-vector. More...

const Epetra_Comm &	Comm () const
	Returns the address of the Epetra_Comm for this multi-vector. More...

bool	DistributedGlobal () const
	Returns true if this multi-vector is distributed global, i.e., not local replicated. More...

Public Member Functions inherited from Epetra_Object
	Epetra_Object (int TracebackModeIn=-1, bool set_label=true)
	Epetra_Object Constructor. More...

	Epetra_Object (const char *const Label, int TracebackModeIn=-1)
	Epetra_Object Constructor. More...

	Epetra_Object (const Epetra_Object &Object)
	Epetra_Object Copy Constructor. More...

virtual	~Epetra_Object ()
	Epetra_Object Destructor. More...

virtual void	SetLabel (const char *const Label)
	Epetra_Object Label definition using char *. More...

virtual const char *	Label () const
	Epetra_Object Label access funtion. More...

virtual int	ReportError (const std::string Message, int ErrorCode) const
	Error reporting method. More...

Public Member Functions inherited from Epetra_SrcDistObject
virtual	~Epetra_SrcDistObject ()
	Epetra_SrcDistObject destructor. More...

Public Member Functions inherited from Epetra_CompObject
Epetra_CompObject &	operator= (const Epetra_CompObject &src)

	Epetra_CompObject ()
	Basic Epetra_CompObject constuctor. More...

	Epetra_CompObject (const Epetra_CompObject &Source)
	Epetra_CompObject copy constructor. More...

virtual	~Epetra_CompObject ()
	Epetra_CompObject destructor. More...

void	SetFlopCounter (const Epetra_Flops &FlopCounter_in)
	Set the internal Epetra_Flops() pointer. More...

void	SetFlopCounter (const Epetra_CompObject &CompObject)
	Set the internal Epetra_Flops() pointer to the flop counter of another Epetra_CompObject. More...

void	UnsetFlopCounter ()
	Set the internal Epetra_Flops() pointer to 0 (no flops counted). More...

Epetra_Flops *	GetFlopCounter () const
	Get the pointer to the Epetra_Flops() object associated with this object, returns 0 if none. More...

void	ResetFlops () const
	Resets the number of floating point operations to zero for this multi-vector. More...

double	Flops () const
	Returns the number of floating point operations with this multi-vector. More...

void	UpdateFlops (int Flops_in) const
	Increment Flop count for this object. More...

void	UpdateFlops (long int Flops_in) const
	Increment Flop count for this object. More...

void	UpdateFlops (long long Flops_in) const
	Increment Flop count for this object. More...

void	UpdateFlops (double Flops_in) const
	Increment Flop count for this object. More...

void	UpdateFlops (float Flops_in) const
	Increment Flop count for this object. More...

Public Member Functions inherited from Epetra_BLAS
	Epetra_BLAS (void)
	Epetra_BLAS Constructor. More...

	Epetra_BLAS (const Epetra_BLAS &BLAS)
	Epetra_BLAS Copy Constructor. More...

virtual	~Epetra_BLAS (void)
	Epetra_BLAS Destructor. More...

float	ASUM (const int N, const float *X, const int INCX=1) const
	Epetra_BLAS one norm function (SASUM). More...

double	ASUM (const int N, const double *X, const int INCX=1) const
	Epetra_BLAS one norm function (DASUM). More...

float	DOT (const int N, const float X, const float Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS dot product function (SDOT). More...

double	DOT (const int N, const double X, const double Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS dot product function (DDOT). More...

float	NRM2 (const int N, const float *X, const int INCX=1) const
	Epetra_BLAS norm function (SNRM2). More...

double	NRM2 (const int N, const double *X, const int INCX=1) const
	Epetra_BLAS norm function (DNRM2). More...

void	SCAL (const int N, const float ALPHA, float *X, const int INCX=1) const
	Epetra_BLAS vector scale function (SSCAL) More...

void	SCAL (const int N, const double ALPHA, double *X, const int INCX=1) const
	Epetra_BLAS vector scale function (DSCAL) More...

void	COPY (const int N, const float X, float Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS vector copy function (SCOPY) More...

void	COPY (const int N, const double X, double Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS vector scale function (DCOPY) More...

int	IAMAX (const int N, const float *X, const int INCX=1) const
	Epetra_BLAS arg maximum of absolute value function (ISAMAX) More...

int	IAMAX (const int N, const double *X, const int INCX=1) const
	Epetra_BLAS arg maximum of absolute value function (IDAMAX) More...

void	AXPY (const int N, const float ALPHA, const float X, float Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS vector update function (SAXPY) More...

void	AXPY (const int N, const double ALPHA, const double X, double Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS vector update function (DAXPY) More...

void	GEMV (const char TRANS, const int M, const int N, const float ALPHA, const float A, const int LDA, const float X, const float BETA, float *Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS matrix-vector multiply function (SGEMV) More...

void	GEMV (const char TRANS, const int M, const int N, const double ALPHA, const double A, const int LDA, const double X, const double BETA, double *Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS matrix-vector multiply function (DGEMV) More...

void	GEMM (const char TRANSA, const char TRANSB, const int M, const int N, const int K, const float ALPHA, const float A, const int LDA, const float B, const int LDB, const float BETA, float *C, const int LDC) const
	Epetra_BLAS matrix-matrix multiply function (SGEMM) More...

void	GEMM (const char TRANSA, const char TRANSB, const int M, const int N, const int K, const double ALPHA, const double A, const int LDA, const double B, const int LDB, const double BETA, double *C, const int LDC) const
	Epetra_BLAS matrix-matrix multiply function (DGEMM) More...

void	SYMM (const char SIDE, const char UPLO, const int M, const int N, const float ALPHA, const float A, const int LDA, const float B, const int LDB, const float BETA, float *C, const int LDC) const
	Epetra_BLAS symmetric matrix-matrix multiply function (SSYMM) More...

void	SYMM (const char SIDE, const char UPLO, const int M, const int N, const double ALPHA, const double A, const int LDA, const double B, const int LDB, const double BETA, double *C, const int LDC) const
	Epetra_BLAS matrix-matrix multiply function (DSYMM) More...

void	TRMM (const char SIDE, const char UPLO, const char TRANSA, const char DIAG, const int M, const int N, const float ALPHA, const float A, const int LDA, float B, const int LDB) const
	Epetra_BLAS triangular matrix-matrix multiply function (STRMM) More...

void	TRMM (const char SIDE, const char UPLO, const char TRANSA, const char DIAG, const int M, const int N, const double ALPHA, const double A, const int LDA, double B, const int LDB) const
	Epetra_BLAS triangular matrix-matrix multiply function (DTRMM) More...

void	SYRK (const char UPLO, const char TRANS, const int N, const int K, const float ALPHA, const float A, const int LDA, const float BETA, float C, const int LDC) const
	Eperta_BLAS symetric rank k funtion (ssyrk) More...

void	SYRK (const char UPLO, const char TRANS, const int N, const int K, const double ALPHA, const double A, const int LDA, const double BETA, double C, const int LDC) const
	Eperta_BLAS symetric rank k funtion (dsyrk) More...

Protected Member Functions
void	Assign (const Epetra_IntMultiVector &rhs)

int	CheckInput ()

Protected Member Functions inherited from Epetra_DistObject
virtual int	DoTransfer (const Epetra_SrcDistObject &A, Epetra_CombineMode CombineMode, int NumSameIDs, int NumPermuteIDs, int NumRemoteIDs, int NumExportIDs, int PermuteToLIDs, int PermuteFromLIDs, int RemoteLIDs, int ExportLIDs, int &LenExports, char &Exports, int &LenImports, char &Imports, Epetra_Distributor &Distor, bool DoReverse, const Epetra_OffsetIndex *Indexor)
	Perform actual transfer (redistribution) of data across memory images, using Epetra_Distributor object. More...

Protected Member Functions inherited from Epetra_Object
std::string	toString (const int &x) const

std::string	toString (const long long &x) const

std::string	toString (const double &x) const

Protected Attributes
int *	Values_

Protected Attributes inherited from Epetra_DistObject
Epetra_BlockMap	Map_

const Epetra_Comm *	Comm_

char *	Exports_

char *	Imports_

int	LenExports_

int	LenImports_

int *	Sizes_

Protected Attributes inherited from Epetra_CompObject
Epetra_Flops *	FlopCounter_

Private Member Functions
int	AllocateForCopy (void)

int	DoCopy (void)

void	UpdateOrdinalTemp () const

void	UpdateIntVectors () const

int	AllocateForView (void)

int	DoView (void)

template<typename int_type >
int	ChangeGlobalValue (int_type GlobalBlockRow, int BlockRowOffset, int VectorIndex, int OrdinalValue, bool SumInto)

int	ChangeMyValue (int MyBlockRow, int BlockRowOffset, int VectorIndex, int OrdinalValue, bool SumInto)

int	CheckSizes (const Epetra_SrcDistObject &A)
	Allows the source and target (this) objects to be compared for compatibility, return nonzero if not. More...

int	CopyAndPermute (const Epetra_SrcDistObject &Source, int NumSameIDs, int NumPermuteIDs, int PermuteToLIDs, int PermuteFromLIDs, const Epetra_OffsetIndex *Indexor, Epetra_CombineMode CombineMode=Zero)
	Perform ID copies and permutations that are on processor. More...

int	PackAndPrepare (const Epetra_SrcDistObject &Source, int NumExportIDs, int ExportLIDs, int &LenExports, char &Exports, int &SizeOfPacket, int *Sizes, bool &VarSizes, Epetra_Distributor &Distor)
	Perform any packing or preparation required for call to DoTransfer(). More...

int	UnpackAndCombine (const Epetra_SrcDistObject &Source, int NumImportIDs, int ImportLIDs, int LenImports, char Imports, int &SizeOfPacket, Epetra_Distributor &Distor, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor)
	Perform any unpacking and combining after call to DoTransfer(). More...

Private Attributes
int **	Pointers_

int	MyLength_

long long	GlobalLength_

int	NumVectors_

bool	UserAllocated_

bool	ConstantStride_

int	Stride_

bool	Allocated_

int *	OrdinalTemp_

Epetra_IntVector **	IntVectors_

Epetra_Util	Util_

Constructors/destructors
	Epetra_IntMultiVector (const Epetra_BlockMap &Map, int NumVectors, bool zeroOut=true)
	Basic Epetra_IntMultiVector constuctor. More...

	Epetra_IntMultiVector (const Epetra_IntMultiVector &Source)
	Epetra_MultiVector copy constructor. More...

	Epetra_IntMultiVector (Epetra_DataAccess CV, const Epetra_BlockMap &Map, int *A, int MyLDA, int NumVectors)
	Set multi-vector values from two-dimensional array. More...

	Epetra_IntMultiVector (Epetra_DataAccess CV, const Epetra_BlockMap &Map, int **ArrayOfPointers, int NumVectors)
	Set multi-vector values from array of pointers. More...

	Epetra_IntMultiVector (Epetra_DataAccess CV, const Epetra_IntMultiVector &Source, int *Indices, int NumVectors)
	Set multi-vector values from list of vectors in an existing Epetra_IntMultiVector. More...

	Epetra_IntMultiVector (Epetra_DataAccess CV, const Epetra_IntMultiVector &Source, int StartIndex, int NumVectors)
	Set multi-vector values from range of vectors in an existing Epetra_IntMultiVector. More...

virtual	~Epetra_IntMultiVector ()
	Epetra_MultiVector destructor. More...

Post-construction modification routines
int	ReplaceGlobalValue (int GlobalRow, int VectorIndex, int OrdinalValue)
	Replace current value at the specified (GlobalRow, VectorIndex) location with OrdinalValue. More...

int	ReplaceGlobalValue (long long GlobalRow, int VectorIndex, int OrdinalValue)

int	ReplaceGlobalValue (int GlobalBlockRow, int BlockRowOffset, int VectorIndex, int OrdinalValue)
	Replace current value at the specified (GlobalBlockRow, BlockRowOffset, VectorIndex) location with OrdinalValue. More...

int	ReplaceGlobalValue (long long GlobalBlockRow, int BlockRowOffset, int VectorIndex, int OrdinalValue)

int	SumIntoGlobalValue (int GlobalRow, int VectorIndex, int OrdinalValue)
	Adds OrdinalValue to existing value at the specified (GlobalRow, VectorIndex) location. More...

int	SumIntoGlobalValue (long long GlobalRow, int VectorIndex, int OrdinalValue)

int	SumIntoGlobalValue (int GlobalBlockRow, int BlockRowOffset, int VectorIndex, int OrdinalValue)
	Adds OrdinalValue to existing value at the specified (GlobalBlockRow, BlockRowOffset, VectorIndex) location. More...

int	SumIntoGlobalValue (long long GlobalBlockRow, int BlockRowOffset, int VectorIndex, int OrdinalValue)

int	ReplaceMyValue (int MyRow, int VectorIndex, int OrdinalValue)
	Replace current value at the specified (MyRow, VectorIndex) location with OrdinalValue. More...

int	ReplaceMyValue (int MyBlockRow, int BlockRowOffset, int VectorIndex, int OrdinalValue)
	Replace current value at the specified (MyBlockRow, BlockRowOffset, VectorIndex) location with OrdinalValue. More...

int	SumIntoMyValue (int MyRow, int VectorIndex, int OrdinalValue)
	Adds OrdinalValue to existing value at the specified (MyRow, VectorIndex) location. More...

int	SumIntoMyValue (int MyBlockRow, int BlockRowOffset, int VectorIndex, int OrdinalValue)
	Adds OrdinalValue to existing value at the specified (MyBlockRow, BlockRowOffset, VectorIndex) location. More...

int	PutScalar (int OrdinalConstant)
	Initialize all values in a multi-vector with constant value. More...

Extraction methods
int	ExtractCopy (int *A, int MyLDA) const
	Put multi-vector values into user-provided two-dimensional array. More...

int	ExtractCopy (int **ArrayOfPointers) const
	Put multi-vector values into user-provided array of pointers. More...

int	ExtractView (int *A, int MyLDA) const
	Set user-provided addresses of A and MyLDA. More...

int	ExtractView (int ***ArrayOfPointers) const
	Set user-provided addresses of ArrayOfPointers. More...

Mathematical methods
int	MinValue (int *Result) const
	Compute minimum value of each vector in multi-vector. More...

int	MaxValue (int *Result) const
	Compute maximum value of each vector in multi-vector. More...

Overloaded operators
Epetra_IntMultiVector &	operator= (const Epetra_IntMultiVector &Source)
	= Operator. More...

int *&	operator[] (int i)
	Vector access function. More...

int *const &	operator[] (int i) const
	Vector access function. More...

Epetra_IntVector *&	operator() (int i)
	Vector access function. More...

const Epetra_IntVector *&	operator() (int i) const
	Vector access function. More...

Attribute access functions
int	NumVectors () const
	Returns the number of vectors in the multi-vector. More...

int	MyLength () const
	Returns the local vector length on the calling processor of vectors in the multi-vector. More...

int	GlobalLength () const
	Returns the global vector length of vectors in the multi-vector. More...

long long	GlobalLength64 () const

int	Stride () const
	Returns the stride between vectors in the multi-vector (only meaningful if ConstantStride() is true). More...

bool	ConstantStride () const
	Returns true if this multi-vector has constant stride between vectors. More...

I/O methods
virtual void	Print (std::ostream &os) const
	Print method. More...

Expert-only unsupported methods
int	ResetView (int **ArrayOfPointers)
	Reset the view of an existing multivector to point to new user data. More...

int *	Values () const
	Get pointer to MultiVector values. More...

int **	Pointers () const
	Get pointer to individual vector pointers. More...

Additional Inherited Members
Static Public Member Functions inherited from Epetra_Object
static void	SetTracebackMode (int TracebackModeValue)
	Set the value of the Epetra_Object error traceback report mode. More...

static int	GetTracebackMode ()
	Get the value of the Epetra_Object error report mode. More...

static std::ostream &	GetTracebackStream ()
	Get the output stream for error reporting. More...

Static Public Attributes inherited from Epetra_Object
static int	TracebackMode

Detailed Description

Epetra_IntMultiVector: A class for constructing and using dense multi-vectors, vectors and matrices in parallel.

The Epetra_IntMultiVector class enables the construction and use of ordinal-valued, dense vectors, multi-vectors, and matrices in a distributed memory environment. The dimensions and distribution of the dense multi-vectors is determined in part by a Epetra_Comm object, a Epetra_Map (or Epetra_LocalMap or Epetra_BlockMap) and the number of vectors passed to the constructors described below.

There are several concepts that important for understanding the Epetra_IntMultiVector class:

IntMulti-vectors, IntVectors and IntMatrices.
- IntVector - A list of ordinal-valued numbers. Also an IntMultiVector with one vector.
- IntMulti-Vector - A collection of one or more vectors, all having the same length and distribution.
- (Dense) Matrix - A special form of multi-vector such that stride in memory between any two consecutive vectors in the multi-vector is the same for all vectors. This is identical to a two-dimensional array in Fortran and plays an important part in high performance computations.
Distributed Global vs. Replicated Local.
- Distributed Global Multi-vectors - In most instances, a multi-vector will be partitioned across multiple memory images associated with multiple processors. In this case, there is a unique copy of each element and elements are spread across all processors specified by the Epetra_Comm communicator.
- Replicated Local Multi-vectors - Some algorithms use multi-vectors that are too small to be distributed across all processors, the Hessenberg matrix in a GMRES computation. In other cases, such as with block iterative methods, block dot product functions produce small dense matrices that are required by all processors. Replicated local multi-vectors handle these types of situation.
Multi-vector Functions vs. Dense Matrix Functions.
- Multi-vector functions - These functions operate simultaneously but independently on each vector in the multi-vector and produce individual results for each vector.
- Dense matrix functions - These functions operate on the multi-vector as a matrix, providing access to selected dense BLAS and LAPACK operations.

Constructing Epetra_IntMultiVectors

Except for the basic constructor and copy constructor, Epetra_IntMultiVector constructors have two data access modes:

Copy mode - Allocates memory and makes a copy of the user-provided data. In this case, the user data is not needed after construction.
View mode - Creates a "view" of the user data. In this case, the user data is required to remain intact for the life of the multi-vector.

Warning: View mode is extremely dangerous from a data hiding perspective. Therefore, we strongly encourage users to develop code using Copy mode first and only use the View mode in a secondary optimization phase.

All Epetra_IntMultiVector constructors require a map argument that describes the layout of elements on the parallel machine. Specifically, map is a Epetra_Map, Epetra_LocalMap or Epetra_BlockMap object describing the desired memory layout for the multi-vector.

There are six different Epetra_IntMultiVector constructors:

Basic - All values are zero.
Copy - Copy an existing multi-vector.
Copy from or make view of two-dimensional Fortran style array.
Copy from or make view of an array of pointers.
Copy or make view of a list of vectors from another Epetra_IntMultiVector object.
Copy or make view of a range of vectors from another Epetra_IntMultiVector object.

Extracting Data from Epetra_IntMultiVectors

Once a Epetra_IntMultiVector is constructed, it is possible to extract a copy of the values or create a view of them.

Warning: ExtractView functions are extremely dangerous from a data hiding perspective. For both ExtractView fuctions, there is a corresponding ExtractCopy function. We strongly encourage users to develop code using ExtractCopy functions first and only use the ExtractView functions in a secondary optimization phase.

There are four Extract functions:

ExtractCopy - Copy values into a user-provided two-dimensional array.
ExtractCopy - Copy values into a user-provided array of pointers.
ExtractView - Set user-provided two-dimensional array parameters to point to Epetra_IntMultiVector data.
ExtractView - Set user-provided array of pointer parameters to point to Epetra_IntMultiVector data.

Vector, Matrix and Utility Functions

Once a Epetra_IntMultiVector is constructed, a variety of mathematical functions can be applied to the individual vectors. Specifically:

Dot Products.
Vector Updates.
p Norms.
Weighted Norms.
Minimum, Maximum and Average Values.

Counting Floating Point Operations

Each Epetra_IntMultiVector object keep track of the number of serial floating point operations performed using the specified object as the this argument to the function. The Flops() function returns this number as a double precision number. Using this information, in conjunction with the Epetra_Time class, one can get accurate parallel performance numbers. The ResetFlops() function resets the floating point counter.

Warning: A Epetra_Map, Epetra_LocalMap or Epetra_BlockMap object is required for all Epetra_IntMultiVector constructors.

Definition at line 187 of file Epetra_IntMultiVector.h.

Constructor & Destructor Documentation

Epetra_IntMultiVector::Epetra_IntMultiVector	(	const Epetra_BlockMap &	Map,
		int	NumVectors,
		bool	zeroOut = `true`
	)

Basic Epetra_IntMultiVector constuctor.

Creates a Epetra_IntMultiVector object and, by default, fills with zero values.

Parameters

In	Map - A Epetra_LocalMap, Epetra_Map or Epetra_BlockMap.

Warning: Note that, because Epetra_LocalMap derives from Epetra_Map and Epetra_Map derives from Epetra_BlockMap, this constructor works for all three types of Epetra map classes.

Parameters

In	NumVectors - Number of vectors in multi-vector.
In	zeroOut - If `true` then the allocated memory will be zeroed out initialy. If `false` then this memory will not be touched which can be significantly faster.

Returns: Pointer to a Epetra_IntMultiVector.

Definition at line 60 of file Epetra_IntMultiVector.cpp.

Epetra_IntMultiVector::Epetra_IntMultiVector ( const Epetra_IntMultiVector & Source )

Epetra_MultiVector copy constructor.

Definition at line 85 of file Epetra_IntMultiVector.cpp.

Epetra_IntMultiVector::Epetra_IntMultiVector	(	Epetra_DataAccess	CV,
		const Epetra_BlockMap &	Map,
		int *	A,
		int	MyLDA,
		int	NumVectors
	)

Set multi-vector values from two-dimensional array.

Parameters

In	Epetra_DataAccess - Enumerated type set to Copy or View.
In	Map - A Epetra_LocalMap, Epetra_Map or Epetra_BlockMap.
In	A - Pointer to an array of ordinal numbers. The first vector starts at A. The second vector starts at A+MyLDA, the third at A+2*MyLDA, and so on.
In	MyLDA - The "Leading Dimension", or stride between vectors in memory.

Warning: This value refers to the stride on the calling processor. Thus it is a local quantity, not a global quantity.

Parameters

In	NumVectors - Number of vectors in multi-vector.

Returns: Integer error code, set to 0 if successful.

See Detailed Description section for further discussion.

Definition at line 111 of file Epetra_IntMultiVector.cpp.

Epetra_IntMultiVector::Epetra_IntMultiVector	(	Epetra_DataAccess	CV,
		const Epetra_BlockMap &	Map,
		int **	ArrayOfPointers,
		int	NumVectors
	)

Set multi-vector values from array of pointers.

Parameters

In	Epetra_DataAccess - Enumerated type set to Copy or View.
In	Map - A Epetra_LocalMap, Epetra_Map or Epetra_BlockMap.
In	ArrayOfPointers - An array of pointers such that ArrayOfPointers[i] points to the memory location containing ith vector to be copied.
In	NumVectors - Number of vectors in multi-vector.

Returns: Integer error code, set to 0 if successful.

See Detailed Description section for further discussion.

Definition at line 141 of file Epetra_IntMultiVector.cpp.

Epetra_IntMultiVector::Epetra_IntMultiVector	(	Epetra_DataAccess	CV,
		const Epetra_IntMultiVector &	Source,
		int *	Indices,
		int	NumVectors
	)

Set multi-vector values from list of vectors in an existing Epetra_IntMultiVector.

Parameters

In	Epetra_DataAccess - Enumerated type set to Copy or View.
In	Source - An existing fully constructed Epetra_IntMultiVector.
In	Indices - Integer list of the vectors to copy.
In	NumVectors - Number of vectors in multi-vector.

Returns: Integer error code, set to 0 if successful.

See Detailed Description section for further discussion.

Definition at line 172 of file Epetra_IntMultiVector.cpp.

Epetra_IntMultiVector::Epetra_IntMultiVector	(	Epetra_DataAccess	CV,
		const Epetra_IntMultiVector &	Source,
		int	StartIndex,
		int	NumVectors
	)

Set multi-vector values from range of vectors in an existing Epetra_IntMultiVector.

Parameters

In	Epetra_DataAccess - Enumerated type set to Copy or View.
In	Source - An existing fully constructed Epetra_IntMultiVector.
In	StartIndex - First of the vectors to copy.
In	NumVectors - Number of vectors in multi-vector.

Returns: Integer error code, set to 0 if successful.

See Detailed Description section for further discussion.

Definition at line 203 of file Epetra_IntMultiVector.cpp.

Epetra_IntMultiVector::~Epetra_IntMultiVector ( )

virtual

Epetra_MultiVector destructor.

Definition at line 230 of file Epetra_IntMultiVector.cpp.

Member Function Documentation

int Epetra_IntMultiVector::ReplaceGlobalValue	(	int	GlobalRow,
		int	VectorIndex,
		int	OrdinalValue
	)

Replace current value at the specified (GlobalRow, VectorIndex) location with OrdinalValue.

Replaces the existing value for a single entry in the multivector. The specified global row must correspond to a GID owned by the map of the multivector on the calling processor. In other words, this method does not perform cross-processor communication.

If the map associated with this multivector is an Epetra_BlockMap, only the first point entry associated with the global row will be modified. To modify a different point entry, use the other version of this method

Parameters

In	GlobalRow - Row of Multivector to modify in global index space.
In	VectorIndex - Vector within MultiVector that should to modify.
In	OrdinalValue - Value to add to existing value.

Returns: Integer error code, set to 0 if successful, set to 1 if GlobalRow not associated with calling processor set to -1 if VectorIndex >= NumVectors().

Definition at line 363 of file Epetra_IntMultiVector.cpp.

int Epetra_IntMultiVector::ReplaceGlobalValue	(	long long	GlobalRow,
		int	VectorIndex,
		int	OrdinalValue
	)

Definition at line 372 of file Epetra_IntMultiVector.cpp.

int Epetra_IntMultiVector::ReplaceGlobalValue	(	int	GlobalBlockRow,
		int	BlockRowOffset,
		int	VectorIndex,
		int	OrdinalValue
	)

Replace current value at the specified (GlobalBlockRow, BlockRowOffset, VectorIndex) location with OrdinalValue.

Replaces the existing value for a single entry in the multivector. The specified global block row and block row offset must correspond to a GID owned by the map of the multivector on the calling processor. In other words, this method does not perform cross-processor communication.

Parameters

In	GlobalBlockRow - BlockRow of Multivector to modify in global index space.
In	BlockRowOffset - Offset into BlockRow of Multivector to modify in global index space.
In	VectorIndex - Vector within MultiVector that should to modify.
In	OrdinalValue - Value to add to existing value.

Returns: Integer error code, set to 0 if successful, set to 1 if GlobalRow not associated with calling processor set to -1 if VectorIndex >= NumVectors(), set to -2 if BlockRowOffset is out-of-range.

Definition at line 381 of file Epetra_IntMultiVector.cpp.

int Epetra_IntMultiVector::ReplaceGlobalValue	(	long long	GlobalBlockRow,
		int	BlockRowOffset,
		int	VectorIndex,
		int	OrdinalValue
	)

Definition at line 390 of file Epetra_IntMultiVector.cpp.

int Epetra_IntMultiVector::SumIntoGlobalValue	(	int	GlobalRow,
		int	VectorIndex,
		int	OrdinalValue
	)

Adds OrdinalValue to existing value at the specified (GlobalRow, VectorIndex) location.

Sums the given value into the existing value for a single entry in the multivector. The specified global row must correspond to a GID owned by the map of the multivector on the calling processor. In other words, this method does not perform cross-processor communication.

If the map associated with this multivector is an Epetra_BlockMap, only the first point entry associated with the global row will be modified. To modify a different point entry, use the other version of this method

Parameters

In	GlobalRow - Row of Multivector to modify in global index space.
In	VectorIndex - Vector within MultiVector that should to modify.
In	OrdinalValue - Value to add to existing value.

Returns: Integer error code, set to 0 if successful, set to 1 if GlobalRow not associated with calling processor set to -1 if VectorIndex >= NumVectors().

Definition at line 399 of file Epetra_IntMultiVector.cpp.

int Epetra_IntMultiVector::SumIntoGlobalValue	(	long long	GlobalRow,
		int	VectorIndex,
		int	OrdinalValue
	)

Definition at line 408 of file Epetra_IntMultiVector.cpp.

int Epetra_IntMultiVector::SumIntoGlobalValue	(	int	GlobalBlockRow,
		int	BlockRowOffset,
		int	VectorIndex,
		int	OrdinalValue
	)

Adds OrdinalValue to existing value at the specified (GlobalBlockRow, BlockRowOffset, VectorIndex) location.

Sums the given value into the existing value for a single entry in the multivector. The specified global block row and block row offset must correspond to a GID owned by the map of the multivector on the calling processor. In other words, this method does not perform cross-processor communication.

Parameters

In	GlobalBlockRow - BlockRow of Multivector to modify in global index space.
In	BlockRowOffset - Offset into BlockRow of Multivector to modify in global index space.
In	VectorIndex - Vector within MultiVector that should to modify.
In	ScalarValue - Value to add to existing value.

Returns: Integer error code, set to 0 if successful, set to 1 if GlobalRow not associated with calling processor set to -1 if VectorIndex >= NumVectors(), set to -2 if BlockRowOffset is out-of-range.

Definition at line 417 of file Epetra_IntMultiVector.cpp.

int Epetra_IntMultiVector::SumIntoGlobalValue	(	long long	GlobalBlockRow,
		int	BlockRowOffset,
		int	VectorIndex,
		int	OrdinalValue
	)

Definition at line 426 of file Epetra_IntMultiVector.cpp.

int Epetra_IntMultiVector::ReplaceMyValue	(	int	MyRow,
		int	VectorIndex,
		int	OrdinalValue
	)

Replace current value at the specified (MyRow, VectorIndex) location with OrdinalValue.

Replaces the existing value for a single entry in the multivector. The specified local row must correspond to a GID owned by the map of the multivector on the calling processor. In other words, this method does not perform cross-processor communication.

This method is intended for use with vectors based on an Epetra_Map. If used on a vector based on a non-trivial Epetra_BlockMap, this will update only block row 0, i.e.

Epetra_IntMultiVector::ReplaceMyValue ( MyRow, VectorIndex, OrdinalValue ) is equivalent to: Epetra_IntMultiVector::ReplaceMyValue ( 0, MyRow, VectorIndex, OrdinalValue )

Parameters

In	MyRow - Row of IntMultivector to modify in local index space.
In	VectorIndex - Vector within IntMultiVector that should to modify.
In	OrdinalValue - Value to add to existing value.

Returns: Integer error code, set to 0 if successful, set to 1 if MyRow not associated with calling processor set to -1 if VectorIndex >= NumVectors().

Definition at line 434 of file Epetra_IntMultiVector.cpp.

int Epetra_IntMultiVector::ReplaceMyValue	(	int	MyBlockRow,
		int	BlockRowOffset,
		int	VectorIndex,
		int	OrdinalValue
	)

Replace current value at the specified (MyBlockRow, BlockRowOffset, VectorIndex) location with OrdinalValue.

Replaces the existing value for a single entry in the multivector. The specified local block row and block row offset must correspond to a GID owned by the map of the multivector on the calling processor. In other words, this method does not perform cross-processor communication.

Parameters

In	MyBlockRow - BlockRow of Multivector to modify in local index space.
In	BlockRowOffset - Offset into BlockRow of Multivector to modify in local index space.
In	VectorIndex - Vector within MultiVector that should to modify.
In	OrdinalValue - Value to add to existing value.

Returns: Integer error code, set to 0 if successful, set to 1 if MyRow not associated with calling processor set to -1 if VectorIndex >= NumVectors(), set to -2 if BlockRowOffset is out-of-range.

Definition at line 441 of file Epetra_IntMultiVector.cpp.

int Epetra_IntMultiVector::SumIntoMyValue	(	int	MyRow,
		int	VectorIndex,
		int	OrdinalValue
	)

Adds OrdinalValue to existing value at the specified (MyRow, VectorIndex) location.

Sums the given value into the existing value for a single entry in the multivector. The specified local row must correspond to a GID owned by the map of the multivector on the calling processor. In other words, this method does not perform cross-processor communication.

If the map associated with this multivector is an Epetra_BlockMap, only the first point entry associated with the local row will be modified. To modify a different point entry, use the other version of this method

Parameters

In	MyRow - Row of Multivector to modify in local index space.
In	VectorIndex - Vector within MultiVector that should to modify.
In	OrdinalValue - Value to add to existing value.

Returns: Integer error code, set to 0 if successful, set to 1 if MyRow not associated with calling processor set to -1 if VectorIndex >= NumVectors().

Definition at line 448 of file Epetra_IntMultiVector.cpp.

int Epetra_IntMultiVector::SumIntoMyValue	(	int	MyBlockRow,
		int	BlockRowOffset,
		int	VectorIndex,
		int	OrdinalValue
	)

Adds OrdinalValue to existing value at the specified (MyBlockRow, BlockRowOffset, VectorIndex) location.

Sums the given value into the existing value for a single entry in the multivector. The specified local block row and block row offset must correspond to a GID owned by the map of the multivector on the calling processor. In other words, this method does not perform cross-processor communication.

Parameters

In	MyBlockRow - BlockRow of Multivector to modify in local index space.
In	BlockRowOffset - Offset into BlockRow of Multivector to modify in local index space.
In	VectorIndex - Vector within MultiVector that should to modify.
In	OrdinalValue - Value to add to existing value.

Returns: Integer error code, set to 0 if successful, set to 1 if MyRow not associated with calling processor set to -1 if VectorIndex >= NumVectors(), set to -2 if BlockRowOffset is out-of-range.

Definition at line 454 of file Epetra_IntMultiVector.cpp.

int Epetra_IntMultiVector::PutScalar ( int OrdinalConstant )

Initialize all values in a multi-vector with constant value.

Parameters

In	OrdinalConstant - Value to use.

Returns: Integer error code, set to 0 if successful.

Definition at line 568 of file Epetra_IntMultiVector.cpp.

int Epetra_IntMultiVector::ExtractCopy	(	int *	A,
		int	MyLDA
	)		const

Put multi-vector values into user-provided two-dimensional array.

Parameters

Out	A - Pointer to memory space that will contain the multi-vector values. The first vector will be copied to the memory pointed to by A. The second vector starts at A+MyLDA, the third at A+2*MyLDA, and so on.
In	MyLDA - The "Leading Dimension", or stride between vectors in memory.

Warning: This value refers to the stride on the calling processor. Thus it is a local quantity, not a global quantity.

Returns: Integer error code, set to 0 if successful.

See Detailed Description section for further discussion.

Definition at line 494 of file Epetra_IntMultiVector.cpp.

int Epetra_IntMultiVector::ExtractCopy ( int ** ArrayOfPointers ) const

Put multi-vector values into user-provided array of pointers.

Parameters

Out	ArrayOfPointers - An array of pointers to memory space that will contain the multi-vector values, such that ArrayOfPointers[i] points to the memory location where the ith vector to be copied.

Returns: Integer error code, set to 0 if successful.

See Detailed Description section for further discussion.

Definition at line 529 of file Epetra_IntMultiVector.cpp.

int Epetra_IntMultiVector::ExtractView	(	int **	A,
		int *	MyLDA
	)		const

Set user-provided addresses of A and MyLDA.

Parameters

A	(Out) - Address of a pointer to that will be set to point to the values of the multi-vector. The first vector will be at the memory pointed to by A. The second vector starts at A+MyLDA, the third at A+2*MyLDA, and so on.
MyLDA	(Out) - Address of the "Leading Dimension", or stride between vectors in memory.

Warning: This value refers to the stride on the calling processor. Thus it is a local quantity, not a global quantity.

Returns: Integer error code, set to 0 if successful.

See Detailed Description section for further discussion.

Definition at line 547 of file Epetra_IntMultiVector.cpp.

int Epetra_IntMultiVector::ExtractView ( int *** ArrayOfPointers ) const

Set user-provided addresses of ArrayOfPointers.

Parameters

ArrayOfPointers (Out) - Address of array of pointers to memory space that will set to the multi-vector array of pointers, such that ArrayOfPointers[i] points to the memory location where the ith vector is located.

Returns: Integer error code, set to 0 if successful.

See Detailed Description section for further discussion.

Definition at line 560 of file Epetra_IntMultiVector.cpp.

int Epetra_IntMultiVector::MinValue ( int * Result ) const

Compute minimum value of each vector in multi-vector.

Note that the vector contents must be already initialized for this function to compute a well-defined result. The length of the vector need not be greater than zero on all processors. If length is greater than zero on any processor then a valid result will be computed.

Parameters

Out	Result - Result[i] contains minimum value of ith vector.

Returns: Integer error code, set to 0 if successful.

Definition at line 1096 of file Epetra_IntMultiVector.cpp.

int Epetra_IntMultiVector::MaxValue ( int * Result ) const

Compute maximum value of each vector in multi-vector.

Note that the vector contents must be already initialized for this function to compute a well-defined result. The length of the vector need not be greater than zero on all processors. If length is greater than zero on any processor then a valid result will be computed.

Parameters

Out	Result - Result[i] contains maximum value of ith vector.

Returns: Integer error code, set to 0 if successful.

Definition at line 1209 of file Epetra_IntMultiVector.cpp.

Epetra_IntMultiVector & Epetra_IntMultiVector::operator= ( const Epetra_IntMultiVector & Source )

= Operator.

Parameters

In	A - Epetra_IntMultiVector to copy.

Returns: Epetra_IntMultiVector.

Definition at line 1356 of file Epetra_IntMultiVector.cpp.

int*& Epetra_IntMultiVector::operator[] ( int i )

inline

Vector access function.

Returns: Pointer to the array of ordinals containing the local values of the ith vector in the multi-vector.

Definition at line 634 of file Epetra_IntMultiVector.h.

int* const& Epetra_IntMultiVector::operator[] ( int i ) const

inline

Vector access function.

Returns: Pointer to the array of ordinal containing the local values of the ith vector in the multi-vector.

Definition at line 640 of file Epetra_IntMultiVector.h.

Epetra_IntVector *& Epetra_IntMultiVector::operator() ( int i )

Vector access function.

Returns: An Epetra_IntVector pointer to the ith vector in the multi-vector.

Definition at line 1323 of file Epetra_IntMultiVector.cpp.

const Epetra_IntVector *& Epetra_IntMultiVector::operator() ( int i ) const

Vector access function.

Returns: An Epetra_IntVector pointer to the ith vector in the multi-vector.

Definition at line 1339 of file Epetra_IntMultiVector.cpp.

int Epetra_IntMultiVector::NumVectors ( ) const

inline

Returns the number of vectors in the multi-vector.

Definition at line 659 of file Epetra_IntMultiVector.h.

int Epetra_IntMultiVector::MyLength ( ) const

inline

Returns the local vector length on the calling processor of vectors in the multi-vector.

Definition at line 662 of file Epetra_IntMultiVector.h.

int Epetra_IntMultiVector::GlobalLength ( ) const

inline

Returns the global vector length of vectors in the multi-vector.

Definition at line 666 of file Epetra_IntMultiVector.h.

long long Epetra_IntMultiVector::GlobalLength64 ( ) const

inline

Definition at line 672 of file Epetra_IntMultiVector.h.

int Epetra_IntMultiVector::Stride ( ) const

inline

Returns the stride between vectors in the multi-vector (only meaningful if ConstantStride() is true).

Definition at line 675 of file Epetra_IntMultiVector.h.

bool Epetra_IntMultiVector::ConstantStride ( ) const

inline

Returns true if this multi-vector has constant stride between vectors.

Definition at line 678 of file Epetra_IntMultiVector.h.

int Epetra_IntMultiVector::ReplaceMap ( const Epetra_BlockMap & map )

Replace map, only if new map has same point-structure as current map.

return 0 if map is replaced, -1 if not.

Definition at line 509 of file Epetra_IntMultiVector.cpp.

void Epetra_IntMultiVector::Print ( std::ostream & os ) const

virtual

Print method.

Reimplemented from Epetra_DistObject.

Definition at line 1437 of file Epetra_IntMultiVector.cpp.

int Epetra_IntMultiVector::ResetView ( int ** ArrayOfPointers )

Reset the view of an existing multivector to point to new user data.

Allows the (very) light-weight replacement of multivector values for an existing multivector that was constructed using an Epetra_DataAccess mode of View. No checking is performed to see if the array of values passed in contains valid data. It is assumed that the user has verified the integrity of data before calling this method. This method is useful for situations where a multivector is needed for use with an Epetra operator or matrix and the user is not passing in a multivector, or the multivector is being passed in with another map that is not exactly compatible with the operator, but has the correct number of entries.

This method is used by AztecOO and Ifpack in the matvec, and solve methods to improve performance and reduce repeated calls to constructors and destructors.

Parameters

ArrayOfPointers Contains the array of pointers containing the multivector data.

Returns: Integer error code, set to 0 if successful, -1 if the multivector was not created as a View.

Warning: This method is extremely dangerous and should only be used by experts.

Definition at line 1424 of file Epetra_IntMultiVector.cpp.

int* Epetra_IntMultiVector::Values ( ) const

inline

Get pointer to MultiVector values.

Definition at line 719 of file Epetra_IntMultiVector.h.

int** Epetra_IntMultiVector::Pointers ( ) const

inline

Get pointer to individual vector pointers.

Definition at line 722 of file Epetra_IntMultiVector.h.

int Epetra_IntMultiVector::Reduce ( )

Definition at line 1388 of file Epetra_IntMultiVector.cpp.

void Epetra_IntMultiVector::Assign ( const Epetra_IntMultiVector & rhs )

protected

Definition at line 1365 of file Epetra_IntMultiVector.cpp.

int Epetra_IntMultiVector::CheckInput ( )

protected

int Epetra_IntMultiVector::AllocateForCopy ( void )

private

Definition at line 248 of file Epetra_IntMultiVector.cpp.

int Epetra_IntMultiVector::DoCopy ( void )

private

Definition at line 278 of file Epetra_IntMultiVector.cpp.

void Epetra_IntMultiVector::UpdateOrdinalTemp ( ) const

inlineprivate

Definition at line 748 of file Epetra_IntMultiVector.h.

void Epetra_IntMultiVector::UpdateIntVectors ( ) const

inlineprivate

Definition at line 751 of file Epetra_IntMultiVector.h.

int Epetra_IntMultiVector::AllocateForView ( void )

private

Definition at line 306 of file Epetra_IntMultiVector.cpp.

int Epetra_IntMultiVector::DoView ( void )

private

Definition at line 333 of file Epetra_IntMultiVector.cpp.

template<typename int_type >

int Epetra_IntMultiVector::ChangeGlobalValue	(	int_type	GlobalBlockRow,
		int	BlockRowOffset,
		int	VectorIndex,
		int	OrdinalValue,
		bool	SumInto
	)

private

Definition at line 462 of file Epetra_IntMultiVector.cpp.

int Epetra_IntMultiVector::ChangeMyValue	(	int	MyBlockRow,
		int	BlockRowOffset,
		int	VectorIndex,
		int	OrdinalValue,
		bool	SumInto
	)

private

Definition at line 473 of file Epetra_IntMultiVector.cpp.

int Epetra_IntMultiVector::CheckSizes ( const Epetra_SrcDistObject & Source )

privatevirtual

Allows the source and target (this) objects to be compared for compatibility, return nonzero if not.

Implements Epetra_DistObject.

Definition at line 583 of file Epetra_IntMultiVector.cpp.

int Epetra_IntMultiVector::CopyAndPermute	(	const Epetra_SrcDistObject &	Source,
		int	NumSameIDs,
		int	NumPermuteIDs,
		int *	PermuteToLIDs,
		int *	PermuteFromLIDs,
		const Epetra_OffsetIndex *	Indexor,
		Epetra_CombineMode	CombineMode = `Zero`
	)

privatevirtual

Perform ID copies and permutations that are on processor.

Implements Epetra_DistObject.

Definition at line 592 of file Epetra_IntMultiVector.cpp.

int Epetra_IntMultiVector::PackAndPrepare	(	const Epetra_SrcDistObject &	Source,
		int	NumExportIDs,
		int *	ExportLIDs,
		int &	LenExports,
		char *&	Exports,
		int &	SizeOfPacket,
		int *	Sizes,
		bool &	VarSizes,
		Epetra_Distributor &	Distor
	)

privatevirtual

Perform any packing or preparation required for call to DoTransfer().

Implements Epetra_DistObject.

Definition at line 697 of file Epetra_IntMultiVector.cpp.

int Epetra_IntMultiVector::UnpackAndCombine	(	const Epetra_SrcDistObject &	Source,
		int	NumImportIDs,
		int *	ImportLIDs,
		int	LenImports,
		char *	Imports,
		int &	SizeOfPacket,
		Epetra_Distributor &	Distor,
		Epetra_CombineMode	CombineMode,
		const Epetra_OffsetIndex *	Indexor
	)

privatevirtual

Perform any unpacking and combining after call to DoTransfer().

Implements Epetra_DistObject.

Definition at line 789 of file Epetra_IntMultiVector.cpp.

Member Data Documentation

int* Epetra_IntMultiVector::Values_

protected

Definition at line 738 of file Epetra_IntMultiVector.h.

int** Epetra_IntMultiVector::Pointers_

private

Definition at line 800 of file Epetra_IntMultiVector.h.

int Epetra_IntMultiVector::MyLength_

private

Definition at line 802 of file Epetra_IntMultiVector.h.

long long Epetra_IntMultiVector::GlobalLength_

private

Definition at line 803 of file Epetra_IntMultiVector.h.

int Epetra_IntMultiVector::NumVectors_

private

Definition at line 804 of file Epetra_IntMultiVector.h.

bool Epetra_IntMultiVector::UserAllocated_

private

Definition at line 805 of file Epetra_IntMultiVector.h.

bool Epetra_IntMultiVector::ConstantStride_

private

Definition at line 806 of file Epetra_IntMultiVector.h.

int Epetra_IntMultiVector::Stride_

private

Definition at line 807 of file Epetra_IntMultiVector.h.

bool Epetra_IntMultiVector::Allocated_

private

Definition at line 808 of file Epetra_IntMultiVector.h.

int* Epetra_IntMultiVector::OrdinalTemp_

mutableprivate

Definition at line 809 of file Epetra_IntMultiVector.h.

Epetra_IntVector** Epetra_IntMultiVector::IntVectors_

mutableprivate

Definition at line 810 of file Epetra_IntMultiVector.h.

Epetra_Util Epetra_IntMultiVector::Util_

private

Definition at line 811 of file Epetra_IntMultiVector.h.

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Constructors/destructors

Post-construction modification routines

Extraction methods

Mathematical methods

Overloaded operators

Attribute access functions

I/O methods

Expert-only unsupported methods

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
