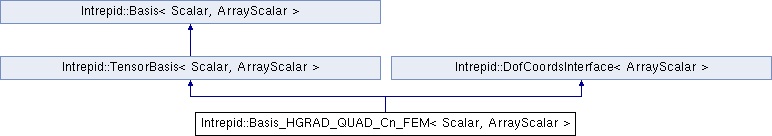

Inheritance diagram for Intrepid::Basis_HGRAD_QUAD_Cn_FEM< Scalar, ArrayScalar >:
Public Member Functions | |
| Basis_HGRAD_QUAD_Cn_FEM (const int orderx, const int ordery, const ArrayScalar &pts_x, const ArrayScalar &pts_y) | |
| Constructor. | |
| Basis_HGRAD_QUAD_Cn_FEM (const int order, const EPointType &pointType) | |
| Constructor giving a PointType switch for equispaced or spectral (i.e. Gauss-Lobatto) points. | |
| void | getValues (ArrayScalar &outputValues, const ArrayScalar &inputPoints, const EOperator operatorType) const |
| FEM basis evaluation on a reference Quadrilateral cell. More... | |
| void | getValues (ArrayScalar &outputValues, const ArrayScalar &inputPoints, const ArrayScalar &cellVertices, const EOperator operatorType=OPERATOR_VALUE) const |
| FVD basis evaluation: invocation of this method throws an exception. | |
| virtual void | getDofCoords (ArrayScalar &dofCoords) const |
| Returns spatial locations (coordinates) of degrees of freedom on a reference cell; defined for interpolatory bases. More... | |
 Public Member Functions inherited from Intrepid::TensorBasis< Scalar, ArrayScalar > | |
|
Array< Array< RCP< Basis < Scalar, ArrayScalar > > > > & | getBases () |
| virtual | ~TensorBasis () |
| Destructor. | |
| Public Member Functions inherited from Intrepid::Basis< Scalar, ArrayScalar > | |
| virtual | ~Basis () |
| Destructor. | |
| virtual int | getCardinality () const |
| Returns cardinality of the basis. More... | |
| virtual int | getDegree () const |
| Returns the degree of the basis. More... | |
| virtual const shards::CellTopology | getBaseCellTopology () const |
| Returns the base cell topology for which the basis is defined. See Shards documentation http://trilinos.sandia.gov/packages/shards for definition of base cell topology. More... | |
| virtual EBasis | getBasisType () const |
| Returns the basis type. More... | |
| virtual ECoordinates | getCoordinateSystem () const |
| Returns the type of coordinate system for which the basis is defined. More... | |
| virtual int | getDofOrdinal (const int subcDim, const int subcOrd, const int subcDofOrd) |
| DoF tag to ordinal lookup. More... | |
|
virtual const std::vector < std::vector< std::vector < int > > > & | getDofOrdinalData () |
| DoF tag to ordinal data structure. | |
| virtual const std::vector< int > & | getDofTag (const int dofOrd) |
| DoF ordinal to DoF tag lookup. More... | |
| virtual const std::vector < std::vector< int > > & | getAllDofTags () |
| Retrieves all DoF tags. More... | |
| Public Member Functions inherited from Intrepid::DofCoordsInterface< ArrayScalar > | |
| virtual | ~DofCoordsInterface ()=0 |
| Pure virtual destructor (gives warnings if not included). Following "Effective C++: 3rd Ed." item 7 the implementation is included in the definition file. | |
Private Member Functions | |
| void | initializeTags () |
| Initializes tagToOrdinal_ and ordinalToTag_ lookup arrays. | |
Private Attributes | |
| FieldContainer< double > | ptsx_ |
| FieldContainer< double > | ptsy_ |
Additional Inherited Members | |
| Protected Member Functions inherited from Intrepid::TensorBasis< Scalar, ArrayScalar > | |
| void | setBases (Array< Array< RCP< Basis< Scalar, ArrayScalar > > > > &bases) |
| Protected Attributes inherited from Intrepid::TensorBasis< Scalar, ArrayScalar > | |
|
Array< Array< RCP< Basis < Scalar, ArrayScalar > > > > | bases_ |
| Protected Attributes inherited from Intrepid::Basis< Scalar, ArrayScalar > | |
| int | basisCardinality_ |
| Cardinality of the basis, i.e., the number of basis functions/degrees-of-freedom. | |
| int | basisDegree_ |
| Degree of the largest complete polynomial space that can be represented by the basis. | |
| shards::CellTopology | basisCellTopology_ |
| Base topology of the cells for which the basis is defined. See the Shards package http://trilinos.sandia.gov/packages/shards for definition of base cell topology. | |
| EBasis | basisType_ |
| Type of the basis. | |
| ECoordinates | basisCoordinates_ |
| The coordinate system for which the basis is defined. | |
| bool | basisTagsAreSet_ |
| "true" if tagToOrdinal_ and ordinalToTag_ have been initialized | |
| std::vector< std::vector< int > > | ordinalToTag_ |
| DoF ordinal to tag lookup table. More... | |
| std::vector< std::vector < std::vector< int > > > | tagToOrdinal_ |
| DoF tag to ordinal lookup table. More... | |
Detailed Description
template<class Scalar, class ArrayScalar>
class Intrepid::Basis_HGRAD_QUAD_Cn_FEM< Scalar, ArrayScalar >
Definition at line 66 of file Intrepid_HGRAD_QUAD_Cn_FEM.hpp.
Member Function Documentation
template<class Scalar , class ArrayScalar >
|
virtual |
Returns spatial locations (coordinates) of degrees of freedom on a reference cell; defined for interpolatory bases.
- Parameters
-
DofCoords [out] - array with the coordinates of degrees of freedom, dimensioned (F,D)
Implements Intrepid::DofCoordsInterface< ArrayScalar >.
Definition at line 377 of file Intrepid_HGRAD_QUAD_Cn_FEMDef.hpp.
template<class Scalar , class ArrayScalar >
|
virtual |
FEM basis evaluation on a reference Quadrilateral cell.
Returns values of <var>operatorType</var> acting on FEM basis functions for a set of
points in the <strong>reference Quadrilateral</strong> cell. For rank and dimensions of
I/O array arguments see Section \ref basis_md_array_sec .
- Parameters
-
outputValues [out] - rank-2 or 3 array with the computed basis values inputPoints [in] - rank-2 array with dimensions (P,D) containing reference points operatorType [in] - operator applied to basis functions
Implements Intrepid::Basis< Scalar, ArrayScalar >.
Definition at line 213 of file Intrepid_HGRAD_QUAD_Cn_FEMDef.hpp.
References Intrepid::Basis< Scalar, ArrayScalar >::getCardinality(), and Intrepid::Basis< Scalar, ArrayScalar >::getValues().
The documentation for this class was generated from the following files:
- http://docs.trilinos.org/r13.0/packages/intrepid/src/Discretization/Basis/Intrepid_HGRAD_QUAD_Cn_FEM.hpp
- http://docs.trilinos.org/r13.0/packages/intrepid/src/Discretization/Basis/Intrepid_HGRAD_QUAD_Cn_FEMDef.hpp
