Vector for multiple degrees of freedom per mesh point. More...

#include <Tpetra_Experimental_BlockVector_decl.hpp>

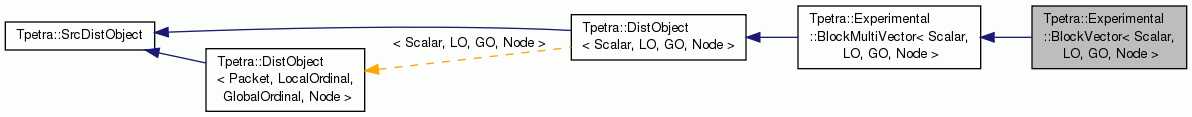

Inheritance diagram for Tpetra::Experimental::BlockVector< Scalar, LO, GO, Node >:

Public Types
Typedefs to facilitate template metaprogramming.
typedef base_type::scalar_type	scalar_type
	The type of entries in the vector. More...

typedef base_type::impl_scalar_type	impl_scalar_type
	The implementation type of entries in the vector. More...

typedef base_type::local_ordinal_type	local_ordinal_type
	The type of local indices. More...

typedef base_type::global_ordinal_type	global_ordinal_type
	The type of global indices. More...

typedef base_type::node_type	node_type
	The Kokkos Node type. More...

typedef Node::device_type	device_type
	The Kokkos Device type. More...

typedef Tpetra::Map< LO, GO, Node >	map_type
	The specialization of Tpetra::Map that this class uses. More...

typedef Tpetra::MultiVector < Scalar, LO, GO, Node >	mv_type
	The specialization of Tpetra::MultiVector that this class uses. More...

typedef Tpetra::Vector< Scalar, LO, GO, Node >	vec_type
	The specialization of Tpetra::Vector that this class uses. More...

typedef Kokkos::View < impl_scalar_type *, Kokkos::LayoutRight, device_type, Kokkos::MemoryTraits < Kokkos::Unmanaged > >	little_vec_type
	"Block view" of all degrees of freedom at a mesh point. More...

typedef Kokkos::View< const impl_scalar_type *, Kokkos::LayoutRight, device_type, Kokkos::MemoryTraits < Kokkos::Unmanaged > >	const_little_vec_type
	"Const block view" of all degrees of freedom at a mesh point. More...

Typedefs to facilitate template metaprogramming.
using	buffer_device_type = typename dist_object_type::buffer_device_type
	Kokkos::Device specialization used for communication buffers. More...

Typedefs
using	execution_space = typename device_type::execution_space
	The Kokkos execution space. More...

Public Member Functions
Constructors
	BlockVector (const map_type &meshMap, const LO blockSize)
	Constructor that takes a mesh Map and a block size. More...

	BlockVector (const map_type &meshMap, const map_type &pointMap, const LO blockSize)
	Constructor that takes a mesh Map, a point Map, and a block size. More...

	BlockVector (const mv_type &X_mv, const map_type &meshMap, const LO blockSize)
	View an existing Vector or MultiVector. More...

	BlockVector (const vec_type &X_vec, const map_type &meshMap, const LO blockSize)
	View an existing Vector. More...

	BlockVector (const BlockVector< Scalar, LO, GO, Node > &X, const map_type &newMeshMap, const map_type &newPointMap, const size_t offset=0)
	View an existing BlockVector using a different mesh Map, supplying the corresponding point Map. More...

	BlockVector (const BlockVector< Scalar, LO, GO, Node > &X, const map_type &newMeshMap, const size_t offset=0)
	View an existing BlockVector using a different mesh Map; compute the new point Map. More...

	BlockVector ()
	Default constructor. More...

Access to Maps, the block size, and a Vector view.
vec_type	getVectorView ()
	Get a Tpetra::Vector that views this BlockVector's data. More...

Fine-grained data access
bool	replaceLocalValues (const LO localRowIndex, const Scalar vals[]) const
	Replace all values at the given mesh point, using a local index. More...

bool	replaceGlobalValues (const GO globalRowIndex, const Scalar vals[]) const
	Replace all values at the given mesh point, using a global index. More...

bool	sumIntoLocalValues (const LO localRowIndex, const Scalar vals[]) const
	Sum into all values at the given mesh point, using a local index. More...

bool	sumIntoGlobalValues (const GO globalRowIndex, const Scalar vals[]) const
	Sum into all values at the given mesh point, using a global index. More...

bool	getLocalRowView (const LO localRowIndex, Scalar *&vals) const
	Get a writeable view of the entries at the given mesh point, using a local index. More...

bool	getGlobalRowView (const GO globalRowIndex, Scalar *&vals) const
	Get a writeable view of the entries at the given mesh point, using a global index. More...

little_vec_type	getLocalBlock (const LO localRowIndex) const
	Get a view of the degrees of freedom at the given mesh point, using a local index. More...

Coarse-grained operations
void	putScalar (const Scalar &val)
	Fill all entries with the given value `val`. More...

void	scale (const Scalar &val)
	Multiply all entries in place by the given value `val`. More...

void	update (const Scalar &alpha, const BlockMultiVector< Scalar, LO, GO, Node > &X, const Scalar &beta)
	Update: `this = betathis + alphaX`. More...

void	blockWiseMultiply (const Scalar &alpha, const Kokkos::View< const impl_scalar_type ***, device_type, Kokkos::MemoryUnmanaged > &D, const BlockMultiVector< Scalar, LO, GO, Node > &X)
	`this := alpha D * X`, where D is a block diagonal matrix. More...

void	blockJacobiUpdate (const Scalar &alpha, const Kokkos::View< const impl_scalar_type ***, device_type, Kokkos::MemoryUnmanaged > &D, const BlockMultiVector< Scalar, LO, GO, Node > &X, BlockMultiVector< Scalar, LO, GO, Node > &Z, const Scalar &beta)
	Block Jacobi update $Y = \beta * Y + \alpha D (X - Z)$ . More...

Implementation of "dual view semantics"
template<class TargetMemorySpace >
void	sync ()
	Update data to the given target memory space, only if data in the "other" space have been marked as modified. More...

void	sync_host ()
	Update data to the host. More...

void	sync_device ()
	Update data to the device. More...

template<class TargetMemorySpace >
bool	need_sync () const
	Whether this object needs synchronization to the given memory space. More...

bool	need_sync_host () const
	Whether this object needs synchronization to the host. More...

bool	need_sync_device () const
	Whether this object needs synchronization to the device. More...

template<class TargetMemorySpace >
void	modify ()
	Mark data as modified on the given memory space. More...

void	modify_host ()
	Mark data as modified on the host. More...

void	modify_device ()
	Mark data as modified on the device. More...

Fine-grained data access
bool	replaceLocalValues (const LO localRowIndex, const LO colIndex, const Scalar vals[]) const
	Replace all values at the given mesh point, using local row and column indices. More...

bool	replaceGlobalValues (const GO globalRowIndex, const LO colIndex, const Scalar vals[]) const
	Replace all values at the given mesh point, using a global index. More...

bool	sumIntoLocalValues (const LO localRowIndex, const LO colIndex, const Scalar vals[]) const
	Sum into all values at the given mesh point, using a local index. More...

bool	sumIntoGlobalValues (const GO globalRowIndex, const LO colIndex, const Scalar vals[]) const
	Sum into all values at the given mesh point, using a global index. More...

bool	getLocalRowView (const LO localRowIndex, const LO colIndex, Scalar *&vals) const
	Get a writeable view of the entries at the given mesh point, using a local index. More...

bool	getGlobalRowView (const GO globalRowIndex, const LO colIndex, Scalar *&vals) const
	Get a writeable view of the entries at the given mesh point, using a global index. More...

little_vec_type::HostMirror	getLocalBlock (const LO localRowIndex, const LO colIndex) const
	Get a host view of the degrees of freedom at the given mesh point. More...

Public methods for redistributing data
void	doImport (const SrcDistObject &source, const Import< LO, GO, Node > &importer, const CombineMode CM, const bool restrictedMode=false)
	Import data into this object using an Import object ("forward mode"). More...

void	doImport (const SrcDistObject &source, const Export< LO, GO, Node > &exporter, const CombineMode CM, const bool restrictedMode=false)
	Import data into this object using an Export object ("reverse mode"). More...

void	doExport (const SrcDistObject &source, const Export< LO, GO, Node > &exporter, const CombineMode CM, const bool restrictedMode=false)
	Export data into this object using an Export object ("forward mode"). More...

void	doExport (const SrcDistObject &source, const Import< LO, GO, Node > &importer, const CombineMode CM, const bool restrictedMode=false)
	Export data into this object using an Import object ("reverse mode"). More...

Attribute accessor methods
bool	isDistributed () const
	Whether this is a globally distributed object. More...

virtual Teuchos::RCP< const map_type >	getMap () const
	The Map describing the parallel distribution of this object. More...

I/O methods
void	print (std::ostream &os) const
	Print this object to the given output stream. More...

Implementation of Teuchos::Describable
virtual std::string	description () const
	One-line descriptiion of this object. More...

virtual void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
	Print a descriptiion of this object to the given output stream. More...

Methods for use only by experts
virtual void	removeEmptyProcessesInPlace (const Teuchos::RCP< const map_type > &newMap)
	Remove processes which contain no entries in this object's Map. More...

Protected Member Functions
impl_scalar_type *	getRawPtr () const
	Raw pointer to the MultiVector's data. More...

size_t	getStrideX () const
	Stride between consecutive local entries in the same column. More...

size_t	getStrideY () const
	Stride between consecutive local entries in the same row. More...

bool	isValidLocalMeshIndex (const LO meshLocalIndex) const
	True if and only if `meshLocalIndex` is a valid local index in the mesh Map. More...

virtual size_t	constantNumberOfPackets () const
	Whether the implementation's instance promises always to have a constant number of packets per LID (local index), and if so, how many packets per LID there are. More...

virtual void	doTransfer (const SrcDistObject &src, const ::Tpetra::Details::Transfer< local_ordinal_type, global_ordinal_type, node_type > &transfer, const char modeString[], const ReverseOption revOp, const CombineMode CM, const bool restrictedMode)
	Redistribute data across (MPI) processes. More...

virtual bool	reallocArraysForNumPacketsPerLid (const size_t numExportLIDs, const size_t numImportLIDs)
	Reallocate numExportPacketsPerLID_ and/or numImportPacketsPerLID_, if necessary. More...

virtual void	doTransferNew (const SrcDistObject &src, const CombineMode CM, const size_t numSameIDs, const Kokkos::DualView< const local_ordinal_type , buffer_device_type > &permuteToLIDs, const Kokkos::DualView< const local_ordinal_type , buffer_device_type > &permuteFromLIDs, const Kokkos::DualView< const local_ordinal_type , buffer_device_type > &remoteLIDs, const Kokkos::DualView< const local_ordinal_type , buffer_device_type > &exportLIDs, Distributor &distor, const ReverseOption revOp, const bool commOnHost, const bool restrictedMode)
	Implementation detail of doTransfer. More...

Implementation of Tpetra::DistObject.
The methods here implement Tpetra::DistObject. They let BlockMultiVector participate in Import and Export operations. Users don't have to worry about these methods.
virtual bool	checkSizes (const Tpetra::SrcDistObject &source)
	Compare the source and target (this) objects for compatibility. More...

virtual void	copyAndPermute (const SrcDistObject &source, const size_t numSameIDs, const Kokkos::DualView< const local_ordinal_type , buffer_device_type > &permuteToLIDs, const Kokkos::DualView< const local_ordinal_type , buffer_device_type > &permuteFromLIDs)

virtual void	packAndPrepare (const SrcDistObject &source, const Kokkos::DualView< const local_ordinal_type , buffer_device_type > &exportLIDs, Kokkos::DualView< packet_type , buffer_device_type > &exports, Kokkos::DualView< size_t *, buffer_device_type > numPacketsPerLID, size_t &constantNumPackets, Distributor &distor)

virtual void	unpackAndCombine (const Kokkos::DualView< const local_ordinal_type , buffer_device_type > &importLIDs, Kokkos::DualView< packet_type , buffer_device_type > imports, Kokkos::DualView< size_t *, buffer_device_type > numPacketsPerLID, const size_t constantNumPackets, Distributor &distor, const CombineMode combineMode)

Protected Attributes
mv_type	mv_
	The Tpetra::MultiVector used to represent the data. More...

Methods implemented by subclasses and used by doTransfer().
The doTransfer() method uses the subclass' implementations of these methods to implement data transfer. Subclasses of DistObject must implement these methods. This is an instance of the Template Method Pattern. ("Template" here doesn't mean "C++ template"; it means "pattern with holes that are filled in by the subclass' method implementations.")
Teuchos::RCP< const map_type >	map_
	The Map over which this object is distributed. More...

Kokkos::DualView< packet_type *, buffer_device_type >	imports_
	Buffer into which packed data are imported (received from other processes). More...

Kokkos::DualView< size_t *, buffer_device_type >	numImportPacketsPerLID_
	Number of packets to receive for each receive operation. More...

Kokkos::DualView< packet_type *, buffer_device_type >	exports_
	Buffer from which packed data are exported (sent to other processes). More...

Kokkos::DualView< size_t *, buffer_device_type >	numExportPacketsPerLID_
	Number of packets to send for each send operation. More...

virtual void	copyAndPermute (const SrcDistObject &source, const size_t numSameIDs, const Kokkos::DualView< const local_ordinal_type , buffer_device_type > &permuteToLIDs, const Kokkos::DualView< const local_ordinal_type , buffer_device_type > &permuteFromLIDs)
	Perform copies and permutations that are local to the calling (MPI) process. More...

virtual void	packAndPrepare (const SrcDistObject &source, const Kokkos::DualView< const local_ordinal_type , buffer_device_type > &exportLIDs, Kokkos::DualView< packet_type , buffer_device_type > &exports, Kokkos::DualView< size_t *, buffer_device_type > numPacketsPerLID, size_t &constantNumPackets, Distributor &distor)
	Pack data and metadata for communication (sends). More...

virtual void	unpackAndCombine (const Kokkos::DualView< const local_ordinal_type , buffer_device_type > &importLIDs, Kokkos::DualView< packet_type , buffer_device_type > imports, Kokkos::DualView< size_t *, buffer_device_type > numPacketsPerLID, const size_t constantNumPackets, Distributor &distor, const CombineMode combineMode)
	Perform any unpacking and combining after communication. More...

bool	reallocImportsIfNeeded (const size_t newSize, const bool verbose, const std::string *prefix)
	Reallocate imports_ if needed. More...

Access to Maps, the block size, and a MultiVector view.
map_type	getPointMap () const
	Get this BlockMultiVector's (previously computed) point Map. More...

LO	getBlockSize () const
	Get the number of degrees of freedom per mesh point. More...

LO	getNumVectors () const
	Get the number of columns (vectors) in the BlockMultiVector. More...

mv_type	getMultiVectorView () const
	Get a Tpetra::MultiVector that views this BlockMultiVector's data. More...

static map_type	makePointMap (const map_type &meshMap, const LO blockSize)
	Create and return the point Map corresponding to the given mesh Map and block size. More...

Detailed Description

template<class Scalar, class LO, class GO, class Node>
class Tpetra::Experimental::BlockVector< Scalar, LO, GO, Node >

Vector for multiple degrees of freedom per mesh point.

Author: Mark Hoemmen

Template Parameters

Scalar	The type of each entry of the block vector. (You can use real-valued or complex-valued types here, unlike in Epetra, where the scalar type is always `double`.)
LO	The type of local indices. See the documentation of the first template parameter of Map for requirements.
GO	The type of global indices. See the documentation of the second template parameter of Map for requirements.
Node	The Kokkos Node type. See the documentation of the third template parameter of Map for requirements.

BlockVector is like Tpetra::MultiVector, but its interface supports multiple degrees of freedom per mesh point. You can specify a mesh point by its local or global index, and read or write the values at that point. Every mesh point must have the same number of degrees of freedom. We call the number of degrees of freedom per mesh point the block size.

BlockVector is a special case of BlockMultiVector, for "multivectors" that are not "multi." That is, a BlockVector has a single vector (column). Please refer to the documentation of BlockMultiVector for details.

Definition at line 81 of file Tpetra_Experimental_BlockVector_decl.hpp.

Member Typedef Documentation

template<class Scalar, class LO, class GO, class Node>

typedef base_type::scalar_type Tpetra::Experimental::BlockVector< Scalar, LO, GO, Node >::scalar_type

The type of entries in the vector.

Definition at line 91 of file Tpetra_Experimental_BlockVector_decl.hpp.

template<class Scalar, class LO, class GO, class Node>

typedef base_type::impl_scalar_type Tpetra::Experimental::BlockVector< Scalar, LO, GO, Node >::impl_scalar_type

The implementation type of entries in the vector.

Definition at line 93 of file Tpetra_Experimental_BlockVector_decl.hpp.

template<class Scalar, class LO, class GO, class Node>

typedef base_type::local_ordinal_type Tpetra::Experimental::BlockVector< Scalar, LO, GO, Node >::local_ordinal_type

The type of local indices.

Definition at line 95 of file Tpetra_Experimental_BlockVector_decl.hpp.

template<class Scalar, class LO, class GO, class Node>

typedef base_type::global_ordinal_type Tpetra::Experimental::BlockVector< Scalar, LO, GO, Node >::global_ordinal_type

The type of global indices.

Definition at line 97 of file Tpetra_Experimental_BlockVector_decl.hpp.

template<class Scalar, class LO, class GO, class Node>

typedef base_type::node_type Tpetra::Experimental::BlockVector< Scalar, LO, GO, Node >::node_type

The Kokkos Node type.

Definition at line 99 of file Tpetra_Experimental_BlockVector_decl.hpp.

template<class Scalar, class LO, class GO, class Node>

typedef Node::device_type Tpetra::Experimental::BlockVector< Scalar, LO, GO, Node >::device_type

The Kokkos Device type.

Definition at line 101 of file Tpetra_Experimental_BlockVector_decl.hpp.

template<class Scalar, class LO, class GO, class Node>

typedef Tpetra::Map<LO, GO, Node> Tpetra::Experimental::BlockVector< Scalar, LO, GO, Node >::map_type

The specialization of Tpetra::Map that this class uses.

Definition at line 104 of file Tpetra_Experimental_BlockVector_decl.hpp.

template<class Scalar, class LO, class GO, class Node>

typedef Tpetra::MultiVector<Scalar, LO, GO, Node> Tpetra::Experimental::BlockVector< Scalar, LO, GO, Node >::mv_type

The specialization of Tpetra::MultiVector that this class uses.

Definition at line 106 of file Tpetra_Experimental_BlockVector_decl.hpp.

template<class Scalar, class LO, class GO, class Node>

typedef Tpetra::Vector<Scalar, LO, GO, Node> Tpetra::Experimental::BlockVector< Scalar, LO, GO, Node >::vec_type

The specialization of Tpetra::Vector that this class uses.

Definition at line 108 of file Tpetra_Experimental_BlockVector_decl.hpp.

template<class Scalar, class LO, class GO, class Node>

typedef Kokkos::View<impl_scalar_type*, Kokkos::LayoutRight, device_type, Kokkos::MemoryTraits<Kokkos::Unmanaged> > Tpetra::Experimental::BlockVector< Scalar, LO, GO, Node >::little_vec_type

"Block view" of all degrees of freedom at a mesh point.

A "block view" lets you address all degrees of freedom at a mesh point. You don't have to use this class to access the degrees of freedom. If you do choose to use this class, it implements operator()(LO i), so you can access and modify its entries.

The preferred way to refer to the little_vec_type and const_little_vec_type types, is to get them from the typedefs below. This is because different specializations of BlockVector reserve the right to use different types to implement little_vec_type or const_little_vec_type. This gives us a porting strategy to move from "classic" Tpetra to the Kokkos refactor version.

Definition at line 128 of file Tpetra_Experimental_BlockVector_decl.hpp.

template<class Scalar, class LO, class GO, class Node>

typedef Kokkos::View<const impl_scalar_type*, Kokkos::LayoutRight, device_type, Kokkos::MemoryTraits<Kokkos::Unmanaged> > Tpetra::Experimental::BlockVector< Scalar, LO, GO, Node >::const_little_vec_type

"Const block view" of all degrees of freedom at a mesh point.

This is just like little_vec_type, except that you can't modify its entries.

Definition at line 138 of file Tpetra_Experimental_BlockVector_decl.hpp.

template<class Scalar, class LO, class GO, class Node>

using Tpetra::Experimental::BlockMultiVector< Scalar, LO, GO, Node >::buffer_device_type = typename dist_object_type::buffer_device_type

inherited

Kokkos::Device specialization used for communication buffers.

Definition at line 182 of file Tpetra_Experimental_BlockMultiVector_decl.hpp.

using Tpetra::DistObject< Scalar , LO , GO , Node >::execution_space = typename device_type::execution_space

inherited

The Kokkos execution space.

Definition at line 349 of file Tpetra_DistObject_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar , class LO, class GO , class Node >

Tpetra::Experimental::BlockVector< Scalar, LO, GO, Node >::BlockVector	(	const map_type &	meshMap,
		const LO	blockSize
	)

Constructor that takes a mesh Map and a block size.

Parameters

meshMap	[in] Map that describes the distribution of mesh points (rather than the distribution of unknowns for those mesh points).
blockSize	[in] The number of degrees of freedom per mesh point. We assume that this is the same for all mesh points in the above Map.

The mesh Map describes the distribution of mesh points. Its corresponding point Map describes the distribution of degrees of freedom corresponding to those mesh points. If you have already computed the point Map corresponding to the above mesh Map, then it is more efficient to call the three-argument constructor below, that takes both the mesh Map and the point Map.

There are two ways to get the point Map corresponding to a given mesh Map and block size. You may either call the class method makePointMap() (inherited from the parent class BlockMultiVector), or you may call this two-argument constructor, and then call getPointMap().

The point Map enables reinterpretation of a BlockVector as a standard Tpetra::Vector, or as a Tpetra::MultiVector with one column. This lets users solve linear systems with Trilinos' solvers and preconditioners, that expect vectors as Tpetra::MultiVector or Tpetra::Vector instances.

Definition at line 50 of file Tpetra_Experimental_BlockVector_def.hpp.

template<class Scalar , class LO, class GO , class Node >

Tpetra::Experimental::BlockVector< Scalar, LO, GO, Node >::BlockVector	(	const map_type &	meshMap,
		const map_type &	pointMap,
		const LO	blockSize
	)

Constructor that takes a mesh Map, a point Map, and a block size.

See the documentation of the two-argument constructor above.

Definition at line 56 of file Tpetra_Experimental_BlockVector_def.hpp.

template<class Scalar , class LO, class GO , class Node >

Tpetra::Experimental::BlockVector< Scalar, LO, GO, Node >::BlockVector	(	const mv_type &	X_mv,
		const map_type &	meshMap,
		const LO	blockSize
	)

View an existing Vector or MultiVector.

Parameters

X_mv	[in/out] The Vector or MultiVector to view. It MUST have view semantics; otherwise this constructor throws. Its Map must be the same (in the sense of isSameAs) as the point Map corresponding to the given mesh Map and block size. If this is a MultiVector, it must have only one column.
meshMap	[in] The mesh Map to use for interpreting the given MultiVector or Vector (in place) as a BlockVector.
blockSize	[in] The number of degrees of freedom per mesh point. We assume that this is the same for all mesh points.

Definition at line 64 of file Tpetra_Experimental_BlockVector_def.hpp.

template<class Scalar , class LO, class GO , class Node >

Tpetra::Experimental::BlockVector< Scalar, LO, GO, Node >::BlockVector	(	const vec_type &	X_vec,
		const map_type &	meshMap,
		const LO	blockSize
	)

View an existing Vector.

Parameters

X_vec	[in/out] The Vector view. It MUST have view semantics; otherwise this constructor throws. Its Map must be the same (in the sense of isSameAs) as the point Map corresponding to the given mesh Map and block size.
meshMap	[in] The mesh Map to use for interpreting the given Vector (in place) as a BlockVector.
blockSize	[in] The number of degrees of freedom per mesh point. We assume that this is the same for all mesh points.

Definition at line 77 of file Tpetra_Experimental_BlockVector_def.hpp.

template<class Scalar, class LO, class GO, class Node>

Tpetra::Experimental::BlockVector< Scalar, LO, GO, Node >::BlockVector	(	const BlockVector< Scalar, LO, GO, Node > &	X,
		const map_type &	newMeshMap,
		const map_type &	newPointMap,
		const size_t	offset = `0`
	)

View an existing BlockVector using a different mesh Map, supplying the corresponding point Map.

This method corresponds to MultiVector's "offset view" constructor.

Definition at line 85 of file Tpetra_Experimental_BlockVector_def.hpp.

template<class Scalar, class LO, class GO, class Node>

Tpetra::Experimental::BlockVector< Scalar, LO, GO, Node >::BlockVector	(	const BlockVector< Scalar, LO, GO, Node > &	X,
		const map_type &	newMeshMap,
		const size_t	offset = `0`
	)

View an existing BlockVector using a different mesh Map; compute the new point Map.

This method corresponds to MultiVector's "offset view" constructor.

Definition at line 94 of file Tpetra_Experimental_BlockVector_def.hpp.

template<class Scalar, class LO, class GO, class Node>

Tpetra::Experimental::BlockVector< Scalar, LO, GO, Node >::BlockVector ( )

Default constructor.

Creates an empty BlockVector. An empty BlockVector has zero rows, and block size zero.

Definition at line 102 of file Tpetra_Experimental_BlockVector_def.hpp.

Member Function Documentation

template<class Scalar , class LO , class GO , class Node >

BlockVector< Scalar, LO, GO, Node >::vec_type Tpetra::Experimental::BlockVector< Scalar, LO, GO, Node >::getVectorView ( )

Get a Tpetra::Vector that views this BlockVector's data.

This is how you can give a BlockVector to Trilinos' solvers and preconditioners.

Definition at line 106 of file Tpetra_Experimental_BlockVector_def.hpp.

template<class Scalar, class LO, class GO , class Node >

bool Tpetra::Experimental::BlockVector< Scalar, LO, GO, Node >::replaceLocalValues	(	const LO	localRowIndex,
		const Scalar	vals[]
	)		const

Replace all values at the given mesh point, using a local index.

Parameters

localRowIndex	[in] Local index of the mesh point.
vals	[in] Input values with which to replace whatever existing values are at the mesh point.

Returns: true if successful, else false. This method will not succeed if the given local index of the mesh point is invalid on the calling process.

Note: This method, the other "replace" and "sumInto" methods, and the view methods, are marked const. This is because they do not change pointers. They do, of course, change the values in the BlockVector, but that does not require marking the methods as nonconst.

Definition at line 115 of file Tpetra_Experimental_BlockVector_def.hpp.

template<class Scalar, class LO , class GO, class Node >

bool Tpetra::Experimental::BlockVector< Scalar, LO, GO, Node >::replaceGlobalValues	(	const GO	globalRowIndex,
		const Scalar	vals[]
	)		const

Replace all values at the given mesh point, using a global index.

Parameters

globalRowIndex	[in] Global index of the mesh point.
vals	[in] Input values with which to sum into whatever existing values are at the mesh point.

Returns: true if successful, else false. This method will not succeed if the given global index of the mesh point is invalid on the calling process.

Definition at line 122 of file Tpetra_Experimental_BlockVector_def.hpp.

template<class Scalar, class LO, class GO , class Node >

bool Tpetra::Experimental::BlockVector< Scalar, LO, GO, Node >::sumIntoLocalValues	(	const LO	localRowIndex,
		const Scalar	vals[]
	)		const

Sum into all values at the given mesh point, using a local index.

Parameters

localRowIndex	[in] Local index of the mesh point.
vals	[in] Input values with which to replace whatever existing values are at the mesh point.

Returns: true if successful, else false. This method will not succeed if the given local index of the mesh point is invalid on the calling process.

Definition at line 130 of file Tpetra_Experimental_BlockVector_def.hpp.

template<class Scalar, class LO , class GO, class Node >

bool Tpetra::Experimental::BlockVector< Scalar, LO, GO, Node >::sumIntoGlobalValues	(	const GO	globalRowIndex,
		const Scalar	vals[]
	)		const

Sum into all values at the given mesh point, using a global index.

Parameters

globalRowIndex	[in] Global index of the mesh point.
vals	[in] Input values with which to replace whatever existing values are at the mesh point.

Returns: true if successful, else false. This method will not succeed if the given global index of the mesh point is invalid on the calling process.

Definition at line 137 of file Tpetra_Experimental_BlockVector_def.hpp.

template<class Scalar, class LO, class GO , class Node >

bool Tpetra::Experimental::BlockVector< Scalar, LO, GO, Node >::getLocalRowView	(	const LO	localRowIndex,
		Scalar *&	vals
	)		const

Get a writeable view of the entries at the given mesh point, using a local index.

Parameters

localRowIndex	[in] Local index of the mesh point.
vals	[in] Input values with which to replace whatever existing values are at the mesh point.

Returns: true if successful, else false. This method will not succeed if the given local index of the mesh point is invalid on the calling process.

Definition at line 144 of file Tpetra_Experimental_BlockVector_def.hpp.

template<class Scalar, class LO , class GO, class Node >

bool Tpetra::Experimental::BlockVector< Scalar, LO, GO, Node >::getGlobalRowView	(	const GO	globalRowIndex,
		Scalar *&	vals
	)		const

Get a writeable view of the entries at the given mesh point, using a global index.

Parameters

globalRowIndex	[in] Global index of the mesh point.
vals	[in] Input values with which to replace whatever existing values are at the mesh point.

Returns: true if successful, else false. This method will not succeed if the given global index of the mesh point is invalid on the calling process.

Definition at line 151 of file Tpetra_Experimental_BlockVector_def.hpp.

template<class Scalar , class LO, class GO , class Node >

BlockVector< Scalar, LO, GO, Node >::little_vec_type Tpetra::Experimental::BlockVector< Scalar, LO, GO, Node >::getLocalBlock ( const LO localRowIndex ) const

Get a view of the degrees of freedom at the given mesh point, using a local index.

Get a view of the degrees of freedom at the given mesh point.

Warning: This method's interface may change or disappear at any time. Please do not rely on it in your code yet.

The preferred way to refer to little_vec_type is to get it from BlockVector's typedef. This is because different specializations of BlockVector reserve the right to use different types to implement little_vec_type. This gives us a porting strategy to move from "classic" Tpetra to the Kokkos refactor version.

Definition at line 169 of file Tpetra_Experimental_BlockVector_def.hpp.

template<class Scalar , class LO, class GO , class Node >

BlockMultiVector< Scalar, LO, GO, Node >::map_type Tpetra::Experimental::BlockMultiVector< Scalar, LO, GO, Node >::makePointMap	(	const map_type &	meshMap,
		const LO	blockSize
	)

staticinherited

Create and return the point Map corresponding to the given mesh Map and block size.

This is a class ("static") method so that you can make and reuse a point Map for creating different BlockMultiVector instances, using the more efficient four-argument constructor.

Definition at line 263 of file Tpetra_Experimental_BlockMultiVector_def.hpp.

template<class Scalar, class LO, class GO, class Node>

map_type Tpetra::Experimental::BlockMultiVector< Scalar, LO, GO, Node >::getPointMap ( ) const

inlineinherited

Get this BlockMultiVector's (previously computed) point Map.

It is always valid to call this method. A BlockMultiVector always has a point Map. We do not compute the point Map lazily.

Definition at line 319 of file Tpetra_Experimental_BlockMultiVector_decl.hpp.

template<class Scalar, class LO, class GO, class Node>

LO Tpetra::Experimental::BlockMultiVector< Scalar, LO, GO, Node >::getBlockSize ( ) const

inlineinherited

Get the number of degrees of freedom per mesh point.

Definition at line 324 of file Tpetra_Experimental_BlockMultiVector_decl.hpp.

template<class Scalar, class LO, class GO, class Node>

LO Tpetra::Experimental::BlockMultiVector< Scalar, LO, GO, Node >::getNumVectors ( ) const

inlineinherited

Get the number of columns (vectors) in the BlockMultiVector.

Definition at line 329 of file Tpetra_Experimental_BlockMultiVector_decl.hpp.

template<class Scalar , class LO , class GO , class Node >

BlockMultiVector< Scalar, LO, GO, Node >::mv_type Tpetra::Experimental::BlockMultiVector< Scalar, LO, GO, Node >::getMultiVectorView ( ) const

inherited

Get a Tpetra::MultiVector that views this BlockMultiVector's data.

This is how you can give a BlockMultiVector to Trilinos' solvers and preconditioners.

Definition at line 105 of file Tpetra_Experimental_BlockMultiVector_def.hpp.

template<class Scalar, class LO , class GO , class Node >

void Tpetra::Experimental::BlockMultiVector< Scalar, LO, GO, Node >::putScalar ( const Scalar & val )

inherited

Fill all entries with the given value val.

Definition at line 897 of file Tpetra_Experimental_BlockMultiVector_def.hpp.

template<class Scalar, class LO , class GO , class Node >

void Tpetra::Experimental::BlockMultiVector< Scalar, LO, GO, Node >::scale ( const Scalar & val )

inherited

Multiply all entries in place by the given value val.

Definition at line 904 of file Tpetra_Experimental_BlockMultiVector_def.hpp.

template<class Scalar, class LO, class GO, class Node>

void Tpetra::Experimental::BlockMultiVector< Scalar, LO, GO, Node >::update	(	const Scalar &	alpha,
		const BlockMultiVector< Scalar, LO, GO, Node > &	X,
		const Scalar &	beta
	)

inherited

Update: this = beta*this + alpha*X.

Update this BlockMultiVector with scaled values of X. If beta is zero, overwrite *this unconditionally, even if it contains NaN entries. It is legal for the input X to alias this MultiVector.

Definition at line 911 of file Tpetra_Experimental_BlockMultiVector_def.hpp.

template<class Scalar, class LO, class GO, class Node>

void Tpetra::Experimental::BlockMultiVector< Scalar, LO, GO, Node >::blockWiseMultiply	(	const Scalar &	alpha,
		const Kokkos::View< const impl_scalar_type ***, device_type, Kokkos::MemoryUnmanaged > &	D,
		const BlockMultiVector< Scalar, LO, GO, Node > &	X
	)

inherited

*this := alpha * D * X, where D is a block diagonal matrix.

Compute *this := alpha * D * X, where D is a block diagonal matrix, stored as a 3-D Kokkos::View. This method is the block analog of Tpetra::MultiVector::elementWiseMultiply, and is likewise useful for implementing (block) Jacobi.

Parameters

alpha	[in] Coefficient by which to scale the result. We treat alpha = 0 as a special case, following the BLAS rules. That is, if alpha = 0, this method does `this->putScalar(0)`.
D	[in] Block diagonal, as a 3-D Kokkos::View. The leftmost index indicates which block, the middle index the row within a block, and the rightmost index the column within a block.
pivots	[in] Pivots (from LU factorization of the blocks)
X	[in] Input Block(Multi)Vector; may alias `*this`.

D is really the inverse of some BlockCrsMatrix's block diagonal. You may compute the inverse of each block however you like. One way is to use GETRF, then GETRI.

Definition at line 1104 of file Tpetra_Experimental_BlockMultiVector_def.hpp.

template<class Scalar, class LO, class GO, class Node>

void Tpetra::Experimental::BlockMultiVector< Scalar, LO, GO, Node >::blockJacobiUpdate	(	const Scalar &	alpha,
		const Kokkos::View< const impl_scalar_type ***, device_type, Kokkos::MemoryUnmanaged > &	D,
		const BlockMultiVector< Scalar, LO, GO, Node > &	X,
		BlockMultiVector< Scalar, LO, GO, Node > &	Z,
		const Scalar &	beta
	)

inherited

Block Jacobi update $Y = \beta * Y + \alpha D (X - Z)$ .

This method computes the block Jacobi update $Y = \beta * Y + \alpha D (X - Z)$ , where Y is *this<>, D the (explicitly stored) inverse block diagonal of a BlockCrsMatrix A, and . The method may use Z as scratch space.

Folks who optimize sparse matrix-vector multiply kernels tend not to write special-purpose kernels like this one. Thus, this kernel consolidates all the other code that block Jacobi needs, while exploiting the existing sparse matrix-vector multiply kernel in BlockCrsMatrix. That consolidation minimizes thread-parallel kernel launch overhead.


Parameters


    alpha [in] Coefficient of the "block scaled" term. We treat alpha = 0 as a special case, following the BLAS rules. That is, if alpha = 0, this method does Y = beta * Y.
    D [in] Block diagonal, as a 3-D Kokkos::View. The leftmost index indicates which block, the middle index the row within a block, and the rightmost index the column within a block.
    X [in] The first of two block (multi)vectors whose difference is "block scaled"
    Z [in/out] On input: The second of two block (multi)vectors whose difference is "block scaled." This method may use Z as scratch space.
    beta [in] Coefficient of Y. We treat beta = 0 as a special case, following the BLAS rules. That is, if beta = 0, the initial contents of Y are ignored.

Definition at line 1136 of file Tpetra_Experimental_BlockMultiVector_def.hpp.

template<class Scalar, class LO, class GO, class Node>

template<class TargetMemorySpace >

void Tpetra::Experimental::BlockMultiVector< Scalar, LO, GO, Node >::sync ( )

inlineinherited

Update data to the given target memory space, only if data in the "other" space have been marked as modified.

If TargetMemorySpace is the same as this object's memory space, then copy data from host to device. Otherwise, copy data from device to host. In either case, only copy if the source of the copy has been modified.

This is a one-way synchronization only. If the target of the copy has been modified, this operation will discard those modifications. It will also reset both device and host modified flags.

Note: This method doesn't know on its own whether you modified the data in either memory space. You must manually mark the MultiVector as modified in the space in which you modified it, by calling the modify() method with the appropriate template parameter.

Definition at line 449 of file Tpetra_Experimental_BlockMultiVector_decl.hpp.

template<class Scalar, class LO, class GO, class Node>

void Tpetra::Experimental::BlockMultiVector< Scalar, LO, GO, Node >::sync_host ( )

inlineinherited

Update data to the host.

Definition at line 454 of file Tpetra_Experimental_BlockMultiVector_decl.hpp.

template<class Scalar, class LO, class GO, class Node>

void Tpetra::Experimental::BlockMultiVector< Scalar, LO, GO, Node >::sync_device ( )

inlineinherited

Update data to the device.

Definition at line 459 of file Tpetra_Experimental_BlockMultiVector_decl.hpp.

template<class Scalar, class LO, class GO, class Node>

template<class TargetMemorySpace >

bool Tpetra::Experimental::BlockMultiVector< Scalar, LO, GO, Node >::need_sync ( ) const

inlineinherited

Whether this object needs synchronization to the given memory space.

Definition at line 465 of file Tpetra_Experimental_BlockMultiVector_decl.hpp.

template<class Scalar, class LO, class GO, class Node>

bool Tpetra::Experimental::BlockMultiVector< Scalar, LO, GO, Node >::need_sync_host ( ) const

inlineinherited

Whether this object needs synchronization to the host.

Definition at line 470 of file Tpetra_Experimental_BlockMultiVector_decl.hpp.

template<class Scalar, class LO, class GO, class Node>

bool Tpetra::Experimental::BlockMultiVector< Scalar, LO, GO, Node >::need_sync_device ( ) const

inlineinherited

Whether this object needs synchronization to the device.

Definition at line 475 of file Tpetra_Experimental_BlockMultiVector_decl.hpp.

template<class Scalar, class LO, class GO, class Node>

template<class TargetMemorySpace >

void Tpetra::Experimental::BlockMultiVector< Scalar, LO, GO, Node >::modify ( )

inlineinherited

Mark data as modified on the given memory space.

If TargetDeviceType::memory_space is the same as this object's memory space, then mark the device's data as modified. Otherwise, mark the host's data as modified.

Definition at line 485 of file Tpetra_Experimental_BlockMultiVector_decl.hpp.

template<class Scalar, class LO, class GO, class Node>

void Tpetra::Experimental::BlockMultiVector< Scalar, LO, GO, Node >::modify_host ( )

inlineinherited

Mark data as modified on the host.

Definition at line 490 of file Tpetra_Experimental_BlockMultiVector_decl.hpp.

template<class Scalar, class LO, class GO, class Node>

void Tpetra::Experimental::BlockMultiVector< Scalar, LO, GO, Node >::modify_device ( )

inlineinherited

Mark data as modified on the device.

Definition at line 495 of file Tpetra_Experimental_BlockMultiVector_decl.hpp.

template<class Scalar, class LO, class GO , class Node >

bool Tpetra::Experimental::BlockMultiVector< Scalar, LO, GO, Node >::replaceLocalValues	(	const LO	localRowIndex,
		const LO	colIndex,
		const Scalar	vals[]
	)		const

inherited

Replace all values at the given mesh point, using local row and column indices.

Parameters

localRowIndex	[in] Local index of the mesh point.
colIndex	[in] Column (vector) to modify.
vals	[in] Input values with which to replace whatever existing values are at the mesh point.

Returns: true if successful, else false. This method will not succeed if the given local index of the mesh point is invalid on the calling process.

Note: This method, the other "replace" and "sumInto" methods, and the view methods, are marked const. This is because they do not change pointers. They do, of course, change the values in the BlockMultiVector, but that does not require marking the methods as nonconst.

Definition at line 322 of file Tpetra_Experimental_BlockMultiVector_def.hpp.

template<class Scalar, class LO, class GO, class Node >

bool Tpetra::Experimental::BlockMultiVector< Scalar, LO, GO, Node >::replaceGlobalValues	(	const GO	globalRowIndex,
		const LO	colIndex,
		const Scalar	vals[]
	)		const

inherited

Replace all values at the given mesh point, using a global index.

Parameters

globalRowIndex	[in] Global index of the mesh point.
colIndex	[in] Column (vector) to modify.
vals	[in] Input values with which to sum into whatever existing values are at the mesh point.

Returns: true if successful, else false. This method will not succeed if the given global index of the mesh point is invalid on the calling process.

Definition at line 337 of file Tpetra_Experimental_BlockMultiVector_def.hpp.

template<class Scalar, class LO, class GO , class Node >

bool Tpetra::Experimental::BlockMultiVector< Scalar, LO, GO, Node >::sumIntoLocalValues	(	const LO	localRowIndex,
		const LO	colIndex,
		const Scalar	vals[]
	)		const

inherited

Sum into all values at the given mesh point, using a local index.

Parameters

localRowIndex	[in] Local index of the mesh point.
colIndex	[in] Column (vector) to modify.
vals	[in] Input values with which to replace whatever existing values are at the mesh point.

Returns: true if successful, else false. This method will not succeed if the given local index of the mesh point is invalid on the calling process.

Definition at line 366 of file Tpetra_Experimental_BlockMultiVector_def.hpp.

template<class Scalar, class LO, class GO, class Node >

bool Tpetra::Experimental::BlockMultiVector< Scalar, LO, GO, Node >::sumIntoGlobalValues	(	const GO	globalRowIndex,
		const LO	colIndex,
		const Scalar	vals[]
	)		const

inherited

Sum into all values at the given mesh point, using a global index.

Parameters

globalRowIndex	[in] Global index of the mesh point.
colIndex	[in] Column (vector) to modify.
vals	[in] Input values with which to replace whatever existing values are at the mesh point.

Returns: true if successful, else false. This method will not succeed if the given global index of the mesh point is invalid on the calling process.

Definition at line 381 of file Tpetra_Experimental_BlockMultiVector_def.hpp.

template<class Scalar, class LO, class GO , class Node >

bool Tpetra::Experimental::BlockMultiVector< Scalar, LO, GO, Node >::getLocalRowView	(	const LO	localRowIndex,
		const LO	colIndex,
		Scalar *&	vals
	)		const

inherited

Get a writeable view of the entries at the given mesh point, using a local index.

Parameters

localRowIndex	[in] Local index of the mesh point.
colIndex	[in] Column (vector) to view.
vals	[out] View of the entries at the given mesh point.

Returns: true if successful, else false. This method will not succeed if the given local index of the mesh point is invalid on the calling process.

Definition at line 397 of file Tpetra_Experimental_BlockMultiVector_def.hpp.

template<class Scalar, class LO, class GO, class Node >

bool Tpetra::Experimental::BlockMultiVector< Scalar, LO, GO, Node >::getGlobalRowView	(	const GO	globalRowIndex,
		const LO	colIndex,
		Scalar *&	vals
	)		const

inherited

Get a writeable view of the entries at the given mesh point, using a global index.

Parameters

globalRowIndex	[in] Global index of the mesh point.
colIndex	[in] Column (vector) to view.
vals	[out] View of the entries at the given mesh point.

Returns: true if successful, else false. This method will not succeed if the given global index of the mesh point is invalid on the calling process.

Definition at line 411 of file Tpetra_Experimental_BlockMultiVector_def.hpp.

template<class Scalar , class LO, class GO , class Node >

BlockMultiVector< Scalar, LO, GO, Node >::little_vec_type::HostMirror Tpetra::Experimental::BlockMultiVector< Scalar, LO, GO, Node >::getLocalBlock	(	const LO	localRowIndex,
		const LO	colIndex
	)		const

inherited

Get a host view of the degrees of freedom at the given mesh point.

Warning: This method's interface may change or disappear at any time. Please do not rely on it in your code yet.

Prefer using auto to let the compiler compute the return type. This gives us the freedom to change this type in the future. If you insist not to use auto, then please use the little_vec_type typedef to deduce the correct return type; don't try to hard-code the return type yourself.

Definition at line 426 of file Tpetra_Experimental_BlockMultiVector_def.hpp.

template<class Scalar , class LO , class GO , class Node >

bool Tpetra::Experimental::BlockMultiVector< Scalar, LO, GO, Node >::checkSizes ( const Tpetra::SrcDistObject & source )

protectedvirtualinherited

Compare the source and target (this) objects for compatibility.

Returns: True if they are compatible, else false.

Implements Tpetra::DistObject< Scalar, LO, GO, Node >.

Definition at line 483 of file Tpetra_Experimental_BlockMultiVector_def.hpp.

virtual void Tpetra::DistObject< Scalar , LO , GO , Node >::copyAndPermute	(	const SrcDistObject< Scalar, LO, GO, Node > &	source,
		const size_t	numSameIDs,
		const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &	permuteToLIDs,
		const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &	permuteFromLIDs
	)

protectedvirtualinherited

Perform copies and permutations that are local to the calling (MPI) process.

Subclasses must reimplement this function. Its default implementation does nothing. Note that the <t>target object of the Export or Import, namely *this, packs the source object's data.

Precondition: permuteToLIDs and permuteFromLIDs are sync'd to both host and device. That is, permuteToLIDs.need_sync_host(), permuteToLIDs.need_sync_device(), permuteFromLIDs.need_sync_host(), and permuteFromLIDs.need_sync_device() are all false.

Parameters

source	[in] On entry, the source object of the Export or Import operation.
numSameIDs	[in] The number of elements that are the same on the source and target objects. These elements live on the same process in both the source and target objects.
permuteToLIDs	[in] List of the elements that are permuted. They are listed by their local index (LID) in the destination object.
permuteFromLIDs	[in] List of the elements that are permuted. They are listed by their local index (LID) in the source object.

virtual void Tpetra::DistObject< Scalar , LO , GO , Node >::packAndPrepare	(	const SrcDistObject< Scalar, LO, GO, Node > &	source,
		const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &	exportLIDs,
		Kokkos::DualView< packet_type *, buffer_device_type > &	exports,
		Kokkos::DualView< size_t *, buffer_device_type >	numPacketsPerLID,
		size_t &	constantNumPackets,
		Distributor &	distor
	)

protectedvirtualinherited

Pack data and metadata for communication (sends).

Subclasses must reimplement this function. Its default implementation does nothing. Note that the <t>target object of the Export or Import, namely *this, packs the source object's data.

Precondition: exportLIDs is sync'd to both host and device. That is, exportLIDs.need_sync_host () and exportLIDs.need_sync_device() are both false.

Parameters

source	[in] Source object for the redistribution.
exportLIDs	[in] List of the entries (as local IDs in the source object) that Tpetra will send to other processes.
exports	[out] On exit, the packed data to send. Implementations must reallocate this as needed (prefer reusing the existing allocation if possible), and may modify and/or sync this wherever they like.
numPacketsPerLID	[out] On exit, the implementation of this method must do one of two things: either set `numPacketsPerLID[i]` to the number of packets to be packed for `exportLIDs[i]` and set `constantNumPackets` to zero, or set `constantNumPackets` to a nonzero value. If the latter, the implementation must not modify the entries of `numPacketsPerLID`. If the former, the implementation may sync `numPacketsPerLID` this wherever it likes, either to host or to device. The allocation belongs to DistObject, not to subclasses; don't be tempted to change this to pass by reference.
constantNumPackets	[out] On exit, 0 if the number of packets per LID could differ, else (if nonzero) the number of packets per LID (which must be constant).
distor	[in] The Distributor object we are using. Most implementations will not use this.

virtual void Tpetra::DistObject< Scalar , LO , GO , Node >::unpackAndCombine	(	const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &	importLIDs,
		Kokkos::DualView< packet_type *, buffer_device_type >	imports,
		Kokkos::DualView< size_t *, buffer_device_type >	numPacketsPerLID,
		const size_t	constantNumPackets,
		Distributor &	distor,
		const CombineMode	combineMode
	)

protectedvirtualinherited

Perform any unpacking and combining after communication.

Subclasses must reimplement this function. Its default implementation does nothing. Note that the <t>target object of the Export or Import, namely *this, unpacks the received data into itself, possibly modifying its entries.

Precondition: importLIDs is sync'd to both host and device. That is, importLIDs.need_sync_host () and importLIDs.need_sync_device() are both false.

Parameters

importLIDs	[in] List of the entries (as LIDs in the destination object) we received from other processes.
imports	[in/out] On input: Buffer of received data to unpack. DistObject promises nothing about where this is sync'd. Implementations may sync this wherever they like, either to host or to device. The allocation belongs to DistObject, not to subclasses; don't be tempted to change this to pass by reference.
numPacketsPerLID	[in/out] On input: If `constantNumPackets` is zero, then `numPacketsPerLID[i]` contains the number of packets imported for importLIDs[i]. DistObject promises nothing about where this is sync'd. Implementations may sync this wherever they like, either to host or to device. The allocation belongs to DistObject, not to subclasses; don't be tempted to change this to pass by reference.
constantNumPackets	[in] If nonzero, then the number of packets per LID is the same for all entries ("constant") and `constantNumPackets` is that number. If zero, then `numPacketsPerLID[i]` is the number of packets to unpack for LID `importLIDs[i]`.
distor	[in] The Distributor object we are using. Most implementations will not use this.
combineMode	[in] The CombineMode to use when combining the imported entries with existing entries.

template<class Scalar, class LO, class GO, class Node>

impl_scalar_type* Tpetra::Experimental::BlockMultiVector< Scalar, LO, GO, Node >::getRawPtr ( ) const

inlineprotectedinherited

Raw pointer to the MultiVector's data.

Definition at line 655 of file Tpetra_Experimental_BlockMultiVector_decl.hpp.

template<class Scalar, class LO, class GO, class Node>

size_t Tpetra::Experimental::BlockMultiVector< Scalar, LO, GO, Node >::getStrideX ( ) const

inlineprotectedinherited

Stride between consecutive local entries in the same column.

Definition at line 660 of file Tpetra_Experimental_BlockMultiVector_decl.hpp.

template<class Scalar, class LO, class GO, class Node>

size_t Tpetra::Experimental::BlockMultiVector< Scalar, LO, GO, Node >::getStrideY ( ) const

inlineprotectedinherited

Stride between consecutive local entries in the same row.

Definition at line 665 of file Tpetra_Experimental_BlockMultiVector_decl.hpp.

template<class Scalar , class LO, class GO , class Node >

bool Tpetra::Experimental::BlockMultiVector< Scalar, LO, GO, Node >::isValidLocalMeshIndex ( const LO meshLocalIndex ) const

protectedinherited

True if and only if meshLocalIndex is a valid local index in the mesh Map.

Definition at line 889 of file Tpetra_Experimental_BlockMultiVector_def.hpp.

void Tpetra::DistObject< Scalar , LO , GO , Node >::doImport	(	const SrcDistObject< Scalar, LO, GO, Node > &	source,
		const Import< LO , GO , Node > &	importer,
		const CombineMode	CM,
		const bool	restrictedMode = `false`
	)

inherited

Import data into this object using an Import object ("forward mode").

The input DistObject is always the source of the data redistribution operation, and the *this object is always the target.

If you don't know the difference between forward and reverse mode, then you probably want forward mode. Use this method with your precomputed Import object if you want to do an Import, else use doExport() with a precomputed Export object.

"Restricted Mode" does two things:

Skips copyAndPermute
Allows the "target" Map of the transfer to be a subset of the Map of *this, in a "locallyFitted" sense.

This cannot be used if (2) is not true, OR there are permutes. The "source" maps still need to match.

Parameters

source	[in] The "source" object for redistribution.
importer	[in] Precomputed data redistribution plan. Its source Map must be the same as the input DistObject's Map, and its target Map must be the same as `this->getMap()`.
CM	[in] How to combine incoming data with the same global index.

void Tpetra::DistObject< Scalar , LO , GO , Node >::doImport	(	const SrcDistObject< Scalar, LO, GO, Node > &	source,
		const Export< LO , GO , Node > &	exporter,
		const CombineMode	CM,
		const bool	restrictedMode = `false`
	)

inherited

Import data into this object using an Export object ("reverse mode").

The input DistObject is always the source of the data redistribution operation, and the *this object is always the target.

If you don't know the difference between forward and reverse mode, then you probably want forward mode. Use the version of doImport() that takes a precomputed Import object in that case.

"Restricted Mode" does two things:

Skips copyAndPermute
Allows the "target" Map of the transfer to be a subset of the Map of *this, in a "locallyFitted" sense.

This cannot be used if (2) is not true, OR there are permutes. The "source" maps still need to match.

Parameters

source	[in] The "source" object for redistribution.
exporter	[in] Precomputed data redistribution plan. Its target Map must be the same as the input DistObject's Map, and its source Map must be the same as `this->getMap()`. (Note the difference from forward mode.)
CM	[in] How to combine incoming data with the same global index.

void Tpetra::DistObject< Scalar , LO , GO , Node >::doExport	(	const SrcDistObject< Scalar, LO, GO, Node > &	source,
		const Export< LO , GO , Node > &	exporter,
		const CombineMode	CM,
		const bool	restrictedMode = `false`
	)

inherited

Export data into this object using an Export object ("forward mode").

The input DistObject is always the source of the data redistribution operation, and the *this object is always the target.

If you don't know the difference between forward and reverse mode, then you probably want forward mode. Use this method with your precomputed Export object if you want to do an Export, else use doImport() with a precomputed Import object.

"Restricted Mode" does two things:

Skips copyAndPermute
Allows the "target" Map of the transfer to be a subset of the Map of *this, in a "locallyFitted" sense.

This cannot be used if (2) is not true, OR there are permutes. The "source" maps still need to match.

Parameters

source	[in] The "source" object for redistribution.
exporter	[in] Precomputed data redistribution plan. Its source Map must be the same as the input DistObject's Map, and its target Map must be the same as `this->getMap()`.
CM	[in] How to combine incoming data with the same global index.

void Tpetra::DistObject< Scalar , LO , GO , Node >::doExport	(	const SrcDistObject< Scalar, LO, GO, Node > &	source,
		const Import< LO , GO , Node > &	importer,
		const CombineMode	CM,
		const bool	restrictedMode = `false`
	)

inherited

Export data into this object using an Import object ("reverse mode").

The input DistObject is always the source of the data redistribution operation, and the *this object is always the target.

If you don't know the difference between forward and reverse mode, then you probably want forward mode. Use the version of doExport() that takes a precomputed Export object in that case.

"Restricted Mode" does two things:

Skips copyAndPermute
Allows the "target" Map of the transfer to be a subset of the Map of *this, in a "locallyFitted" sense.

This cannot be used if (2) is not true, OR there are permutes. The "source" maps still need to match.

Parameters

source	[in] The "source" object for redistribution.
importer	[in] Precomputed data redistribution plan. Its target Map must be the same as the input DistObject's Map, and its source Map must be the same as `this->getMap()`. (Note the difference from forward mode.)
CM	[in] How to combine incoming data with the same global index.

bool Tpetra::DistObject< Scalar , LO , GO , Node >::isDistributed ( ) const

inherited

Whether this is a globally distributed object.

For a definition of "globally distributed" (and its opposite, "locally replicated"), see the documentation of Map's isDistributed() method.

virtual Teuchos::RCP<const map_type> Tpetra::DistObject< Scalar , LO , GO , Node >::getMap ( ) const

inlinevirtualinherited

The Map describing the parallel distribution of this object.

Note that some Tpetra objects might be distributed using multiple Map objects. For example, CrsMatrix has both a row Map and a column Map. It is up to the subclass to decide which Map to use when invoking the DistObject constructor.

Definition at line 541 of file Tpetra_DistObject_decl.hpp.

void Tpetra::DistObject< Scalar , LO , GO , Node >::print ( std::ostream & os ) const

inherited

Print this object to the given output stream.

We generally assume that all MPI processes can print to the given stream.

virtual std::string Tpetra::DistObject< Scalar , LO , GO , Node >::description ( ) const

virtualinherited

One-line descriptiion of this object.

We declare this method virtual so that subclasses of DistObject may override it.

Reimplemented in Tpetra::MultiVector< Scalar, LO, GO, Node >.

virtual void Tpetra::DistObject< Scalar , LO , GO , Node >::describe	(	Teuchos::FancyOStream &	out,
		const Teuchos::EVerbosityLevel	verbLevel = `Teuchos::Describable::verbLevel_default`
	)		const

virtualinherited

Print a descriptiion of this object to the given output stream.

We declare this method virtual so that subclasses of Distobject may override it.

Reimplemented in Tpetra::MultiVector< Scalar, LO, GO, Node >.

virtual void Tpetra::DistObject< Scalar , LO , GO , Node >::removeEmptyProcessesInPlace ( const Teuchos::RCP< const map_type > & newMap )

virtualinherited

Remove processes which contain no entries in this object's Map.

Warning: This method is ONLY for use by experts. We highly recommend using the nonmember function of the same name defined in this file.; We make NO promises of backwards compatibility. This method may change or disappear at any time.

On input, this object is distributed over the Map returned by getMap() (the "original Map," with its communicator, the "original communicator"). The input newMap of this method must be the same as the result of calling getMap()->removeEmptyProcesses(). On processes in the original communicator which contain zero entries ("excluded processes," as opposed to "included processes"), the input newMap must be Teuchos::null (which is what getMap()->removeEmptyProcesses() returns anyway).

On included processes, reassign this object's Map (that would be returned by getMap()) to the input newMap, and do any work that needs to be done to restore correct semantics. On excluded processes, free any data that needs freeing, and do any other work that needs to be done to restore correct semantics.

This method has collective semantics over the original communicator. On exit, the only method of this object which is safe to call on excluded processes is the destructor. This implies that subclasses' destructors must not contain communication operations.

Returns: The object's new Map. Its communicator is a new communicator, distinct from the old Map's communicator, which contains a subset of the processes in the old communicator.

Note: The name differs from Map's method removeEmptyProcesses(), in order to emphasize that the operation on DistObject happens in place, modifying the input, whereas the operation removeEmptyProcess() on Map does not modify the input.; To implementers of DistObject subclasses: The default implementation of this class throws std::logic_error.

Reimplemented in Tpetra::MultiVector< Scalar, LO, GO, Node >.

virtual size_t Tpetra::DistObject< Scalar , LO , GO , Node >::constantNumberOfPackets ( ) const

protectedvirtualinherited

Whether the implementation's instance promises always to have a constant number of packets per LID (local index), and if so, how many packets per LID there are.

If this method returns zero, the instance says that it might possibly have a different number of packets for each LID (local index) to send or receive. If it returns nonzero, the instance promises that the number of packets is the same for all LIDs, and that the return value is this number of packets per LID.

The default implementation of this method returns zero. This does not affect the behavior of doTransfer() in any way. If a nondefault implementation returns nonzero, doTransfer() will use this information to avoid unnecessary allocation and / or resizing of arrays.

Reimplemented in Tpetra::MultiVector< Scalar, LO, GO, Node >.

virtual void Tpetra::DistObject< Scalar , LO , GO , Node >::doTransfer	(	const SrcDistObject< Scalar, LO, GO, Node > &	src,
		const ::Tpetra::Details::Transfer< local_ordinal_type, global_ordinal_type, node_type > &	transfer,
		const char	modeString[],
		const ReverseOption	revOp,
		const CombineMode	CM,
		const bool	restrictedMode
	)

protectedvirtualinherited

Redistribute data across (MPI) processes.

Parameters

src	[in] The source object, to redistribute into the target object, which is `*this` object.
transfer	[in] The Export or Import object representing the communication pattern. (Details::Transfer is the common base class of these two objects.)
modeString	[in] Human-readable string, for verbose debugging output and error output, explaining what function called this method. Example: "doImport (forward)", "doExport (reverse)".
revOp	[in] Whether to do a forward or reverse mode redistribution.
CM	[in] The combine mode that describes how to combine values that map to the same global ID on the same process.

virtual bool Tpetra::DistObject< Scalar , LO , GO , Node >::reallocArraysForNumPacketsPerLid	(	const size_t	numExportLIDs,
		const size_t	numImportLIDs
	)

protectedvirtualinherited

Reallocate numExportPacketsPerLID_ and/or numImportPacketsPerLID_, if necessary.

Parameters

numExportLIDs	[in] Number of entries in the exportLIDs input array argument of doTransfer().
numImportLIDs	[in] Number of entries in the remoteLIDs input array argument of doTransfer().

Returns: Whether we actually reallocated either of the arrays.

Warning: This is an implementation detail of doTransferNew(). This needs to be protected, but that doesn't mean users should call this method.

virtual void Tpetra::DistObject< Scalar , LO , GO , Node >::doTransferNew	(	const SrcDistObject< Scalar, LO, GO, Node > &	src,
		const CombineMode	CM,
		const size_t	numSameIDs,
		const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &	permuteToLIDs,
		const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &	permuteFromLIDs,
		const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &	remoteLIDs,
		const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &	exportLIDs,
		Distributor &	distor,
		const ReverseOption	revOp,
		const bool	commOnHost,
		const bool	restrictedMode
	)

protectedvirtualinherited

Implementation detail of doTransfer.

LID DualViews come from the Transfer object given to doTransfer. They are always sync'd on both host and device. Users must never attempt to modify or sync them.

bool Tpetra::DistObject< Scalar , LO , GO , Node >::reallocImportsIfNeeded	(	const size_t	newSize,
		const bool	verbose,
		const std::string *	prefix
	)

protectedinherited

Reallocate imports_ if needed.

This unfortunately must be declared protected, for the same reason that imports_ is declared protected.

Parameters

newSize	[in] New size of imports_.
verbose	[in] Whether to print verbose debugging output to stderr on every (MPI) process in the communicator.
prefix	[in] If `verbose` is `true`, then this is a nonnull prefix to print at the beginning of each line of verbose debugging output. Otherwise, not used.

Returns: Whether we actually reallocated.

We don't need a "reallocExportsIfNeeded" method, because exports_ always gets passed into packAndPrepare() by nonconst reference. Thus, that method can resize the DualView without needing to call other DistObject methods.

Member Data Documentation

template<class Scalar, class LO, class GO, class Node>

mv_type Tpetra::Experimental::BlockMultiVector< Scalar, LO, GO, Node >::mv_

protectedinherited

The Tpetra::MultiVector used to represent the data.

Definition at line 686 of file Tpetra_Experimental_BlockMultiVector_decl.hpp.

Teuchos::RCP<const map_type> Tpetra::DistObject< Scalar , LO , GO , Node >::map_

protectedinherited

The Map over which this object is distributed.

Definition at line 1140 of file Tpetra_DistObject_decl.hpp.

Kokkos::DualView<packet_type*, buffer_device_type> Tpetra::DistObject< Scalar , LO , GO , Node >::imports_

protectedinherited

Buffer into which packed data are imported (received from other processes).

Unfortunately, I had to declare these protected, because CrsMatrix uses them at one point. Please, nobody else use them.

Definition at line 1149 of file Tpetra_DistObject_decl.hpp.

Kokkos::DualView<size_t*, buffer_device_type> Tpetra::DistObject< Scalar , LO , GO , Node >::numImportPacketsPerLID_

protectedinherited

Number of packets to receive for each receive operation.

This array is used in Distributor::doPosts() (and doReversePosts()) when starting the ireceive operation.

This may be ignored in doTransfer() if constantNumPackets is nonzero, indicating a constant number of packets per LID. (For example, MultiVector sets the constantNumPackets output argument of packAndPrepare() to the number of columns in the multivector.)

Unfortunately, I had to declare this protected, because CrsMatrix uses it at one point. Please, nobody else use it.

Definition at line 1187 of file Tpetra_DistObject_decl.hpp.

Kokkos::DualView<packet_type*, buffer_device_type> Tpetra::DistObject< Scalar , LO , GO , Node >::exports_

protectedinherited

Buffer from which packed data are exported (sent to other processes).

Unfortunately, I had to declare this protected, because CrsMatrix uses it at one point. Please, nobody else use it.

Definition at line 1194 of file Tpetra_DistObject_decl.hpp.

Kokkos::DualView<size_t*, buffer_device_type> Tpetra::DistObject< Scalar , LO , GO , Node >::numExportPacketsPerLID_

protectedinherited

Number of packets to send for each send operation.

This array is used in Distributor::doPosts() (and doReversePosts()) for preparing for the send operation.

This may be ignored in doTransfer() if constantNumPackets is nonzero, indicating a constant number of packets per LID. (For example, MultiVector sets the constantNumPackets output argument of packAndPrepare() to the number of columns in the multivector.)

Unfortunately, I had to declare this protected, because CrsMatrix uses them at one point. Please, nobody else use it.

Definition at line 1209 of file Tpetra_DistObject_decl.hpp.

The documentation for this class was generated from the following files:

alpha	[in] Coefficient of the "block scaled" term. We treat alpha = 0 as a special case, following the BLAS rules. That is, if alpha = 0, this method does Y = beta * Y.
D	[in] Block diagonal, as a 3-D Kokkos::View. The leftmost index indicates which block, the middle index the row within a block, and the rightmost index the column within a block.
X	[in] The first of two block (multi)vectors whose difference is "block scaled"
Z	[in/out] On input: The second of two block (multi)vectors whose difference is "block scaled." This method may use Z as scratch space.
beta	[in] Coefficient of Y. We treat beta = 0 as a special case, following the BLAS rules. That is, if beta = 0, the initial contents of Y are ignored.

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Methods implemented by subclasses and used by doTransfer().

Access to Maps, the block size, and a MultiVector view.

Detailed Description

template<class Scalar, class LO, class GO, class Node> class Tpetra::Experimental::BlockVector< Scalar, LO, GO, Node >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<class Scalar, class LO, class GO, class Node>
class Tpetra::Experimental::BlockVector< Scalar, LO, GO, Node >
