Tpetra::Details::Transfer< LO, GO, NT > Class Template Reference

Common base class of Import and Export. More...

#include <Tpetra_Details_Transfer_decl.hpp>

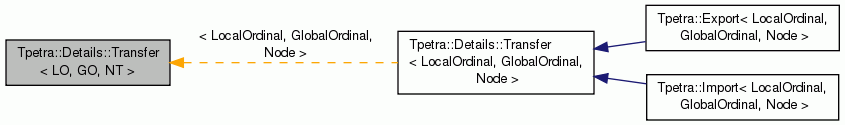

Inheritance diagram for Tpetra::Details::Transfer< LO, GO, NT >:
Inheritance graph
[legend]

Public Types

using map_type = ::Tpetra::Map< LO, GO, NT >
 Map specialization used by this class and subclasses. More...


Public Member Functions

 Transfer (const Teuchos::RCP< const map_type > &source, const Teuchos::RCP< const map_type > &target, const Teuchos::RCP< Teuchos::FancyOStream > &out, const Teuchos::RCP< Teuchos::ParameterList > &plist, const std::string &className)
 Four-argument constructor (most often used). More...

 Transfer (const Transfer< LO, GO, NT > &rhs, reverse_tag tag)
 Reverse-mode "copy" constructor. More...

virtual ~Transfer ()=default
 Destructor (declared virtual for memory safety of derived classes). More...

size_t getNumSameIDs () const
 Number of initial identical IDs. More...

size_t getNumPermuteIDs () const
 Number of IDs to permute but not to communicate. More...

Kokkos::DualView< const LO
*, device_type >
getPermuteFromLIDs_dv () const
 List of local IDs in the source Map that are permuted, as a const DualView (that is sync'd to both host and device). More...

Teuchos::ArrayView< const LO > getPermuteFromLIDs () const
 List of local IDs in the source Map that are permuted. More...

Kokkos::DualView< const LO
*, device_type >
getPermuteToLIDs_dv () const
 List of local IDs in the target Map that are permuted, as a const DualView (that is sync'd to both host and device). More...

Teuchos::ArrayView< const LO > getPermuteToLIDs () const
 List of local IDs in the target Map that are permuted. More...

size_t getNumRemoteIDs () const
 Number of entries not on the calling process. More...

Kokkos::DualView< const LO
*, device_type >
getRemoteLIDs_dv () const
 List of entries in the target Map to receive from other processes, as a const DualView (that is sync'd to both host and device). More...

Teuchos::ArrayView< const LO > getRemoteLIDs () const
 List of entries in the target Map to receive from other processes. More...

size_t getNumExportIDs () const
 Number of entries that must be sent by the calling process to other processes. More...

Kokkos::DualView< const LO
*, device_type >
getExportLIDs_dv () const
 List of entries in the source Map that will be sent to other processes, as a const DualView (that is sync'd to both host and device). More...

Teuchos::ArrayView< const LO > getExportLIDs () const
 List of entries in the source Map that will be sent to other processes. More...

Teuchos::ArrayView< const int > getExportPIDs () const
 List of processes to which entries will be sent. More...

Teuchos::RCP< const map_typegetSourceMap () const
 The source Map used to construct this Export or Import. More...

Teuchos::RCP< const map_typegetTargetMap () const
 The target Map used to construct this Export or Import. More...

::Tpetra::DistributorgetDistributor () const
 The Distributor that this Export or Import object uses to move data. More...

bool isLocallyComplete () const
 Is this Export or Import locally complete? More...

virtual void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
 Describe this object in a human-readable way to the given output stream. More...


Protected Member Functions

Teuchos::FancyOStream & verboseOutputStream () const
 Valid (nonnull) output stream for verbose output. More...

bool verbose () const
 Whether to print verbose debugging output. More...

void describeImpl (Teuchos::FancyOStream &out, const std::string &className, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
 Implementation of describe() for subclasses (Tpetra::Import and Tpetra::Export). More...


Protected Attributes

Teuchos::RCP< ImportExportData
< LO, GO, NT > >
TransferData_
 All the data needed for executing the Export communication plan. More...


Detailed Description

template<class LO, class GO, class NT>
class Tpetra::Details::Transfer< LO, GO, NT >

Common base class of Import and Export.

Warning
This is an implementation detail of Tpetra. We make no promises of backwards compatibility with this class.

Definition at line 67 of file Tpetra_Details_Transfer_decl.hpp.

Member Typedef Documentation

template<class LO, class GO, class NT>
using Tpetra::Details::Transfer< LO, GO, NT >::map_type = ::Tpetra::Map<LO, GO, NT>

Map specialization used by this class and subclasses.

The initial two colons avoid confusion between Tpetra::Map and Tpetra::Details::Map.

Definition at line 73 of file Tpetra_Details_Transfer_decl.hpp.

Constructor & Destructor Documentation

template<class LO , class GO , class NT >
Tpetra::Details::Transfer< LO, GO, NT >::Transfer ( const Teuchos::RCP< const map_type > &  source,
const Teuchos::RCP< const map_type > &  target,
const Teuchos::RCP< Teuchos::FancyOStream > &  out,
const Teuchos::RCP< Teuchos::ParameterList > &  plist,
const std::string &  className
)

Four-argument constructor (most often used).

Precondition
! source.is_null()
Parameters
source[in] Source Map of the Export or Import.
target[in] Target Map of the Export or Import. May be null only if Export or Import is using one of the special source-Map-only constructors.
out[in/out] Stream for verbose debugging output. If null, Transfer will wrap and use std::cerr.
plist[in/out] Parameters; may be null.
className[in] Either "Export" or "Import". Used to control verbose debugging output (sometimes you might want it only for one or the other class).

Definition at line 73 of file Tpetra_Details_Transfer_def.hpp.

template<class LO, class GO, class NT>
Tpetra::Details::Transfer< LO, GO, NT >::Transfer ( const Transfer< LO, GO, NT > &  rhs,
reverse_tag  tag
)

Reverse-mode "copy" constructor.

Use this for constructing an Export from an Import, or an Import from an Export.

Definition at line 86 of file Tpetra_Details_Transfer_def.hpp.

template<class LO, class GO, class NT>
virtual Tpetra::Details::Transfer< LO, GO, NT >::~Transfer ( )
virtualdefault

Destructor (declared virtual for memory safety of derived classes).

Member Function Documentation

template<class LO , class GO , class NT >
size_t Tpetra::Details::Transfer< LO, GO, NT >::getNumSameIDs ( ) const

Number of initial identical IDs.

The number of IDs that are identical between the source and target Maps, up to the first different ID.

Definition at line 121 of file Tpetra_Details_Transfer_def.hpp.

template<class LO , class GO , class NT >
size_t Tpetra::Details::Transfer< LO, GO, NT >::getNumPermuteIDs ( ) const

Number of IDs to permute but not to communicate.

The number of IDs that are local to the calling process, but not part of the first getNumSameIDs() entries. The Import or Export will permute these entries locally (without distributed-memory communication).

Definition at line 128 of file Tpetra_Details_Transfer_def.hpp.

template<class LO , class GO , class NT >
Kokkos::DualView< const LO *, typename Transfer< LO, GO, NT >::device_type > Tpetra::Details::Transfer< LO, GO, NT >::getPermuteFromLIDs_dv ( ) const

List of local IDs in the source Map that are permuted, as a const DualView (that is sync'd to both host and device).

Definition at line 135 of file Tpetra_Details_Transfer_def.hpp.

template<class LO , class GO , class NT >
Teuchos::ArrayView< const LO > Tpetra::Details::Transfer< LO, GO, NT >::getPermuteFromLIDs ( ) const

List of local IDs in the source Map that are permuted.

Definition at line 151 of file Tpetra_Details_Transfer_def.hpp.

template<class LO , class GO , class NT >
Kokkos::DualView< const LO *, typename Transfer< LO, GO, NT >::device_type > Tpetra::Details::Transfer< LO, GO, NT >::getPermuteToLIDs_dv ( ) const

List of local IDs in the target Map that are permuted, as a const DualView (that is sync'd to both host and device).

Definition at line 158 of file Tpetra_Details_Transfer_def.hpp.

template<class LO , class GO , class NT >
Teuchos::ArrayView< const LO > Tpetra::Details::Transfer< LO, GO, NT >::getPermuteToLIDs ( ) const

List of local IDs in the target Map that are permuted.

Definition at line 174 of file Tpetra_Details_Transfer_def.hpp.

template<class LO , class GO , class NT >
size_t Tpetra::Details::Transfer< LO, GO, NT >::getNumRemoteIDs ( ) const

Number of entries not on the calling process.

Definition at line 181 of file Tpetra_Details_Transfer_def.hpp.

template<class LO , class GO , class NT >
Kokkos::DualView< const LO *, typename Transfer< LO, GO, NT >::device_type > Tpetra::Details::Transfer< LO, GO, NT >::getRemoteLIDs_dv ( ) const

List of entries in the target Map to receive from other processes, as a const DualView (that is sync'd to both host and device).

Definition at line 188 of file Tpetra_Details_Transfer_def.hpp.

template<class LO , class GO , class NT >
Teuchos::ArrayView< const LO > Tpetra::Details::Transfer< LO, GO, NT >::getRemoteLIDs ( ) const

List of entries in the target Map to receive from other processes.

Definition at line 204 of file Tpetra_Details_Transfer_def.hpp.

template<class LO , class GO , class NT >
size_t Tpetra::Details::Transfer< LO, GO, NT >::getNumExportIDs ( ) const

Number of entries that must be sent by the calling process to other processes.

Definition at line 211 of file Tpetra_Details_Transfer_def.hpp.

template<class LO , class GO , class NT >
Kokkos::DualView< const LO *, typename Transfer< LO, GO, NT >::device_type > Tpetra::Details::Transfer< LO, GO, NT >::getExportLIDs_dv ( ) const

List of entries in the source Map that will be sent to other processes, as a const DualView (that is sync'd to both host and device).

Definition at line 218 of file Tpetra_Details_Transfer_def.hpp.

template<class LO , class GO , class NT >
Teuchos::ArrayView< const LO > Tpetra::Details::Transfer< LO, GO, NT >::getExportLIDs ( ) const

List of entries in the source Map that will be sent to other processes.

Definition at line 234 of file Tpetra_Details_Transfer_def.hpp.

template<class LO , class GO , class NT >
Teuchos::ArrayView< const int > Tpetra::Details::Transfer< LO, GO, NT >::getExportPIDs ( ) const

List of processes to which entries will be sent.

The entry with local ID getExportLIDs()[i] will be sent to process getExportPiDs()[i].

Definition at line 241 of file Tpetra_Details_Transfer_def.hpp.

template<class LO , class GO , class NT >
Teuchos::RCP< const typename Transfer< LO, GO, NT >::map_type > Tpetra::Details::Transfer< LO, GO, NT >::getSourceMap ( ) const

The source Map used to construct this Export or Import.

Definition at line 248 of file Tpetra_Details_Transfer_def.hpp.

template<class LO , class GO , class NT >
Teuchos::RCP< const typename Transfer< LO, GO, NT >::map_type > Tpetra::Details::Transfer< LO, GO, NT >::getTargetMap ( ) const

The target Map used to construct this Export or Import.

Definition at line 255 of file Tpetra_Details_Transfer_def.hpp.

template<class LO , class GO , class NT >
Tpetra::Distributor & Tpetra::Details::Transfer< LO, GO, NT >::getDistributor ( ) const

The Distributor that this Export or Import object uses to move data.

Definition at line 262 of file Tpetra_Details_Transfer_def.hpp.

template<class LO , class GO , class NT >
bool Tpetra::Details::Transfer< LO, GO, NT >::isLocallyComplete ( ) const

Is this Export or Import locally complete?

If this is an Export, then do all source Map indices on the calling process exist on at least one process (not necessarily this one) in the target Map?

If this is an Import, then do all target Map indices on the calling process exist on at least one process (not necessarily this one) in the source Map?

It's not necessarily an error for an Export or Import not to be locally complete on one or more processes. For example, this may happen in the common use case of "restriction" – that is, taking a subset of a large object. Nevertheless, you may find this predicate useful for figuring out whether you set up your Maps in the way that you expect.

Definition at line 269 of file Tpetra_Details_Transfer_def.hpp.

template<class LO , class GO , class NT >
void Tpetra::Details::Transfer< LO, GO, NT >::describe ( Teuchos::FancyOStream &  out,
const Teuchos::EVerbosityLevel  verbLevel = Teuchos::Describable::verbLevel_default
) const
virtual

Describe this object in a human-readable way to the given output stream.

You must call this method as a collective over all processes in the communicator of the source and target Map of this object.

Parameters
out[out] Output stream to which to write. Only Process 0 in this object's communicator may write to the output stream.
verbLevel[in] Verbosity level. This also controls whether this method does any communication. At verbosity levels higher (greater) than Teuchos::VERB_LOW, this method behaves as a collective over the object's communicator.

Teuchos::FancyOStream wraps std::ostream. It adds features like tab levels. If you just want to wrap std::cout, try this:

auto out = Teuchos::getFancyOStream (Teuchos::rcpFromRef (std::out));

Reimplemented in Tpetra::Import< LocalOrdinal, GlobalOrdinal, Node >, and Tpetra::Export< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 276 of file Tpetra_Details_Transfer_def.hpp.

template<class LO , class GO , class NT >
Teuchos::FancyOStream & Tpetra::Details::Transfer< LO, GO, NT >::verboseOutputStream ( ) const
protected

Valid (nonnull) output stream for verbose output.

Definition at line 285 of file Tpetra_Details_Transfer_def.hpp.

template<class LO , class GO , class NT >
bool Tpetra::Details::Transfer< LO, GO, NT >::verbose ( ) const
protected

Whether to print verbose debugging output.

Definition at line 295 of file Tpetra_Details_Transfer_def.hpp.

template<class LO , class GO , class NT >
void Tpetra::Details::Transfer< LO, GO, NT >::describeImpl ( Teuchos::FancyOStream &  out,
const std::string &  className,
const Teuchos::EVerbosityLevel  verbLevel = Teuchos::Describable::verbLevel_default
) const
protected

Implementation of describe() for subclasses (Tpetra::Import and Tpetra::Export).

Parameters
out[out] Output stream to which to write. Only Process 0 in this object's communicator may write to the output stream.
className[in] Name of the subclass of Transfer calling this method.
verbLevel[in] Verbosity level. This also controls whether this method does any communication. At verbosity levels higher (greater) than Teuchos::VERB_LOW, this method behaves as a collective over the object's communicator.

Definition at line 302 of file Tpetra_Details_Transfer_def.hpp.

Member Data Documentation

template<class LO, class GO, class NT>
Teuchos::RCP<ImportExportData<LO, GO, NT> > Tpetra::Details::Transfer< LO, GO, NT >::TransferData_
protected

All the data needed for executing the Export communication plan.

Definition at line 239 of file Tpetra_Details_Transfer_decl.hpp.


The documentation for this class was generated from the following files:
